PVC perforating leather belt hole punching machine

PVC perforating leather belt hole punching machine

Mechanical Punching Machine (Leather Punching Machine) of Dongguan South Nekon Machinery Co.Ltd. makes use of foreign advanced technology ,

design and develop completely ourselves independent ly, and own completely its intellectual property rights. South Nekon Mechanical Punching Machine,

since the market use, deeply loved and favored by our customers and earns a good reputation in the market allover the world.

Technical Data:

Model No.: NK-CK155

Voltage: 380V

Power: 1100W

Weight: 7500kg

Speed: 2-8m/min

Max thickness that can punch: better less than 10 mm or 20 mm (There are two kinds)

Working width: 1600mm

Overall dimension: 16000 x 3200 x 2900 mm

Tolerance: within 1 mm

Feature:

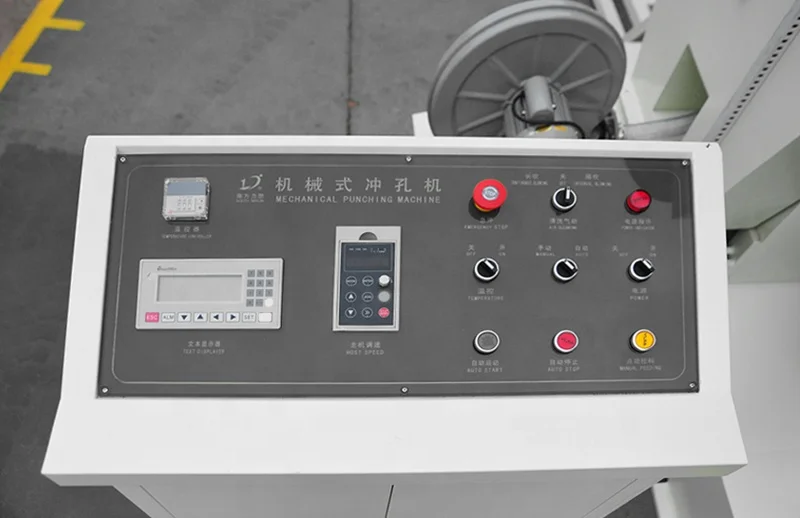

 1. The machine is easy operating, with high accurate and efficiency;

 2. Can punch 1-4 layers of material one time;Absolutely good-looking of the punching effect with

     this Mechanical Leather Punching Machine;

 3.Can punch 50-400 times/min;

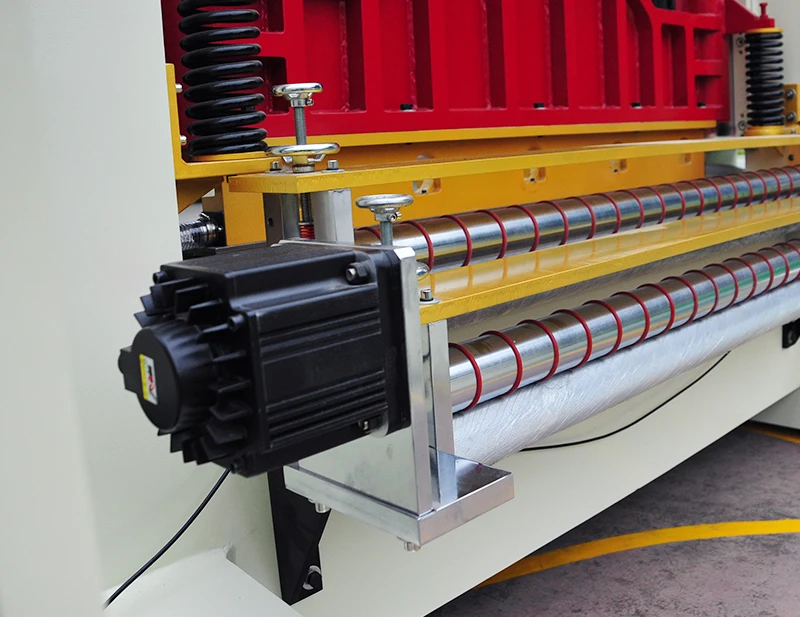

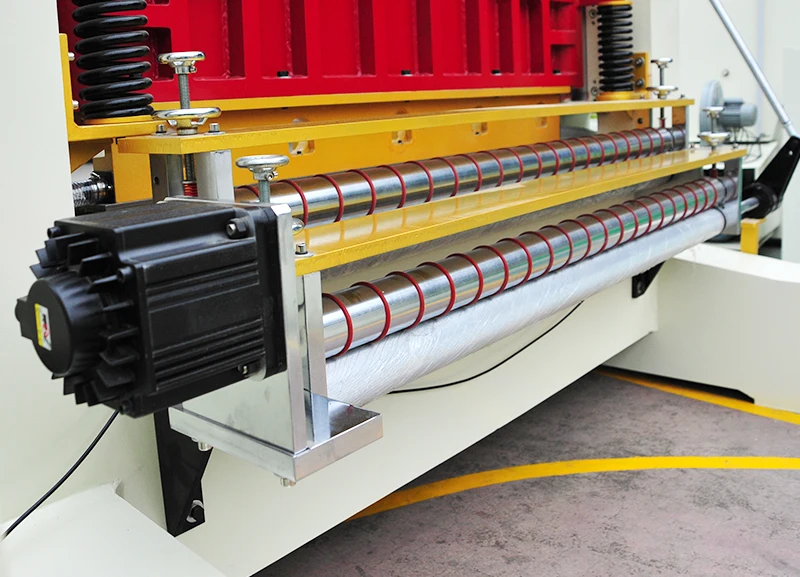

 4. With the adjustment of the servo motor, with one moulds can punch different patterns;

 5. Machine running smoothly and without feeling of vibration.

Applications:

  Mainly applicable to sponge, leather, cardboard, non-woven fabrics and other large-scale punch.
