Product Overview
Description

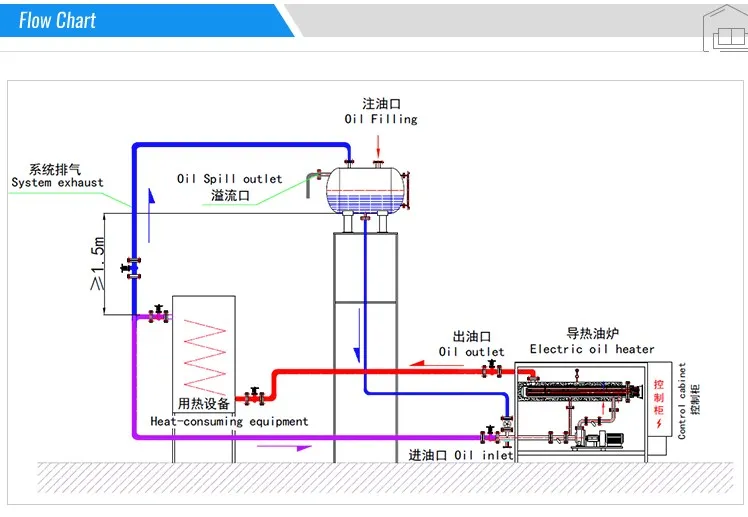

Thermal oil electric heater is a new type, safe, high efficiency and energy saving, low pressure (under normal pressure or lower pressure) and can provide high temperature heat energy special industrial furnace, It is a direct-flow special industrial furnace that uses electricity as the heat source and heat transfer oil as the heat carrier, and uses a circulating oil pump to force the liquid phase to circulate. The heat energy is transferred to the heating equipment and then returned to the reheated DC special industrial furnace, Repeatedly in this way, the continuous transfer of heat is realized, and the temperature of the heated object is increased to meet the heating process requirements.

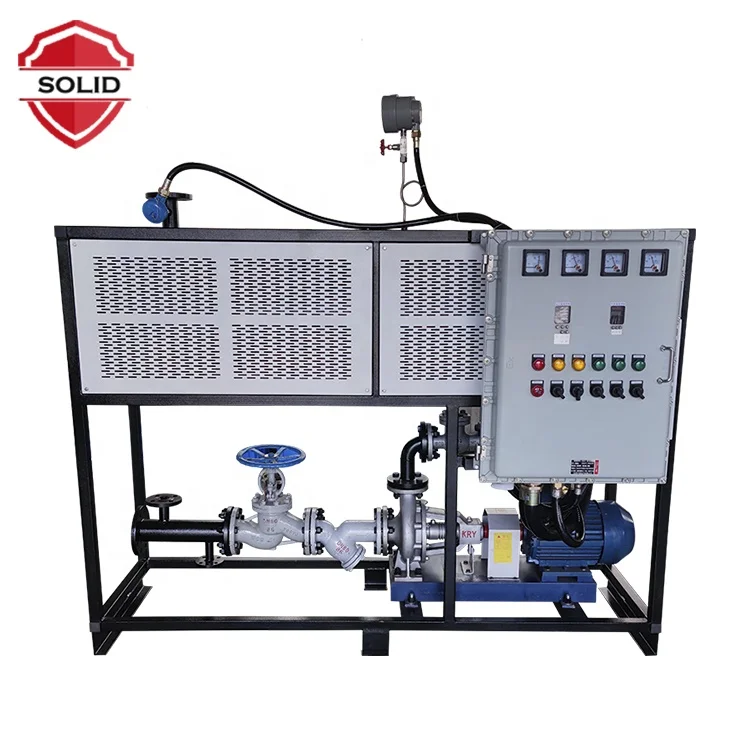

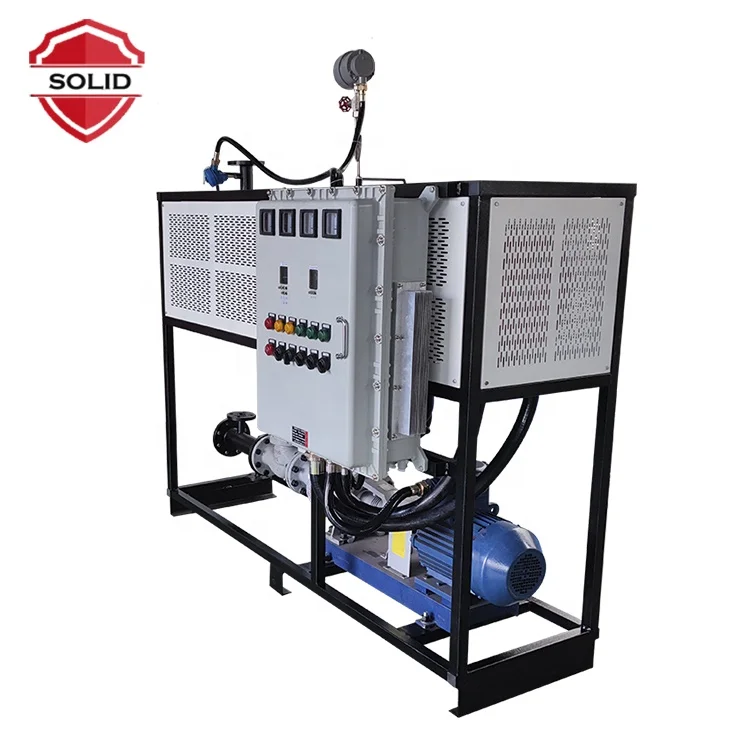

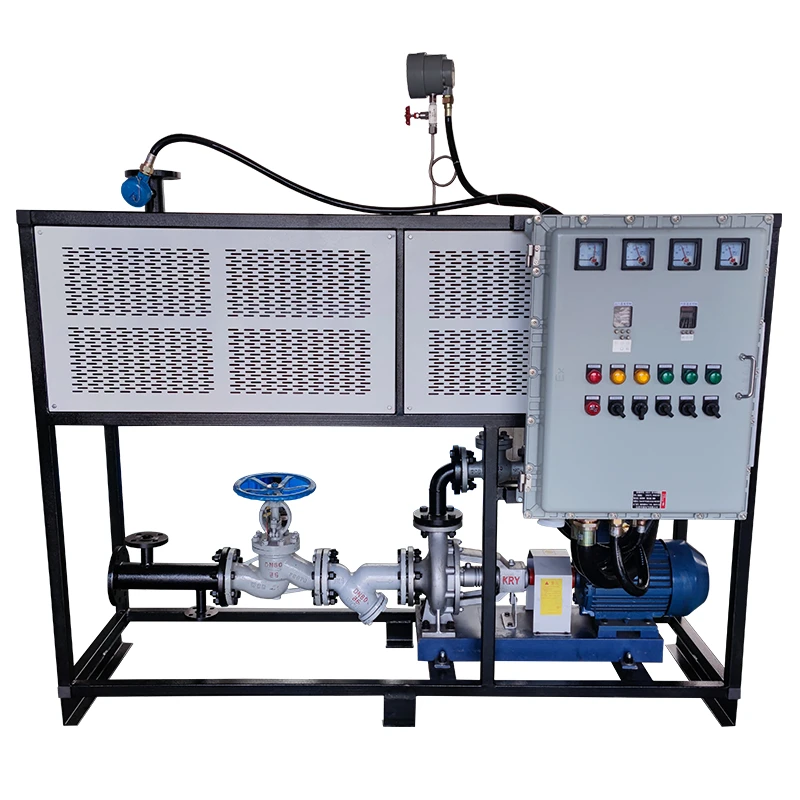

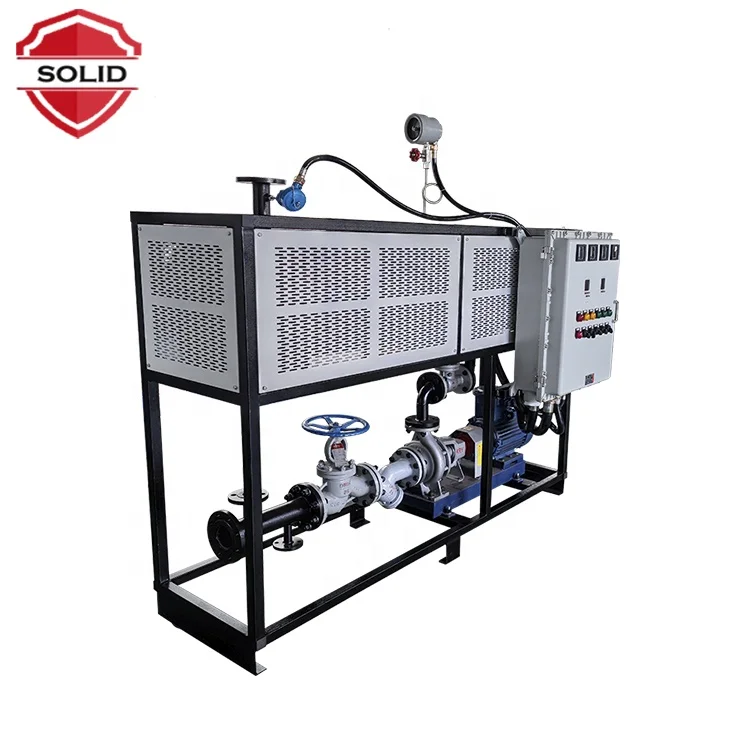

Thermal oil electric heater system is composed of explosion-proof electric heater, organic heat carrier furnace, heat exchanger (configurable), control cabinet, hot oil pump, expansion tank, etc., combined into a skid, The user only needs to connect to the power supply, medium inlet and outlet pipes and some electrical interfaces to use.
The temperature is controlled by a digital display temperature controller for thermal oil electric heater, which has the functions of over-temperature alarm, low oil level alarm and over-pressure alarm. It is a high-efficiency and energy-saving heating equipment in the chemical, petroleum, machinery, printing and dyeing, food, shipbuilding, textile, film and other industries.
Thermal oil electric heater system is composed of explosion-proof electric heater, organic heat carrier furnace, heat exchanger (configurable), control cabinet, hot oil pump, expansion tank, etc., combined into a skid, The user only needs to connect to the power supply, medium inlet and outlet pipes and some electrical interfaces to use.
The temperature is controlled by a digital display temperature controller for thermal oil electric heater, which has the functions of over-temperature alarm, low oil level alarm and over-pressure alarm. It is a high-efficiency and energy-saving heating equipment in the chemical, petroleum, machinery, printing and dyeing, food, shipbuilding, textile, film and other industries.
Technical specifications | ||||||||||||||||
Model | Power(KW) | Heater size(mm) | Expanded size(mm) | Connection diameter(mm) | Lift of pump(m) | Flow of pump(m3/h) | Motor power(KW) | temperature range | ||||||||
SOLID-YL-5 | 5 | 80*700 | 400*400 | DN20 | 22 | 1.5 | 0.75 | 0℃-300℃ | ||||||||
SOLID-YL-10 | 10 | 80*700 | 400*400 | DN20 | 22 | 1.5 | 0.75 | |||||||||
SOLID-YL-15 | 15 | 150*800 | 400*400 | DN25 | 28 | 3 | 1.5 | |||||||||
SOLID-YL-20 | 20 | 150*800 | 400*400 | DN25 | 28 | 3 | 1.5 | |||||||||
SOLID-YL-25 | 25 | 150*800 | 400*400 | DN32 | 28 | 6 | 1.5 | |||||||||
SOLID-YL-30 | 30 | 150*800 | 400*400 | DN32 | 28 | 6 | 1.5 | |||||||||
SOLID-YL-40 | 40 | 150*800 | 500*600 | DN40 | 28 | 10 | 2.2 | |||||||||
SOLID-YL-50 | 50 | 150*800*2 stages | 500*600 | DN40 | 28 | 10 | 2.2 | |||||||||
SOLID-YL-60 | 60 | 150*800*2 stages | 500*600 | DN50 | 30 | 12.5 | 3 | |||||||||
SOLID-YL-70 | 70 | 150*800*2 stages | 500*600 | DN50 | 30 | 12.5 | 3 | |||||||||
SOLID-YL-80 | 80 | 150*800*2 stages | 500*600 | DN50 | 30 | 12.5 | 3 | |||||||||
SOLID-YL-90 | 90 | 150*800*3 stages | 500*600 | DN50 | 40 | 18 | 5.5 | 0℃-300℃ | ||||||||
SOLID-YL-100 | 100 | 150*800*3 stages | 500*600 | DN50 | 40 | 18 | 5.5 | |||||||||
SOLID-YL-120 | 120 | 150*800*3 stages | 500*600 | DN65 | 48 | 30 | 7.5 | |||||||||
SOLID-YL-140 | 140 | 150*800*4 stages | 500*600 | DN65 | 48 | 30 | 7.5 | |||||||||
SOLID-YL-150 | 150 | 150*800*4 stages | 700*800 | DN65 | 48 | 30 | 7.5 | |||||||||
SOLID-YL-180 | 180 | 150*800*3 stages | 700*800 | DN65 | 40 | 45 | 11 | |||||||||
SOLID-YL-240 | 240 | 150*800*4 stages | 700*800 | DN65 | 40 | 45 | 11 | |||||||||
SOLID-YL-280 | 280 | 150*800*3 stages | 700*800 | DN65 | 40 | 45 | 11 | |||||||||
SOLID-YL-300 | 300 | 150*800*3 stages | 800*1000 | DN80 | 50 | 50 | 15 | |||||||||
SOLID-YL-360 | 360 | 150*800*3 stages | 800*1000 | DN80 | 50 | 50 | 15 | |||||||||
SOLID-YL-400 | 400 | 150*800*4 stages | 800*1000 | DN100 | 54 | 60 | 22 | |||||||||
SOLID-YL-450 | 450 | 150*800*4 stages | 1000*1200 | DN100 | 54 | 60 | 22 | |||||||||
SOLID-YL-480 | 480 | 150*800*4 stages | 1000*1200 | DN100 | 54 | 60 | 22 | |||||||||
SOLID-YL-600 | 600 | 150*800*3 stages | 1000*1200 | DN150 | 65 | 90 | 30 | |||||||||
SOLID-YL-1000 | 1000 | 150*800*4 stages | 1000*1200 | DN150 | 72 | 95 | 37 | |||||||||
