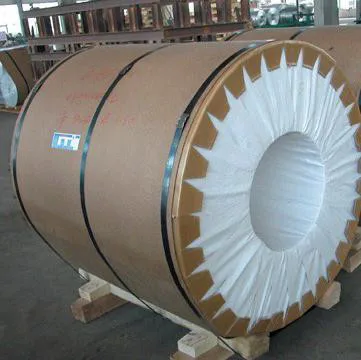

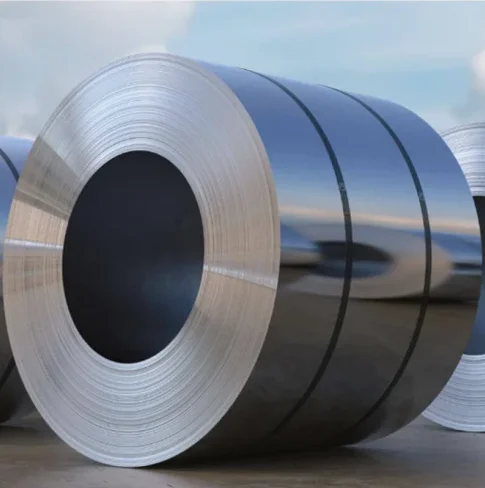

China Electrical Core Silicon Lamination Steel Coil/Sheet, Relay Steel and Transformer Steel
- Category: >>>
- Supplier: Sichuan Xiangyue Power Line Components Co. Ltd.
Share on (1600428784169):
Product Overview
Description
C27QH120 Silicon Steel Sheet

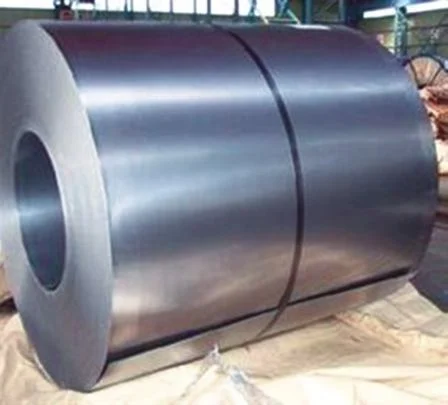

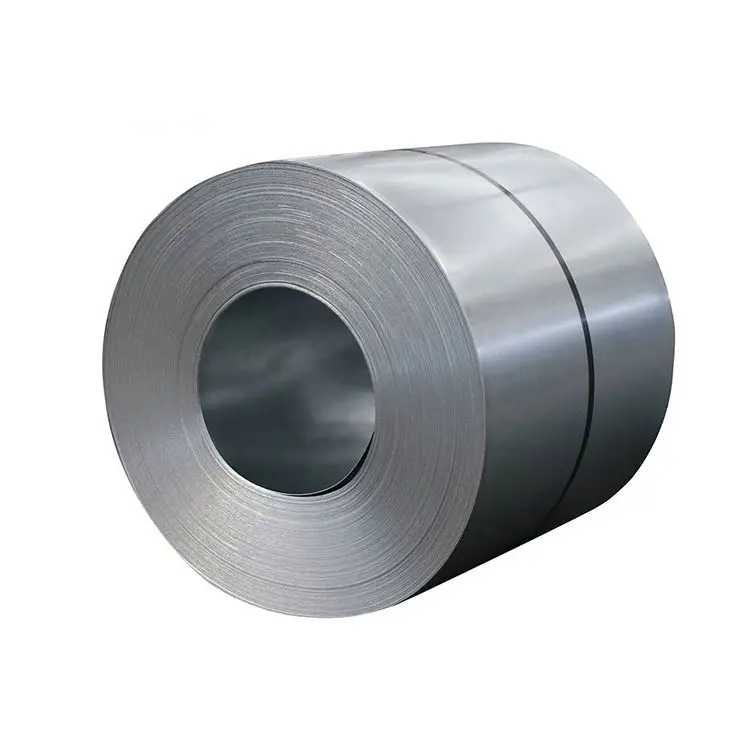

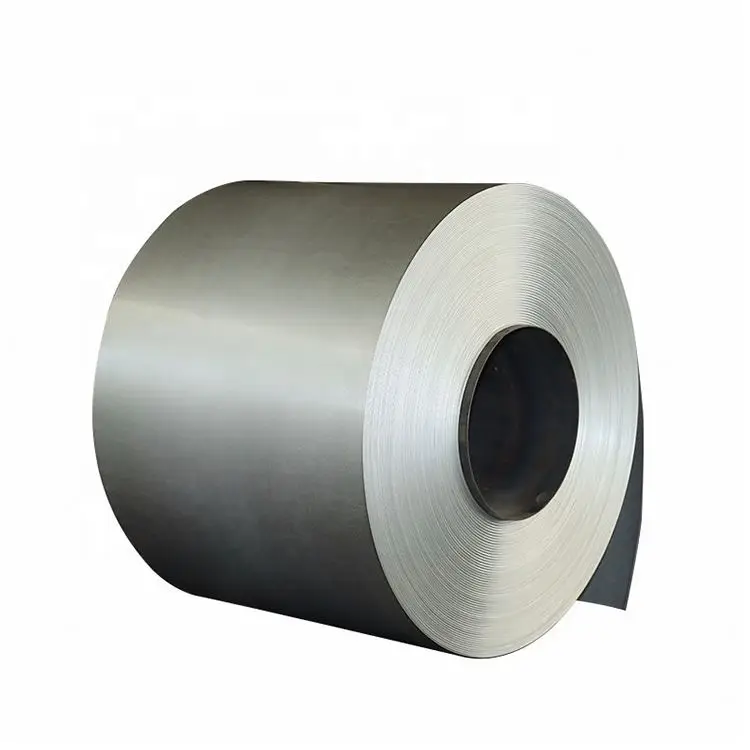

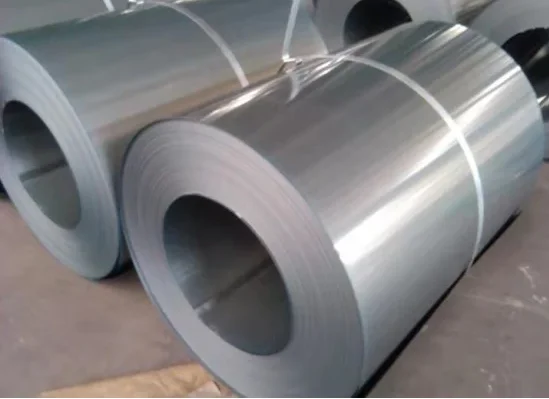

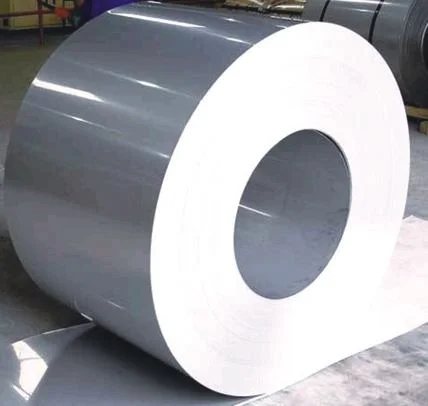

COLD ROLLED STEEL COIL
Cold rolled steel have good processability, with good flatness and excellent surface, are available with different thickness and width combinations. The steel grades for cold forming can be preferred when bending and deep drawing processes where toughness and ductile properties are required. These steels are mainly used in automotive components and body panels, metal furniture, appliances, radiators, some profiles and ventilation equipments.
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
Standard Magnetic and Technical Properties | ||
Product Name | CRGO Silicon Steel Sheet | |
Product model(Grade) | C27QH120 | |
Type | Domain refined high induction type | |
Thickness | 0.27 | |
Density | 7.65 | |
core loss(w/kg) | 1.06-1.16(P17/50） | |
induction(T） | 1.92 | |
Min. induction(T） | 1.86 | |
Standard Dimensions of Products | ||
Inside diameter(mm) | 508 | |
Steel Type | CRGO | |
Shape | Steel Coil | |
Surface Treatment | T2 Coated | |
Technique | Cold Rolled | |
Place of Origin | China | |
Length | Coil or As required | |
color | Gray | |
Hardness | Mid Hard | |
tolerance | ±1% | |
Standard | GB/T2521.2-2016 | |
Size | 960-1020mm | |
Weight | 2-5MT | |

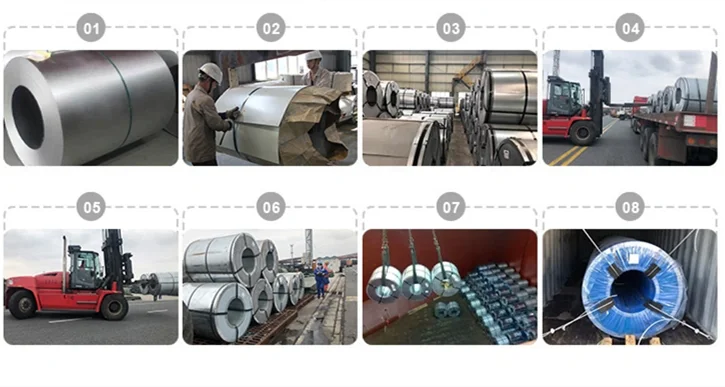

Package | Standard Seaworth Packing | |
Type | Domain refined high induction type |
Extra large generator | |
Large transformer | √ |
Small and medium transformer | √ |
Distribution transformer | √ |
Special transformer | √ |
Traction transformer | √ |
Miniature power transformer | |
Instrument transformer | |
UHVDC transformer | √ |
Reactor and magnetiv amplifier | √ |
1.Excellent Electromahnetic Property
The GO electrical steel has the characteristics of low iron loss, high magnetic induction and stable performance. To ensure lower cost of downstream products, energy-saving effect better.
Excellent mechanical properties are convenient for the users to slit, cut and laminate.
3.Excellent Dimensional Accuracy
The products has smooth surface, uniform thickness, small intra-plate deviation and high lamination factor.
4.Excellent Performance of Insulating Coating
The product has the advantages of surface insulation, uniform coating, good adhesion, good heat resistance and good corrosion resistance, and good insulation between layers.
The GO electrical steel has the characteristics of low iron loss, high magnetic induction and stable performance. To ensure lower cost of downstream products, energy-saving effect better.
2.Outstanding Processability
Excellent mechanical properties are convenient for the users to slit, cut and laminate.
3.Excellent Dimensional Accuracy
The products has smooth surface, uniform thickness, small intra-plate deviation and high lamination factor.
4.Excellent Performance of Insulating Coating
The product has the advantages of surface insulation, uniform coating, good adhesion, good heat resistance and good corrosion resistance, and good insulation between layers.
1.Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
2. Q: Can you do design for me?
A: We have experienced engineers,we can design for you,Just give me your ideas.
3. Q: When can I get the quotation
A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority.
4. Q: How about the delivery date?
A: For normal items delivery time is 25-35 days
5. Q: Which payment way is workable?
A: T/T,L/C at sight etc.
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
2. Q: Can you do design for me?
A: We have experienced engineers,we can design for you,Just give me your ideas.
3. Q: When can I get the quotation
A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority.
4. Q: How about the delivery date?
A: For normal items delivery time is 25-35 days
5. Q: Which payment way is workable?
A: T/T,L/C at sight etc.
