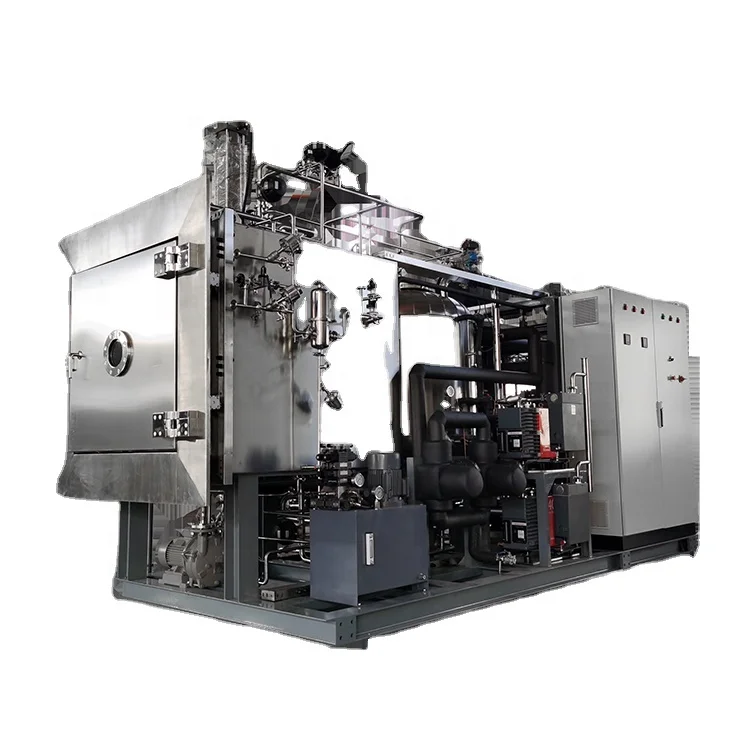

PCR Kit Lyophilization Equipment Diagnosis Kit Lyophilization Equipment
- Category: >>>
- Supplier: Shanghai Lyomac Mechanical Technology Co. Ltd.
Share on (1600428796323):
Product Overview
Description
Product Overview

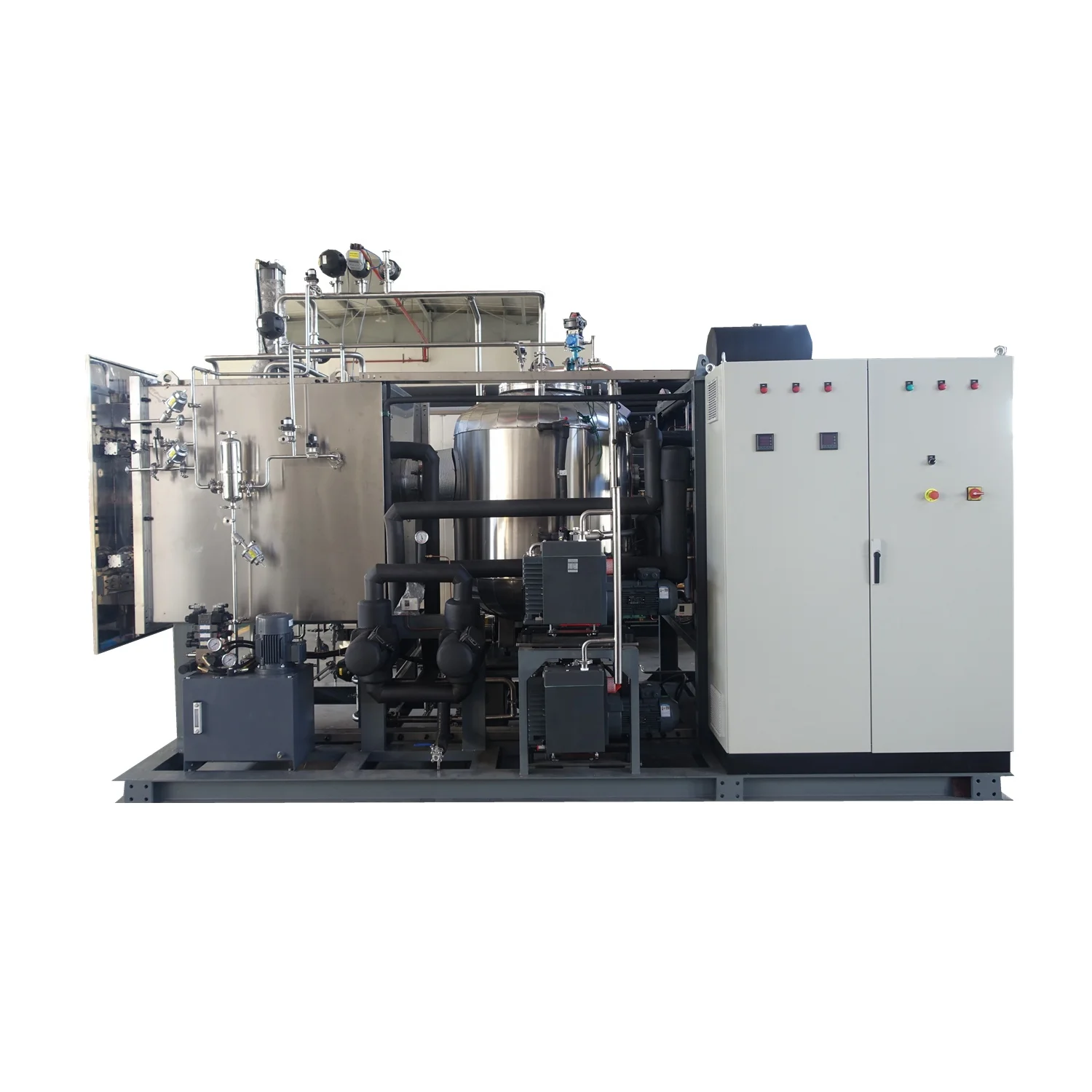

Industrial Freeze Dryer/ Lyophilizer
Freeze drying machine, Dryer, Vacuum dryer, Freeze dryer, Lyophilizer, Vacuum Freeze dryer
LYOPRO-10
The industrial model freeze dryer with drying capacity up to 1,000 Liters, cover most demand for vial or other material commercial production, compliance with cGMP regulations. More optional systems available, main features are:
*Automatic shelf stoppering under vacuum
*Automactic control for freeze drying, SIP and CIP
*Scada control system compliance with GAMP regulation and save up to thousand recipes
*Shelf flatness less than 1.0mm, temperature uniformity less than 1 ℃
*Energy saving control system by control compressor and vacuum pump
*Environment friendly refrigerant
*Flexible arrangement design, suit user’s plant layout,thus space saved.
*Automatic shelf stoppering under vacuum
*Automactic control for freeze drying, SIP and CIP
*Scada control system compliance with GAMP regulation and save up to thousand recipes
*Shelf flatness less than 1.0mm, temperature uniformity less than 1 ℃
*Energy saving control system by control compressor and vacuum pump
*Environment friendly refrigerant
*Flexible arrangement design, suit user’s plant layout,thus space saved.
Application
Freeze dried injections
Vaccine, hormone, etc.
Cosmetic products
Freeze-dried powder, mask...
Freeze-dried blood products
Freeze-dried blood
PRODUCT SPECIFICATIONS
Type | LYOPRO-10.0 | LYOPRO-13.0 | LYOPRO-16.0 | LYOPRO-20.0 | LYOPRO-25.0 |
Drying capacity (Liter) | 200 | 260 | 320 | 400 | 500 |
Shelf area(m²) | 9.72 | 12.96 | 15.84 | 19.8 | 24.75 |
Shelf size(L*W*H)(mm) | 1200*900 | 1200*1200 | 1200*1200 | 1500*1200 | 1500*1500 |
Useable Shelf No. | 9 | 9 | 11 | 11 | 11 |
Vial loading quantity φ16 | 40000 | 56000 | 68000 | 80000 | 100000 |
φ22 | 20000 | 28000 | 34000 | 40000 | 50000 |
Inter. Shelf distance | 100 | 100 | 100 | 100 | 100 |
Shelf ultimate cooling temperature(℃) | -55 | -55 | -55 | -55 | -55 |
Condenser ultimate cooling temperature(℃) | -75 | -75 | -75 | -75 | -75 |
Ultimate vacuum(Pa) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Dimension(L*W*H)(mm) | 6000*1750*3800 | 6800*2000*3800 | 6800*2000*4200 | 7500*2000*4200 | 7200*3000*4200 |
Weight(Kg) | 10000 | 12500 | 15000 | 17500 | 20000 |
Power(KW) | 63 | 77.5 | 91.5 | 120 | 135 |
Optional System
* Pizza/Sub door: Build on front of chamber.Operated automatically
* CIP (cleaning in place) and SIP (Sterilization in place) system
* Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation
* Adjustable shelf space mechanism
* Vial stoppering system
* CIP (cleaning in place) and SIP (Sterilization in place) system
* Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation
* Adjustable shelf space mechanism
* Vial stoppering system
* CIP station for CIP system
* Bottom removable tray for vials
Auto loading and unloading system
CIP&SIP System
Pizza/Sub Door
Bitzer compressor
Edward vacuum pump
Grundfos circulating pump

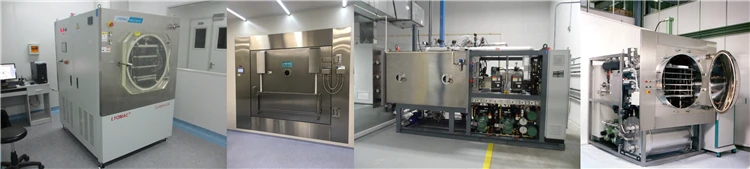

Successful Project
Project in Russia
Project in Australia
Project in USA
Our Advantages
Most advanced technology on Freeze dryer.
>>>Energy saving function(motor switch over, Inverter control)
>>>Auto alarm and mail to user
>>>Eutectic online determine function
>>>Precaution for maintenance
>>>Critical system backed up, auto change..(compressor, vacuum pump, circulation pump etc.)
More customer satisfied service
>>>Preventive maintenance service on warranty period
>>>AMC service of all machine life
>>>Understand all brand freeze dryer service
>>>Retrofit service and spare parts
More understanding of GMP in fabricating
>>>Separate ss with carbon steel stock
>>>Separate tool for ss and carbon steel
>>>No scratch on ss board.
>>>No residual water on clean pipeline.
>>>Energy saving function(motor switch over, Inverter control)
>>>Auto alarm and mail to user
>>>Eutectic online determine function
>>>Precaution for maintenance
>>>Critical system backed up, auto change..(compressor, vacuum pump, circulation pump etc.)
More customer satisfied service
>>>Preventive maintenance service on warranty period
>>>AMC service of all machine life
>>>Understand all brand freeze dryer service
>>>Retrofit service and spare parts
More understanding of GMP in fabricating
>>>Separate ss with carbon steel stock
>>>Separate tool for ss and carbon steel
>>>No scratch on ss board.
>>>No residual water on clean pipeline.

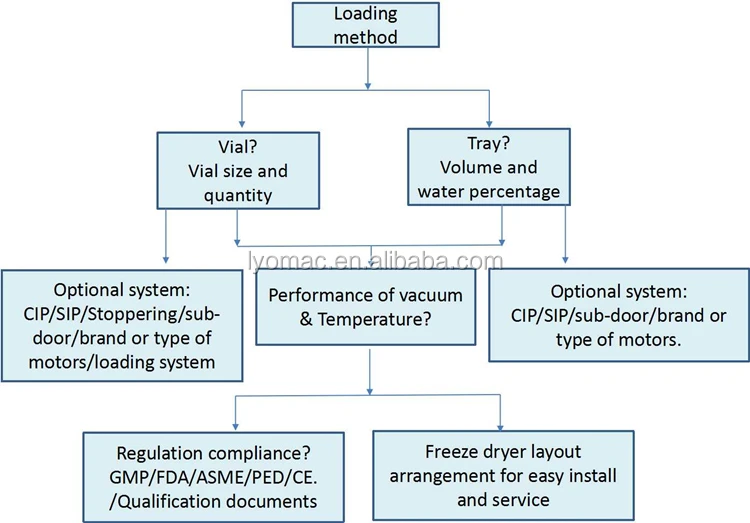

How to choose ?

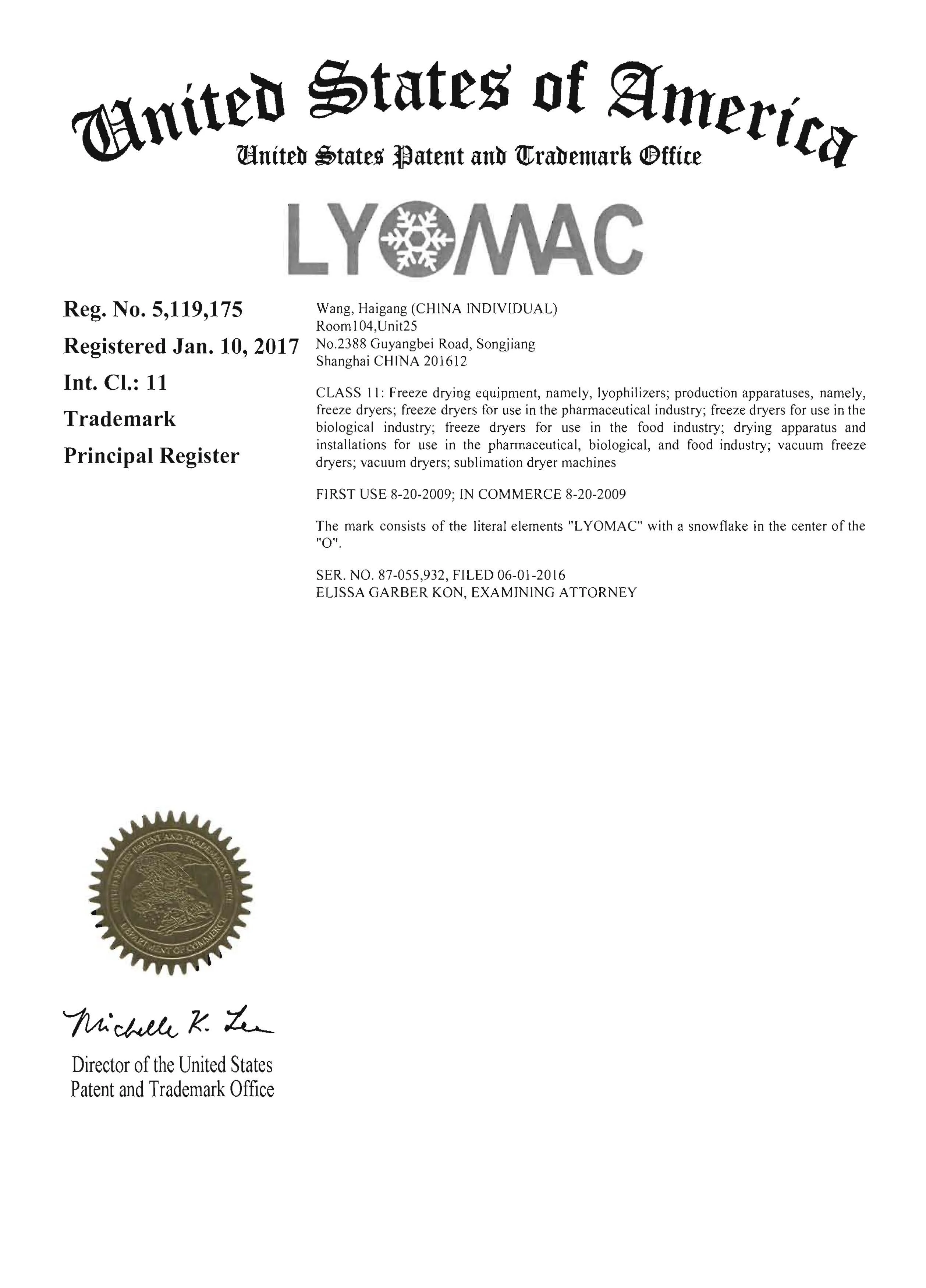

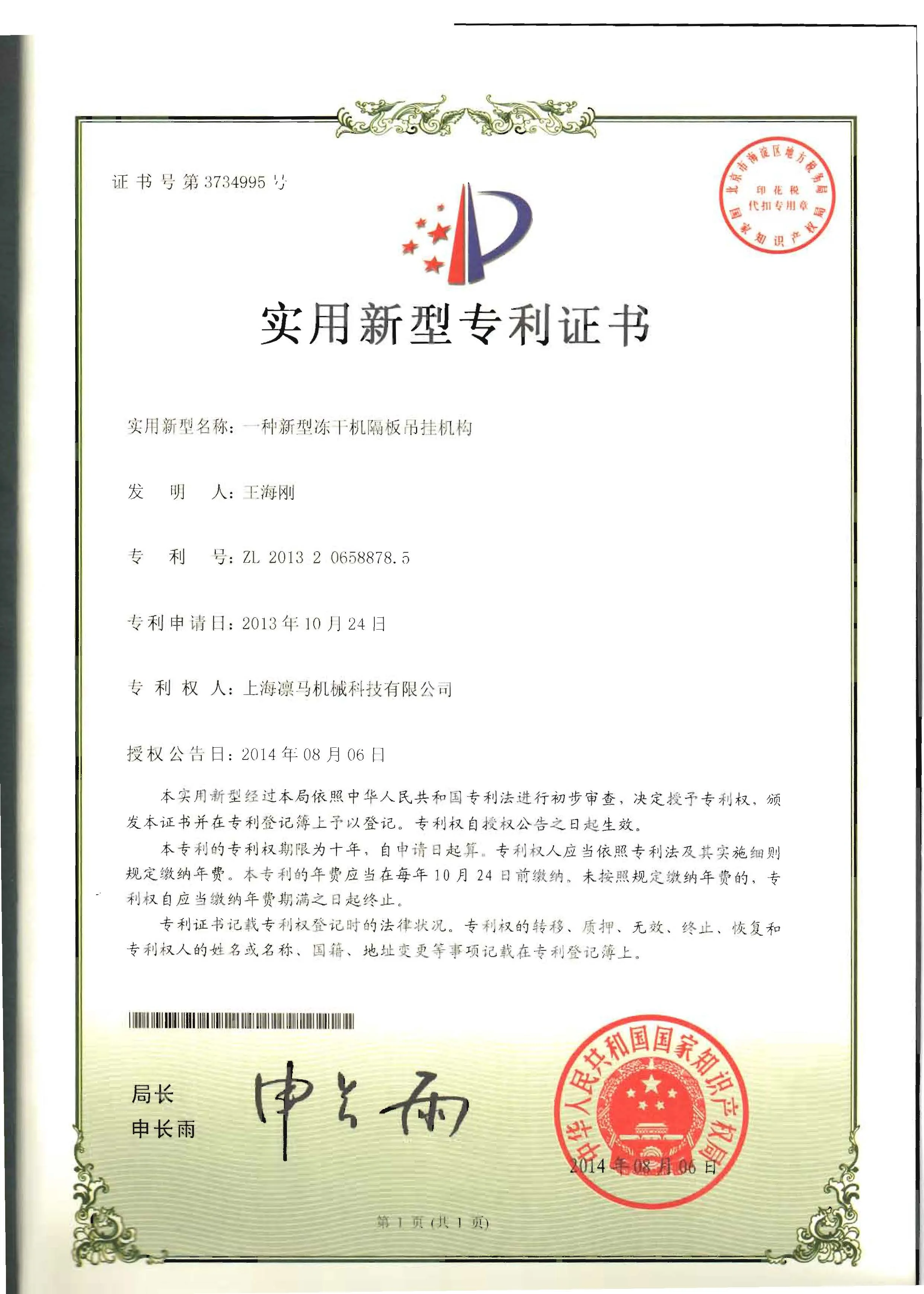

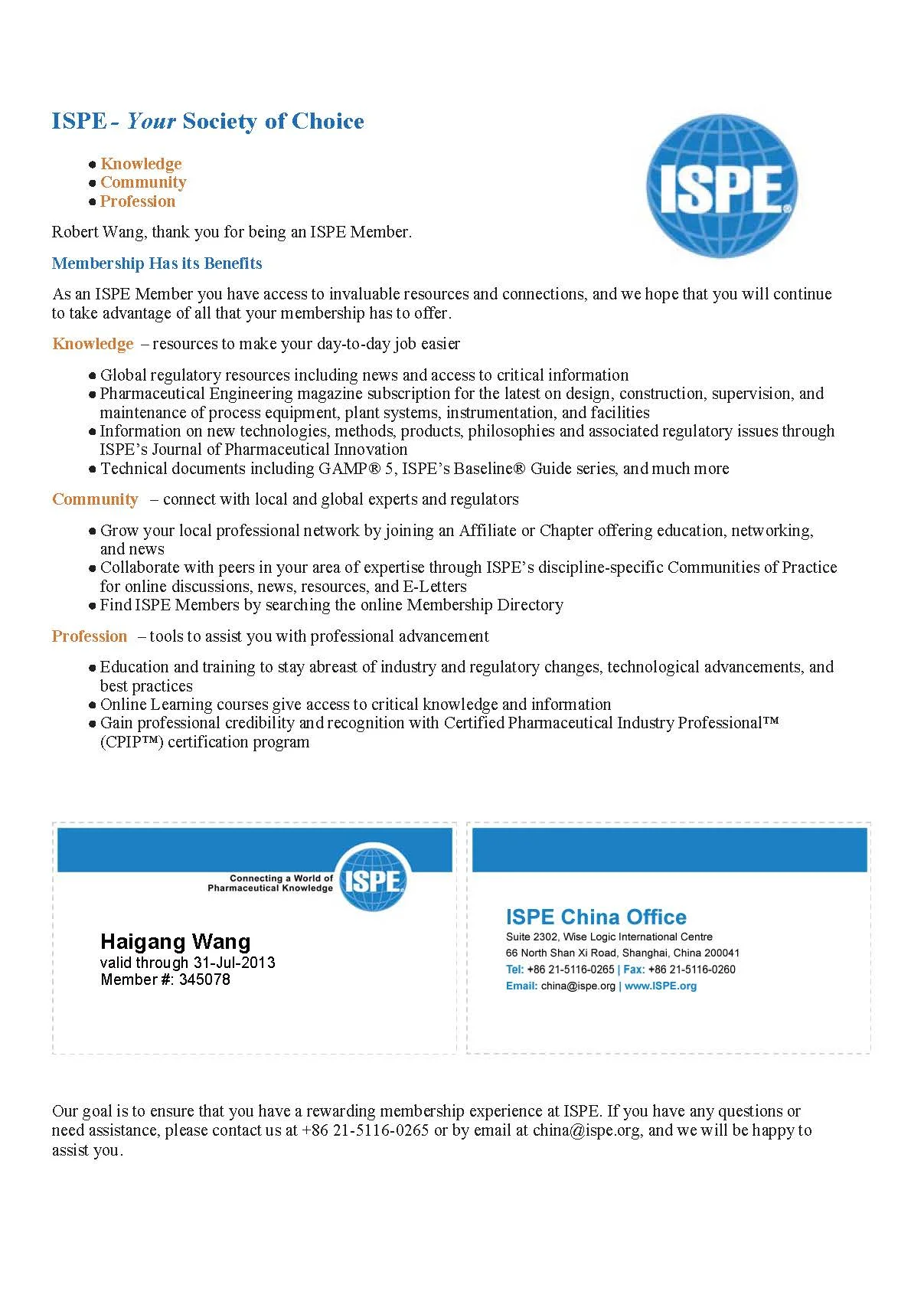

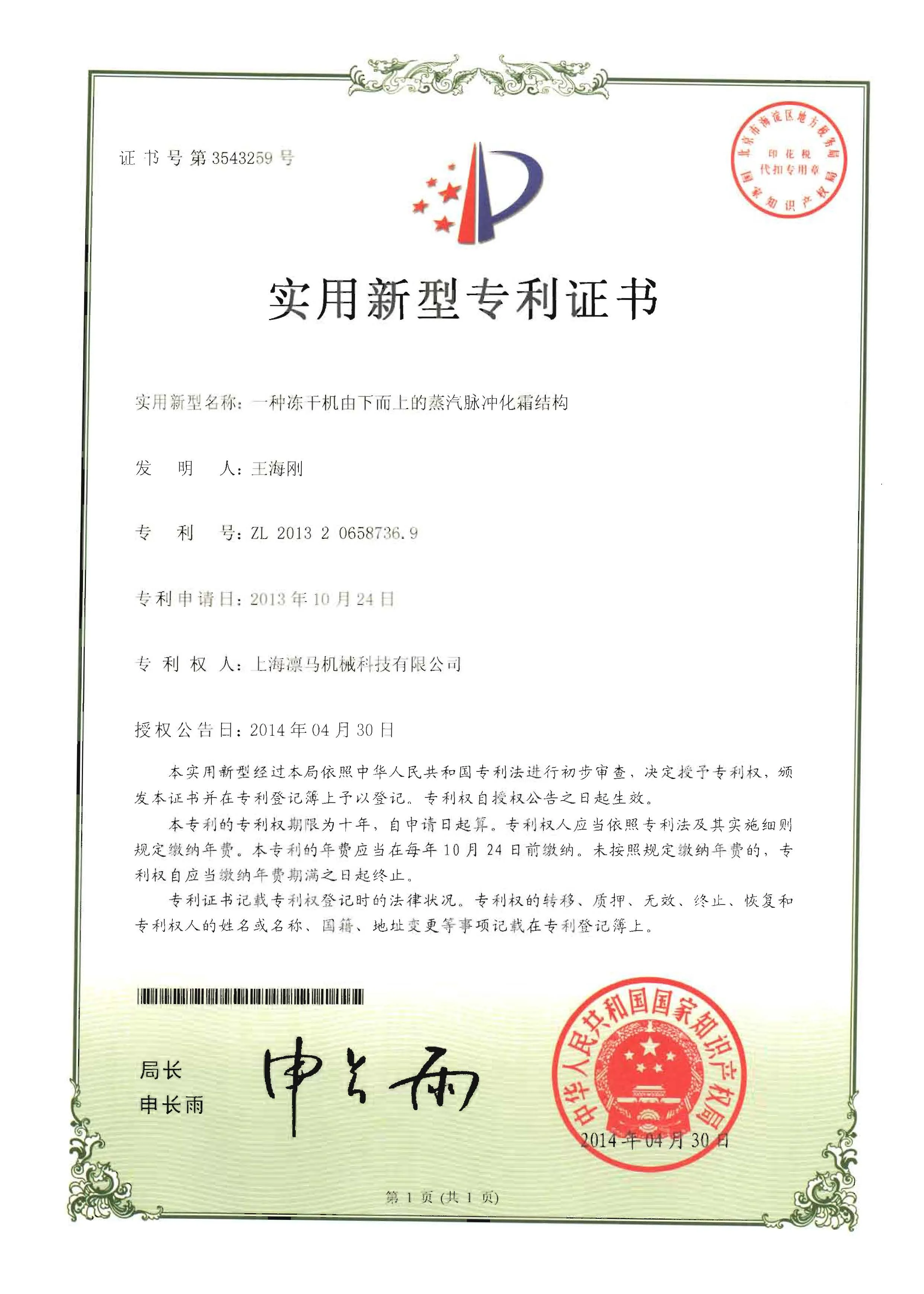

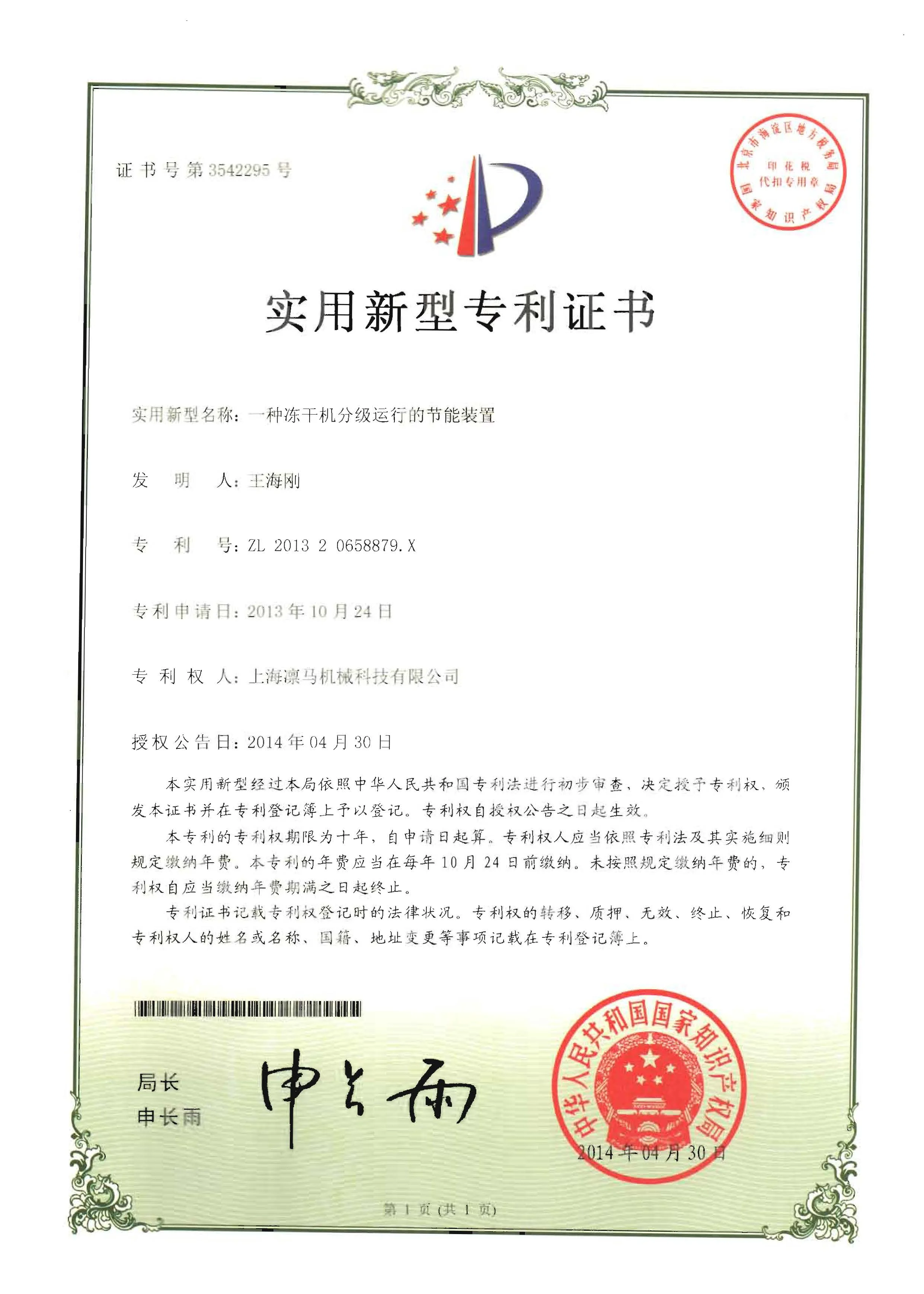

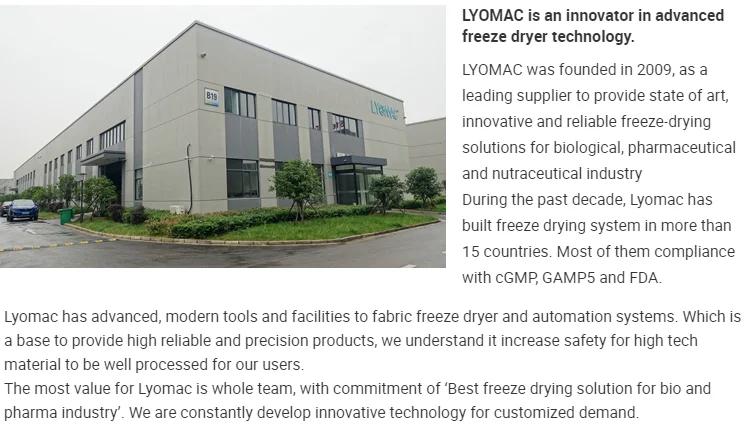

Company Profile
FAQ
Q: How to choose suitable equipment ?
A: Tell us your URS ,then we will recommend you suitable equipment according to your requirements, application experience and feedback from our clients.
Q: How long is your delivery time?
A:Standard delivery time in local market is 3 months.
Q:How do you guarantee after-sales service?
A:We have our service network all over the world. And we are “Alibaba” verified supplier.
Q:What kind of warranty we provide?
Most of our product we offer 1 to 2 years warranty. During the warranty time,any problem, please contact us.
For more details about freeze dryer, please feel free to contact us !
A: Tell us your URS ,then we will recommend you suitable equipment according to your requirements, application experience and feedback from our clients.
Q: How long is your delivery time?
A:Standard delivery time in local market is 3 months.
Q:How do you guarantee after-sales service?
A:We have our service network all over the world. And we are “Alibaba” verified supplier.
Q:What kind of warranty we provide?
Most of our product we offer 1 to 2 years warranty. During the warranty time,any problem, please contact us.
For more details about freeze dryer, please feel free to contact us !
When you purchase LYOMACs' product, you get more than a freeze dryer. You get a long-term partner delivering industry-changing innovations, high-performing products, and on-call expert support.
