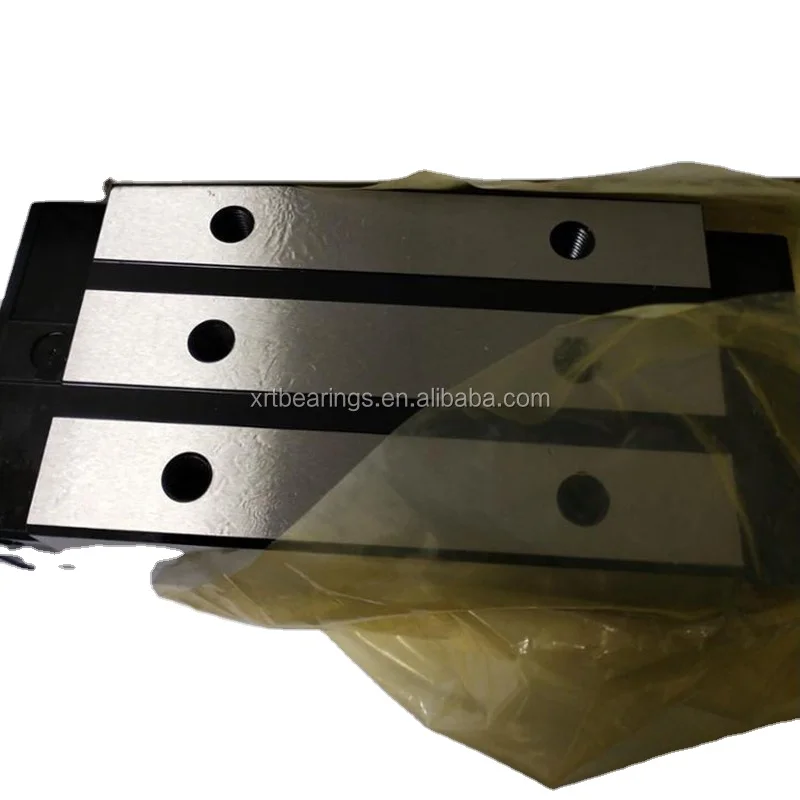

PMI Linear Guideway Linear Guide Block MSR65LS MSR65LSSSF1H

PMI Linear Guideway Linear Guide Block MSR65LS MSR65LSSSF1H

Category: >>>
Supplier: Shandong XRT Bearing Co. Ltd.

Price:

Quantity:

Product Overview

Description

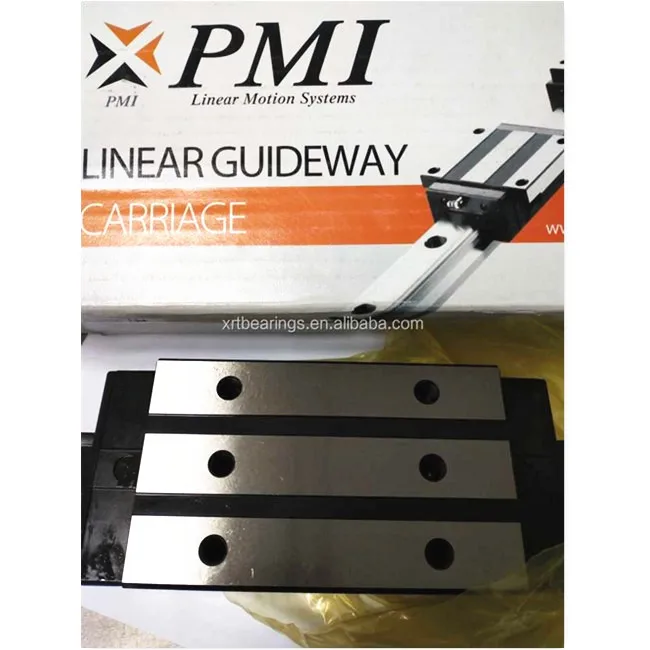

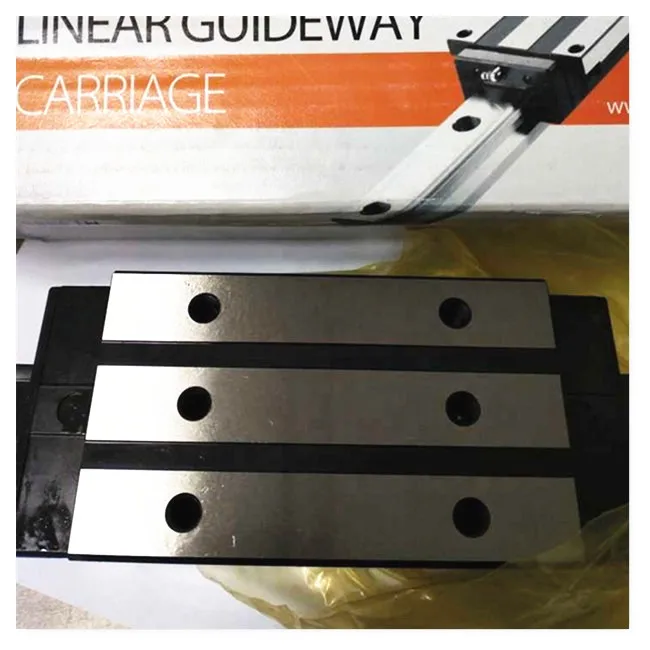

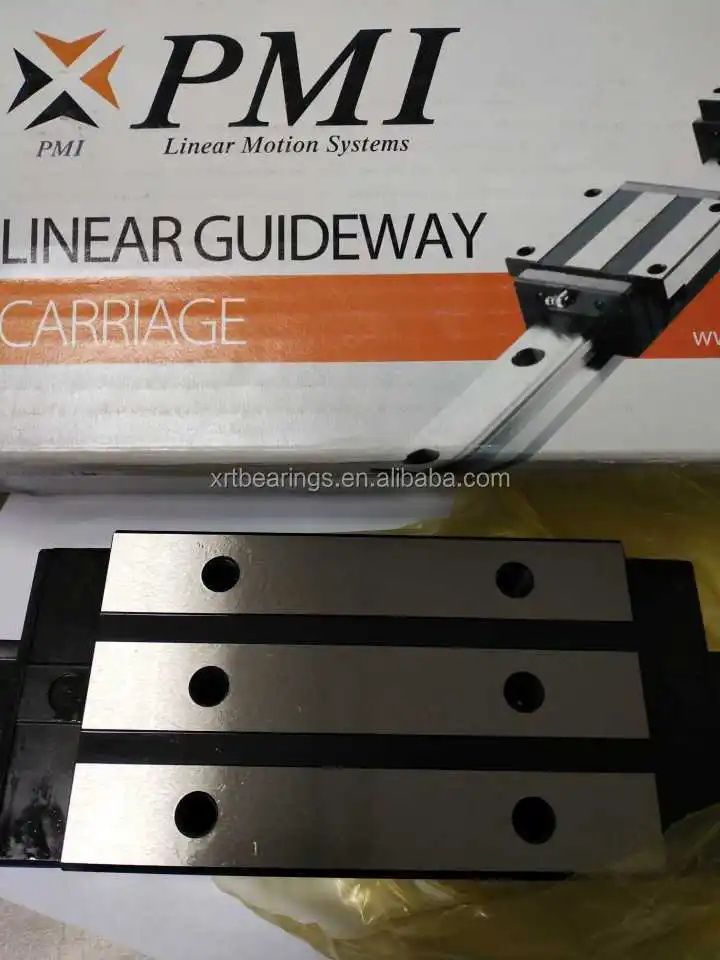

PMI Product Display/Details

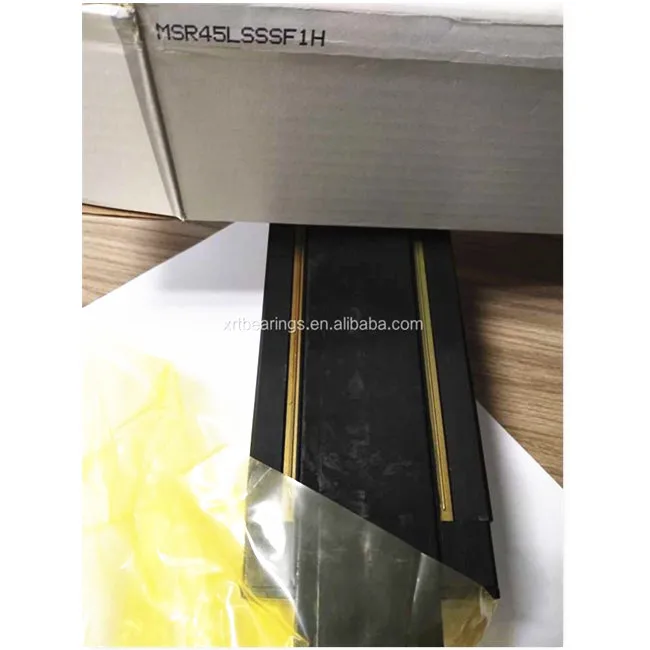

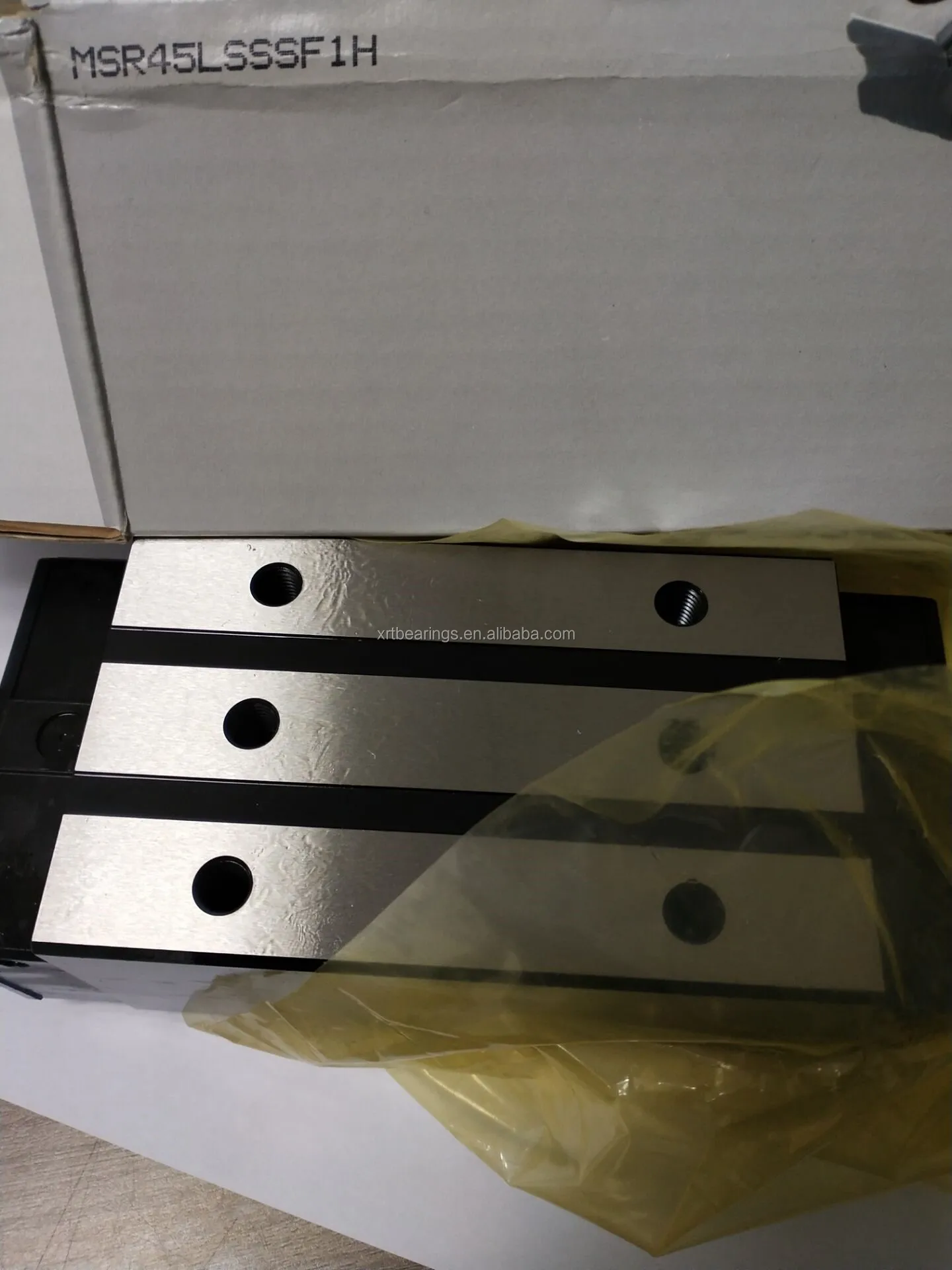

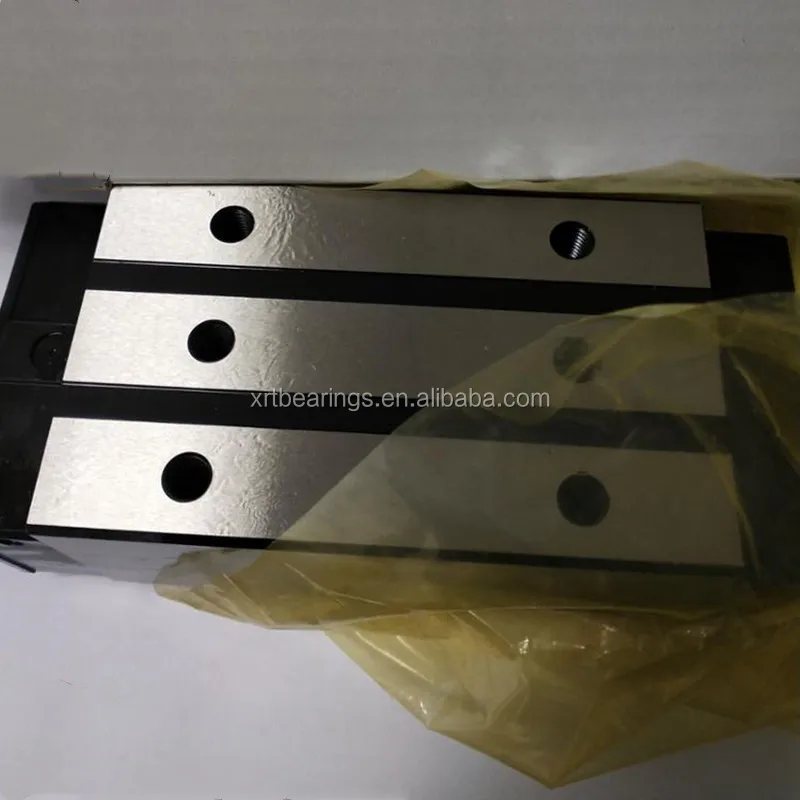

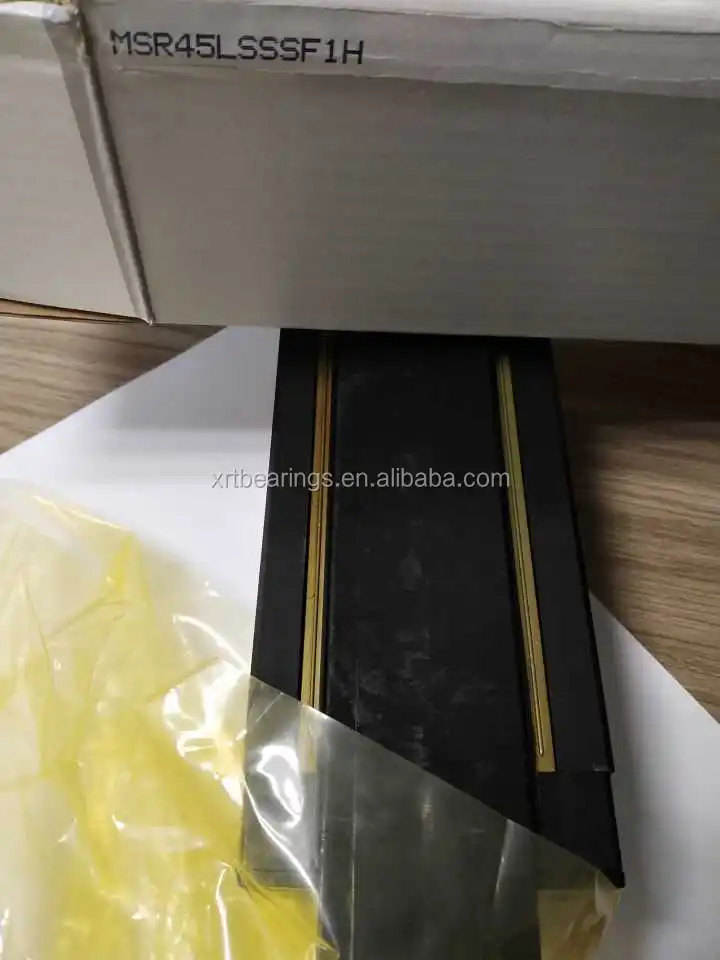

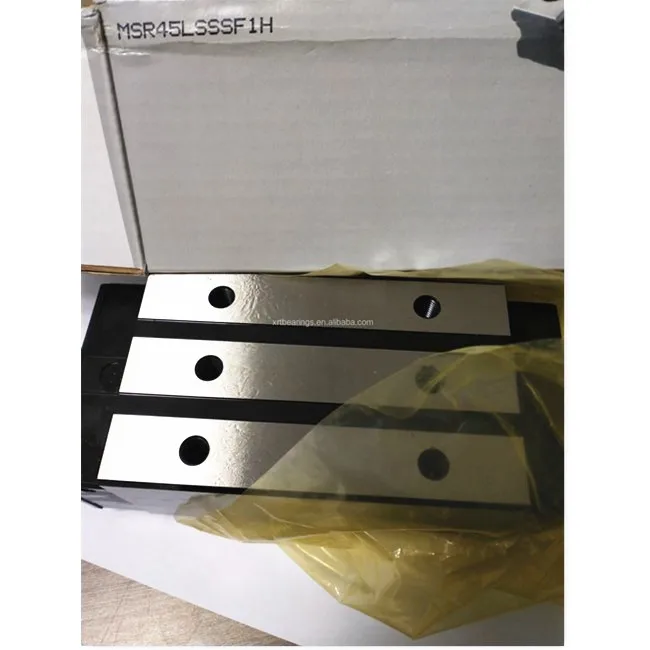

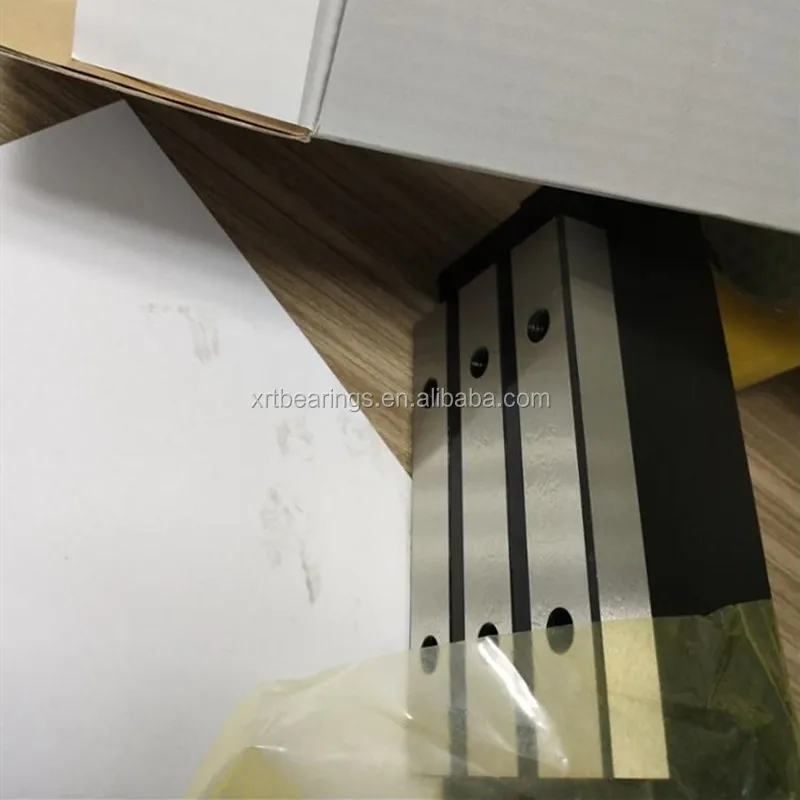

PMI MSR45LSSSF1H 03 PMI MSR45LSSSF1H 01 PMI MSR45LSSSF1H 02 PMI MSR45LSSSF(5) PMI MSR45LSSSF(1)

PMI Linear Block Parameters

PMI Linear Guideway Linear Guide Block MSR65LS MSR65LSSSF1H:

The full roller type linear guideway of the PMI brand MSR series,equip with rollers instead of the ball,

and therefore the MSR series,can provide higher rigidity and loading than the normal type with the same size.Especially suit for the requests of high accuracy,heavy load and high rigdity.

PMI linear guideway through rollers have a line contact with block and rail,Relative to the general type linear guideway through balls have a point contact,And the MSR tyoe linear guideway can offer lower elastic deformation while bearing the same load.

Base on the rollers have the same outer diameter with balls,the roller can bear the heavier load.

The excellemt characteristics of high rigidity and heav load can suitable for the high accuracy application that heavy load is processed even more.

Country (Region) of origin: Made in TaiWan

Product name	Original PMI Linear Guideway
Type	Linear Guide Block
Accuracy	C,H,P
Applincation	3D printer,engraving machine
Material	Stainless Steel
Structure	Linear motion
Color	Black
Feature	Smooth Motion
Performance	Smooth Linear Guide Rail
Stocks	Rich

Characteristics

.Heavy load radial .Self Alignment Capability

.High Rigidity .Interchangeability

High positioning accuracy, high repeatability	The PMI linear guideway is a design of rolling motion with a low friction coeffi cient, and the diff erence between dynamic and static friction is very small. Therefore, the stick-slip will not occur when submicron feeding is making.
Low frictional resistance, high precision maintained for long period	The frictional resistance of a linear guideway is only 1/20th to 1/40th of that in a slide guide. With a linear guideway, a well lubrication can be easily achieved by supplying grease through the grease nipple on carriage or utilizing a centralized oil pumping system, thus the frictional resistance is decreased and the accuracy could be maintained for long period.
High rigidity with four-way load design	The optimum design of geometric mechanics makes the linear guideway to bear the load in all four directions, radial, reversed radial, and two lateral directions. Furthermore, the rigidity of linear guideway could be easily achieved by preloading carriage and by adding the number of carriages.
Suitable for high speed operation	Due to the characteristic of low frictional resistance, the required driving force is much lower than in other systems, thus the power consumption is small.Moreover, the temperature rising effect is small even under high speed operation.
Easy installation with interchangeability	Compared with the high-skill required scrapping process of conventional slide guide, the linear guideway can offer high precision even if the mounting surface is machined by milling or grinding. Moreover the interchangeability of linearguideway gives a convenience for installation and future maintenance.

Application

· Lathe machine
· Marble cutting machines
· Heavy cutting machines
· Woodworking machinery
· Machine centers,Machine tools
· Precision machining machines
· Heavy cutting machines,Punching machines,
· Automatic equipments,Grinding machines
· Semiconductor manufacturing equipment
· High speed transfer equipments
· Injection molding machines
· Measuring equipments
· High Precision measuring equipments

PMI Linear guide block MSR-S/LS relative series:

Model No.	External dimension					Carriage dimension
Model No.	Height H	Width W	Length L	W2	H2	B	C	S	l	L1	T	N	G	K	e1	G1	Grease Nipple
MSR 20S	30	44	89.8	12	4.6	32	36	M5	7	57.8	8	5	5.15	4	6.5	M4	G-M4
MSR 25S MSR 25LS	40	48	97.5 115.5	12.5	4.8	35	35 50	M6	9	65.5 83.5	9.5	10	12	6.6	6.5	M6	G-M6
MSR 30S MSR 30LS	45	60	112.4 135.2	16	6	40	40 60	M8	12	75.9 98.7	10	10	12	8	7	M6	G-M6
MSR 35S MSR 35LS	55	70	125.3 153.5	18	6.5	50	50 72	M8	14	82.3 110.5	12	15	12	8	7	M6	G-M6
MSR 45S MSR 45LS	70	86	154.2 189.4	20.5	8	60	60 80	M10	19	106.5 141.7	17	20	13.5	10	8	M6	G-PT1/8
MSR 55S MSR 55LS	80	100	185.4 235.4	23.5	10	75	75 95	M12	19	129.5 179.5	18	21	13.5	12	7.95	M6	G-PT1/8
MSR 65LS	90	126	300.4	31.5	12	76	120	M16	20	230	19.5	16.5	13.5	12	8	M6	G-PT1/8

Model No.	Rail dimension					Basic load rating		Static moment rating					Weight
	Width W1	Height H1	Pitch P	E std.	D × h × d	Dynamic C kN	Static Co kN	Mp kN-m		MY kN-m		MR kN-m	Carriage kg	Rail kg/m
	Width W1	Height H1	Pitch P	E std.	D × h × d	Dynamic C kN	Static Co kN	Single*	Double*	Single*	Double*	MR kN-m	Carriage kg	Rail kg/m
MSR 20S	20	20	30	20	9.5 × 8.5 × 6	22.8	60.8	0.51	2.85	0.51	2.85	0.62	0.34	2.6
MSR 25S MSR 25LS	23	23.5	30	20	11 × 9 × 7	29.6 36.3	63.8 82.9	0.65 1.08	3.82 5.94	0.65 1.08	3.82 5.94	0.73 0.95	0.65 0.85	3.5
MSR 30S MSR 30LS	28	27.5	40	20	14 × 12 × 9	42.8 54.0	91.9 124.0	1.09 1.96	6.38 10.60	1.09 1.96	6.38 10.60	1.27 1.72	1 1.22	5
MSR 35S MSR 35LS	34	30.5	40	20	14 × 12 × 9	57.9 73.9	123.5 169.0	1.59 2.94	9.56 16.18	1.59 2.94	9.56 16.18	2.09 2.85	1.65 2.15	7
MSR 45S MSR 45LS	45	37	52.5	22.5	20 × 17 × 14	92.8 117.2	193.8 261.6	3.28 5.90	18.76 31.32	3.28 5.90	18.76 31.32	4.40 5.94	3.2 4.1	11.2
MSR 55S MSR 55LS	53	43	60	30	23 × 20 × 16	132.8 172.8	270.0 378.0	5.49 10.60	31.18 55.58	5.49 10.60	31.18 55.58	7.33 10.26	5.1 7	15.6
MSR 65LS	63	52	75	35	26 × 22 × 18	277.0	624.0	22.50	117.87	22.50	117.87	20.02	13.3

PMI High load type MSA Series
MSA15A MSA20A MSA25A MSA30A MSA35A MSA45A
MSA20LA MSA25LA MSA30LA MSA35LA MSA45LA
MSA15E MSA20E MSA25E MSA30E MSA35E MSA45E MSA55E MSA65E
MSA20LE MSA25LE MSA30LE MSA35LE MSA45LE MSA55LE MSA65LE
MSA15S MSA20S MSA25S MSA30S MSA35S MSA45S MSA55S MSA65S
MSA20LS MSA25LS MSA30LS MSA35LS MSA45LS MSA55LS MSA65LS

PMI Compact type MSB Series
MSB15TE MSB20TE MSB25TE MSB30TE MSB35TE
MSB15E MSB25E MSB30E MSB35E MSB35LE
MSB15TS MSB20TS MSB25TS MSB30TS MSB35TS
MSB15S MSB20S MSB25S MSB30S MSB35S MSB35LS

PMI Roller linear guideway MSR Series
MSR25E MSR30E MSR35E MSR45E MSR55E
MSR25LE MSR30LE MSR35LE MSR45LE MSR55LE MSR65LE
MSR25S MSR30S MSR35S MSR45S MSR55S
MSR25LS MSR30LS MSR35LS MSR45LS MSR55LS MSR65LS

PMI Mini linear guideway MSC Series & MSD Series
MSC7M MSC9M MSC12M MSC15M
MSC7LM MSC9LM MSC12LM MSC15LM
MSD7M MSD9M MSD12M MSD15M
MSD7LM MSD9LM MSD12LM MSD15LM

PMI Ball Chair type linear guideway SME series
SME15EA SME20EA SME25EA SME30EA SME35EA SME45EA
SME15 LEA SME20LEA SME25LEA SME30LEA SME35LEA SME45LEA
SME15EB SME20EB SME25EB SME15LEB SME20LEB SME25LEB
SME15SA SME20SA SME25SA SMA30SA SMA35SA SMA45SA
SME15LSA SME20LSA SME25LSA SME30LSA SME35LSA SME45LSA
SME15SB SME20SB SME25SB SME25SA SME30SB SME35SB SME45SB
SME15LSB SME20LSB SME25LSB SME25LSA SME30LSB SME35LSB SME45LSB

PMI Roller Chair type SMR Series
SMR25E SMR30E SMR35E SMR45E SMR55E
SMR25LE SMR30LE SMR35LE SMR45LE SMR55LE SMR65LE
SMR25S SMR30S SMR35S SMR45S SMR55S
SMR25LS SMR30LS SMR35LS SMR45LS SMR55LS SMR65LS
