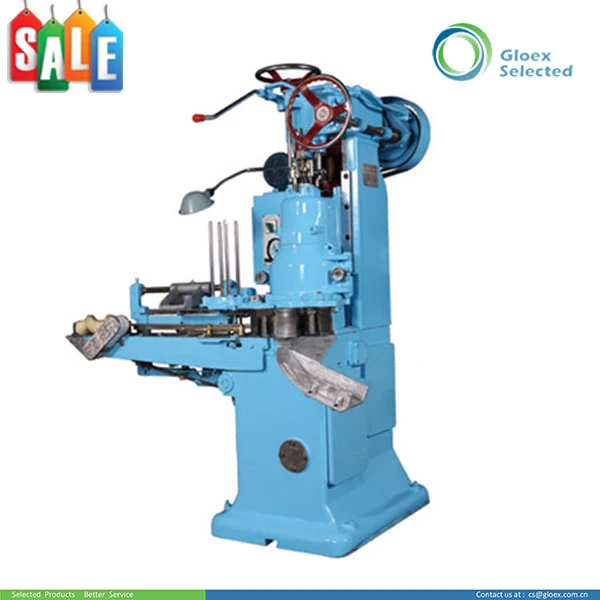

Automatic Vacuum Canned Seafood Sardines Indonesia Can Seamer
- Category: >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (1600428816475):
Product Overview
Description
Automatic Round Shaped Can Sealer Sealing Machine
Product Description

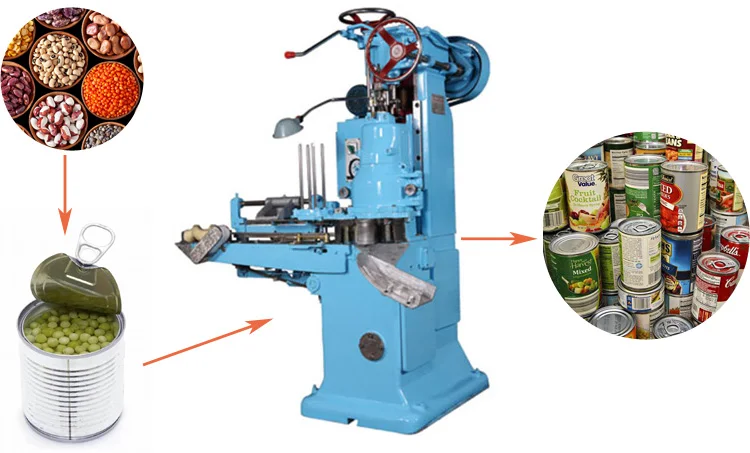

Application
Apply for:

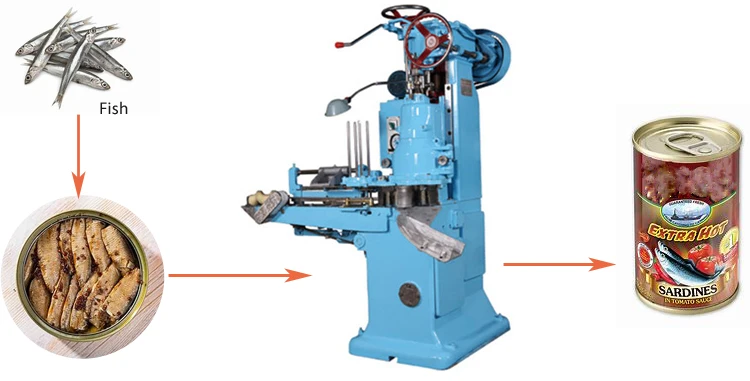

- various size of round can seaming, with or without vacuum function, a necessary part to make up a canning line.

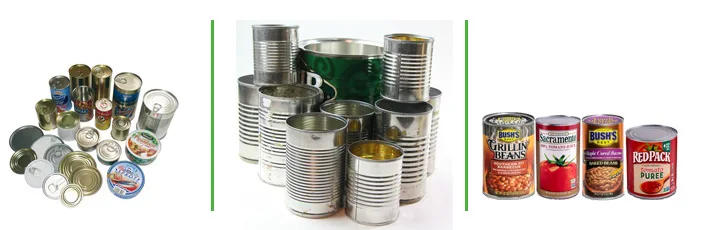

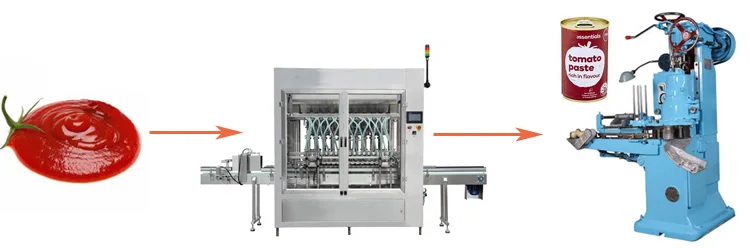

- various kinds of canned products, such as canned meat, canned vegetables, fruit, canned sauce or paste.
Advantages
Features
Standard Features
- Wide adaption of can size
- Alloy steel seaming head enable reliable seaming
- More than 20 years’ practice , reliable performance
- Lidding: Manual or Automatic
- Seaming :Automatic
Technical Specification
1) Painted carbon steel for structure and surface
2) Can Diameter : 52-108mm
3) Can Height: 46-135mm
4) Seaming Speed: App. 42 cans/minute
5) Rotating Speed of The Seaming Head: 756 RPM
6) Rotating Speed of Bearing Shift: 1400 RPM
7) Compressed Air : Not Applicable
8) Power Supply : 380V,50/60HZ 1.5 kw
9) Vacuum Pump: Include
10) Vacuum Buffering Tank: Include
11) Dimension : 1210×1460×1900mm
12) Weight : Approximate 1350kg
Related Products
Summary of can seaming machine options
Product Code | Standard Feature | Optional Feature | Driving Method | Size Range (mm) | Speed (cans/minute) | Remarks | |

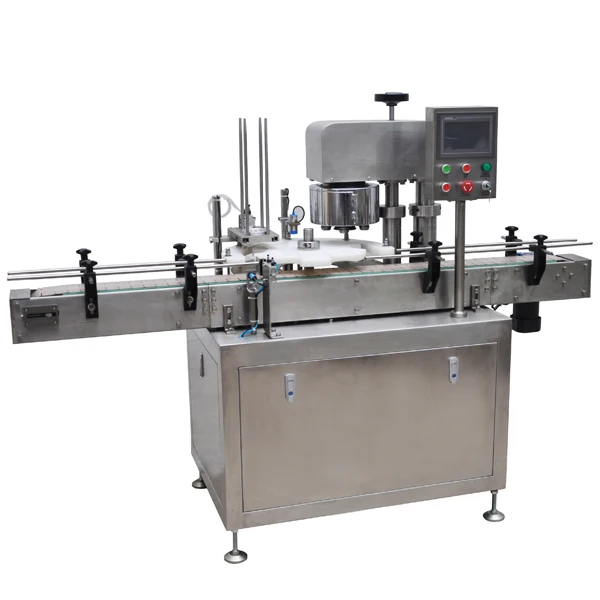

PP172 | Seam only | Fill & Seam; Integrated | Electrical & Pneumatic | 52.5-130 | 30-60 | Mainly apply for power, granule products; Easier for can size changing over | |

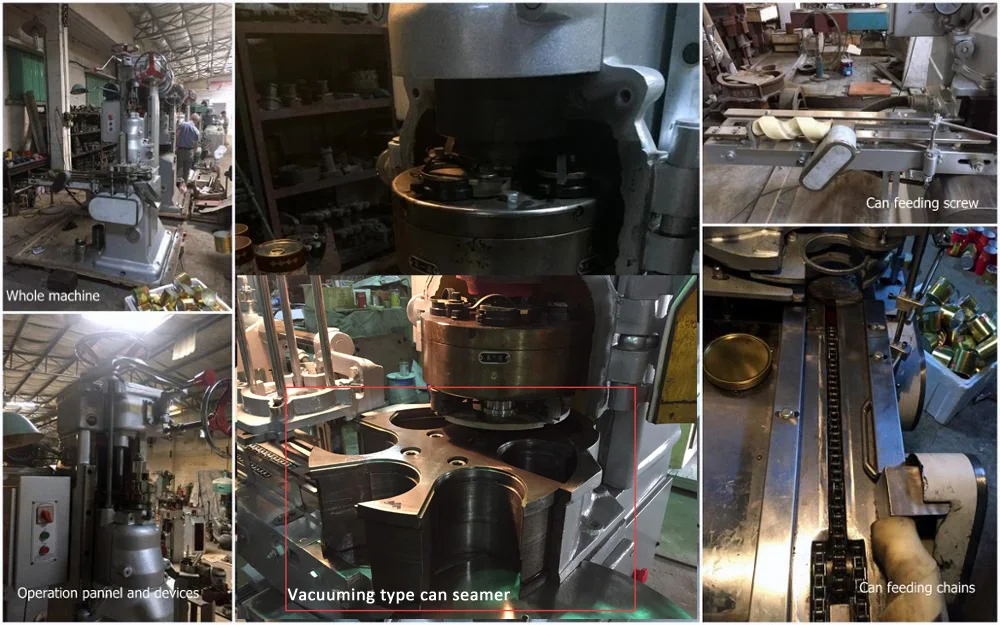

PP170 | Vacuum & Seam | Seam only; Vacuum, gas flush and seam | Electrical & Mechanical | GT4B2 series Diameter: 52-108 Height: 46-135 | Vacuum or No Vacuum: 42 | Easier for cleaning by water, less controlling parts; Vacuum value: 0.04-0.06Mpa; Residual Oxygen: 9-14% | |
Vacuum and Gas flush: 15-17 | |||||||
GT4C3B series Diameter: 99-159 Height: 60-270 | Vacuum or No Vacuum: 28 | ||||||
Vacuum and Gas flush: 10-12 | |||||||
CT4C280 series Diameter: 100-280 Height: 100-360 | 30-40 | ||||||

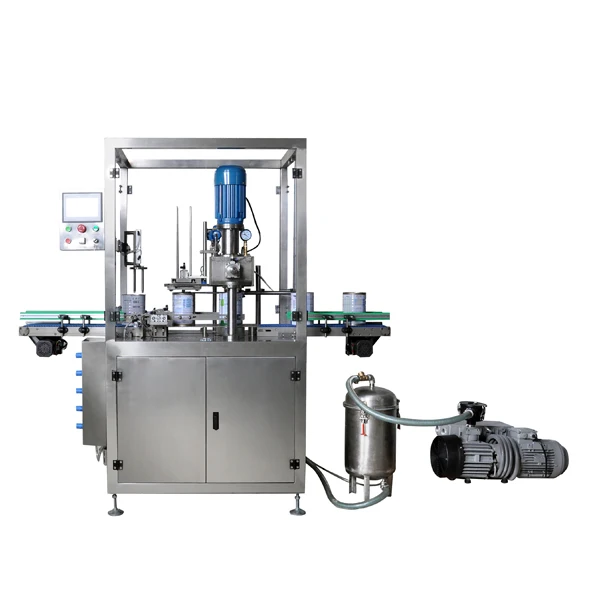

PP169 | Vacuum, gas flush and seam | Seam only; Vacuum & seam | Electrical & Pneumatic | Diameter: 70-127; Height: 80-190 | Automatic | 6-7 | Able to change diameter by change the turntable and other accessary; Vacuum value: 0.085Mpa; Residual oxygen content: <=5% |
Manual can feeding and lidding | 5-6 | ||||||

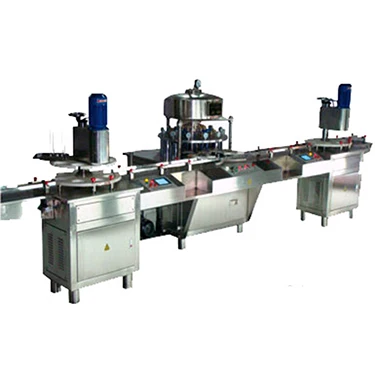

PP222 | Vacuum, gas flush and seam | Seam only; Vacuum& seam | Electrical, Mechanical & Pneumatic | Diameter: 90-127; Height: 100-200 | 30-35 | Vacuum value: 0.01-0.015Mpa; Residual Oxygen: 2-4%; Can seaming intermittently, vacuum and gas flush continuously | |

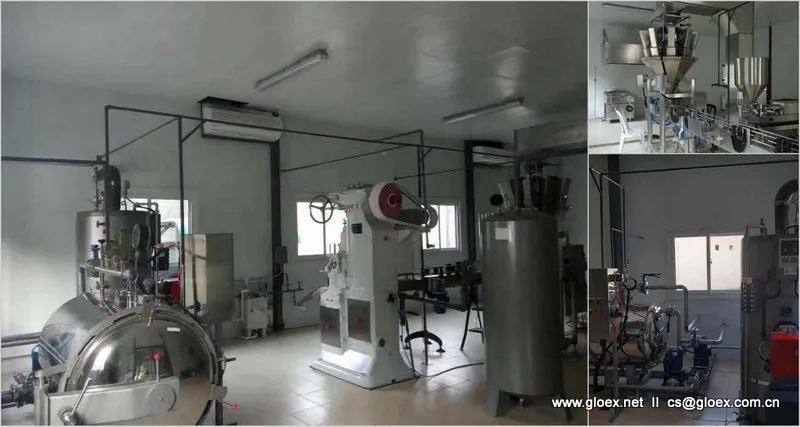

Related Customer Project
Project Code: CSE071
Project Location: The Philippines
Product: Beef cubes + bone cubes + thick sauce (2.5*5cm)
Packing size:
A) 1705 g : Diameter 155mm,Height 114mm (planned product)
B) 380 g: (200g meat, about 5-6 pieces, 180g sauce)
Diameter 75mm,Height 101mm (first stage product) or Diameter 70mm,Height 80mm
Packaging Type: Tin can
