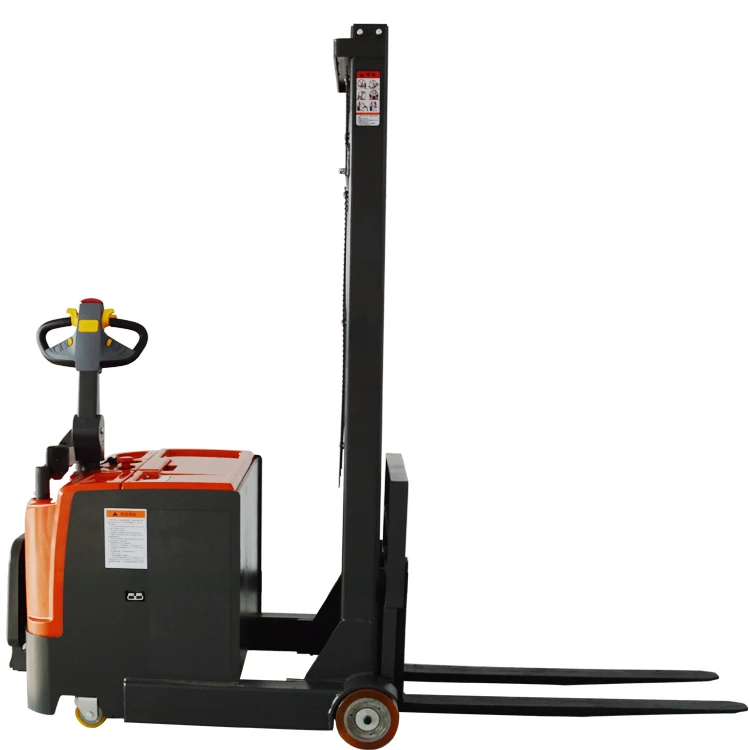

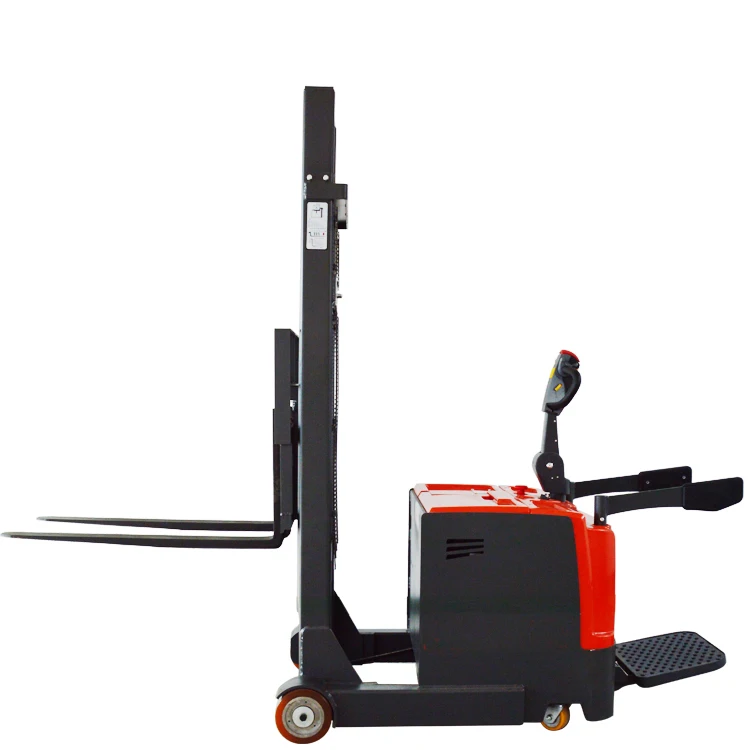

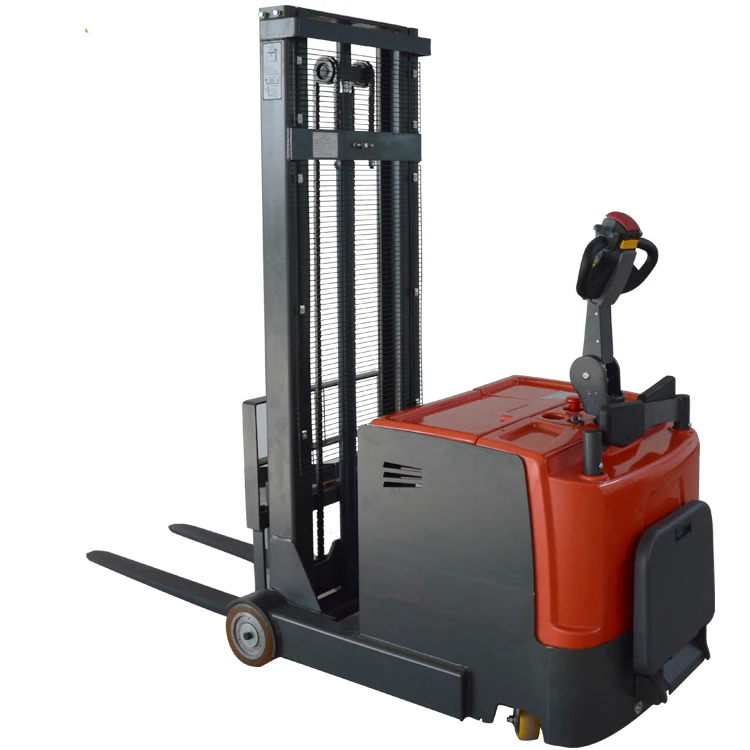

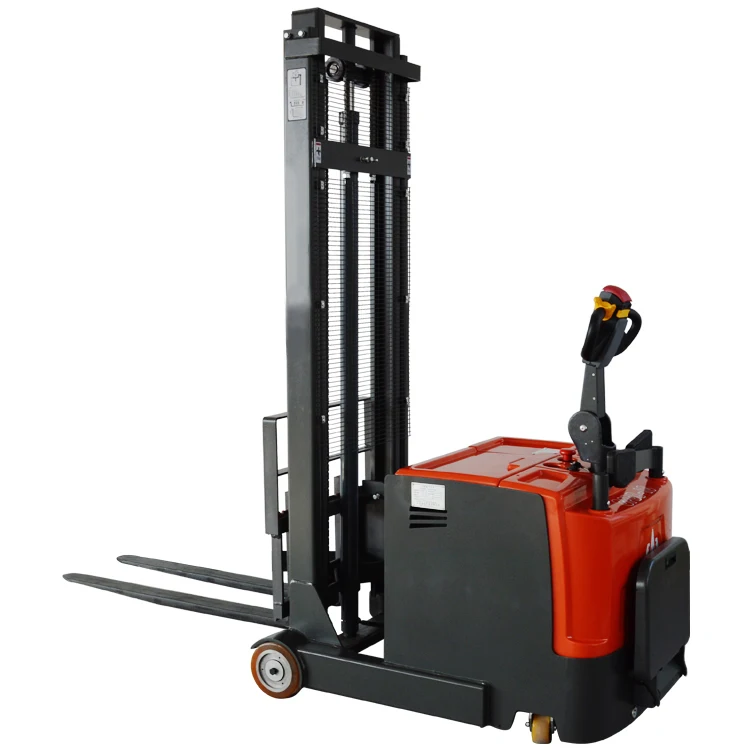

1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast
1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast

1 Ton Small Electric Mechanical Pallet Stacker Forklift for Farms with dual mast

Share on (1600428847073):


Price:$3,898.00 - $4,239.00

Quantity:


Product Overview

Description

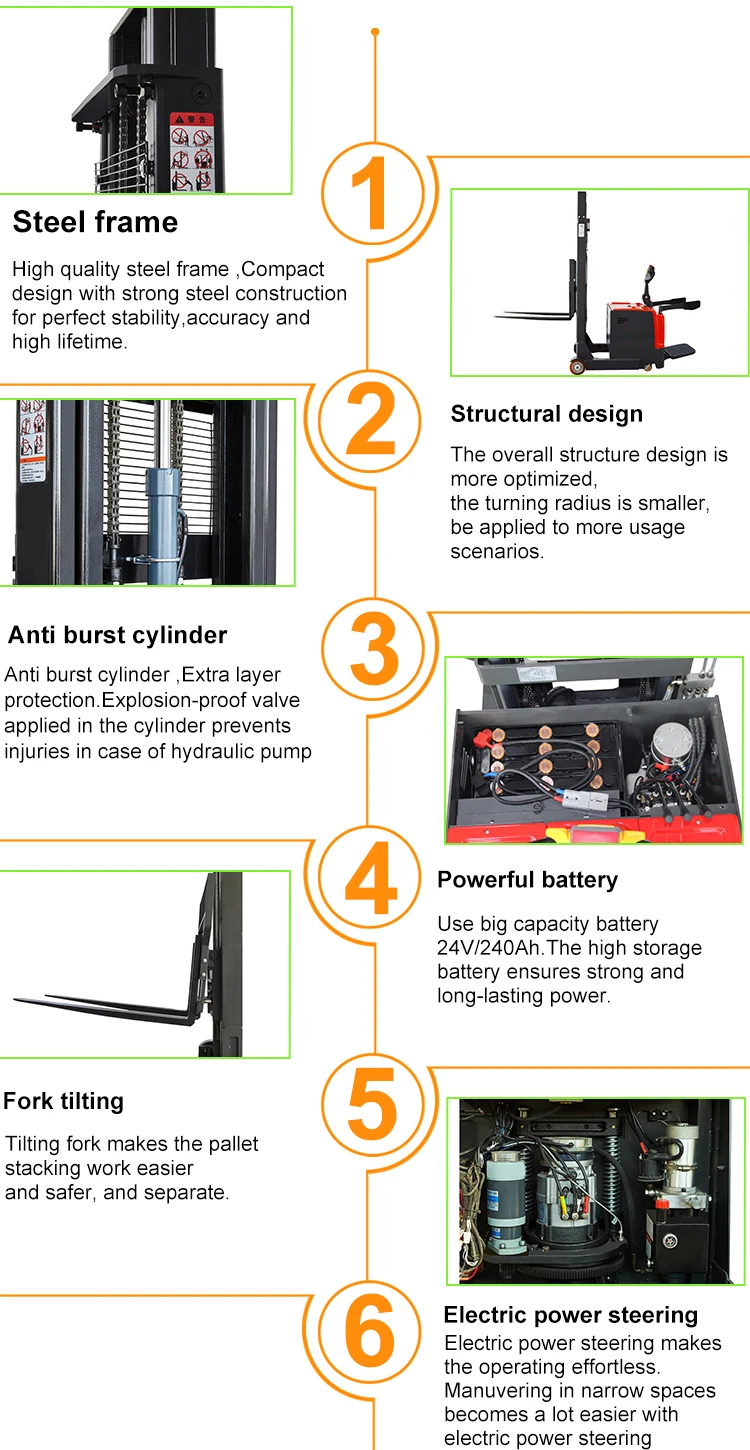

Products Display








Product Paramenters


Model
CPDB08/10
Performance
Maximum load capacity
kg
800/1000
with load center at
mm
500
Travel speed without load/with load
km/h
4.5/3.5
Lifting speed without load /with load
km/h
110/80
Lowered speed without load /with load
mm/s
100/100
Ascend slope ability without load /with load
mm/s
8/5

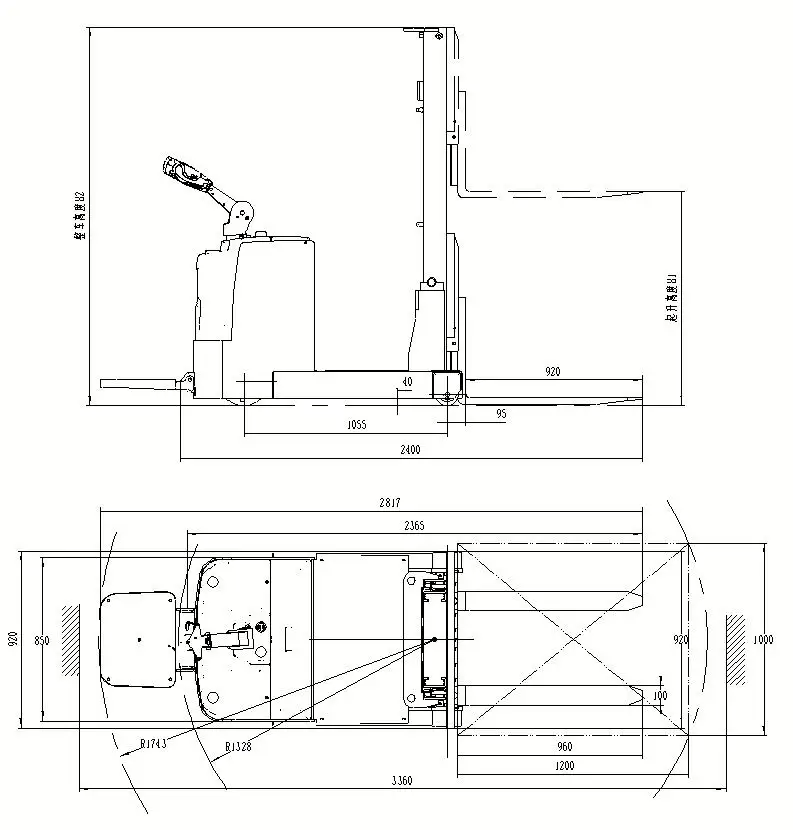

Dimensions
Overall length/width of frame(without platform)
mm
2400/1040
Wheelbase
mm
1055
Fork size（length *width*thickness）
mm
920*100*35
Fork outside width
mm
220-680
Fork lowered height
mm
60
Minimum turning radius
mm
80
Minimum intersecting aisie
mm
1745
Drive wheel
mm
3360
Tire
Front wheel
mm
210*85
Drive wheel
mm
250*80
Electrical components
Drive motor Rated output/AC motor
kw
1.5
Hoist motor Rated output/DC motor
kw
2.2
battery
Voltag/Capacity
V/AH
24/120(210)
Weight
kg
35*2(195)
Mast Type
Max.Fork height
Mast Lowered
Mast Extended
Weight：kg
CPDB08/CPDB10
CPDB08/CPDB10
CPDB08/CPDB10
CPDB08/CPDB10
Simplex Mast (2stage)
1600
2130
2130
1420
2000
1630
2600
1440
2500
1880
3100
1470
3000
2130
3600
1500




Related Products




Company Profile






Diding covers an area of more than 20,000 square meters, with advanced and standard production workshops, perfect processing equipments and product testing centers. Besides ,The company owns advanced storage equipment manufacturing technology which has obtained a number of patents. Also, The R & D department provides strong technical support, enabling us to receive some OEM, ODM projects. The diversified products have been issued the Modeling Test Certificate for Special Equipment and the Production License of Equipment.
Diding attracts customers from all over the world with the professional engineer support, high efficiency sales team ,competitive price superiority and perfect after-sales service system. Our products are sold all over China and exported in batches to more than 30 countries.
Under the guidence of the business philosophy which is ‘pursuit of excellence, users first’,Diding has made all efforts to create corporate image and product image as a professional manufacturer of electric warehousing equipments as well as an integrated solution vendor of stacking.






Certifications




Exhibition




Product packaging




FAQ


Q1: Are you a factory?
A1: Of course. Jiangsu DiDing Machinery Co.Ltd., is a high-tech enterprise which specializes in researching and development, manufacturing, marketing and servings of electric warehousing equipments.

Q2: Can Diding provide customized products?
A2: Yes, Our R&D department provides the strong technical support and enables us to receive some OEM, ODM projects.

Q3: How about the delivery time?
A3: Usually our producing time is 7-20 working days after we receive the advanced payment. The specific delivery time depends on the items and the quantity of your order.
Most of our standard products are in stock，we can deliver immediately.

Q4: How long is the product warranty period
A4: The product warranty period is 12 months after delivery.

Q5: What is your payment term?
A5: T/T or L/C, if you want any other way, please contact us.
