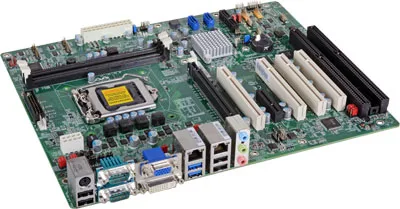

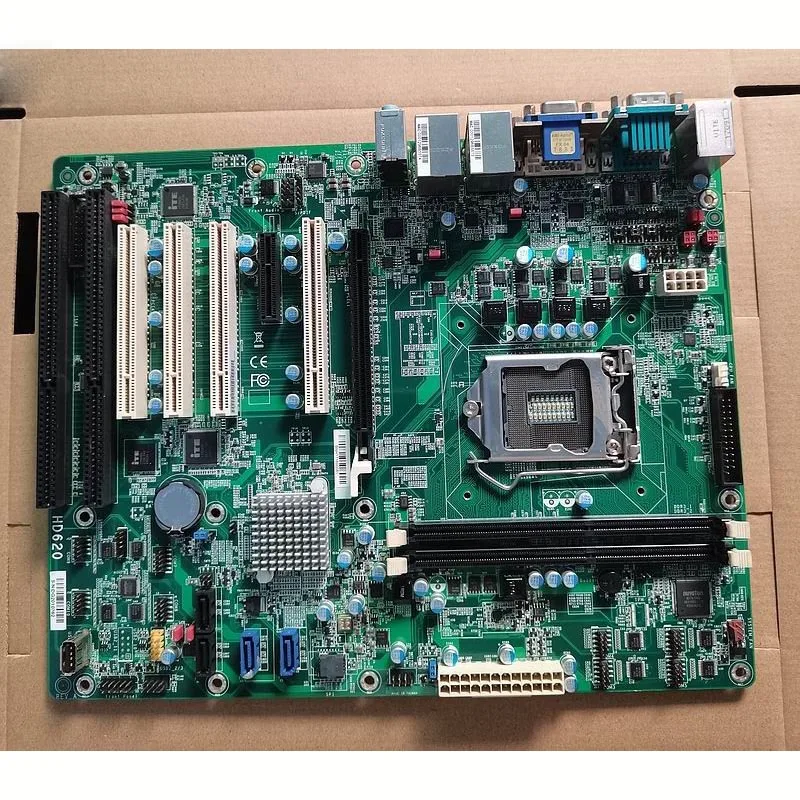

IMIH81 2ISA motherboard with dual Gbe LAN and 2 ISA slot 4 PCI ,2 PCIe slot use H81 chipset run win7,8,10 linux system
- Category: >>>
- Supplier: Shenzhen Immediate Technology Co. Limited
Share on (1600428851626):
Product Overview
Description
item | value |
Item Condition | New |
Package | Yes |
Ports | SATA, DVI, VGA, PCI-Express X16, PCI-Express X4, USB 2.0, PS2, Ethernet, USB 3.0 |
With CPU | No |
Memory Bank | 2 DDR3 DIMM |
CPU Type | Core I7/Core I5/Core I3/Pentium/Celeron |
Chipset | Intel H81 |
Maximum Ram Capacity | 16GB |
Memory channel | Single |
Launch Date | 2018 |
Private Mold | NO |
Products Status | New |
Application | Desktop |
Chipset Manufacturer | Intel |
Socket Type | LGA 1150 |
Form Factor | ATX |
Memory Type | DDR3 |
Graphics Card Type | Integrated |
Hard Drive Interface | SATA |
FSB / HT | 1600 |
Brand Name | IIT |
Place of Origin | China |
Guangdong | |
Name | H81 ISA motherboard |
Other name | H81 2 ISA motherboard |
ISA slot | 2 |
PCI slot | 4 |
OEM | OEM and ODM available |
Form factor | Flex-ATX, 305 x 244mm |
Origin | Guangdong China |
Model | IMIH81-2ISA |
Brand | IIT |
Red | Clear |
Ports | Ethernet |
ProcessorLGA 1150 socket for 4th Gen Core I3,I5,I7 CPU (22nm)FSB 533/800/1066/1333 CPUChipsetIntel H81 Express Chipset Memory2*
DDR3 DIMM,support 1333/1600MHz ,MAX. 16GBEthernetRealtek RTL8111E Gbe Ethernet controllersVGAOnboard Intel GMA4500 display card

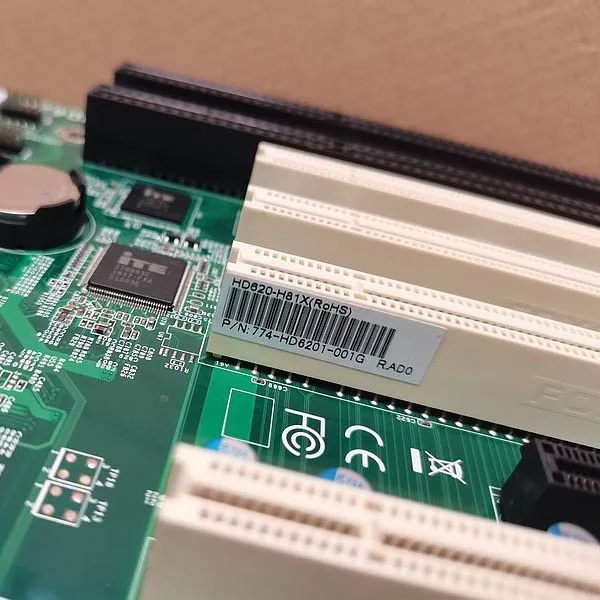

Expansion4*PCI slot1*PCIe 16x ,1*PCI 4x2*ISA AudioRealtek ALC886 5.1-channel High Definition AudioStorage4*SATABack I/O Interface1

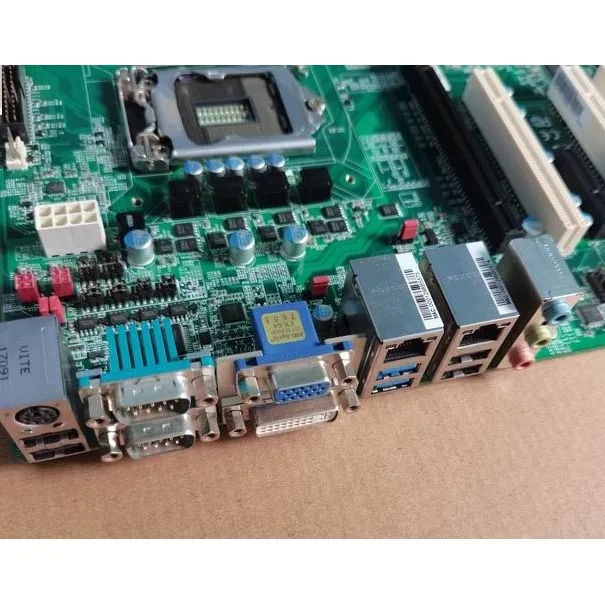

mini-DIN-6 port for PS/2 mouse/keyboard2 DB-9 serial ports- Supports RS232/422/485 (RS232 and/or Power)1 VGA port1 DVI-D port2
RJ45 LAN ports2 USB 3.0 ports,4 USB 2.0 portsLine-in/Surround, Line-out, Mic-in/Center+Subwoofer jacksInternal I/O interface1*
Fpanel8 * RS232 serial ports (2.0mm pitch)1*Front Audio 8-bit Digital I/O connector4 Serial ATA ports1*TPM Interface4*USB 2.0/1.1
1* 24PIN + 8-pin 12V power connectorWATCHDOG TIMERSoftware programmable from 1 to 255 secondsBIOSAMI BIOS - 64Mbit SPI BIOSOS
supportWindows 10,8,7, Windows XP sp3 32bitPower TypeATX InputOperation Temp 0oC-60oCStorage Temp: -20oC to 85oCSize 305mm (12") x
244mm (9.6"),ATX
DDR3 DIMM,support 1333/1600MHz ,MAX. 16GBEthernetRealtek RTL8111E Gbe Ethernet controllersVGAOnboard Intel GMA4500 display card
Expansion4*PCI slot1*PCIe 16x ,1*PCI 4x2*ISA AudioRealtek ALC886 5.1-channel High Definition AudioStorage4*SATABack I/O Interface1
mini-DIN-6 port for PS/2 mouse/keyboard2 DB-9 serial ports- Supports RS232/422/485 (RS232 and/or Power)1 VGA port1 DVI-D port2
RJ45 LAN ports2 USB 3.0 ports,4 USB 2.0 portsLine-in/Surround, Line-out, Mic-in/Center+Subwoofer jacksInternal I/O interface1*
Fpanel8 * RS232 serial ports (2.0mm pitch)1*Front Audio 8-bit Digital I/O connector4 Serial ATA ports1*TPM Interface4*USB 2.0/1.1
1* 24PIN + 8-pin 12V power connectorWATCHDOG TIMERSoftware programmable from 1 to 255 secondsBIOSAMI BIOS - 64Mbit SPI BIOSOS
supportWindows 10,8,7, Windows XP sp3 32bitPower TypeATX InputOperation Temp 0oC-60oCStorage Temp: -20oC to 85oCSize 305mm (12") x
244mm (9.6"),ATX
