portable fuel dispenser diesel hose reels welding cable reels for electric truck mobile fuel hose reel
- Category: Watering & Irrigation >>>
- Supplier: Shenzhen,JARCH,Electromechanical,Technology,Co.,Ltd.
Share on:
Product Overview
Description
JARCH portable fuel dispenser diesel hose reels welding cable reels for electric truck mobile fuel hose reel
Product Description

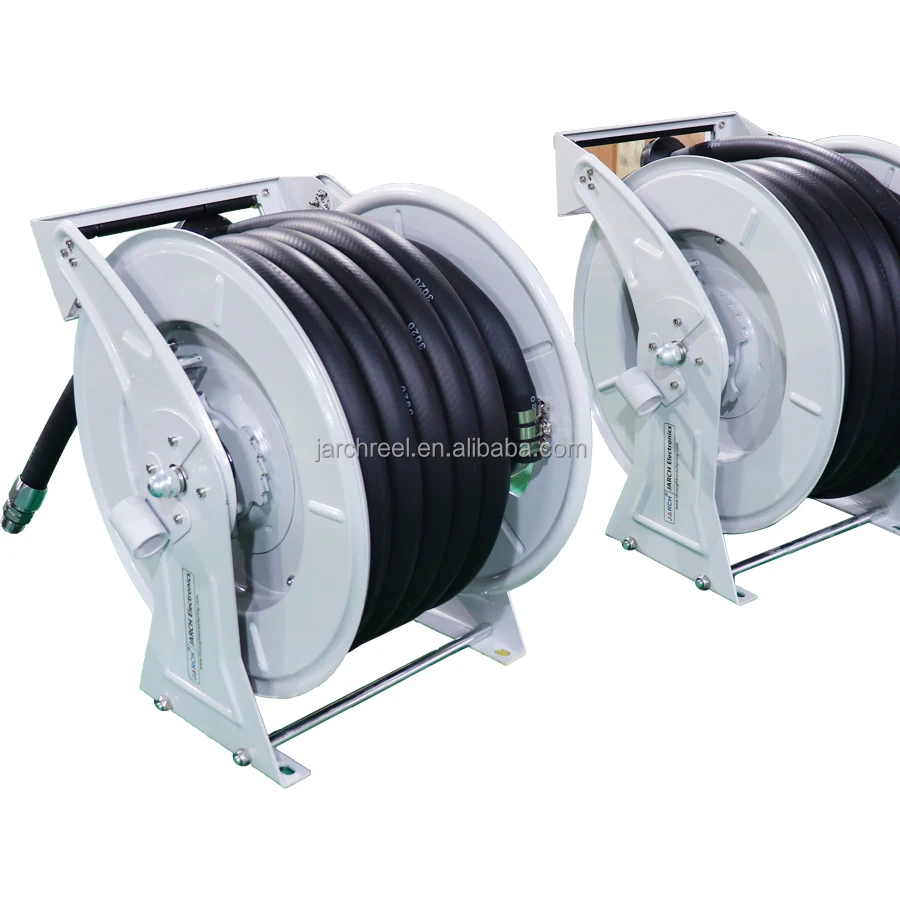

1 in. x 50 ft. Heavy Duty Hose Reel
JARCH's Series spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications. hose reels are also supplied with JARCH's ball-bearing style swivel.
portable fuel dispenser diesel hose reels welding cable reels for electric truck mobile fuel hose reel
portable fuel dispenser diesel hose reels welding cable reels for electric truck mobile fuel hose reel
1'' 15m heavy duty hose reel retractable hose reel for fuel delivery truck reel
 |  |
| We powder coat parts individually before installation for superior coverage and better protection against corrosion. | You won't have to worry about your spring losing its strength or breaking from normal usage. |
 |
| Arm adjusts to 3 positions for your need,wall mounted,hang,grounding... |
JARCH electric atv wf07 wire feeder hose reels welding cable reels for electric truck
Features
***Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
***Reinforced steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
***Quiet speed latch - The latch cam is designed for reliable quiet operation.
***Long life drive spring - The unitized cast aluminum fluid path with built in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
electric atv wf07 wire feeder hose reels welding cable reels for electric truck
Contact Us
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: Spring Driven Reels,Motor Driven Reels,Hand Crank Reels,SS304 /316 Reels,Custom Reels,Slip Rings,Rotary Joints
Customer Service:
ATTN: Ms.Kris Yao E-mail: sales1 jarch_cablereel Phone&WhatsApp: 008613631620907 Skype: JARCH_Sales Wechat: jarchcompany
|
Scan the Wechat in here |
Product Uses
JARCH reels drums are used in power communication, factory workshop, engineering machinery, marine ships, food and chemical industry... And other industries.
Packaging & Shipping
| Packaging Details: | Standard Export Carton or Wooden Package |
| Delivery Details: | Delivery time for Sample: 5 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
Hot Sale
More reel drums for your choose...pls Click here:Contact me!

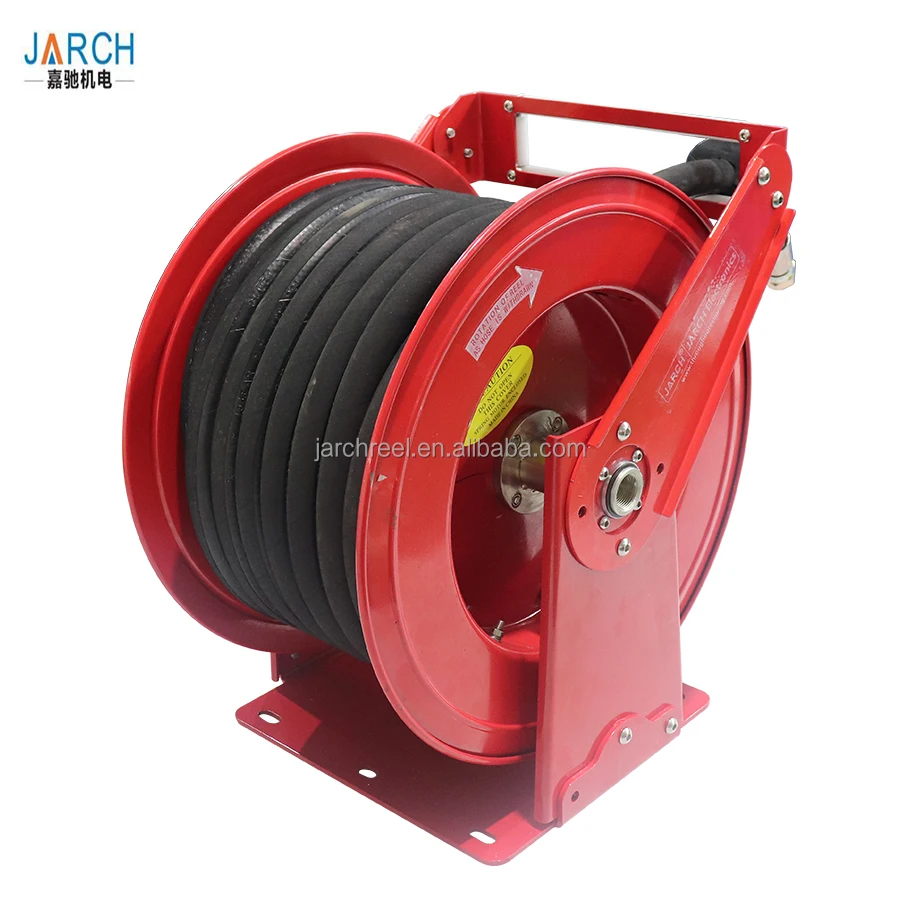

Spring Power cable reel |
Stainless steel hose reel |
Flat car cable reels |
1'' air hose reels |

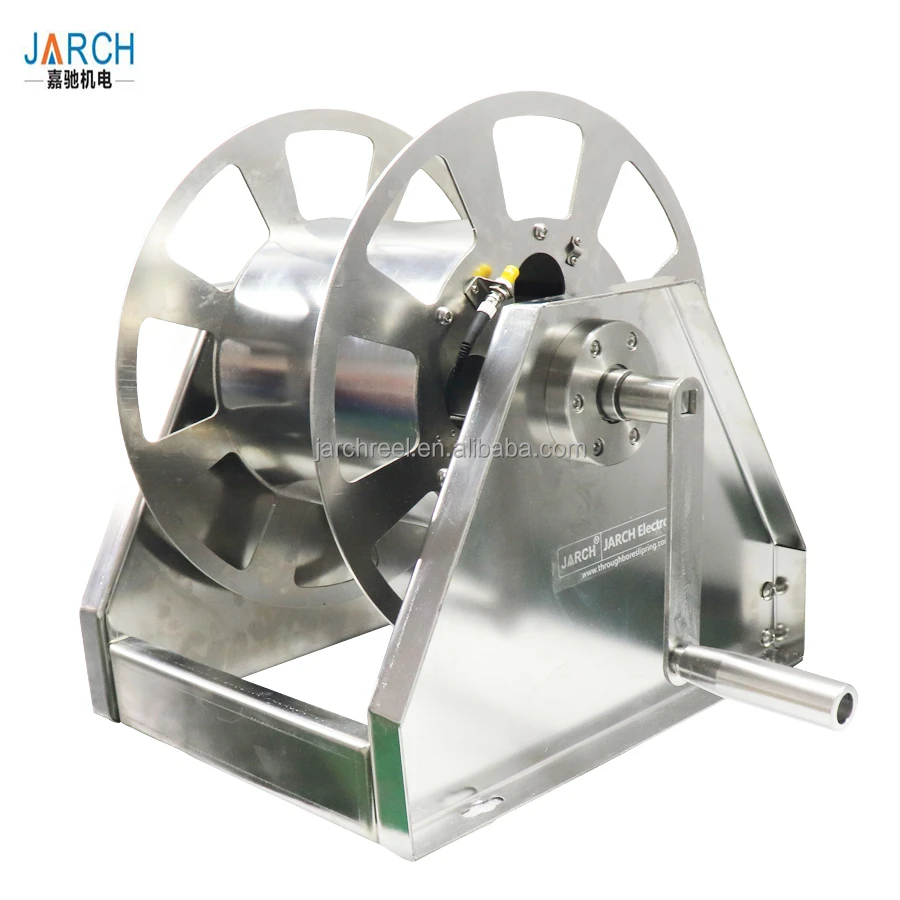

Hand crank cable reel |
Motor driven reel drum |
2-hose/3-hose reel drum |
Fiber optical cable reel for UAV |
EV car Cahrging cable reel |
FAQ
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact JARCH Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
1'' in. x 50 ft. retractable hose reel heavy duty hose reel for fuel
