Fiber XPON DBC ONU Fibra Optica Bridge Lan EPON ONT With Voice SFP GPON Stick ONT WiFi 2101XR 1GE 1FE 1POTS CATV OLT ONU 1GE
- Category: >>>
- Supplier: ShenZhen Hi-Fiber Electronic Co. Ltd
Share on (1600428859472):
Product Overview
Description
Products Description

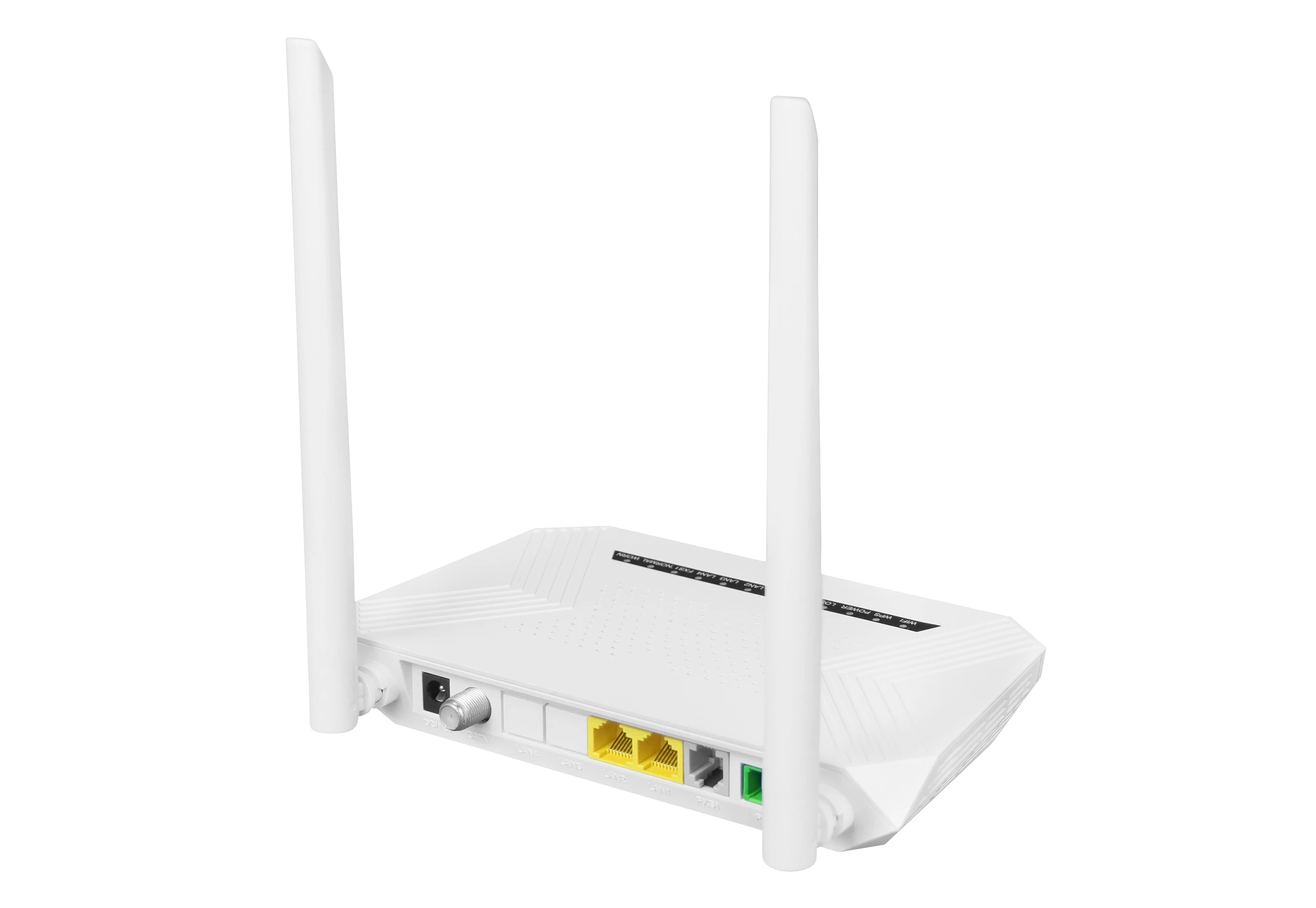

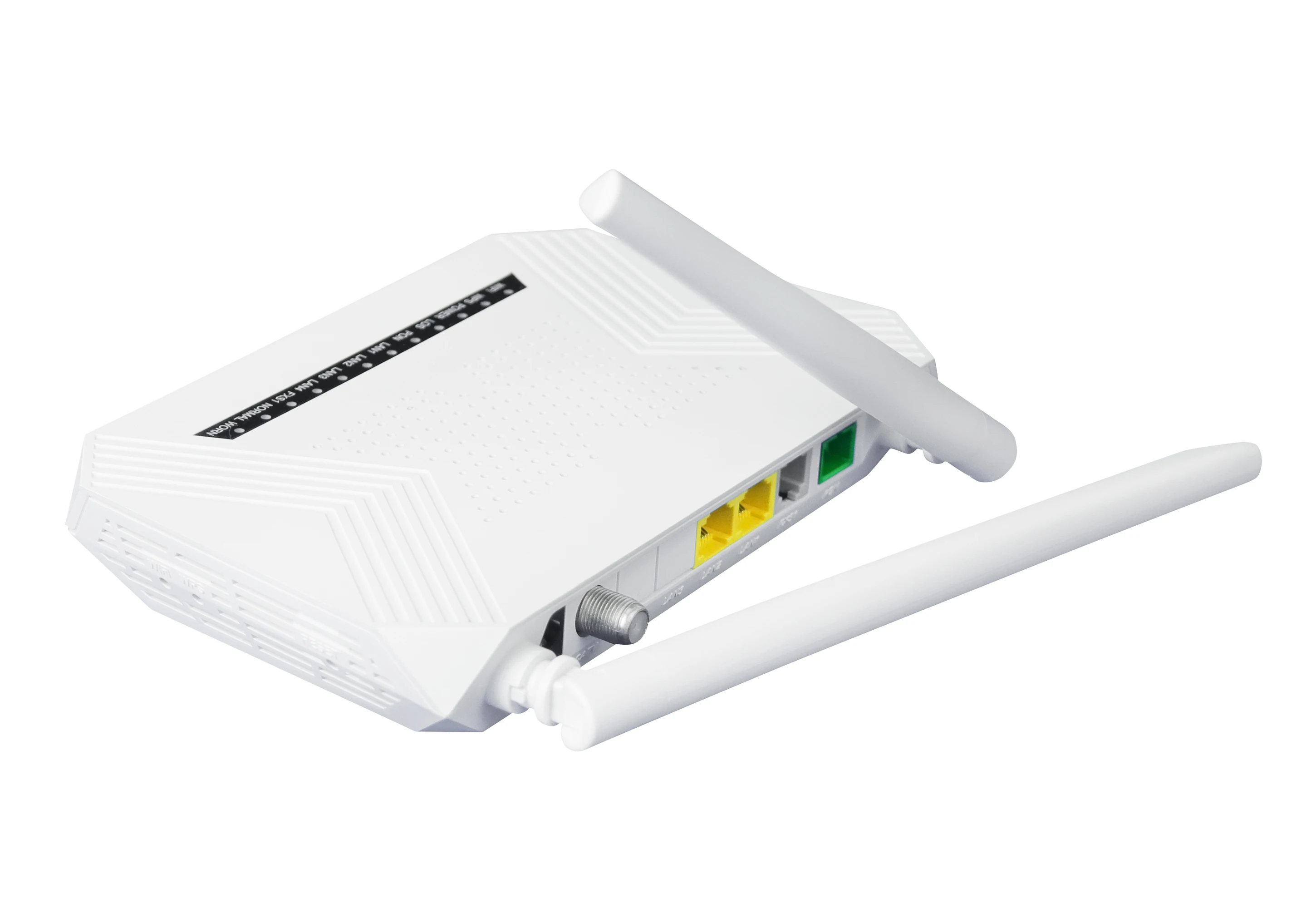

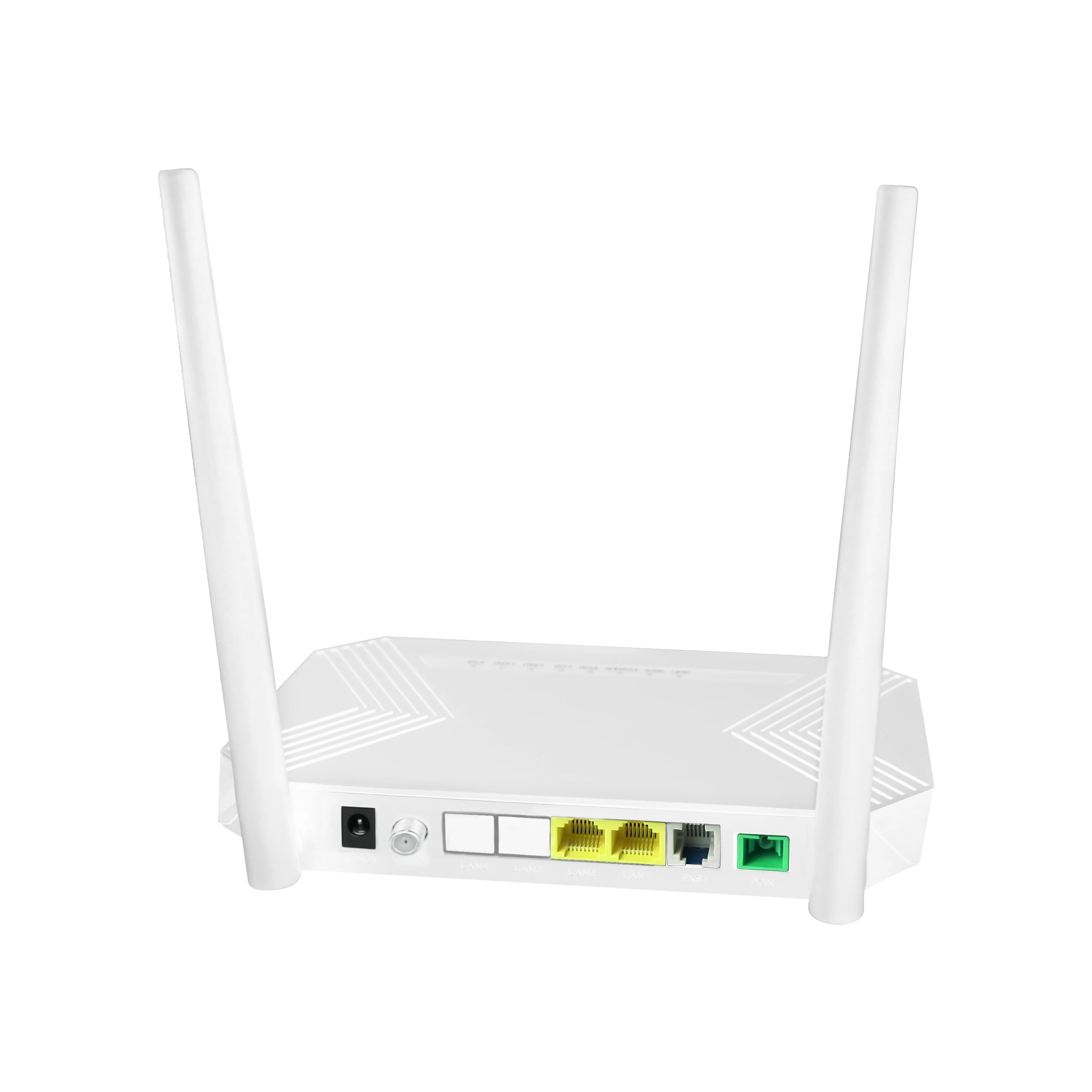

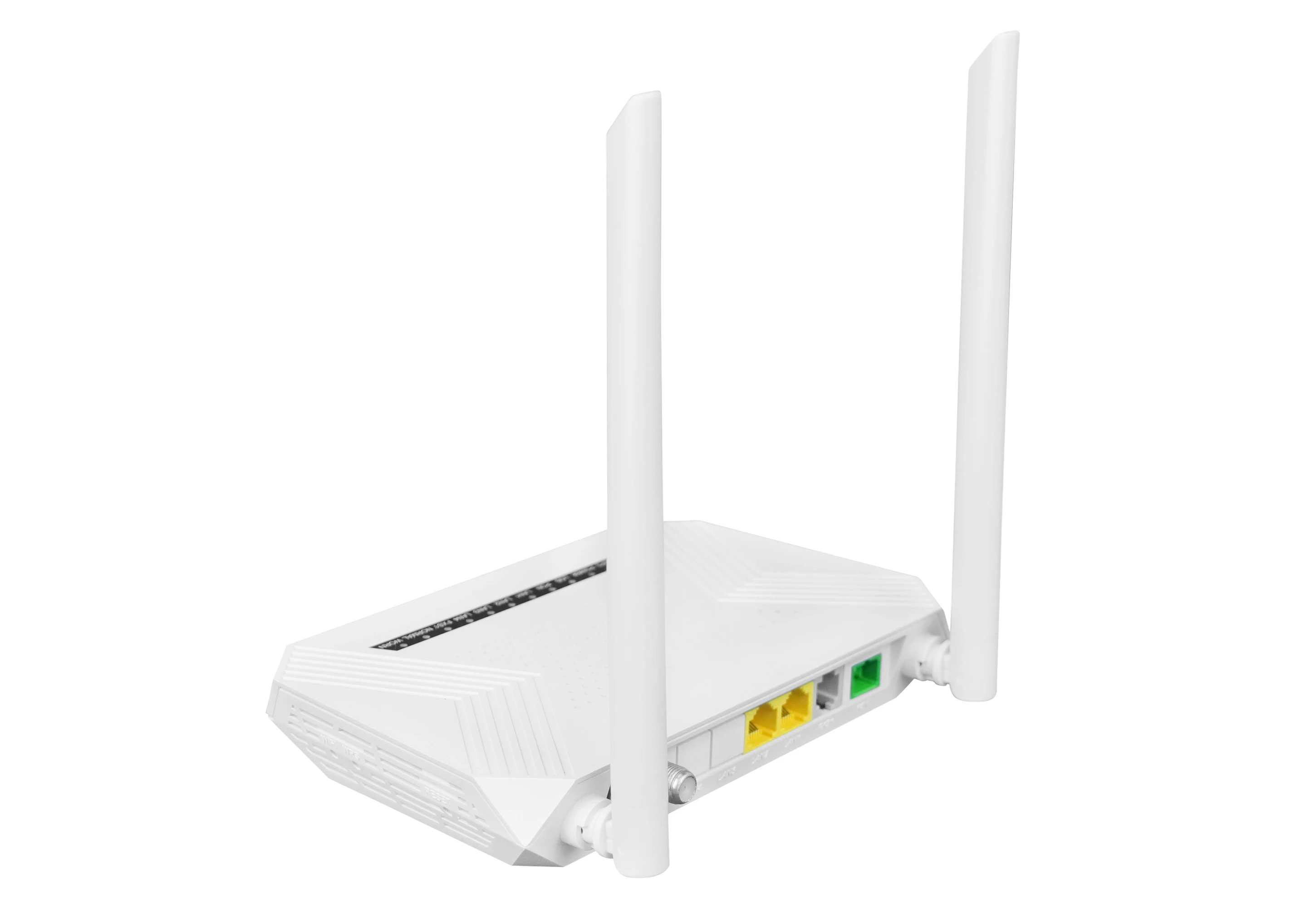

HFR2101XR
HFR2101XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services.
HFR2101XR is based on mature and stable, cost-effective XPON technology.
HFR2101XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Functional Feature
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 dual mode
Support 2.4G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support CATV interface for Video Service and remote control by Major OLT
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
Specialized design for system breakdown prevention to maintain stable system
Version & Firmware
All ONU products are Global Version with English Firmware and English Package Box.
Power Plugs
we can provide Power Plug with Europe Standard, America Standard, Australia Standard, United-Kingdom Standard and India Standard, please choose according to your target marketplace.
Package Box
Size: 28.2*13.5*4.7CM
Weight: 0.3KG
Carton
Size : CM
Weight: KG
QTY/CTN: pcs
QTY/CTN: pcs
Product Paramenters

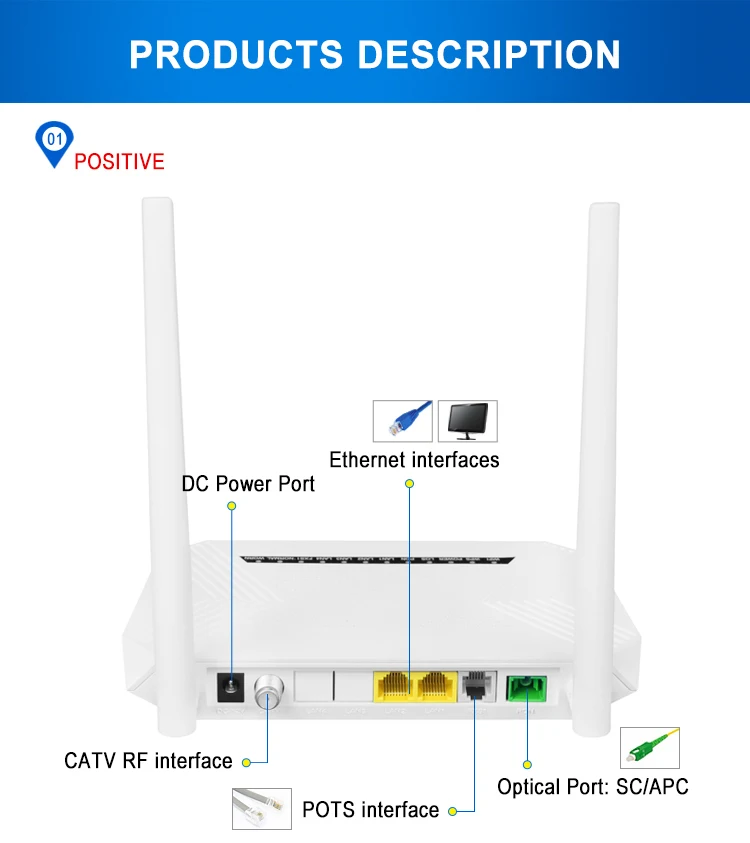

Technical item | Details |
PON Interface | 1 GPON BOB （Bosa on Board） |
Receiving sensitivity: ≤-28dBm | |
Transmitting optical power: +1~+4dBm | |
Transmission distance: 20KM | |
Wavelength | TX: 1310nm, RX: 1490nm |
Optical Interface | SC/APC Connector |
Design Scheme | RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B) |
Flash | SPI Nor Flash 16MB |
LAN Interface | 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n, |
Operating frequency: 2.400-2.4835GHz | |
support MIMO, rate up to 300Mbps, | |
2T2R,2 external antenna 5dBi, | |
Support: Multiple SSID | |
Channel: Auto | |
Modulation type: DSSS, CCK and OFDM | |
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
CATV Interface | RF, WDM, optical power : +2~-15dBm |
Optical reflection loss: ≥45dB | |
Optical receiving wavelength: 1550±10nm | |
RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
RF output level: 78dBuV | |
AGC range: -13~+1dBm | |
MER: ≥32dB@-15dBm | |
POTS interface | 1 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 |
LED | 10 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、FXS、 Worn、 Normal(CATV) |
Push-Button | 3,For Function of Reset, WLAN, WPS |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%～90%（non-condensing） | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%（non-condensing） | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 180mm×107mm×28mm（L×W×H） |
Net Weight | 0.24Kg |
Recommend Products
Company Profile
Shenzhen Hi-Fiber Electronic Co.,Ltd was established in 2019,it's branch company of ONU Factory, which located in Shenzhen China. Main products are GPON ONU, EPON ONU, WiFi Router, CPE Router, Outdoor Router.
We have 380 recycling outlets for Optical Network Terminal in China, and we can collect all ONU models of Huawei and ZTE. Our factory has 10 years of experience in producing ONU and Routers. The factory has 100 workers. Our customers are mainly from South America, Asia, Australia and Europe.
We have 380 recycling outlets for Optical Network Terminal in China, and we can collect all ONU models of Huawei and ZTE. Our factory has 10 years of experience in producing ONU and Routers. The factory has 100 workers. Our customers are mainly from South America, Asia, Australia and Europe.
Each product has strict QC testing to ensure a 100% qualified. According to customer requirements, we can provide Products with Brand New packaging box / Product Only / Customize LOGO .
We cooperate with many freight forwarders to deliver the goods safely to your country.
