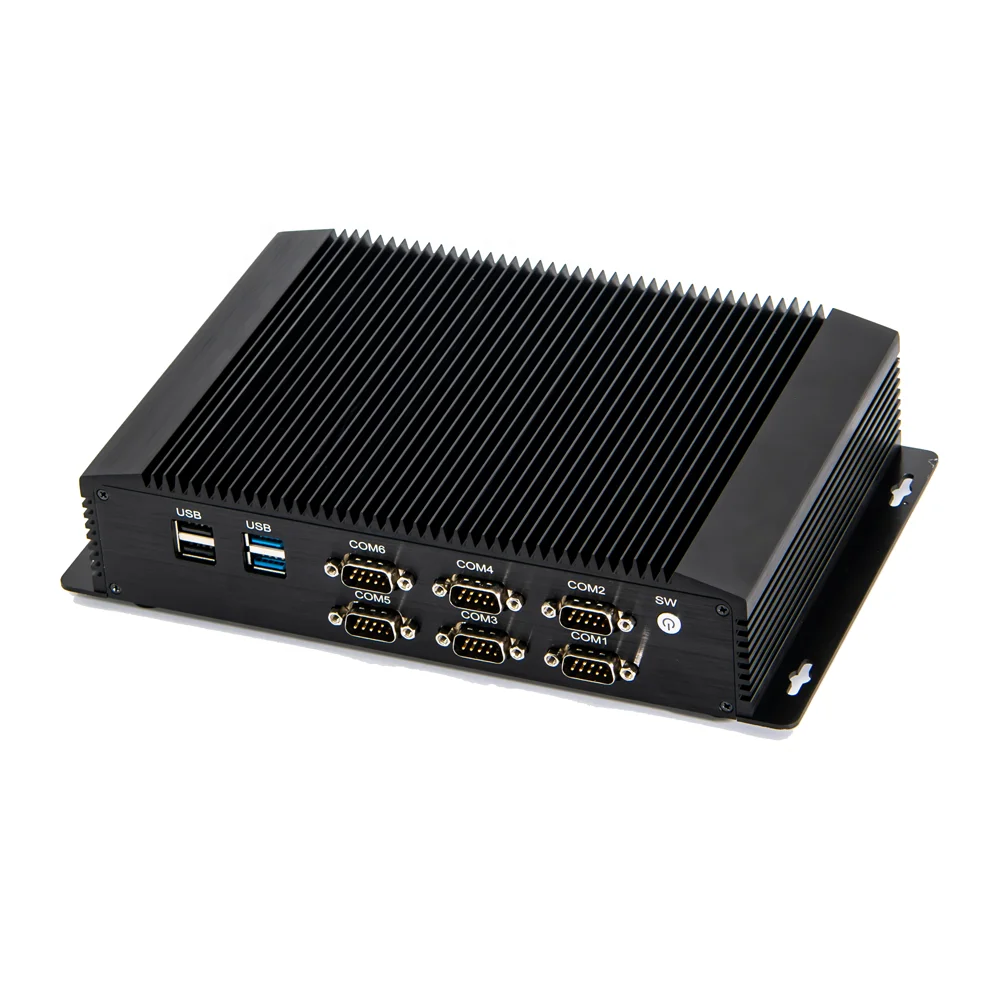

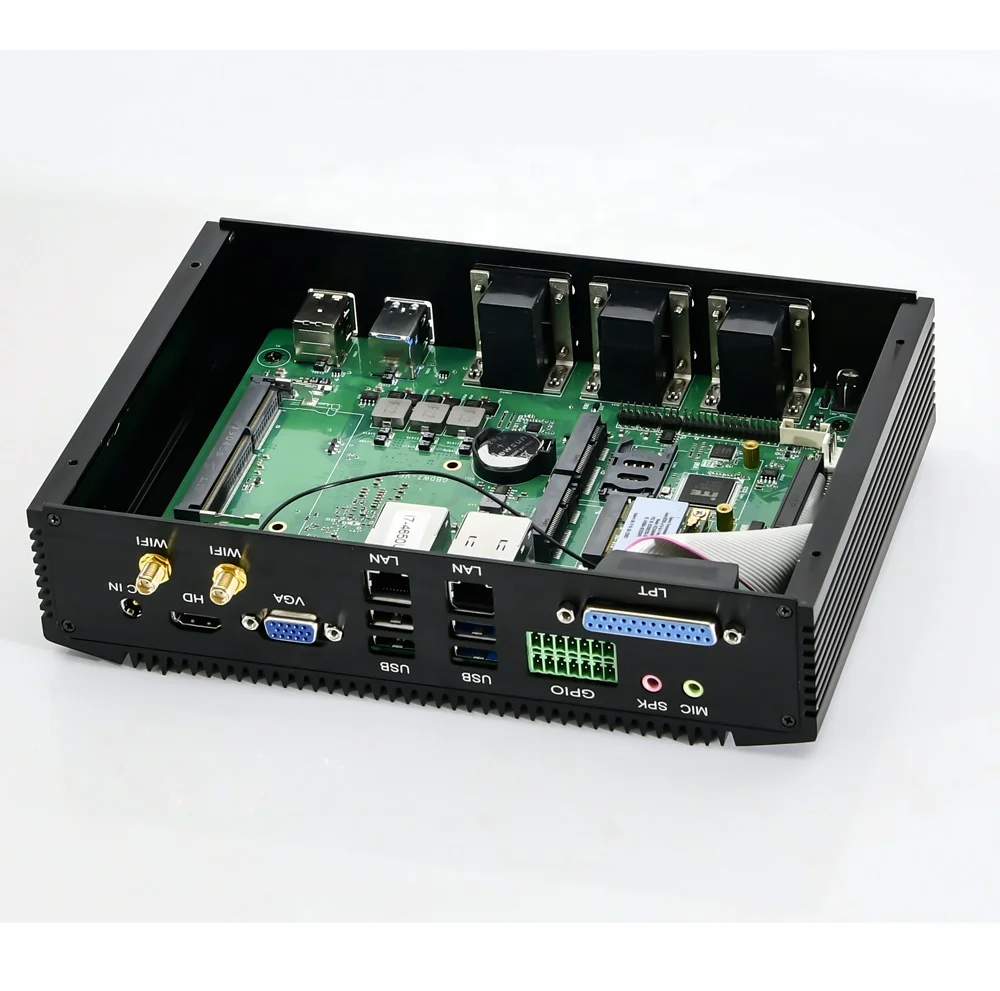

Rugged I7 8550U Fanless Mini PC Win11 Linux 2 LAN 4G SIM WiFi ITX Embedded Industrial Computador With GPIO RS485 For POS ATM Car
- Category: >>>
- Supplier: Shenzhen Dechao Electronics Technology Co. Limited
Share on (1600428903520):
Product Overview
Description
Related Products
Product Description
Rugged I7 8550U Fanless Mini PC Win 11 Linux Dual LAN 4G SIM WiFi ITX Embedded Industrial Computador With GPIO RS485 For POS ATM

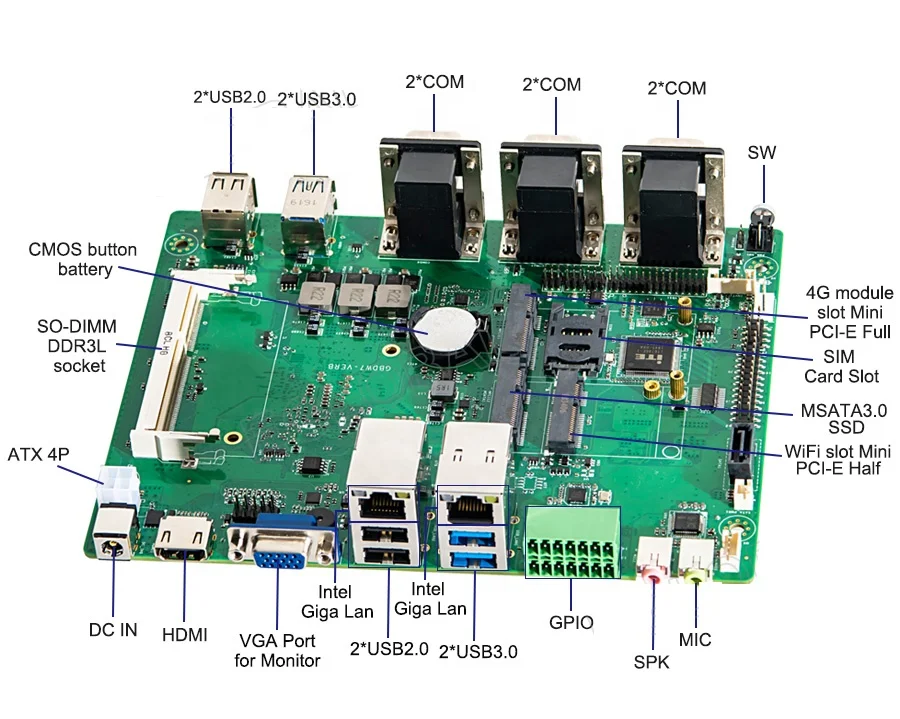

1. Main characteristics
190mm x 150 mm custom structure;
Intel 8th/7th/6th -U FCBGA1168 package CPU;
Support single channel DDR4 SODIMM memory;
Support mSATA SSD solid state drive + SATA 2.5" HDD/SSD;
1 x VGA interface, 1 x HDMI interface, 1 x dual channel 24 bit LVDS(Optional);
Provide 4 x USB 2.0 interface;
Provide 4 x USB 3.0 interface;
Provide 1 x PS2 interface for Mouse / Keyboard;
Provide 4 x RS232 + 2 x RS232/RS422/RS485 COM Port;
Provide 2 x Intel Gigabit Ethernet interface;
Provide 1 x Mini-PCIE slot for WiFi + 1 x Mini-PCIE slot for WiFi/4G;
Support onboard motherboard diagnostics;
Support 12V DC power supply, DC power supply has reverse connection protection function, the power supply will not cause damage to the motherboard and external power supply.
2. Working environment
Working temperature: -10 ° C ~ +60 ° C
Storage temperature: -20 ° C ~ +85 ° C
Working humidity: 10% ~ 90%
Storage humidity: 5% ~ 95%, no condensation
3. Specifications
Processor | CPU | Intel Core® i7-8550U | Intel Core® i5-8250U | Intel Core® i3-7020U |
Max. Speed | 2.3 GHz | 2.8 GHz | 2.3 GHz | |
Cores / Threads | 4 Cores / 8 Threads | 2 Cores / 4 Threads | ||
Memory | Technology | Single Channel DDR4 | ||
Max capacity | 32 GB | |||
Socket | 1* 260 pin SO-DIMM memory | |||
Graphics | Chipset | Intel® UHD Graphics 620 | Intel® HD Graphics 620 | |
Max Frequency | 1.15GHz | 1.10GHz | 1.0GHz | |
Interface | 1* VGA + 1* HDMI output | |||
Ethernet | Controller | Intel i213 | ||
Speed | 10/100/1000 Mbps | |||
Connector | 2* RJ45 | |||
Extension | WiFi (Optional) | 1* Mini PCI-e WiFi | ||
4G (Optional) | 1* Mini PCI-e 4G (Optional), embedded SIM slot | |||
BIOS | AMI BIOS, ACPI supported | |||
Function | Watch dog, Auto power on after power restore, PXE Boot, RTC, Wake-on-LAN, etc | |||
I/O Interface | LAN | 2 | ||
GPIO | 1* 8 bits GPIO Phoenix Terminal (with optocoupler isolation function) | |||
USB | 8 (4* USB 3.0 + 4* USB 2.0) | |||

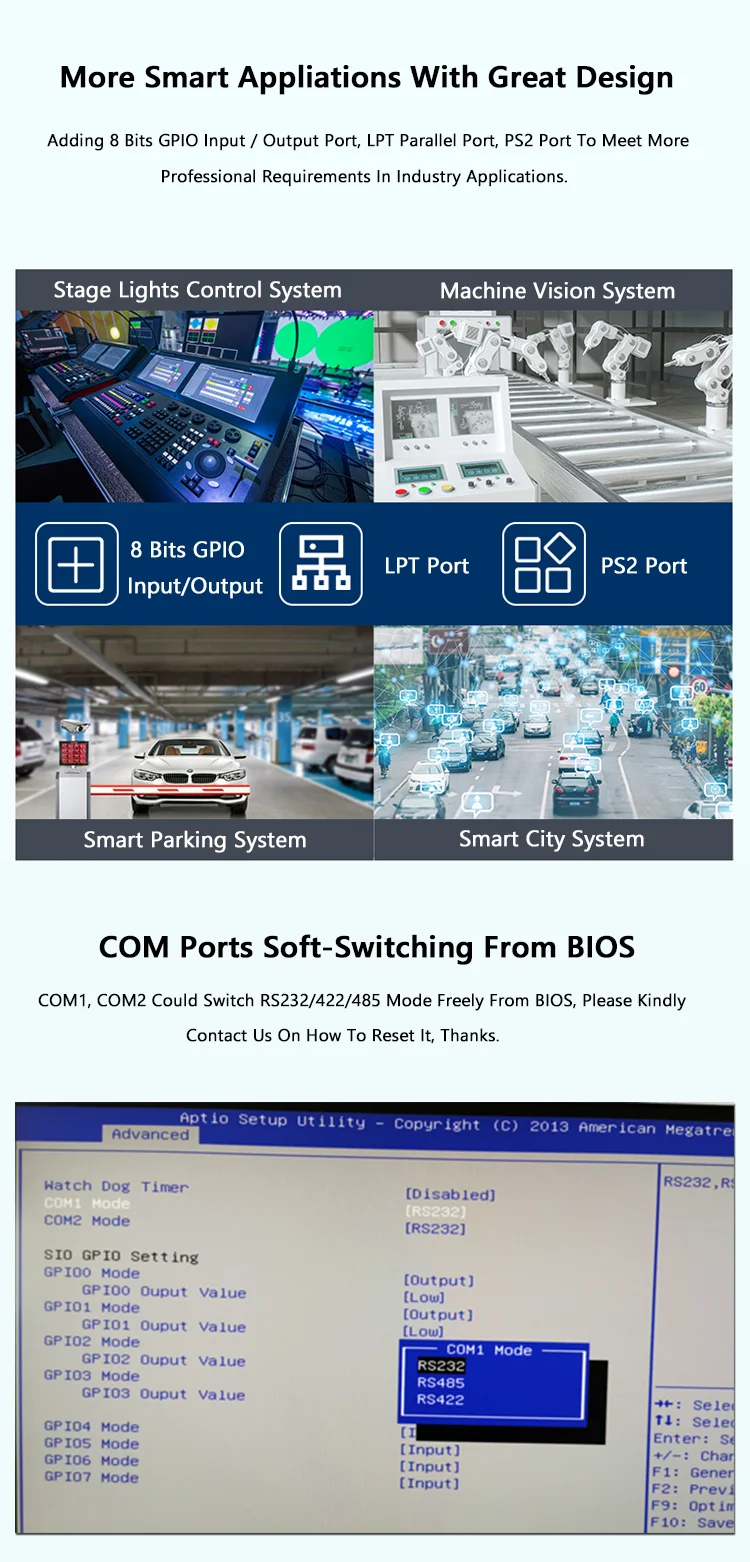

Serial Port | 4* RS232 + 2* RS232/422/485 (Switch by BIOS setting) | |||
HD Port | 1* VGA + 1* HDMI 1.4 | |||
PS2 | 1 (For Keyboard & Mouse) | |||
Power Switch | 1* Power on/off Switch Button | |||
Audio Port | 1* MIC + 1* SPK | |||
DC-In | 1* DC 12V Power interface | |||
Storage | SATA | Support 1* 2.5 inch SATA laptop HDD or SDD | ||
mSATA | Support 1* mSATA SSD | |||
System Supported | Windows 10 and all kinds of Linux OS | |||
Power Requirement | Power Type | External power adapter mode | ||
Power Input | DC 12V 5A | |||
TDP | 15W | |||
Mechanical | Construction | High quality pure Aluminum alloy housing | ||
Mounting | Wall mounting | |||
Dimensions | 23*17.5*5 CM | |||
G.W. | 2.5 KG | |||
Operating Environment | Temperature | -10℃ ~ +60℃, Surface air flows | ||
Humidity | 0% ~ 90% (non-condensing) | |||
Application | Automation, Machine Vision, Digital Signage, Kiosk, ATM, Energy, Telecomommunication, Networking, Transportation, IP Camera, etc | |||
Warranty | 30 days free defective replacement and 3 years free repair | |||
Certification | CE, RoHS, FCC, CCC | |||
Packing Content | 1* Mini PC; 1* Power Adapter; 1* Power Cord; 2* WiFi Antennas(Optional) | |||
Highlights:

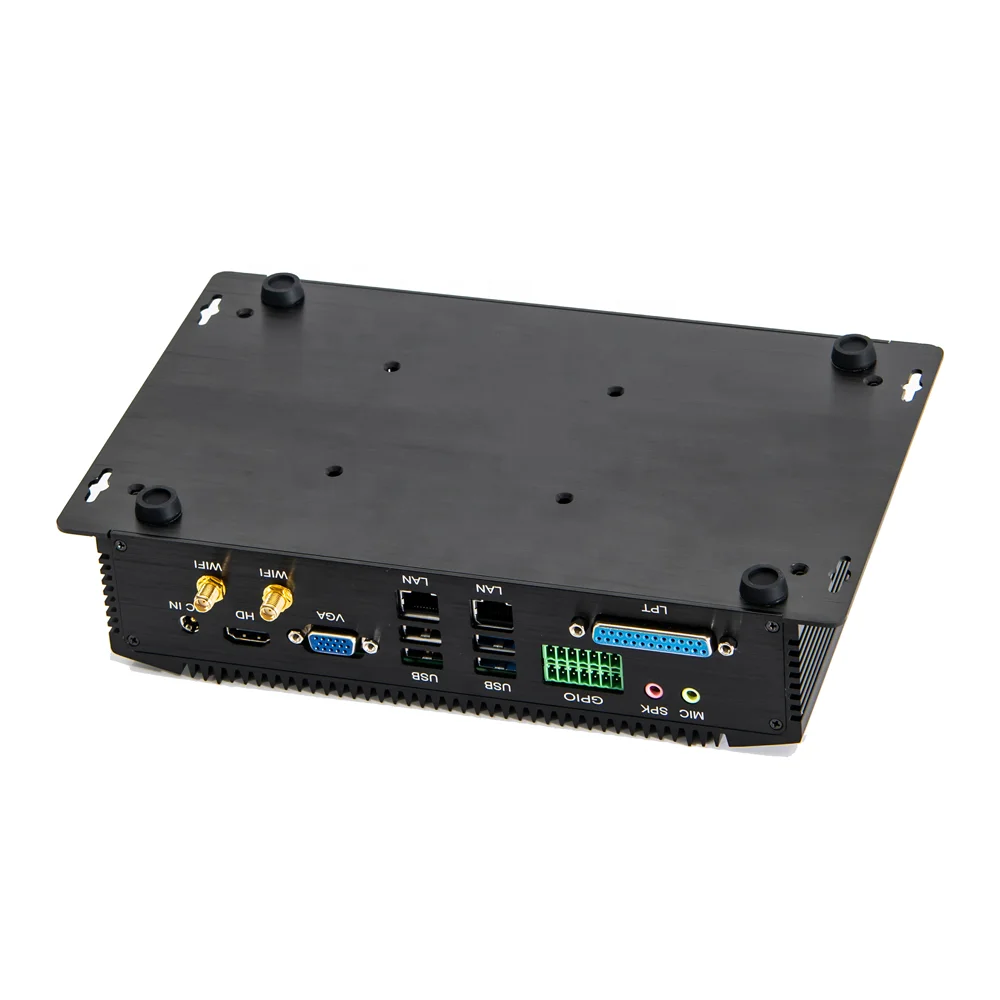

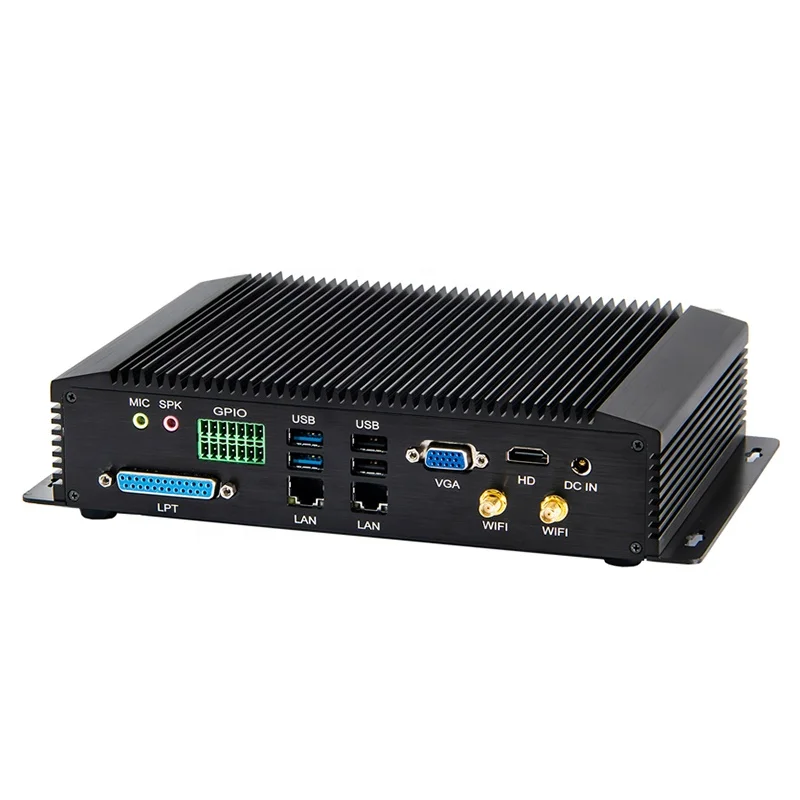

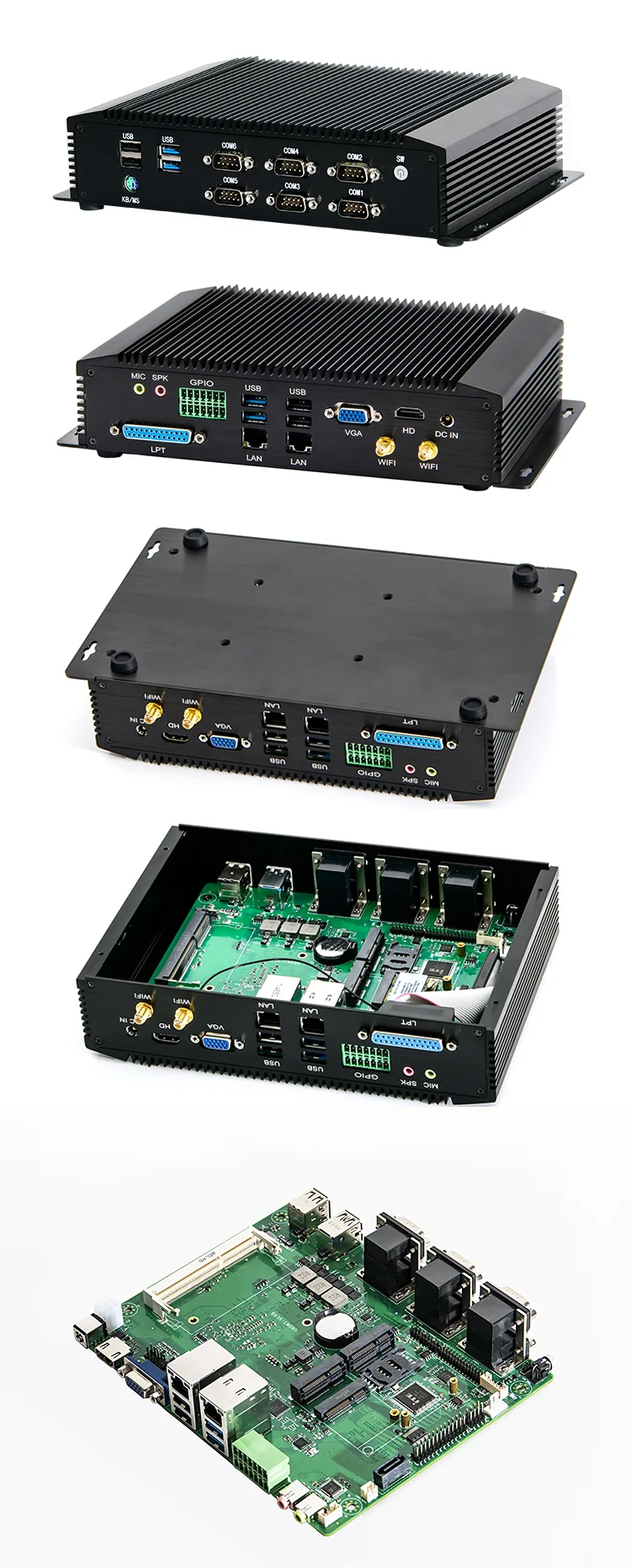

Details View:
Packaging & Shipping
Packing List
Standard | 1* Mini PC |
1* Power Adapter, 12V/5A optional | |
1* Power Cord, as per local standard | |
2* WiFi Antenna(optional) | |
Optional | 1* HDMI Cable |
1* HDMI to DVI Cable | |
1* HDMI to VGA Cable |
Our Services
Company Information
FAQ
1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM / ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What payment method do you accept?
T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.
3. What is the Minimum Order Quantity (MOQ)?
We can sell one piece of sample for your testing.
4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
5. How many years for the product warranty?
3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it?
We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea/Truck/Train, etc.
7. What kinds of customization can you do?
We can OEM / ODM the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services?
Yes, we can offer you mouse and keyboard combo, HD cable, genuine Win10 license key, external CD-ROW, USB Hub, 4G module, etc.
9. What is HS code of Adeli mini pc?
8471504090
Any more questions, please feel free to contact us, will reply you soonest. Thanks.
