Hot Heat Shrinkable Splice Protection 60mm Fiber Optic Sleeves
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600428963169):
Product Overview
Description

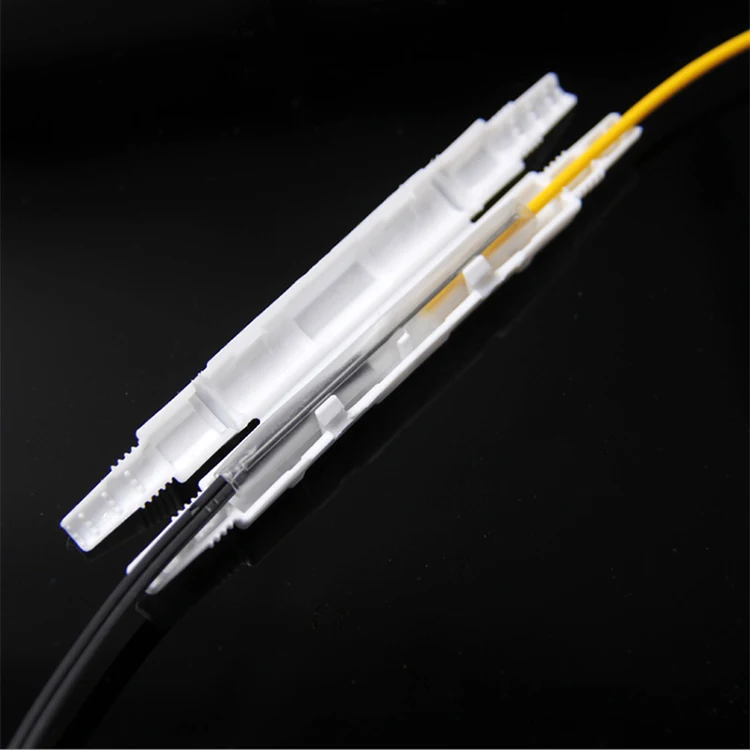

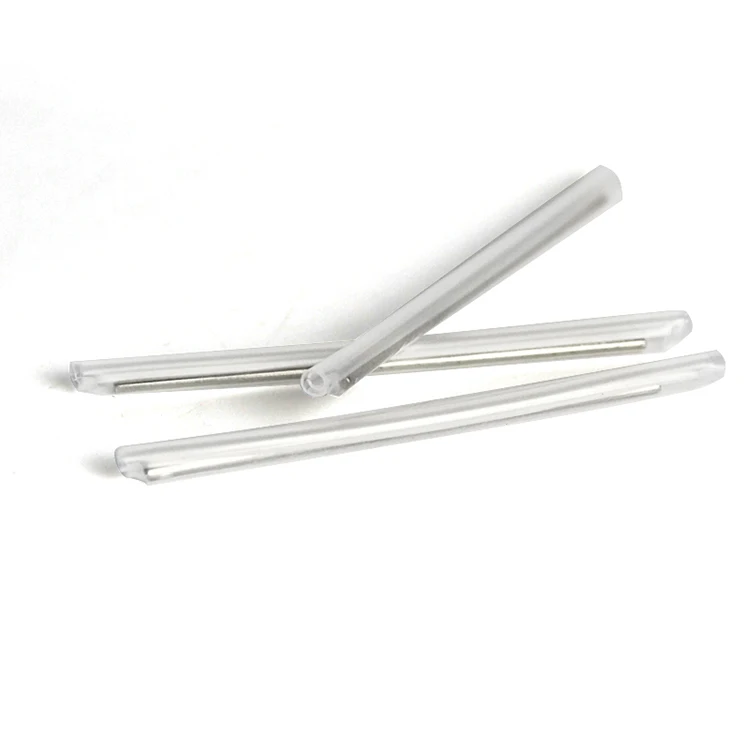

60mm Splicing Fusion Fiber Optic Protection Sleeve

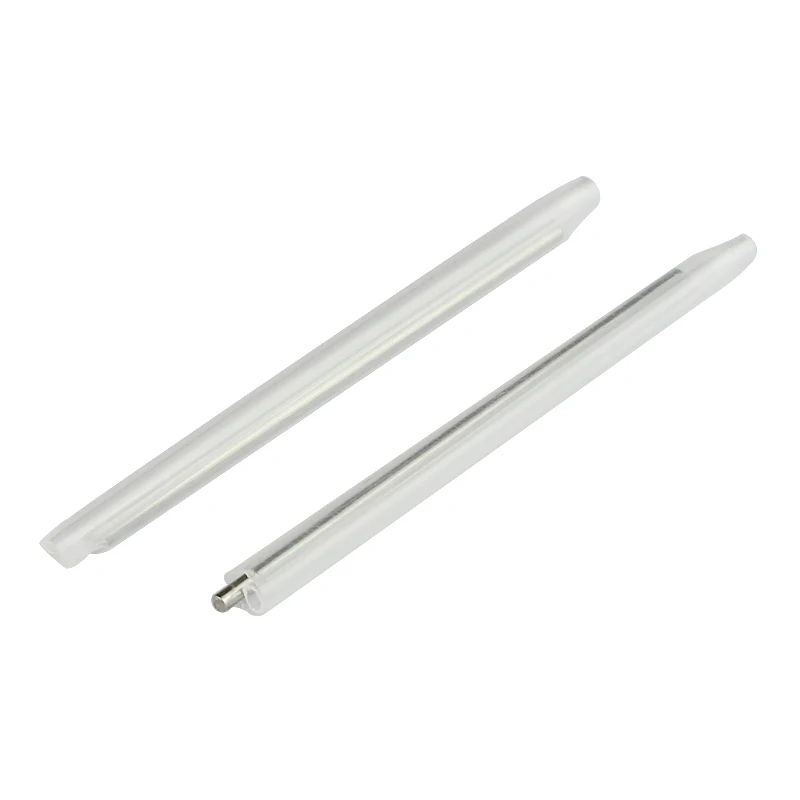

This is the industry's most popular, high quality fusion splice protection sleeve. It has a steel strength member, inner fiber
tube and outer shrink tube.We offer a number of high quality splicing sleeve options. Standard lengths include 60mm, 45mm and 40mm. Sleeves come standard with a clear tube for viewing the color of the fiber itself.
tube and outer shrink tube.We offer a number of high quality splicing sleeve options. Standard lengths include 60mm, 45mm and 40mm. Sleeves come standard with a clear tube for viewing the color of the fiber itself.
Products Description
Product Paramenters
Type | Splicing Fusion Fiber Sleeve |
Material | EVA, Stainless Steel |

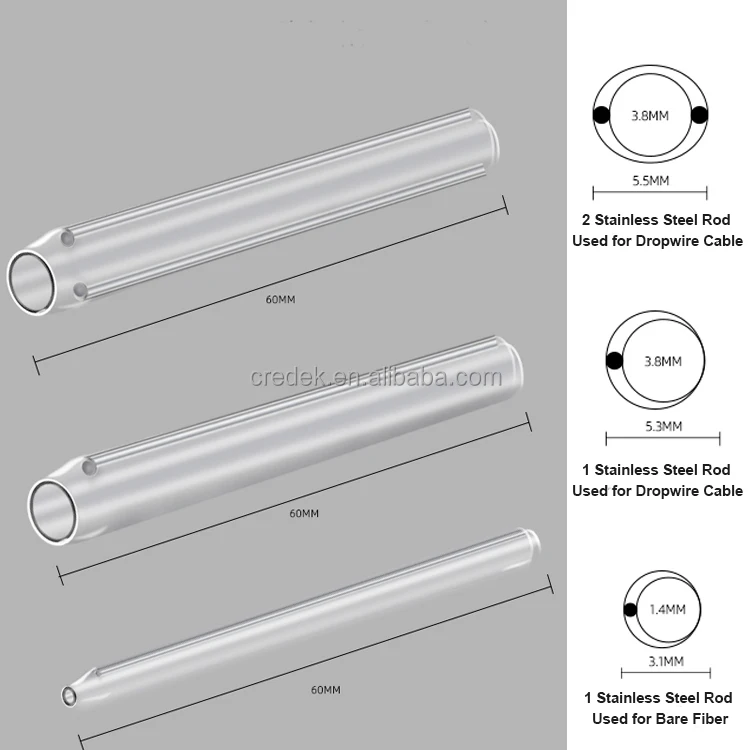

Length | 35, 40, 45, 50, 60mm |
Steel Rod Diameter | 1.0mm, 1.2mm, 1.4mm, 1.5mm |

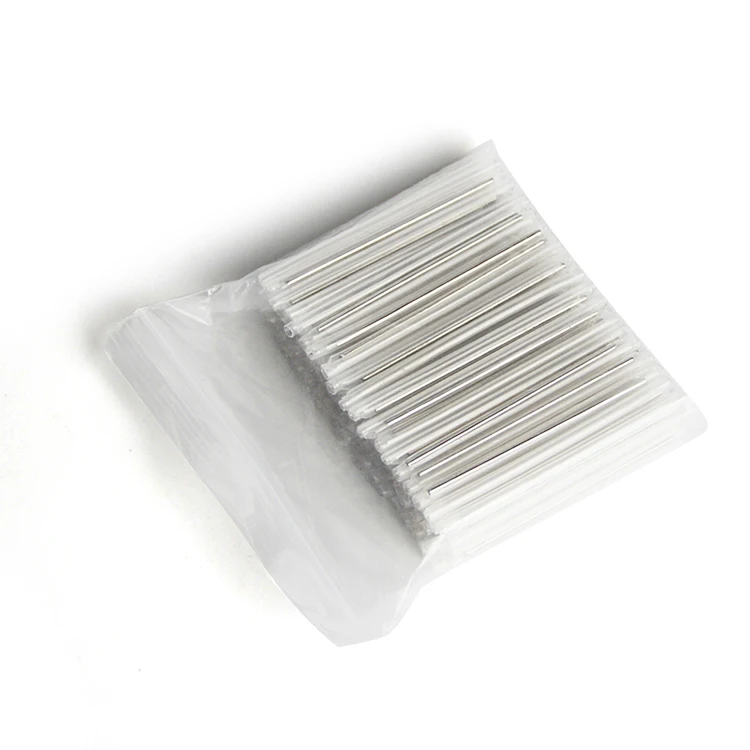

Packing: | 100 pcs /bag |
Shrinking Temperature (°C) | 130 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) | -55°C ~ + 110°C |
Normal Operature Relative Humidity | ≤95% |
Spark- over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40°C | 0.03dB |
Loss at +60°C RH95% | 0.02dB |
