Share on (1600428997940):


Price:$89.00 - $95.00

Quantity:


Product Overview

Description







Products Description

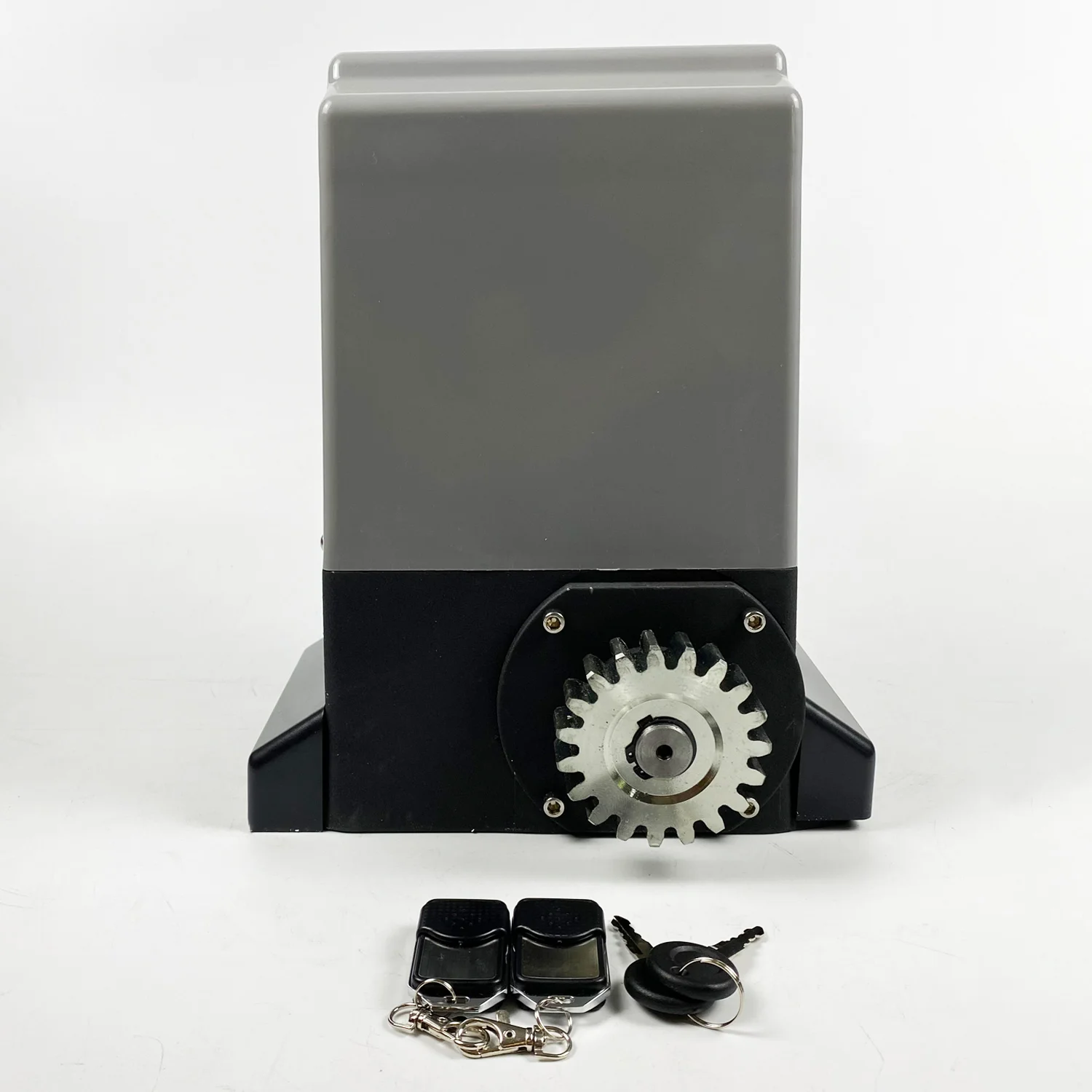

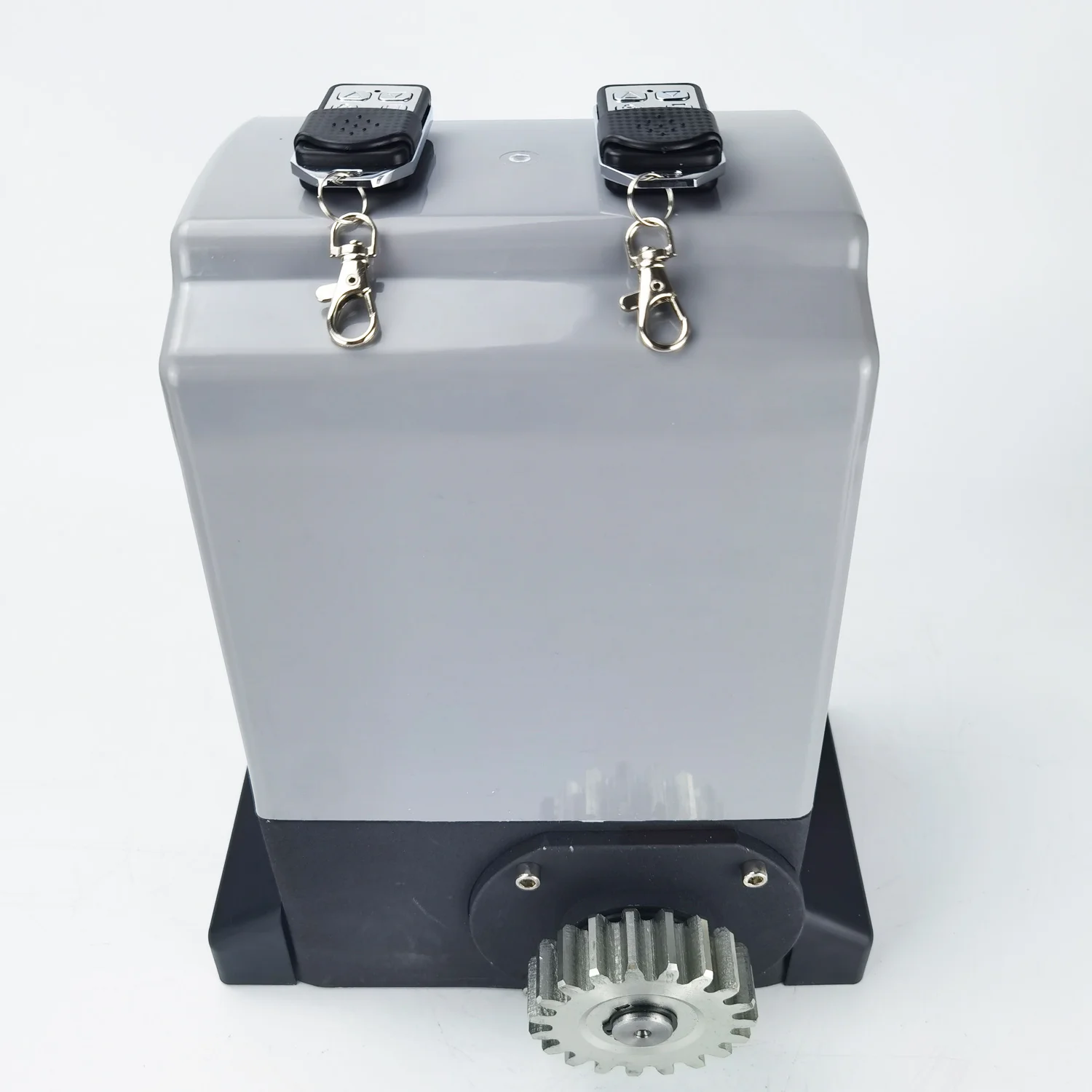

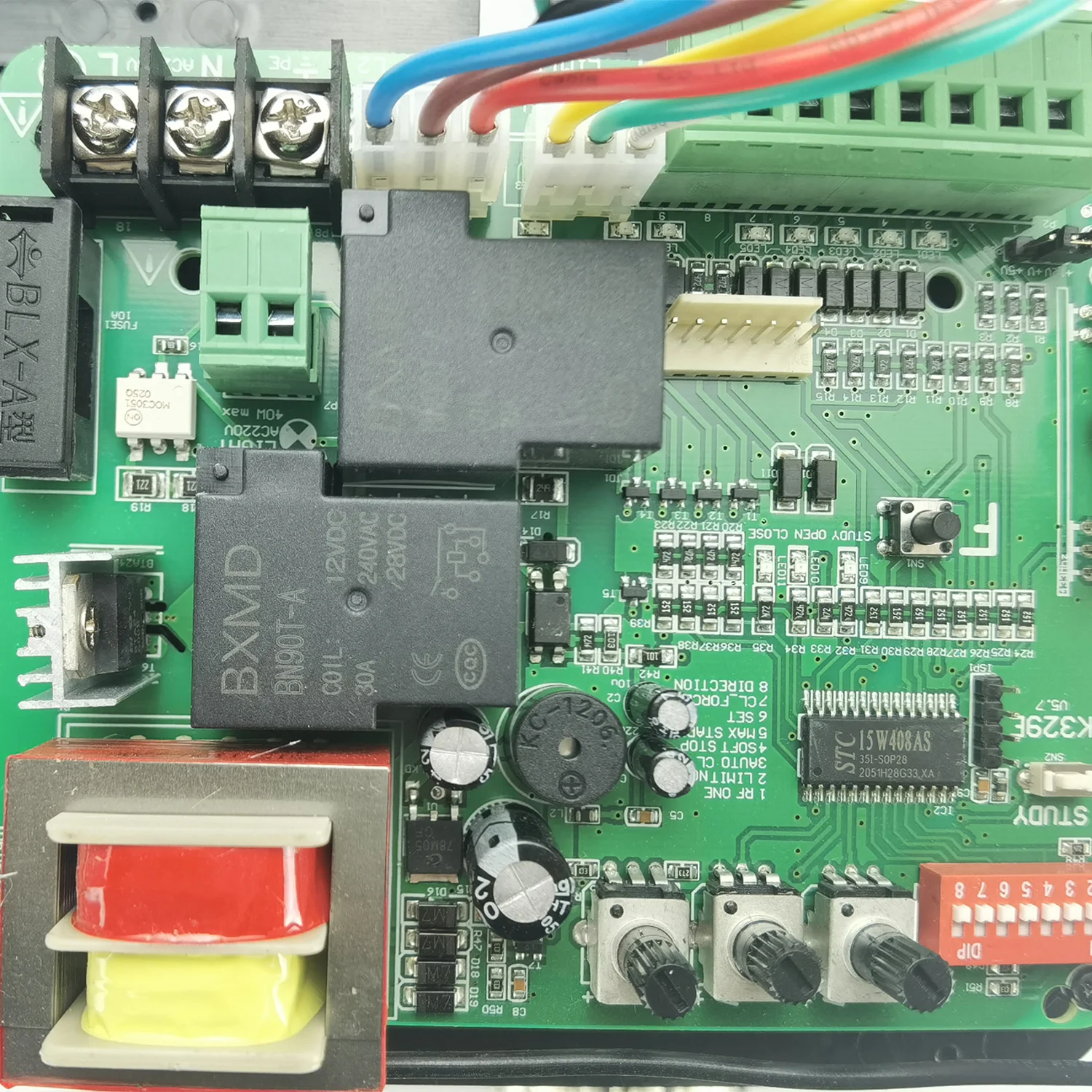

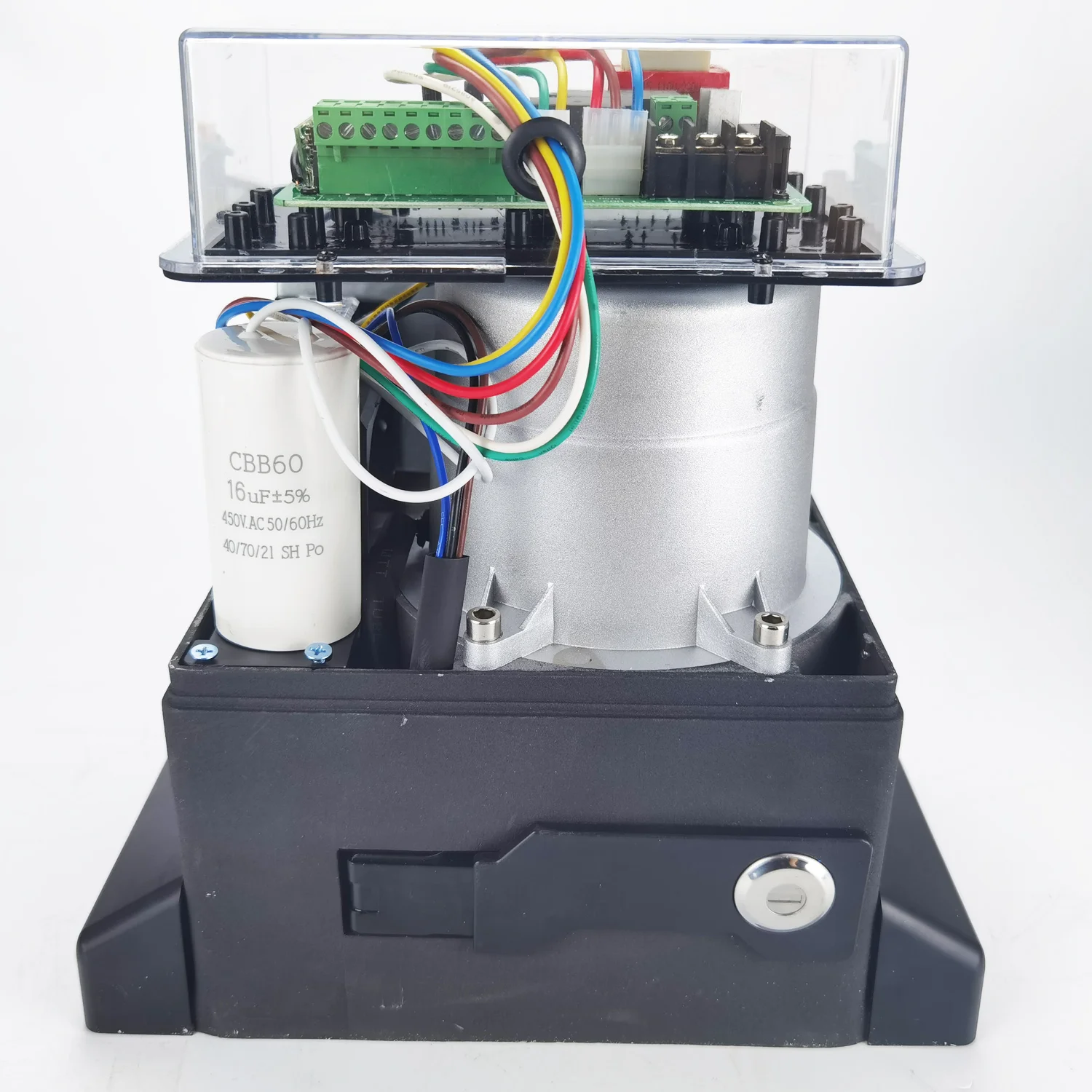

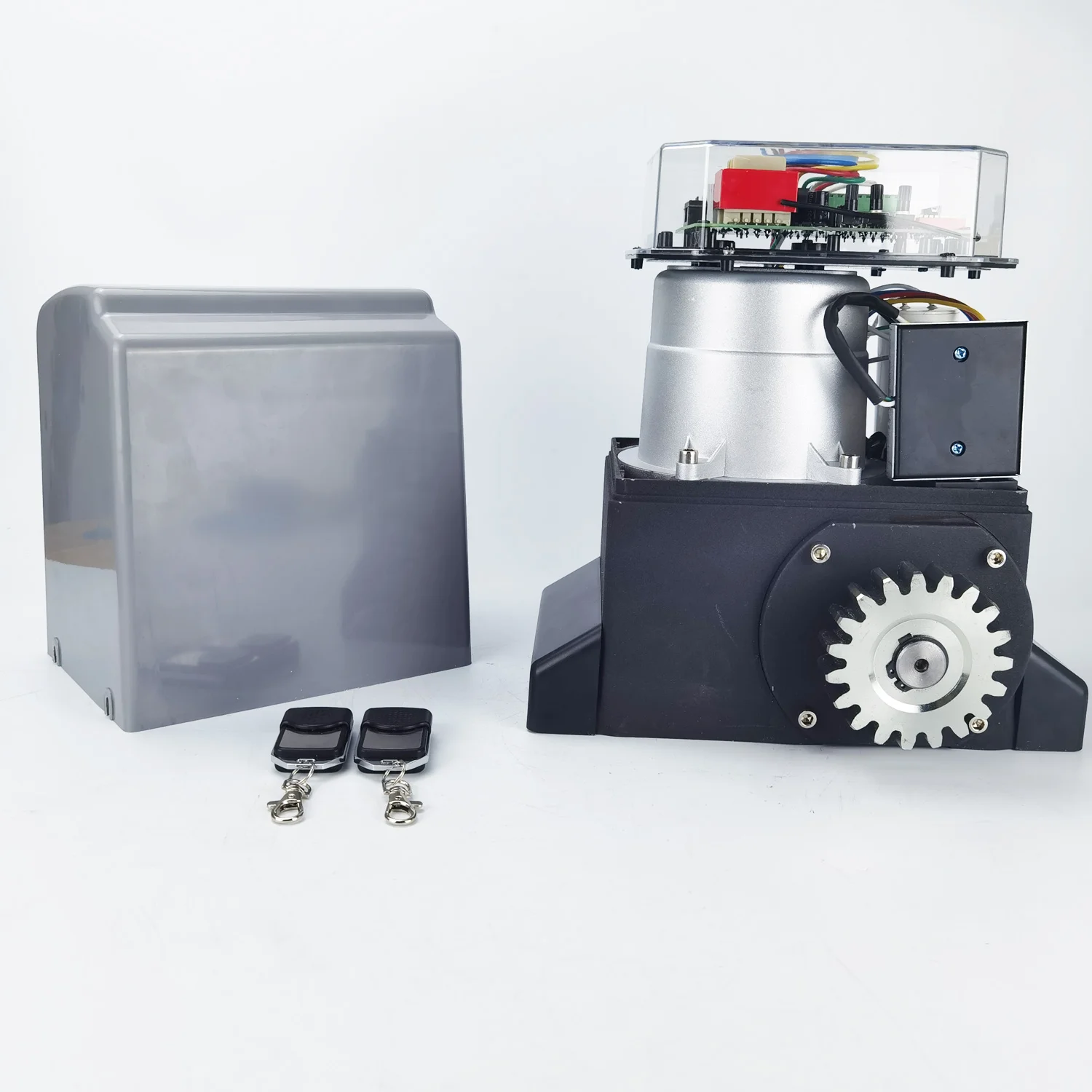

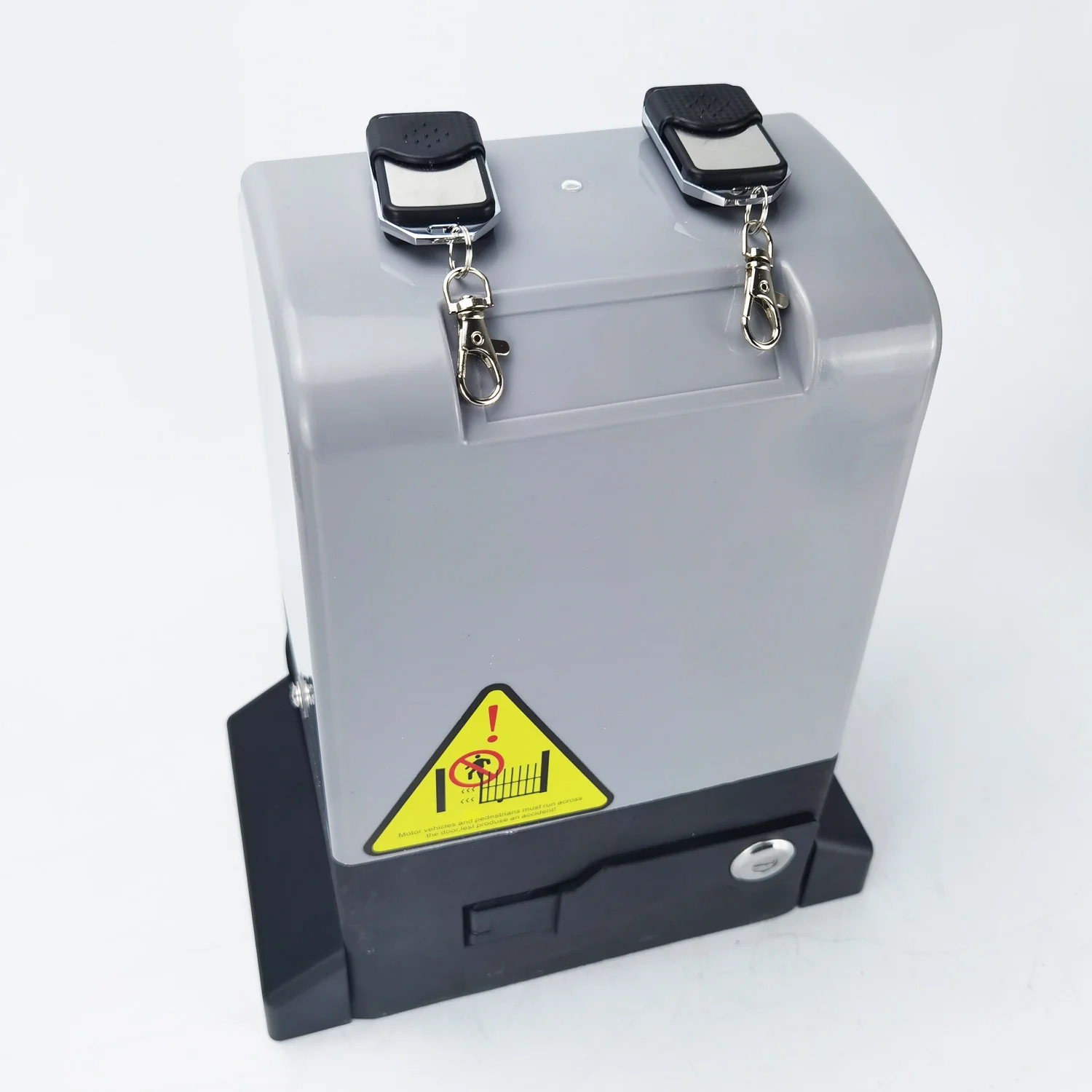

Heavy duty industrial sliding gate motor G8 could supply sliding gate up to 800kgs,available in 110V and 220V.Sliding gate operatrs are provided with built-in control pannel with integrated 433 MHz and electromechanical or magnetic limit switches.Realiablity and safety characterize to keep this operators superior quality.


Automatic sliding gate system opener
The principle of the sliding gate motor is that the motor gear drives the rack to slide to achieve translation. It couldn’t stop automatically in the middle, and could only be operated by the remote control, because this kind of motor generally has a repeated command restriction function: that is, when each open and close reach the position, if you continue to repeat the previous open and close control action, the command will not It works to prevent the door body from continuing to run in the same direction and causing damage after exceeding the limit under the action of inertia.

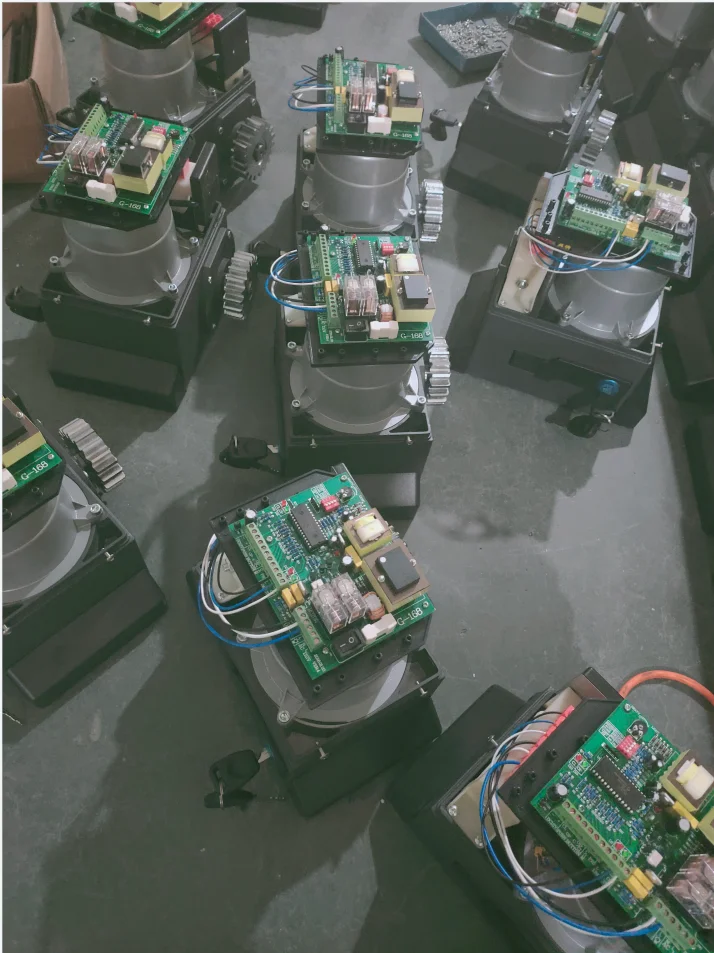

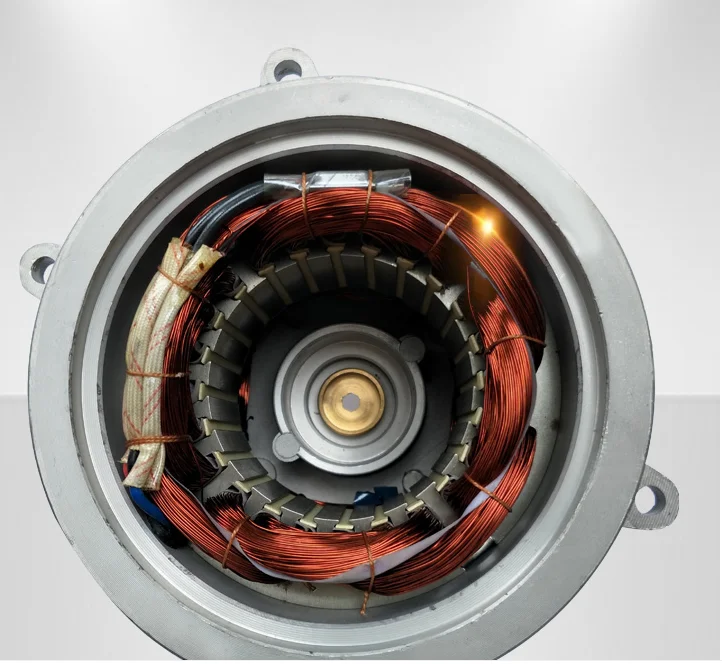

Manufacturing Technique


SPECIFICATIONS
G6
G8
G15
G20
Power Supply
86-220V+/-10%
86-220V+/-10%
86-220V+/-10%
86-220V+/-10%
Power of Motor
250W
370W
550W
750W

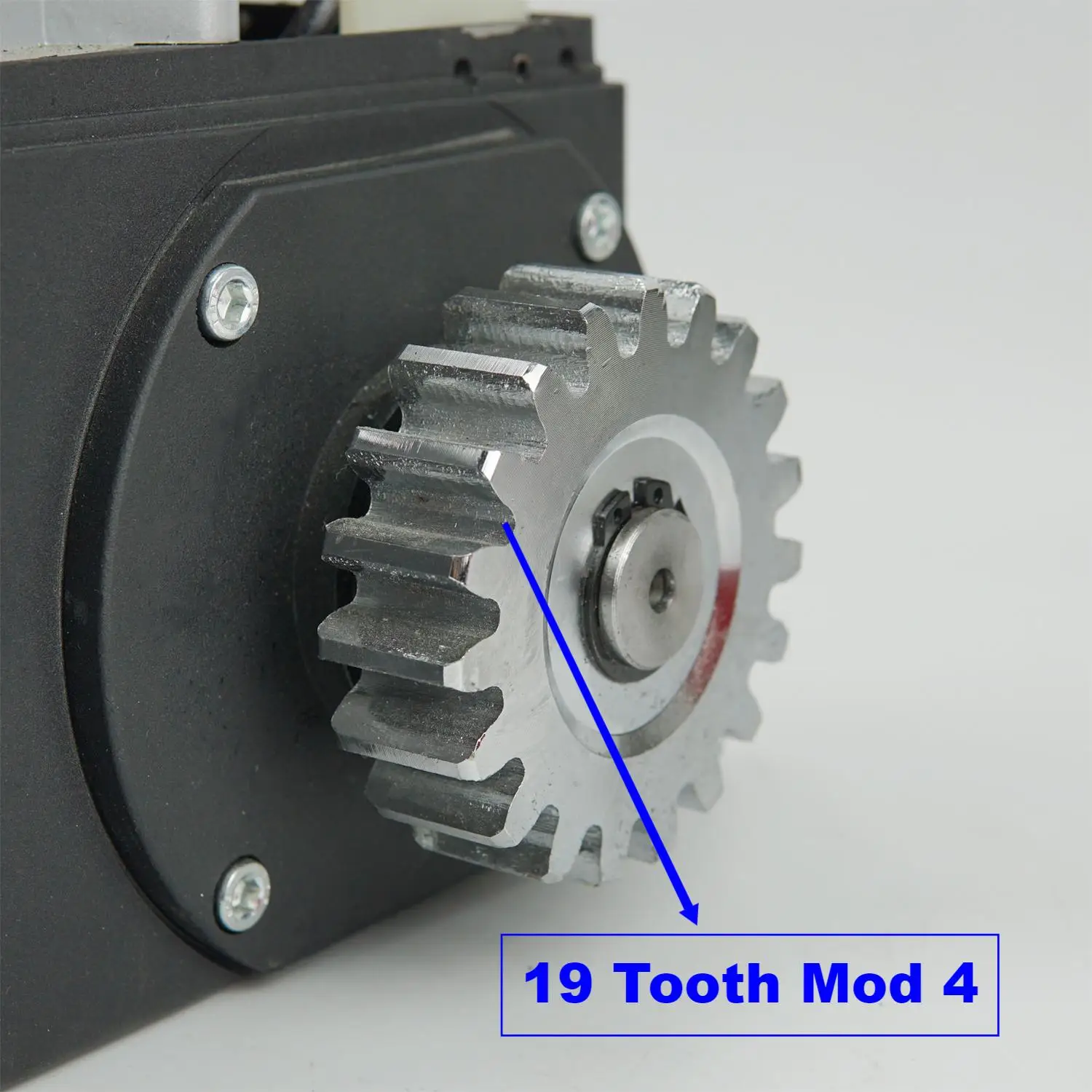

Output Pinion
19 Tooth Mod 4
19 Tooth Mod 4
19 Tooth Mod 4
19 Tooth Mod 4
Operating Speed
12m/min
12m/min
12m/min
12m/min
Maximum Gate length
20m
20m
20m
20m
Shipping Mass of Unit
15kg
15kg
17kg
17.5kg
Maximum Gate Mass
600kgs
800kgs
800~1500kgs
1500~2000kgs

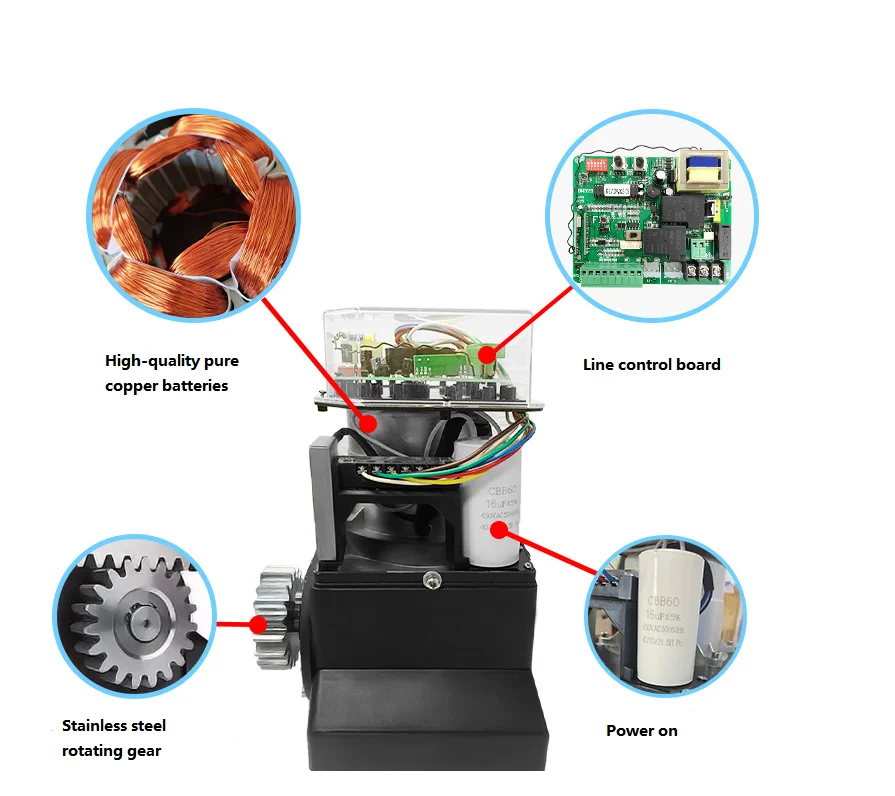

Details Images

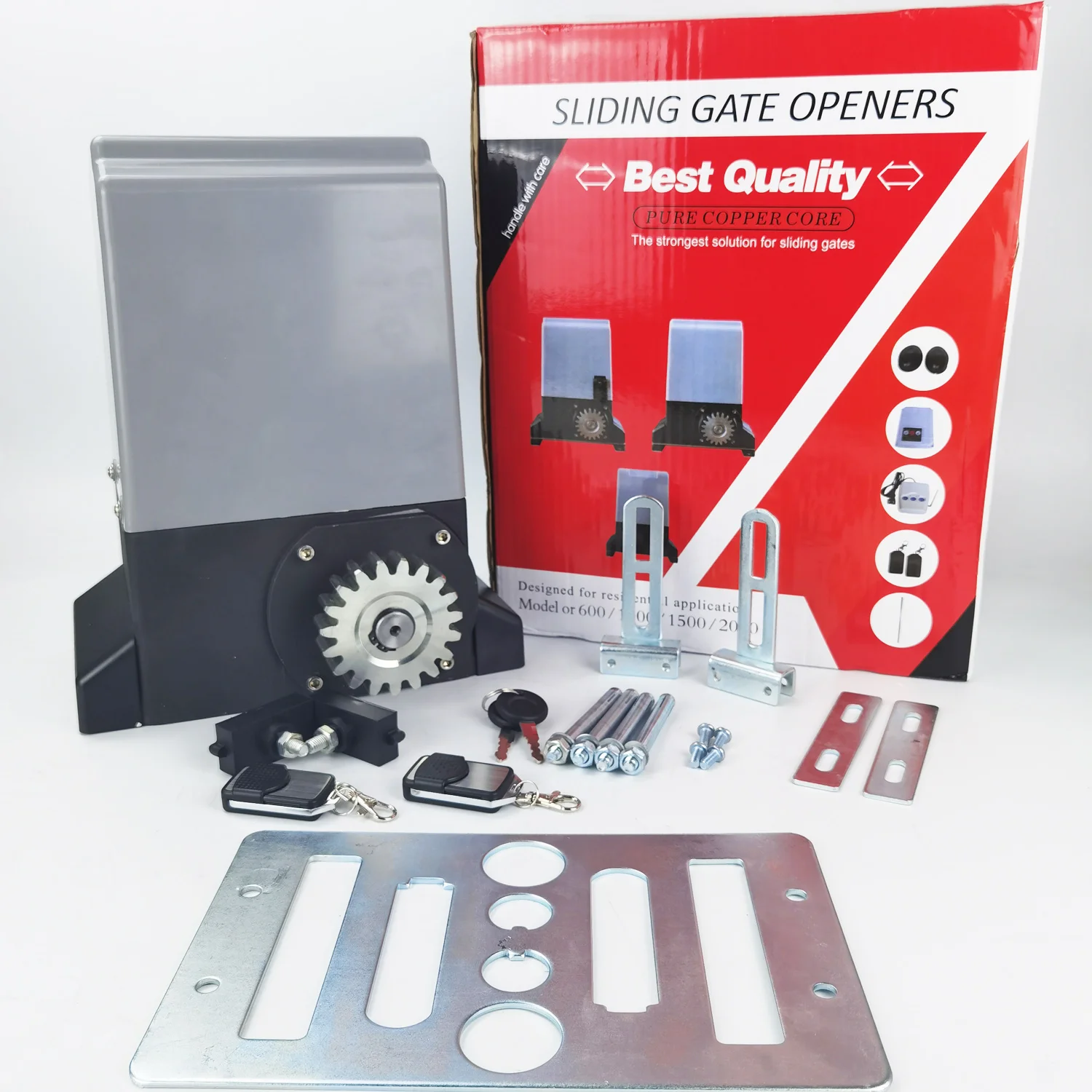

Accessories




Standard of 1 unit carton box

* 1 pcs sliding gate motor
* build-in control board

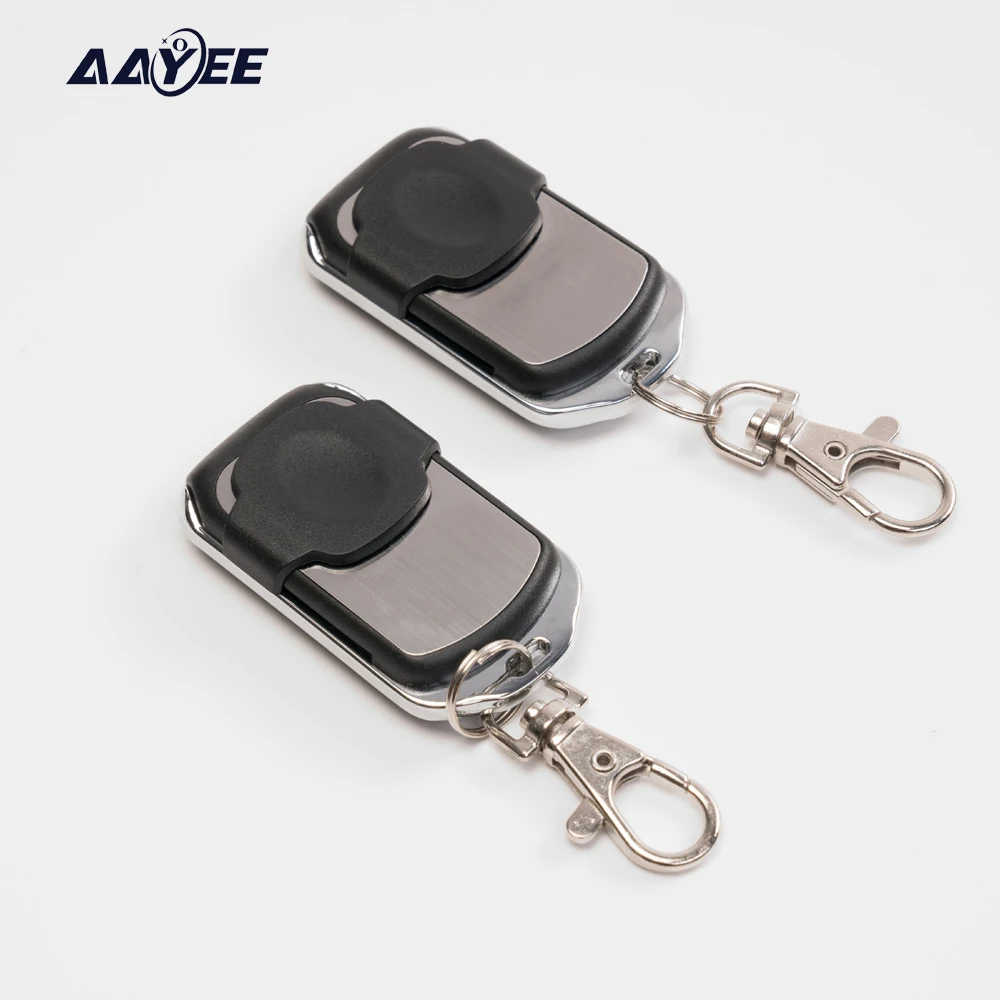

* 2 pcs remote controls
* 2 pcs release keys
* 1 English user manual
* 1 pair of magnets
* 1 metal mounting plate
* bolts & nuts


Optional accessories 1
For your more comfortable use,smart home automatic sliding gate opener could add photocell, flash lamp,2 more remote controls and 4 m gear racks. This part could be combined into a carton box.

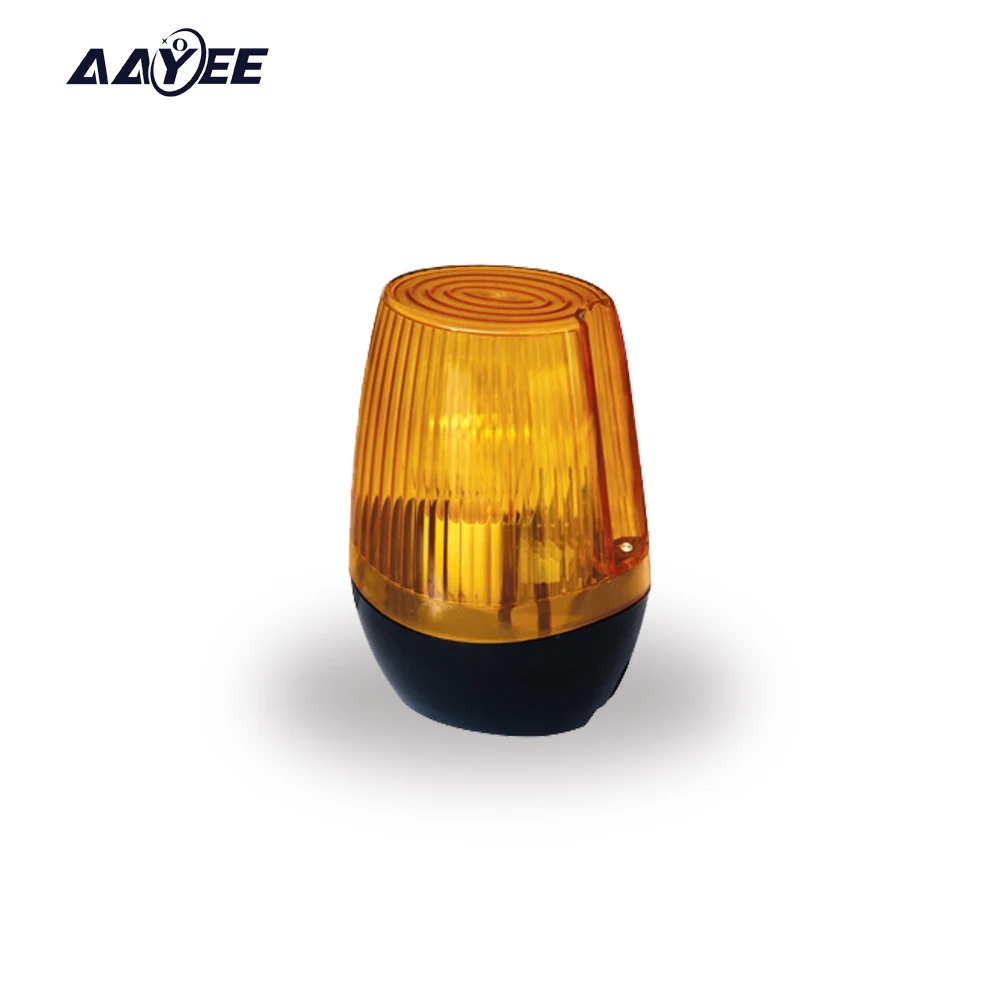

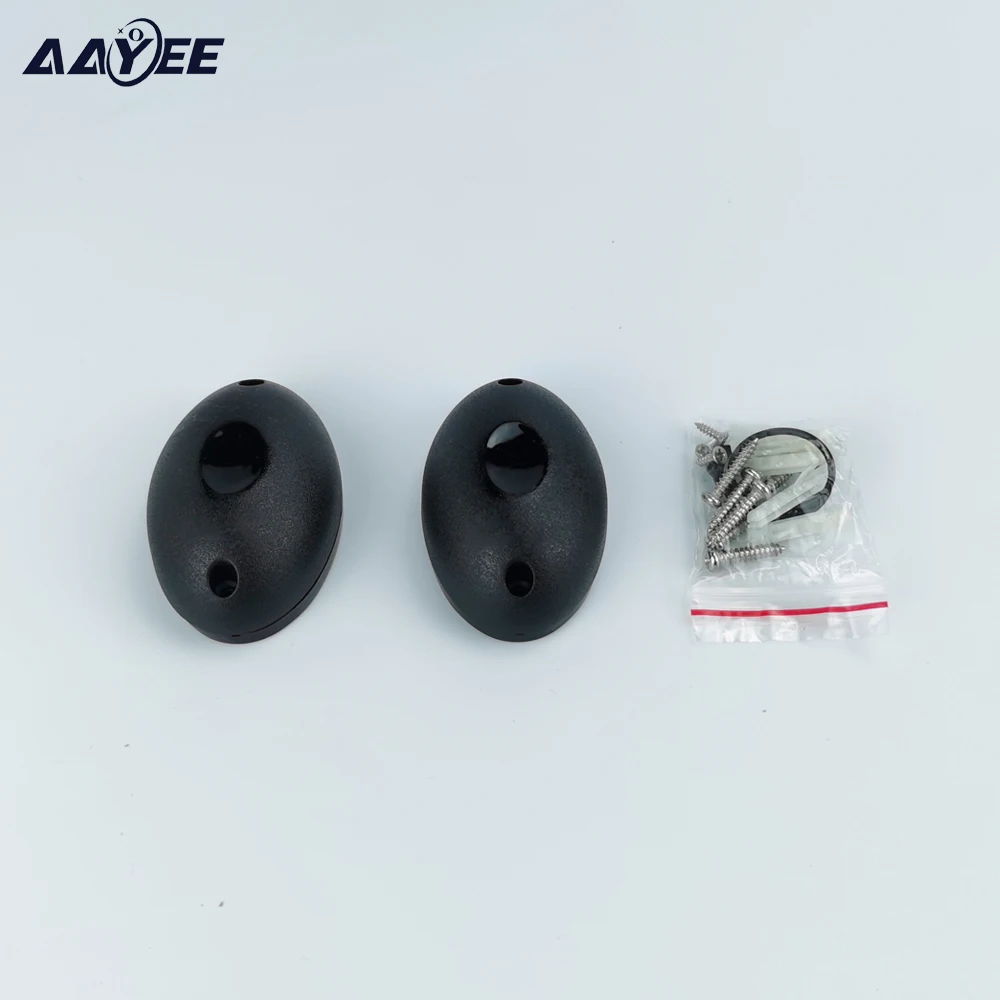

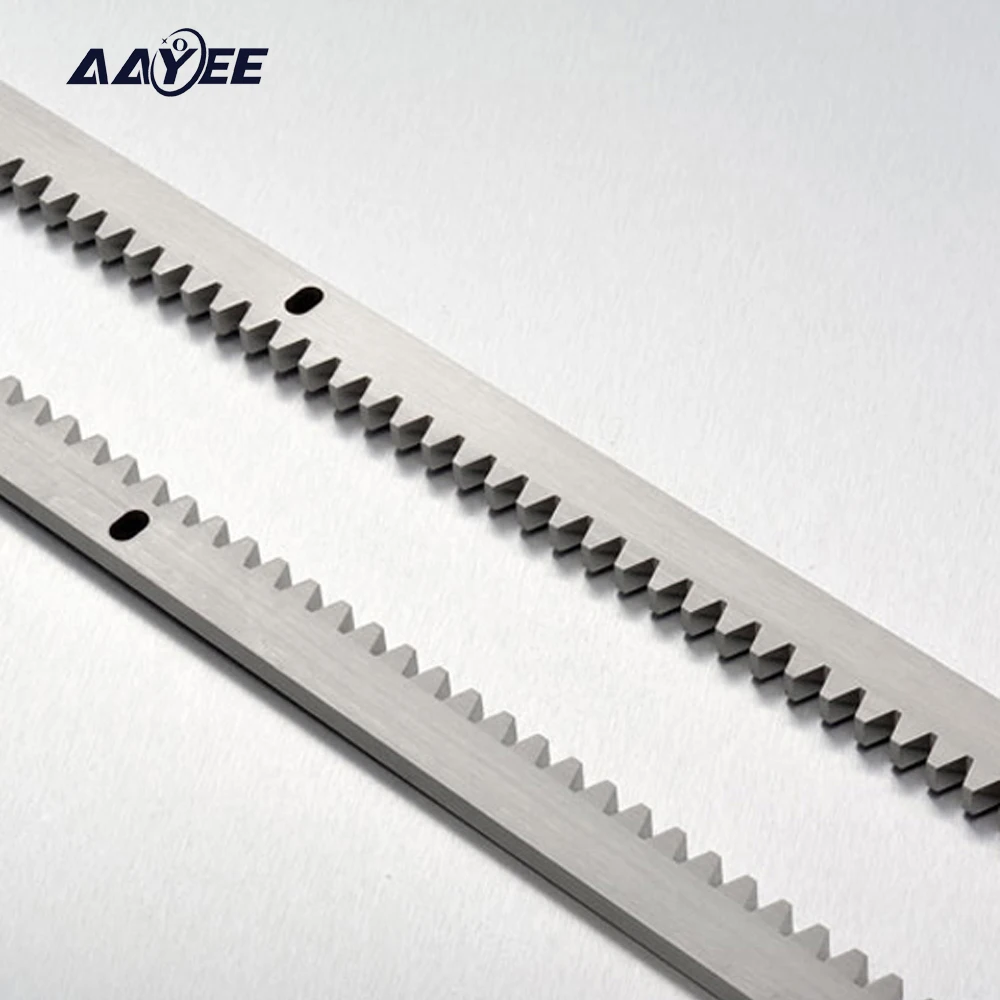

Flash lamp Photocell Remote control Gear rack




Optional accessories 2

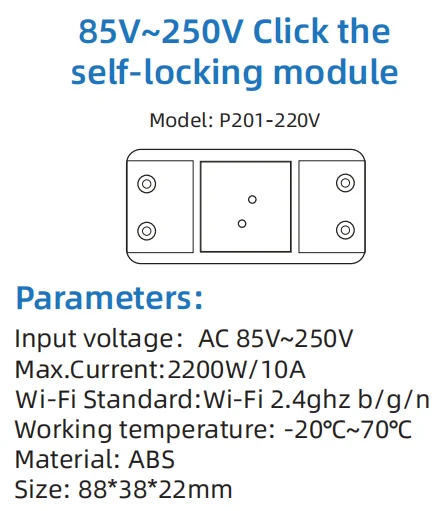

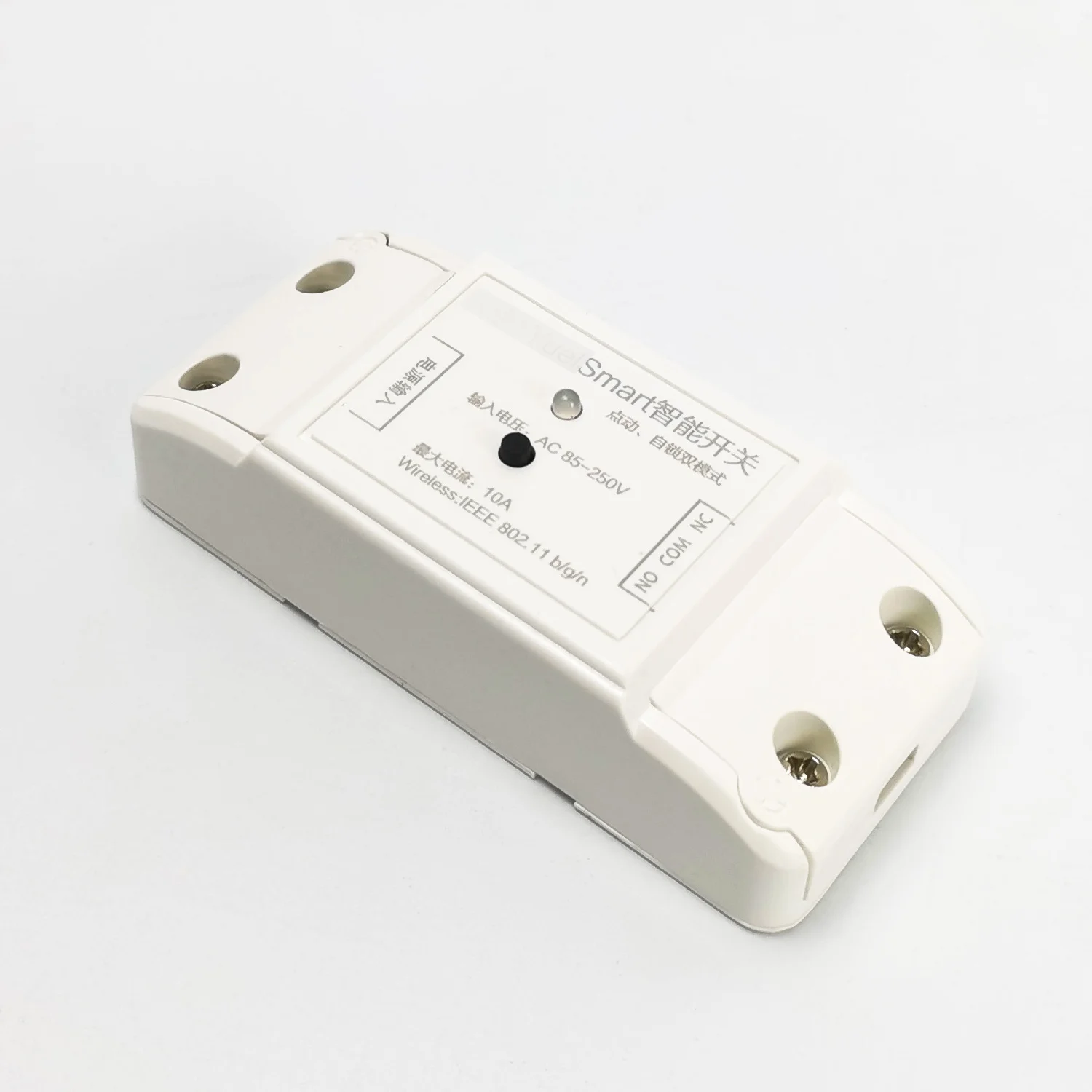

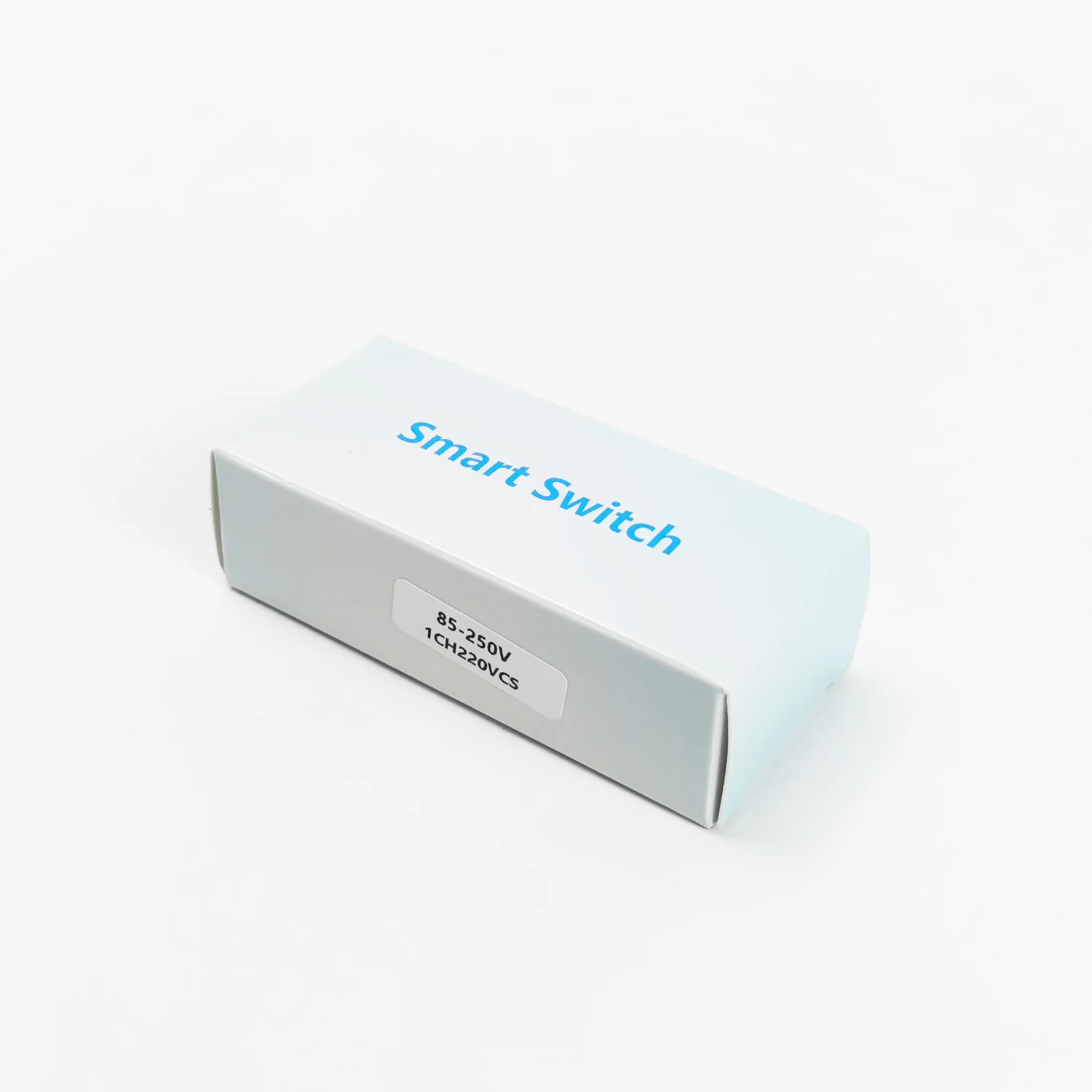

This WIFI smart switch controller could be directly connected to the power circuit, use APP to add devices and connect to your WIFI router, so as to achieve networking and remote control without adding a host.
Anytime, anywhere, mobile phone remote intelligent control , to create your smart life.

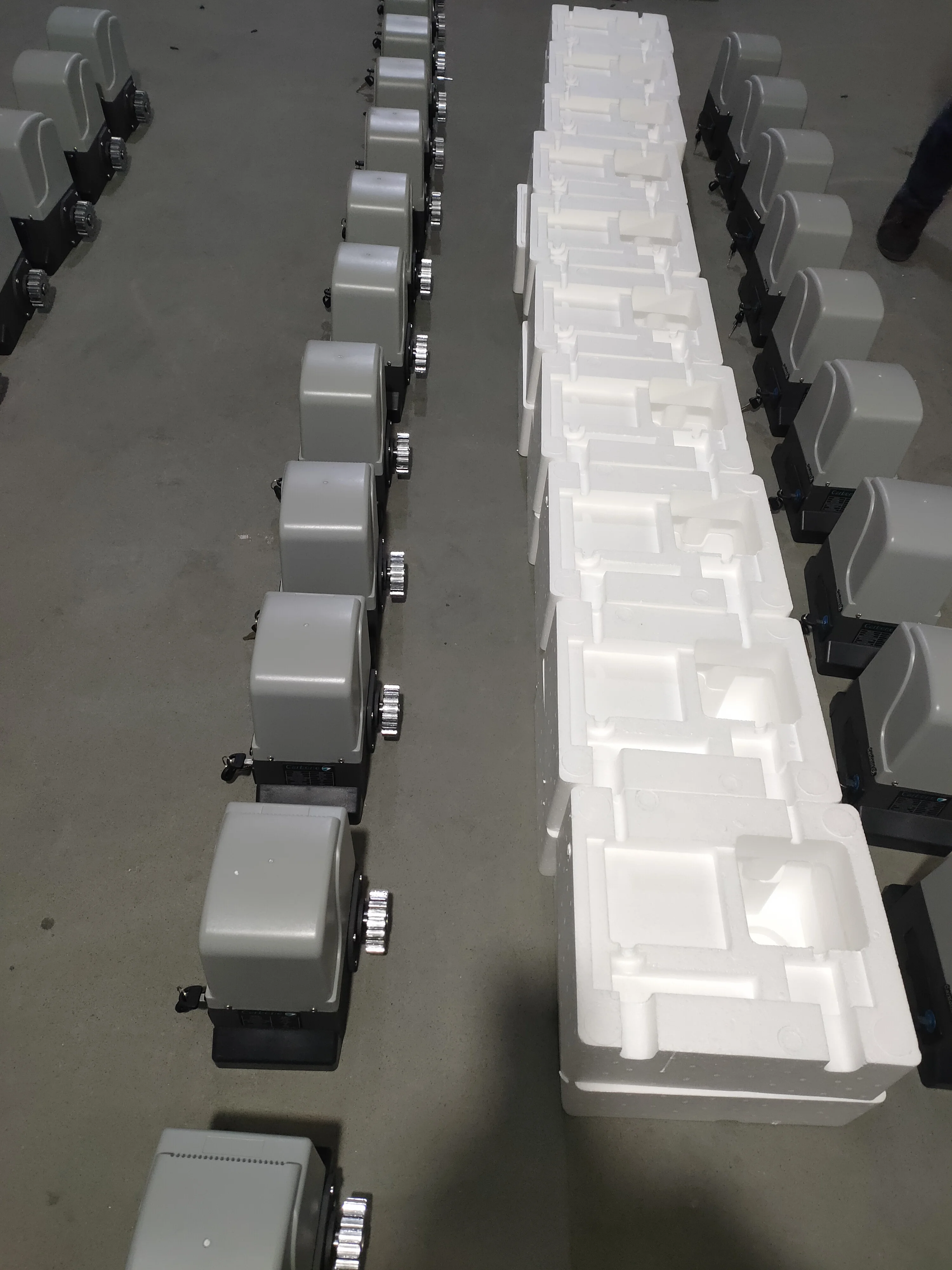

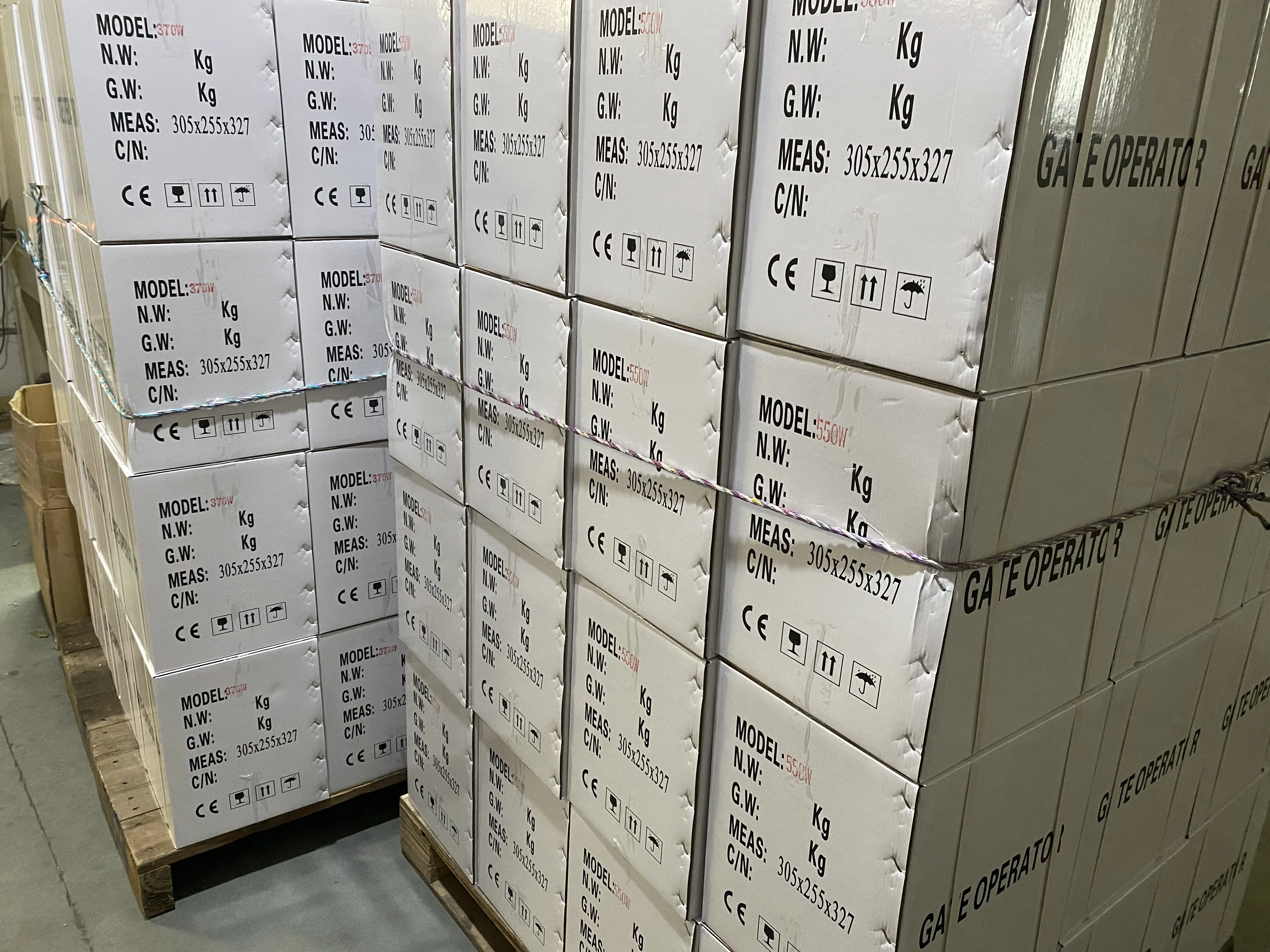

Package & Delivery




Company Profile


Aayee Tech Group
Our group was established in 2010 and is located near Hangzhou, Shanghai and Ningbo international ports. Easily traffic,perfect supply chain and sufficient spare parts support Aayee Technology to supply Stable quality and perfect service for you. In 2013 Aayee Technology
specialized in sliding gate motors for 3 years, then we extend this business line to swing gate motors,DC24V motors. Now our business production includes sliding gate motors, swing gate opener ,rolling shutter motors, car barrier and solar motor export to all over the world.
Why Choose Us
We takes the “Quality Is Life” as production standard and principle, executing complete quality assurance system involving the whole process from R&D to manufacture, so our products have enjoyed a good reputation for high quality and low failure rate among our customers.
Sometimes, what they need is very simple–reliable quality, reasonable price, on-time delivery and good service,these are what we can supply.
