Basalt Fiber Epoxy Coated Rebar,Basalt Composite Rebar,Basalt Fiber Reinforced Polymer Rebar Used In Construction
- Category: >>>
- Supplier: Nanyang Invech Machinery And Electric Equipment Co. Ltd.
Share on (1600428999925):
Product Overview
Description

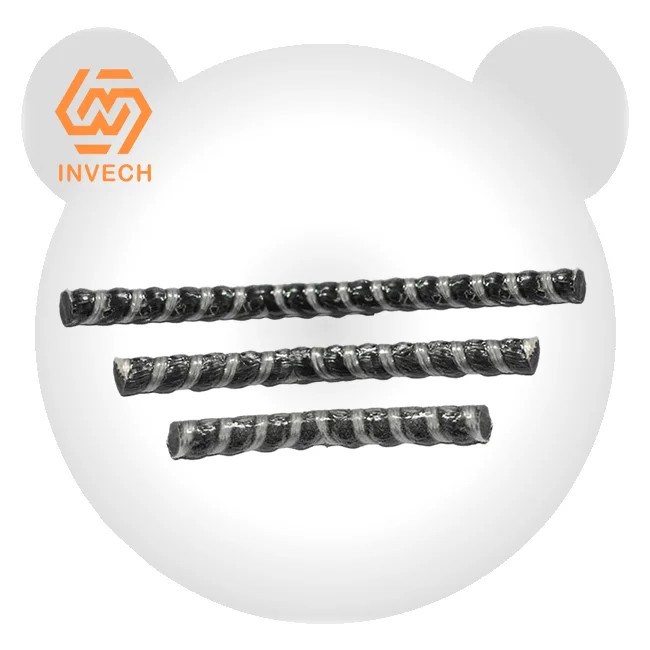

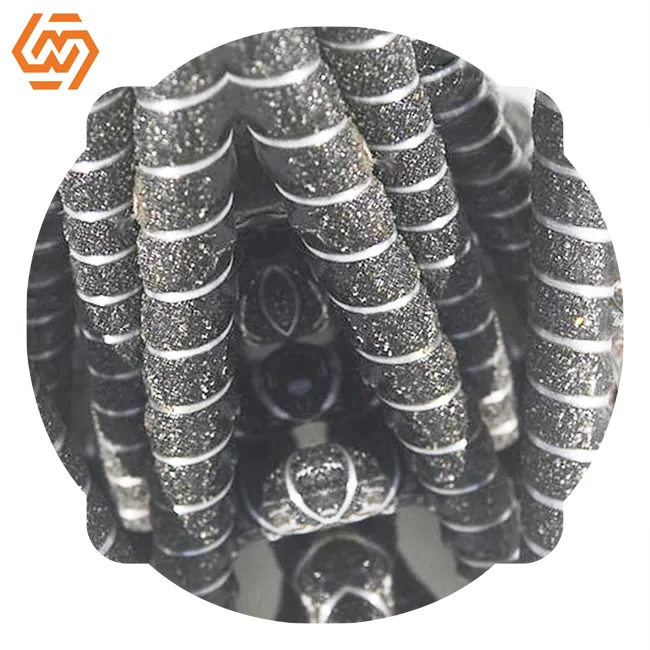

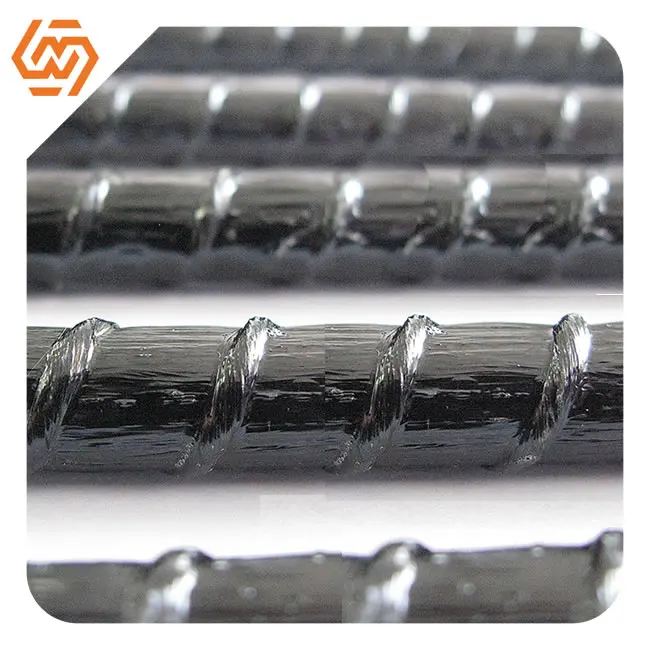

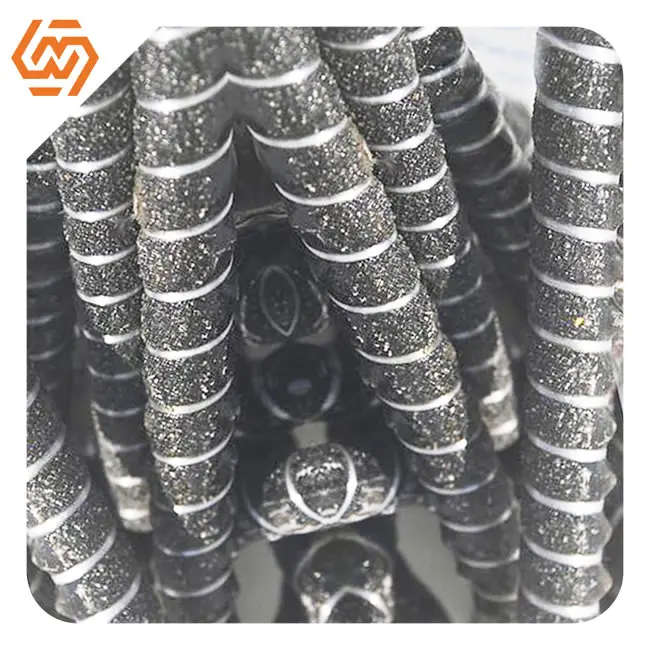

High Strength BFRP Solid Basalt FRP Rebar
Basalt fiber reinforcement polymer (BFRP), also called Fiber Reinforce Plastic, is a new kind of composite material which basalt fiber comnbines with epoxy resin andcuring agent.
BFRP Rebar is a kind of rustless electrical insulator, with non-magnetic, especially with great acid resistance and alkali resistance. It could develop the durability of construction.
With light weight property, its density is about 1.9-2.1g/cm3, about 1/4 of steel.
Technical Index of BFRP Rebar

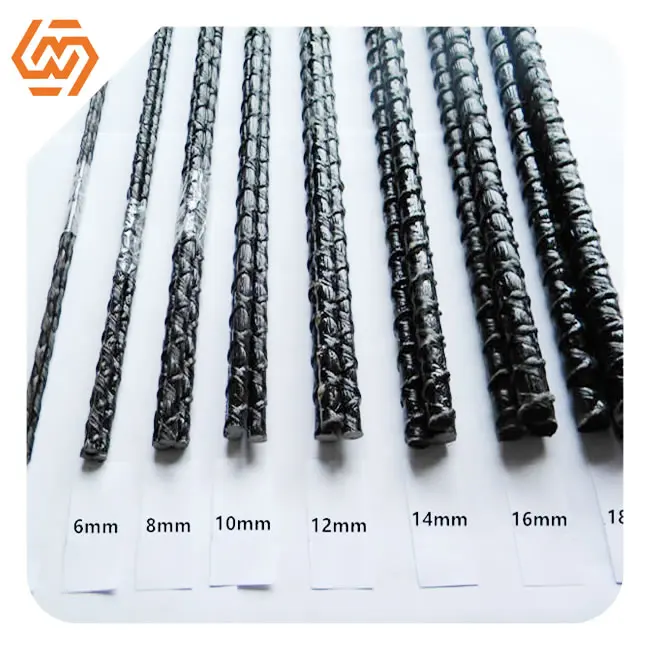

Diameter(um)
| Ultimate Tensile Load (KN) | Crosssection (mm2) | Ultimate Tensile Strength(Mpa) | E-modulus (Gpa) | Ultimate Shear Strength (Mpa) | Weight(g/m) |
6 | 28 | 28 | 1000 | >50 | >150 | 56 |
8 | 51 | 50.3 | 1000 | 108 | ||
10 | 79 | 78.5 | 1000 | 166 | ||
12 | 113 | 113 | 1000 | 245 | ||
14 | 108 | 133 | 810 | 285 | ||
16 | 142 | 177 | 800 | 373 | ||
18 | 182 | 227 | 800 | 470 | ||
20 | 228 | 284 | 800 | 570 | ||
22 | 277 | 346 | 800 | 720 | ||
25 | 362 | 452 | 800 | 1050 |
Main Features of BFRP Rebar
Non magnetic,Electric insulation,High strength, High E-modulus,Coefficient of thermal expansion near with cement concrete.High resistance to corrosion, acid, alkali and salt.
Application of BFRP Rebar

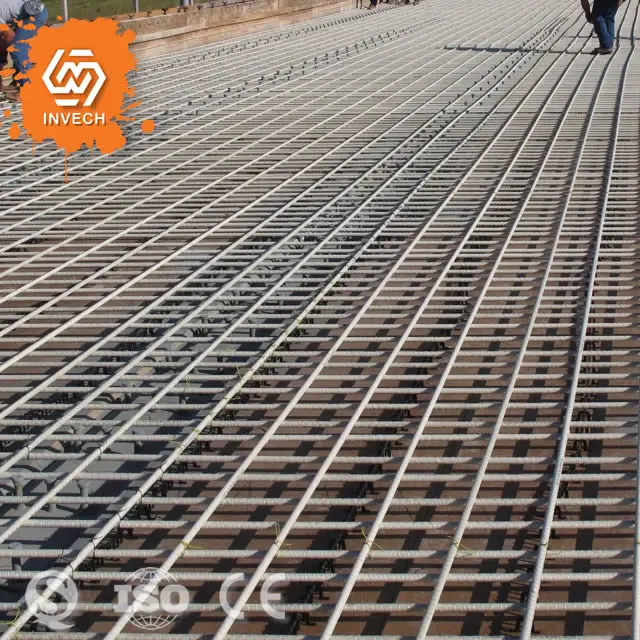

Earthquake observing station,Seaport pier protection engineering and construction,
metro station,bridge,non magnetic or magnetic concrete construction,prestressed concrete highway, anti-corrosion chemical industry, chemical storage tank, underground engineering, MRI(magnetic resonance imaging) facilities basis,Communication building,Electronic equipment factory, Fusion buildings, concrete guide board of Maglev railway,Telecommunications transmission tower,Television stents and strengthen core of Optical fiber cable.
