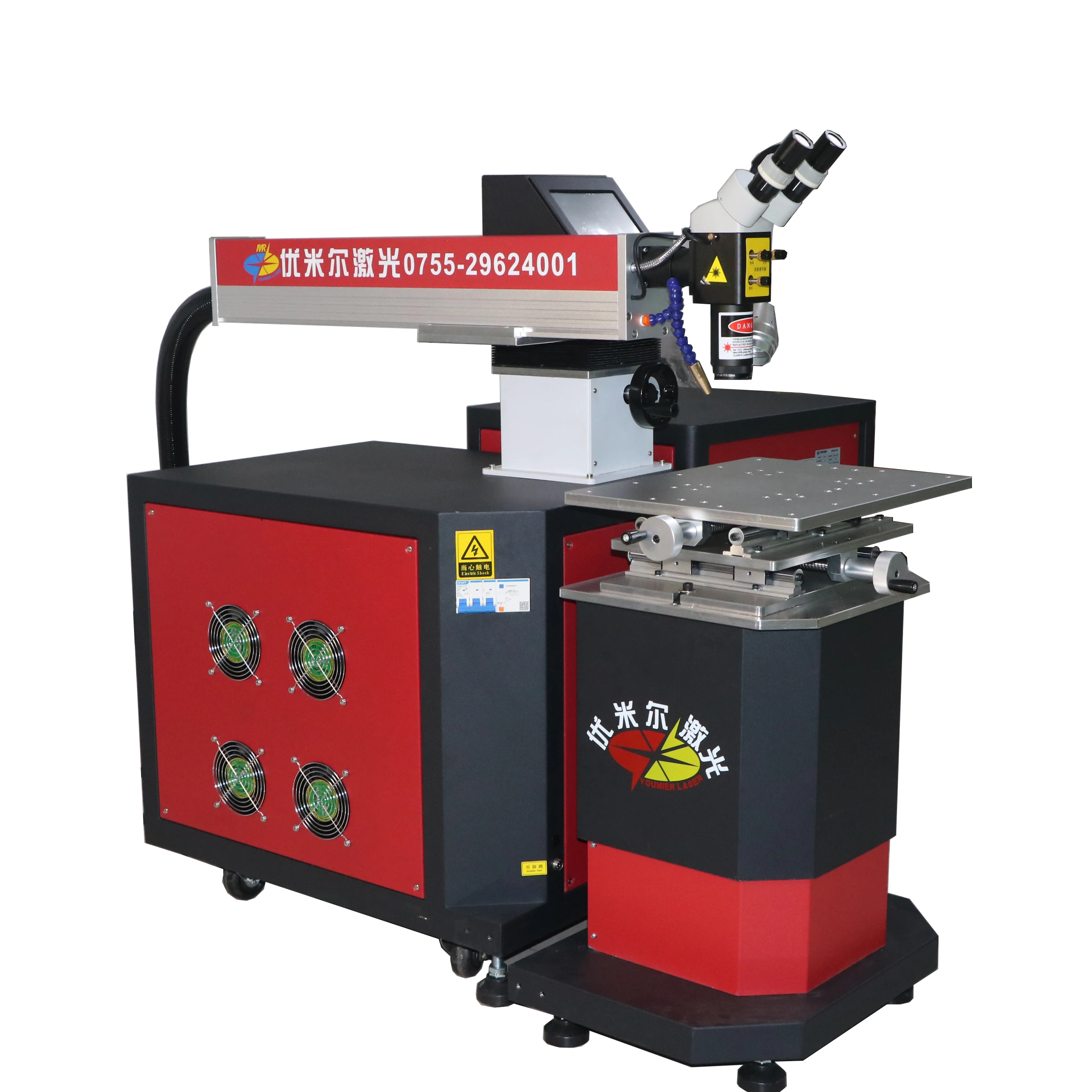

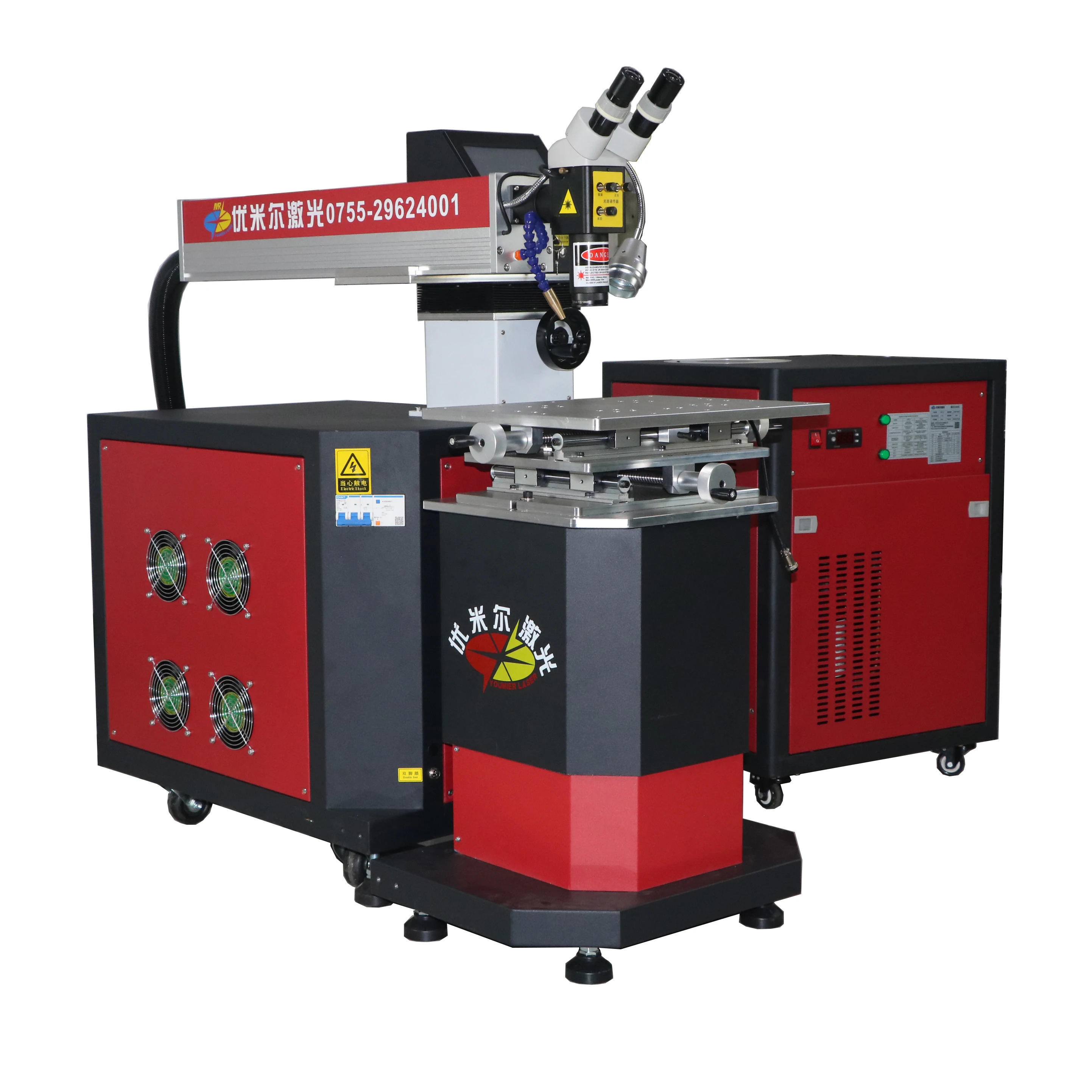

200w 400W 600w YAG laser welders compact laser spot welding mould machine for repairing all kind of material mould
- Category: >>>
- Supplier: Youmir Laser Technology Co. Ltd.
Share on (1600429028816):
Product Overview
Description
Product Paramenters
Product description
1. Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2, equipped with 1.5P special chiller, can meet the long-term, high-power welding stability; remarks: 400W with 3P chiller
3, equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high-precision straight guide rails are light and flexible, accurate positioning, bearing capacity up to 200 kg;
4, the laser head can slide back and forth, manual lifting, the laser head can be easily rotated 180 degrees, convenient to repair any side;
5. Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process, and maintain the natural color of the product to ensure the welding quality.
2, equipped with 1.5P special chiller, can meet the long-term, high-power welding stability; remarks: 400W with 3P chiller
3, equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high-precision straight guide rails are light and flexible, accurate positioning, bearing capacity up to 200 kg;
4, the laser head can slide back and forth, manual lifting, the laser head can be easily rotated 180 degrees, convenient to repair any side;
5. Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process, and maintain the natural color of the product to ensure the welding quality.
Ceramic condenser cavity
Ceramic condenser cavity, with high energy, high temperature resistance, corrosion resistance, long service life.

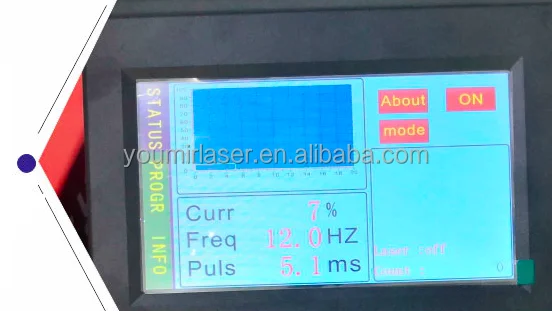

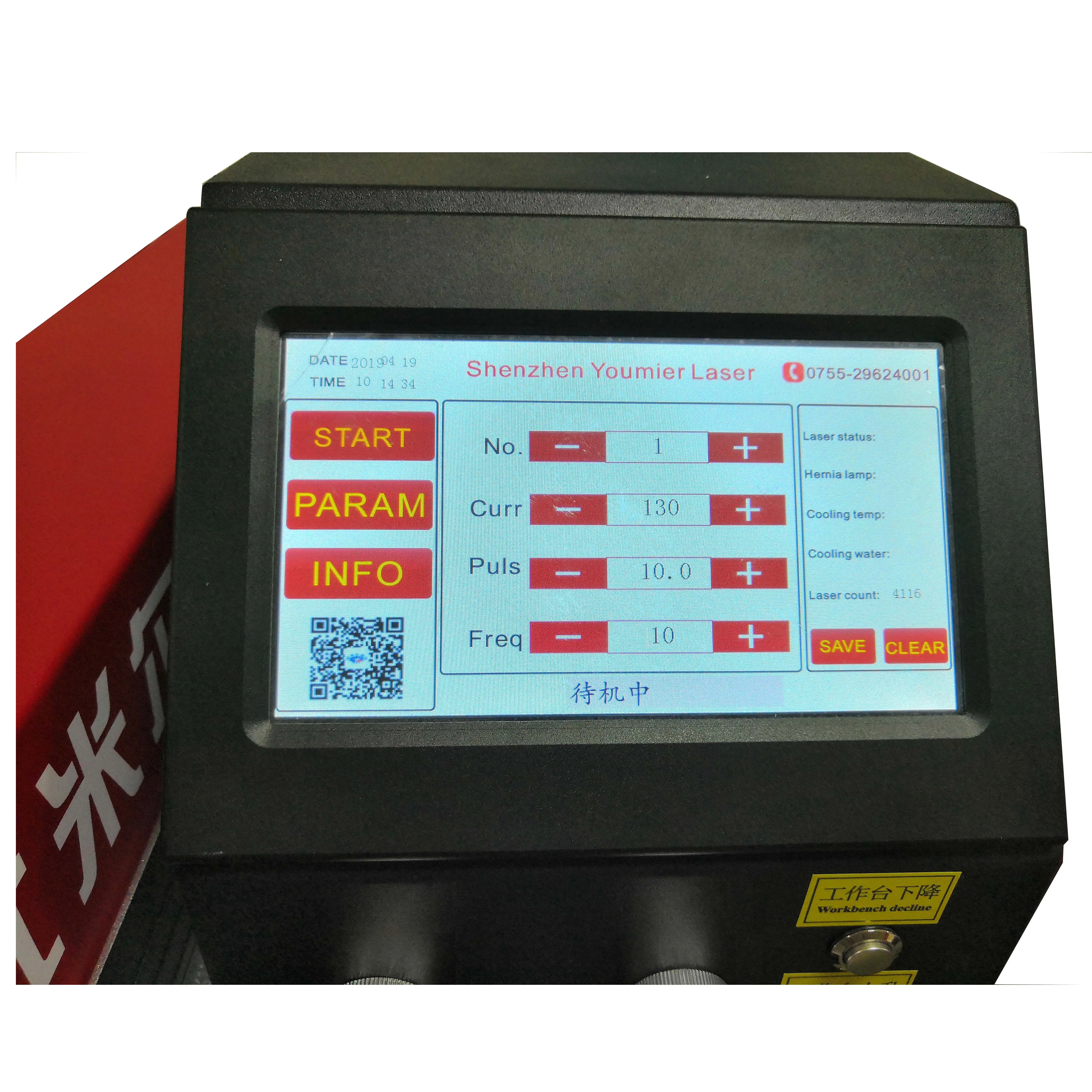

Autonomous welding system
Own intellectual property rights of laser power system ,many years of development and upgrad ,Chinese/English interface ,simple operation

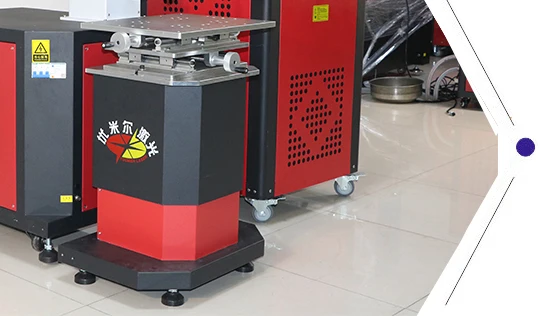

Lifting table
Bearring table base electric lifting ,table
movement using precision ball screw and
high-precision straight guide rail light Step and flexible,accurate positioning ,bearing
up to 200kg.
movement using precision ball screw and
high-precision straight guide rail light Step and flexible,accurate positioning ,bearing
up to 200kg.

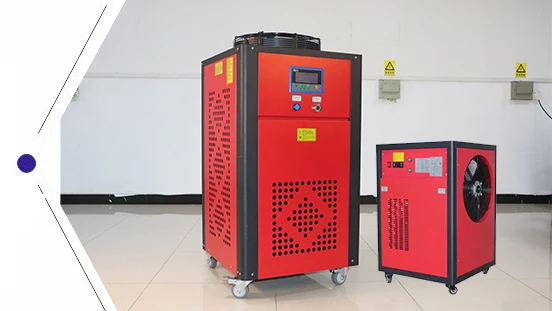

Water chiller
200w equipped with with 1.5P, 400W with 3P，600W with 5P。 it can meet the requirements for a long time. High power welding is more stable.
Mold welding, without worktable, you can choose any worktable you need.
Blue mold welding, electric workbench and color can be customized according to your needs.

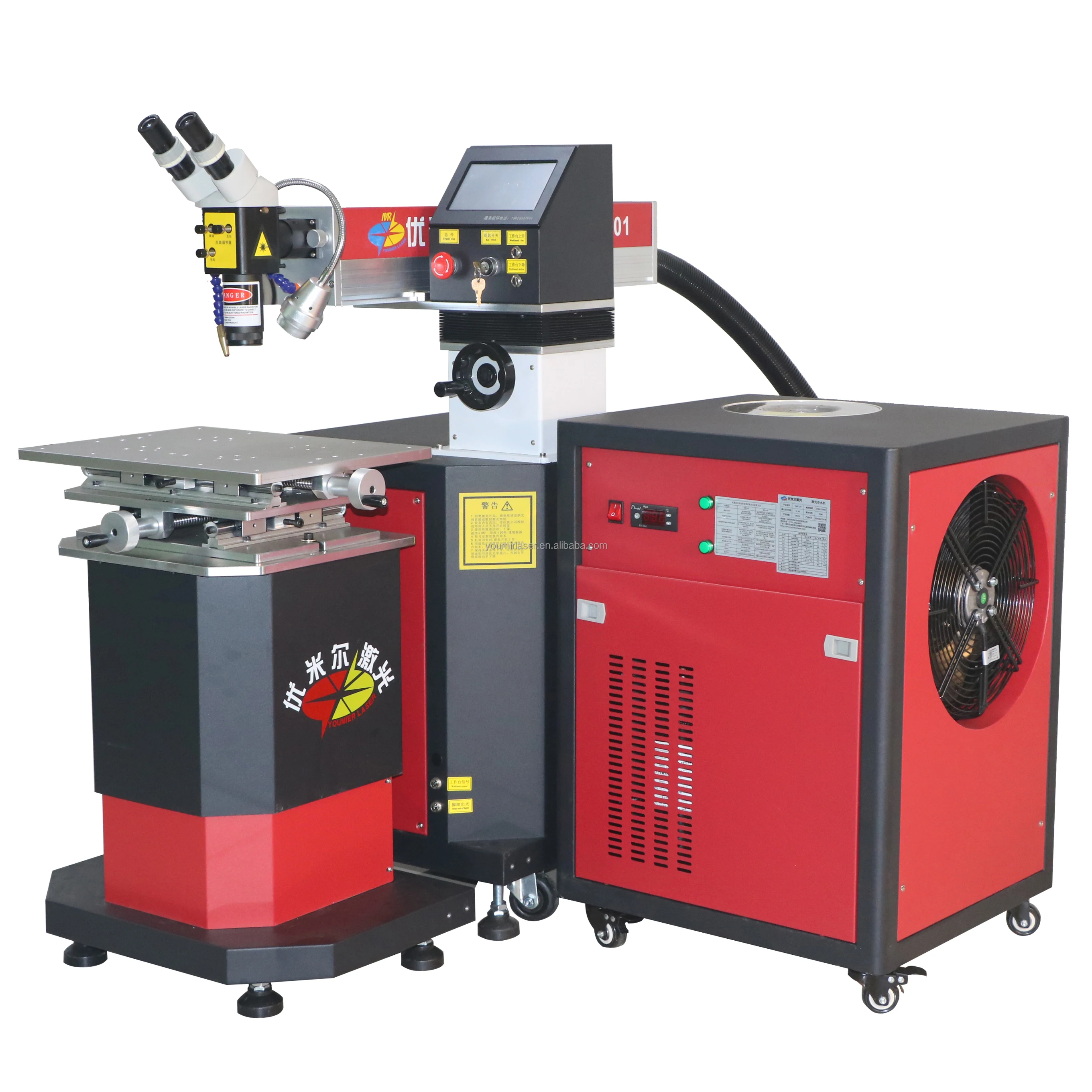

400W mold welding with 3P chiller.
Device parameters

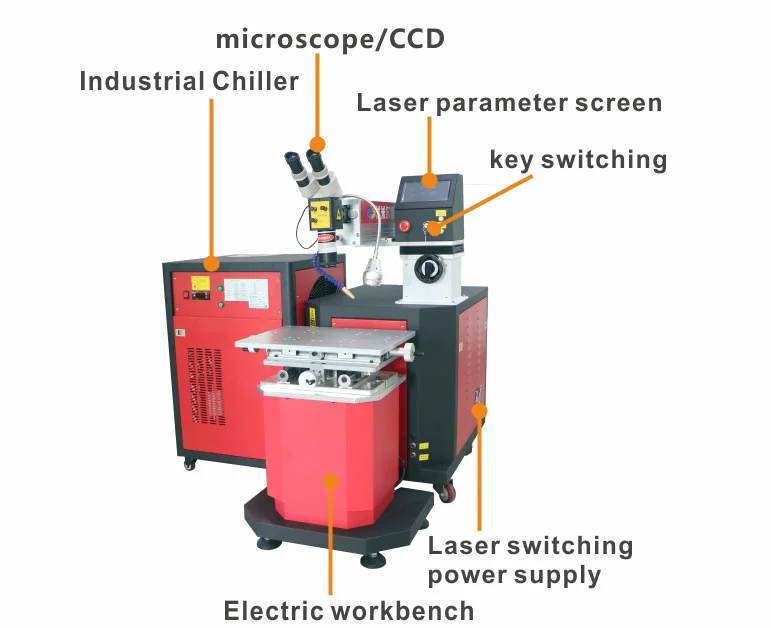

Device Configuration
1. A set of YAG lasers;
2. A set of laser power supplies;
3. A set of optical systems;
4. A set of movable and movable optical benches;
5. A set of liquid crystal display systems;
6. A set of refrigeration and water flow water temperature detection and protection systems;
7. One microscope;
8. A set of workbenches;
9. One 1.5P chiller; Remarks: 400W with 3P chiller
10. A set of host cabinets.
2. A set of laser power supplies;
3. A set of optical systems;
4. A set of movable and movable optical benches;
5. A set of liquid crystal display systems;
6. A set of refrigeration and water flow water temperature detection and protection systems;
7. One microscope;
8. A set of workbenches;
9. One 1.5P chiller; Remarks: 400W with 3P chiller
10. A set of host cabinets.
Device parameters | ||||
Unit type | YME-200W-MJ | |||
Maximum laser power | 200W/400W/600W | |||
The laser wavelength | 1064nm | |||
Condenser reflector | Imported ceramic condenser | |||
The laser frequency | 1-30Hz | |||
The pulse width | 0.1-10Ms | |||
Spot adjustment range | 0.3-2mm | |||
Aimed at positioning | Microscope (optional camera system) | |||
cooling-water machine refrigerating power | 1.5P/3P/5P | |||
Rated power | 8KW | 12KW | ||
380V±5V 50Hz/40A /220V±5V 50Hz/60A | ||||
Three dimensional bearing table bearing | 125×100×300mm | 150kg | ||
External dimensions/net weight | Host computer: 1000×550×1150mm | 103kg | ||
1.5P cooling-water machine: 550×550×850mm | 80kg | |||
3P cooling-water machine: 800×640×1200mm | 127kg | |||
Three dimensional load-bearing table: 550×400×700mm | 57kg | |||

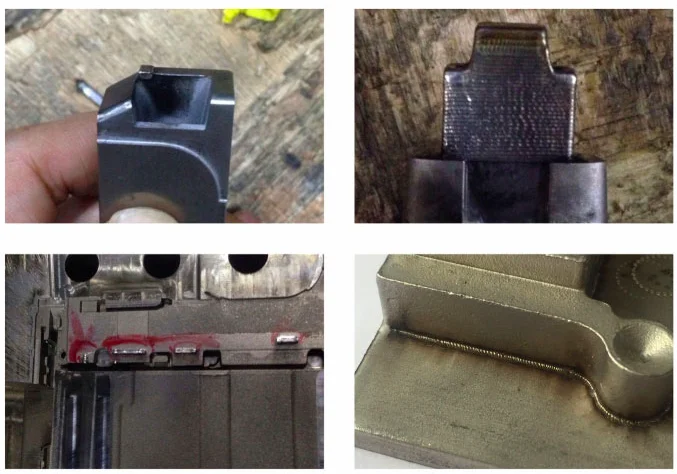

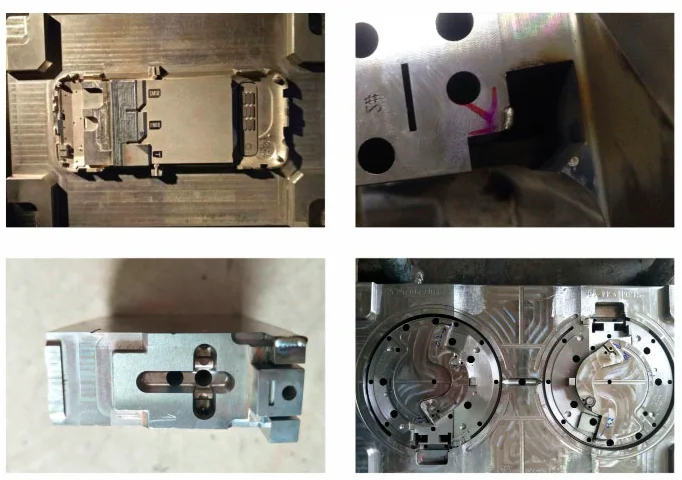

Sample Display
