High density hdpe polyethylene sheet panel pe500 plastic plate
- Category: >>>
- Supplier: Tangyin Sanyou Engineering Plastic Co. Ltd.
Share on (1600429030805):
Product Overview
Description
Product Description
High density hdpe polyethylene sheet panel pe500 plastic plate
1. HDPE board sheets Advantage
1. Weight: HDPE sheet is known for being extremely lightweight yet durable.
2. Malleability: HDPE board is easily molded and transformed into just about any shape or design.
3. Resistance: Not only does HDPE sheet feature a high chemical and impact resistance, but it also is resistant to rotting, insects, mildew and mold.
4. Weatherability: HDPE sheet is often used for outdoor applications as it can stand some of the most extreme weather.
5. Life-Span: Because HDPE has such high impact, chemical, and weather resistance, HDPE can outlast traditional materials.
6. Sustainability: HDPE sheeting is recyclable, which is why many recycled plastic products such as recycled plastic lumber and trash cans contain HDPE.
Extruded Plastic Sled
2. HDPE board sheets Main characteristics:
The main performance comparison
High abrasion resistance
Materials | UHMWPE | PTFE | Nylon 6 | Steel A | Polyvinyl fluoride | Purple steel |
Wear Rate | 0.32 | 1.72 | 3.30 | 7.36 | 9.63 | 13.12 |
Good self-lubricating properties,low friction
Materials | UHMWPE -coal | Cast stone-coal | Embroidered plate-coal | Not embroidered plate-coal | Concrete coal |
Wear Rate | 0.15-0.25 | 0.30-0.45 | 0.45-0.58 | 0.30-0.40 | 0.60-0.70 |
Extruded Plastic Sled
PE recycled board sheetsHigh impact strength, good toughness
Materials | UHMWPE | Cast stone | PAE6 | POM | F4 | A3 | 45# |
Impact strength | 100-160 | 1.6-15 | 6-11 | 8.13 | 16 | 300-400 | 700 |
3. HDPE board sheets Size Available:
Dimensions: | Typical Thickness: |
3000mm*1000mm | 5mm-250mm |
3000mm*1500mm | |
2000mm*4000mm | |
4000mm*1200mm | |
1200mm*3000mm |
Extruded Plastic Sled
*If required,also available in thickness from 2mm-250mm HDPE Plastic board .
Packaging & Shipping
PE recycled board sheets
4.Technical parameter Of PE recycled board sheets
Subject | Unit | Paraters |
Tensile strength | Mpa | >30 |
Compression strength | Mpa | ≥41.8 |
Bending strength | Mpa | ≥32 |
Impact strength | KJ/m² | ≥140 |
Ball identation strength | N/mm² | ≥40.8 |
Surface resistivity | Ω | 4.9×10¹³ |
Water absorption | % | 0.0001 |
Relative waer rate | G/cm² | ≤0.09 |
Frication coefficent | % | <0.09 |

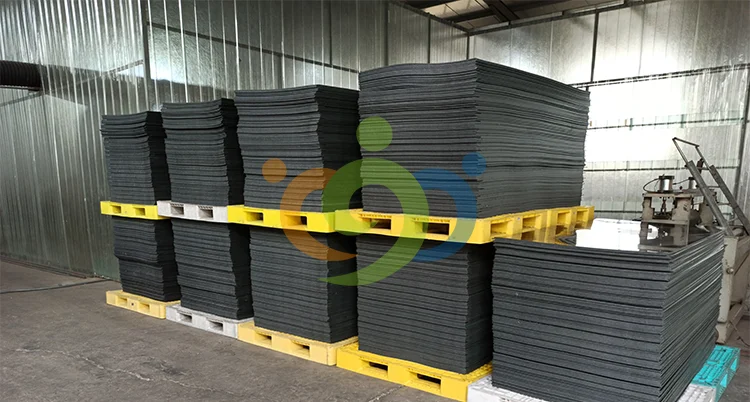

5. PE recycled board sheets Main Products show
Our Services
6. Machinery & Packaging & Applictions
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.
1. HDPE/UHMWPE Plate 2. HDPE/UHMWPE Liner
3. HDPE Ground mat 4. HDPE/UHMWPE Fender
5. HDPE/UHMWPE Irregular parts 6. HDPE/UHMWPE Roller
7. HDPE Textured board
Certifications
We are manufacturer of HDPE ,UHMWPE board , also conveyor roller ,plate .
We have passed ISO S-G-S and CE certification with more than 20 years experience.
