Semi Automatic1kg Weighing Roasted Peanuts Coffee Beans 2 Line Small Granule Bag Packing Machinery
- Category: >>>
- Supplier: Top Y Machinery Co. Ltd.
Share on (1600429232148):
Product Overview
Description
Automatic weighing and packing system for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.
The flexibility of it allows us to customize the most suitable machine to meet your individual requirements!

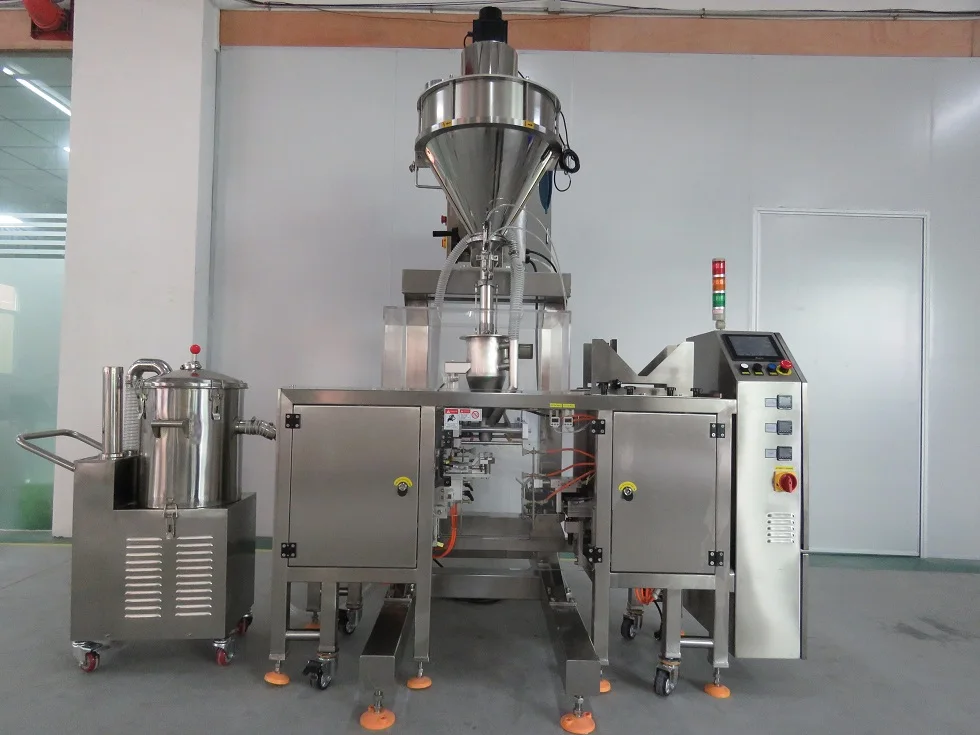

A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.

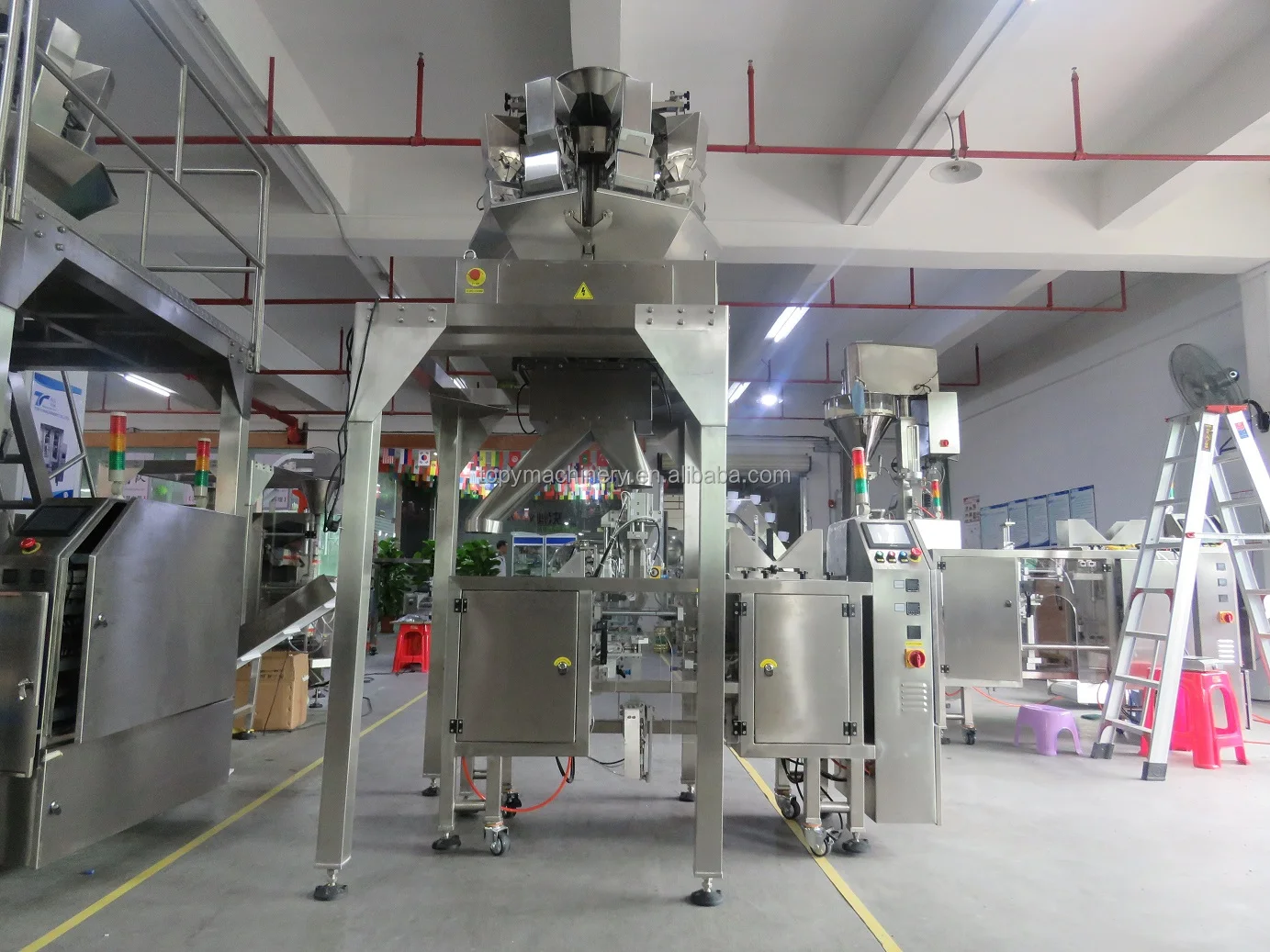

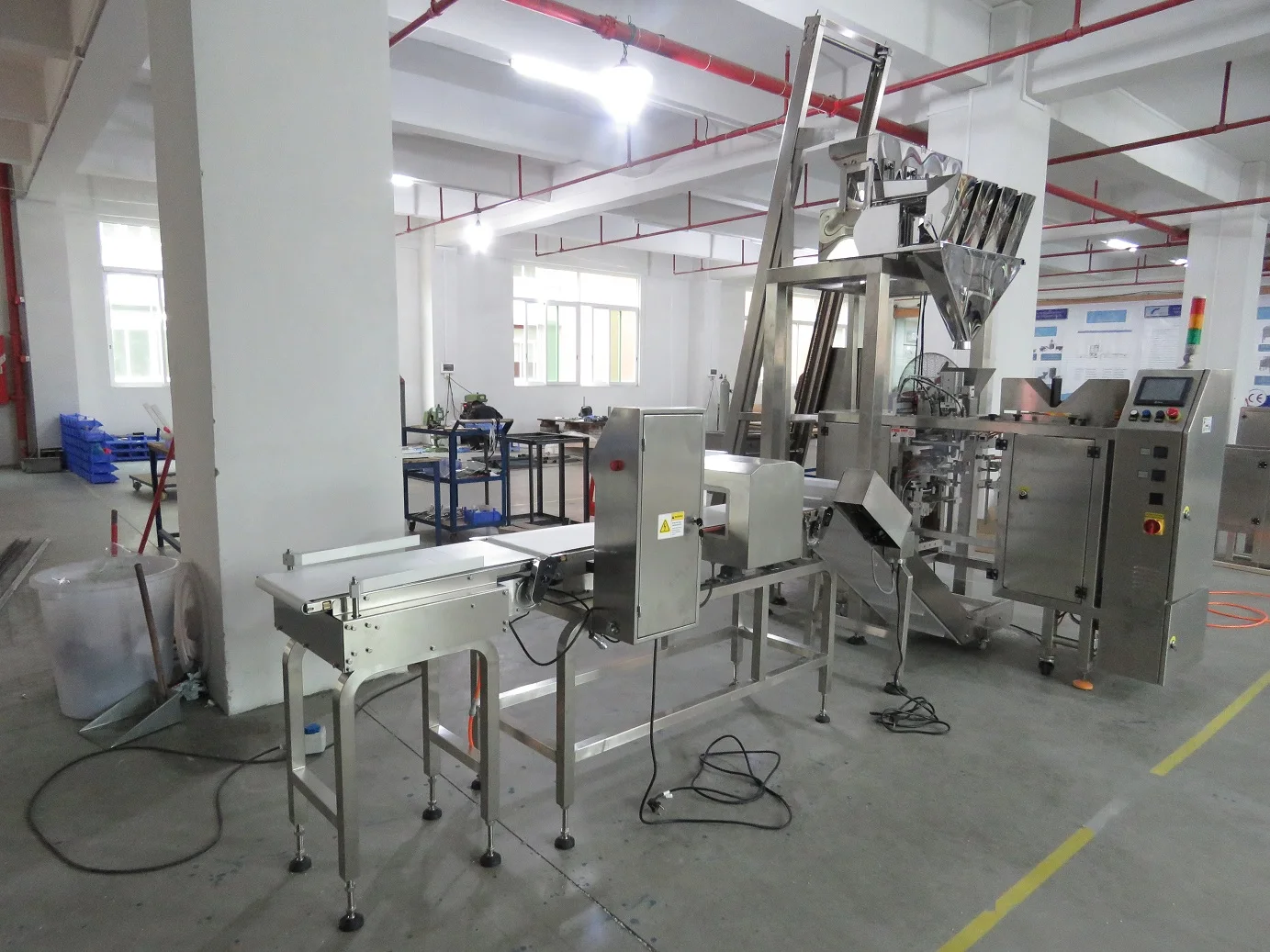

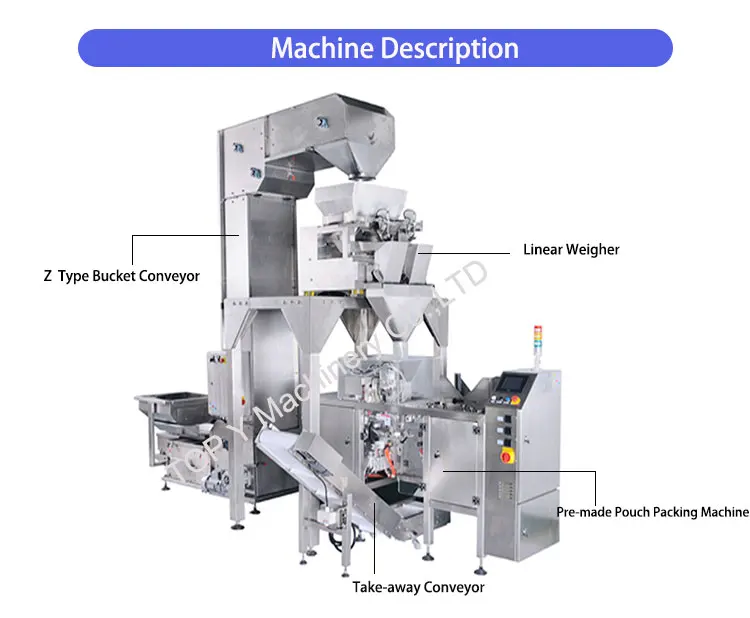

Granules Weighing and Packing Solution
Combine with the linear weigher, this system can handle various granules, like sugar, rice, beans, nuts, etc
Weighing accuracy: 0.2-2g
Speed: 8-16bags/min
(also we have twin doypack machine can reach up to 30bags/min)
Material: Full SS#304(food grade)
Weighing accuracy: 0.2-2g
Speed: 8-16bags/min
(also we have twin doypack machine can reach up to 30bags/min)
Material: Full SS#304(food grade)
Bag dimension: adjustable
Step1: set the parameters we need on HMI
Step2: pour bulk products into the storage hopper manually or automatically
Step3: multifunction weighing dosing machine will dose target weight we need
Step4: put bags into bag feeder
Step5: zipper device open the ziplock
Step6: positioning bags to the filling station
Step7: bag open and sending out “request filling” signal
Step8: filling machine drop down products with target weight into open bags
Step9: the sealing jaws seal bags automatically
Step2: pour bulk products into the storage hopper manually or automatically
Step3: multifunction weighing dosing machine will dose target weight we need
Step4: put bags into bag feeder
Step5: zipper device open the ziplock
Step6: positioning bags to the filling station
Step7: bag open and sending out “request filling” signal
Step8: filling machine drop down products with target weight into open bags
Step9: the sealing jaws seal bags automatically
Product Paramenters

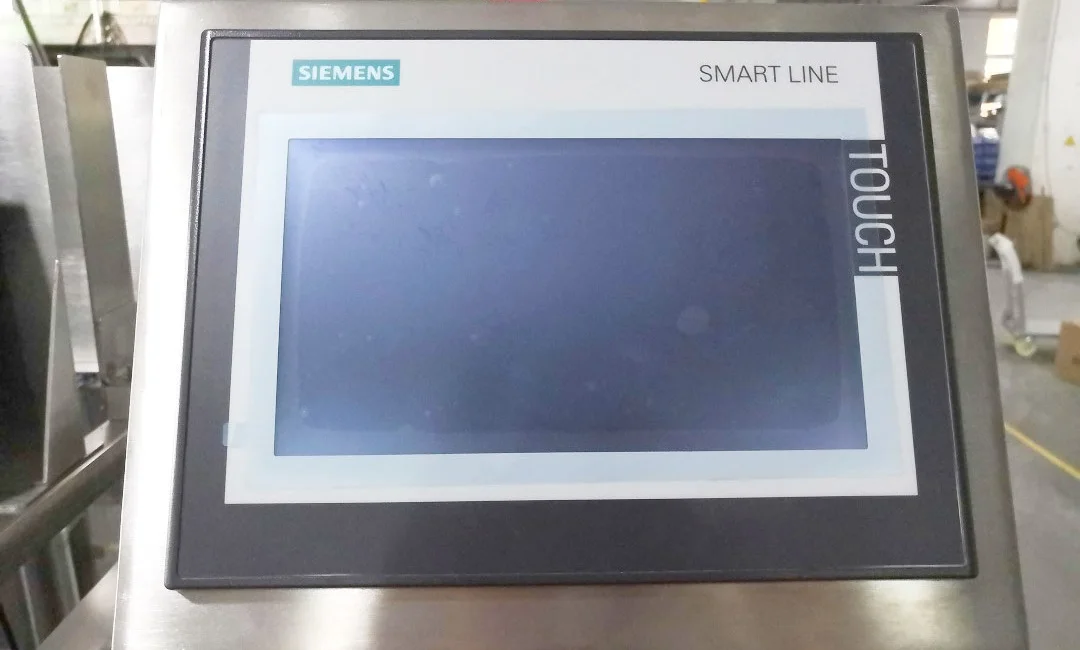

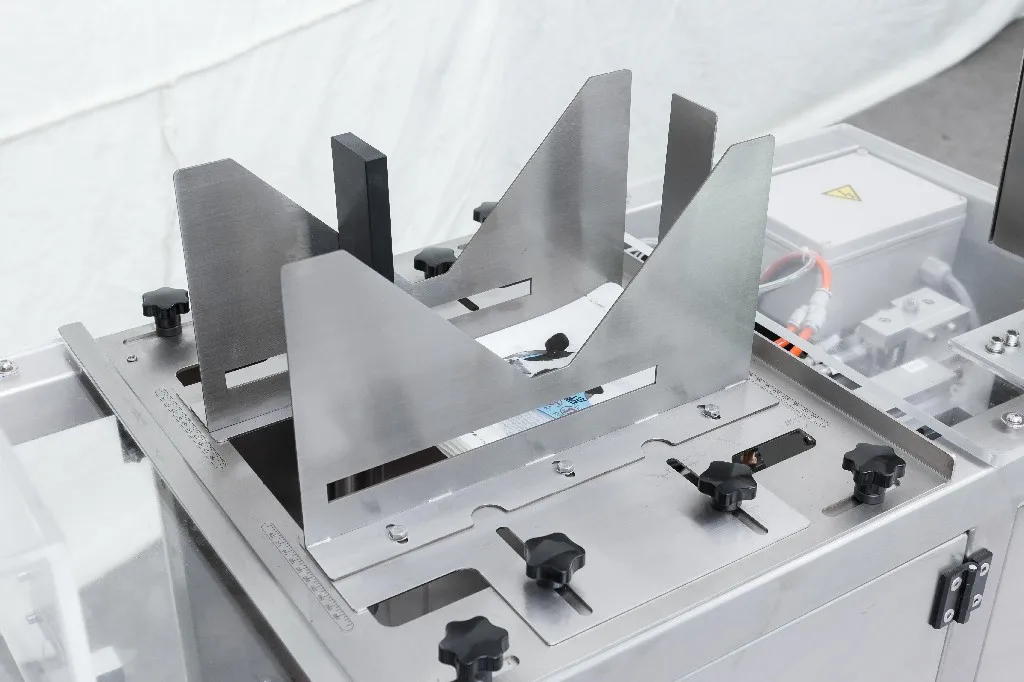

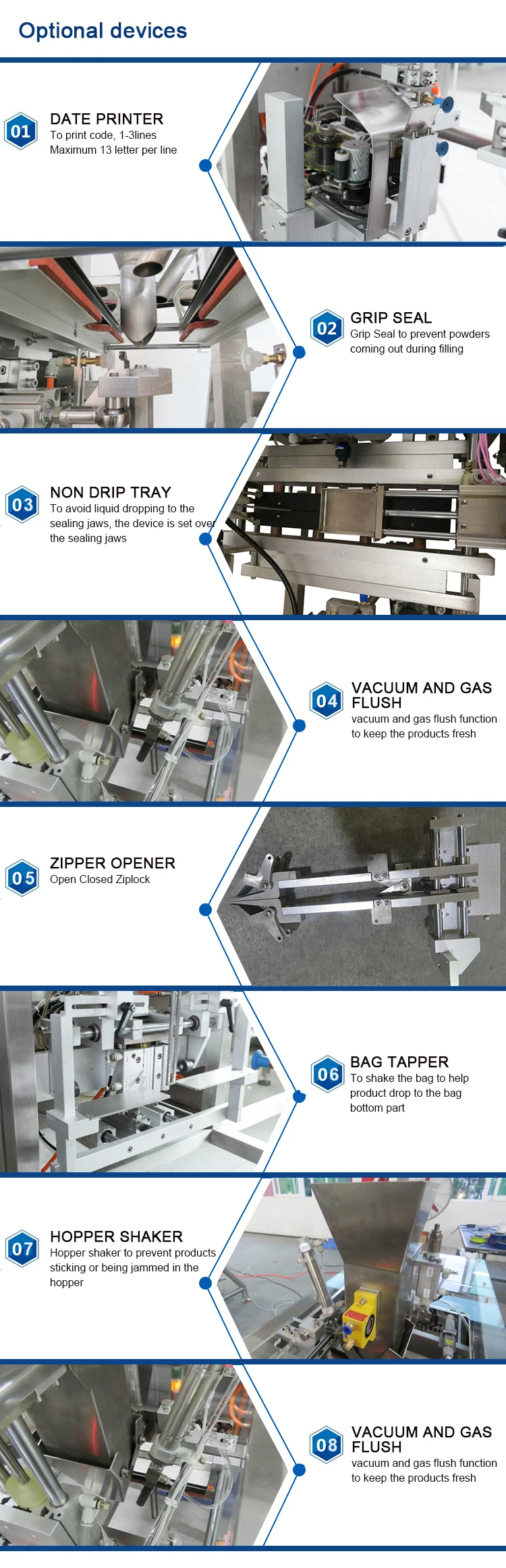

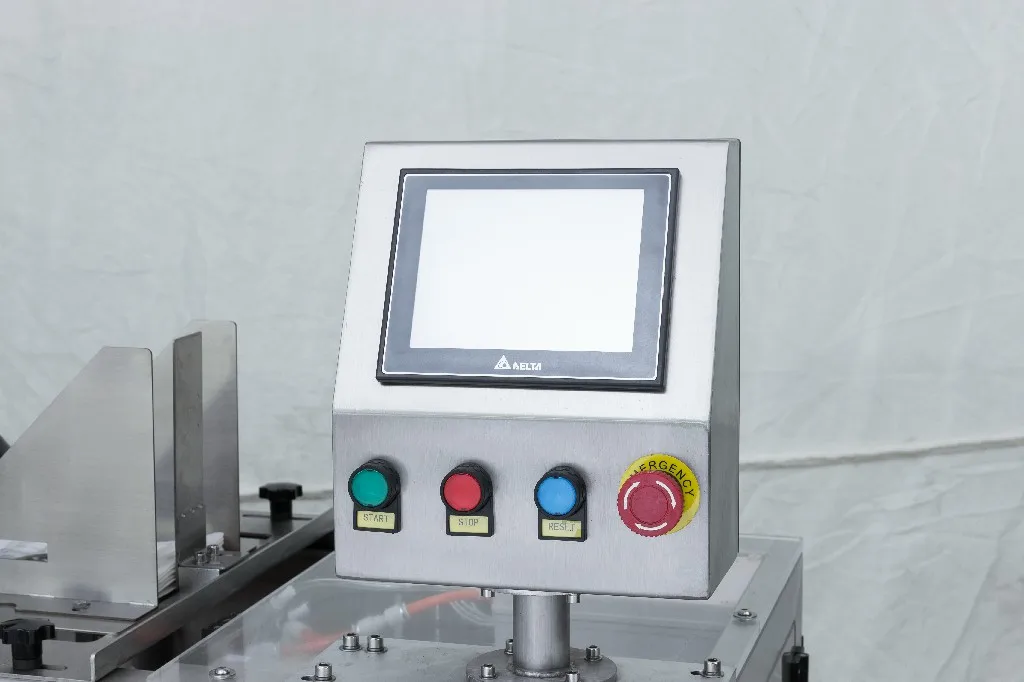

Siemens HMI Adjustable Bag Feeder Feeding Fopper

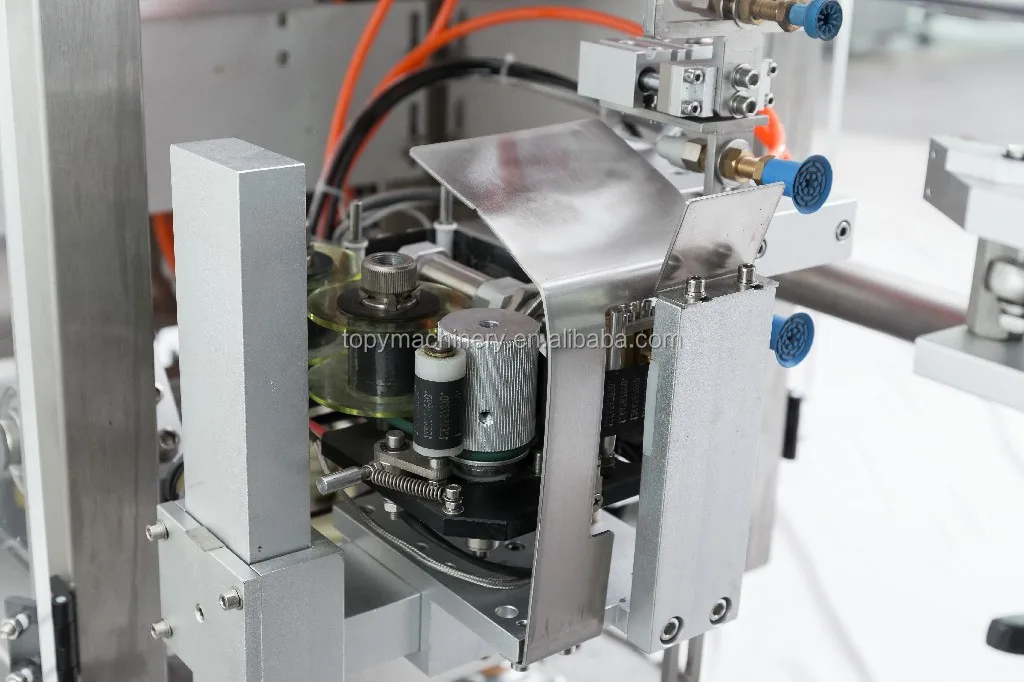

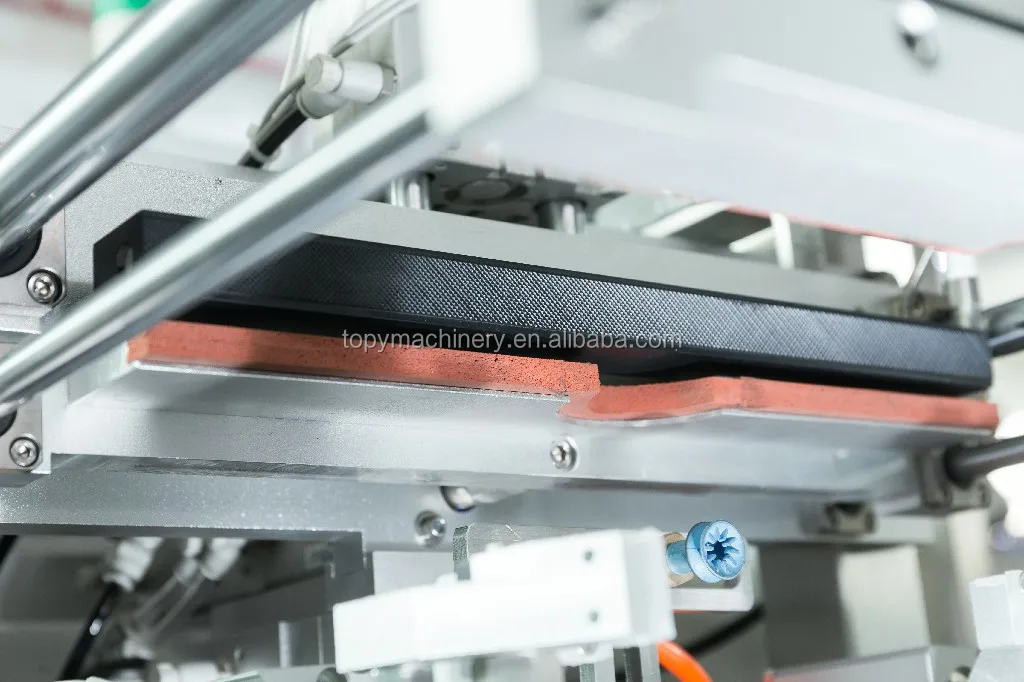

Hot Stamp Date Printer Bag Gripper Heat Sealing Jaw
Function and characteristics:
1. Easy to operate
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting
2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. Adjustable bag width
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on
8. Bag materials: Suits in extensive range
4. Adjustable bag width
5. Glass safety door: It will stop working when you open the door, ensure the safety of operators
6. Low loss of packing materials, high quality of the sealing part, to improved the product specification
7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on
8. Bag materials: Suits in extensive range
Specifications | ||||||
Model No. | TOPY-MDP1 | TOPY-MDP2 | TOPY-MDP3 | |||
Bag Width | 70-280mm | 70-280mm | 70-330mm | |||
Bag Length | 80-320mm | 80-440mm | 80-440mm | |||
Bag Type | Stand-up bag, pillow bag, zipper bag, box pouch | |||||
Power Supply | 110V/220V/380V/415V, 50/60HZ | |||||
Air Consumption | 7.0 CFM@80 PSI 0.14m3/m3 | |||||
Pneumatic Parts | PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan | |||||
Application
coffee bean, peanuts, nuts
rice, sugar, salt
pet food
Optional bag types
Contact Us
Certifications
Customers & Our Team
Company Profile
Packing & Delivery
FAQ
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q2, What are the bag sizes and target weight in each pack?
For doypack machine the bag width working on is minimum 70mm and maximum bag width 380 mm.
Q3, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q4, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q5, How about the warranty?
The warranty is two years and we provide lifelong maintenance.
Q6, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
