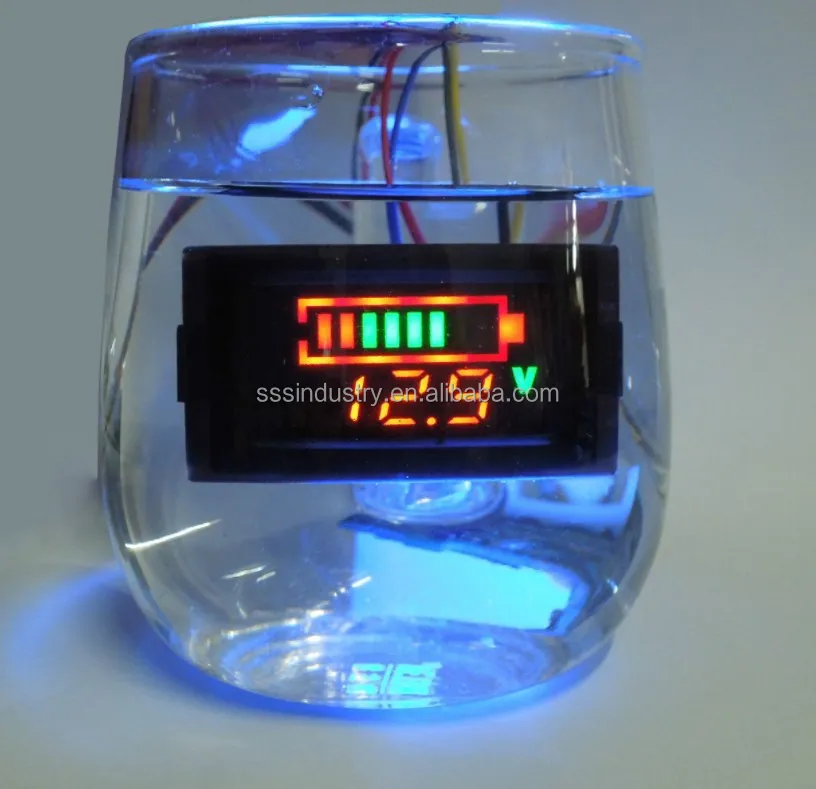

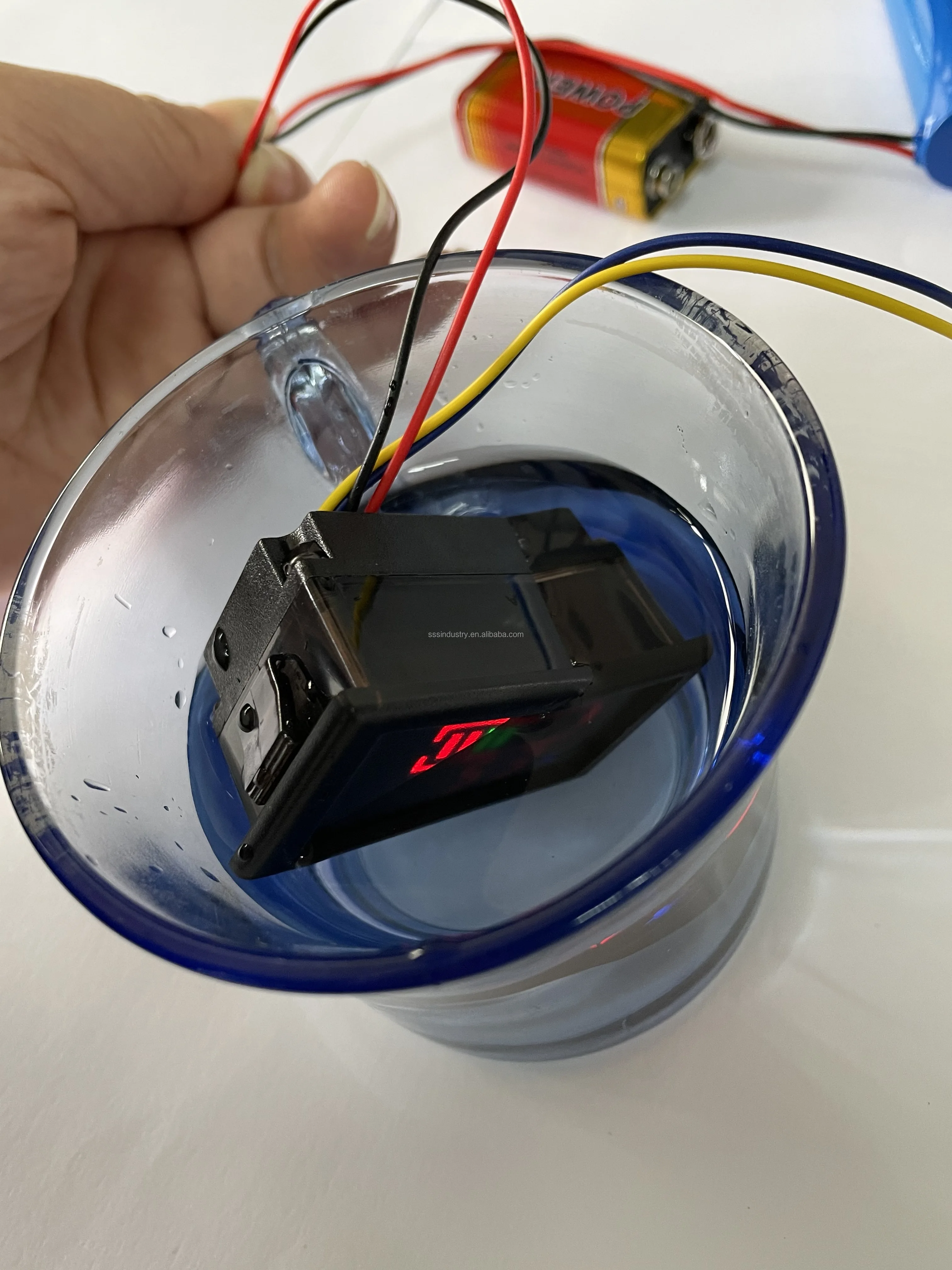

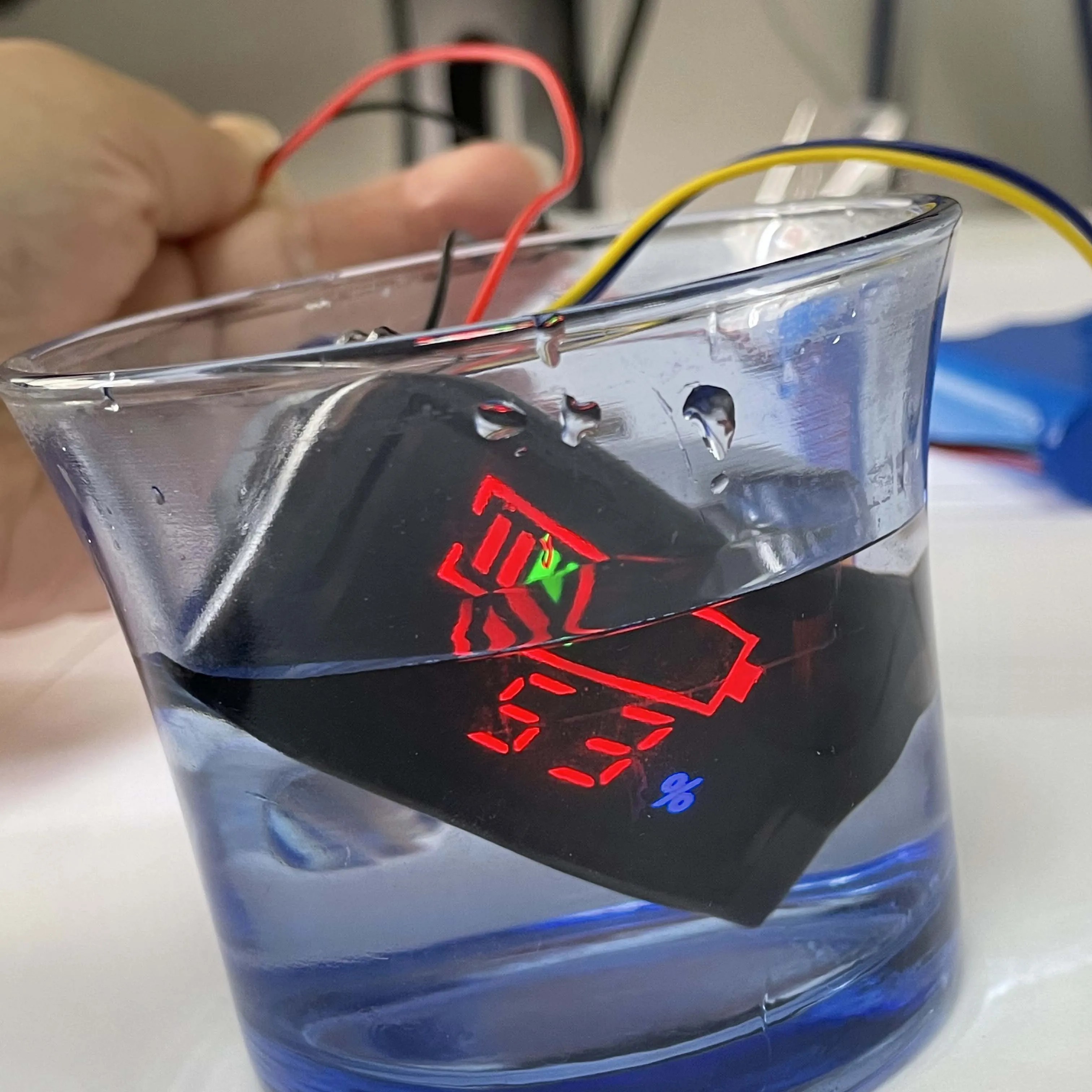

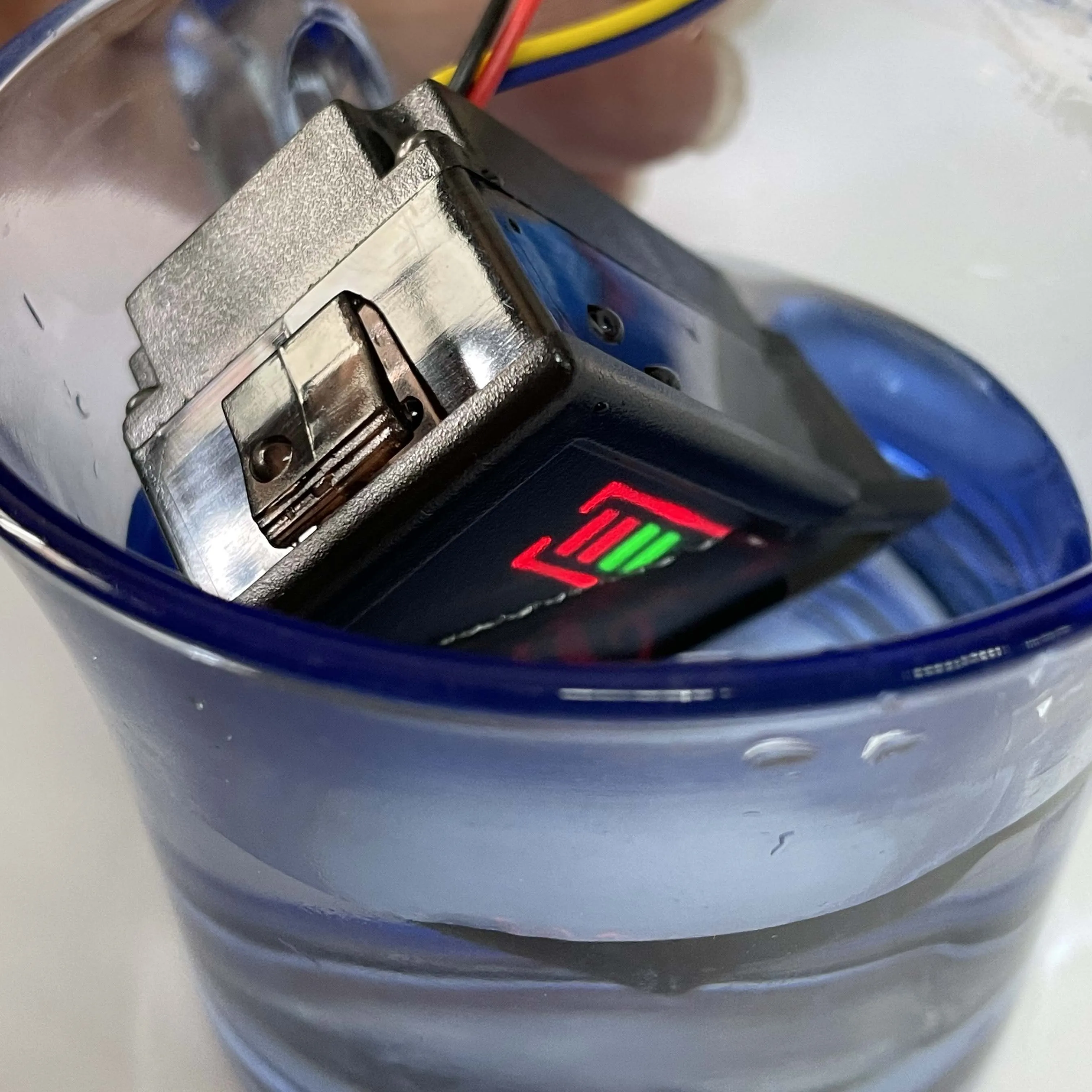

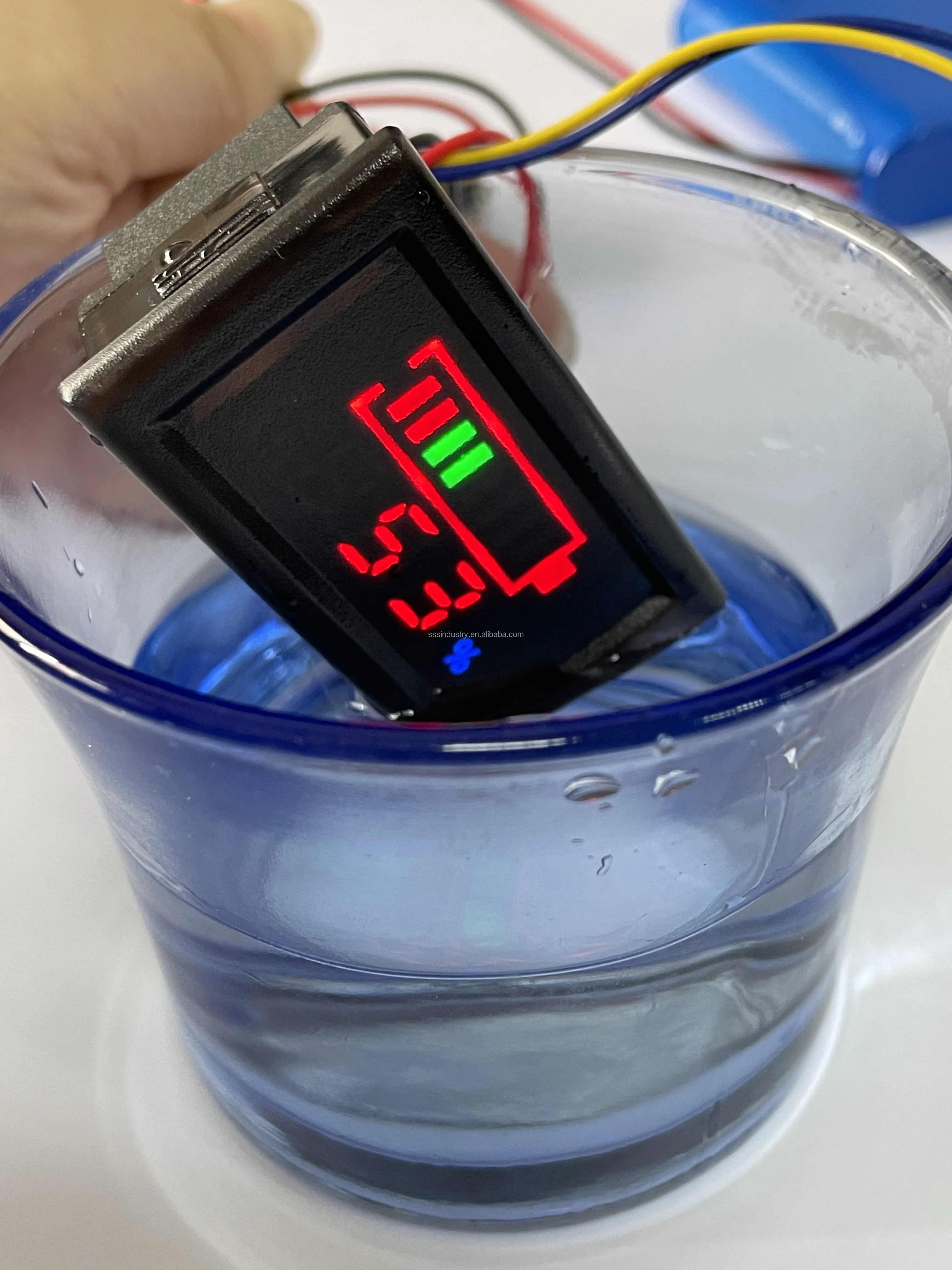

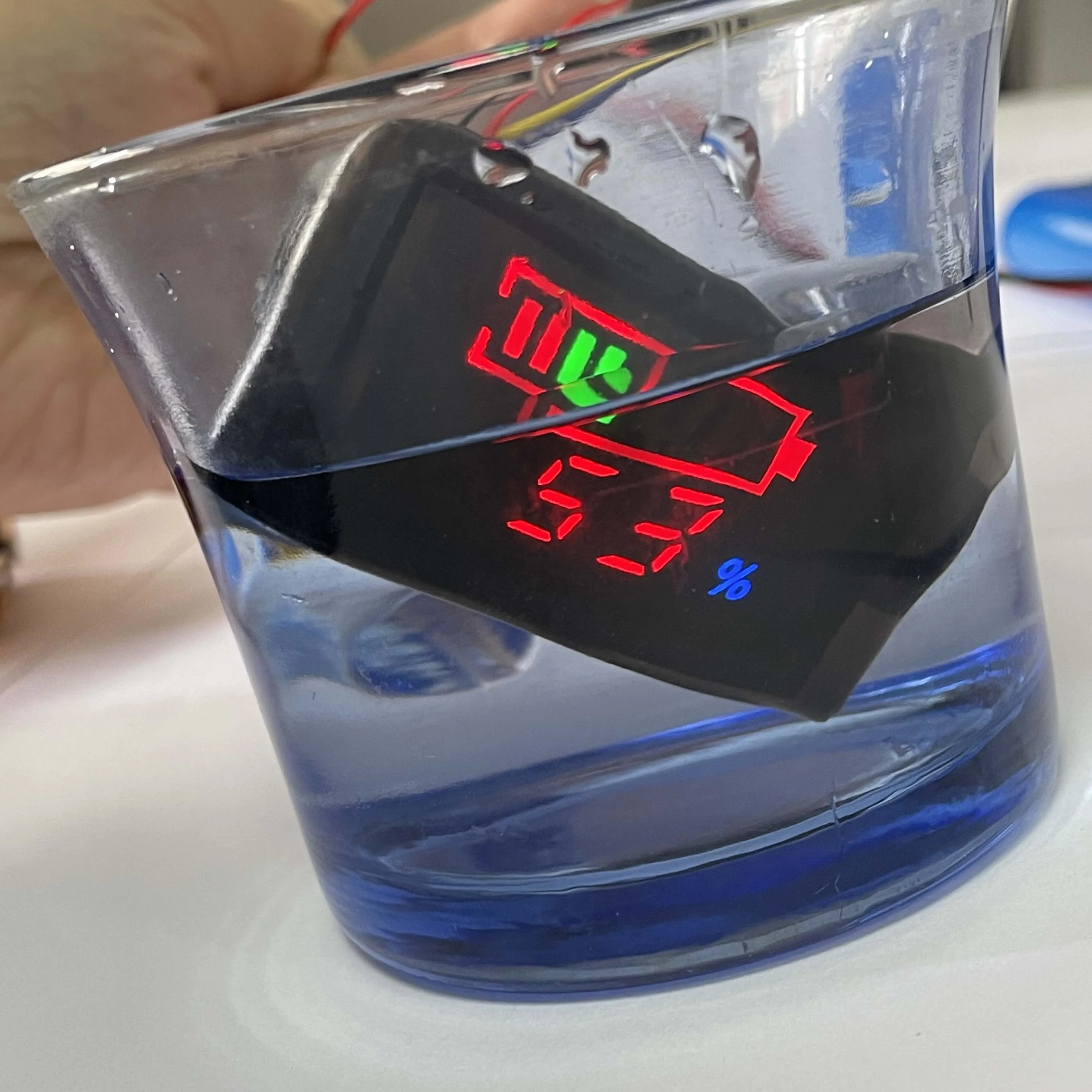

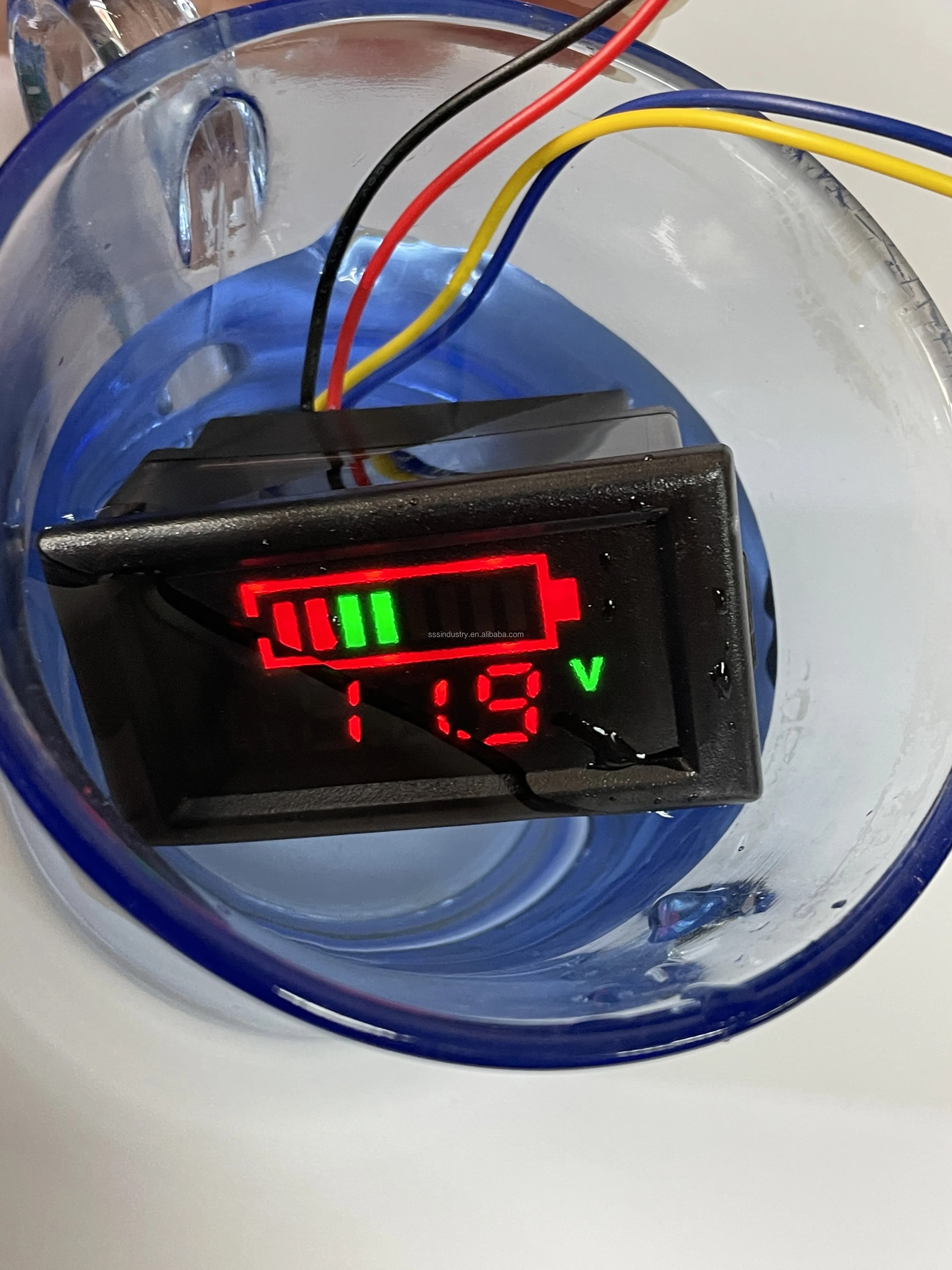

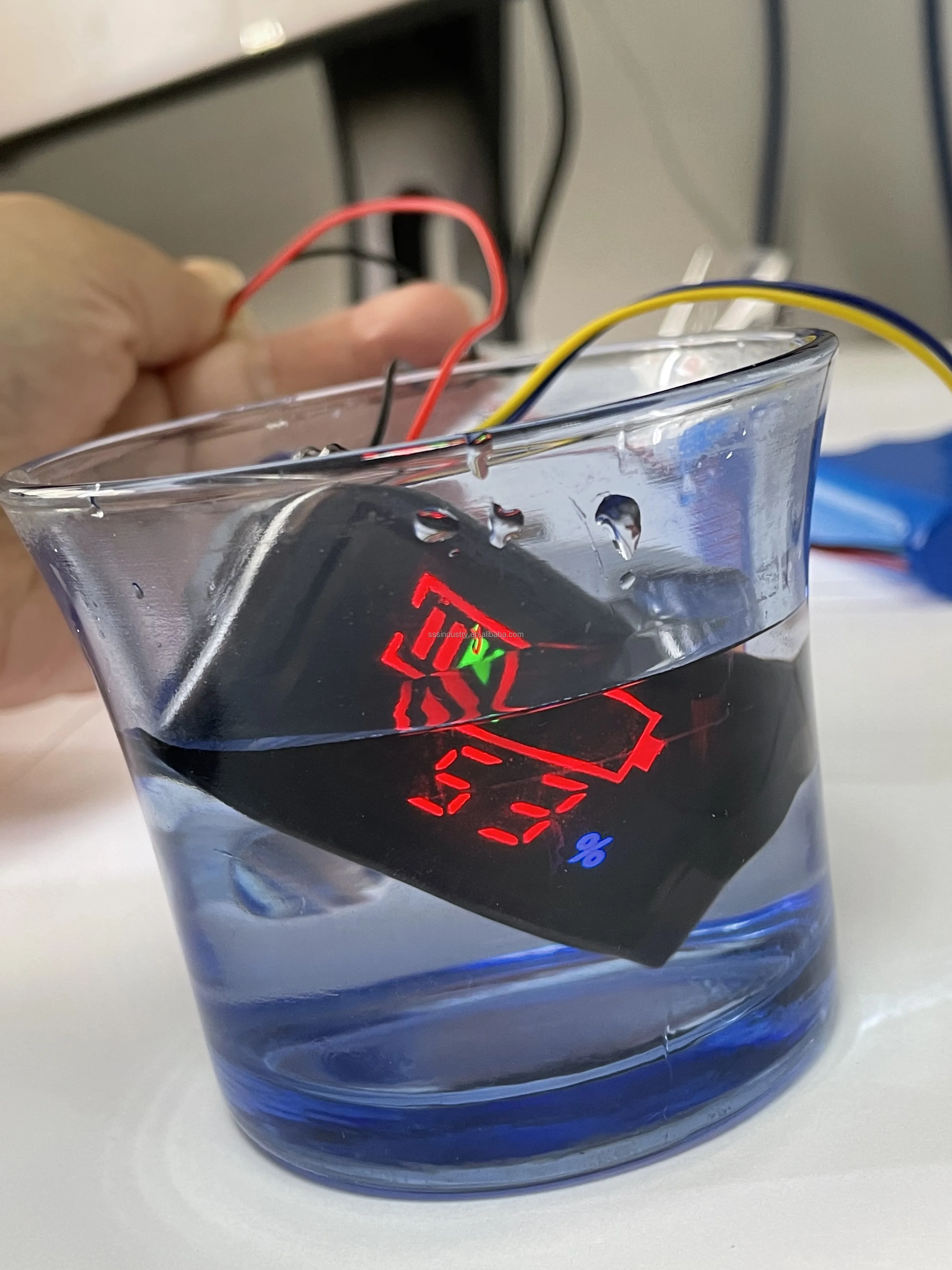

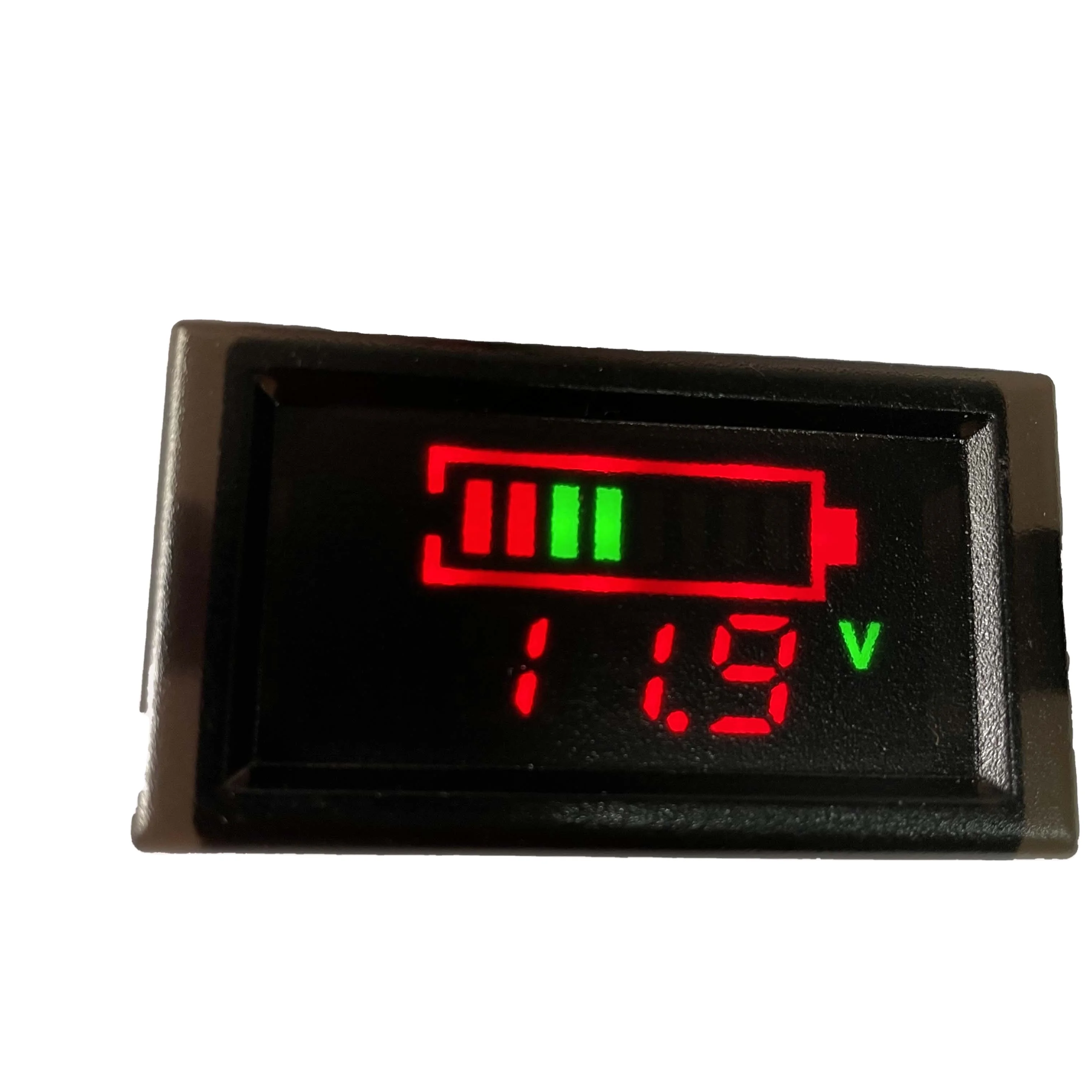

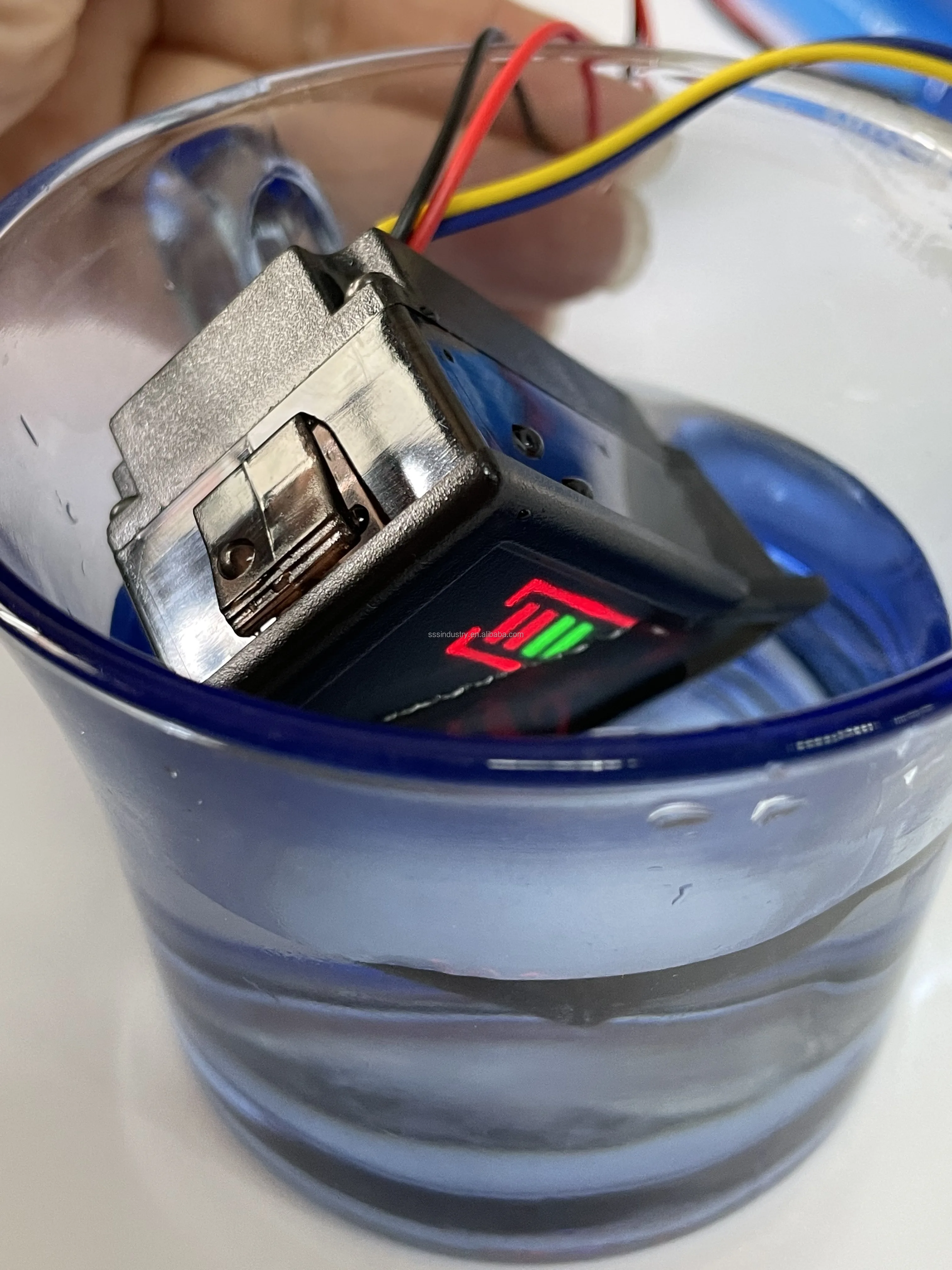

Waterproof Lithium lead acid battery Ni MH battery charge indicator voltmeter
- Category: >>>
- Supplier: Shenzhen Sunshine Sea Technology Co. Ltd.
Share on (1600429375414):
Product Overview
Description
Product Description

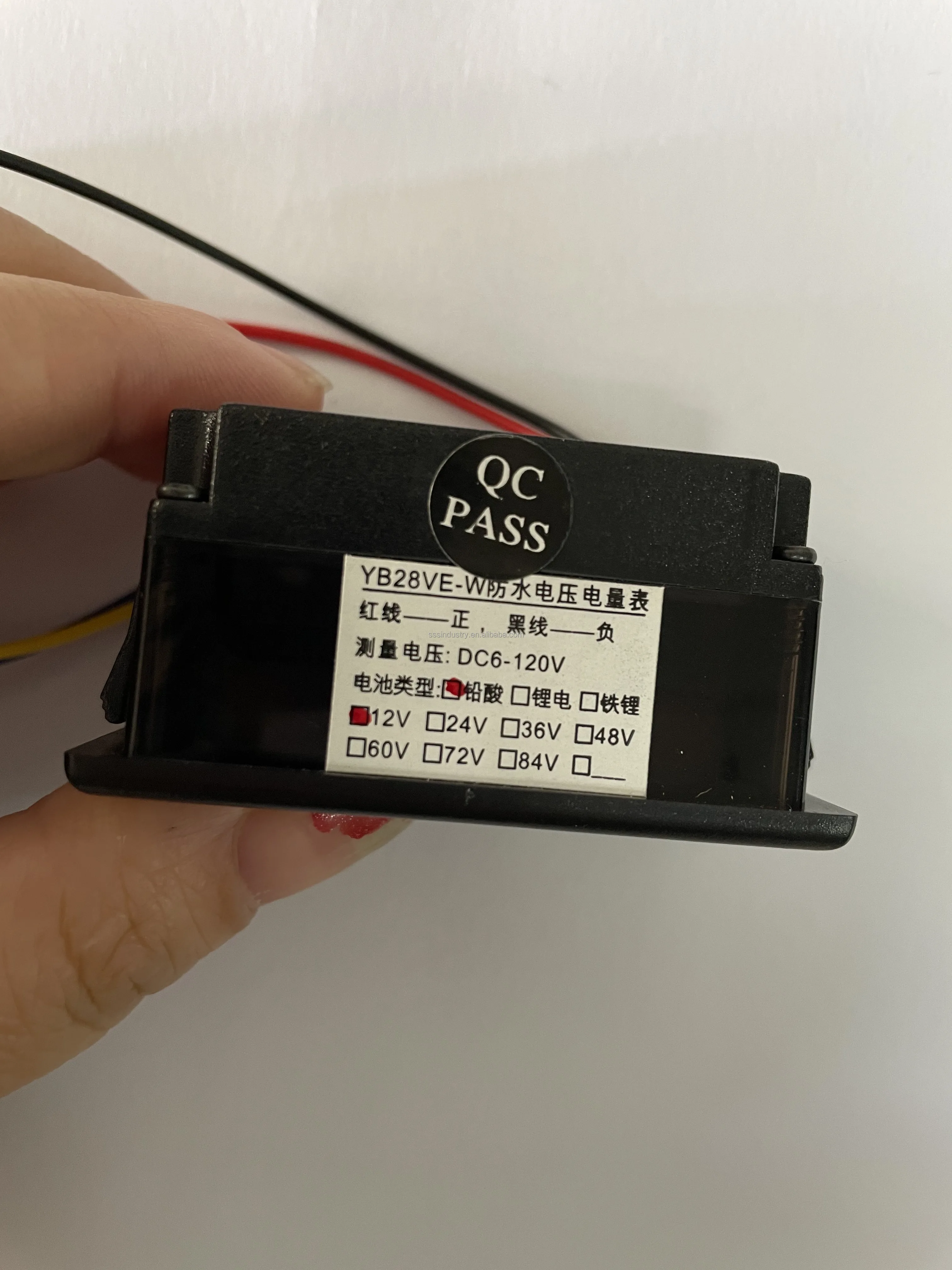

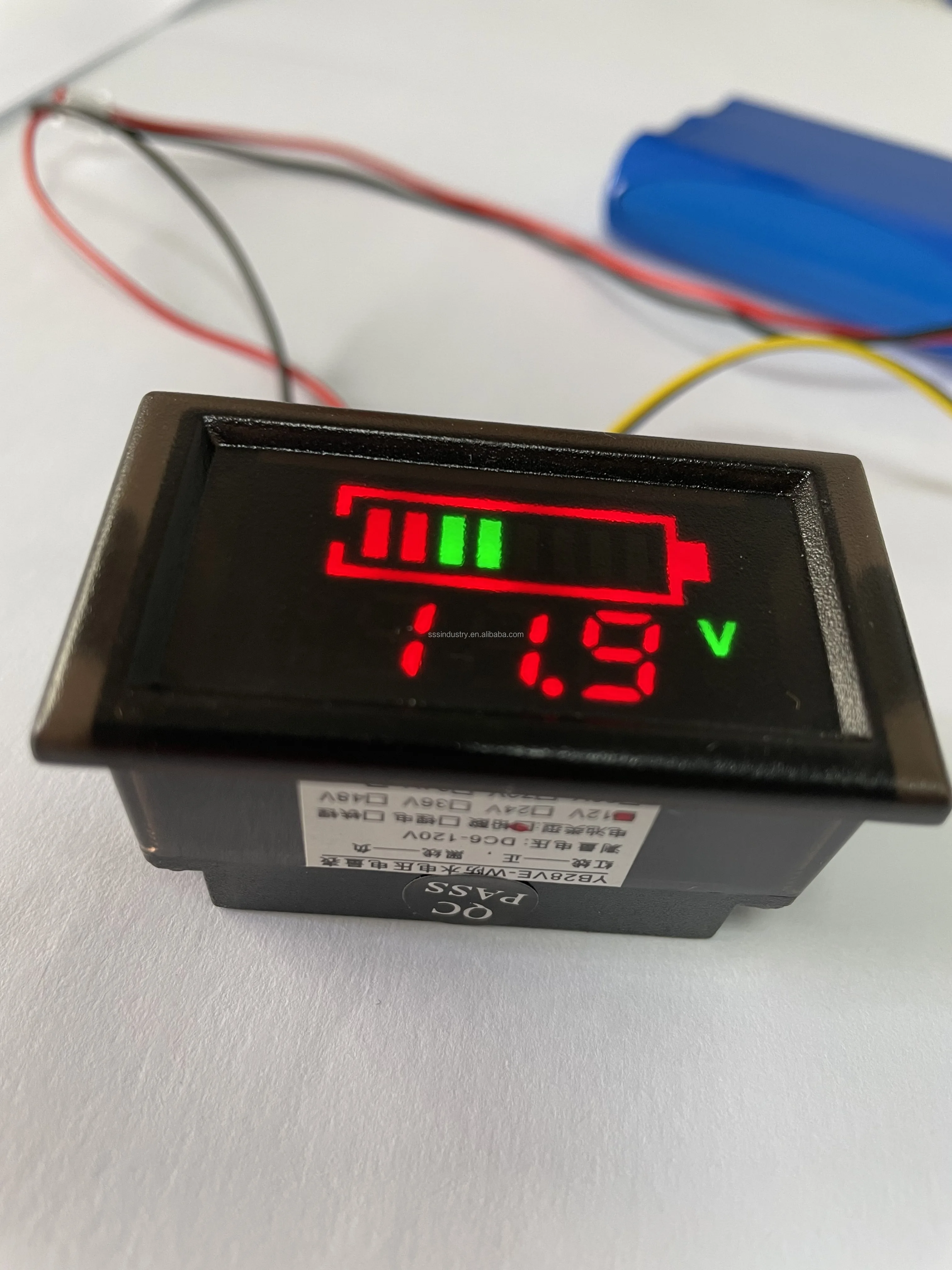

Product Name | SSS-28VE-W Electric Vehicle Digital Waterproof Battery Voltmeter |
Meter Type | Two Cable,Voltage and Capacity meter |
Function | This table can be set by pressing the battery type: lead-acid batteries, lithium batteries, nickel-metal hydride batteries, but also by pressing the button to set the number of batteries (battery in series) This watch is suitable for: 12V, 24V, 36V, 48V,60V, 72V, 84V, 96V car batteries, electric cars, battery packs, car balancer, inverter, electric forklift, sightseeing, electric car, car battery , battery-powered mobile equipment etc., can also be used for other voltage, power test This watch can be tested to show real-time voltage, power and percentage power |
Package | cartons and sealed bag |
Item Details:
Optional display mode: single display voltage; single display percentage power; voltage, percentage power cycle display (default)

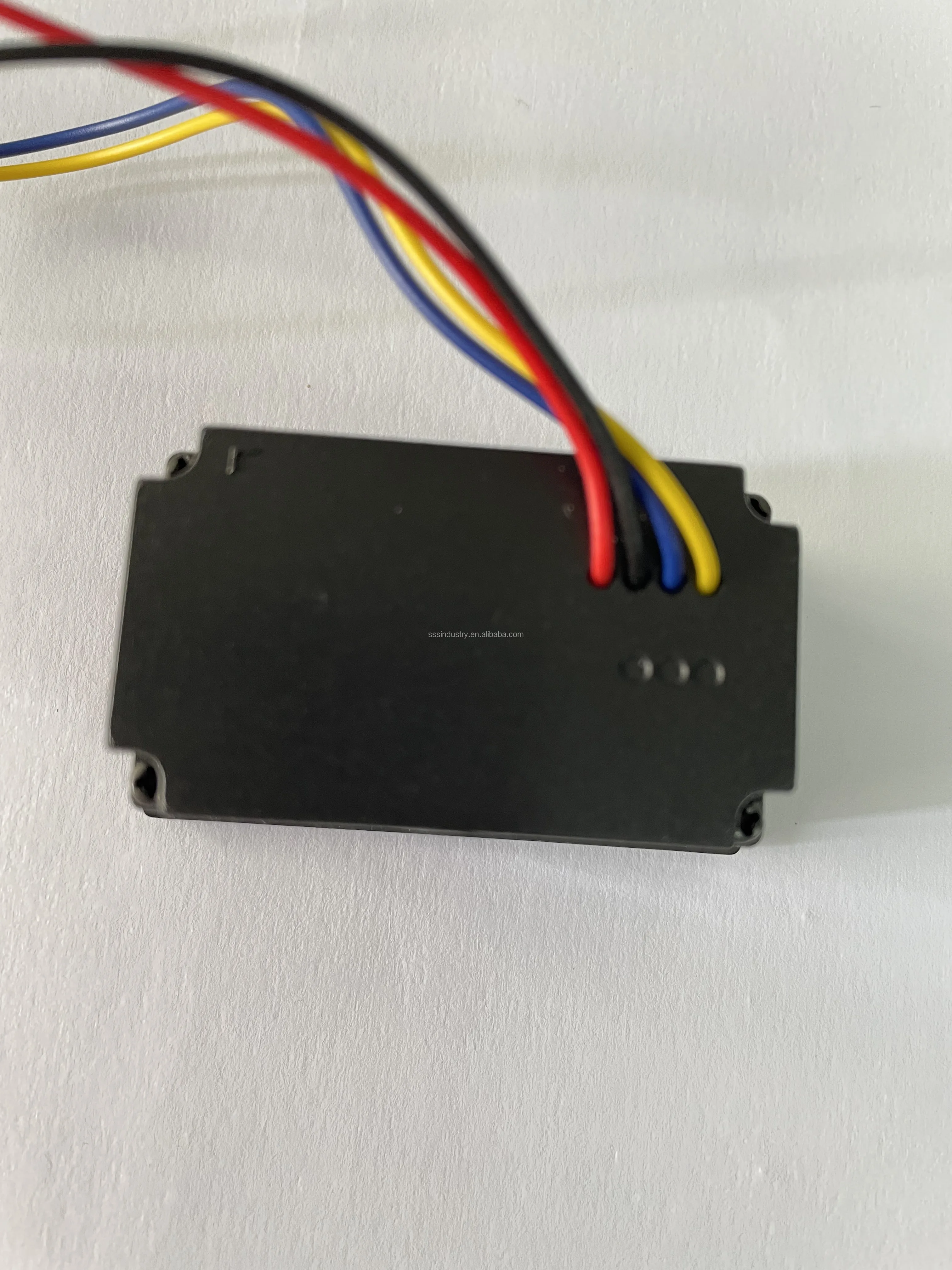

Two-wire system, wide supply voltage, wide test voltage: DC6-120V, wiring is simple and convenient
With the reverse protection function, the reverse does not burn
Low power flash alarm alarm function
LED color display, upscale atmosphere
Technical parameters:
Power supply voltage: DC6~120V (can be used for batteries below 84V)
Note: The maximum input voltage cannot exceed 120V, otherwise there is a danger of burning

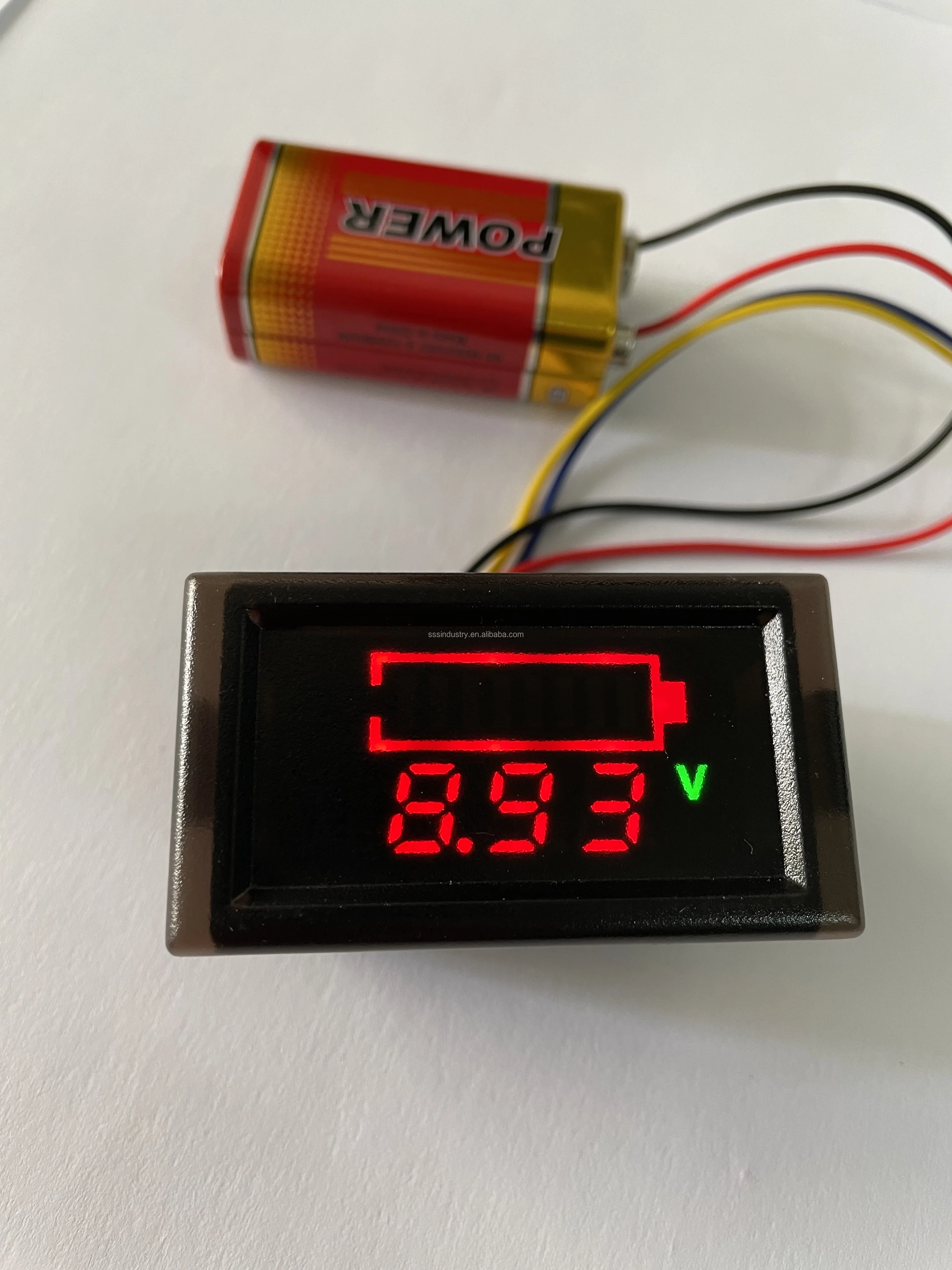

Test voltage: DC6~120V (decimal point moves automatically)
Minimum resolution when below 100V: 01V Minimum resolution when above 100V: 1V
Voltage measurement accuracy: 1% (2 words) Working temperature: -10~50℃
Power resolution: 1% Working current: <20mA
Display mode: LED color screen Measurement rate: ≥500mS/time
Power supply, key switch lead length: >150mm
Dimensions: 54x30x27mm
Two-wire system, wide supply voltage, wide test voltage: DC6-120V, wiring is simple and convenient
With the reverse protection function, the reverse does not burn
Low power flash alarm alarm function
LED color display, upscale atmosphere
Technical parameters:
Power supply voltage: DC6~120V (can be used for batteries below 84V)
Note: The maximum input voltage cannot exceed 120V, otherwise there is a danger of burning
Test voltage: DC6~120V (decimal point moves automatically)
Minimum resolution when below 100V: 01V Minimum resolution when above 100V: 1V
Voltage measurement accuracy: 1% (2 words) Working temperature: -10~50℃
Power resolution: 1% Working current: <20mA
Display mode: LED color screen Measurement rate: ≥500mS/time
Power supply, key switch lead length: >150mm
Dimensions: 54x30x27mm
This voltmeter can set the battery type by pressing the button: lead-acid battery, lithium battery, Ni-MH battery, and the number of battery strings (the number of batteries connected in series) can also be set by pressing the button
This voltmeter is suitable for: 12V24V36V48V56V60V64V72V84V lead-acid battery electric vehicles, battery packs, balance vehicles, inverters, electric forklifts, sightseeing vehicles, electric vehicles, car batteries, battery-powered mobile equipment, etc., and can also be used for other voltage and power testing purposes This meter can test and display real-time voltage, power, and percentage power

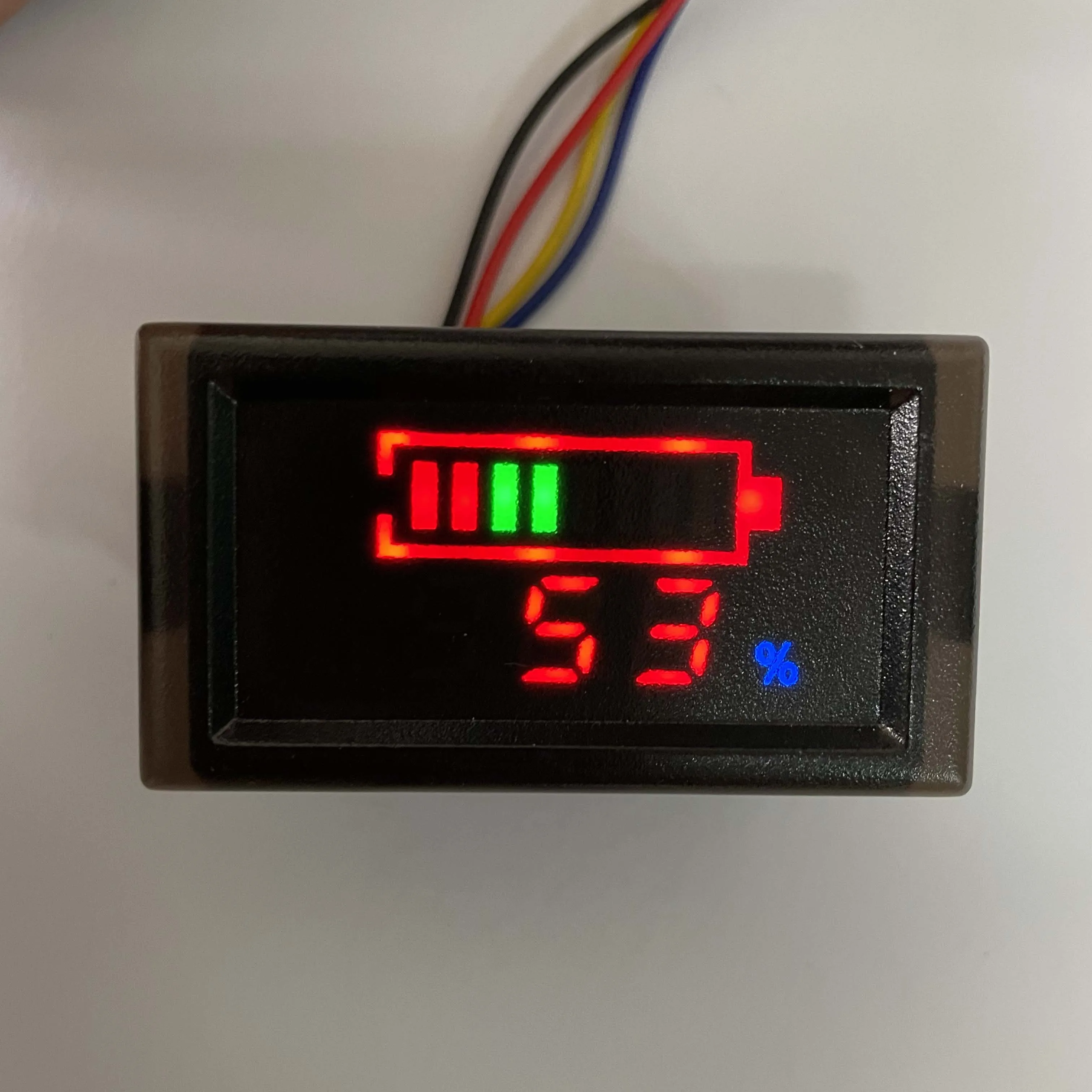

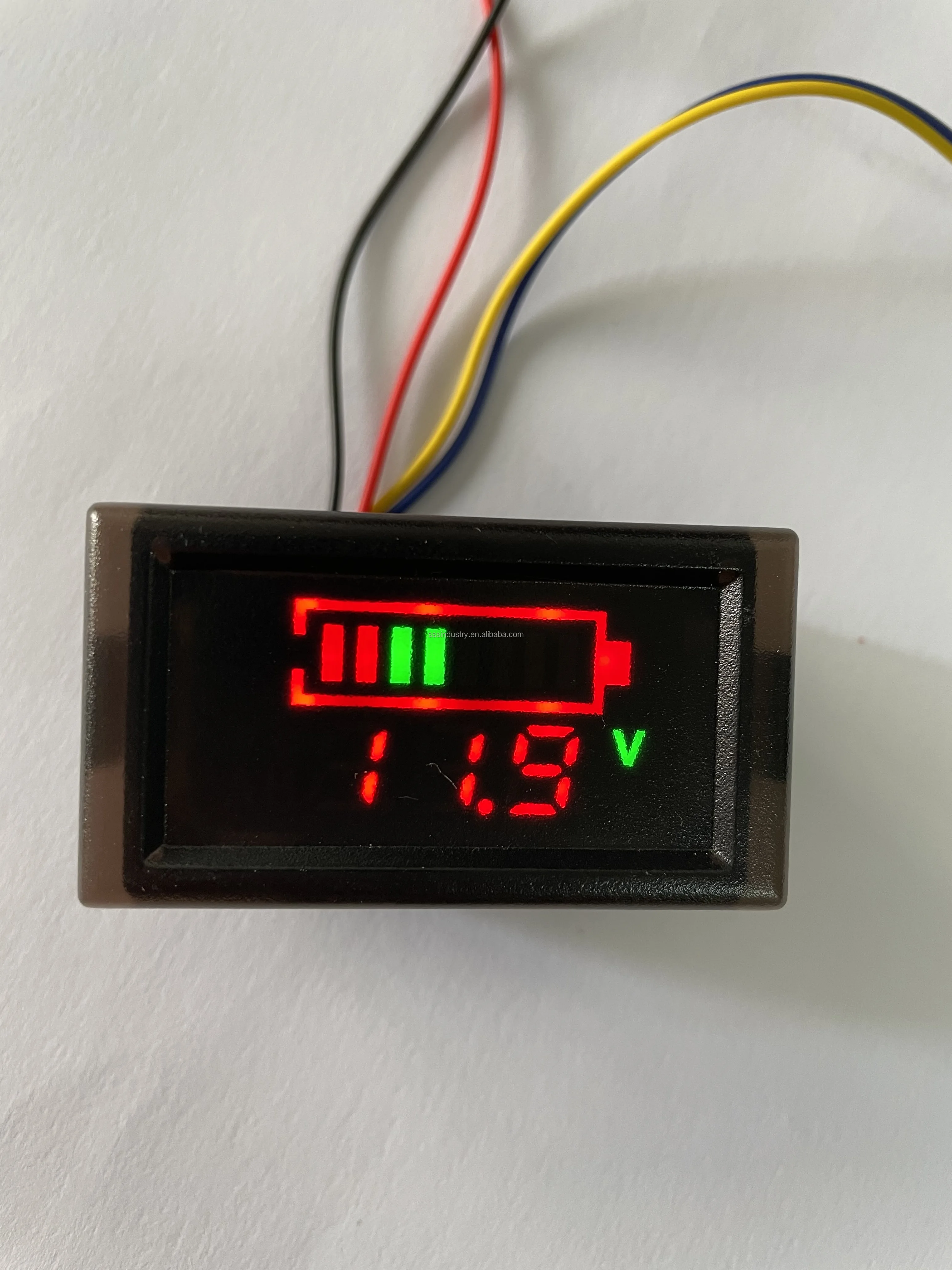

Display mode is optional: single display voltage; single display percentage power; voltage and percentage power cycle display
Two-wire system, wide power supply voltage, wide test voltage: DC6-120V, simple and convenient wiring
With reverse connection protection function, reverse connection will not burn
LED color screen display, high-end atmosphere
This voltmeter is suitable for: 12V24V36V48V56V60V64V72V84V lead-acid battery electric vehicles, battery packs, balance vehicles, inverters, electric forklifts, sightseeing vehicles, electric vehicles, car batteries, battery-powered mobile equipment, etc., and can also be used for other voltage and power testing purposes This meter can test and display real-time voltage, power, and percentage power
Display mode is optional: single display voltage; single display percentage power; voltage and percentage power cycle display
Two-wire system, wide power supply voltage, wide test voltage: DC6-120V, simple and convenient wiring
With reverse connection protection function, reverse connection will not burn
LED color screen display, high-end atmosphere
Product performance description
Extreme working conditions: Minimum supply voltage: +6 Maximum power supply voltage: + 120V Operating temperature: -10 ~ +65
Operating humidity: 10 ~ 80% (non-condensing) Working pressure: 80 ~ 106kPa Sun exposure: no direct exposure
Operating humidity: 10 ~ 80% (non-condensing) Working pressure: 80 ~ 106kPa Sun exposure: no direct exposure
