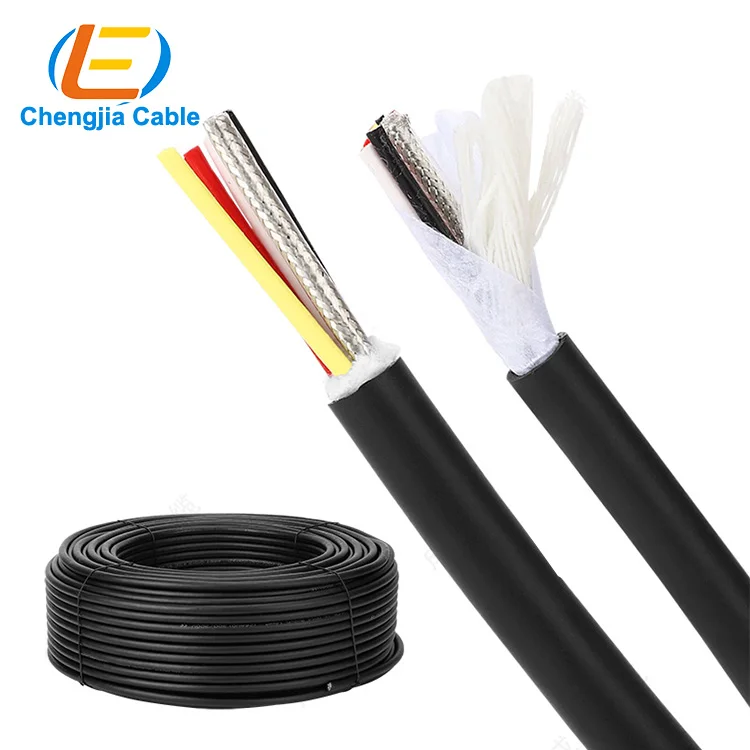

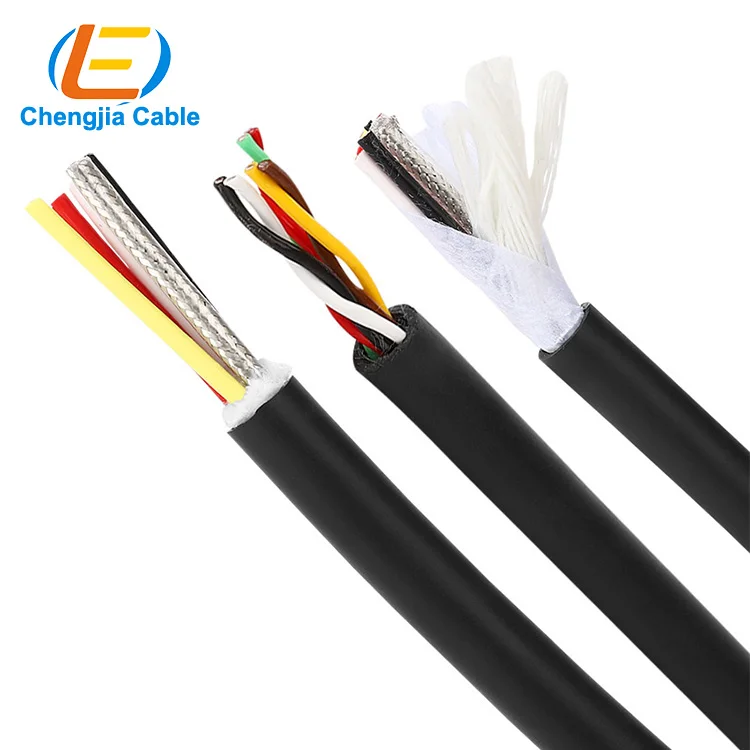

Flame Retardant Industrial Automation Continuous Flexibility Kuka Robot Cable
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600429412704):
Product Overview
Description
Multicore PVC Sheath Shielded Screened Polyurethane Twisted Pair Robot Cable High Flexible Screened Drag Chain Robot Cable
Products Description
It is suitable for the connection between the industrial robot base and the electric control box. The mobile drag chain cable of the robot base is an excellent choice to ensure the reliability and long life of robot products.
Product Feature
Technical Parameter
Outer sheath | Special fluororesin insulation, special PVC sheath | ||||||
Feature | With ultra-high strength and bending and torsion performance | ||||||
Standard | Meet the requirements of TUV2 PfG 2577 Class V | ||||||
Temperature range: | Mobile installation -20°C to +80°c Fixed installation -40°C to +105° c | ||||||
Nominal voltage | Power supply Uo/U 300/500 V Data Uo/U300/300 V | ||||||
Test voltage | Power supply 2000 V Data 1500V | ||||||
Insulation resistance: | Minimum 100 MOhm x km | ||||||
Minimum bending radius: | Mobile installation 6×cable diameter Fixed installation 4x cable diameter | ||||||
Application: | Meet the requirements of EU RoHS and Reach regulations | ||||||

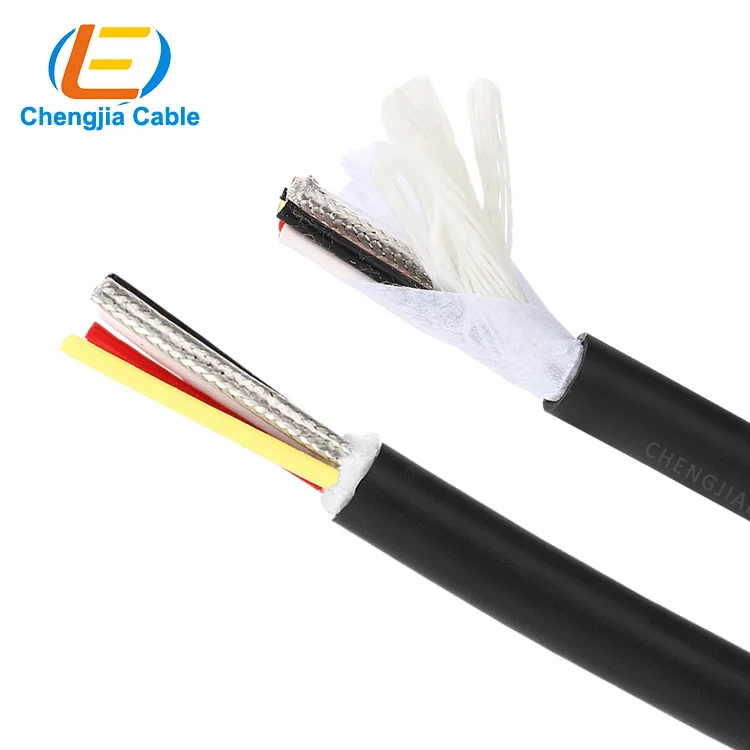

Cable Structure

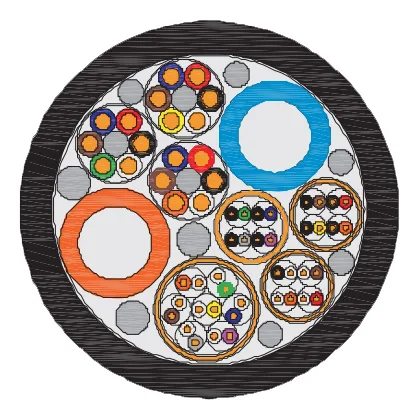

Robot Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor ultra-fine copper wire, in line with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special fluororesin insulation
3. The color of the core wire is colored
4. The wire core is twisted with the best pitch
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC outer sheath
8. Black (RAL 9005) matte
2. Special fluororesin insulation
3. The color of the core wire is colored
4. The wire core is twisted with the best pitch
5. Improved tinned copper wire braided shield
6.Minimum coverage rate 85%
7. Special PVC outer sheath
8. Black (RAL 9005) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km |
1 | RO-FY2001.56.2417 | 3x(4x2x0.2)+(7x2x0.2)+2xTube | 24.5 | Black | 95/19.5 |
