Product Overview
Description
PRODUCT DETAILS
MULLION LINE LOUVRE
Introduction
The Mullion Line series comes complete with visible support mullions. It has proven to be a real workhorse, withstanding rigorous testing to offer great rain defence performance and excellent airflow characteristics.

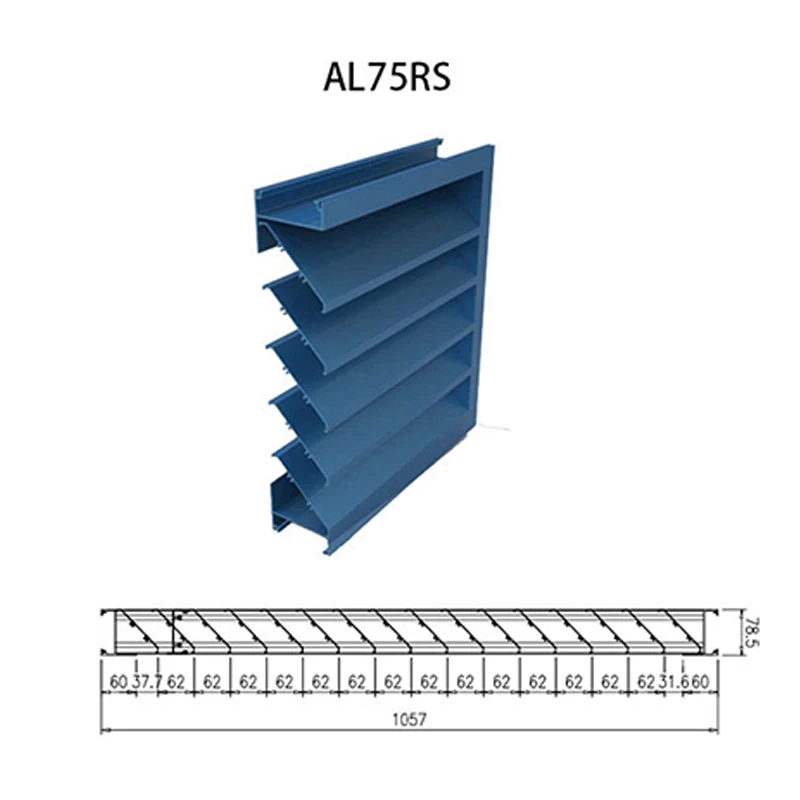

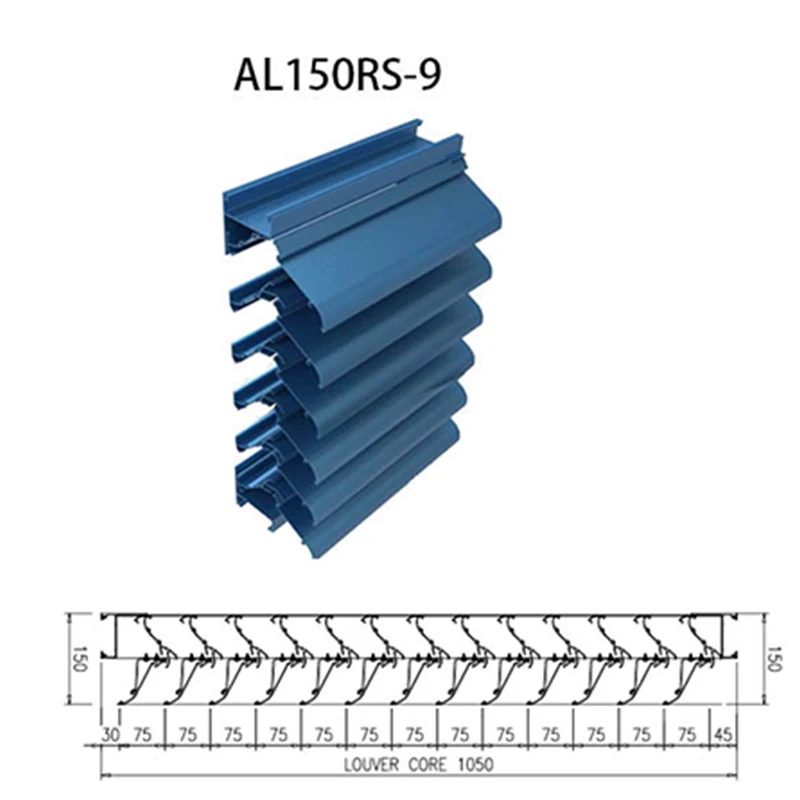

Product Drawing
Louvre Model | AL150RS-9 | AL75RS | ||
Blade Configuration | Double | Single | ||
System Depth | 150 mm | 79 mm | ||
Pitch | 75 mm | 62 mm | ||
Vsiual Blade Oreientation | Horizontal | Horizontal | ||
Visual Impact Of Mullions/Jambs | Hidden | Visible | ||
Rainwater Penetration (Airflow Velocity In M/S) | 0.0 | A | C | |
0.5 | A | C | ||
1.0 | B | C | ||
1.5 | B | D | ||
2.0 | C | D | ||
2.5 | C | D | ||
3.0 | D | D | ||
3.5 | D | D | ||
Airflow Coefficient | 0.253 | 0.355 | ||
Airflow Class | 3 | 2 | ||
Aireflow Rating | Good | Very Good | ||

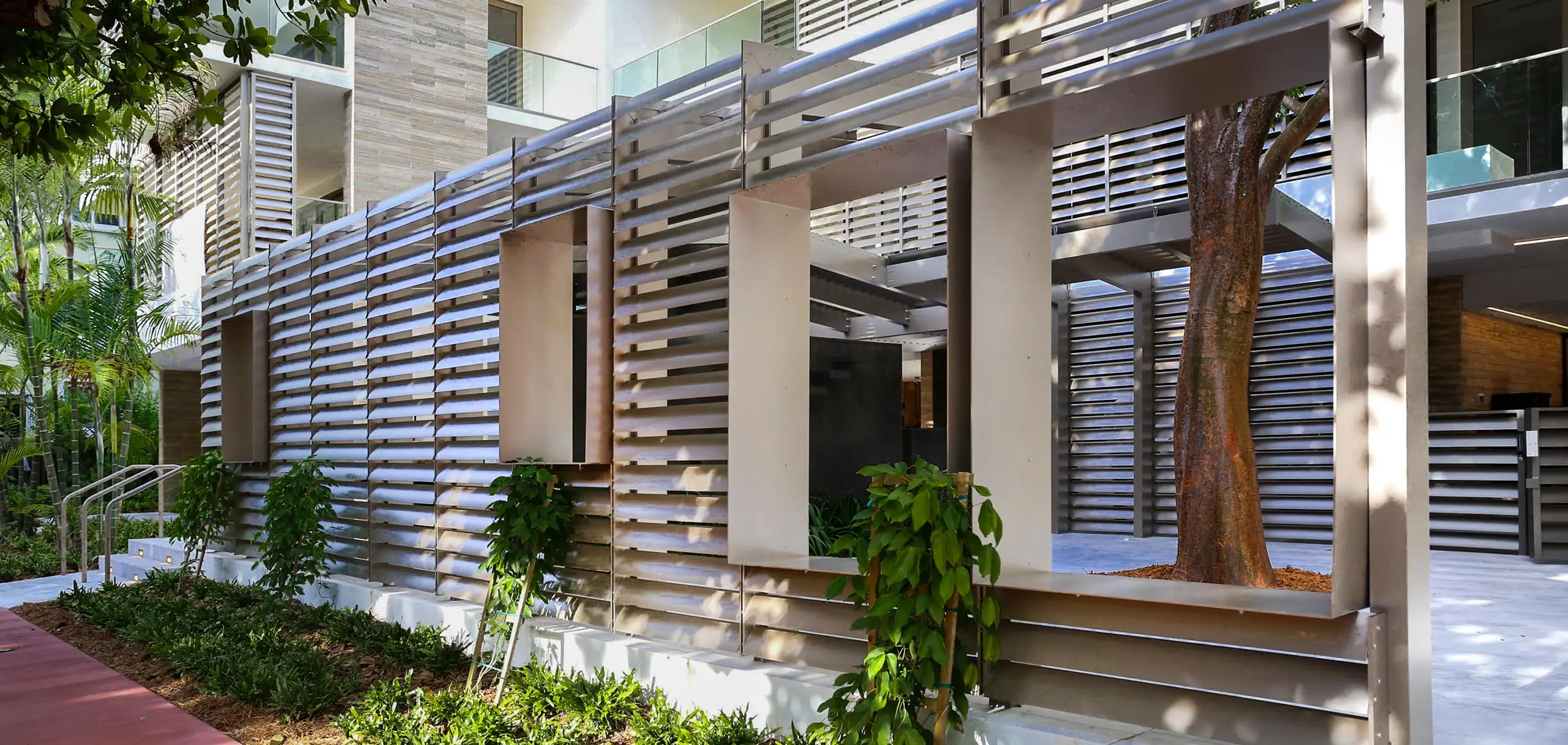

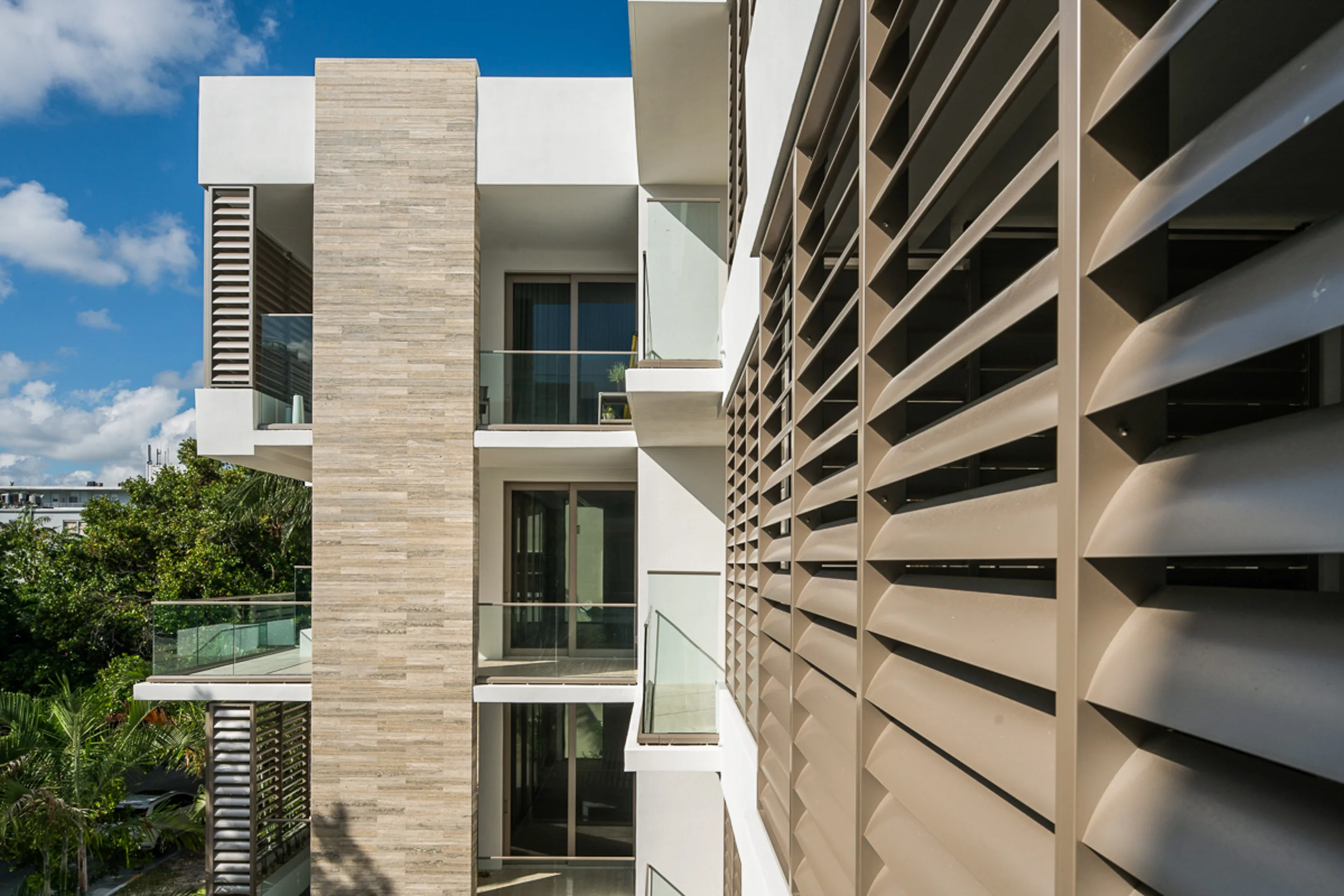

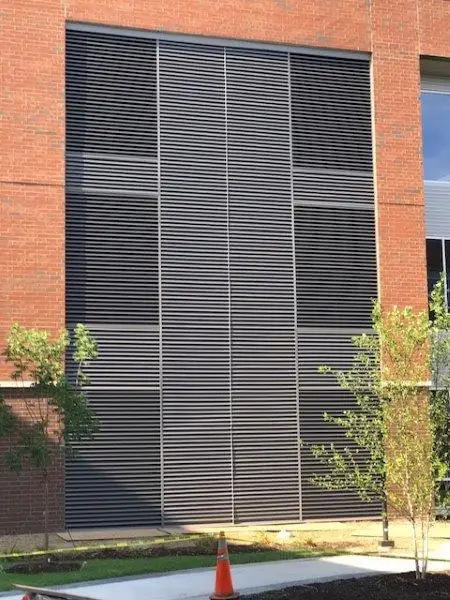

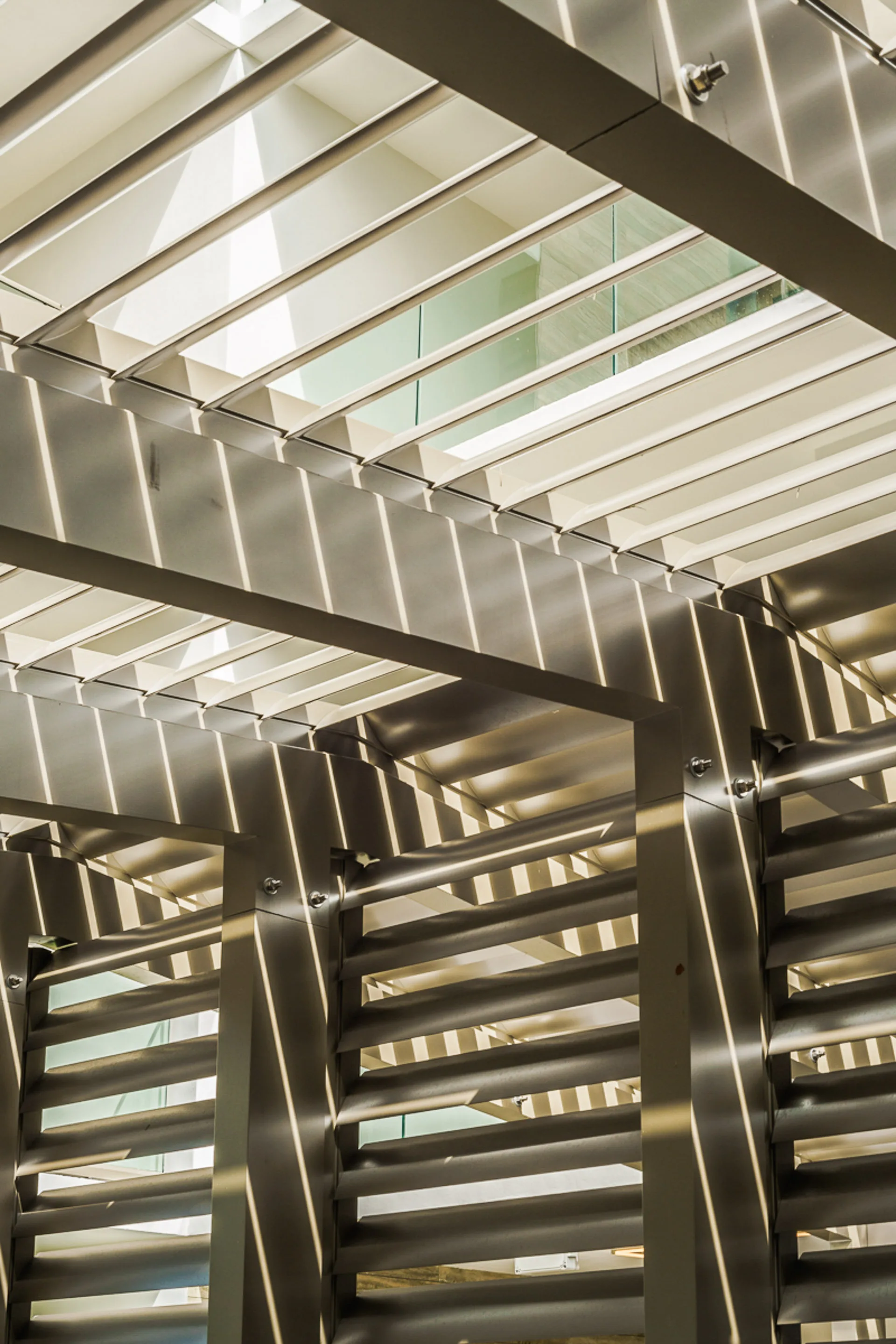

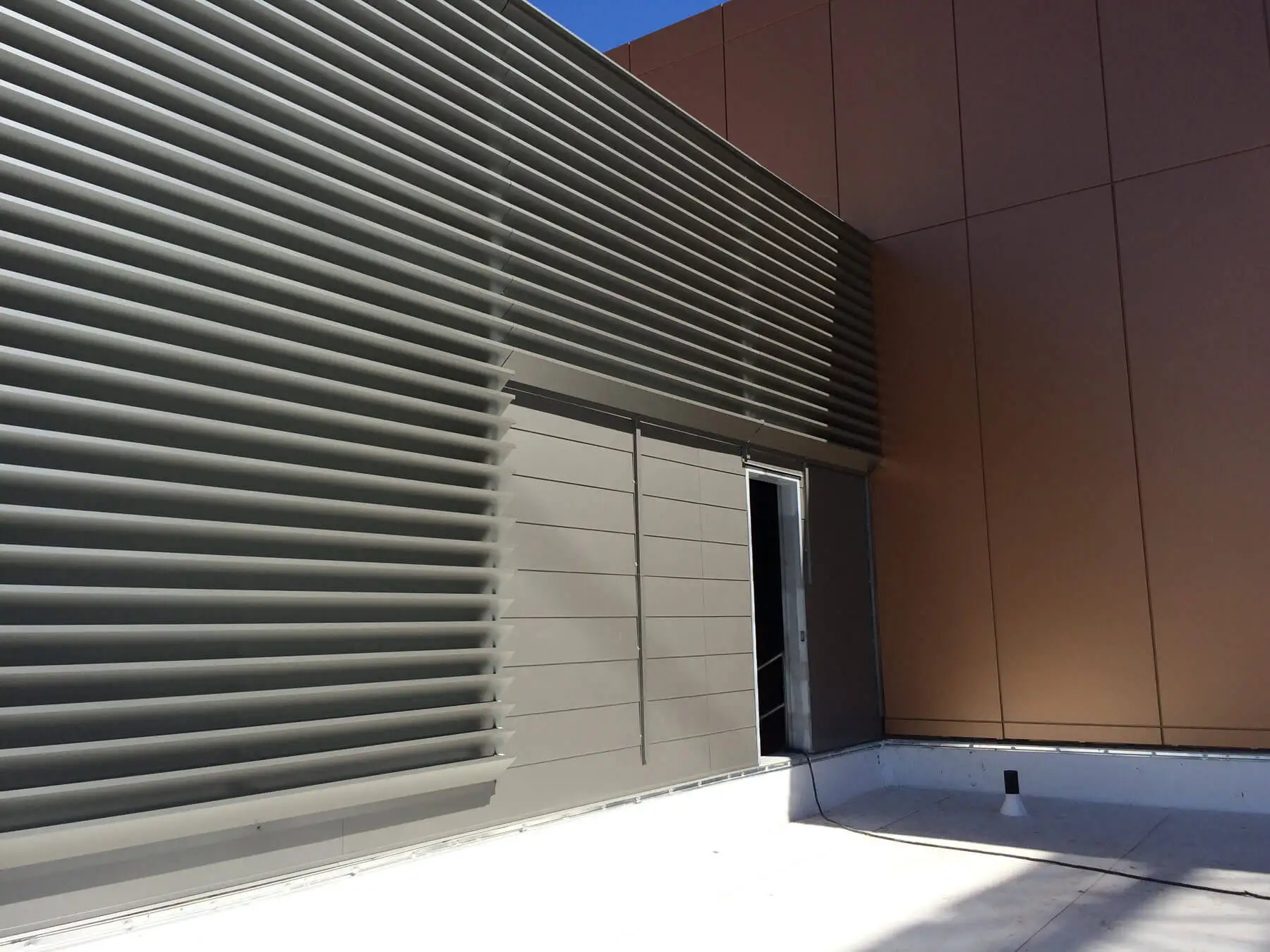

PROJECT REFERENCE
Hoi An South Development -- Vietnam
Our Tampines HUB -- Singapore
Jalan Besar Mrt -- Singapore
Google Data Centre
Kingston Mapletree -- Singapore
