BKCC07 19 L water filling machine price/Gravity 5 Gallon filling price
- Category: >>>
- Supplier: Shanghai Ok Machinery Co. Ltd.
Share on (1600429587232):
Product Overview
Description
Product Description

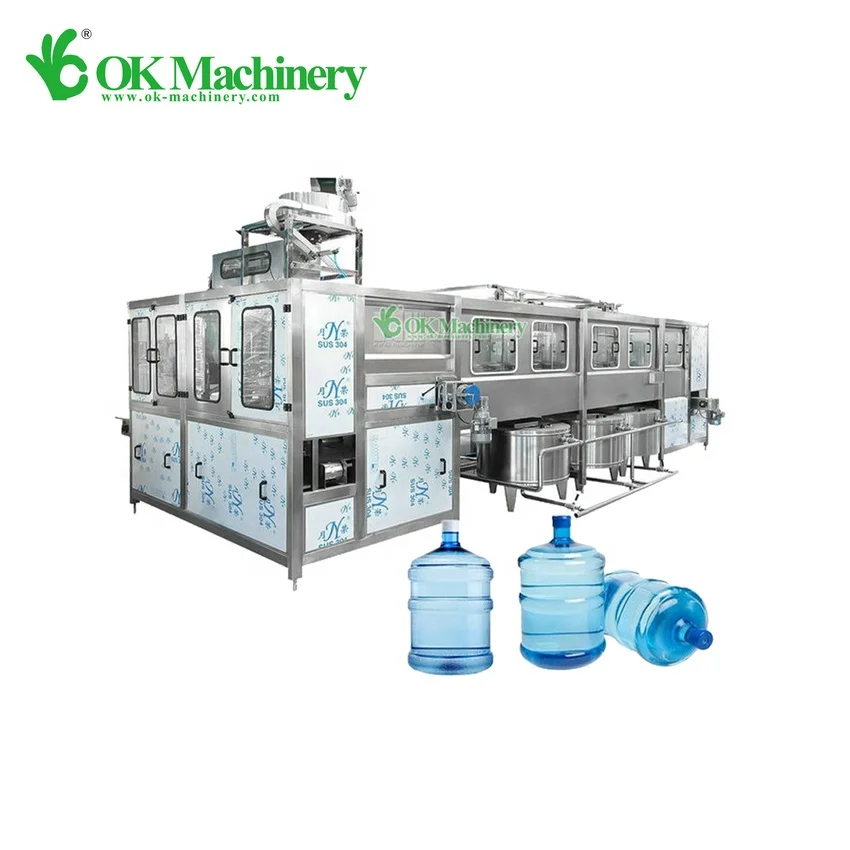

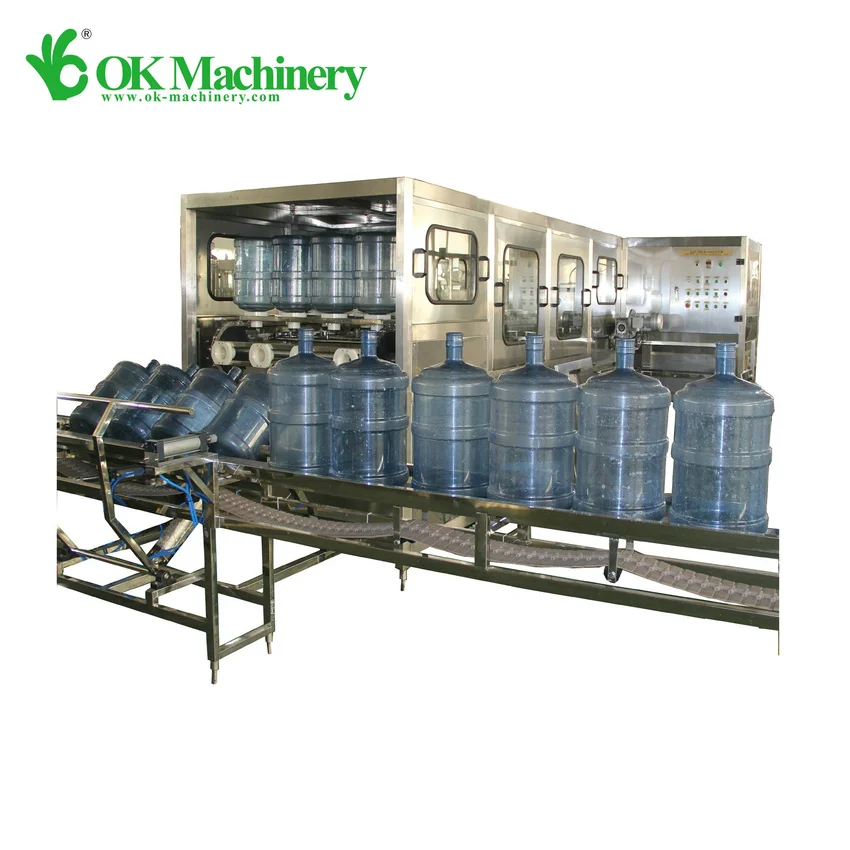

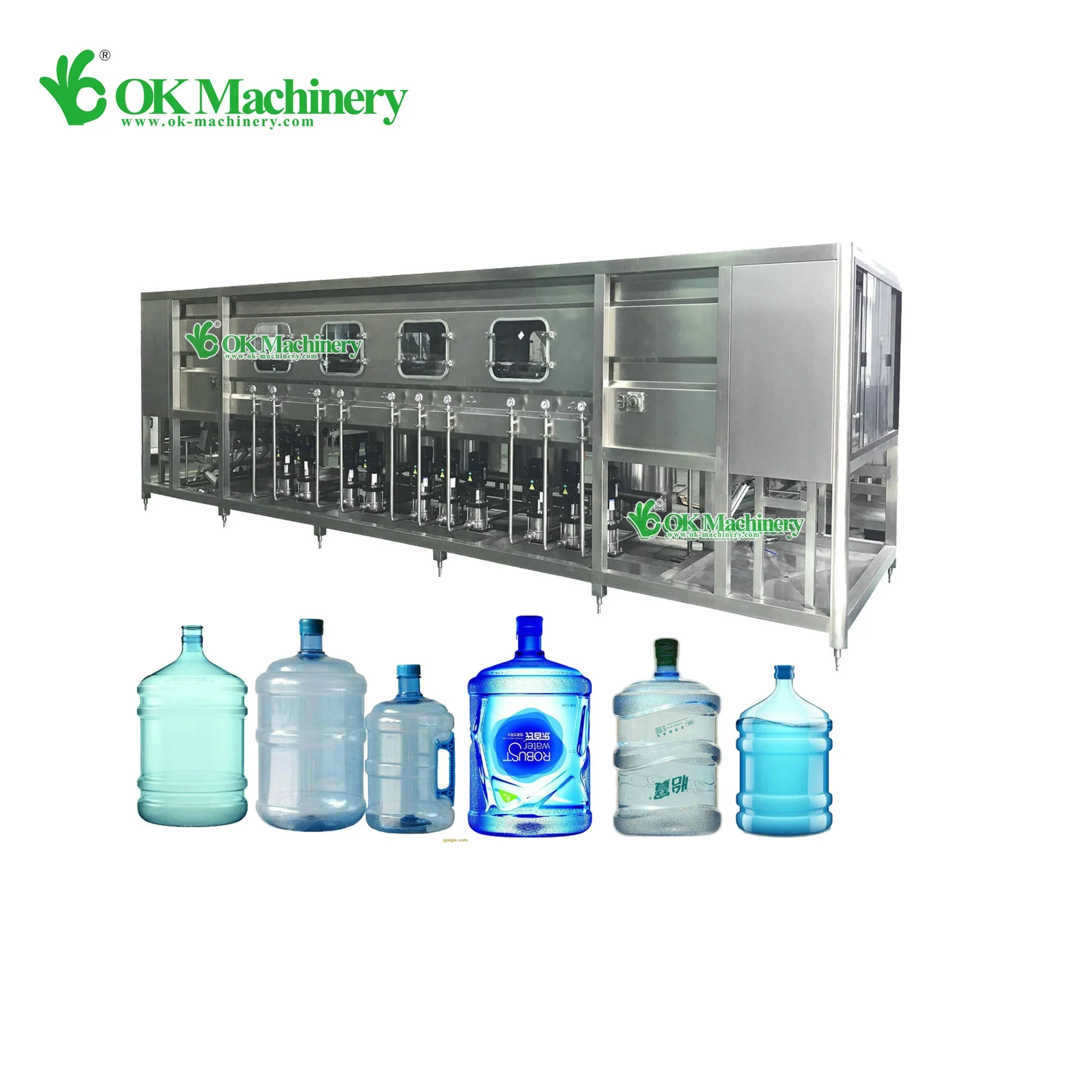

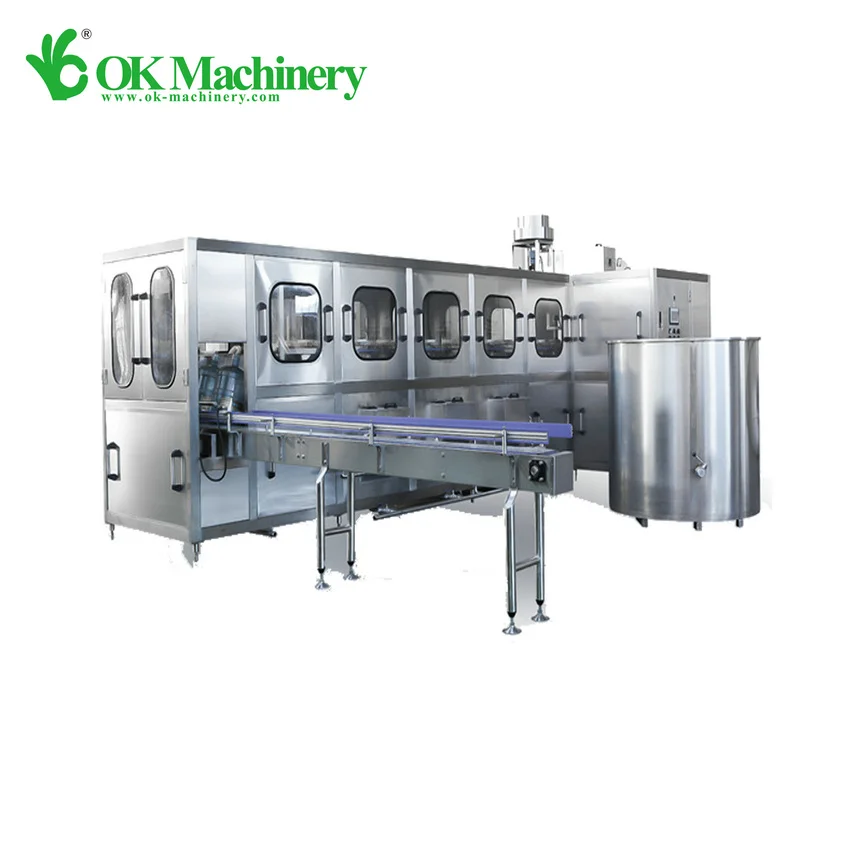

OK-QGF 3-in-1 Unit 5 Gallon Filling Production Line
This filling line is specially for 3-5 gallons barreled drinking water, with type QGF-100, QGF-240, QGF-300, QGF-450, QGF 600, QGF-900, QGF-1200. It integrates bottle washing,filling and capping into one unit.In order to achieve the purpose of washing and sterilizing .
The washing machine uses automatic liquid spray .This line equips with water spraying device in order to ensure those caps sterile. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging,with complete function, modern design and high degree of automation.
It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

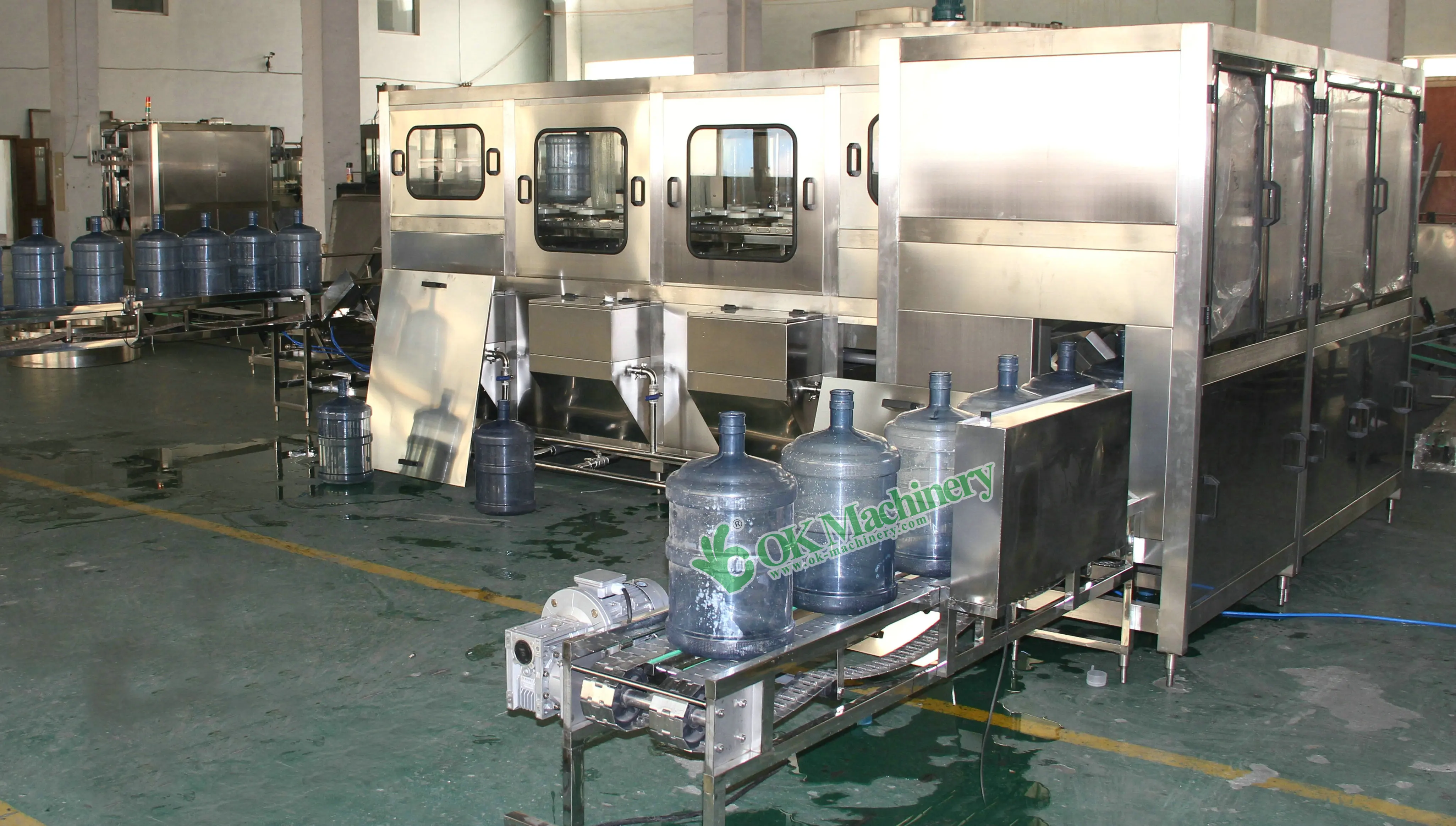

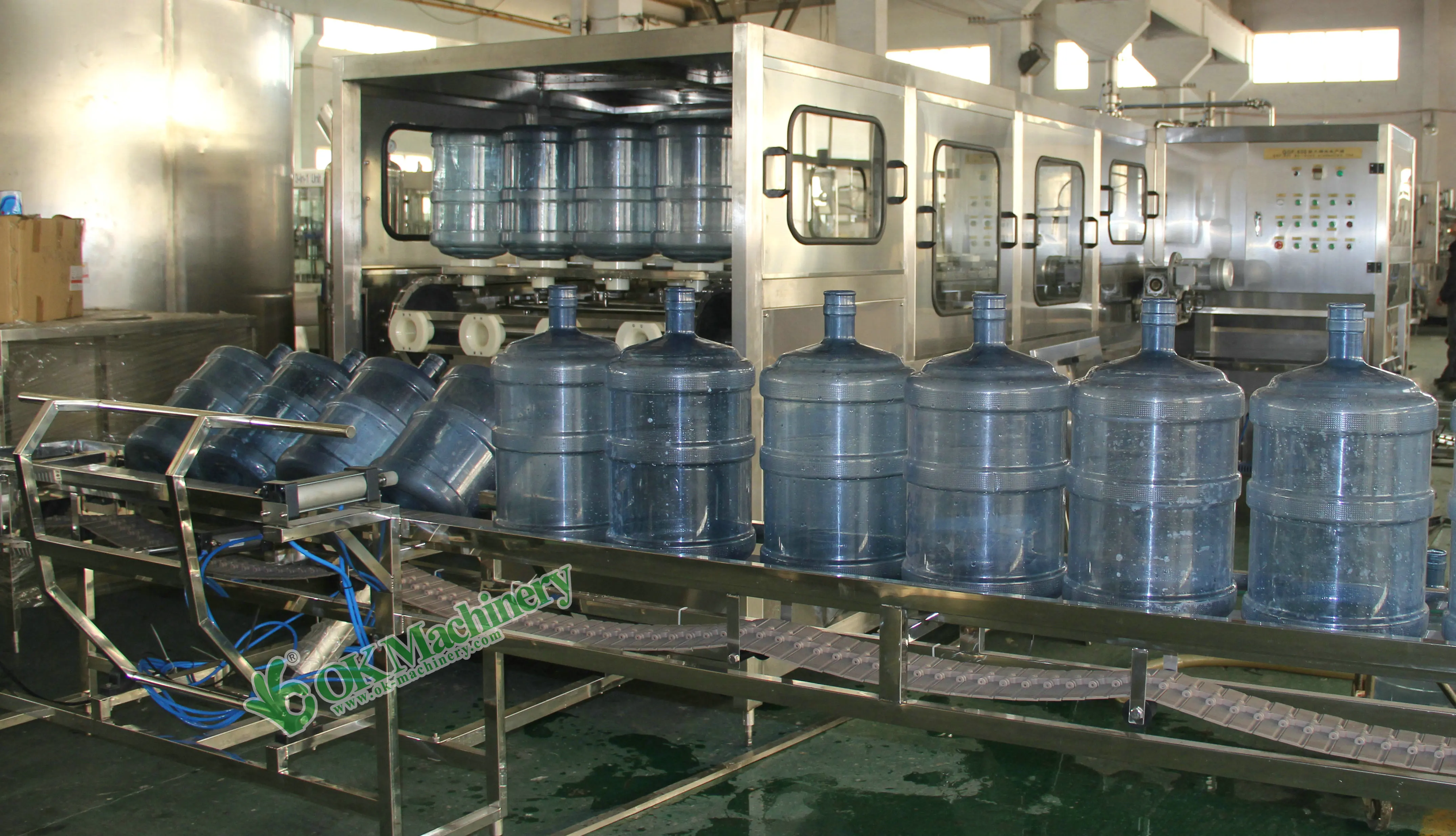

Water Filling Line

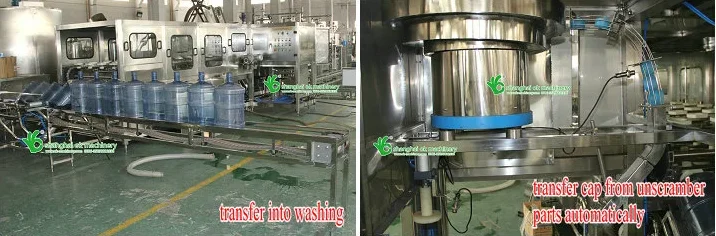

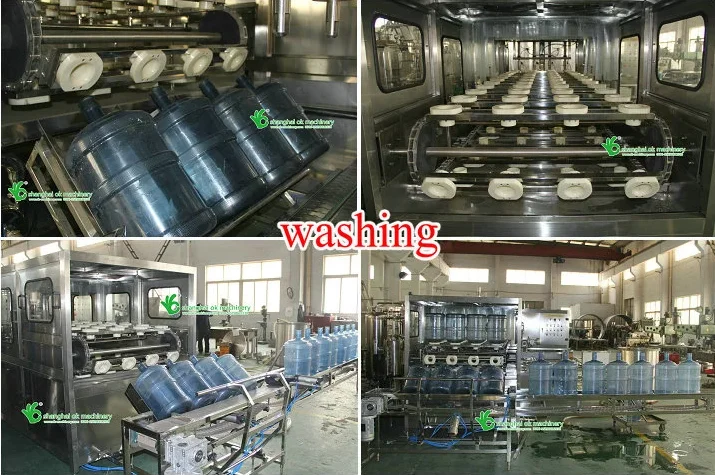

Working steps: automatic capping - automatic internal and external barrel brushing - automatic barrel loading - drug washing - internal and external washing of raw water - internal washing of pure water - filling - automatic capping - capping - automatic conveyor belt outgoing - light inspection - heat shrinkage - bagging - finished product.
It has different models, which can fully meet your needs.
QGFModel | OK-QGF-150 | OK-QGF-300 | OK-QGF-450 | OK-QGF-600 | OK-QGF-900 | OK-QGF-1200 |
Filling Heads | 1 | 2 | 3 | 4 | 6 | 8 |
Gas Consumption | 0.3 | 0.4 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Capacity | 150 | 300 | 450 | 600 | 900 | 1200 |
Weight | 500KG | 1250KG | 1550KG | 2100KG | 3200KG | 4200KG |
Motor Power | 2KW | 3KW | 5KW | 7.5KW | 9KW | 11KW |
Detail of machine

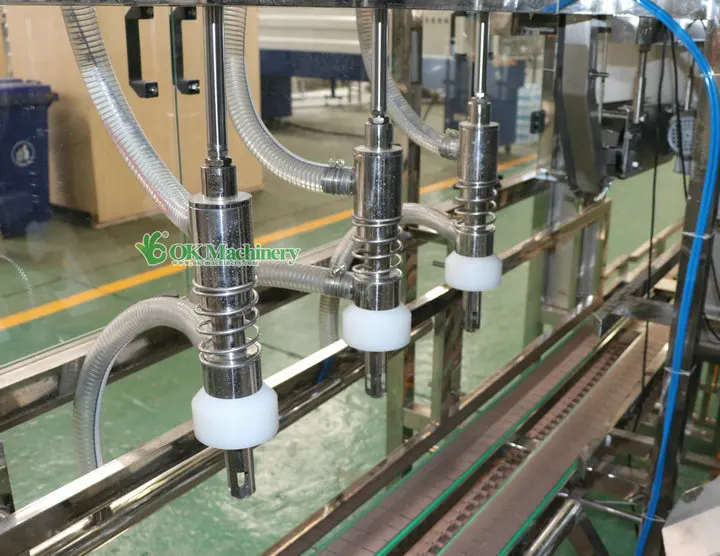

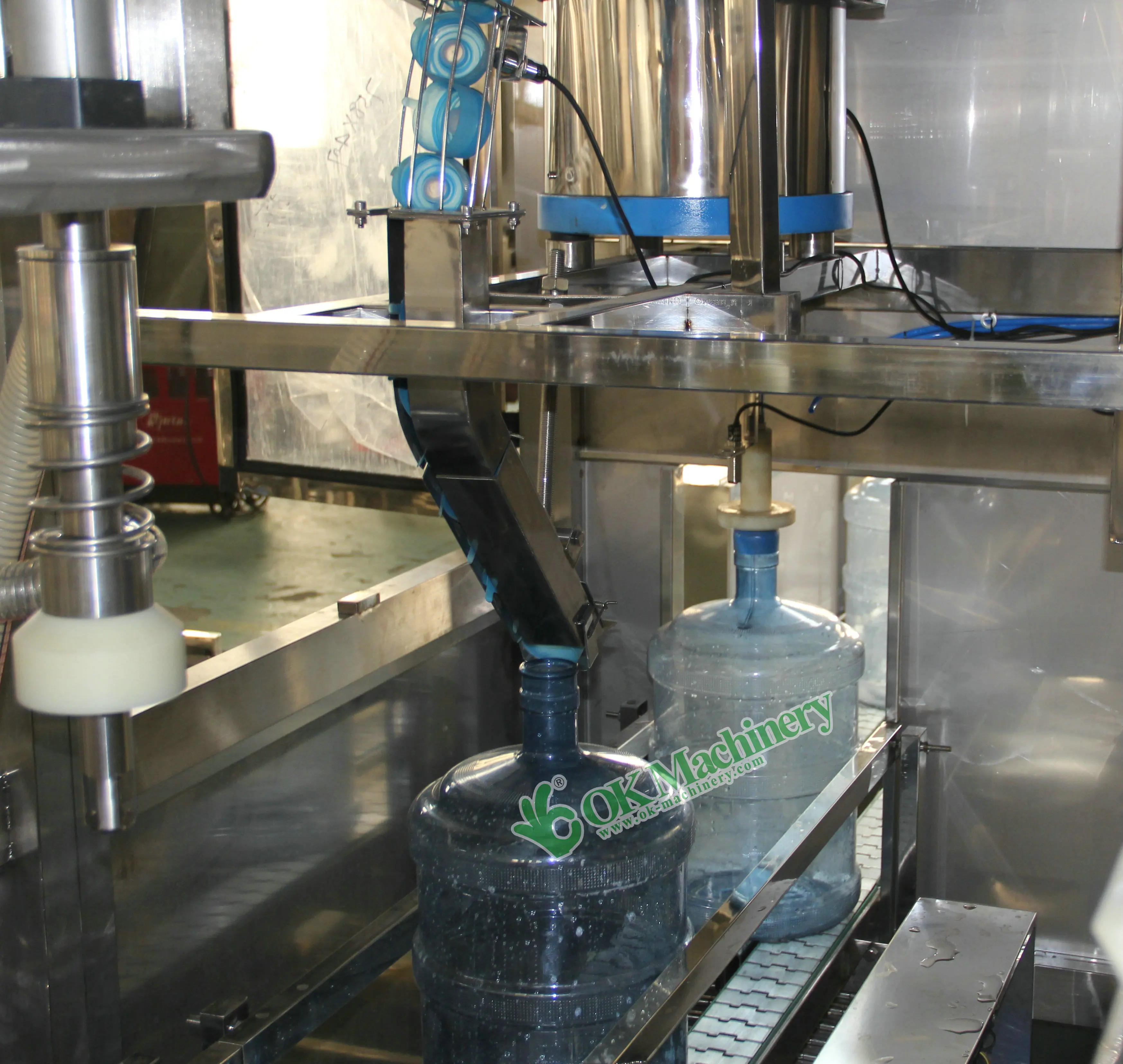

Filling Heads
1. The filling valve is pushed into the barrel mouth by the cylinder, and the automatic exhaust filling valve is opened one by one for filling.
2. The filling time is set by PLC, and the filling time can be corrected by using the panel multi-function button according to the liquid level, so as to achieve the best position.
3. After filling to the liquid level, the excess water returns to the pure water tank through the automatic drain to reduce the waste of pure water.
2. The filling time is set by PLC, and the filling time can be corrected by using the panel multi-function button according to the liquid level, so as to achieve the best position.
3. After filling to the liquid level, the excess water returns to the pure water tank through the automatic drain to reduce the waste of pure water.
Capping
1. Panasonic PLC programmable controller control system is adopted to automatically run the editing program through high-definition touch screen.
2. Stainless steel is used, other parts are also made of non-toxic and durable composite materials, and imported components are used for electrical and pneumatic systems.
2. The power transmission adopts reduction motor and pneumatic control system, which has reliable performance, simple operation and simple maintenance.
2. Stainless steel is used, other parts are also made of non-toxic and durable composite materials, and imported components are used for electrical and pneumatic systems.
2. The power transmission adopts reduction motor and pneumatic control system, which has reliable performance, simple operation and simple maintenance.
Our Company
Shanghai OK Machinery co.,Ltd is located at side of shanghai city .We own professional design and sell team. we are a leading enterprise in making full set bottle water production line, bottle juice, carbonated soft drinking beverage,glass bottle beer , label machine packing machine gathering development , designing, production,technology service and marketing.
Our company according to china situation, we developed full-set equipments for liquid and high automatic advanced technology. Now our customers are from in America, Russia, Africa,Thailand, Vietnam, Jordan, Belgium ,........We will try our best to meet the demands of our customers continually and seek for development together with our customer .
Welcome you visit our factory to check machine quality. we will give our best machine and good service to you .
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you have reference project? We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
2. Do you have agent and after-service stations?
So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
3. Do you provide customized service?
We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
4. What's your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support.
5. How long time for installation?
According your machines order, we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Why Choose Us
Remote services.
solve basic questions by telephone,email,whatsapp, wechat and video call.
Engineers available to service machinery overseas.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
Operating manuals will be sent with machine or by email.
overseas service center and third party support available.
