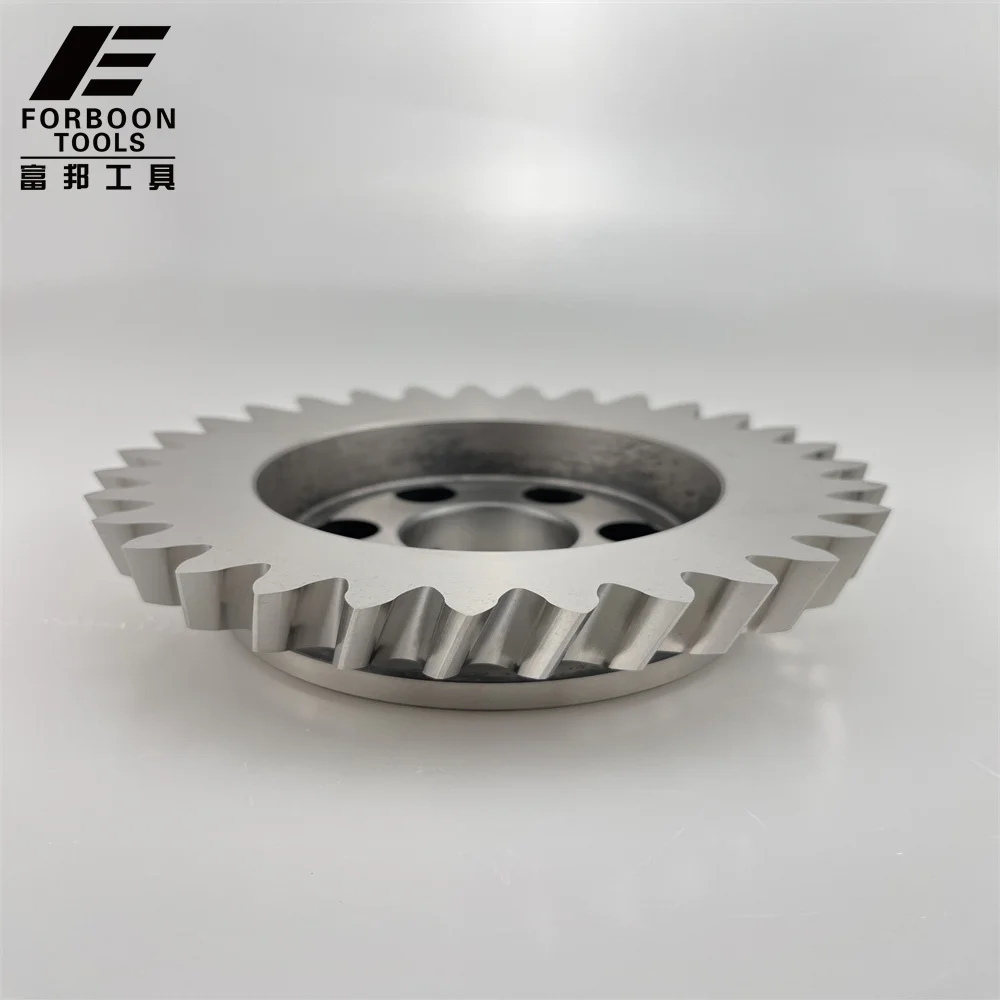

Hot To Korea Straight and helical tooth Module Sprocket Gear shaper cutter
- Category: >>>
- Supplier: Chongqing Fubang Tool Manufacturing Co. Ltd.
Share on (1600429978307):
Product Overview
Description
Products Description
Triangular spline disk type helical tooth gear shaper cutter China types gear slot cutters

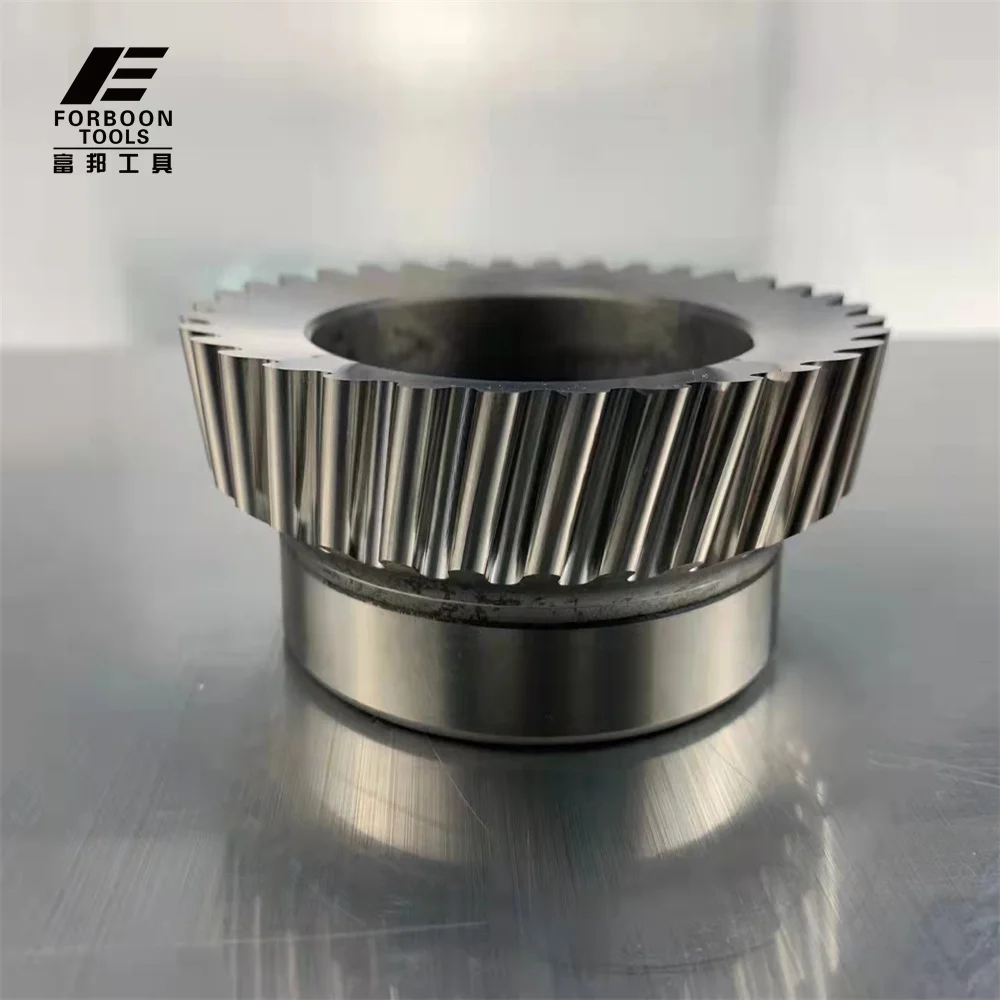

Helical gear shaper cutter
Various modules segment helical pinion gear cutter, The profile of the cutter is composed of convex angle, trimmed edge, chamfered angle, full cut, full arc and modified shape. Mainly used for auto gear, step gear etc.
The cutting tool type are mainly disk type,lever type and small bowel type Gear.
The cutting tool type are mainly disk type,lever type and small bowel type Gear.
Our Gear hob cutters are made from material in grades HSS M2, M35. Hobs are widely used in automobiles, construction, and machinery industries. Gear Hob Cutters are used to generate gear tooth
profile in any material. The accuracy class for Gear Hob Cutters is AA and A.These cutters can also be produced in multi gashes and multi-start. We supply all standard as well as non-standard Gear Hob
Cutters.
profile in any material. The accuracy class for Gear Hob Cutters is AA and A.These cutters can also be produced in multi gashes and multi-start. We supply all standard as well as non-standard Gear Hob
Cutters.
Welcome contact for detail requirement.
Cutter Name | Module Range | Cutter Material | Accuracy Grade | Suitable in |
Skiving/turning cutter | M0.25-M8 | HSS-PM | DIN-AA | Inner and out gear ring |
Skiving/turning cutter | M0.25-M5 | Carbide Alloy | DIN-AA | Inner and outer teeth, tempering, gear ring |

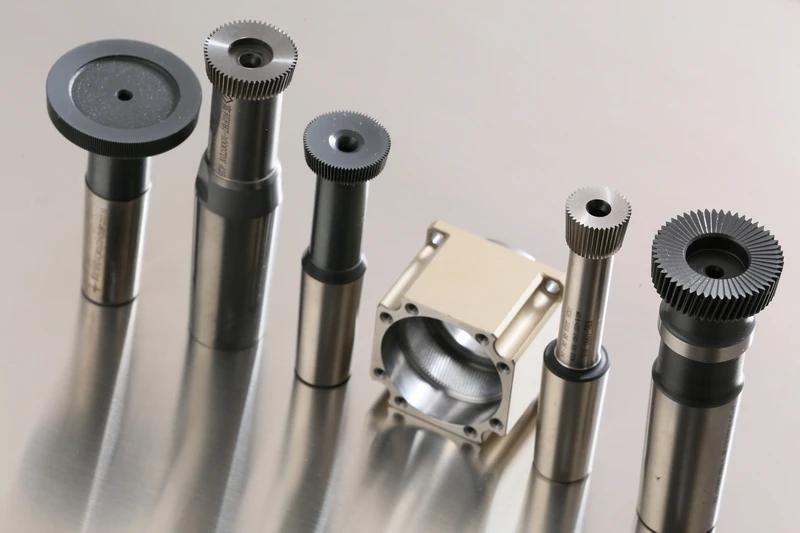

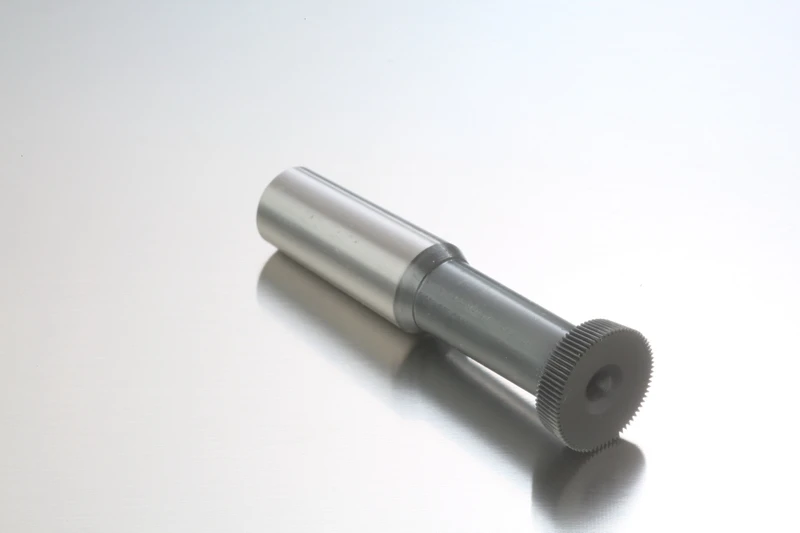

Small module gear shaper cutter | M0.1-M1.25 | CarbideAlloy / HSS | DIN-AA | Inner gear ring, step gear |
gear shaving cutter | M0.8-M6 | HSS-M2 | DIN-A | Large number of external gears |
Helical gear-shaper cutter | M0.3-M8 | CarbideAlloy / HSS | DIN-AA | Inner gear ring, step gear |

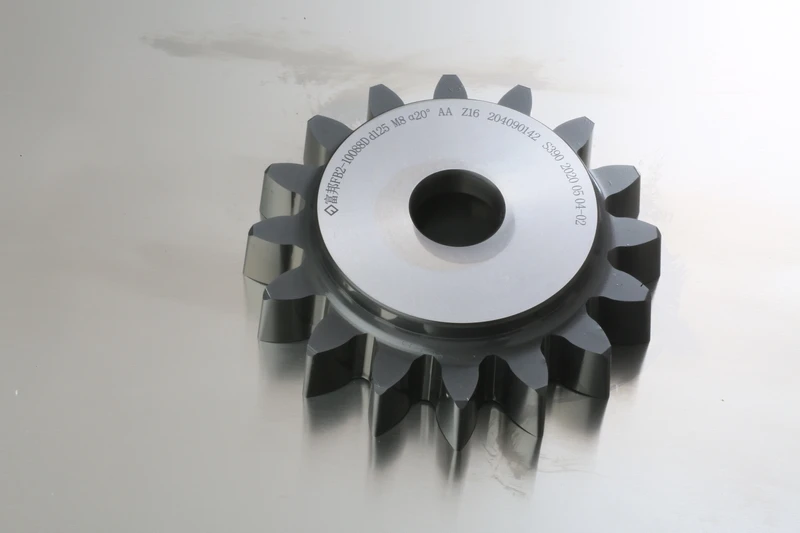

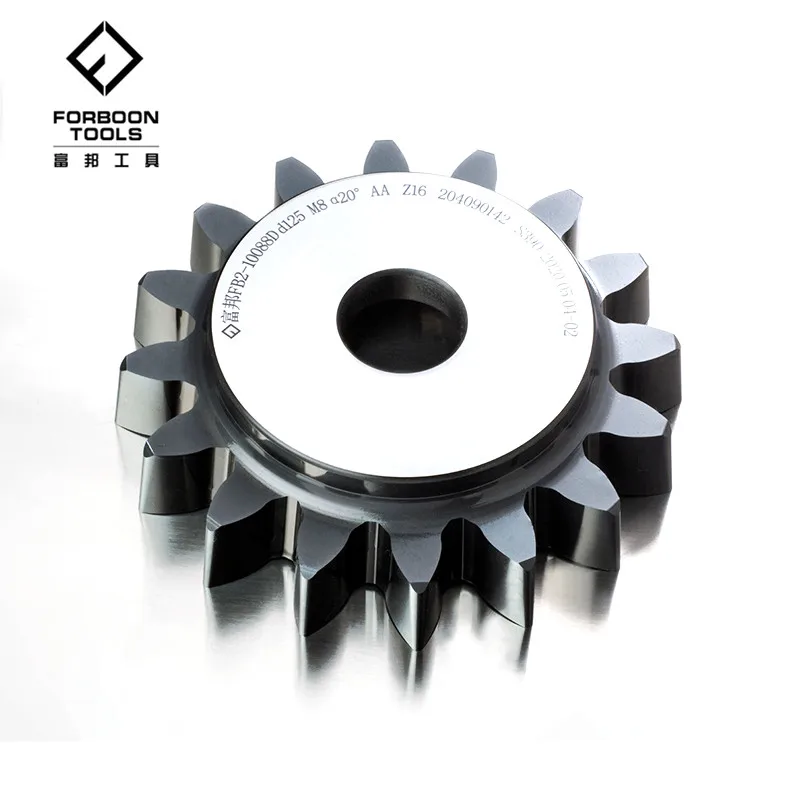

Straight teeth gear shaper cutter | M1.5-M16 | Carbide Alloy | DIN-AAA | Inner gear ring, step gear |
Small module hobbing cutter | M0.15-M4.5 | CarbideAlloy / HSS | DIN-AA | High precision shaft and disc type inner and outer gears |
High speed dry hobbing cutter | M0.8-M4 | HSS-PM | DIN-AA | High speed gear hob machine |
skiving cutter (hob cutter)
mainly made with Powder metallurgy steel. products are mainly used for reducer,harmonic reducer, auto gear, wind power gear ring, etc.

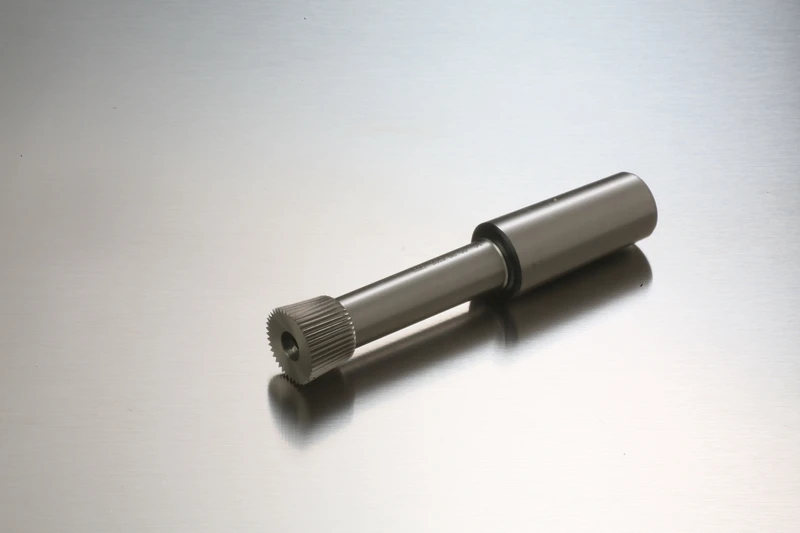

taper-shank type and bowel type are the main Form.
0.1~0.5 mainly used for reducer products
The cutting tool type are mainly lever type and small bowel type Gear

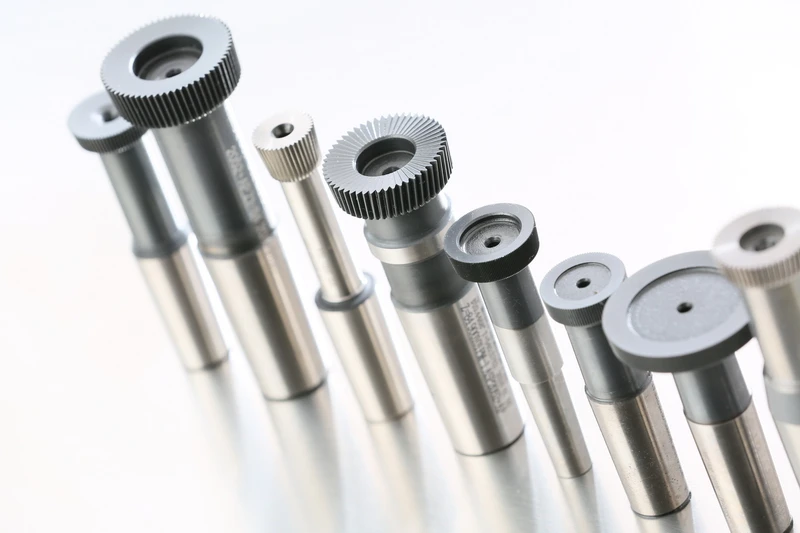

Harmonic pinion cutter
Mainly used for high precision harmonic reducer products
The cutting tool type are mainly lever type and small bowel type Gear

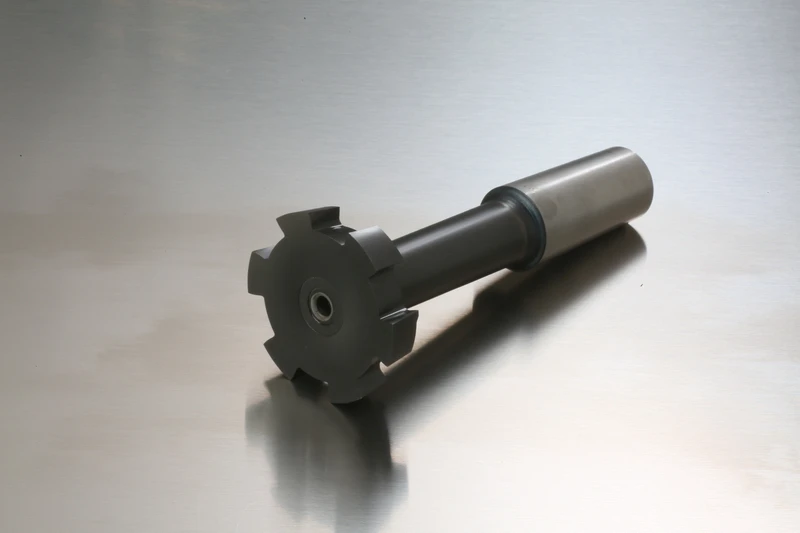

Rectangular spline gear shaper cutter
Mainly used for the tooth processing of spline connecting head of various transmission parts, such as the transmission parts with rectangular contour shape.
Cutter type: disc type, bowl type, Morse taper shank
Unequal thickness skiving/turning cutter
It is used for machining the outer circle, root circle, pitch, tooth thickness and all kinds of special-shaped outer gears on the same circumference.Main processing: automobile synchronizer gear hub, gear ring, all kinds of special-shaped transmission gear processing,Cutter type: disc type. Bowl type.

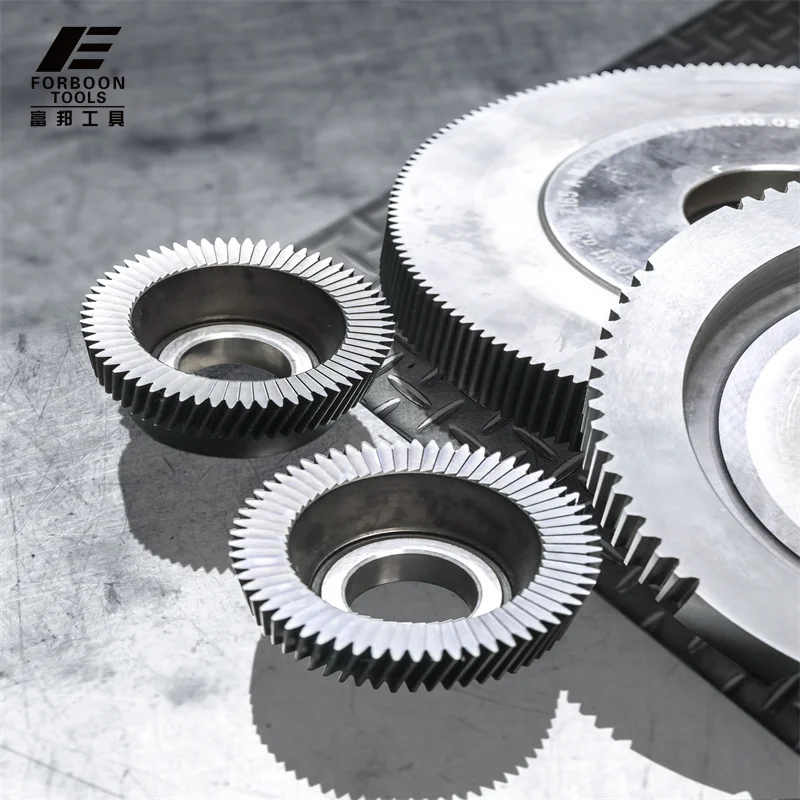

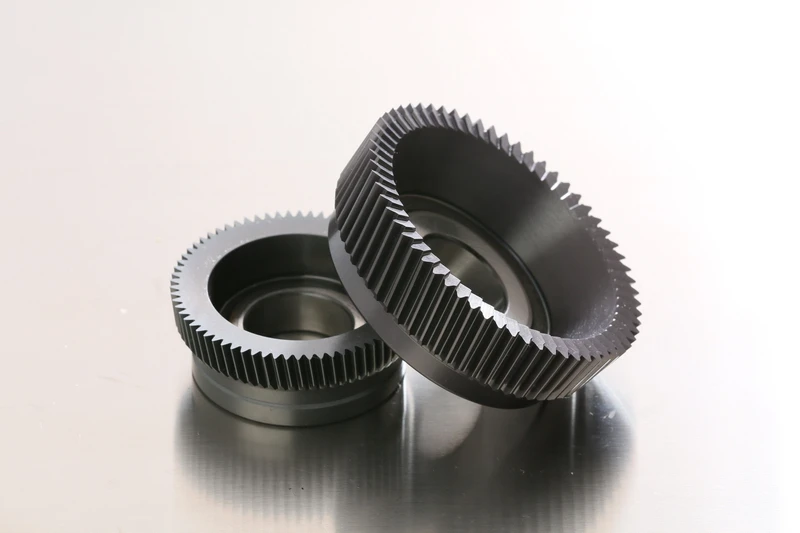

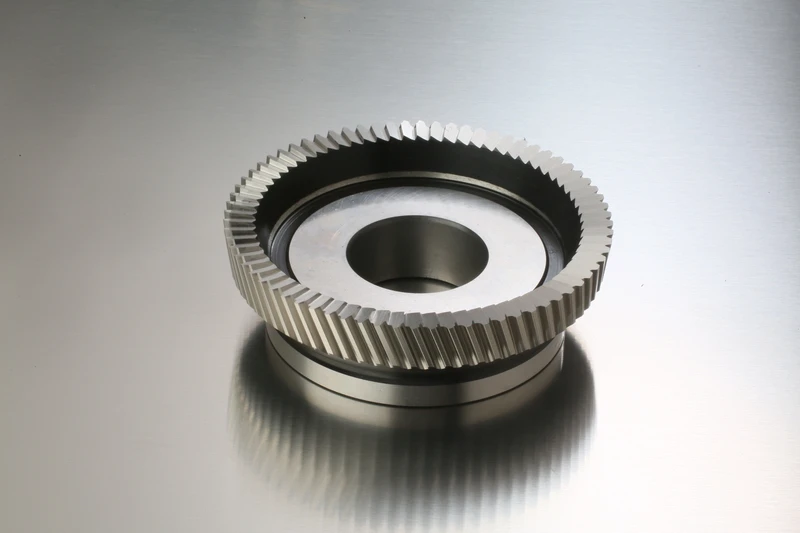

Helical gear-shaper cutter
Various modules segment helical pinion gear cutter, The profile of the cutter is composed of convex angle, trimmed edge, chamfered angle, full cut, full arc and modified shape. Mainly used for auto gear, step gear etc.The cutting tool type are mainly disk type,lever type and small bowel type Gear.
Details Images
Company Profile
Chongqing Forbon Tools Manufacturing Co., Ltd. is specialized in designing and manufacturing precise and complex gear cutting tools for automobile parts, aerospace science and technology, intelligent industry, precision reducer, power tools and otherindustries. We mainly produces turning gear cutter, harmonic cutter, gear shaper with trimming and chamfering, small module taper shank gear shaper, sprocket gear shaper, rectangle spline gear shaper, radial shaving cutter, high- efficiency dry cutting alloy hob, standard testing gear and other high- precision and complex cutters. We also concentrate in designing, application and
development of highly precise and complex cutting tools. Through cooperating with famous companies all these years, by learning and upgrading our products, we provide better and more efficient processing program for our customers. Our efforts offer the customers lower cost, higher efficiency and get more and more competitive and reputable in this field.
development of highly precise and complex cutting tools. Through cooperating with famous companies all these years, by learning and upgrading our products, we provide better and more efficient processing program for our customers. Our efforts offer the customers lower cost, higher efficiency and get more and more competitive and reputable in this field.
Our team

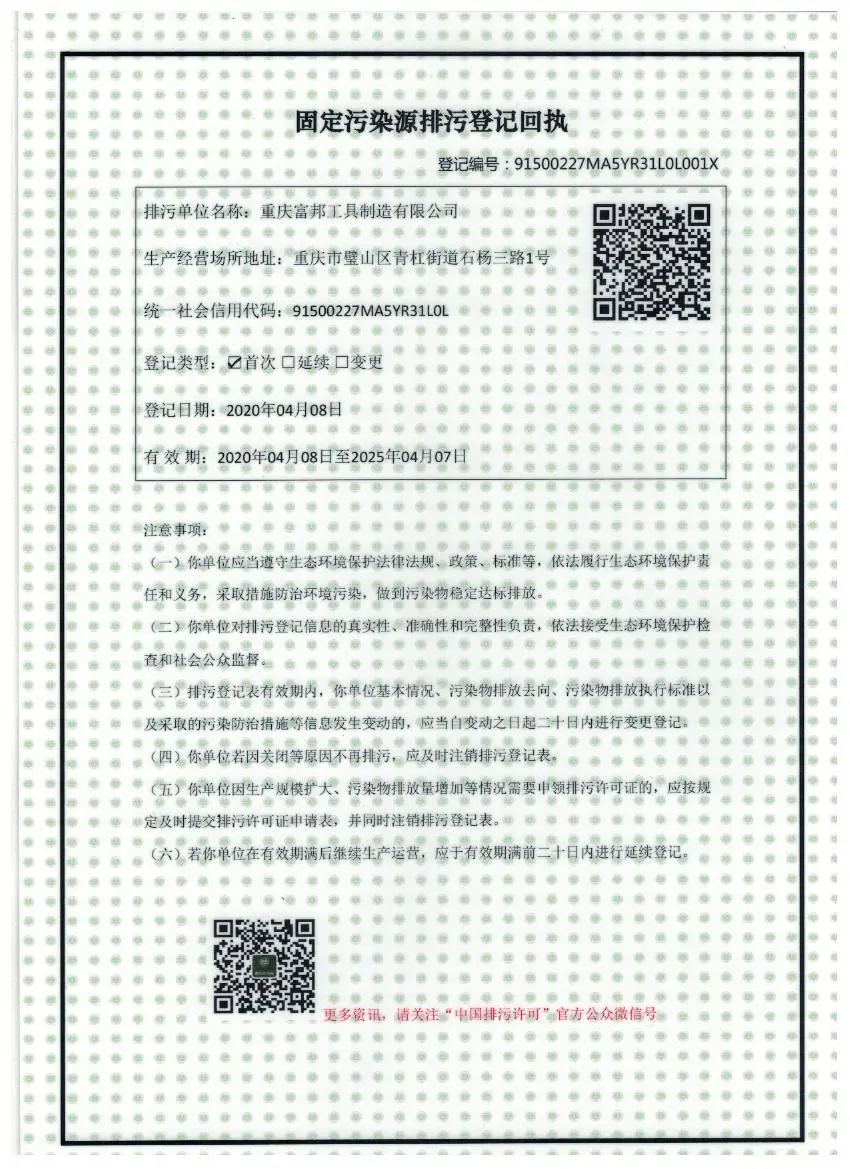

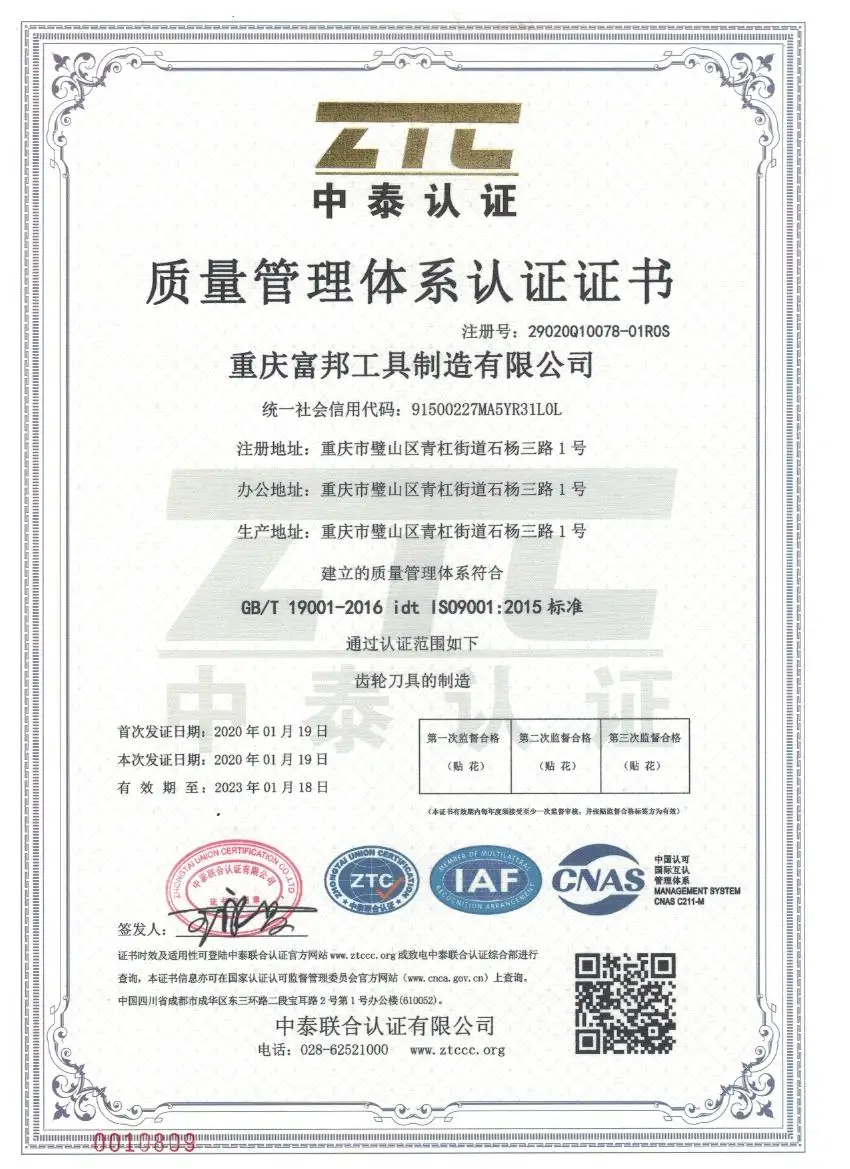

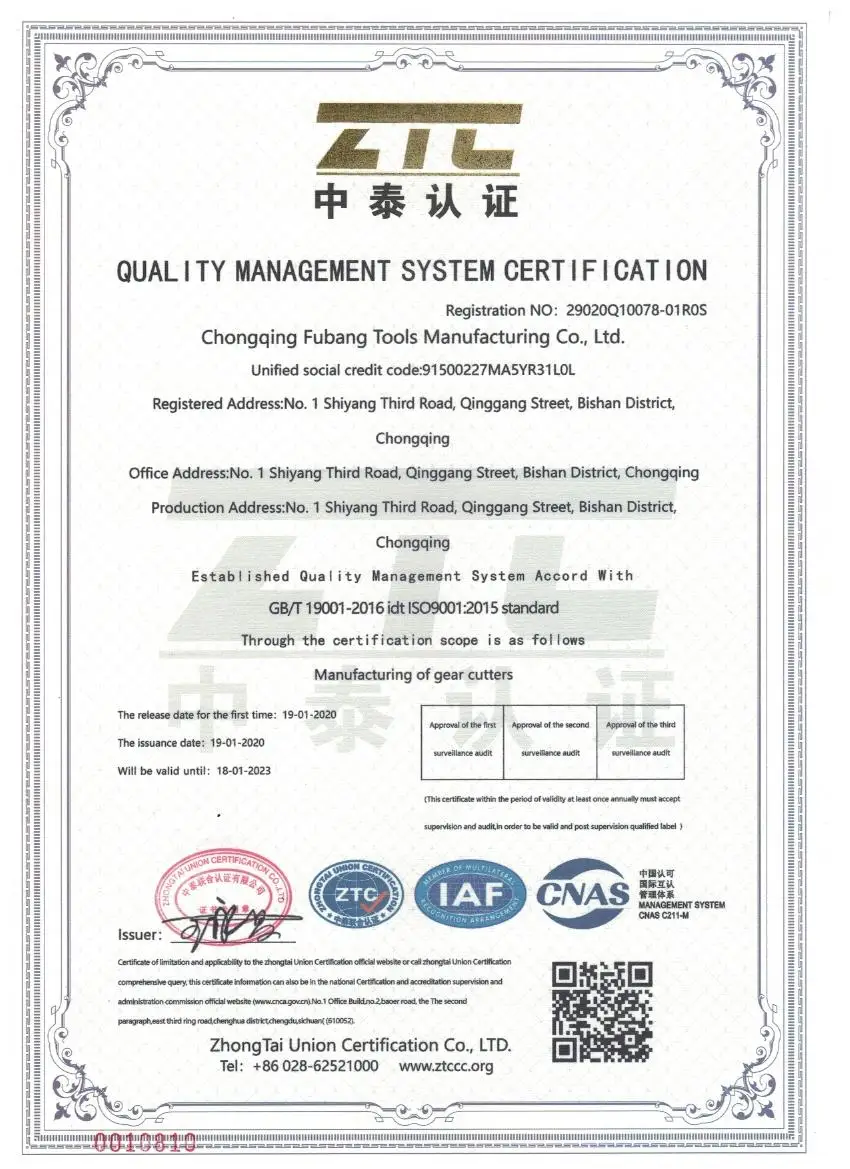

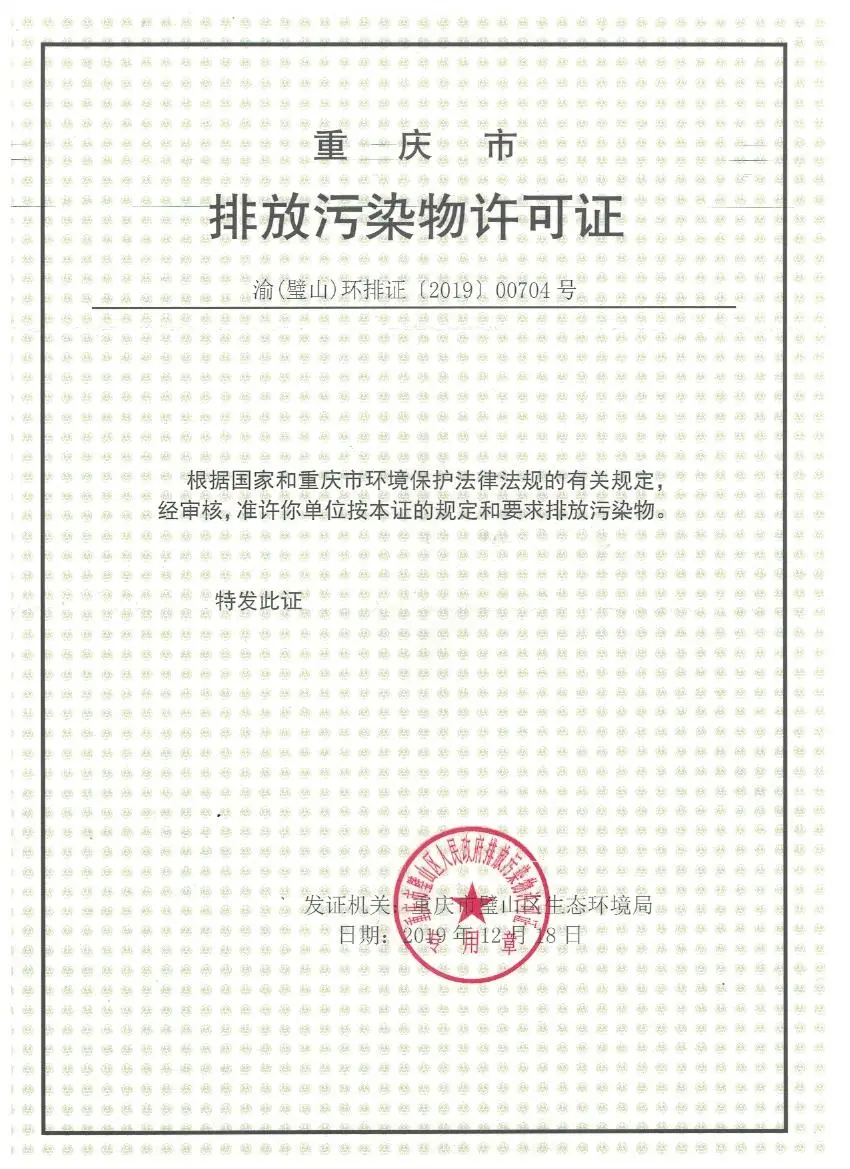

Certifications

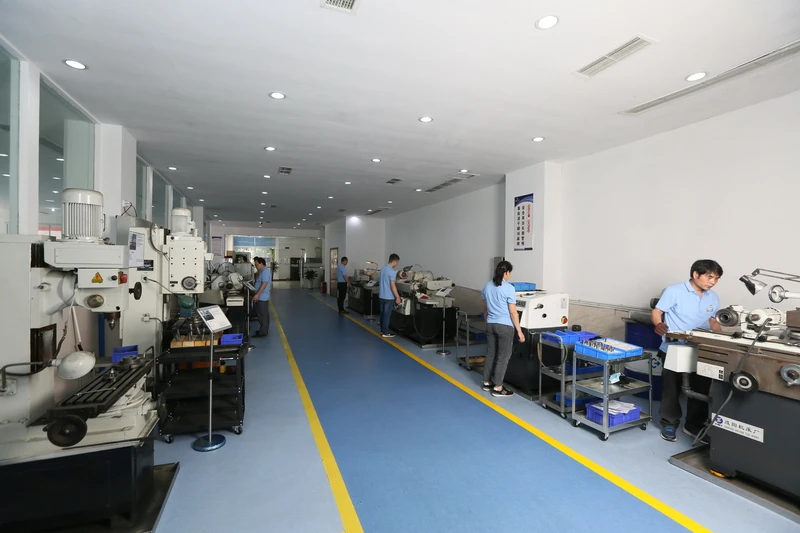

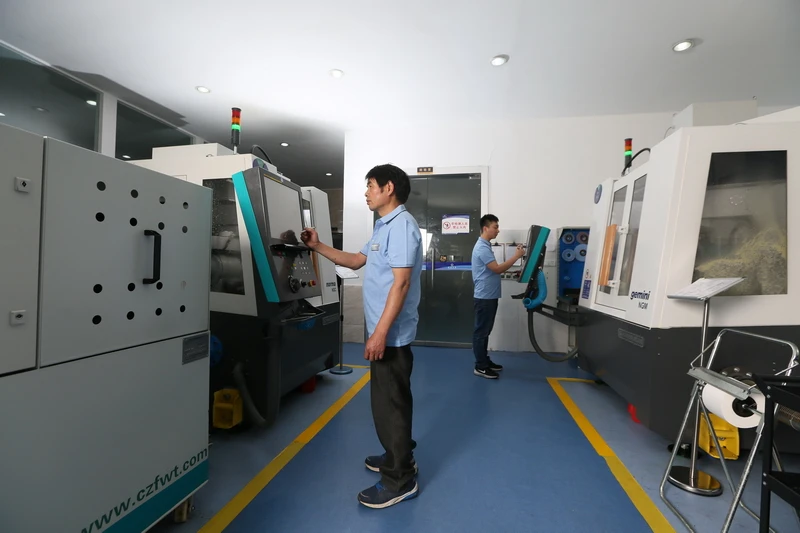

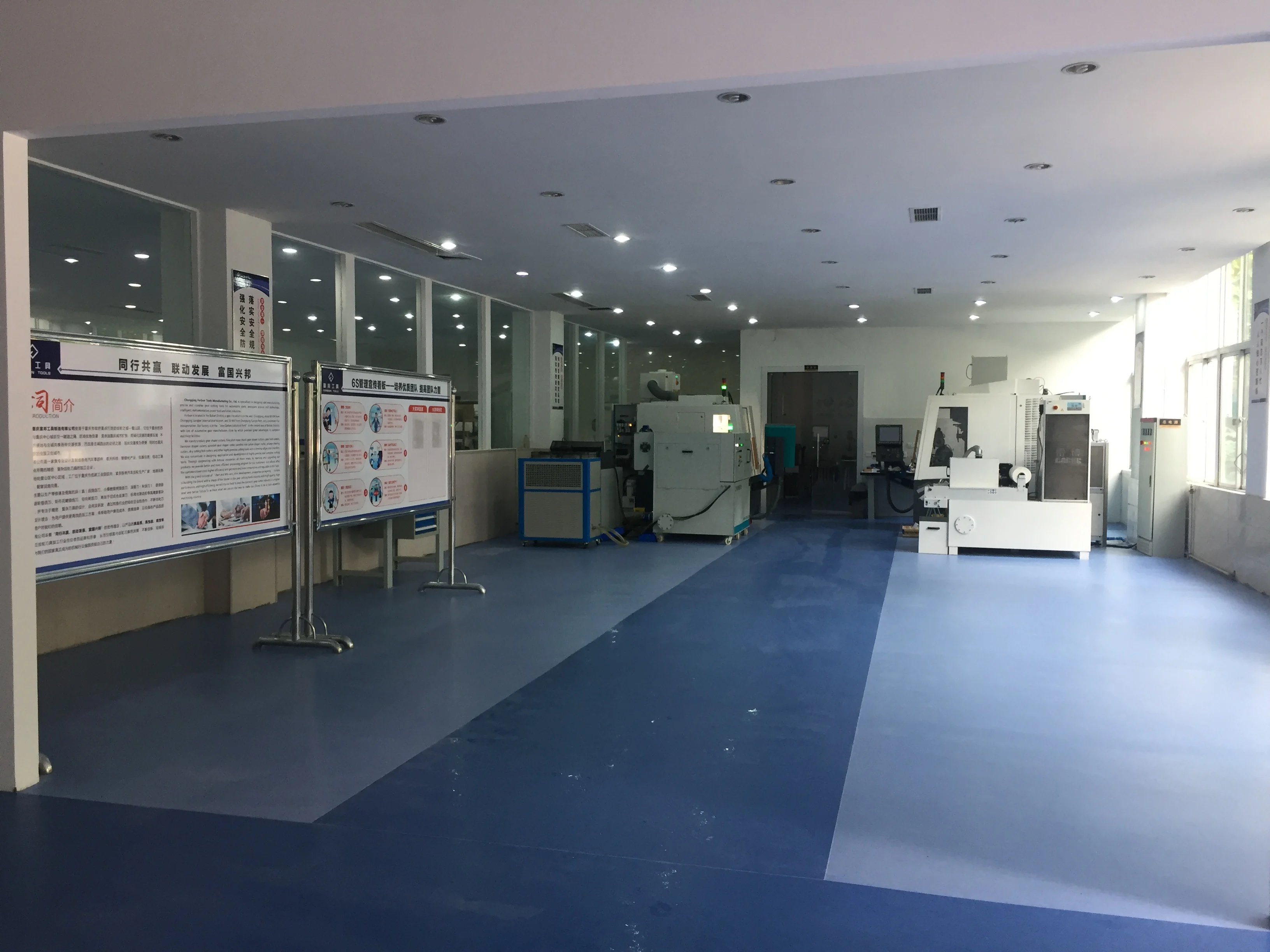

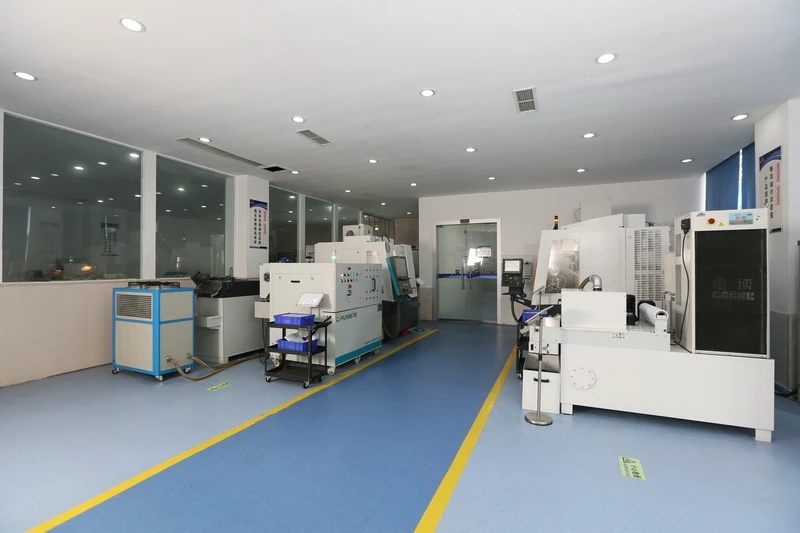

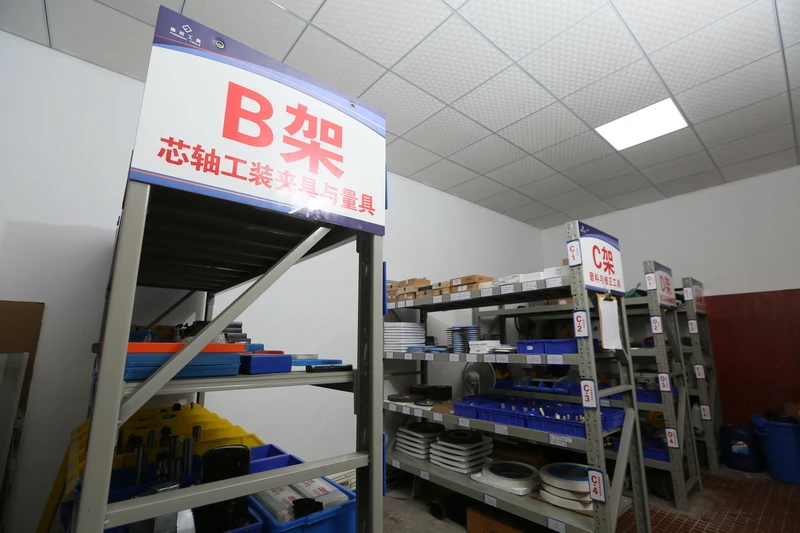

Warehouse & Plant
