off grid portable 220v battery solar power station 1500w
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600429984587):
Product Overview
Description
Related Products
Product Description
Key Features:
◆ Excellent performance because of double CPU intelligent control technology;
◆ 2000 cycles lithium battery and has a 5 years service life ;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;
◆ 2000 cycles lithium battery and has a 5 years service life ;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;
Product specification
Model | MPSG-N500 | MPSG-N1000 | MPSG-N3000 | MPSG-N5000 | ||||||
Battery Voltage | 12.8V | 25.6V | 25.6V | 48V | ||||||
Inverter | ||||||||||
RATED POWER | 500W | 1000W | 3000W | 5000W | ||||||
Input Voltage Range | 110/220VAC±10% | |||||||||
Input Frequency | 45-65Hz | |||||||||
Output Voltage | 110/120/220/240VAC(optional) | |||||||||
Output Frequency | 50/60Hz | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Speficifation Of Built-in Lithium Battery | 600WH | 1200WH | 3000WH | 5000WH | ||||||
Communication | RS485/WIFI(optional) | |||||||||
Solar Input | ||||||||||
Max. PV Power | 240W | 480W | 1500W | 3000W | ||||||
Range Of Charging Voltage | 15-90VDC | 30-90VDC | 30-130VDC | 60-160VDC | ||||||
Rated Charge Current | 20A | 60A | 60A | |||||||
DC Output | ||||||||||
5VDC USB Output | 2Pcs/MAX 2A | |||||||||
12VDC Output Ports | 2Pcs/MAX 2A | |||||||||
PHYSICAL | ||||||||||
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | |||||||||
Display | Digital LCD | |||||||||
Electricity Charging | Yes | |||||||||

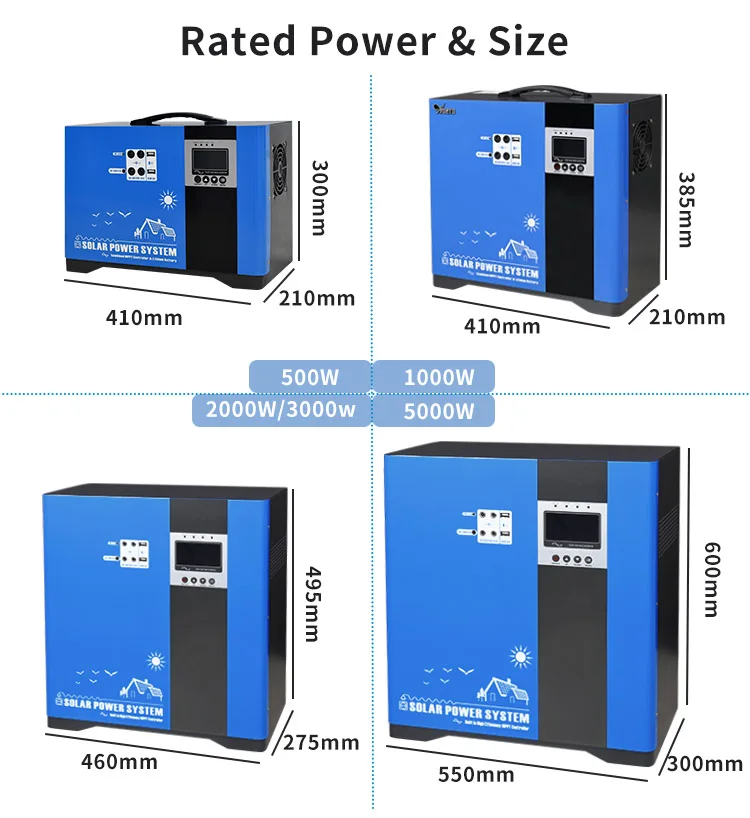

External Size：W*D*H（mm） | 410*210*300mm | 410*210*385mm | 460*275*495mm | 550*300*600mm | ||||||
G.W.(Gross Weight) | 18kg | 27kg | 59kg | 90kg | ||||||

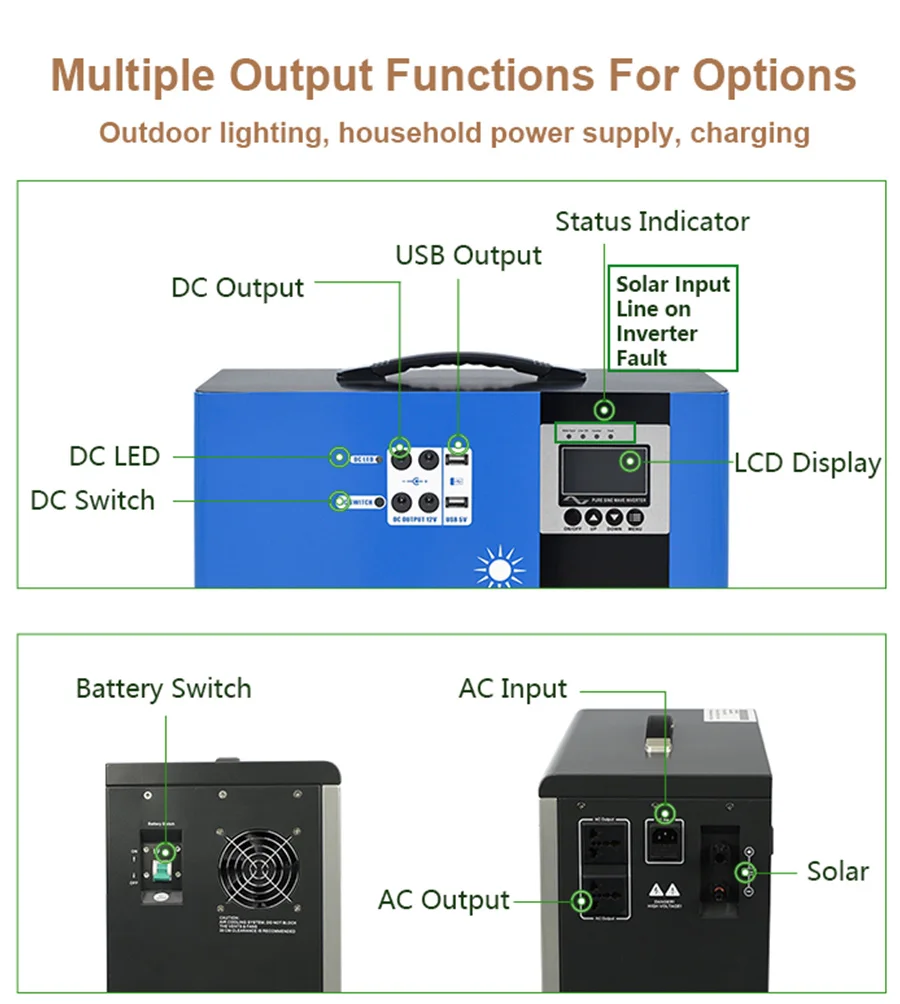

Products Details
Applications

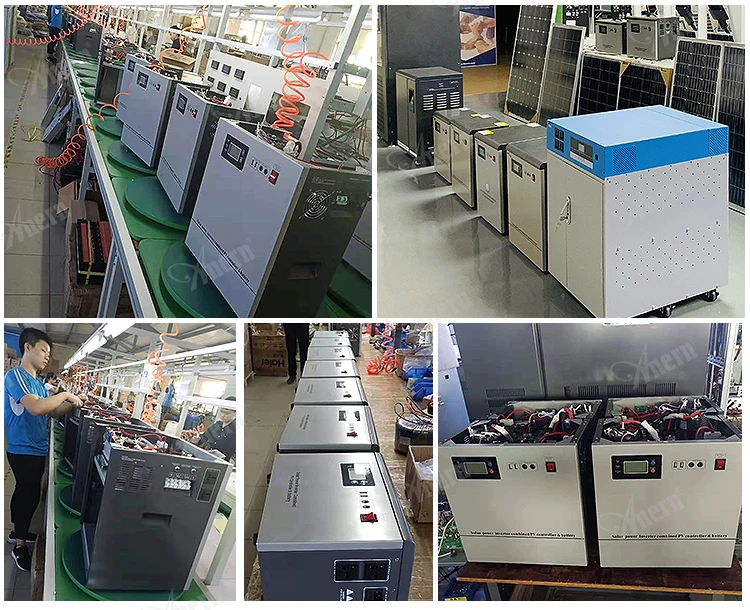

Anern Factory
Anern Group company, owning three factories, big production capacity, OEM/ODM available. Anern is a reputable and famous trademark in China and abroad. Business scope covering diversified models of solar panels, hybrid inverters, lithium battery, solar power systems, etc.
Certifications
Anern products are ISO9001, CE, ROHS,TUV, ISO, FC approved, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
Exhibition
Anern participates in high quality exhibitions in many areas every year. Such as the Canton Fair, Middle East Electricity in Dubai, EXPO ELECTRICA INTERNACIONAL in Mexico, etc. Each year there are over 1,000 personnel from various countries clients and government institutions come to visit us.
Company Introduction
Anern has 14 years of manufacturer experience in solar energy system field with strong R&D ability. We have a professionable technique team engaged in R&D, with our own patents and unique features.
