SY040WDM01 0.4 Inch 1800nits High ppi AR/VR Micro OLED Display Module For HUD/HMD
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Limited
Share on (1600430163174):

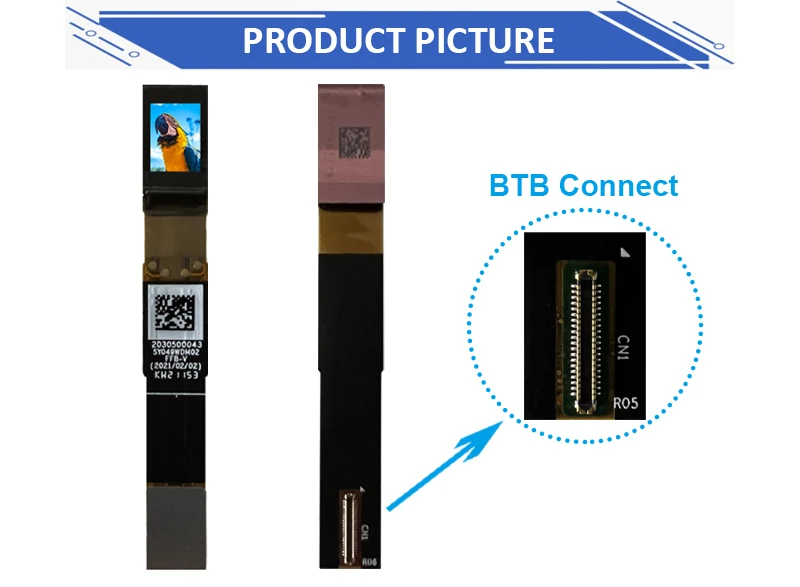

Product Overview
Description
Products Description
0.40 inch Si-OLED micro display | ||||||||
Product Number | SY040WDM01 | |||||||
Display Type | Micro OLED | |||||||
Resolution | 1920 x 1080 | |||||||

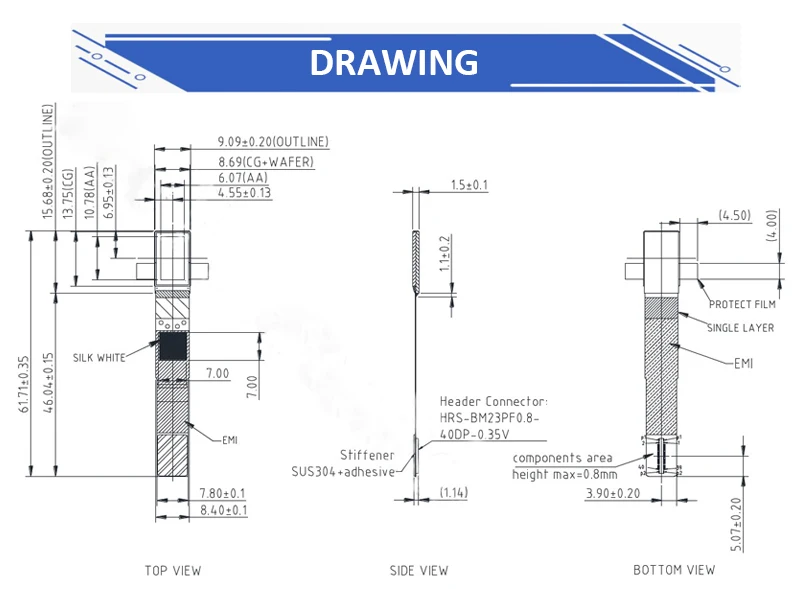

Screen Size | 15.68mm x 9.09mm x 1.475mm | |||||||
Active Area | 8.09mm x 6.065mm/ 0.40" diagonal | |||||||
Luminance(Brightness) | 1800nits(Typ.) | |||||||
Color | Full RGB | |||||||
Contrast Ratio | 50,000:1 | |||||||
Interface | MIPI+I2C | |||||||
Frame Rate | 60Hz~90Hz | |||||||
Operating Temperature | -20℃ to +70℃ | |||||||
Storage Temperature | -40℃ to +80℃ | |||||||
Plan | Mass Production | |||||||
Application | AR VR devices, EVF, Night vision, sight... | |||||||
Application

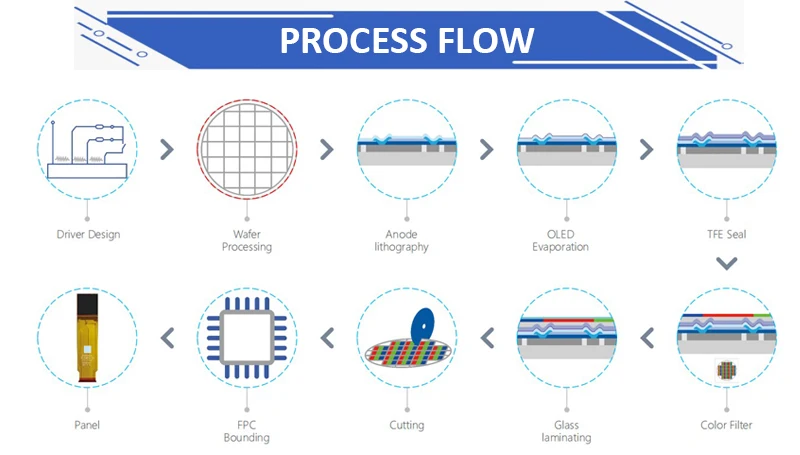

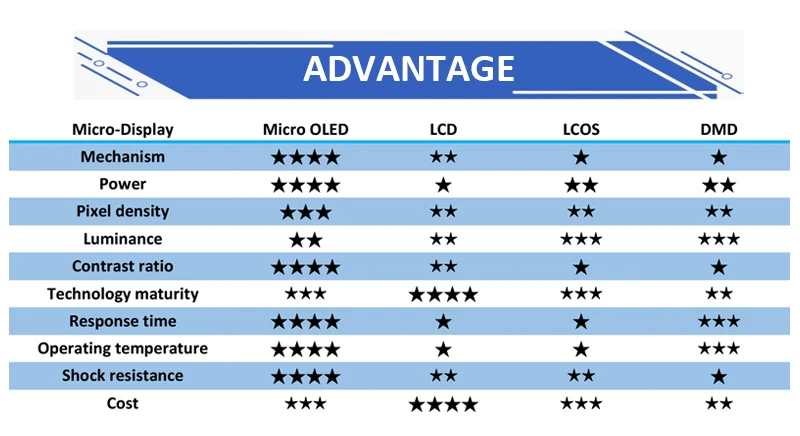

Si OLED Introduction
Product Overview
Si-OLED micro display | ||||||||||||
Size | Resolution | Model Number | Active Area(mm) | Brightness | Interface | Remark | ||||||
0.32" | 800x600 | SY032WEM01 | 6.48*4.86 | 1800(TYP.) | RGB/MIPI | Color | ||||||
0.4" | 1440x1080 | SY040WDM01 | 6.065*8.09 | 1800(TYP.) | MIPI | Color | ||||||
0.49" | 1920x1080 | SY049WDM01 | 6.065*10.783 | 1800(TYP.) | MIPI | Color/ Muit-lens for EVF available | ||||||
0.49" | 1920x1080 | SY049WDM02 | 6.065*10.783 | 1800(TYP.) | MIPI | Longer FPC/color/Birdbath optic for AR headsets available | ||||||
0.49" | 1920x1080 | SY049LDM01 | 6.065*10.783 | 3000(TYP.) | MIPI | color | ||||||
0.49" | 1920x1080 | SY049LDM02 | 6.065*10.783 | 20000(TYP.) | MIPI | Mono green | ||||||
0.57" | 800x600 | SY057WAM01 | 11.52*8.64 | 1800(TYP.) | MIPI | color | ||||||
0.62" | 1728x1368 | SY062WAM01 | 12.4416*9.8496 | 1800(TYP.) | MIPI | color | ||||||
0.83" | 2560x1440 | SY083WAM01 | 18.432*10.368 | 1800(TYP.) | MIPI | color | ||||||
1.03" | 2560x2560 | SY103WAM10 | 18.432*18.432 | 20000(TYP.) | MIPI | Mono green | ||||||
Company Profile
Founded in 2014, Shanghai Top Display Optoelectronics Limited(TDO) was cooperated with shareholder SeeYA technology specialize in high-performance Near-Eye Displays (NED) solution in design, development, manufacture micro oled, optic module and display solution for VR&AR, video glasses, camera viewfinders, medical imaging devices, military products and many other professional devices worldwide.
We commit to provide our clients with high-value products and outstanding services and Toward a high industrial standard and environment friendly manufacturer. More than 90% of the team members have R&D, design, and process experiences. By January 2021, we has 28 patents and 160 patent applications in process and has been granted Integrated Management Systems Certificate, including ISO14001,ISO45001, ISO9001.
Packaging&Delivery
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to Domestic Market(40.00%),North America(15.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Northern Europe(5.00%),South America(2.00%),Oceania(2.00%),Southeast Asia(2.00%),Central America(1.00%),Eastern Asia(1.00%),South Asia(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Micro oled,Microdisplay,Si-OLED,VR VR display,Near-Eye display solution
4. why should you buy from us not from other suppliers?

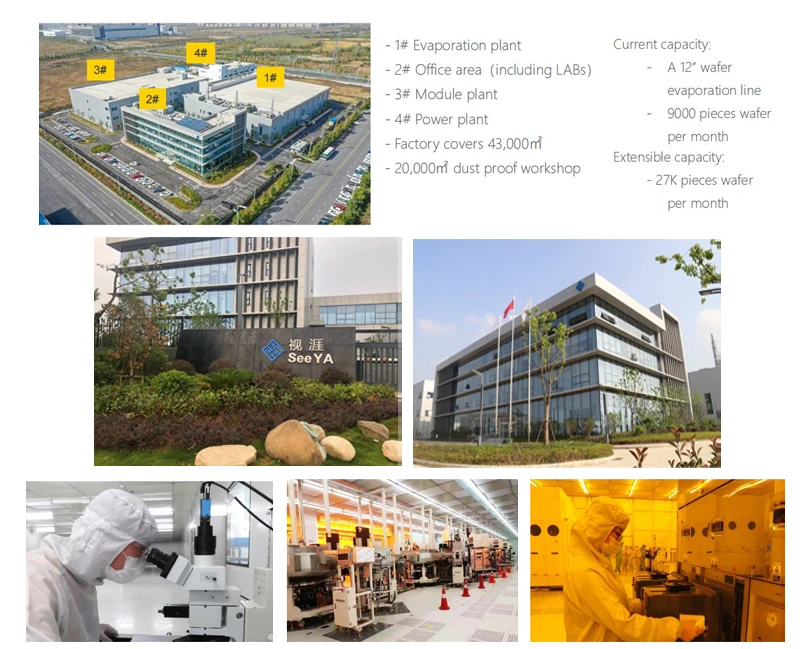

The factory covers 43,000.It is the world's first factory to produce OLEDoS displays on 12 inch wafers.The core team is composed of talents from semiconductor, OLED, and display fields.More than 90% of members have R&D, design and process experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
We are based in Shanghai, China, start from 2014,sell to Domestic Market(40.00%),North America(15.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Northern Europe(5.00%),South America(2.00%),Oceania(2.00%),Southeast Asia(2.00%),Central America(1.00%),Eastern Asia(1.00%),South Asia(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Micro oled,Microdisplay,Si-OLED,VR VR display,Near-Eye display solution
4. why should you buy from us not from other suppliers?
The factory covers 43,000.It is the world's first factory to produce OLEDoS displays on 12 inch wafers.The core team is composed of talents from semiconductor, OLED, and display fields.More than 90% of members have R&D, design and process experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
