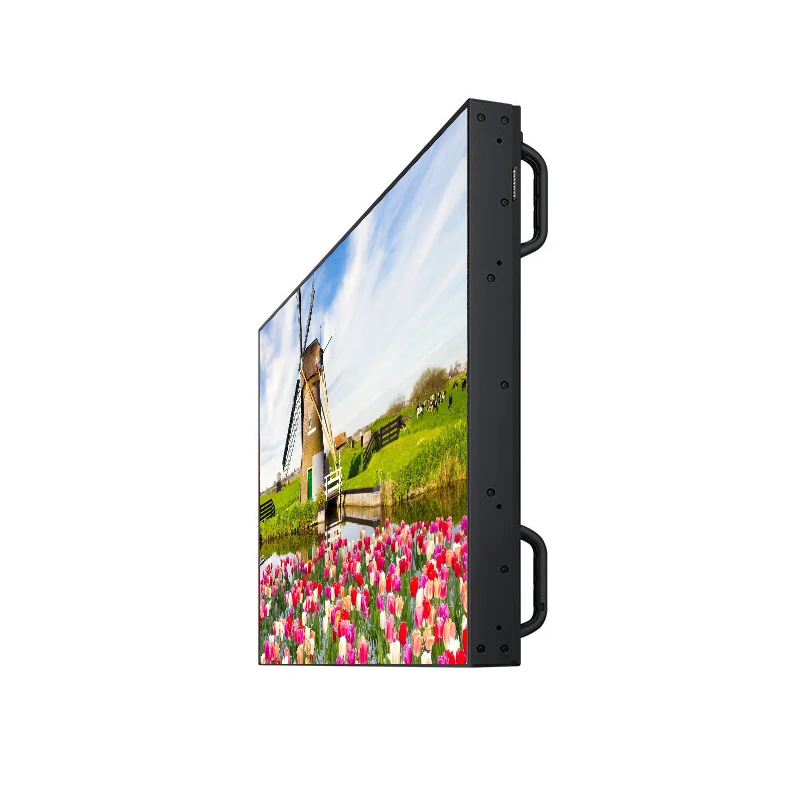

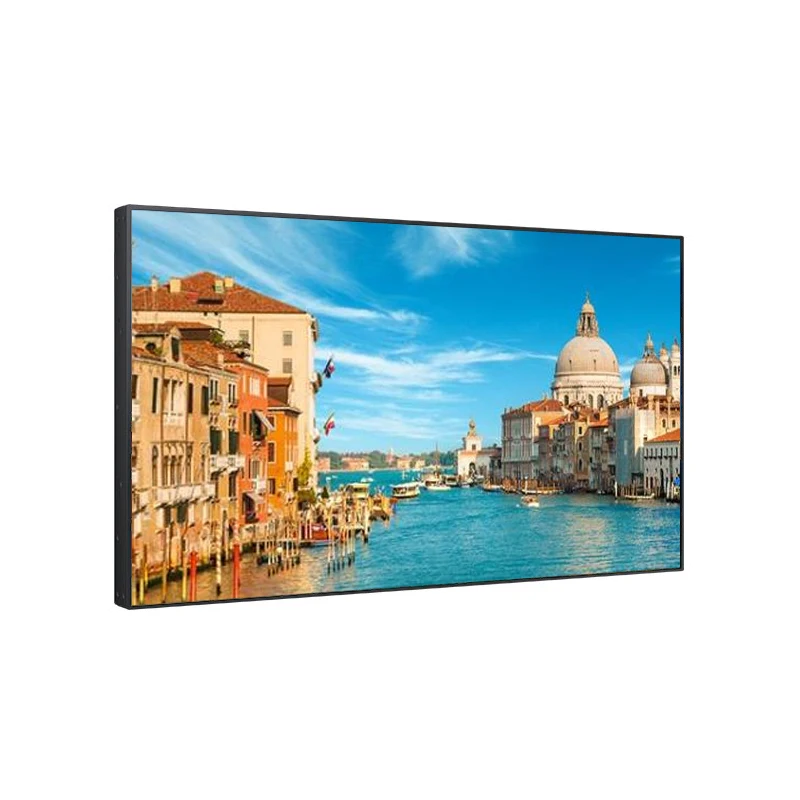

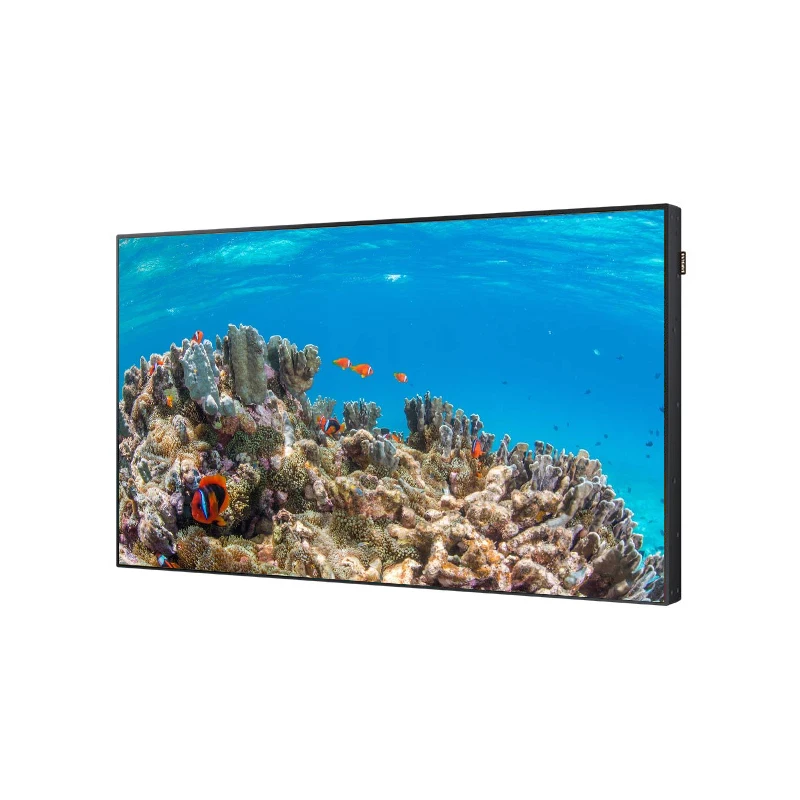

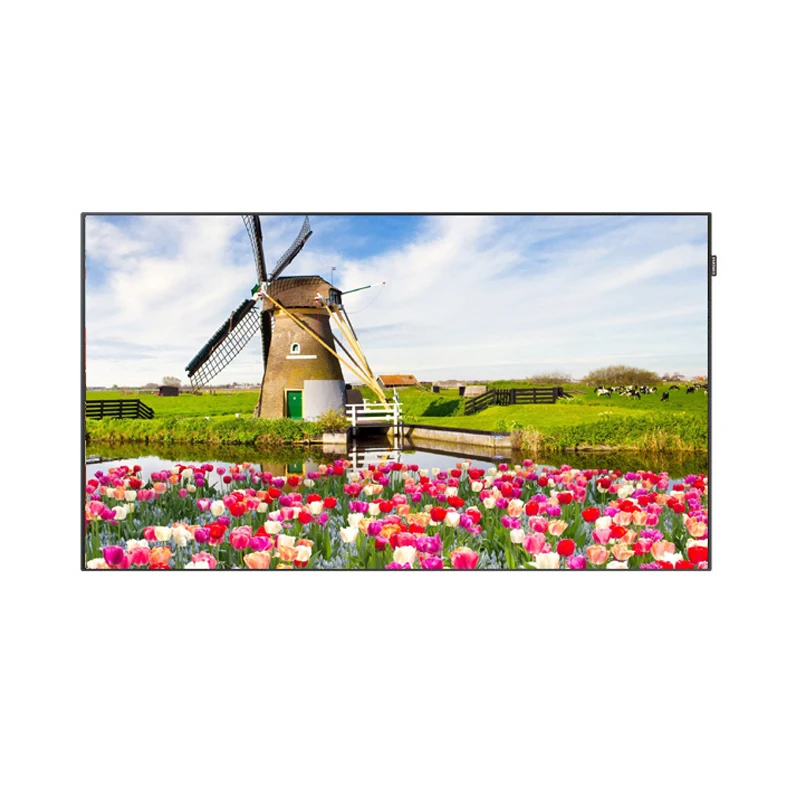

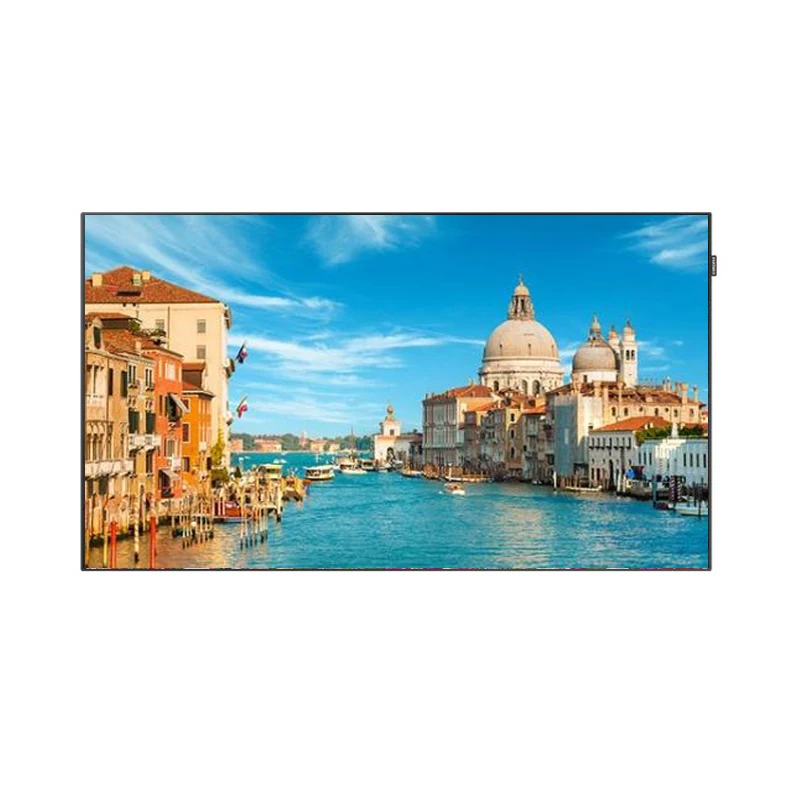

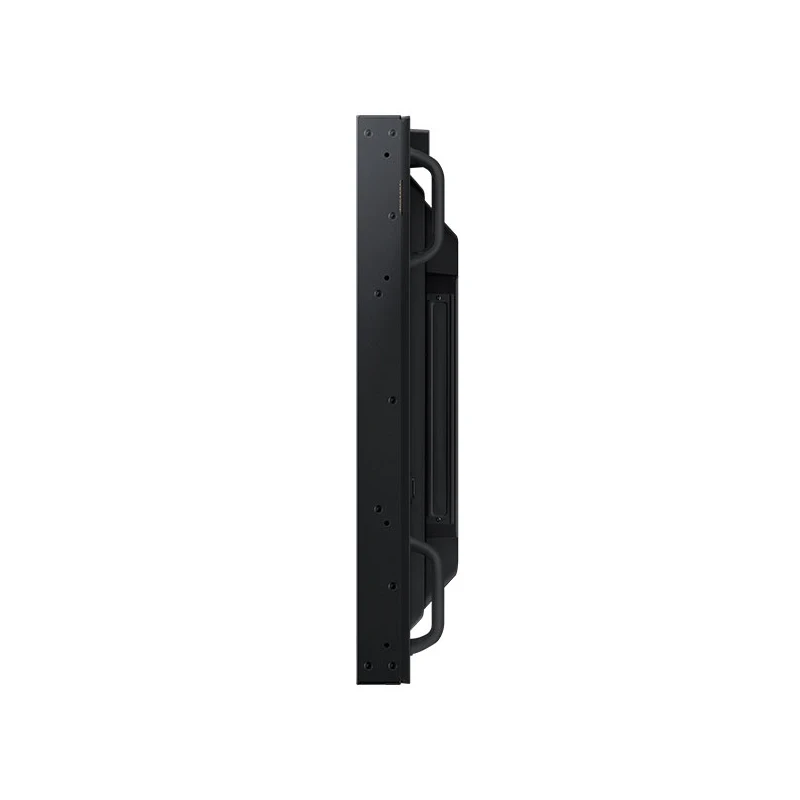

Storefront Window display high brightness LCD digital signage billboard for Banks real estate supermarkets restaurant

Product Overview

Description

Storefront Window display high brghtness LCD digital signage billboard for Banks real estate supermarkets restaurant



ITD HD Series displays not only deliver an image with flawless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight – a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the ITD HD series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The ITD HD series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize efficiency considerably. ITD’s HD series of window facing digital signage capture customers with its vivid image quality and quiet operation. The HD series helps businesses enhance their brand image while enriching the customers’ shopping experience.







Specifications:



Chassis High Brightness LCD Monitor
Model Name	ITD65CM-HD01
IP Rating	IP65 Front Optional
LCD Panel
Screen Diagonal (Inch/cm)	65”IPS, M+ (WRGB), High TNi 110℃
Display Active Screen Size (mm)	1428.48(H)×803.52(V)
Aspect Ratio	16:9
Physical Resolution	3840×2160
Maximum Resolution Supported	3840×2160
Colors	1.07B
Brightness (cd/m2)	1500 cd/m2 up to Max. 5000 cd/m2
Contrast Ratio	1100:1
Dynamic CR	500,000:1
View Angels	89/89/89/89
Surface Treatment	AGLR (Haze 3%)
Backlight/Backlight Lifetime	LED Backlight with 50000 Hours’ Lifetime
Orientation	Landscape & Portrait
Mechanical Structure
Bezel Color	Black
Bezel Width	15mm(T/B/L/R)
Outline Dimensions (W×H×D)	1467.40 × 843.40 ×85.30
Weight	45.0KG
VESA Standard Mount	400 × 500mm
Solution 1: LCD Monitor Input / Output
Video Input	1 × VGA
	1 × DVI-I (Optional)
	1 × HDMI
Audio	1 × PC-Audio
RS232 Remote Control	Optional
Solution 2: ARM Based Android Version Input / Output
Processor	Quad Core Cortex-A17 1.8Ghz; Octa-Core optional
Chipset	RK3288; RK3399 optional
Memory	Default 2GB
Flash	Default 8GB
Video Output	1 × HDMI
USB Port	2 × USB 2.0
SD Card Slot	1 × SD Card Slot
LAN	1 × RJ45 Port
Audio Output	1 × Audio Output
COM	Optional
Operation
Operating Temperature Range	0~50°C
Operating Humidity Range (RH)	20-80%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	AC 100-240V (50/60 Hz)
Power Consumption	Type/Max.: 500W/550W Smart Energy Saving: 40W
Accessories
Included Accessories	Remote Control (W/O Battery), AC Power Cable
Optional Accessorries	Mounting Brackets: Wall Mount, Roof Hanging, Floor Stand)
Order Information
65”1500nits Window Facing Digital LCD Monitor Display	ITD65CM-HD01
65”2000nits Window Facing Digital LCD Monitor Display	ITD65CM-HD02
65”2500nits Window Facing Digital LCD Monitor Display	ITD65CM-HD03
65”3000nits Window Facing Digital LCD Monitor Display	ITD65CM-HD04
65”4000nits Window Facing Digital LCD Monitor Display	ITD65CM-HD05
65”5000nits Window Facing Digital LCD Monitor Display	ITD65CM-HD06
65”1500nits Window Facing Digital Android LCD Display	ITD65CM-HDE1
65”2000nits Window Facing Digital Android LCD Display	ITD65CM-HDE2
65”2500nits Window Facing Digital Android LCD Display	ITD65CM-HDE3
65”3000nits Window Facing Digital Android LCD Display	ITD65CM-HDE4
65”4000nits Window Facing Digital Android LCD Display	ITD65CM-HDE5
65”5000nits Window Facing Digital Android LCD Display	ITD65CM-HDE6









Product Display:











 Firm, safe, standard cartons with foams

Wooden Shelf or box for big sizes and big quanity















DOA&RMA service

Warranty



DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.



RMA Service (Return Merchandise Authorization):
To run RMA within 1 year after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
