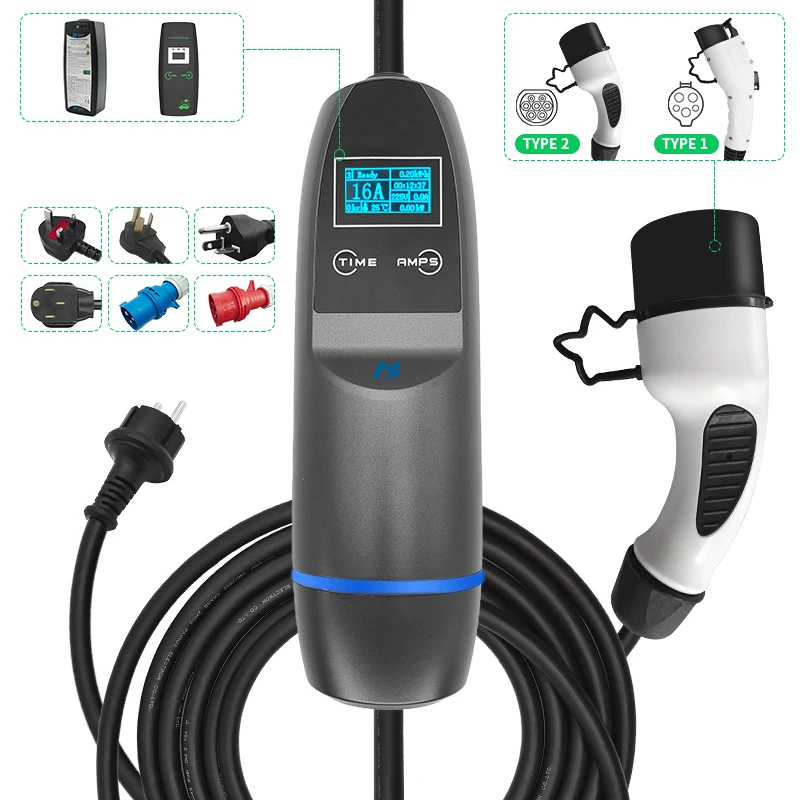

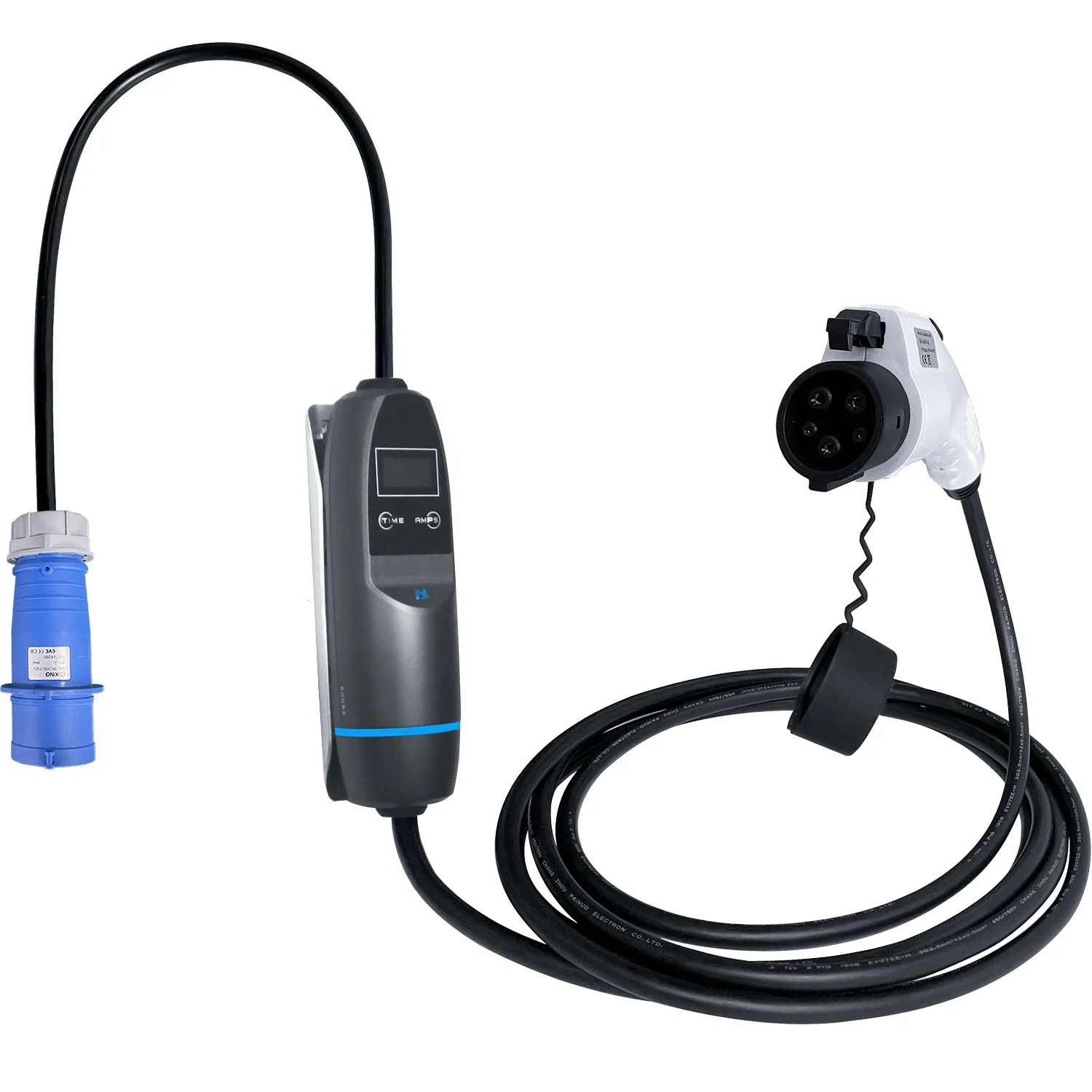

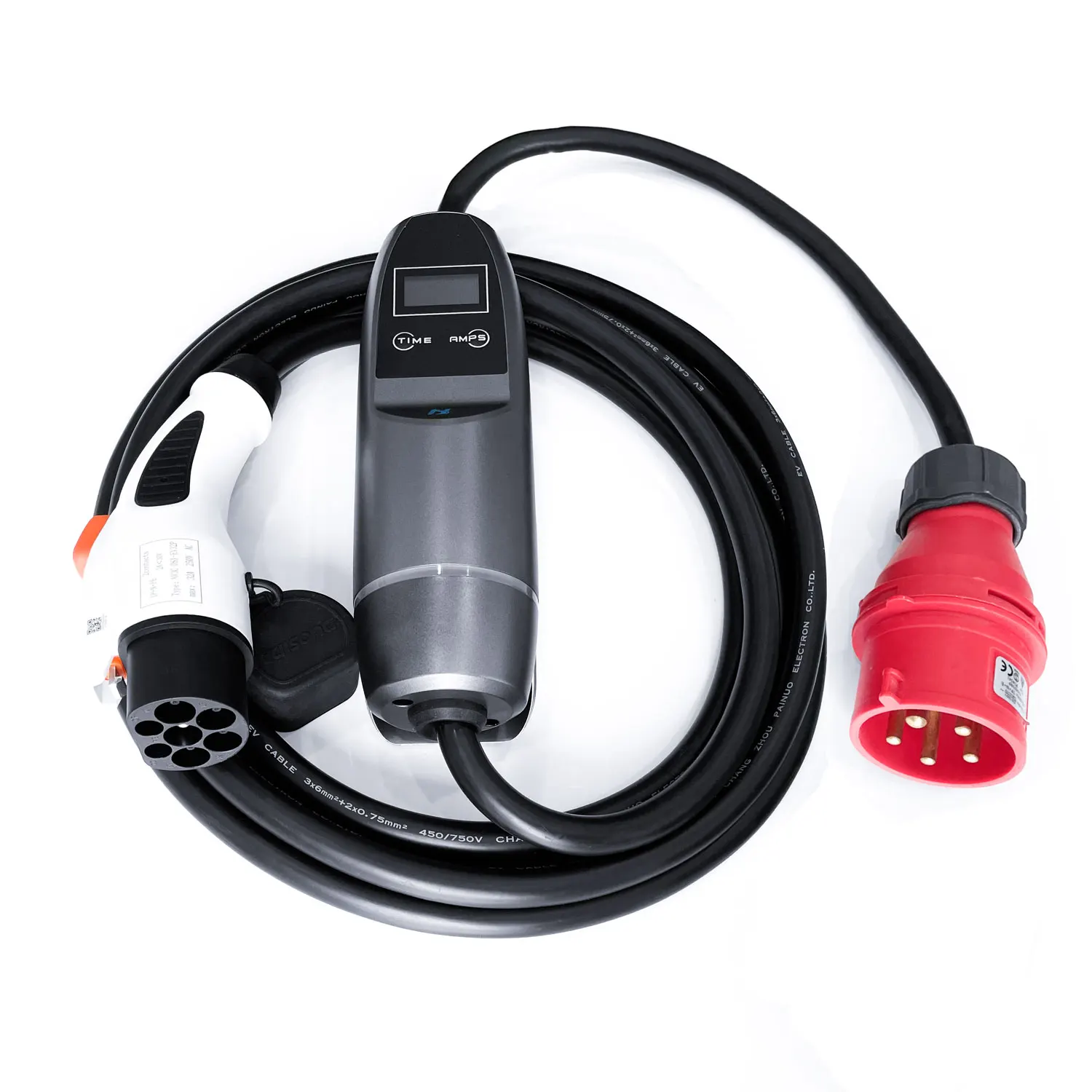

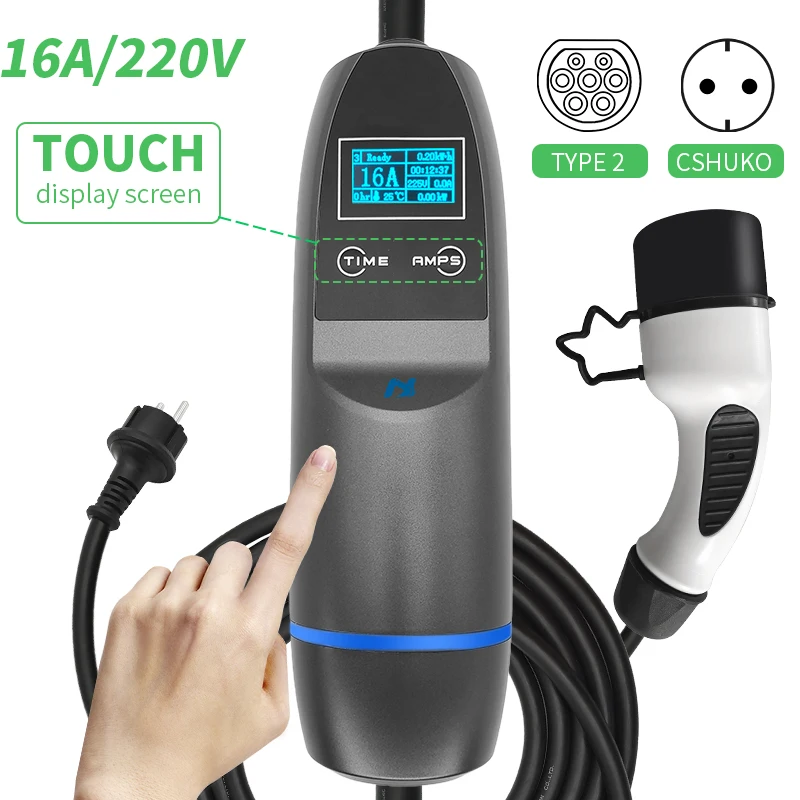

Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw
Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw

Khons EV mobile charger cable 5/10 m type 2 charger 22kw 7kw 3.5kw 16A 3 phase 11kw

Share on (1600430202182):


Price:

Quantity:


Product Overview

Description



Products Description

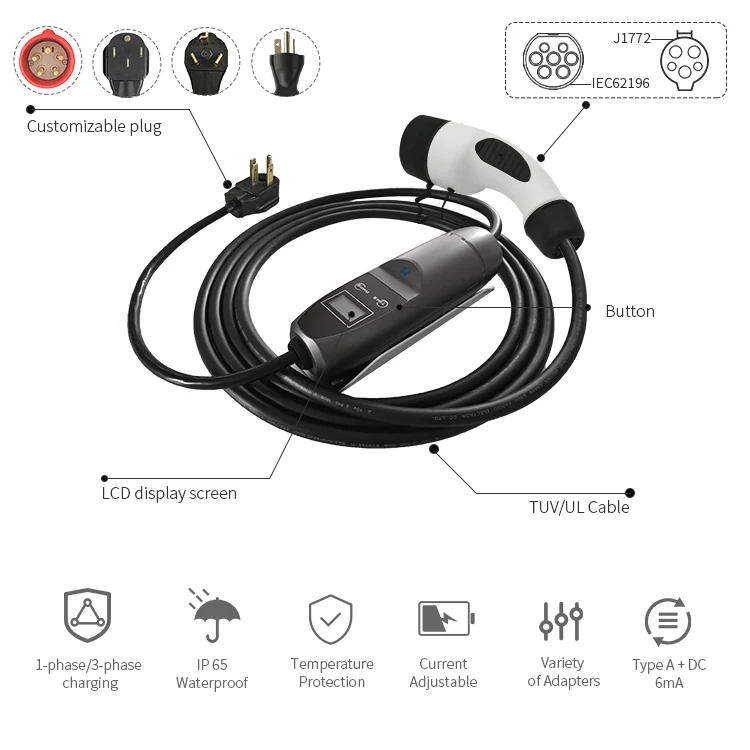

Khons EV mobile charger cable 5 meter 10 m 16amp 32a 1 phase 3 phase type 2 charging gun smart cable charger 22kw 11kw 7kw 3.5kw with CEE plug
* 3.5kw 7kw 11kw 22kw fast charging portable ev charger, fully charge a car within 4-8 hours

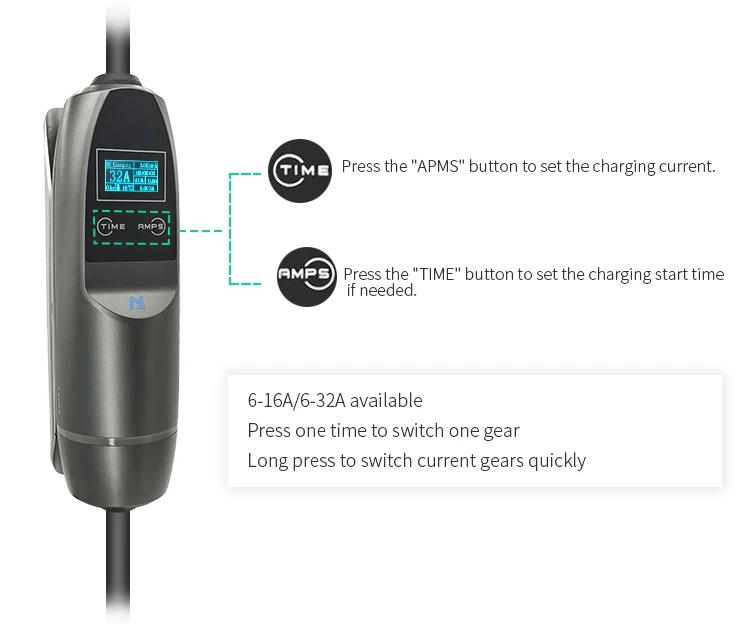

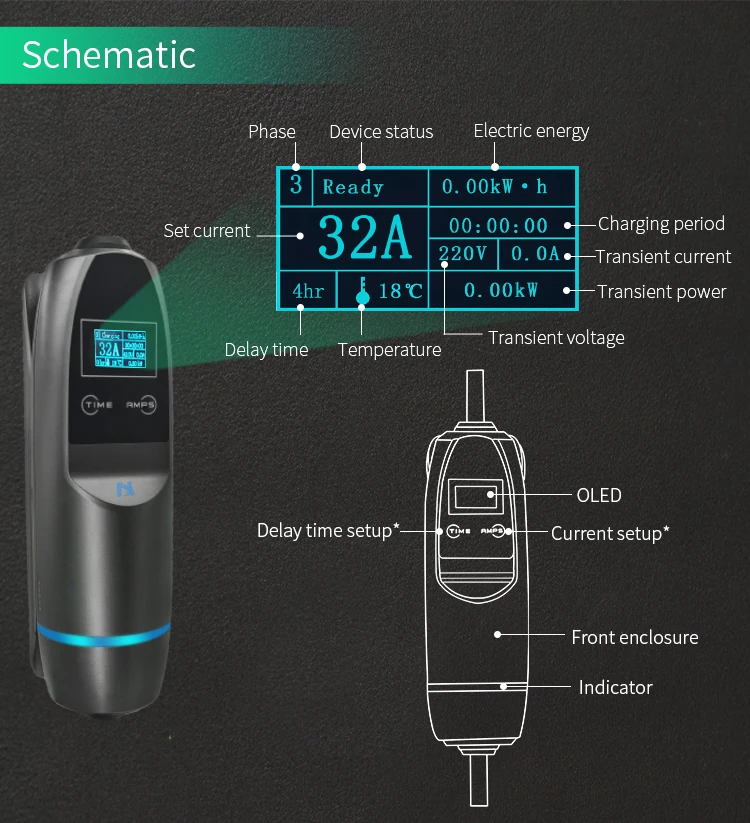

* User friendly 1.54 inch larger OLED screen display monitors s live charging data
* Preset 0-9 hours delay charging time, avoiding day peak, save cost charging at midnight
* 360 º light ring indicating charging status
* IP 65 suitable for indoor and outdoor
* Current adjustable
* Factory production, customizable screen, logo, manual, packaging etc
* Total length over 6 meters
* Type A+D.C 6MA RCD protection

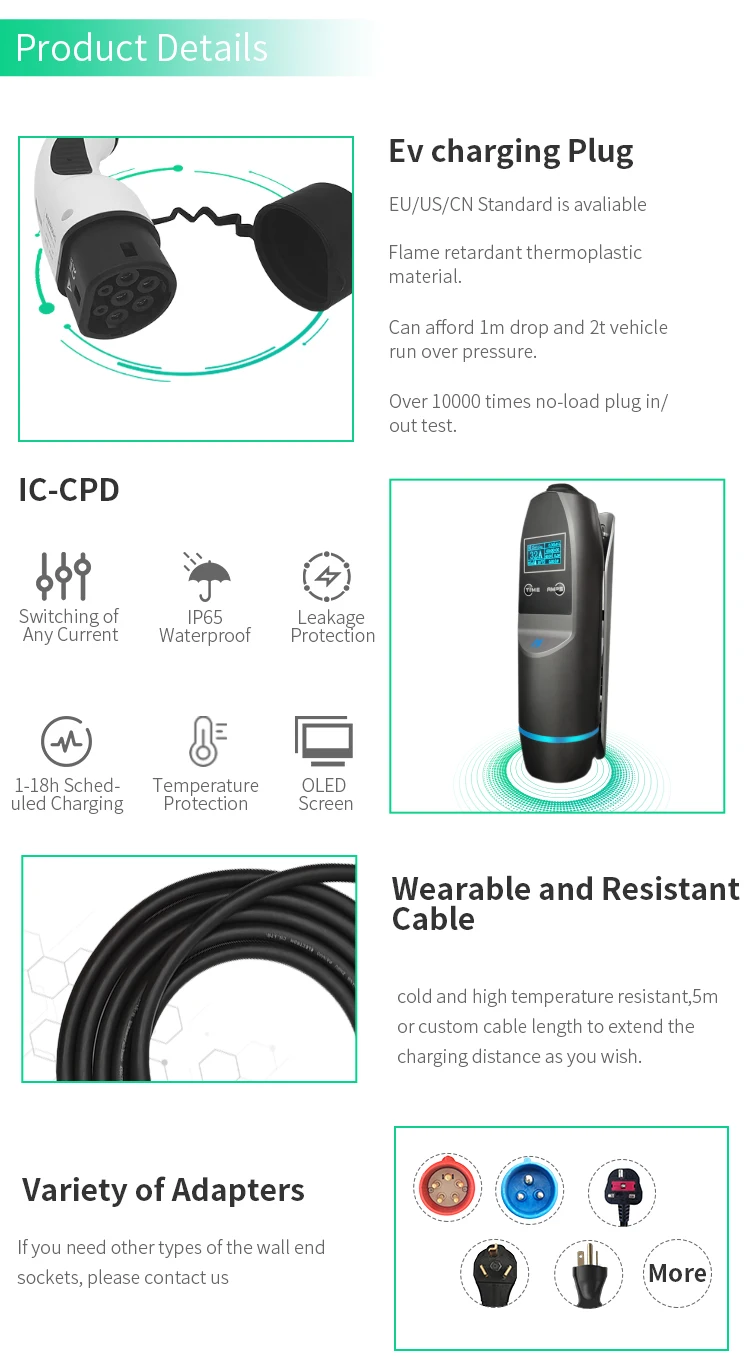

Details Images












Our portable charger are suitable for charging Audi A3 e-Tron, for BMW i3,BMW i8, for Chevrolet Spark, for Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes Vito E-Cell Van, for Porsche Panamera S PHEV, for Vollkswagen e-Up, for Volkswagen e-Golf, for Volvo V60 PHEV, for Tesla S/X, for Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van, for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera etc.




Technical datasheet


Product Name
G2 Portable EV Charger Electric Car Charging Station 3.5KW 7KW 11KW 22KW
Output voltage
Standard
IEC Standard
Output power
Wall Plug
Red CEE(three phase 16A&32A); blue CEE(single phase 16A&32A), UK plug 13A, AU/NZ plug 15A, Schuko plug 13A&16A, Swiss plug 13A&1A, South Africa plug 13A French plug 16A
Connector
Type 1, Type 2, GBT
Model Number
G2-KHONS-PE-1P-16A
G2-KHONS-PE-1P-32A
G2-KHONS-PE-3P-16A
G2-KHONS-PE-3P-32A
Phase
1 Phase
1 Phase
3 Phase
3 Phase
Power Input
110V - 250V
110V - 250V
110V - 450V
110V - 450V
Power
3.5KW
7KW
11KW
22KW
Current Range
6A - 16A
6A - 32A
6A - 16A
6A -32A
Frequency
50Hz/60Hz
Charging Mode
Mode 2 charging
Length
Total length over 6 m: including 5 m charging cable, 0.3 m control box and 0.6 m wall plug cable.


Functions
Wallbox EV Charger Station 22kw 11kw 7kw 3.5kw
Output voltage
6ACurrent Adjustable
6A-13A/6A-15A/ 6A-16A/6A-32A
KHONS-WB-7SPSW
KHONS-WB-11SPSW
KHONS-WB-22SPSW
Screen Display
Yes
1 Phase
3 Phase
3 Phase
Indicator
360 º light ring indicating charging status
110V - 250V
110V - 450V
110V - 450V
Delay Charging
0-9 hours
Charging Data
Monitoring on screen
Connection
2. On screen
Screen Display
1.54 inch LCD screen
Internet
Wifi&Blue tooth optional
Protection
IP Rating
CE certified IP 65 for indoor and outdoor use
RCD Protection
3.5kw/7kw/11kw: Type A RCD
22kw: Type A +d.c 6ma,
Protection
Over voltage protection
Yes
Over-temp protection
Yes
Under voltage protection
Yes
Lightning protection
Yes
Over load protection
Yes
Ground protection
Yes
Short circuit protection
Yes
UV resistance
Yes
Leakage protection
Yes
Lightning Protection
Yes
Working Environment
Temperature
-25 to 50℃
Humidity
5% - 95%RH
Altitude
≤2000m
Cooling
Natural air cooling
Standby Power Consumption
<2W
Wallbox EV charger Mechanical

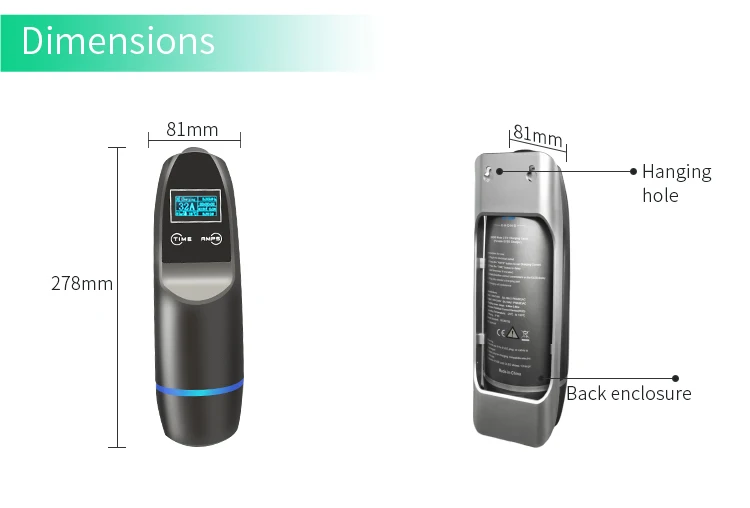

Dimension
28 x 9 x 9cm
Weight
3.5KW/7KW/11KW<5kg; 22KW<6kg
Enclosure
360 º light ring indicating charging status


Company Information






Certificates

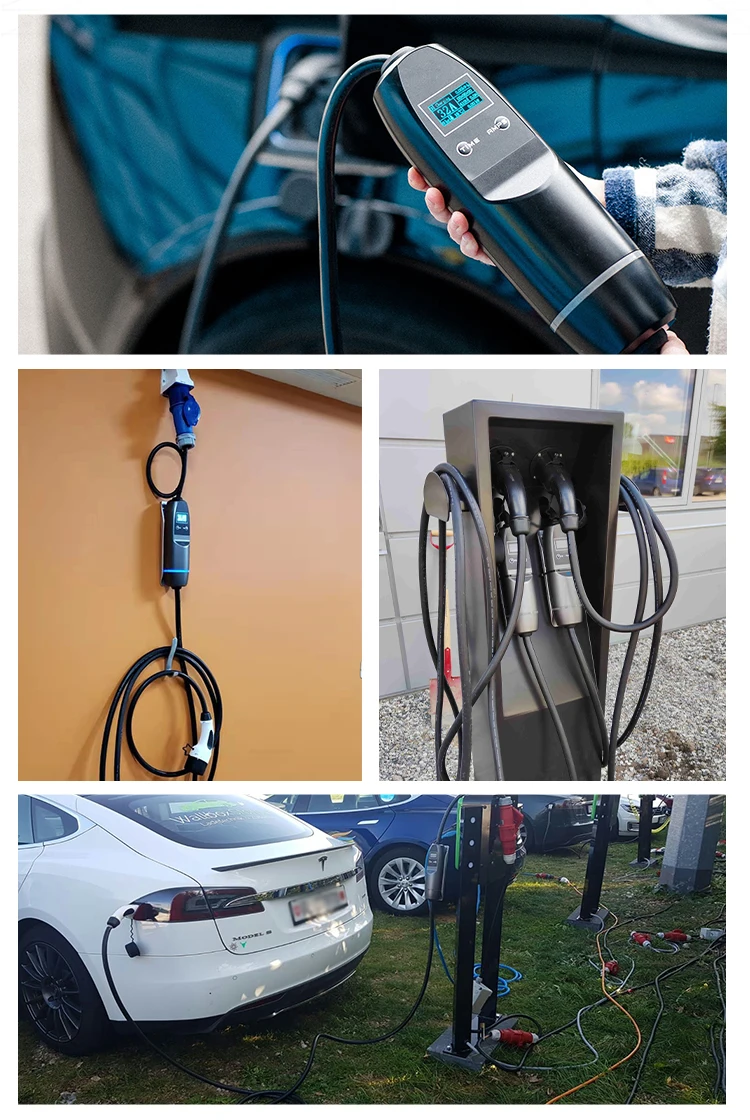

Success Case




Why Choose Us






FAQ




Q1: How can l place my order?
A1: You can order by yourself or contact our sales personnel who can provide you with a full quotation and understanding of your needs.

Q2: Do you post to all countries?
A2: Our ev chargers are shipped globally to many countries. lf you are unsure, kindly contact us via email or message for a quote.

Q3: How much do you charge for shipping?
A3: For samples shipping cost are prepaid according to the weight. For bulk when cargo is ready, we inquire multiple shipping options for buyer to choose and the cost is from shipping agent quotes.

Q4: What payment method do you accept?
A4: We accept all payment methods include PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and bank transfers etc.

Q5: What if my item arrives damaged, faulty or incorrect?
A5: On the unfortunate case that this happens, please contact us as soon as you receive the item. Please provide your name, order number and issue so that we can get it resolved quickly.

Q6: What power/kw to buy?
A6: First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it. However, Khons EV charging station are three phase and single phase compatible so even you buy a three phase charger, with only single phase power supply, it can be installed and used too.

Q7: How long does it take to fully charge a car?
A7: It’s the battery capacity divides the actual charging power.
Take BMW i4 eDrive40 for example, the batter is 83.9kw.h, charge power is 11kw, so if you have three phase power, install a 11kw charging station, actually charge at 11kw per hour, then the time to charge should be 83.9/11=7.62 hours. But usually after charging to 90%, the charging speed slows down. And if charge at a 7kw charging station, it should be 83.9/7=12hours.

Q8: What types of charging connector/plug to buy for AC charging?
A8: Please refer to below picture to confirm your plug type:
