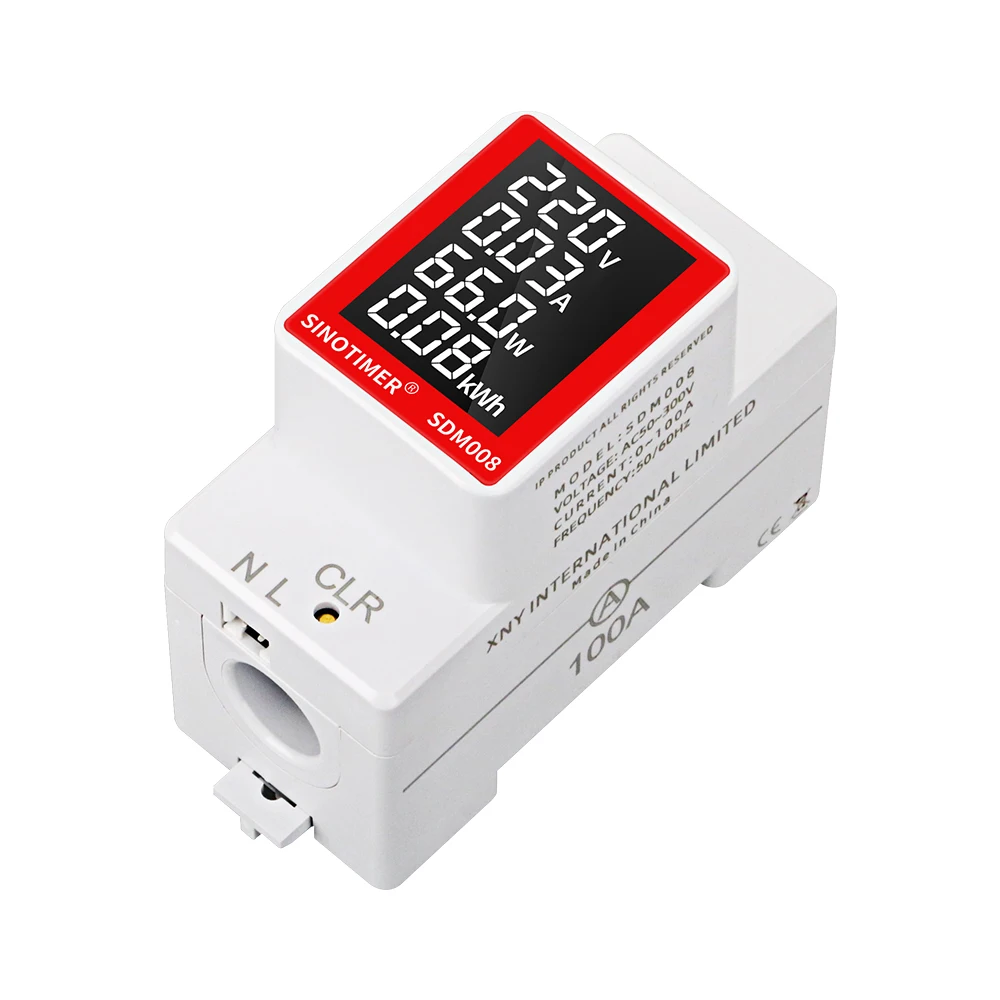

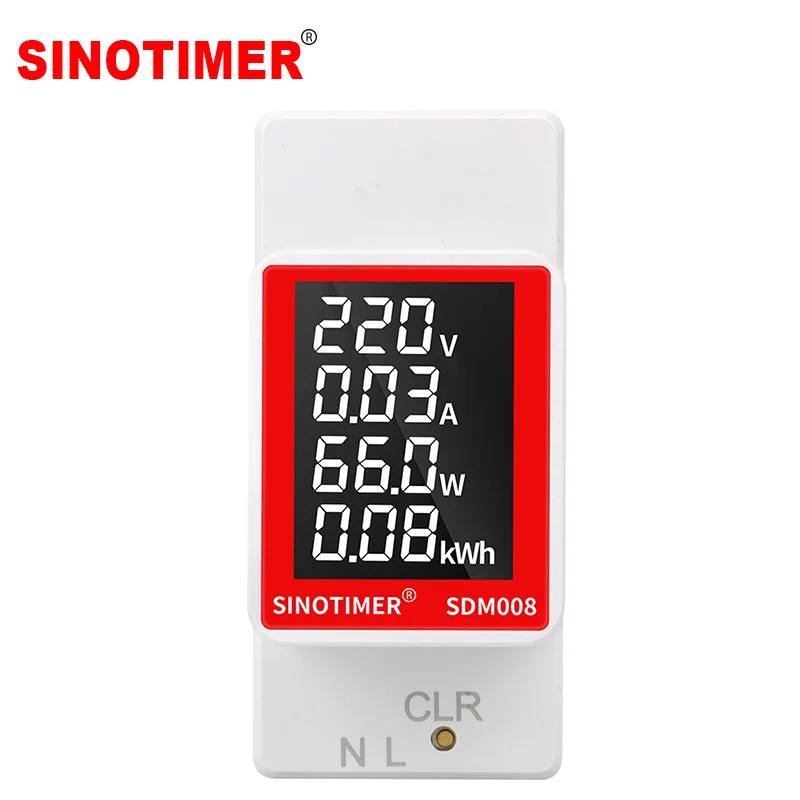

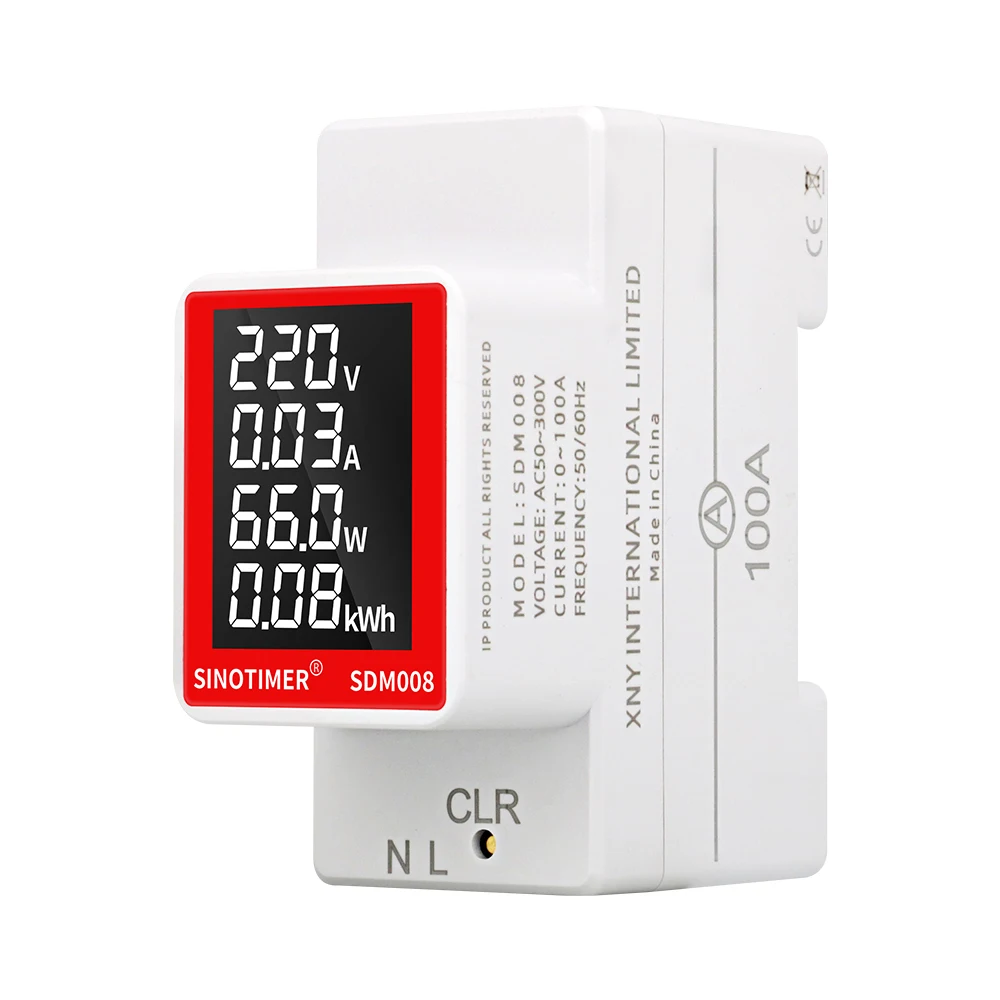

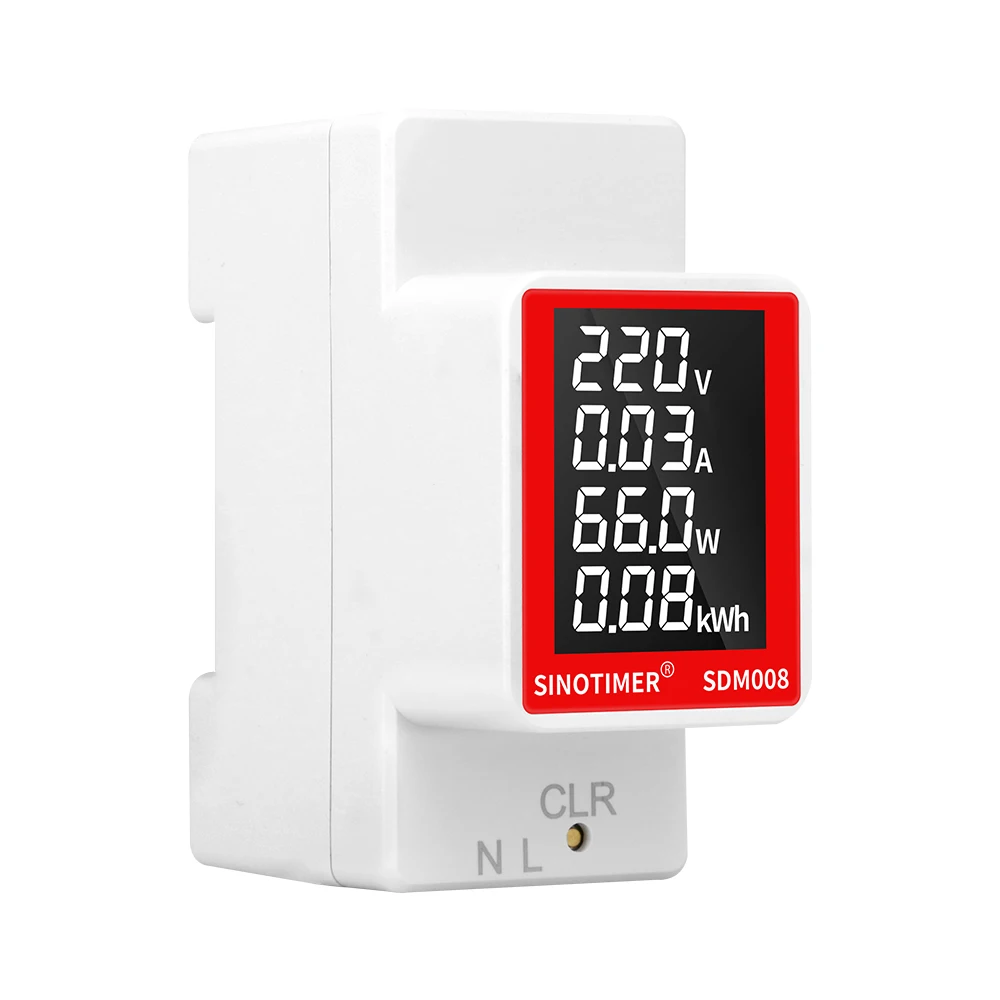

Hot sale 50 300V 100A LCD display Voltage, Current, Active Power, kWh indicator, kWh meter with backlight and reset funtion

 measurement range: AC 50-300V , starting test voltage: 50V  , accuracy: +/- 1%

2. Current

 measurement range: 0.02-100A , starting test current: 0.02A

 display format   <10A display such as: 9.99A

                           <100A display such as: 99.9A

accuracy: +/- 1%

3. Active power

 measurement  range: 0.5-30kw

 display format: < 10w display such as: 9.99w

                          < 100w display such as: 99.9w

                          < 1000w display such as: 999w

                          < 10000w display such as: 9.99kw

                          >=10000w display such as: 30.kw

starting test power: 0.5w

accuracy: +/- 1%

4. Energy

measurent range: 0-1999kwh

 display format: <10kwh display such as: 9.99kwh

                          < 100kwh display such as: 99.9kwh

                          < 1000kwh display such as: 999kwh

                          < 10000kwh display such as: 1999kwh

over the test range will maintain the data, otherwise you reset it

accuracy: +/- 1%

Other Function:

1. Backlight control

the backlight can be turned on or off by short press the key

2. Reset energy

long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy

3. Data storage

when the power off, the energy data and backlight status can be saved

Package includes:

1 * AC Din Rail multifunctional meter

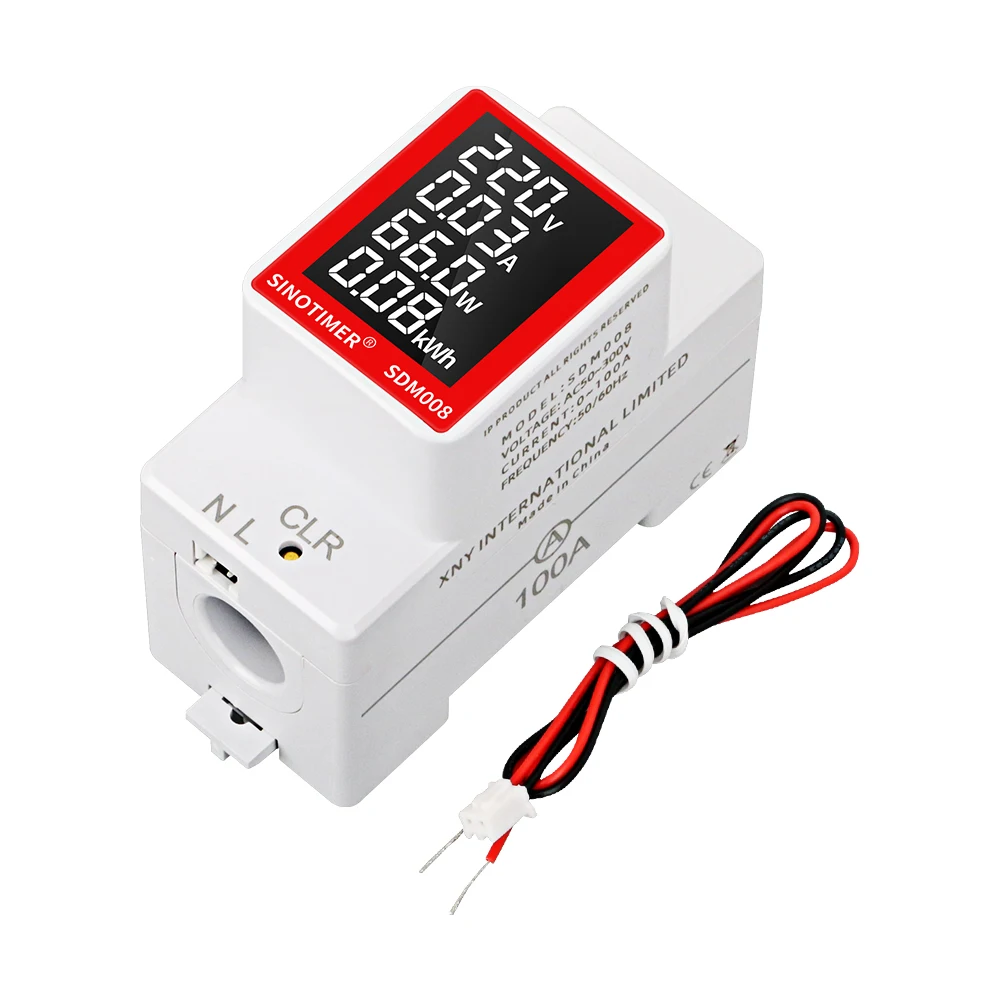

1 * 2-pin cable

1 * Manual
