HQ2200 Portable Multi Meter with Gel pH PHC101 and Conductivity Electrodes
- Category: >>>
- Supplier: LIAONING HUIQI OPTICS TECHNOLOGY CO. LTD.
Share on (1600430209137):
Product Overview
Description
Details Images
HQ2200 Portable Multi-Meter with Gel pH PHC101 and Conductivity Electrodes, 1 m Cables
A robust and intuitive range of portable meters, instilling confidence in reporting and managing your results.
The HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments. Our new portable platform will allow you to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating.
They provide a true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results. Unlike other field meters with basic user interfaces and without easily accessible data, the HQ Series secures, simplifies, and accelerates the complete measurement process for field users.
Choose from 4 models, including the three-input HQ4000 series, dual-input HQ2000 series, and single-input HQ1000 series. These meters offer a range in measurement versatility - eliminating the need for multiple pieces of equipment.
Performing a successful calibration has never been so simple
Deliver your daily activity in just a few clicks
Sensors designed for every application
Peace of mind: Hach service and support will be there for you
Performing a successful calibration has never been so simple
Deliver your daily activity in just a few clicks
Sensors designed for every application
Peace of mind: Hach service and support will be there for you
Specification
Accessories included: | USB charger, power cable, and clips |
Auto-buffer recognition: | Yes |
Backlight: | Yes |
Barometric pressure measurement: | Automatic compensation of DO when using an LDO or LBOD probe |
Cable length: | 1 m |
Calibration intervals/alerts/reminder: | Off, selectable from 2 hours to 7 days |
Certifications: | CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS |
Conductivity calibration: | Demal (1D/ 0.1D/ 0.01D); |
Molar (0.1M/ 0.01M/0.001M); | |
NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm); | |
Standard sea water; | |
User defined | |
Conductivity measurement: | Temperature correction:None; Linear; NaCl Non-Linear Natural Water. |
Conductivity measurement range: | Yes |
Custom calibration standards: | Yes |
Data export: | USB connection to PC or USB storage device (limited to the storage device capacity). |
Data storage: | 10,000 data points |
Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode. | |
Dimensions (H x W x D): | 63 mm x 97 mm x 220 mm |
Display: | Up to 3 parameters at a time, dependent on HQ model |
Display type: | 536x336 Mono-TFT |
DO measurement range: | 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation |
DO resolution: | 0.1 |
Electrode type: | Intellical Standard Laboratory or Rugged Field |
Enclosure waterproof rating: | IP67 (with battery compartment installed) |
Environmental conditions: | relative humidity:90% (non-condensing) |
Environmental conditions: temperature: | 0 - 60 °C |
GLP features: | Date; Time; Sample ID; Operator ID, Calibration |
Inputs: | 2 |
Instrument: | Portable |
ISE direct measurement: | No |
ISE electrode calibration: | No |
Kit?: | Yes |
Languages user interface: | English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian |
Lock function: | Continuous / Auto-stabilisation ("press to read") / At Interval |
Measurement method: | Probe specific programmed method settings |
Model: | HQ2200 Multi/2 Channels |
mV measurement at stable reading: | Yes |
mV measurement range: | Yes |
mV resolution: | 0.1 mV |
Operating error messages: | Clear text error messages displayed |
Operating Interface: | Soft Touch Keypad |
ORP electrode calibration: | Predefined ORP standards (including Zobell's solution) |
Parameter: | pH, Conductivity |
pH Buffer Sets: | Colour-coded: 4.01, 7.00, 10.01 pH; |
IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 | |
DIN: 1.09, 4.65, 9.23 | |
User-defined custom buffer sets | |
pH Electrode calibration: | 1 - 3 Calibration points |
Calibration summary data logged and displayed | |
pH Measurement Range: | 0 - 14 pH |
pH Resolution: | Selectable: |
0.001/0.01/0.1 pH | |
Power supply: | Rechargeable lithium-ion battery 18650 (internal) |
Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external) | |
Probes included?: | PHC10101, CDC40101 |
Protection class: | IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external |
Region: | EU |
Resolution: | 0.01 mg/L - 0.1 g/L upon measuring range |
Salinity measurement range: | 0 - 42 (ppt) (‰) |
Salinity resolution: | 0.01 (ppt) (‰) |
Sensor A: | PHC10101, CDC40101 |
Sensor B: | CDC40101 |
Sensor C: | None |
Software available: | Claros |
Storage conditions: | -20 - 60 °C, max. 90% relative humidity (non-condensing) |
TDS measurement range: | 0.00 mg/L - 50.0 g/L NaCl |
Temperature compensation: | Automatic Temperature compensation for pH |
Temperature measurement range: | °C or °F |
Temperature resolution: | 0.1 °C |
Type of measurement: | Field Measurements |
Warranty: | 24 months |
Weight: | 541 g (Meter only) |
Feature
Performing a successful calibration has never been so simple
Most measuring issues are due to incorrect calibration procedures. With our illustrated, step-by-step on-screen calibration and troubleshooting procedures, water quality professionals can succeed every time.

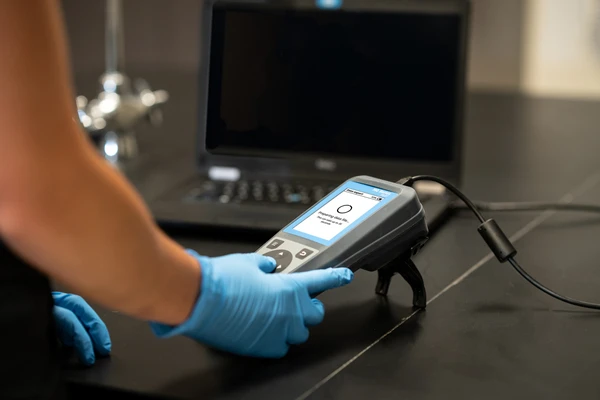

Deliver your daily activity in just a few clicks
Whether you are at your facility or working in the field, the Hach® HQ Series portable meter ensures your data will be safely transferred via USB or optional Bluetooth*. Take advantage of additional data validation when you connect your field meter to Claros Data Management software.
Sensors designed for every application
We offer standard laboratory and rugged field Intellical smart sensors available with the HQ Series to measure a wide variety of parameters including Total Dissolved Solids (TDS), Optical Dissolved Oxygen (DO), Biochemical Oxygen Demand (BOD), Temperature, Conductivity, and pH. Intellical smart probes are automatically recognised by HQ meters, retain calibration history and method settings to minimise errors and setup time. They incorporate proven technology to deliver superior accuracy and response times – even when measuring challenging samples or challenging operating environments.

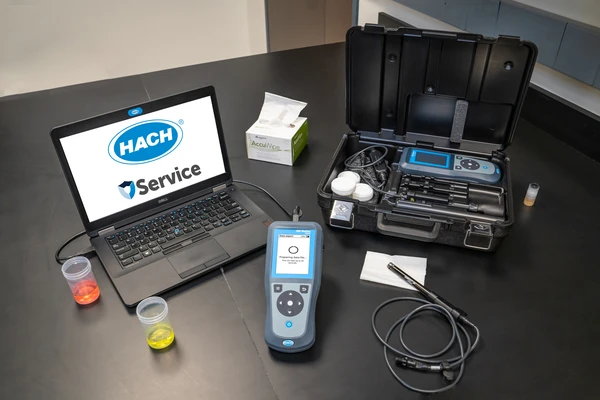

Peace of mind: Hach service and support will be there for you
Our Technical Support, Field Service, and Central Service Teams work together with over 80 years of electrochemistry expertise to help you maximise instrument uptime, ensure data integrity, maintain operational stability, and reduce compliance risk. Never feel alone when you need support.
Most measuring issues are due to incorrect calibration procedures. With our illustrated, step-by-step on-screen calibration and troubleshooting procedures, water quality professionals can succeed every time.
Deliver your daily activity in just a few clicks
Whether you are at your facility or working in the field, the Hach® HQ Series portable meter ensures your data will be safely transferred via USB or optional Bluetooth*. Take advantage of additional data validation when you connect your field meter to Claros Data Management software.
Sensors designed for every application
We offer standard laboratory and rugged field Intellical smart sensors available with the HQ Series to measure a wide variety of parameters including Total Dissolved Solids (TDS), Optical Dissolved Oxygen (DO), Biochemical Oxygen Demand (BOD), Temperature, Conductivity, and pH. Intellical smart probes are automatically recognised by HQ meters, retain calibration history and method settings to minimise errors and setup time. They incorporate proven technology to deliver superior accuracy and response times – even when measuring challenging samples or challenging operating environments.
Peace of mind: Hach service and support will be there for you
Our Technical Support, Field Service, and Central Service Teams work together with over 80 years of electrochemistry expertise to help you maximise instrument uptime, ensure data integrity, maintain operational stability, and reduce compliance risk. Never feel alone when you need support.

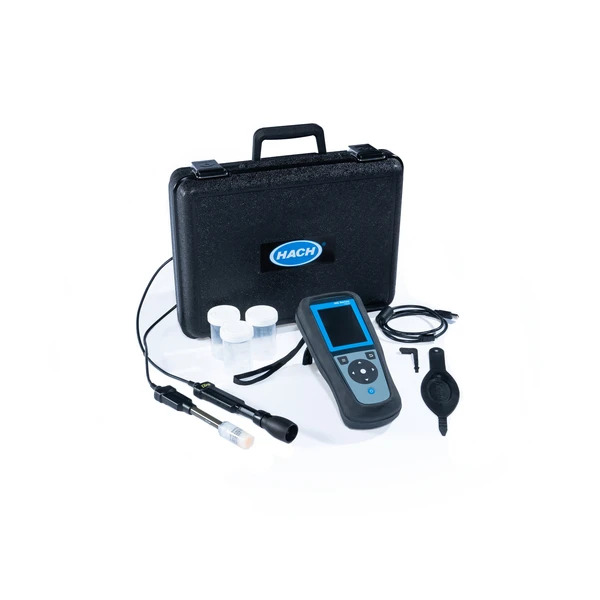

What's included?
LEV015.98.2200A HQ2200 Portable pH/ORP/EC/TDS/DO Multi-Meter, 2 channels
PHC10101 Intellical pH electrode, 2-14 pH, 0-50 °C, 1 m cable
CDC40101 conductivity cell, 1 m cables
LEZ015.99.A001A HQ standard electrode field case
LEZ015.99A003A HQ hand strap & kickstand
LEZ015.99.A004A HQ protective glove
EZZ073 Disposable paper tissues, white, pk/200
2770020 Singlet single-use pH Buffer, pH 4.01, pk/20
2770120 Singlet single-use pH Buffer, pH 7.00, pk/20
2770220 Singlet single-use pH Buffer, pH 10.01, pk/20
2771420 Singlet single-use conductivity standard solution, 1413 µS/cm, KCl, 20 mL
User manuals
PHC10101 Intellical pH electrode, 2-14 pH, 0-50 °C, 1 m cable
CDC40101 conductivity cell, 1 m cables
LEZ015.99.A001A HQ standard electrode field case
LEZ015.99A003A HQ hand strap & kickstand
LEZ015.99.A004A HQ protective glove
EZZ073 Disposable paper tissues, white, pk/200
2770020 Singlet single-use pH Buffer, pH 4.01, pk/20
2770120 Singlet single-use pH Buffer, pH 7.00, pk/20
2770220 Singlet single-use pH Buffer, pH 10.01, pk/20
2771420 Singlet single-use conductivity standard solution, 1413 µS/cm, KCl, 20 mL
User manuals
