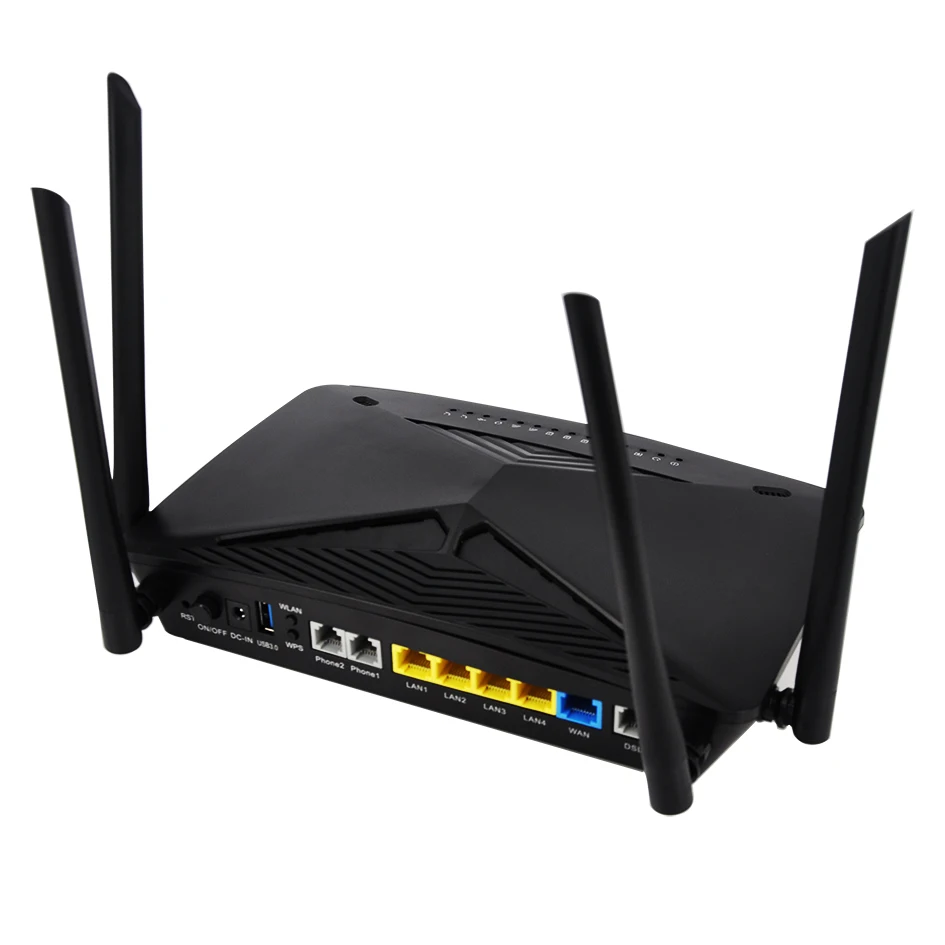

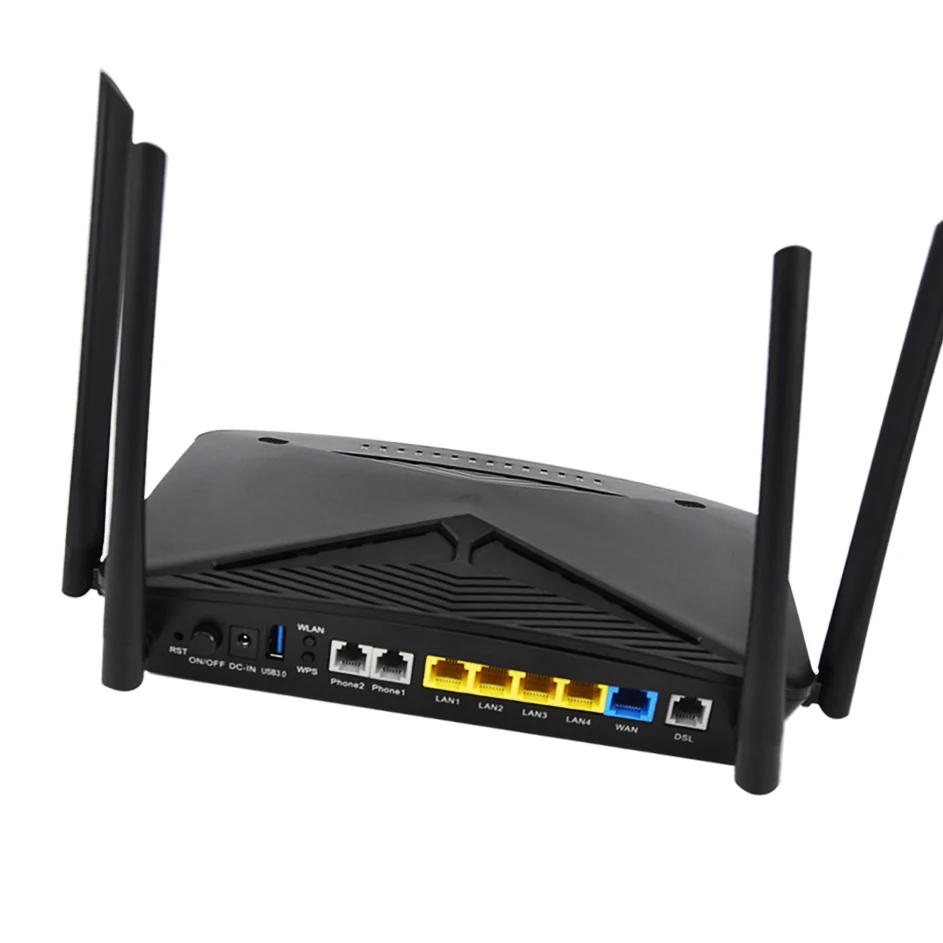

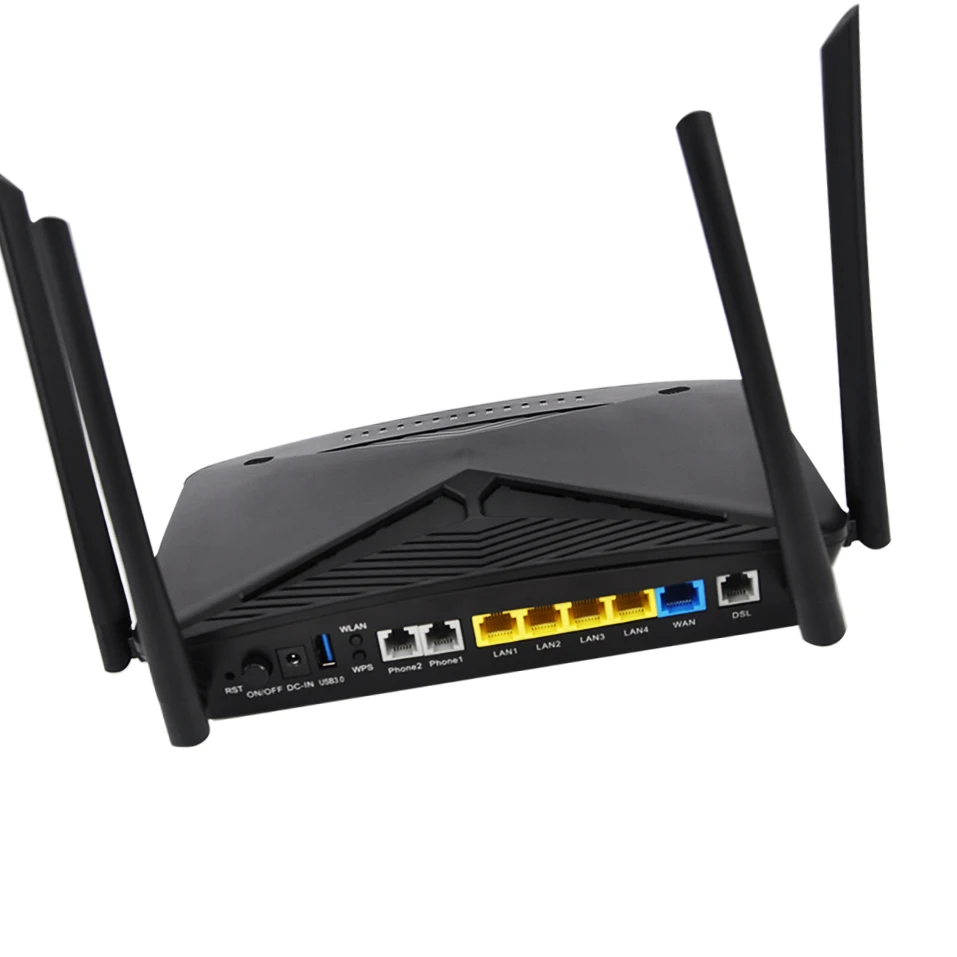

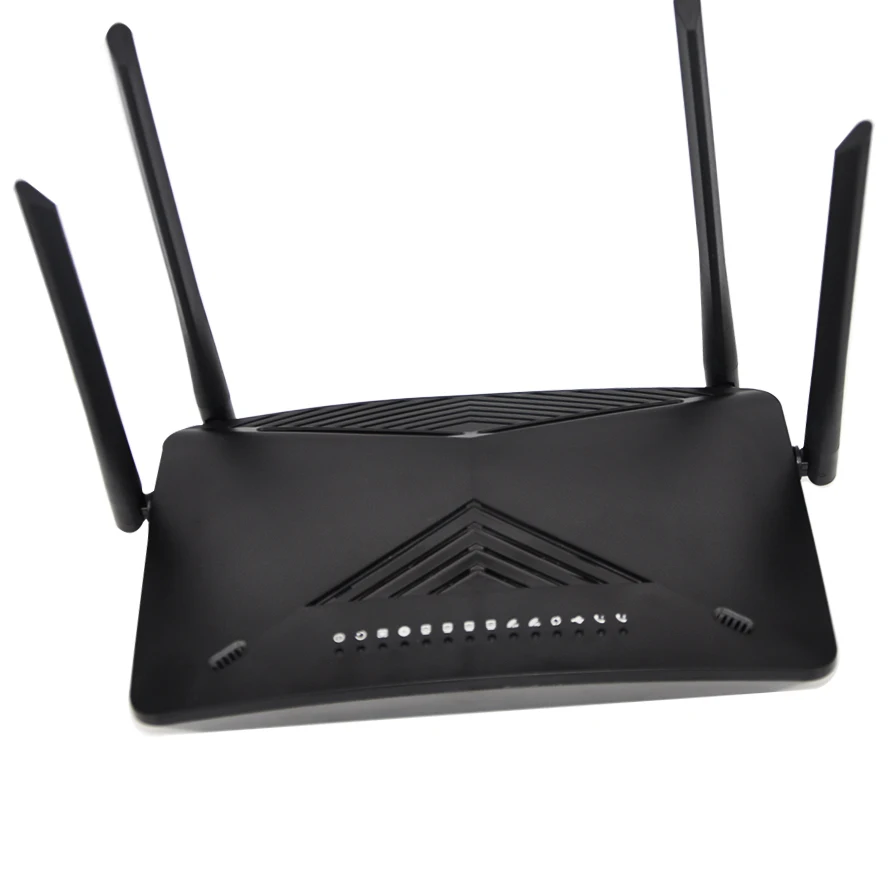

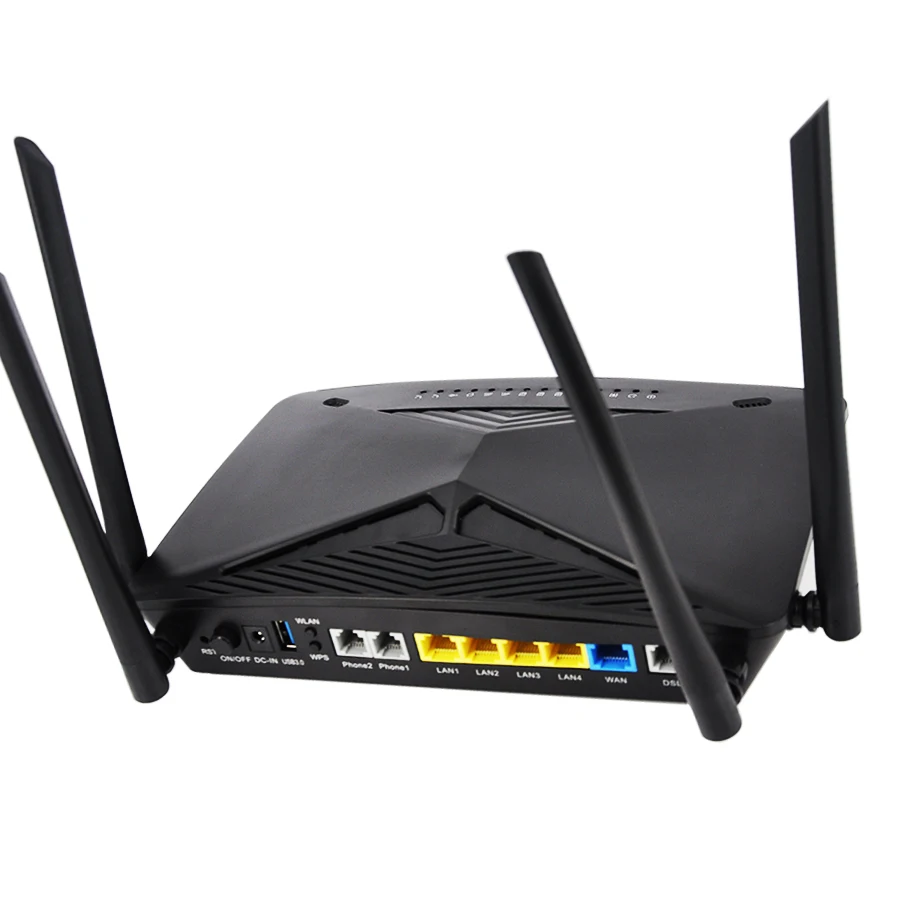

OEM 802.11AX wifi 6 router 1800mbps router modem adsl for soho
- Category: >>>
- Supplier: Shenzhen Yingdakang Technology Co. Ltd.
Share on (1600430218995):
Product Overview
Description
Product Description
1800mbps transmission
Wi-Fi 6
Beamforming technology
concentrat the data transmission;
Support 802.11ax
compatible with 802.11b/g/n/ac devices
More ports to choose
One xDSL(RJ11) interface,
Four Fast Ethernet LAN(RJ45) interfaces;
1*USB3.0 Port
1*USB3.0 Port
Key Specifications/Special Features:
* Wireless speed up to 1800Mbps with Gigabit WAN port,
* provides the latest 35b VDSL access and VoIP/wireless AP
* Supports SPI firewall and access control management.
* Supports WPA/WPA2/WPS encryptions and SSID hidden, firewall
* Seamlessly compatible with 802.11AX/ac/b/g/n devices.
* More Intelligent Functions(such as ALG, DMZ, Port trigger, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba,
Static routing)
* support Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter
* Priority of service assures the quality of bandwidth sensitive applications such as voice and video.
* provides the latest 35b VDSL access and VoIP/wireless AP
* Supports SPI firewall and access control management.
* Supports WPA/WPA2/WPS encryptions and SSID hidden, firewall
* Seamlessly compatible with 802.11AX/ac/b/g/n devices.
* More Intelligent Functions(such as ALG, DMZ, Port trigger, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba,
Static routing)
* support Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter
* Priority of service assures the quality of bandwidth sensitive applications such as voice and video.
Model No. | IAD621 |
Main Chip | EN7516GT+MT7905DE+MT7975DN+EN7556+SI32280 |
Flash | 128MB SPI NAND |
Memory | 256MB DDR3 SOC |
Interface | 1*WAN, 4*LAN, 1*VD, 2*FXS, 1*USB3.0; 1*DC JACK |
Wireless Protocol | IEEE 802.11b/a/g/n/ac/ax |
Wireless Transfer Rate | 1800mbps (2.4G:574Mbps 5G:1200Mbps) VDSL35B: uplink 200Mbps, downlink 200Mbps |
FR Index | 2.4G 11ax HT40 MCS7=18dBm(±2dB) 5G 11ax HT80 MCS9=18dBm(±2dB) |
Antenna | 2*2.4G 5dBi fixed external antennas 2*5G 5dBi fixed external antennas |
Indicator Lights | Power, DSL, INT, WAN, LAN4-1, 2.4g, 5g, WPS, USB, FXS1-2 |
Operation Mode | VoIP, Gateway, Wi-Fi Repeater, Wireless AP |
Power Supply | DC 12V 2A |
LED Indicator | PWR(Power), WAN, LAN, NET(Ethernet) |
EVM | 2.4G: 802.11b: ≤-10dB; 802.11g: ≤-25dB ; 802.11n: ≤-28dB 5G: 802.11a: ≤-25dB; 802.11n: ≤-28dB; 802.11ac: ≤-32dB |
Wireless Functions | WiFi 5 basic functions / advanced settings, Guest network, WEP / WPA / WPA2 encryption, WPS |
Wireless Functions | Support Bridge, DHCP, PPPoE and Static IP address Internet access, IPv4/IPv6 dual stack, wizard, Ethernet/ATM/PTM Three uplink modes |
Voice Function | G. 711 / G.729, Call transfer, Three party call, Voice activity detection, Comfortable noise, Recovery elimination, T.38 fax, Digital map |
Management Function | WEB/DHCP Server/SNMP /TR069 |
Device management, User management, Configuration management, Upgrade management, Log management, Status statistics, Restart / reset, Diagnostic test | |
Advanced Function | ALG, DMZ, Port trigger, Virtual server, DDNS, UPnP, VLAN, Port binding, QoS, IGMP, Samba, Static routing |
Safety Function | Anti DoS attack, MAC filter, IP / port filter, Domain name filter, ACL filter |
Software System | Linux |
Certificates | Meet CE certification standards |
Environment | Operating Temperature: 0ºC—40ºC Storage Temperature: -20°C to 70°C Storage Humidity：10％～95％（Non-condensing） Storage Humidity: 5% to 95% non-condensing |
