Grimmsky Factory Directly Sale Return Valve Type 4L/Min 12V DC 45W High Pressure Water Pump For Car Wash
- Category: >>>
- Supplier: Henan Grimmsky Machinery And Electric Equipment Co. Ltd.
Share on (1600430221568):
Product Overview
Description

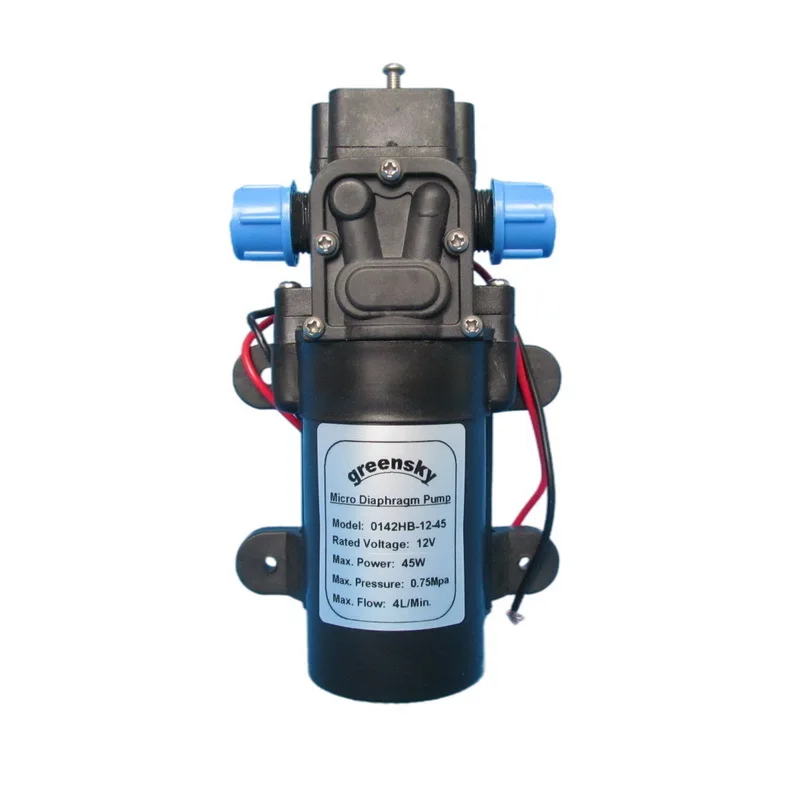

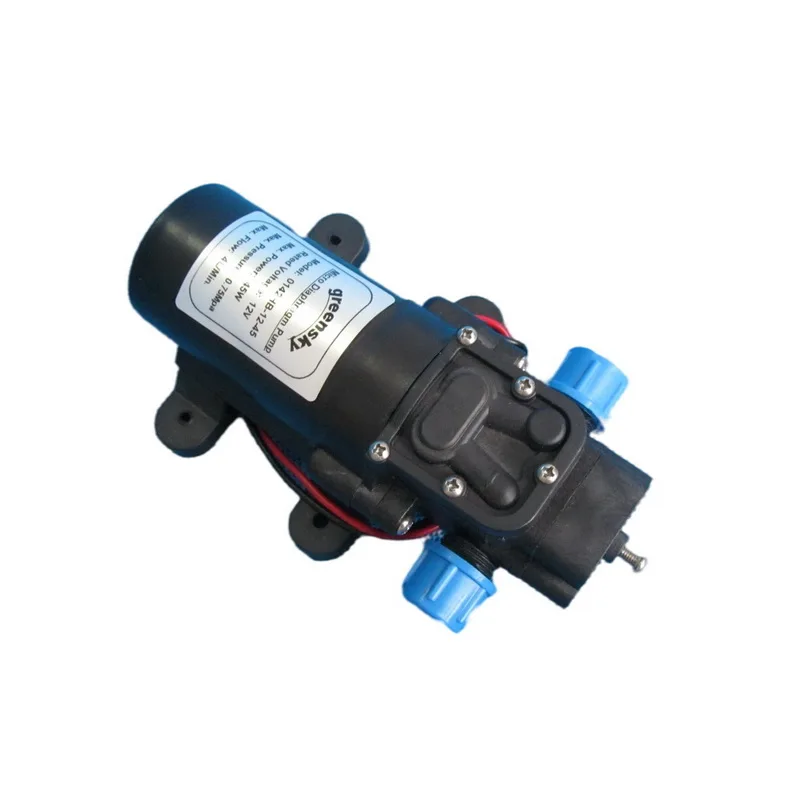

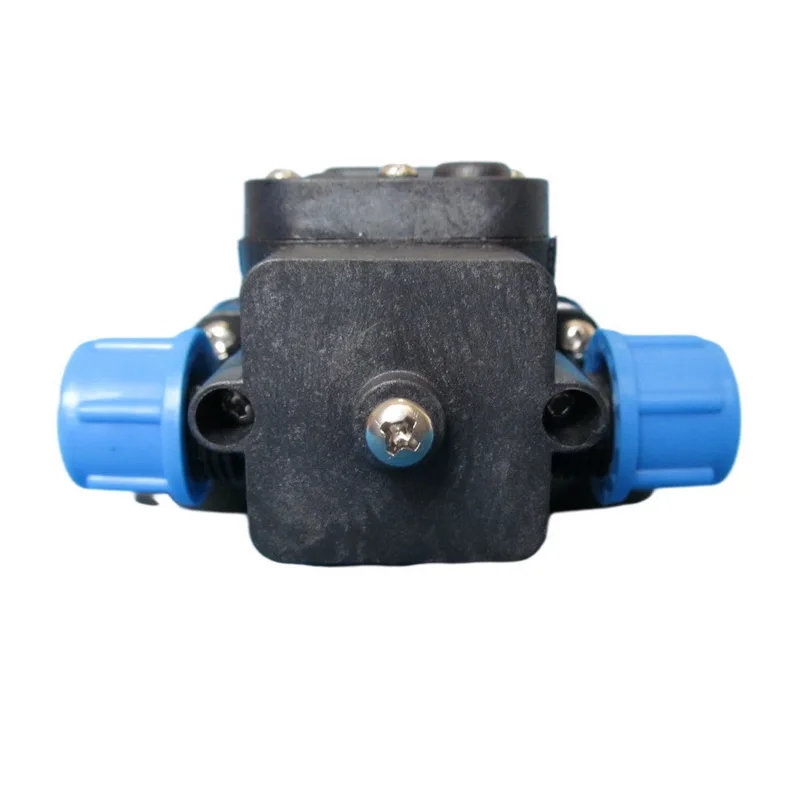

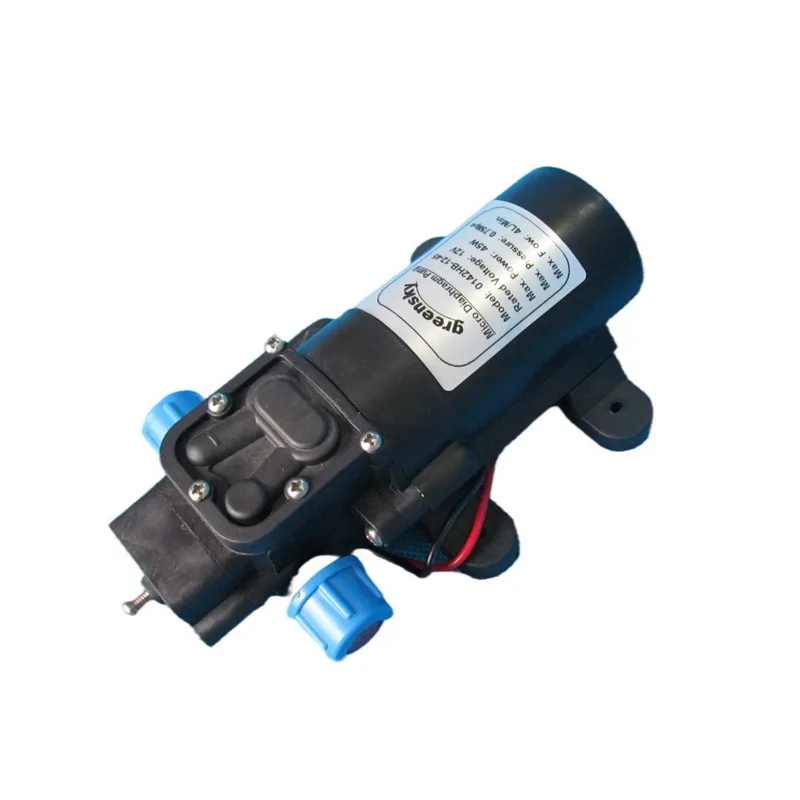

DC12V 45W Return Valve Type Self-priming Micro Diaphragm Pump
Product Overview
Product Description
Model | 0142YA-12-45 | 0142YB-12-45 | 0142HA-12-45 | 0142HB-12-45 | |||
Voltage | 12V | 12V | 12V | 12V | |||
Power | 45W | 30W | 30W | 30W | |||
Working Pressure | 0.45Mpa=4.5BAR=65.27PSI | 0.4Mpa=4BAR=58PSI | 0.4Mpa=4BAR=58PSI | 0.4Mpa=4BAR=58PSI | |||
Rated Pressure(Max.) | 0.75Mpa=7.5BAR=108.78PSI | 0.7Mpa=7BAR=101.53PSI | 0.7Mpa=7BAR=101.53PSI | 0.7Mpa=7BAR=101.53PSI | |||
Inlet/Outer Diameter | 10mm | 10mm; Thread size: M18=18mm. | 10mm | 10mm; Thread size: M18=18mm. | |||
Fitting Connect Hose Size | 12*8mm Hose(Hose OD:12mm,ID:8mm) | 12*8mm Hose(Hose OD:12mm,ID:8mm) | 12*8mm Hose(Hose OD:12mm,ID:8mm) | 12*8mm Hose(Hose OD:12mm,ID:8mm) | |||
Max. Flow | 4L/Min. | 3L/Min. | 3L/Min. | 3L/Min. | |||
Suction Head | 1-1.5m | 1m | 1m | 1m | |||
Noise Level | 40-45dB | 35-40dB | 35-40dB | 35-40dB | |||
Maximum Operating Temperature | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius | <=100 Degrees Celsius | |||
Diaphragms Material | TPV | TPV | TPV | TPV | |||
Net Weight | 0.66Kg | 0.66Kg | 0.66Kg | 0.66Kg | |||
Size | 168*77*65mm | 168*77*65mm | 160*77*65mm | 160*77*65mm | |||
Test Showing
Details Images
Main Application
Registered Trademark “GRIMMSKY”
Factory Workshop Showing
Packing Showing
