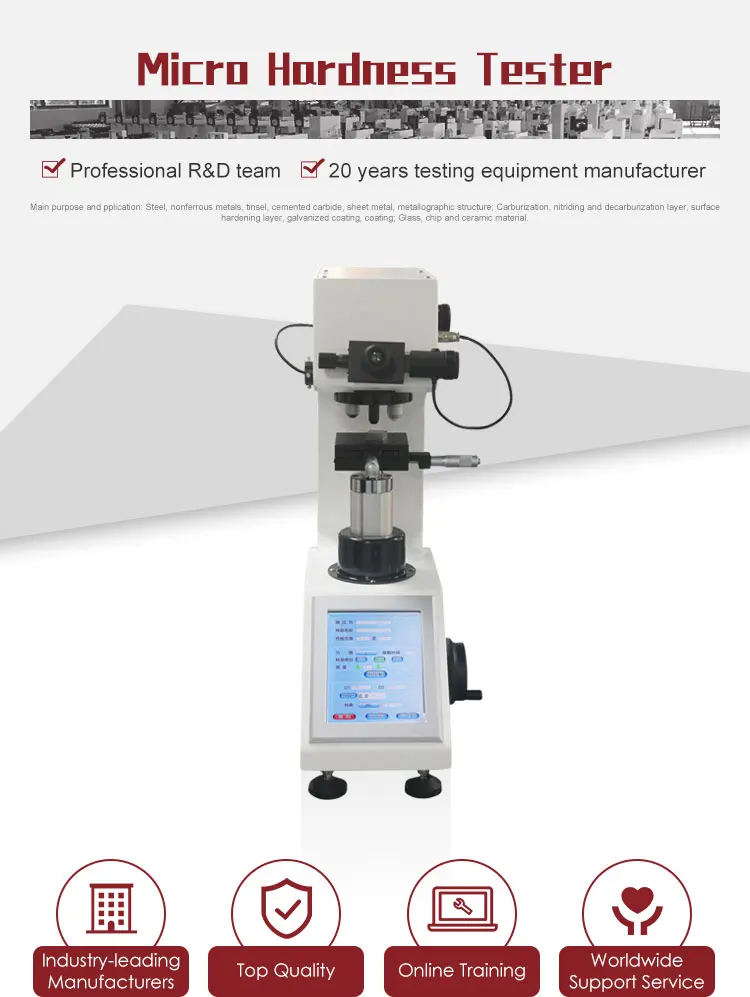

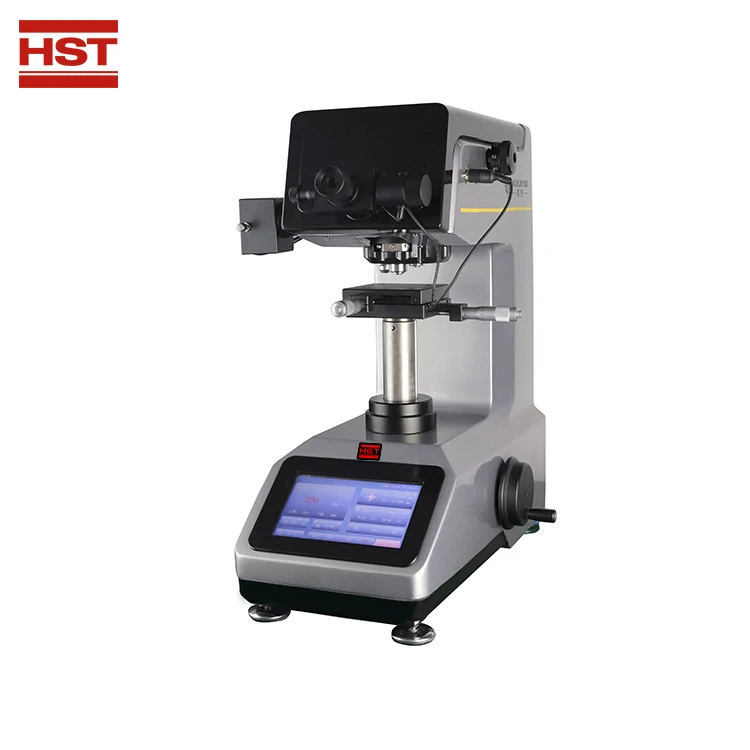

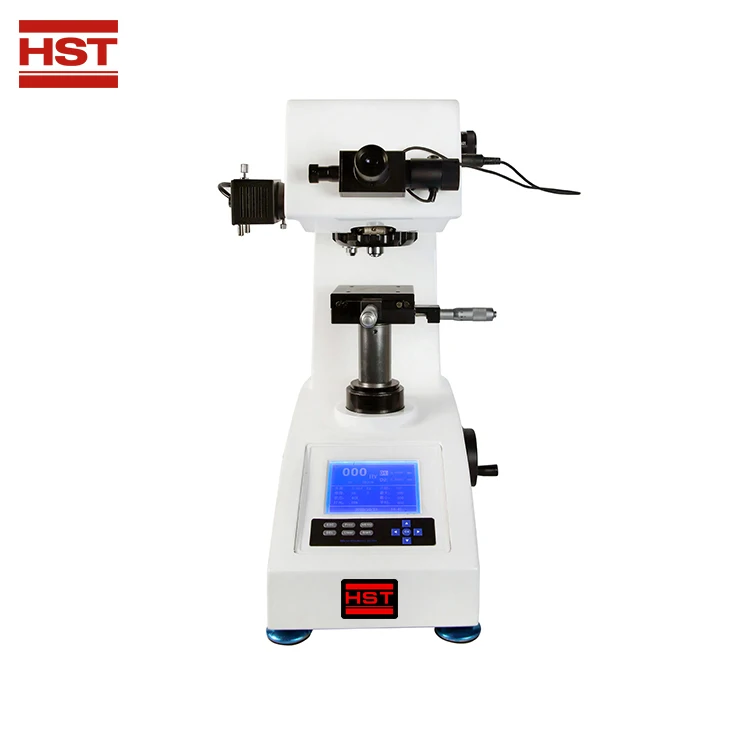

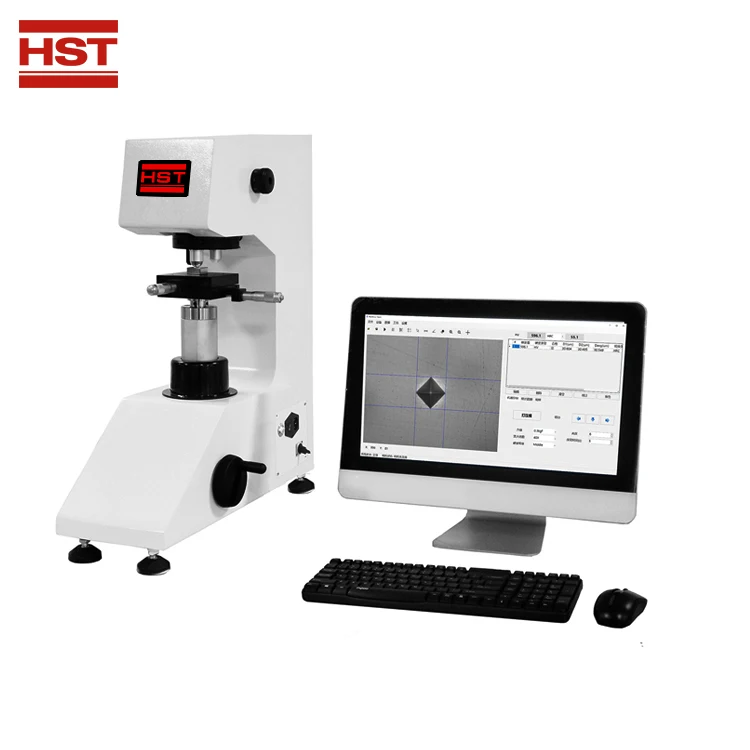

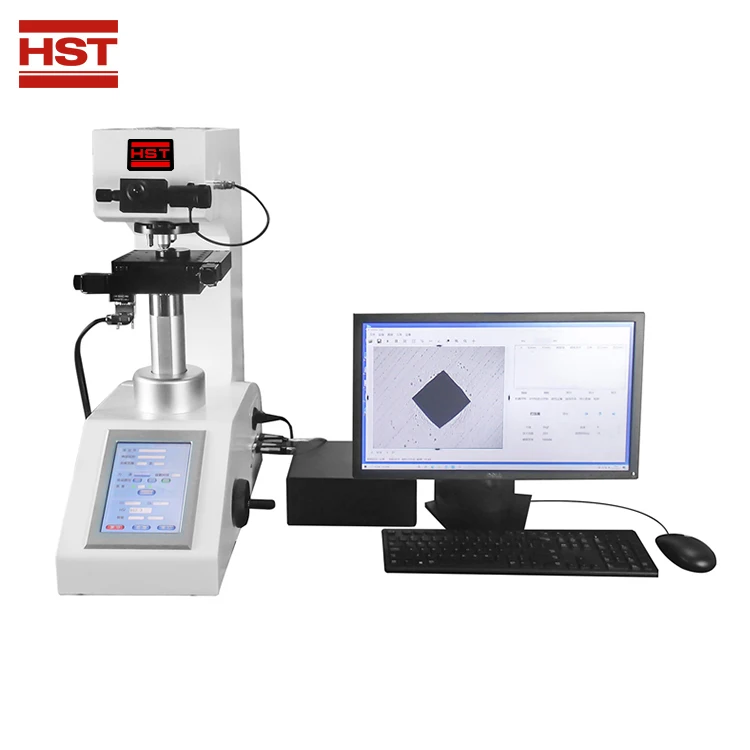

Hot selling testing micro vicker hardness tester mitutoyo microhardness testers with great price
- Category: >>>
- Supplier: Jinan Hensgrand Instrument Co. Ltd.
Share on (1600430234013):
Product Overview
Description

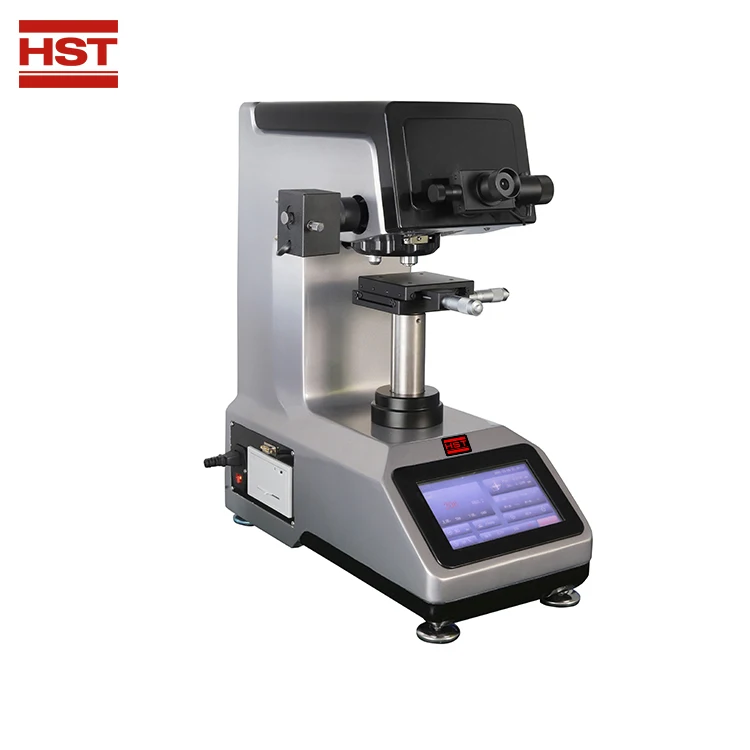

Hot selling testing micro vicker hardness tester mitutoyo microhardness testers with great price
Product Description
Production Introduction:
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameters

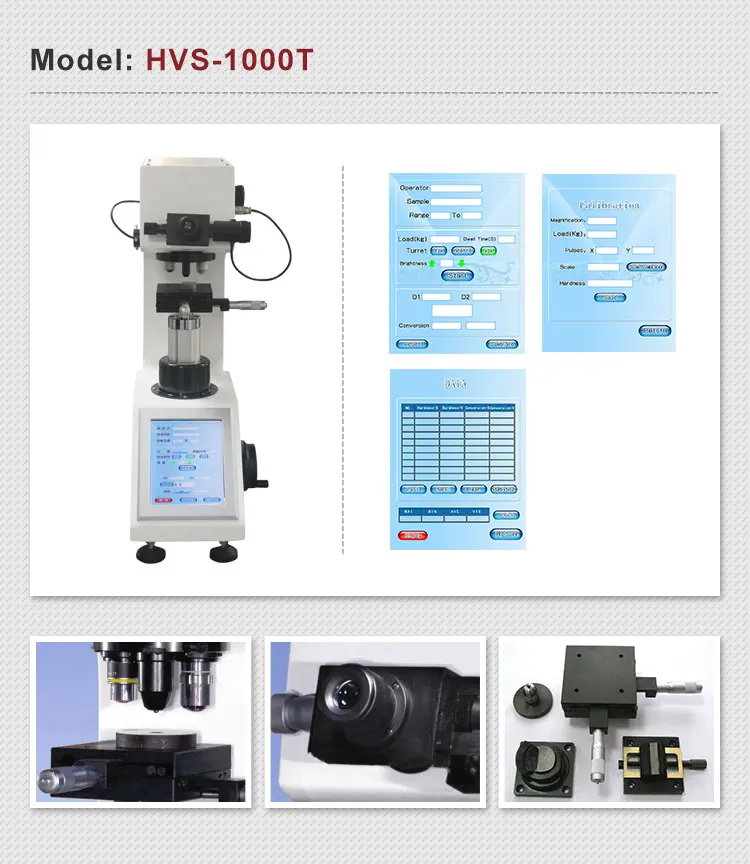

Model | HV-1000Z | HVS-1000Z | HVS-1000ZT |
Display model | Small LCD digital display | Big LCD digital display | touch screen Digita Display |
Hardness values | Input D1,D2 | Direct display | Direct Display |
Exchange Scales
| HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T | ||
Test force | 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N) | ||
Turret Type | Automatic | ||
Loading and unloading mode | Automatic | ||
Dwell Time | Adjustable 0 to 60 seconds | ||
Micrometer eyepiece multiple | 10X(optional 15X) | ||
Me measurement resolution | 0.25µm (drum reading) | ||
Objective magnification | 10X 40X | ||
Total magnification | 100X(objective)400X(measurement) | ||
measurement range | 150µm | ||
light source | Halogen lamp (brightness adjustable) | ||
Hardness conversation | Brinell, rockwell, surface rockwell | ||
Max. Height of Specimen | 80mm | ||
Depth at center line | 95mm | ||
XY test table size | 100X100mm Max. movement:25*25mm | ||
Min. Measuring Unit | 0.01μm | ||
RS232,Built-in print,data statistics | No | Yes | Yes |
