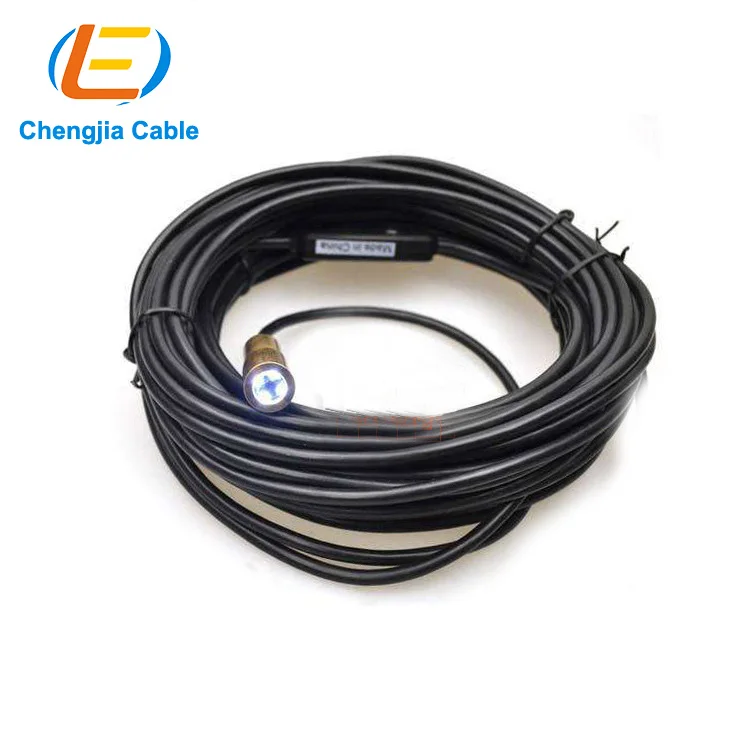

Ultra fine image transmission medical cable Endoscope cable Special cable for surgical robot
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600430243341):
Product Overview
Description

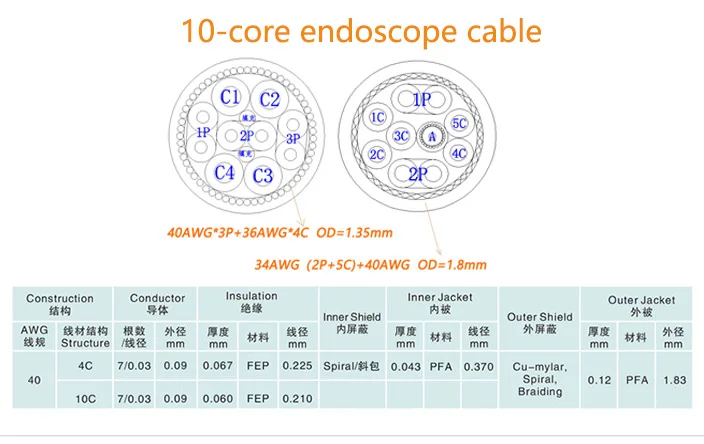

Multi-Micro Coaxial Cable For Medical Equipment 10-core endoscope cable
Products Description

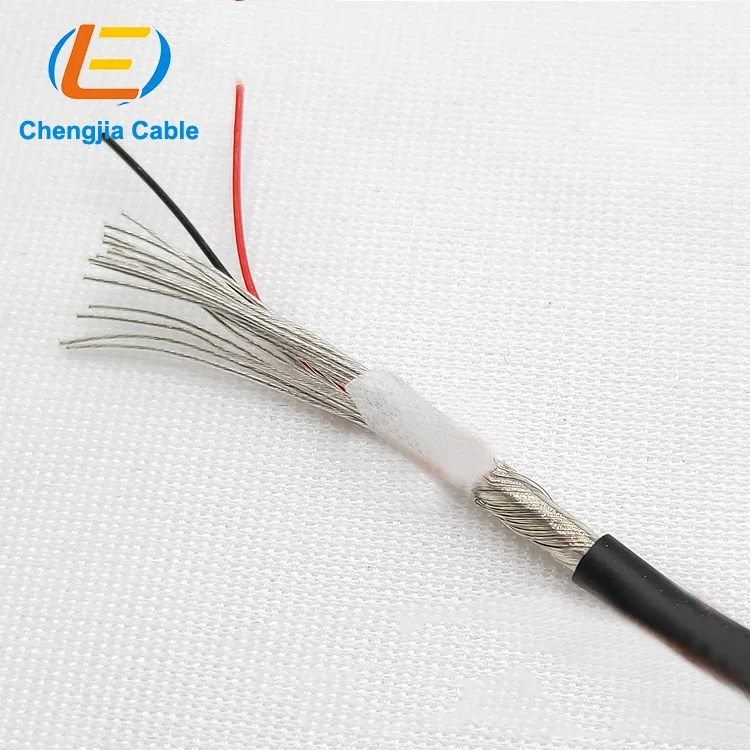

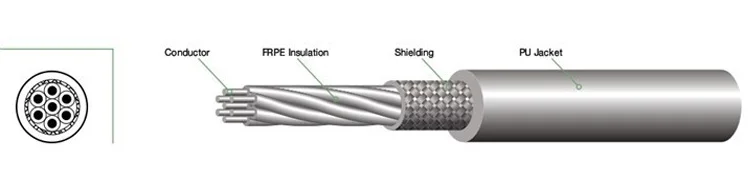

Very thin sensor cable
The 3-core sensor cable uses 36AWG (7/0.05mm) conductor Teflon as insulation and sheath, and the outer diameter of the shielded cable is smaller than
1.0mm, Chengjia company can develop various sensor cables with special requirements.
Multi-core high and low temperature resistant (-60℃-200℃) sensor cable
Suitable for sensor cables with a rated voltage and current of 600V, a rated temperature of 200°C, and a minimum ambient temperature of -60°C; its characteristic is wire
Good resistance to high and low temperature, small outer diameter, light weight, strong mechanical properties, resistance to various chemical solvents, outstanding heat aging performance
The 3-core sensor cable uses 36AWG (7/0.05mm) conductor Teflon as insulation and sheath, and the outer diameter of the shielded cable is smaller than
1.0mm, Chengjia company can develop various sensor cables with special requirements.
Multi-core high and low temperature resistant (-60℃-200℃) sensor cable
Suitable for sensor cables with a rated voltage and current of 600V, a rated temperature of 200°C, and a minimum ambient temperature of -60°C; its characteristic is wire
Good resistance to high and low temperature, small outer diameter, light weight, strong mechanical properties, resistance to various chemical solvents, outstanding heat aging performance
Endoscope cable
The endoscope cable is the signal connection between the endoscope sensor and the display. Because the endoscope needs to transmit video images and is small in size, it needs to use a very thin coaxial cable as the signal transmission line, such as the electronic bowel developed by Chengjia Company Endoscope, gastroscope, 14-core cable (4-core ultra-fine coaxial + 10-core electronic wire), the outer diameter of the finished product is less than 2mm, using Teflon as insulation, and the sheath has small diameter and light weight: and has good mechanical strength and Excellent thermal stability.
The endoscope cable is the signal connection between the endoscope sensor and the display. Because the endoscope needs to transmit video images and is small in size, it needs to use a very thin coaxial cable as the signal transmission line, such as the electronic bowel developed by Chengjia Company Endoscope, gastroscope, 14-core cable (4-core ultra-fine coaxial + 10-core electronic wire), the outer diameter of the finished product is less than 2mm, using Teflon as insulation, and the sheath has small diameter and light weight: and has good mechanical strength and Excellent thermal stability.
Product Feature
Technical Parameter
Multi-core medical sensor cable
No. | Product Code | Number of cores | Conductor structure | Approximate outer diameter （mm） | 20℃ Conductor DC resistance Ω/km |
1 | 32AWG | 2 | 7/0.08 | 2.5 | 600 |
2 | 32AWG | 5 | 7/0.08 | 3.2 | 600 |
3 | 30AWG | 5 | 10/0.08 | 3.5 | 370 |
4 | 26AWG | 5 | 30/0.08 | 3.8 | 125 |
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000
FAQ
Q Are you a manufacturer or a trading company?
A We are a manufacturer,we can control your order from the first beginning to the ast.Welcome to visit us.We’ll pick you up in Guangzhou.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
