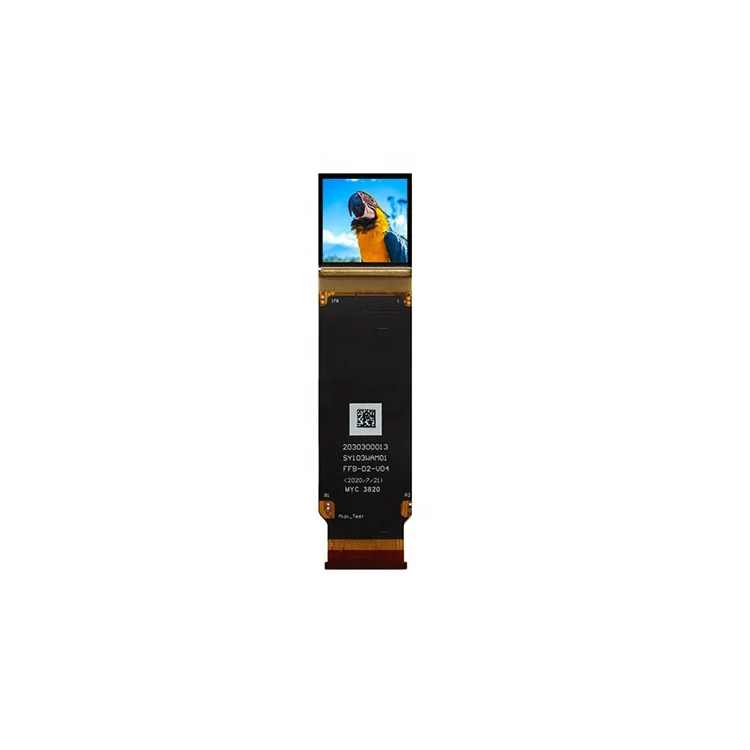

SEEYA 1.03 inch 2560X2560 1800nits micro oled display near eye display for high end binocular/digital night vision/thermal imagi
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Limited
Share on (1600430245252):
Product Overview
Description
Products Description
Driver Solution
Product Specification
Product Name | 1.03 inch micro oled display | ||||||
Item number | SY103WAM01 | ||||||
Display outline | 21.08mm7*22.765mm*1.475mm | ||||||
Active Area | 18.432mm*18.432mm | ||||||
Resolution | 2560*2560 | ||||||
Brightness | 1800nits/3000nits | ||||||
Contrast ratio | 500000:1 | ||||||
Frame rate | 60Hz~90Hz | ||||||
Interface | MIPI | ||||||
Color | Full RGB | ||||||
Weight | 2g | ||||||
Operating Temperature | -20°C to +70°C | ||||||
Storage Temperature | -40°C to +80°C | ||||||
Product List
Company Profile
Packaging And Shipping
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to Southern Europe(30.00%),South America(20.00%),Southeast
Asia(20.00%),Eastern Europe(15.00%),North America(15.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LCD/ OLED Display Module,UART lcd display,Embedded Display Module,HDMI solution,sunlight readable lcd display
4. Why should you buy from us not from other suppliers?
Independent R&D team focus on TFT lcd display, UART lcd display and HDMI solutions; Own factory with competitive price and fast delivery date.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,French
