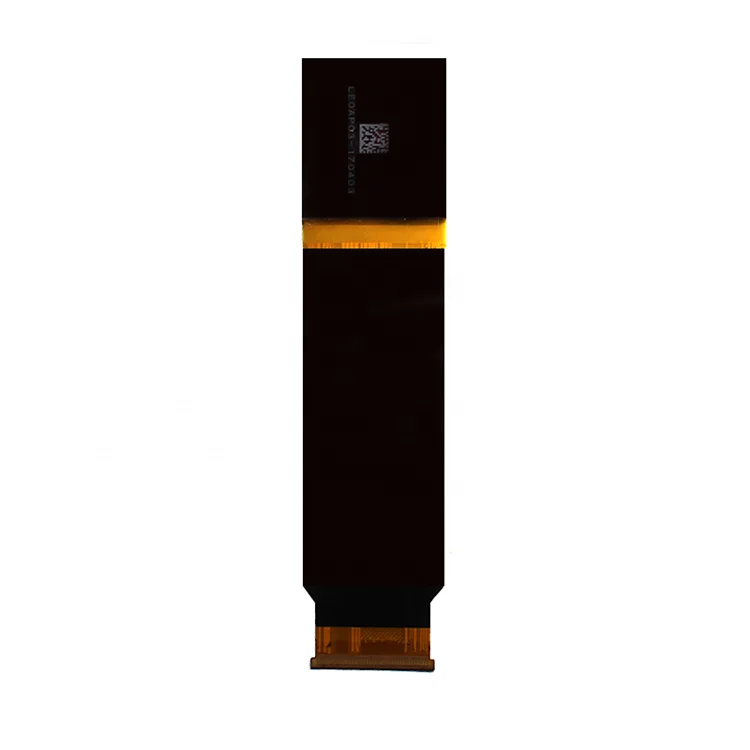

SY083WAM01 0.83 Inch High Resolution Micro OLED Display with driver board 2560*1440 Mipi Dsi Interface Oled
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Limited
Share on (1600430246236):
Product Overview
Description
Products Description

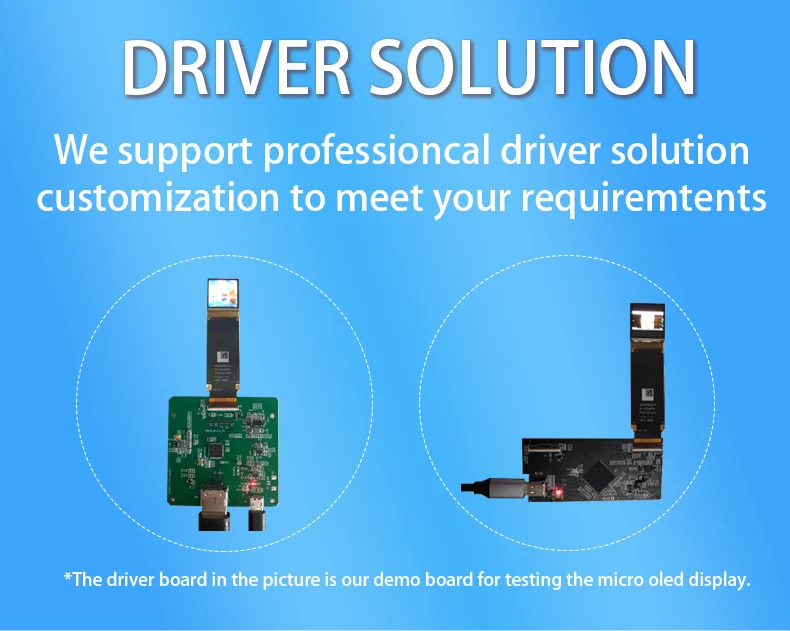

Driver Solution
Product Specification
Product Name | 0.83 inch micro oled display | ||||||
Item Number | SY083WAM01 | ||||||
Display outline | 21.087mm*22.765mm*1.475mm | ||||||
Active Area | 18.432mm*10.368mm | ||||||
Resolution | 2560*1440 | ||||||
Brightness | 1800nits | ||||||
Contrast ratio | 500000:1 | ||||||
Frame rate | 60Hz~90Hz | ||||||
Interface | MIPI | ||||||
Color | Full RGB | ||||||
Weight | 2g | ||||||
Operating Temperature | -20°C to +70°C | ||||||
Storage Temperature | -40°C to +80°C | ||||||
Product List
Company Profile
1.The world’s first factory to produce OLEDoS displays on 12 inch wafers,The factory covers 43,000 ㎡with full capacity is 9000 12inch wafer per year.
2. More than 90% of the team members have R&D, design, and process experiences. We commit to provide our clients with high-value products and outstanding services.
3. Toward a high industrial standard and environment friendly manufacturer, the factoryhas been granted Integrated Management Systems Certificate, including environmental management system (ISO14001:2015), occupational health and safety management system (ISO45001:2018), and quality management system (ISO9001:2015).
4.By January 2021, we has 28 patents and 160 patent applications in process. The patents and applications are related to driving circuit, light-emitting devices, process technology, chip level optics, and system level optics and mechanics for near-eye displays.
Packaging And Shipping
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to Southern Europe(30.00%),South America(20.00%),Southeast
Asia(20.00%),Eastern Europe(15.00%),North America(15.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LCD/ OLED Display Module,UART lcd display,Embedded Display Module,HDMI solution,sunlight readable lcd display
4. Why should you buy from us not from other suppliers?
Independent R&D team focus on TFT lcd display, UART lcd display and HDMI solutions; Own factory with competitive price and fast
delivery date.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,French
