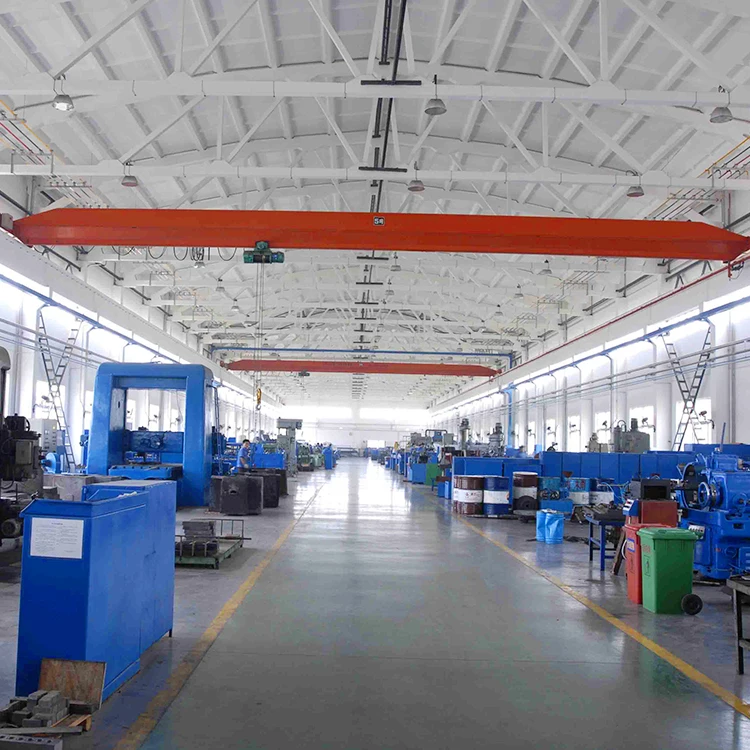

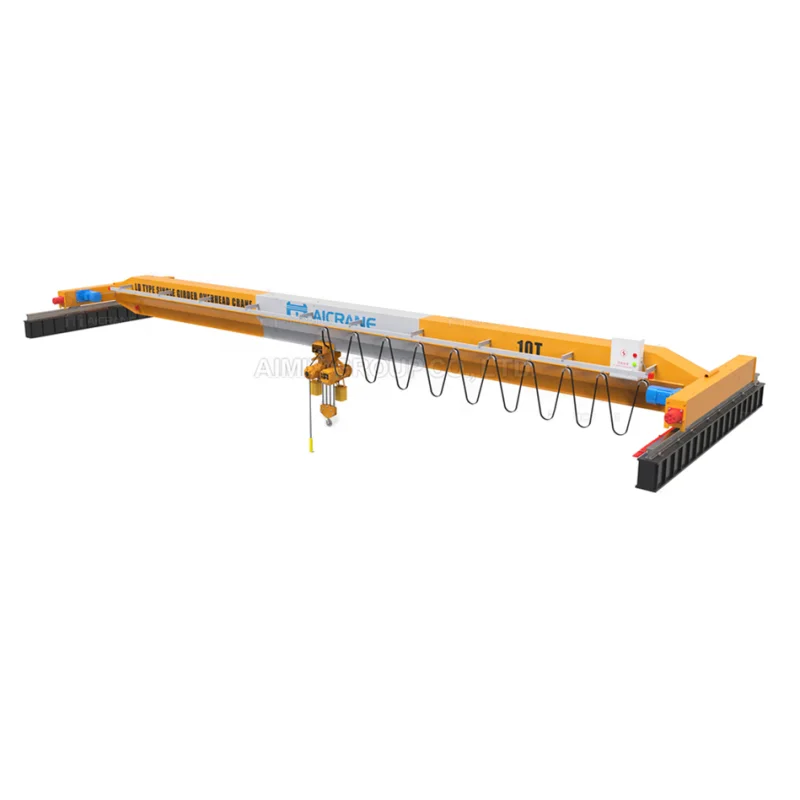

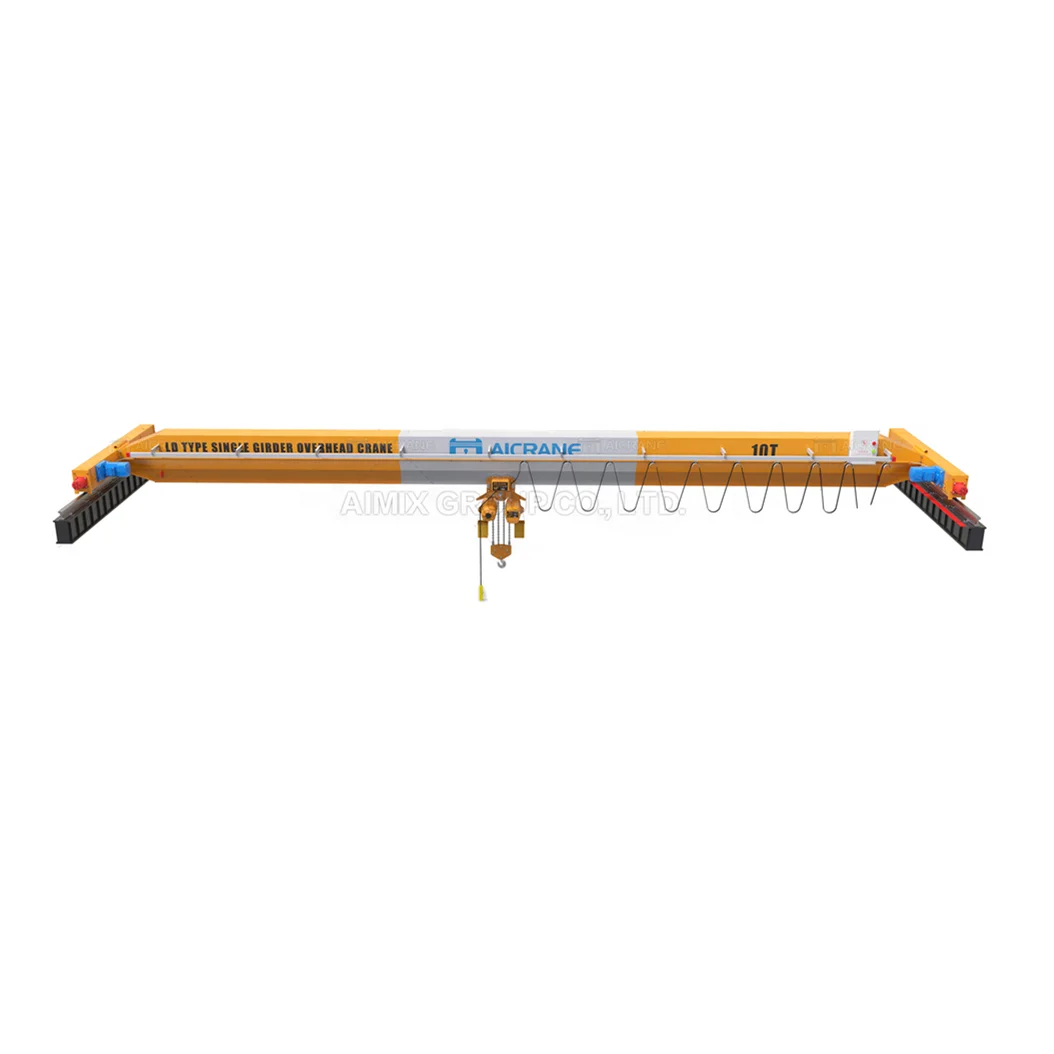

Single girder 5t 10t 30t overhead crane bridge crane with remote control
- Category: >>>
- Supplier: Aimix Group Co. Ltd.
Share on (1600430266270):
Product Overview
Description
Specification
Technical Parameter of LD Single Girder Overhead Crane | ||||||||||
Capacity | t | 1 | 2 | 3 | 5 | |||||
Span | S(m) | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | |||||
Lifting height | m | 6~30 | 6~30 | 6~30 | 6~30 | |||||
Lifting speed | m/min | 8（0.8/8） | 8（0.8/8） | 8（0.8/8） | 8（0.8/8） | |||||
Trolley speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | |||||
Crane speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | |||||
Work duty | A3~A4 | A3~A4 | A3~A4 | A3~A4 | ||||||
Track type | P18 | P18 P24 | P24 | P24 | ||||||
Capacity | t | 10 | 16 | 20 | 25 |
Span | S(m) | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~25.5 |
Lifting height | m | 9~30 | 9~30 | 9~30 | 9~30 |
Lifting speed | m/min | 7（0.7/7） | 3.5（0.35/3.5） | 3.3（0.33/3.3） | 3（0.3/3） |
Trolley speed | m/min | 20(30) | 18 | 14 | 16 |
Crane speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) |
Work duty | A3~A4 | A3~A4 | A3~A4 | A3~A4 | |
Track type | P24 P30 | P30 P38 | P38 P43 | P38 P43 |
Product Description

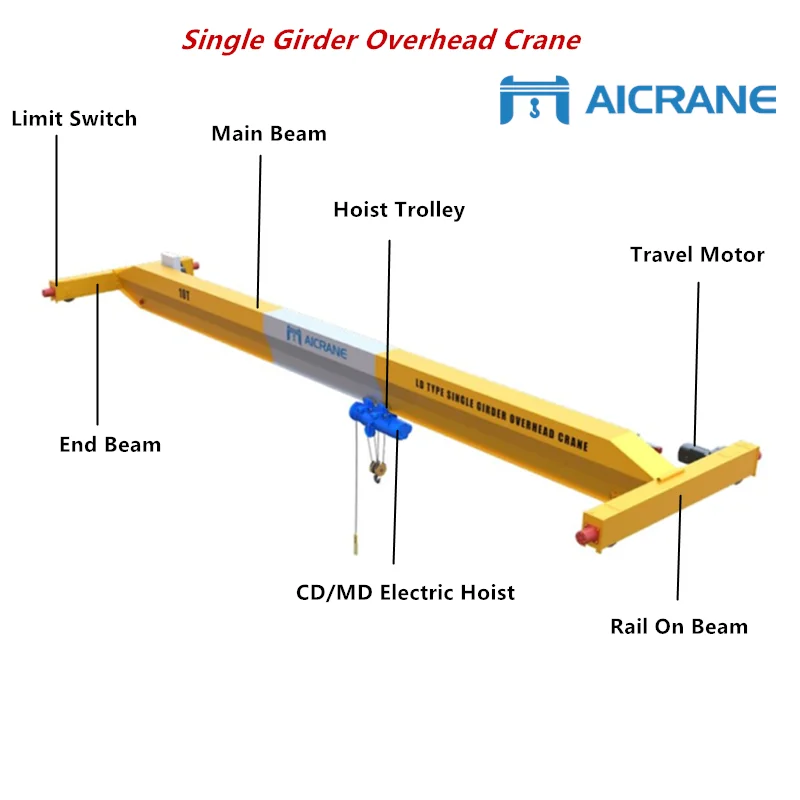

Single Grider Overhead Crane

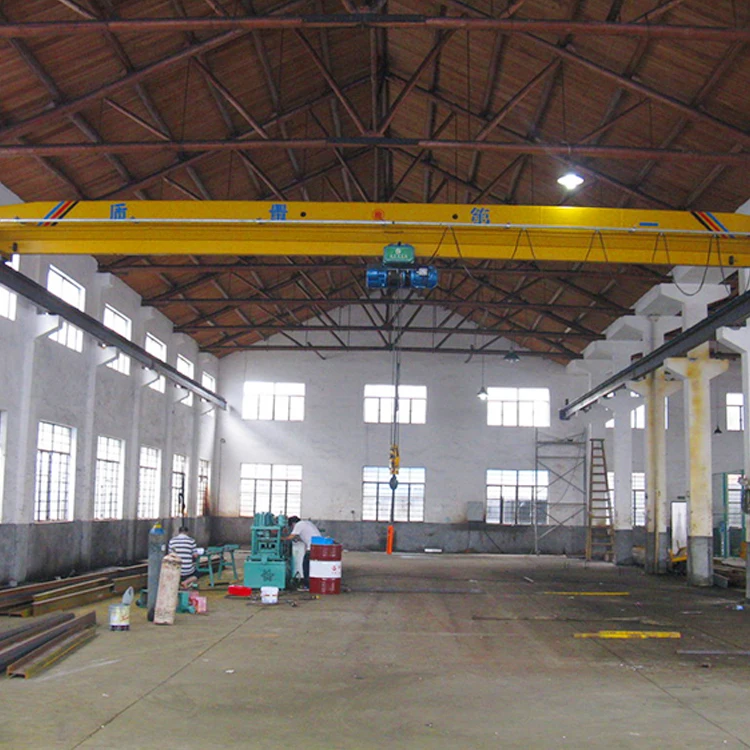

Single girder overhead crane is the most effective hoisting equipment used in plant or workshop. Overhead crane can travel on top of runway, so it’s also called bridge crane. There is also another type of overhead crane called single girder
underhung/suspension crane. It travels under the runway which is fixed on roof of plant. With single girder overhead crane, you can achieve six motions: up, down, left, right, forward,back.
underhung/suspension crane. It travels under the runway which is fixed on roof of plant. With single girder overhead crane, you can achieve six motions: up, down, left, right, forward,back.

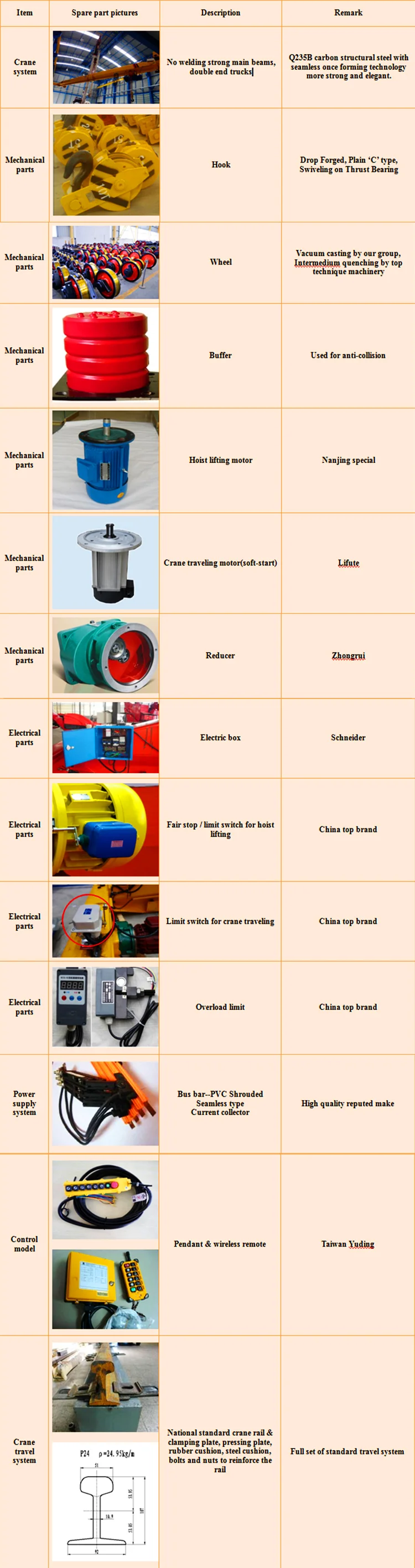

Product Details
Company Profile
AIMIX Group Co.,Ltd, located in China biggest machinery manufacture base Henan, is a large professional industry and trade integration enterprise in Crane, Winch, Construction Machinery, etc. We have five factories to provide the manufacture, design, customized solution and after service for worldwide customers.
AIMIX management team is from the senior managers of public company , and senior experts in crane industry. We attach great importance to talents and take "Education ahead, People first" as our principle . Advanced training system, normative business system, strict products control system and perfect after-service system are our development guarantee. Young blood, open & simple and efficient & pragmatic are our team features. AIMIX takes "Pushing the rise of Central China, serving the global customers" as its duty , and takes "Getting together for love, prosperity for ability" as operation principle , we advocate to optimize team by love , and operate the business by the heart , and devote to become the biggest machinery integration supplier of Central China .
AIMIX management team is from the senior managers of public company , and senior experts in crane industry. We attach great importance to talents and take "Education ahead, People first" as our principle . Advanced training system, normative business system, strict products control system and perfect after-service system are our development guarantee. Young blood, open & simple and efficient & pragmatic are our team features. AIMIX takes "Pushing the rise of Central China, serving the global customers" as its duty , and takes "Getting together for love, prosperity for ability" as operation principle , we advocate to optimize team by love , and operate the business by the heart , and devote to become the biggest machinery integration supplier of Central China .

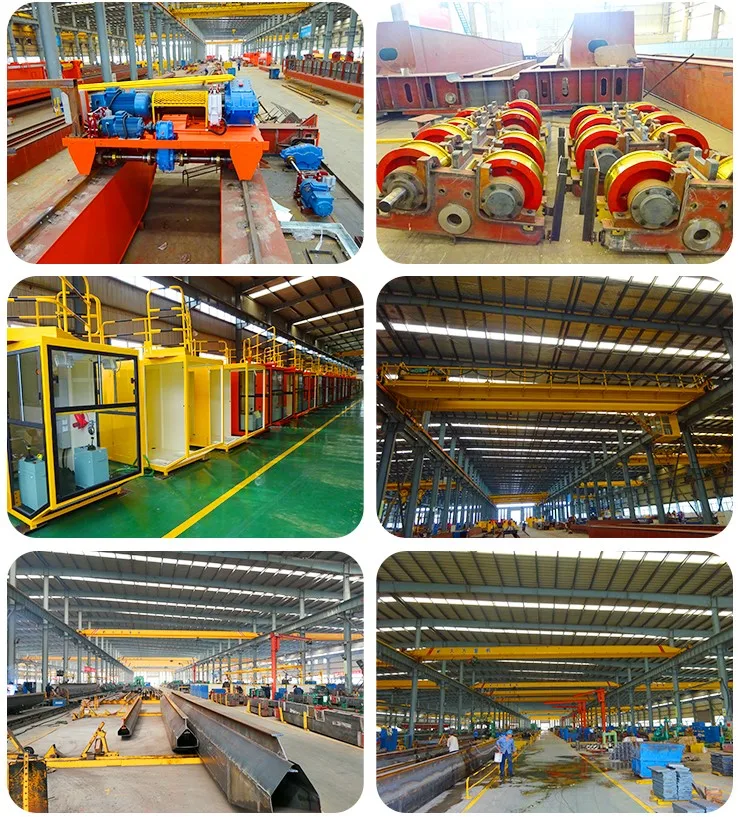

Our Factory
Customer Visit

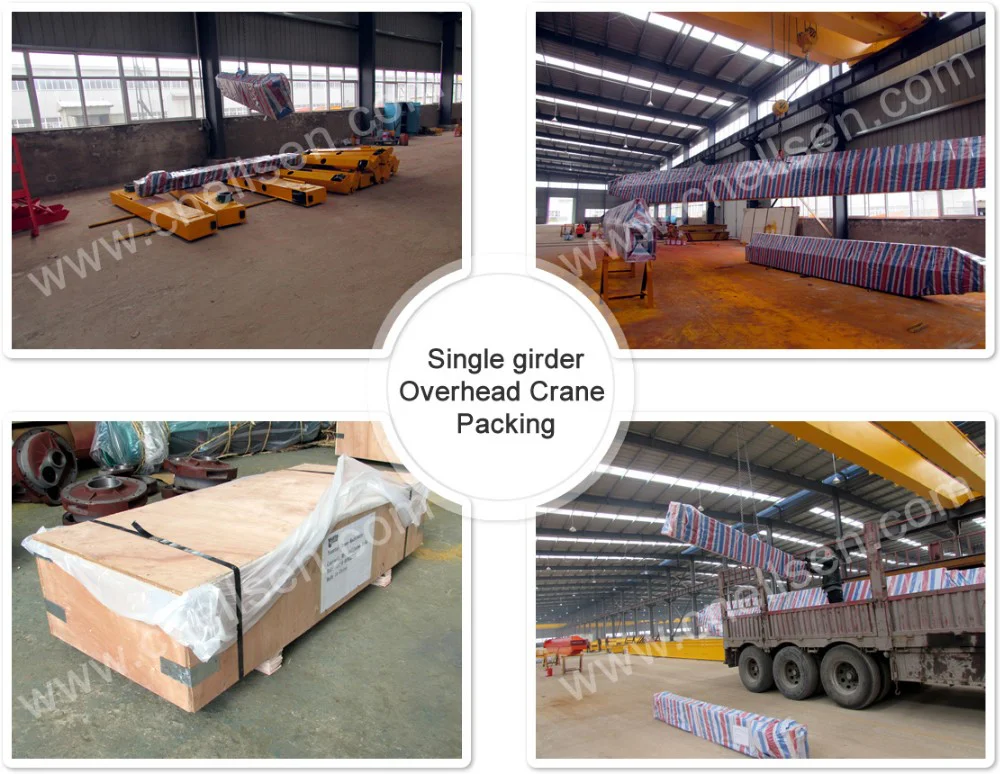

Packing & Delivery
