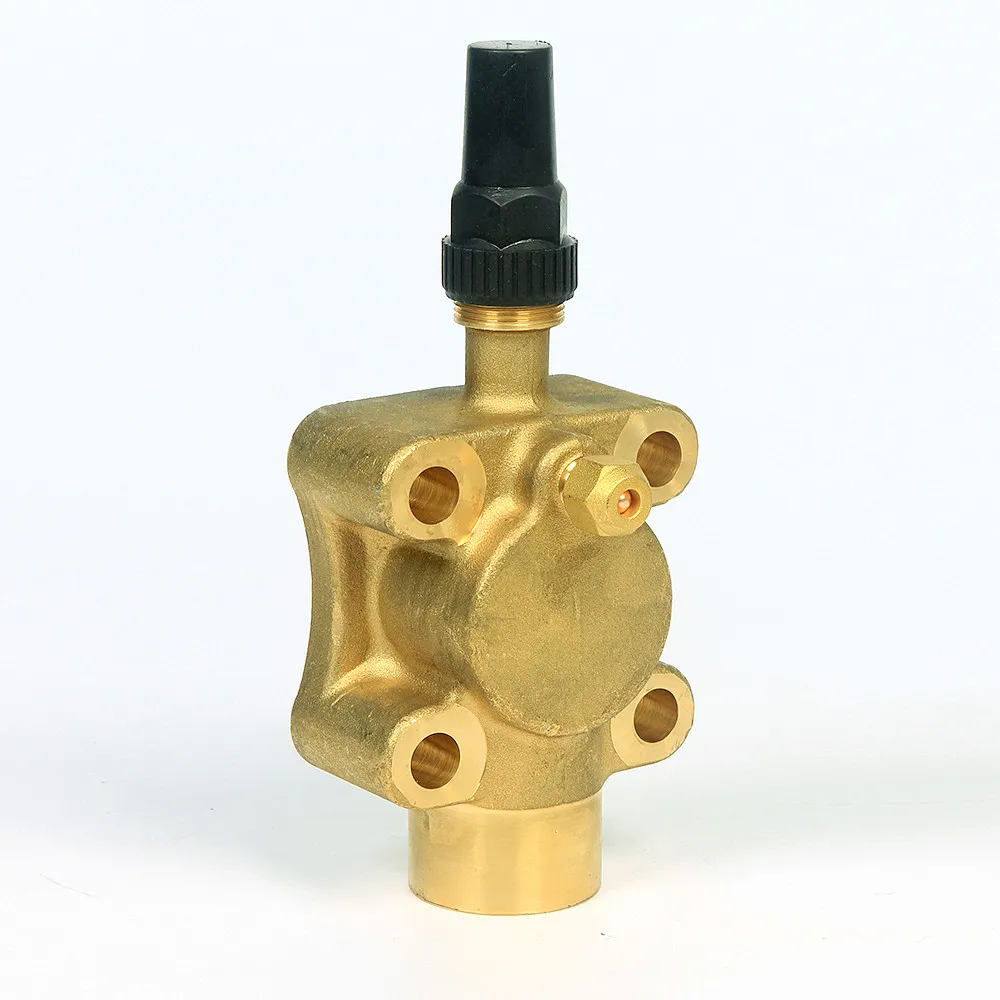

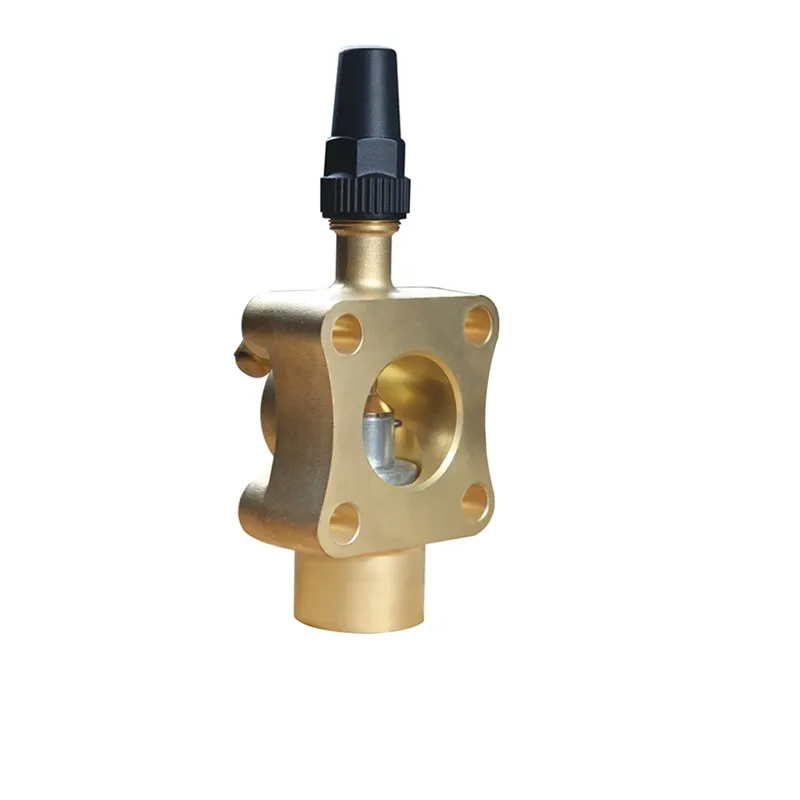

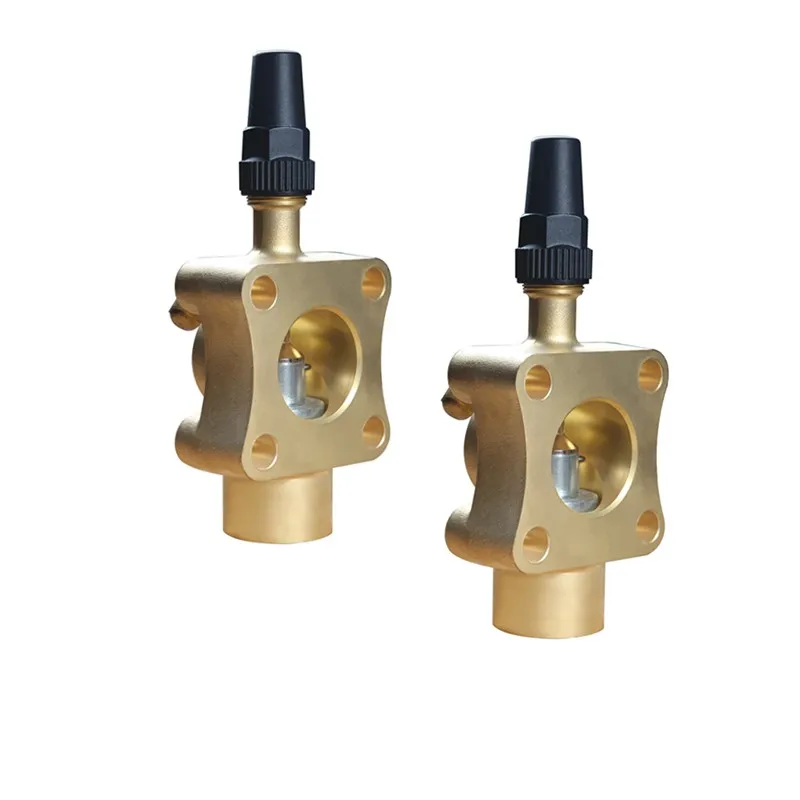

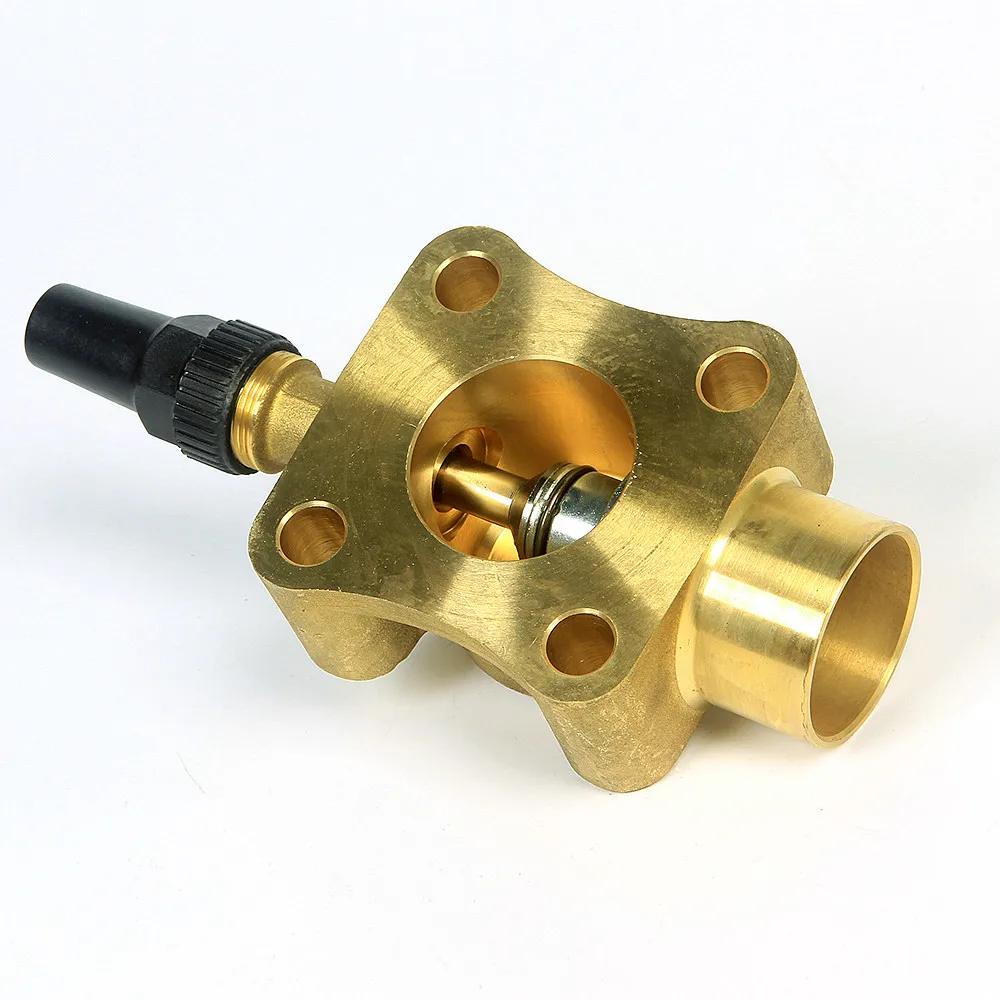

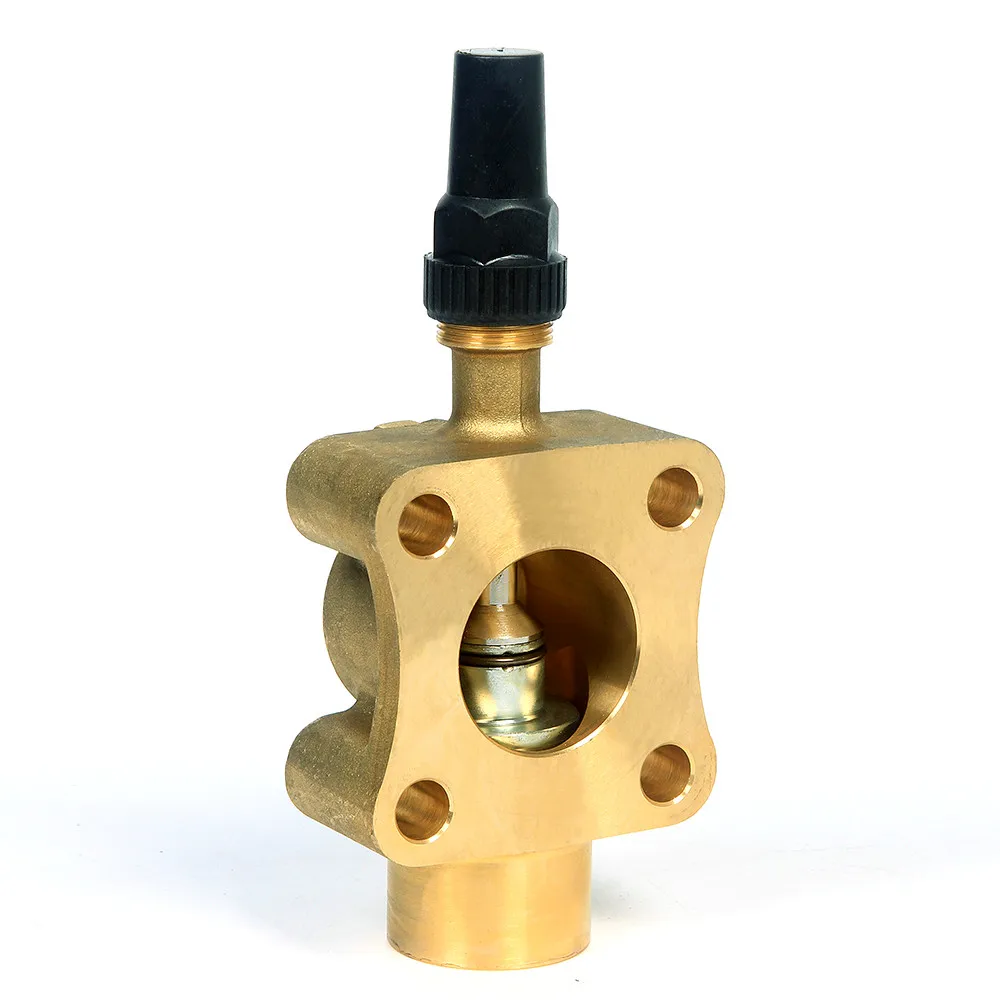

Brass copper carrier compressor suction shut off globe valve for carrier compressor

Product Overview

Description

1.Test pressure : 4.5Mpa ;

2.Suitable temperature range : -40 to 150 ;

3.Suitable medium : R22 ,R504 ,R407C ,R404A ,R134A etc refrigerant oil ;

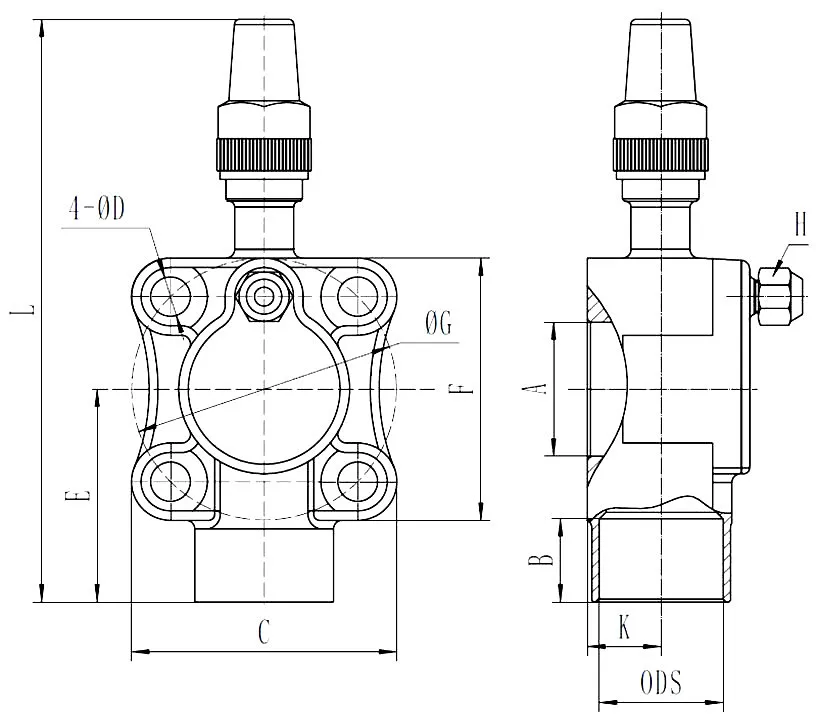

Model	φA	φODS	B	C	4-φD	E	F	φG	L	K	H
J4BS/28	46	28.8	25	90	13.5	73	90	90	200	25	7/16-20UNF
J4BS/35	46	35	28.5	90	13.5	73	90	90	200	25	7/16-20UNF
J4BS/42	46	42	28.5	90	13.5	73	90	90	200	25	7/16-20UNF
