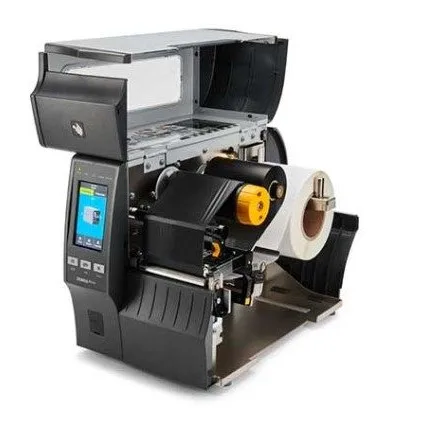

Zebra ZT411 300dpi high performance new Industrial Printer

Printer Specifications

Resolution:
•    203 dpi/8 dots per mm
•    300 dpi/12 dots per mm (optional)
•    600 dpi/24 dots per mm (optional)
Memory:
•    256 MB RAM memory
•    512 MB Flash memory
Maximum Print Width: 4.09"/104 mm
Maximum Print Speed: 14 ips/356 mm per second
Media Sensors:
•    Adjustable dual media sensors: transmissive and reflective

Media Characteristics

1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter

1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

Maximum Media Roll Size: 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core


Thickness: 0.0023 in./0.058 mm to 0.010 in./0.25 mm

Media Types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Outside diameter: 450 m: 3.2"/81.3 mm O.D. on a 1.0"/25.4 mm I.D. core
Standard length: 1476′/450 m
Width: 2.00"/51 mm to 4.33"/110 mm
Ribbon setup: Ribbon Wound ink-side out:  Ribbon wound ink-side in can be used with the optional ribbon spindle.

Environmental

Operating Environment
•    Thermal transfer: 40º to 104ºF/5º to 40ºC
•    Thermal direct: 32º to 104ºF/0º to 40ºC
Storage/Transportation Environment:
•    -40º to 140ºF/-40º to 60ºC

Physical Characteristics

Width:    10.6"/269 mm
Height:    12.75"/324 mm
Depth:    19.50"/495 mm
Weight:    36 lb./16.33 kg

barcodes/Symbologies

•    Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
•    2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Options and Accessories

Communication
•    Parallel (Bi-directional interface)
•    Wireless:  ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features
Media Handling
•    Rewind:   internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only)
•    Peel - A front mount, passive peel option
•    Peel - Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base
•    Cutter:  A front mount guillotine cutter and catch tray, 1" ID Core Media Supply Hanger
•    Ink-side in ribbon supply spindle
RFID
•    Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C
•    Prints and encodes tags with a minimum pitch of 0.6"/16 mm
•    Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
Keyboard Display Unit
•    Supports KDU Plus™ and ZKDU - Enter variable data and retrieve stored forms for standalone applications
