7680hz Screen Manufacturer XR Studio Background Led Wall Indoor 3D Immersive HD led Display Movie Virtual Production Led Screen
- Category: >>>
- Supplier: Shenzhen Chip Optech Co. Ltd.
Share on (1600430294691):
Product Overview
Description

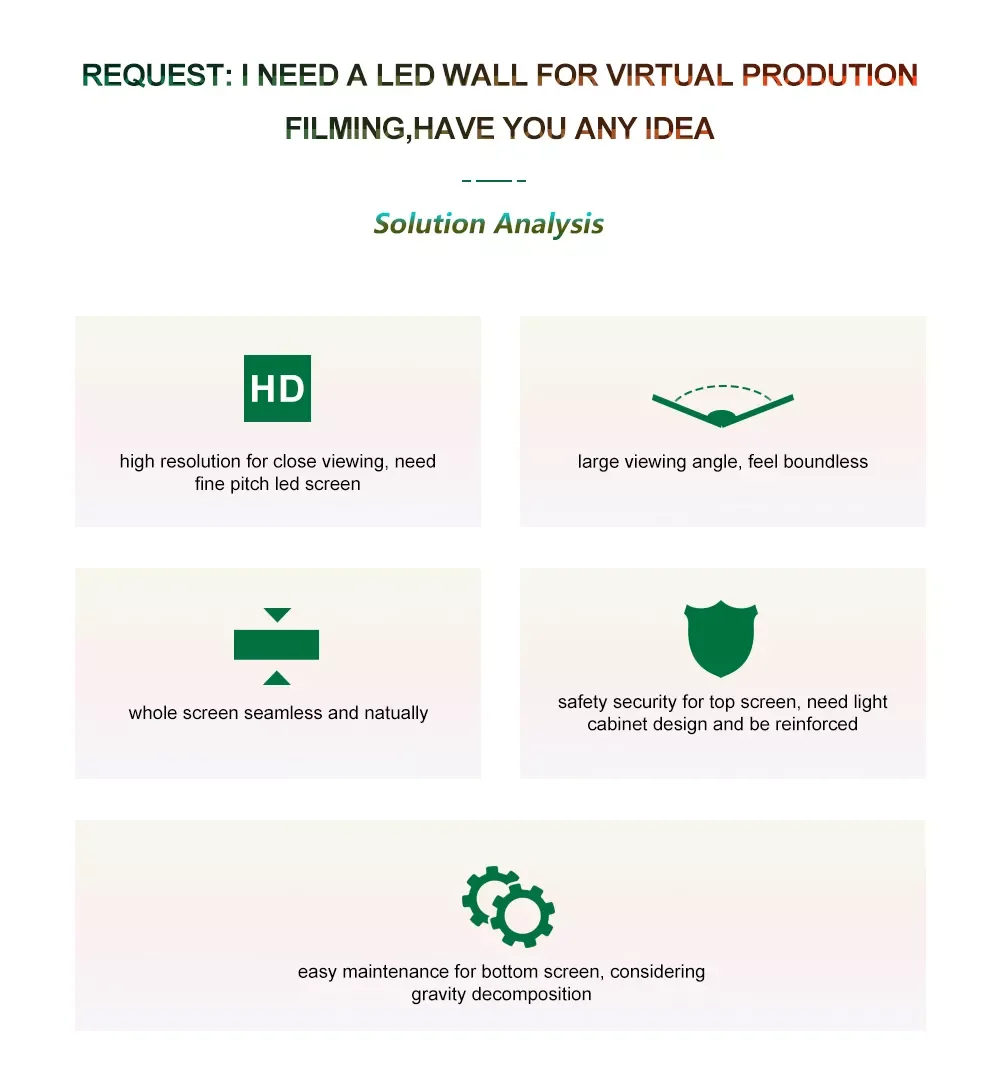

Solution Analysis
Products Description
P2.6 HD led display for virtual production Movie Studio /XR Studio
With the development of led display and film virtual production , under the era of Epidemic situation, people are restricted in limited indoor space.
XR combines a high-performance LED screen, simultaneous capture, and real-time rendering with camera tracking. It allows movie studio to create any environment and any weather without any time limit and economic also. It allows for the creation of highly realistic content without further post-production.
The production model is shifting, and so are our capabilities. Chipshow's LED panels can create immersive and dynamic LED volumes and execute XR productions for live streaming events, artistic collaborations, and film-making, immersive concert. Our premium LED products (wall/floor/ceiling) replace the traditional green screen, allowing for quick content iteration. They combine perfectly with camera motion tracking to ensure accurate capture and make creativity infinite.
Product Advantage
1. Customized 8scan, 16scan realize High refresh rate 7680hz, 6 scan according to customer's requirement.
2. High frame rate with special and famous control systems ( if you want to know more detail , please feel free to contact me ).
3. Low latency to meet demand of your motion tracking in camera.
4. Total black golden wire led lamps realize DCI-P3 color gamut , which will show colors that close to the image we watch by eyes.
Specification
Model | P2.6 indoor (curve optional ) | P2.9 outdoor for ceiling screen (optional ) | |
Pixel pitch | 2.604mm | 2.976/3.91mm | |
Led brand | nationstar SMD1515 Black | nationstar SMD1921 | |
Control system | Brompton /Novastar/Megapixel | ||
Drive mode | 1/8 scan 1/12 scan 1/16 scan 1/6 scan if required | 1/28scan | |
Refresh rate | 7680hz | 3840hz | |
Grey scale | 18bit | 16bit | |
Brightness | 1000-1200nits | 5000-5500nits | |
Pixel density | 147456dots/sqm | 112896dots/sqm | |
Module size | 250*250mm | 250*250mm | |
Module resolution | 96*96 | 84*84 | |
Cabinet size | 500*500mm | 500*500mm | |
cabinet resolution | 192*192 | 168*168 | |
Working temperature | -20℃~+50℃ | -20℃~+50℃ | |
Life Span | >100,000 Hours | >100,000 Hours | |
Certificate | CE ROHS FCC | CE ROHS FCC | |
Protection grade | IP43 | IP65 | |
Working temperature | -20℃~+50℃ | -20℃~+50℃ | |
Operating Humidity | 10%~90% RH | 10%~90% RH | |

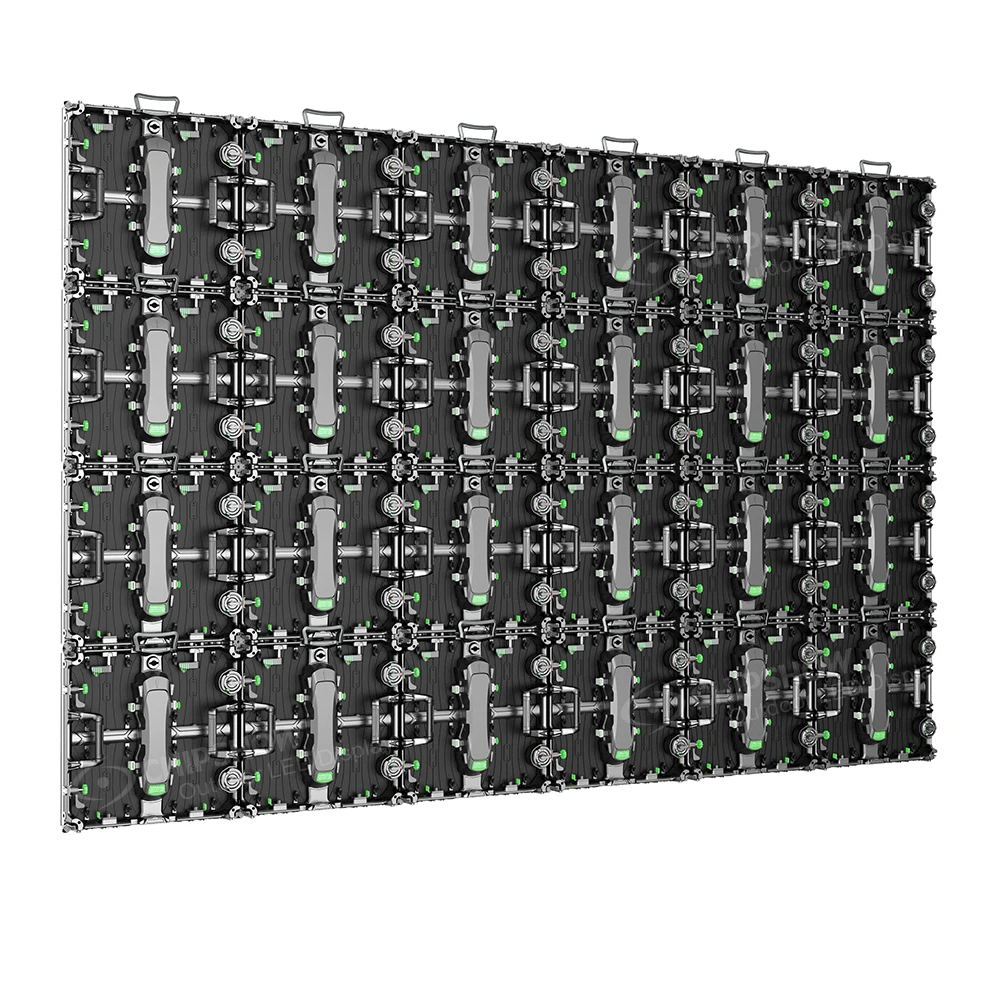

Screen Detail Photos

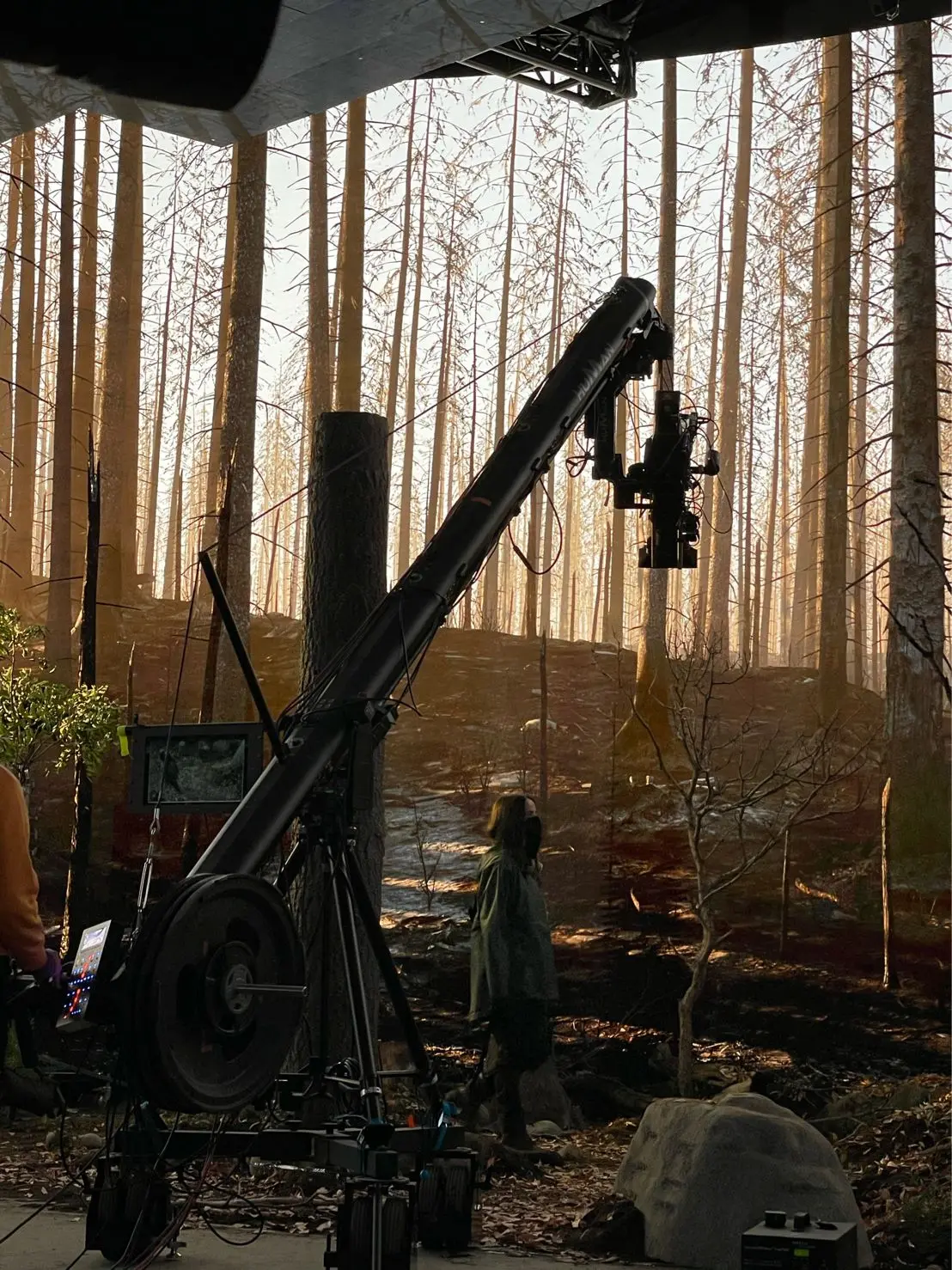

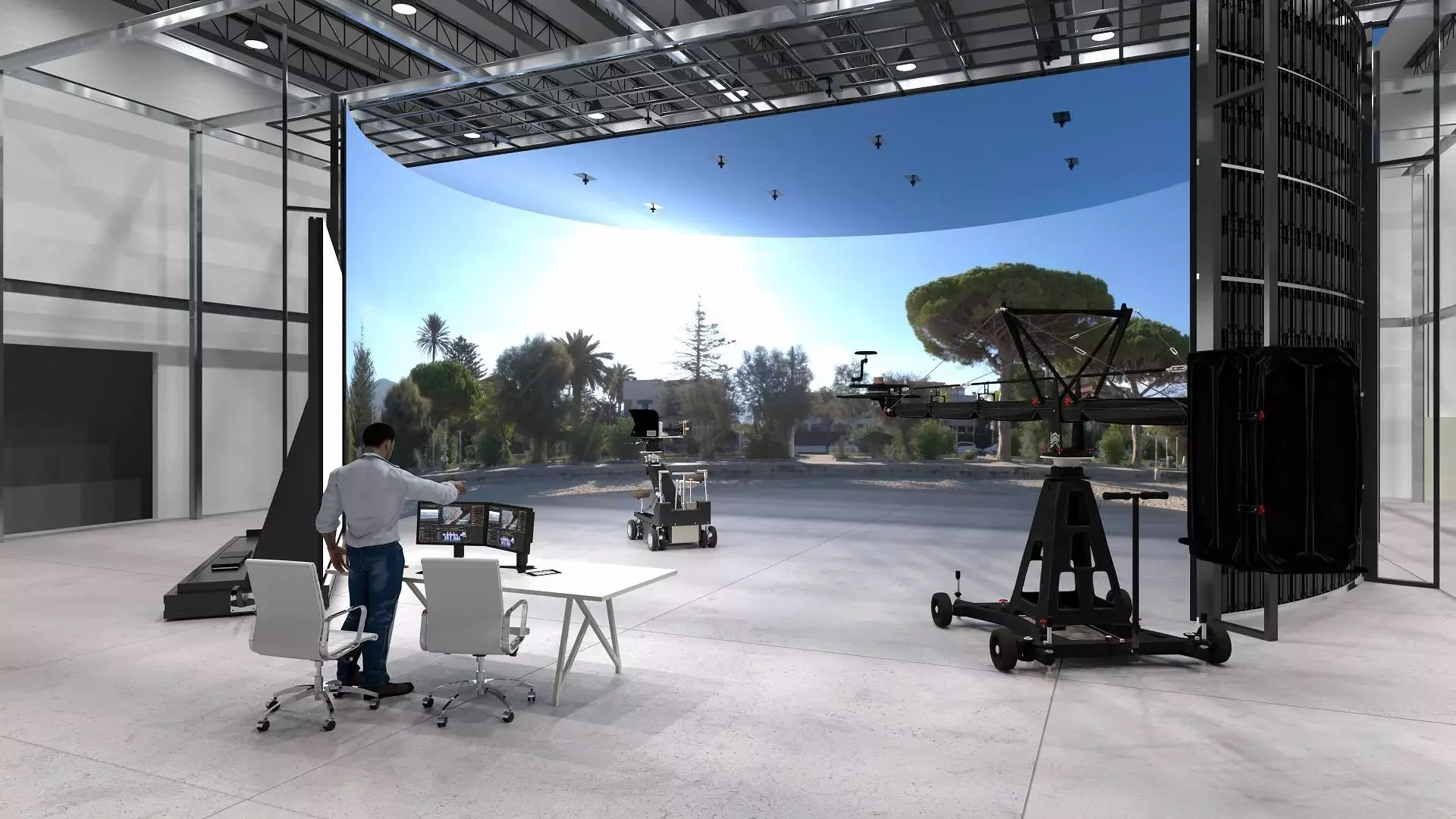

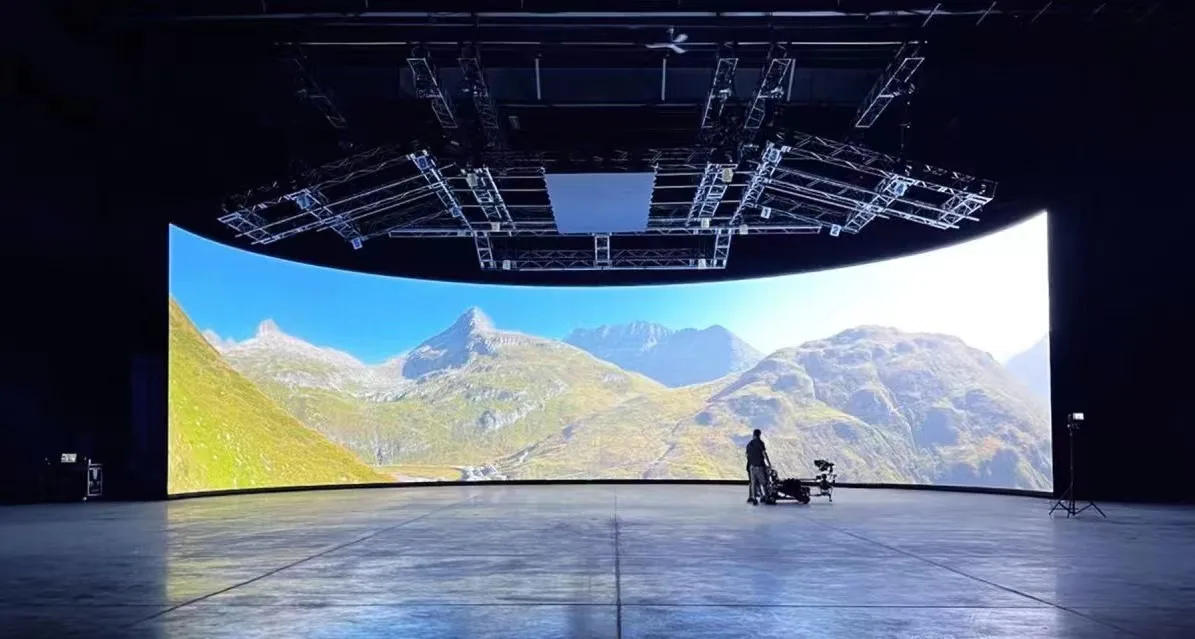

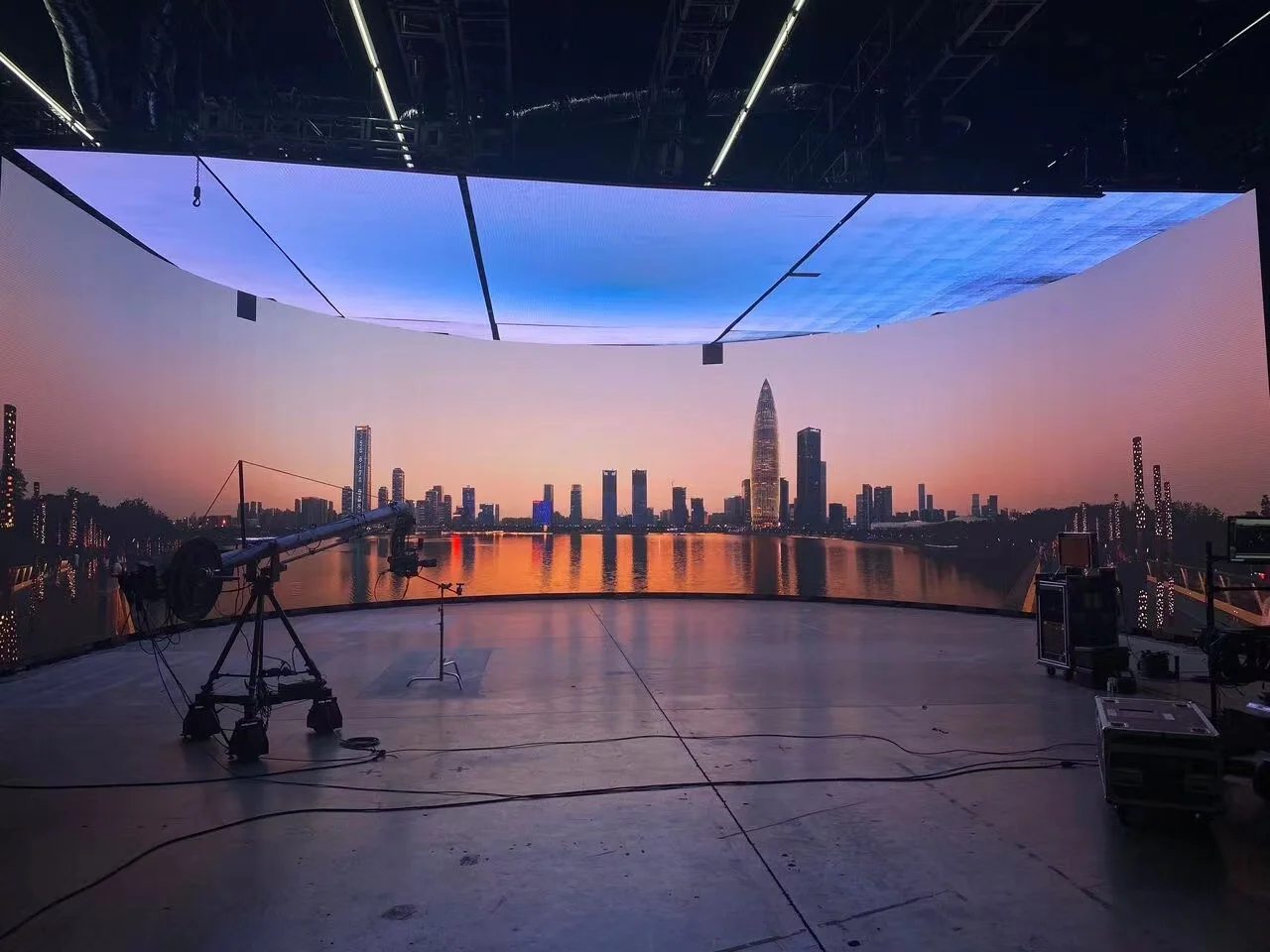

Case application
Company and Exhibition
Why Choose Us
Product packaging
CHIPSHOW | 22 Years |
FAQ
Q:Who Are We?

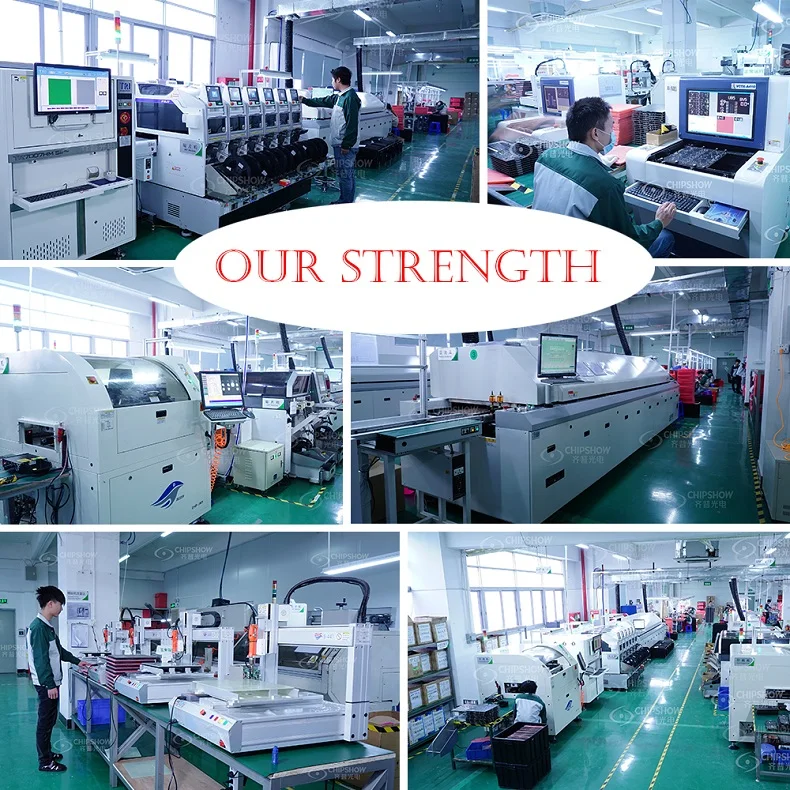

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees, 25 research engineers, 20 after-sale technicians, 5000sqm productivity each month.
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q:What Can You Buy From US?
A: LED Display, LED Screen, LED Sign, LED modules, LED billboard, etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen.
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q:What Can You Buy From US?
A: LED Display, LED Screen, LED Sign, LED modules, LED billboard, etc.
Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen.
