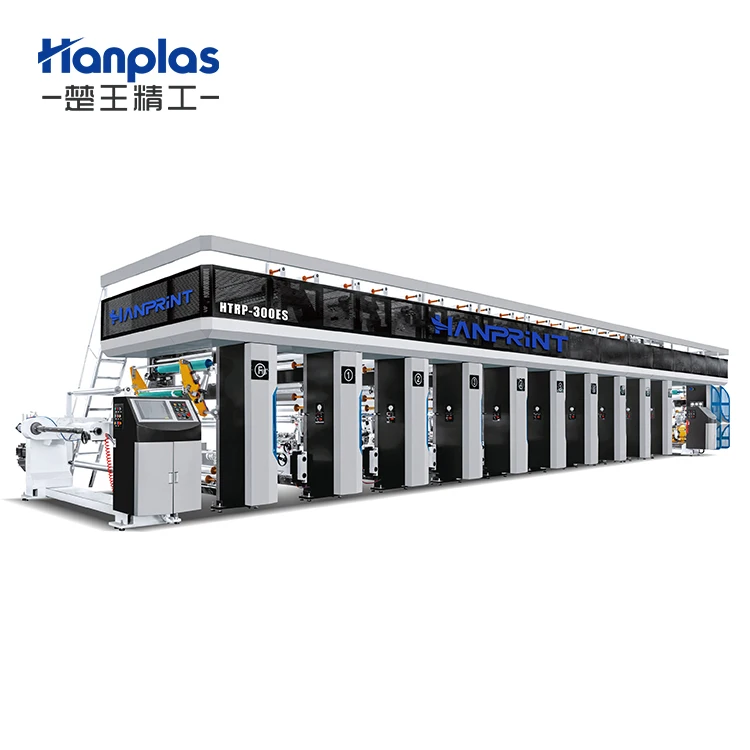

HTRP 300ES High Speed Electronical Line Shaft Rotogravure Plastic Film Roll Printing Machine
- Category: Printing Machine >>>
- Supplier: Suzhou,Hanplas,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Details & Specification
Brief introduction:
This high speed rotogravure printing machine price is competitive, it is suitable for roll to roll printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. We have mini 2 color up to 12colors for customer choice. speed from 180m/min up to 350m/mim. It is widely used in high-quality packaging material printing.
Details please contact us freely.
Details please contact us freely.
Feature:
Adopt many advanced European technology
300m/min printing speed, automatic splicing without speed down

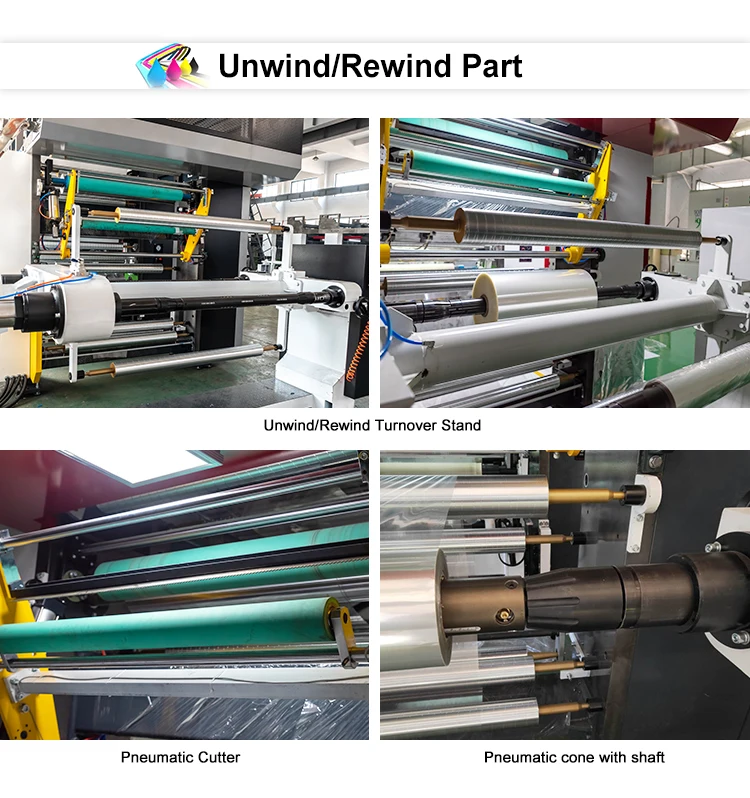

Unwind/rewind frame integrated designed with driving part, save more space
Motor drive unwind and rewind directly, reduce the intermediate transmission link
3D spatial formula vortex nozzle, air volume frequency conversion control
Domestic leading electronic shaft control system, automatic register both vertical and horizontal, centralized control panel
With pre-heating, proceed EPC, ink passing roller, stroboscope, reverse printing and so on.
300m/min printing speed, automatic splicing without speed down
Unwind/rewind frame integrated designed with driving part, save more space
Motor drive unwind and rewind directly, reduce the intermediate transmission link
3D spatial formula vortex nozzle, air volume frequency conversion control
Domestic leading electronic shaft control system, automatic register both vertical and horizontal, centralized control panel
With pre-heating, proceed EPC, ink passing roller, stroboscope, reverse printing and so on.
Main technical parameters:
Print flow direction | from left to right |
Printing color number | 8 |
Max. Printing width | 1050mm |
Max mechanical Speed | 300m/min (Plate cylinder dia. 170mm) |
Max. Printing Speed | 280m/min (Plate cylinder dia. 170mm) |
(the actual speed depends on the material, plate cylinder, ink… ) | |
Plate cylinder dia. | Ф120mm-Ф300mm |
Plate cylinder width | 850-1100mm (with extend cone, the min. Width is 750mm） |
Color control precision | Vertical: ±0.08mm (automatic) |
Horizontal: ±0.08mm (automatic) | |
Max. Unwind dia. | ∮800mm (Pneumatic cone with air shaft) |
Max. Rewind dia. | ∮800mm (Pneumatic cone with air shaft) |
Tension adjusting range | 3-30kg |
Unwind & Rewind air shaft | 3” pneumatic cone with air shaft |
Paper core | Ф76mm (inside dia.) |
Air supply pressure | 0.6Mpa |
Press of impression | 600kg |
Doctor move range | ±5mm |
Dry method | electricity |
Max. Temp. in dryer | 80 ℃ (environment temp. 20℃) |
Cooling method | Water cooling |
Total power: | about 325kw |
Heating power: | 27KW/Unit*8=216KW |
Weight: | About 45000kg |
Voltage: | 380V, 50HZ |
Base material & compound material:
PET | PE | NY | BOPP /OPP | CPP | ||||
12-60um | 40-70um | 12-50um | 18-60um | 20-60um | ||||
And some other film familiar with that above. | ||||||||
Notice:
As well we continuously keep working on research and improvement our machine, we might change the specifications, design and characteristics on this table.
Please refer to the inquiry results for actual specifications
Please refer to the inquiry results for actual specifications
