Crane vacuum lifter, glass loading machine, pneumatic glass transfer arm manipulator
- Category: >>>
- Supplier: Henan,Eternalwin,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

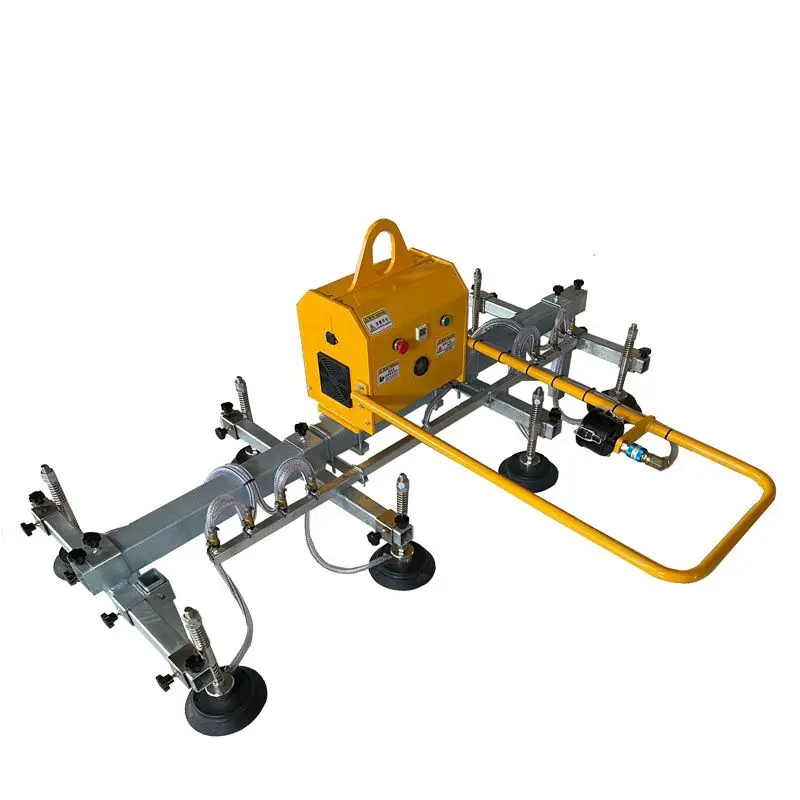

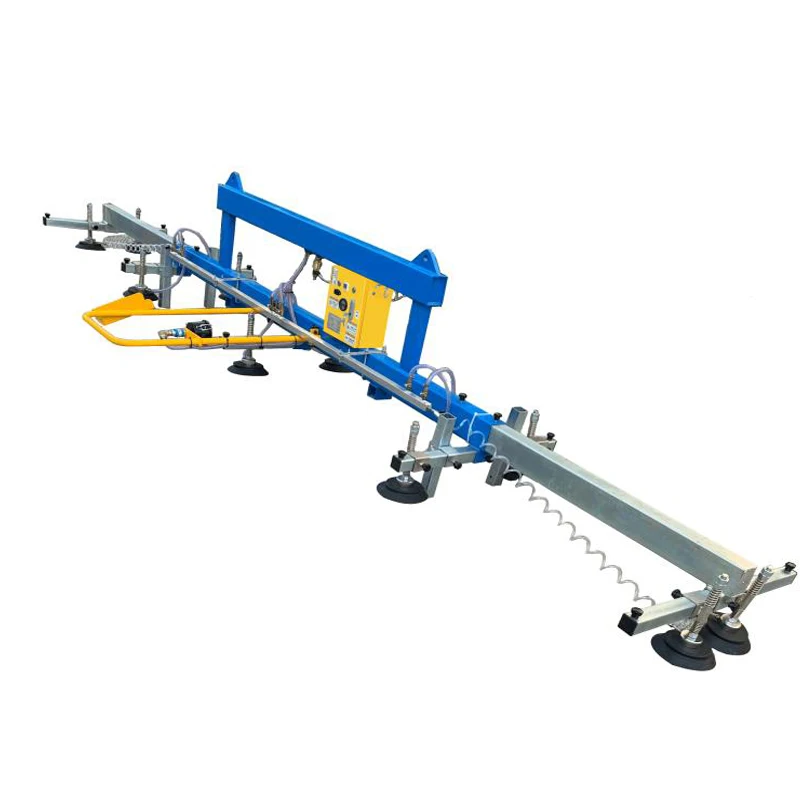

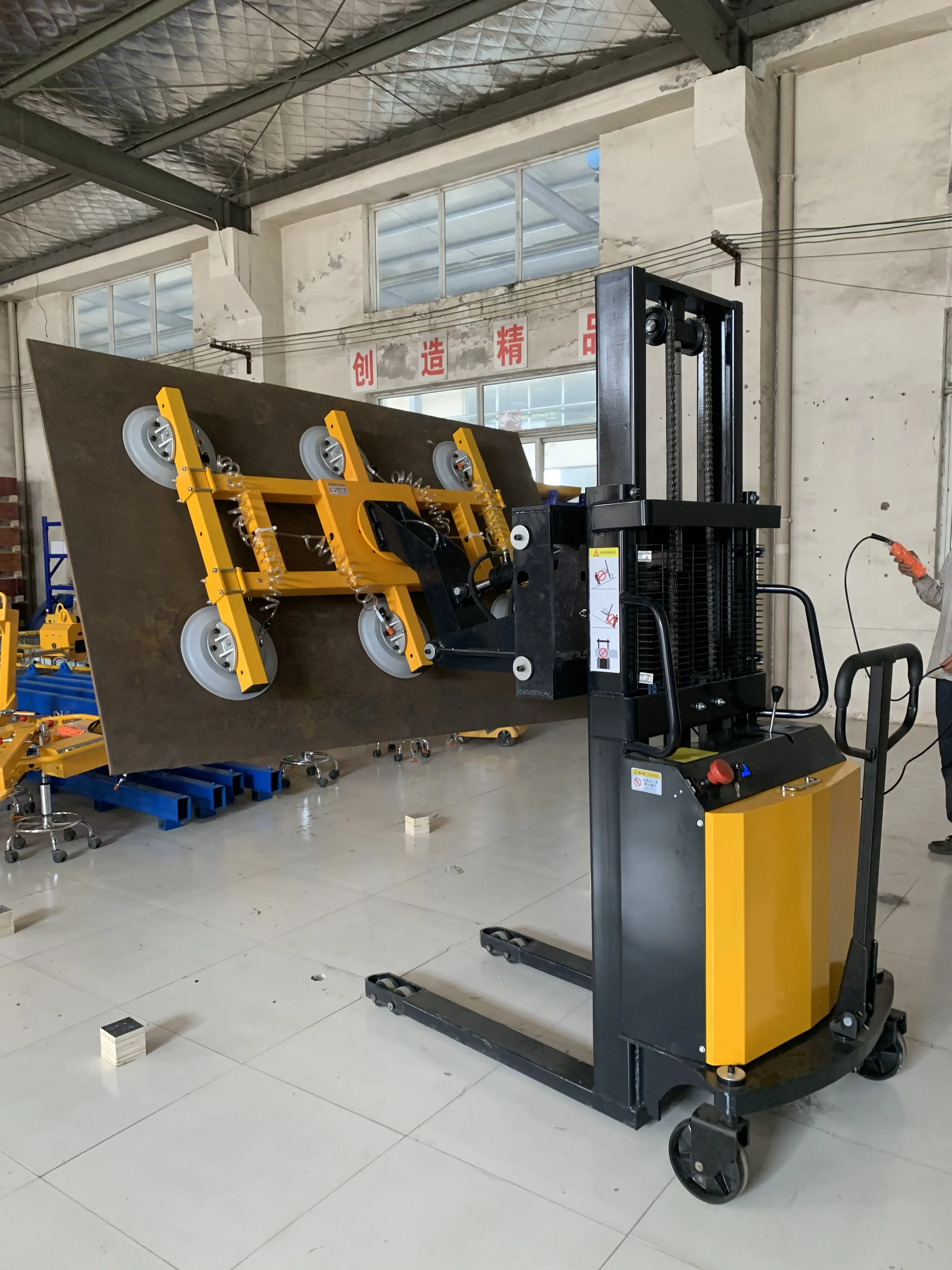

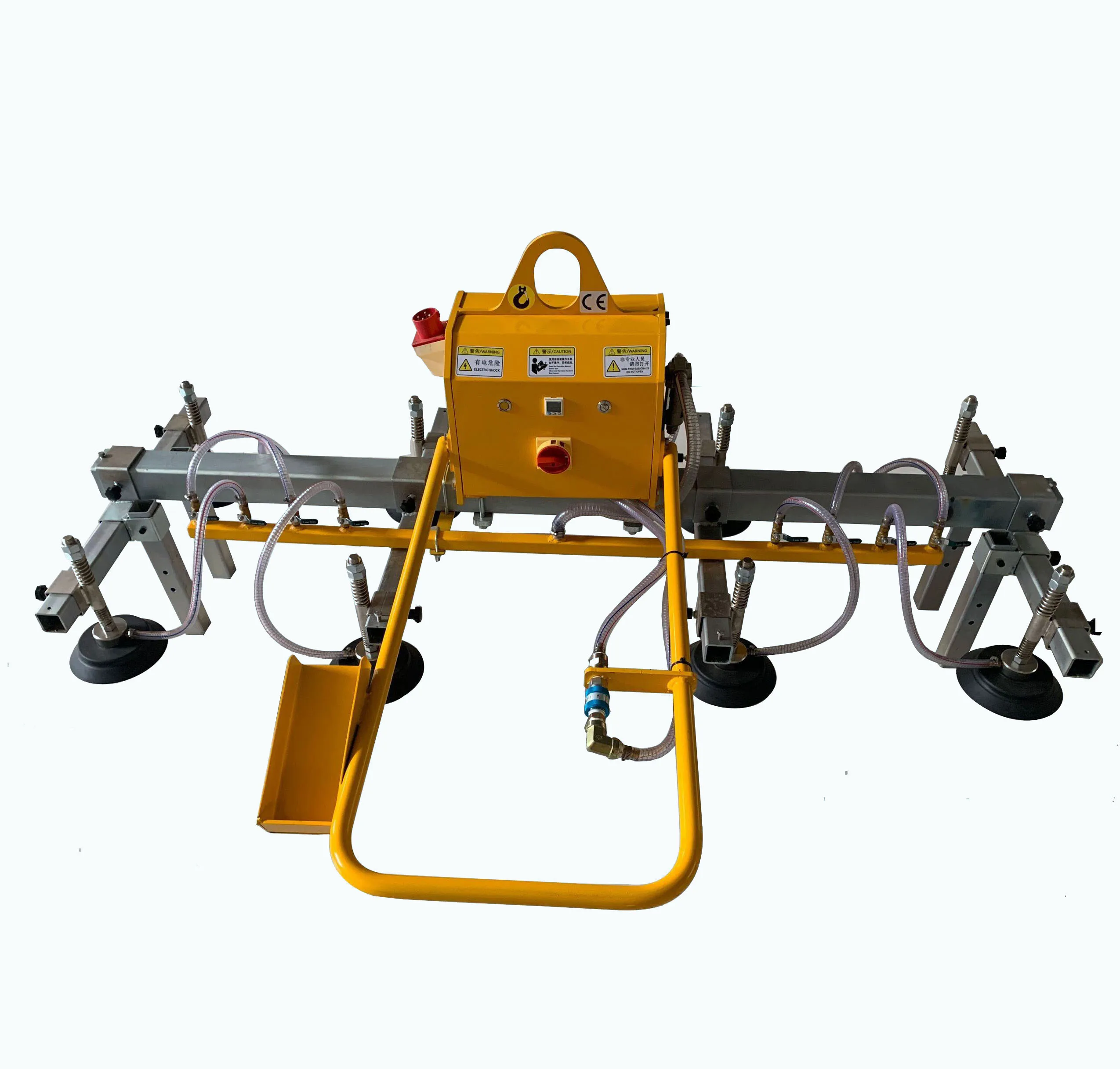

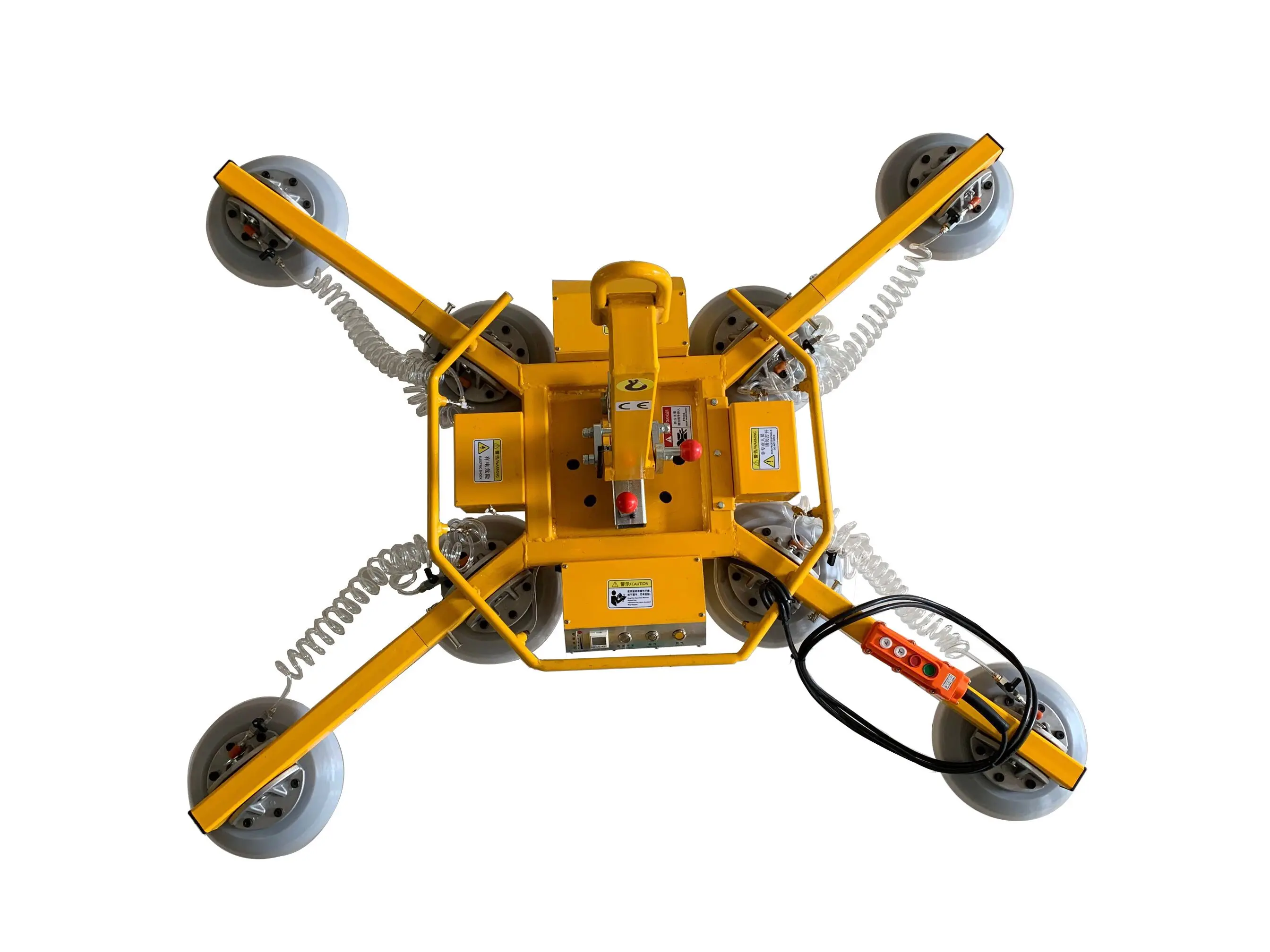

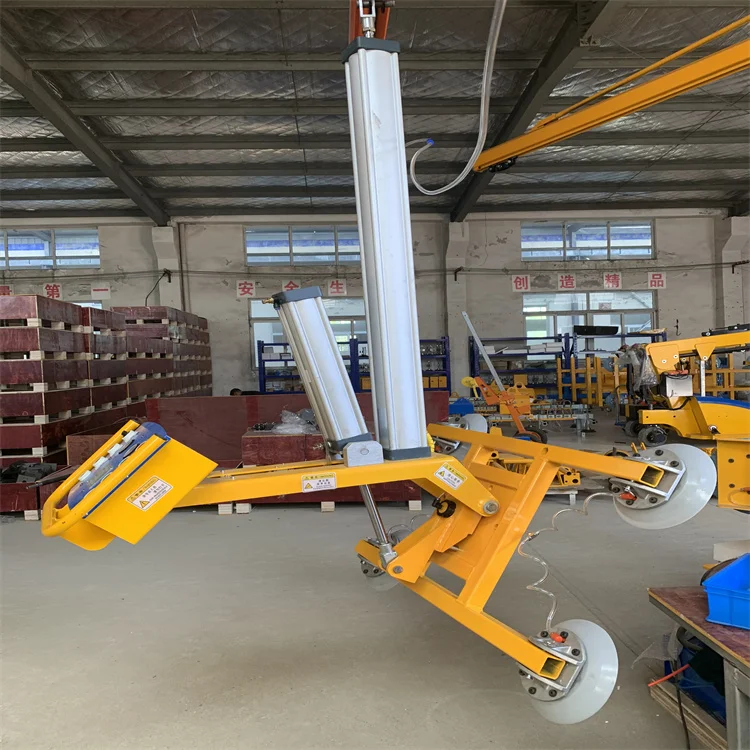

manual vacuum glass lifter mobile glass lifter and glass suction cup lifter 400KG
Product description
The vertical ground rotates 360° and flips horizontally by 90°. Hot sale vacuum lifting device for glass installation load 400kg used for all kinds of curtain wall and glass suction installation. Easy to operate and easy to carry.
Main Features:
1.Adopt American THOMAS vacuum pump and high quality maintenance free batter, no need the air source or power supply during use.
2.Japan Panasonic digital display vacuum pressure switch, battery fuel gauge, dearly monitor the safety use.
3.With vacuum pressure auto supply System, during handing glass, ensure the whole vacuum System maintained at a relatively constant safety pressure value.
4. Equipped with the power-cut but pressure keeping device and alarm device. If power failure accidentally,the pressure-keeping function can extend the handling time and make the use safer.
5. Manually rotated 360 in the vertical side, and manually rotated 90 in the horizontal side, but taking and releasing by electric.
6. Adjustable type, can be changed the position of the cups to-absorb glass of different shapes and sizes (can be customized according to the glass size)
7. Sealed cover for components protection,safe and reliable.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Glass Lifter | / | SSUPY | ||||
Lifting Capacity | KG | 400 | 600 | 800 | ||
Model | / | SSUPY400 | SSUPY600 | SSUPY800 | ||
Cup Quantity | / | 4 | 6 | 8 | ||
Single Cup Size | mm | 300 | 300 | 300 | ||
Single Cup Lifting Capacity | KG | 100 | 100 | 100 | ||
Rotation | / | 360° manual rotate | ||||
Tilting | / | 90° manual | ||||
Voltage | V | DC12 | ||||
Charger | V | AC220/110 | ||||
Weight | KG | 70 | 90 | 100 | ||

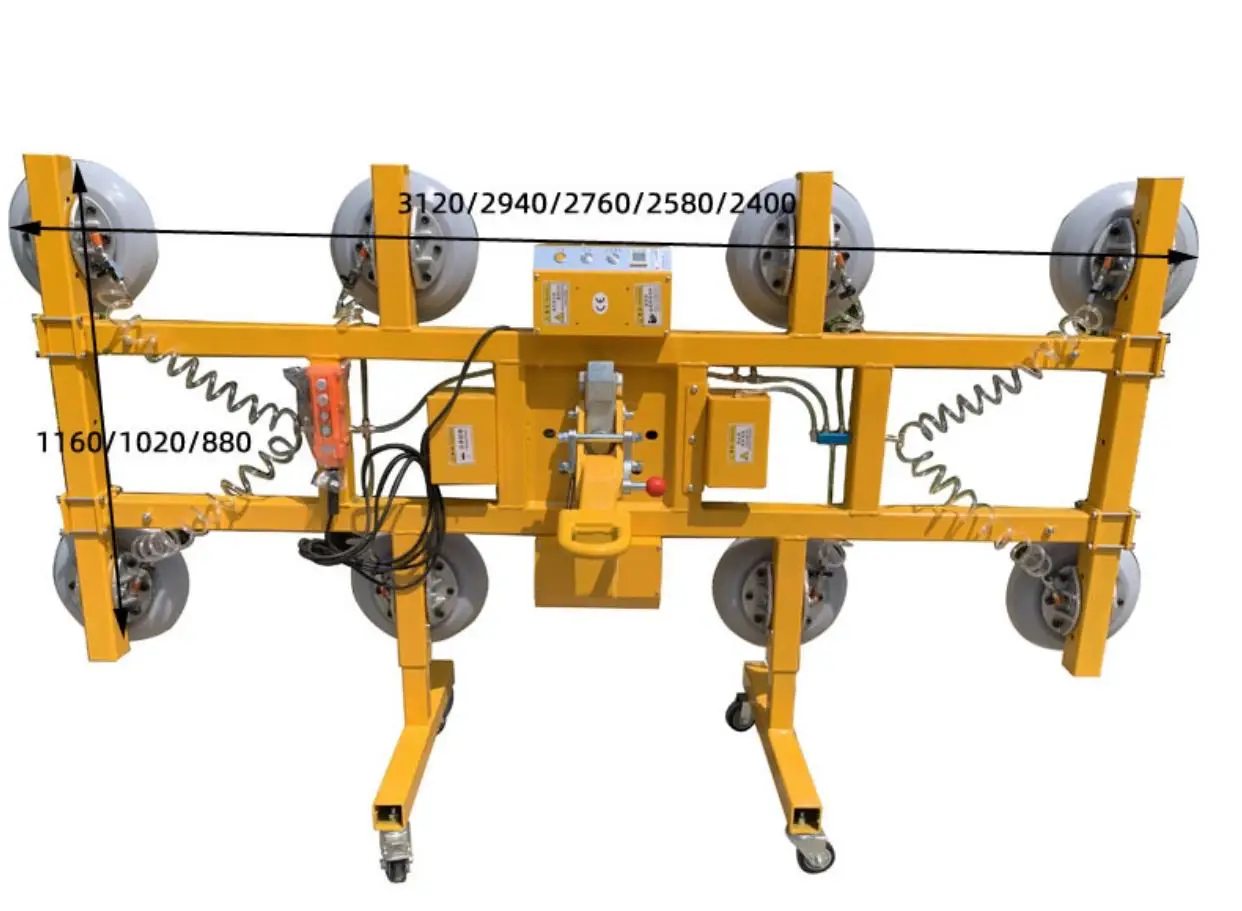

Sucker Frame Size | mm | 870*770*200 | 2370*1030*200 | 1900*1580*200 | ||
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Other products

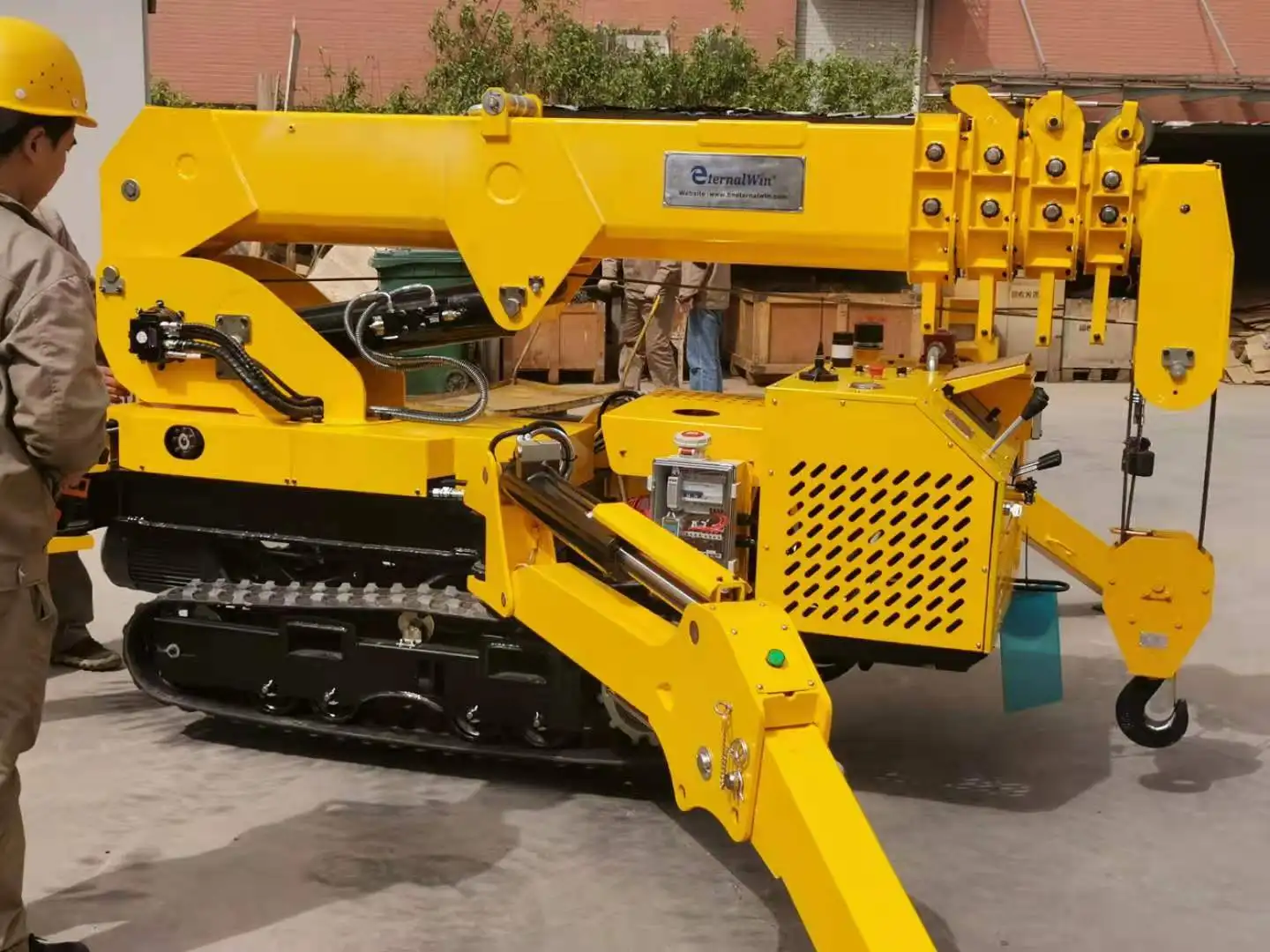

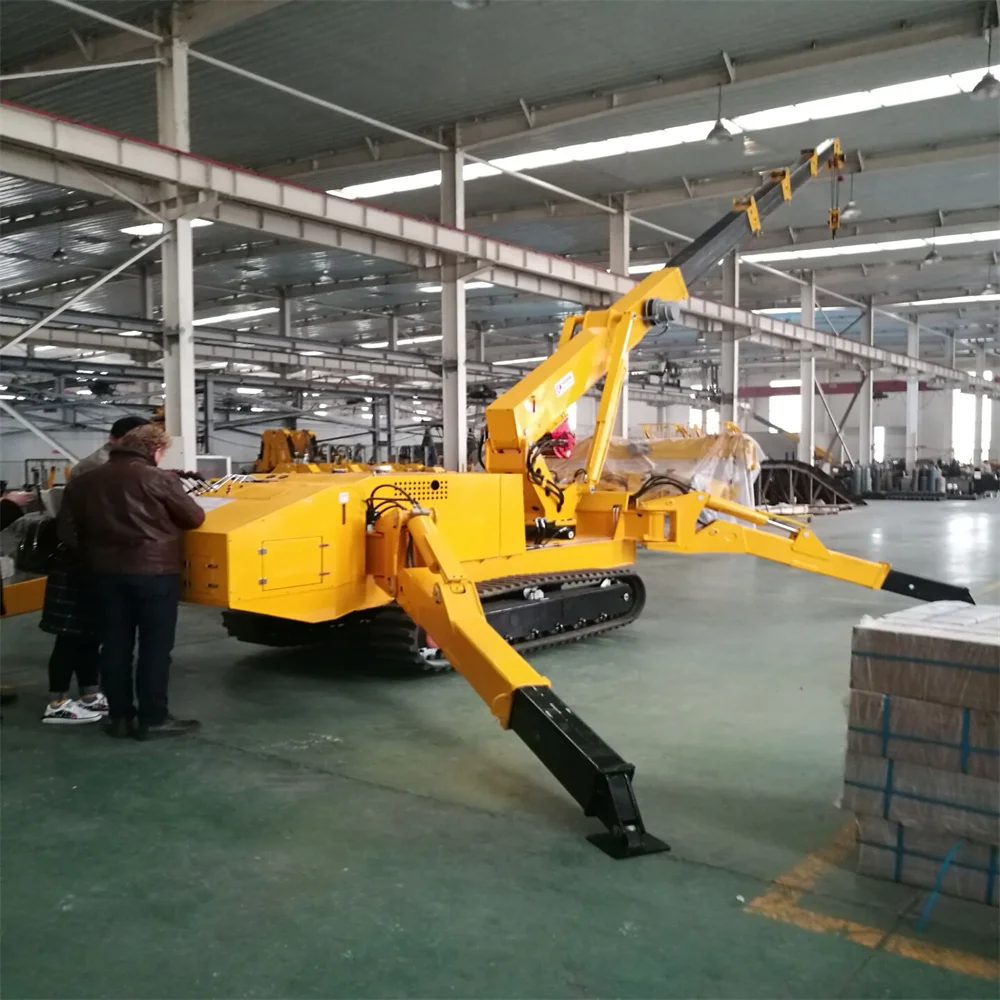

spider crane
EW3.0 B mini crawler crane, powered by Japanese gasoline engine, Taiwan hydraulic valve, hydraulic pipe fittings, rated lifting capacity of 3 tons, with all lifting functions of spider crane and basic safety configuration. It is widely used in the maintenance and installation of electrical equipment in substations, the maintenance and installation of equipment in mechanical and chemical workshops, and glass curtain walls and other occasions with narrow spaces.
Title goes here.

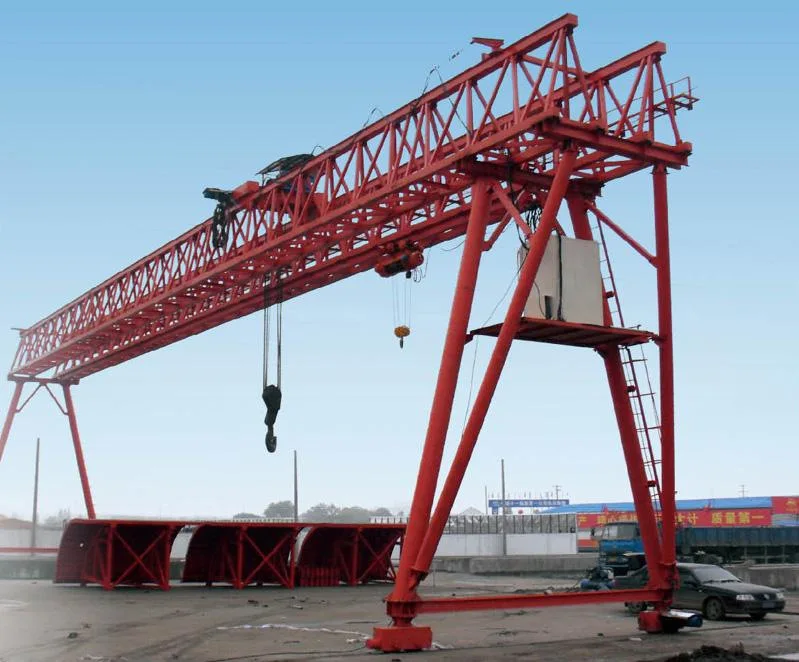

Gantry crane is a variant of bridge crane, also called gantry crane. Mainly used for outdoor cargo yard, stock yard cargo, bulk cargo loading and unloading operations. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port freight yards.
Its metal structure is like a door-shaped frame, with two supporting feet installed under the main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outhanging cantilever beams.
single girder overhead crane
The single-beam bridge crane is a lifting equipment that is horizontally framed over the workshop, warehouse and material yard for material lifting. Because its two ends are located on tall concrete columns or metal supports, it is shaped like a bridge. The bridge frame of the single-beam bridge crane runs longitudinally along the tracks laid on the elevated bridges on both sides, which can make full use of the space under the bridge frame to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of cranes.
Certifications
Company Information
Henan Eternal WinMachinery Equipment Co.,ltd,established in 1998 ,located in crane hometown,which integrates the R&D
,manufacture,sales ,installation and service of all kind of overhead crane , gantry crane ,ship crane ,spider crane ect lifting
equipment . Our products have been famous all over the world , such as overhead crane ,gantry crane ( rail mounted gantry crane,RTG gantry crane ,quay crane ) ,ship crane , spider crane ,jib crane ,hoist ,winch and so on. Eternal win has been “quality first”as a core foundation ,which deploys advanced facilities of the domestic and international brand,owns professional R&D term with more than 600 people.The team is the largest R&D term in China’s general crane industry ,and has won over 80 national provincial man municipal scientific achievements, which lays a solid foundation for producing high quality products. Eternal Win adheres to “ customer-oriented” marketing concept ,owns strong sales term and after service power,who always is ready to provides quality service to our customers Eternal Win insists on the principle of “delicate manufacture,continual improvement,seeking superiority,satisfying customer”and by absorbing management essence home and abroad ,introducing first-class talents,implementing first-class management and manufacturing first-class products .Sincerely cooperating with all the peoples from all walks of lift to realize mutual benefit.

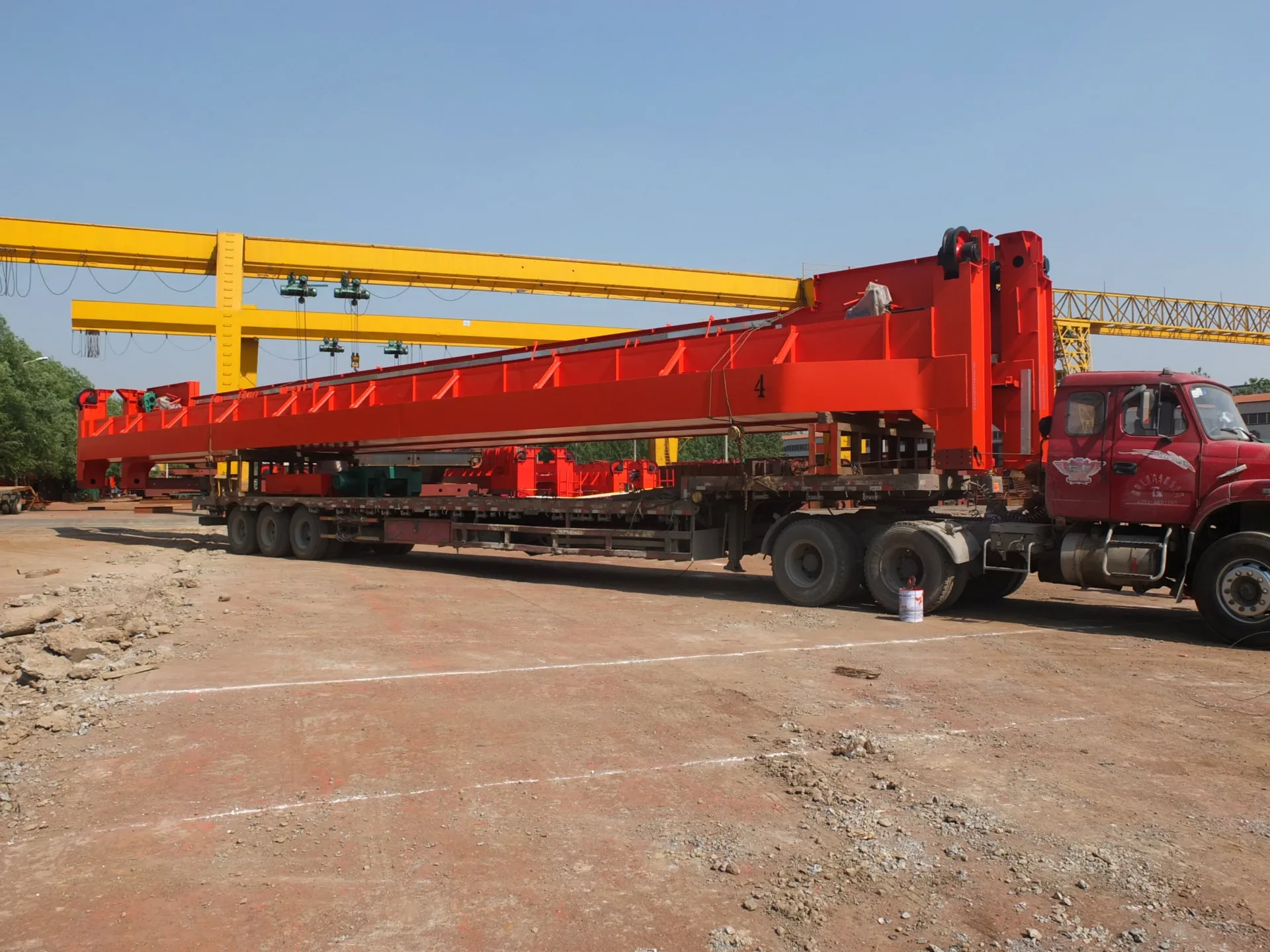

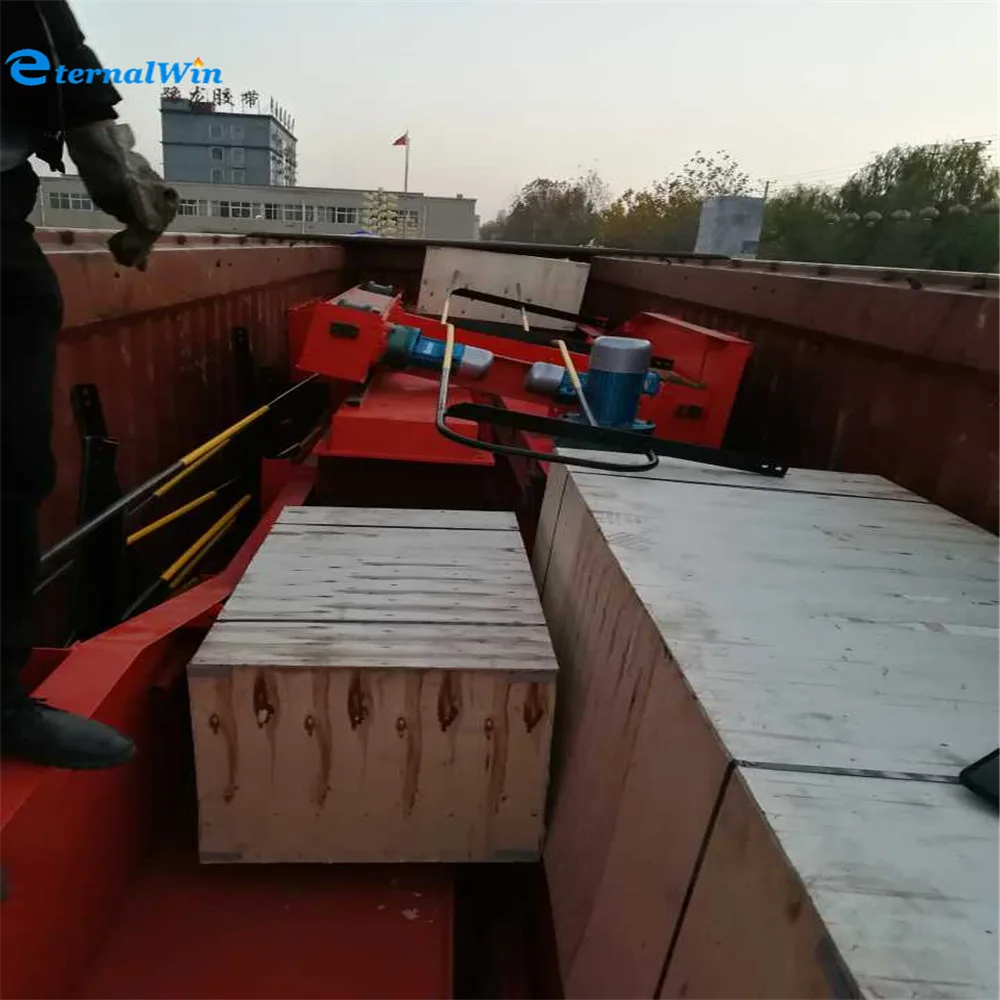

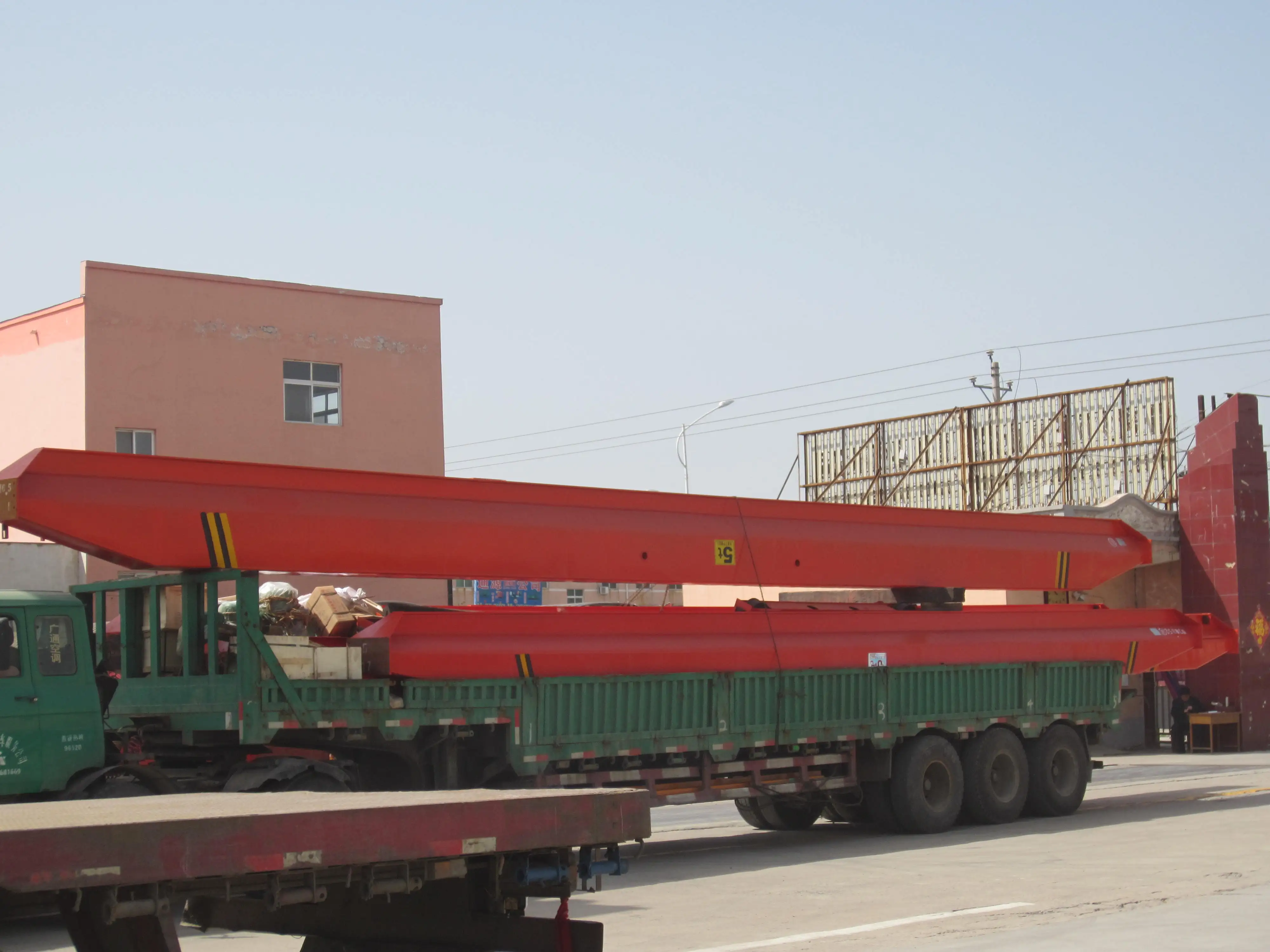

Packaging & Delivery
