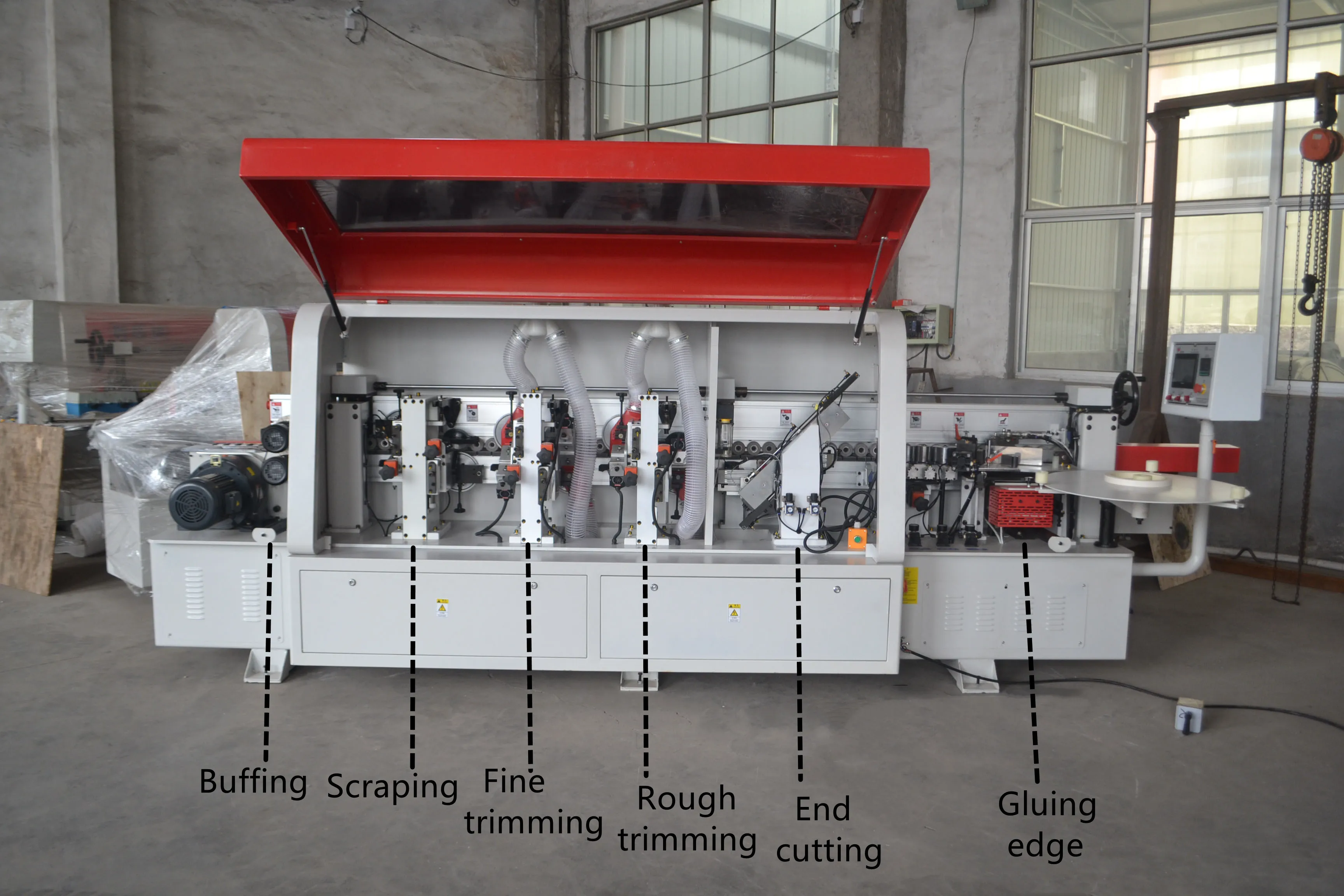

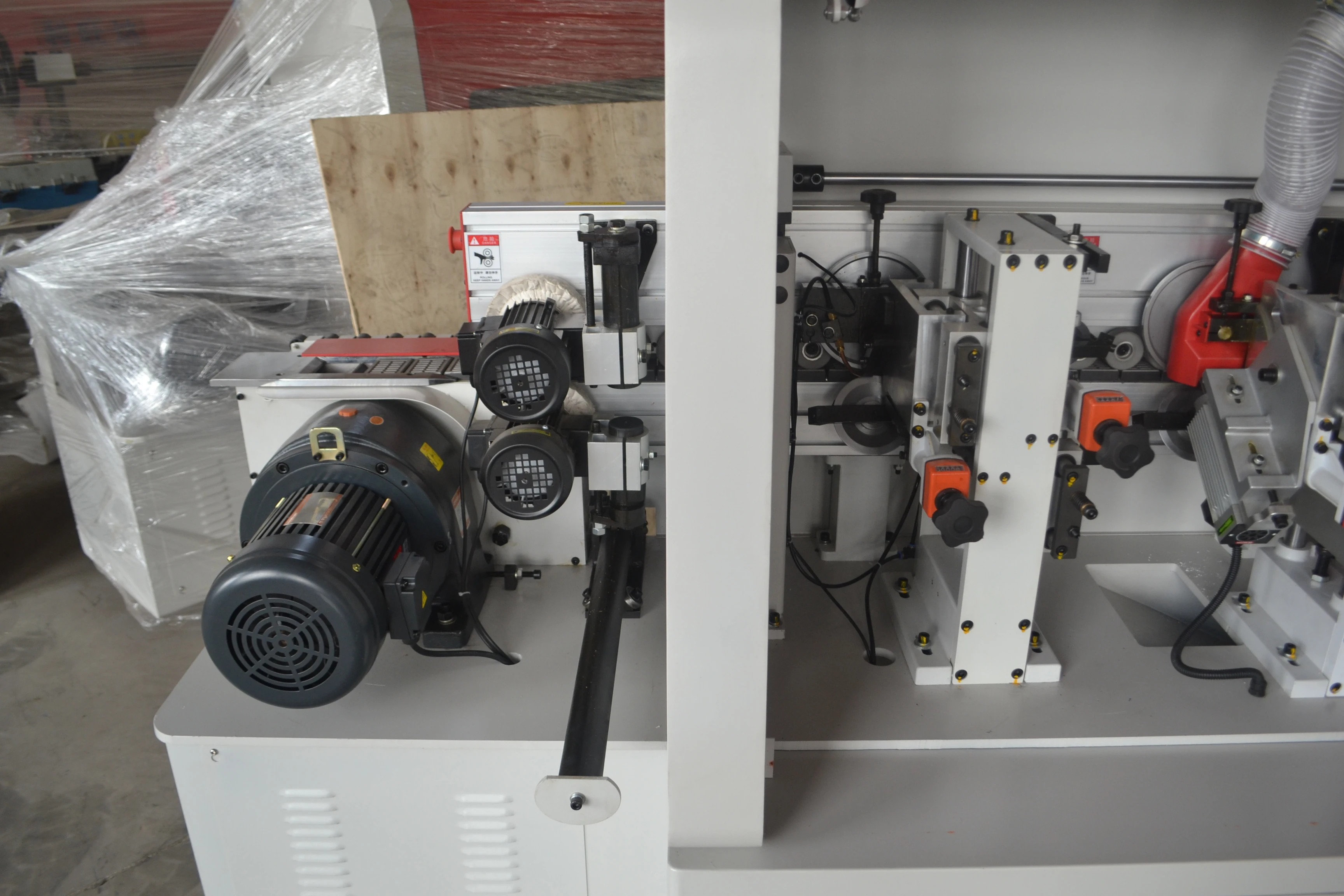

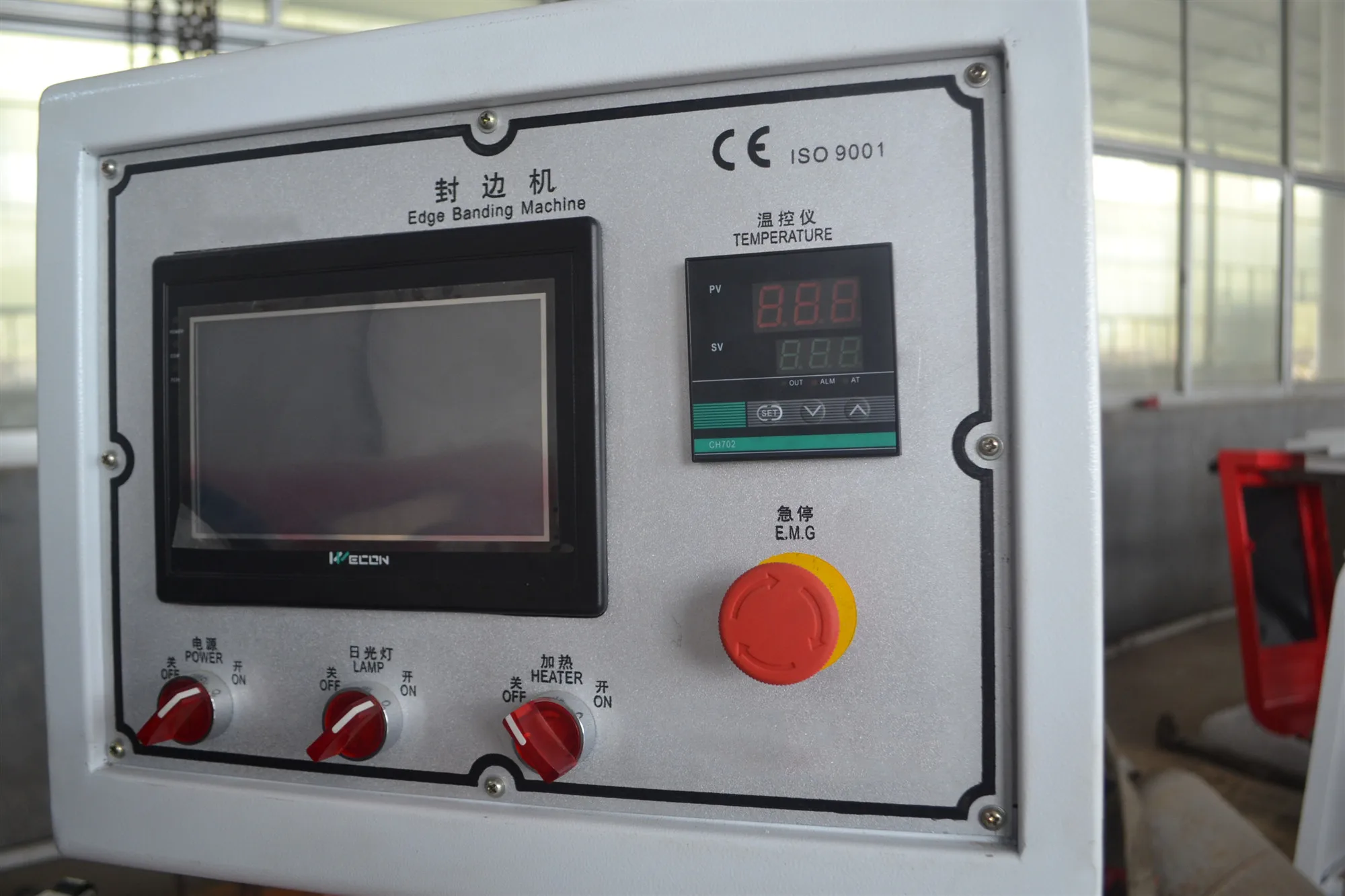

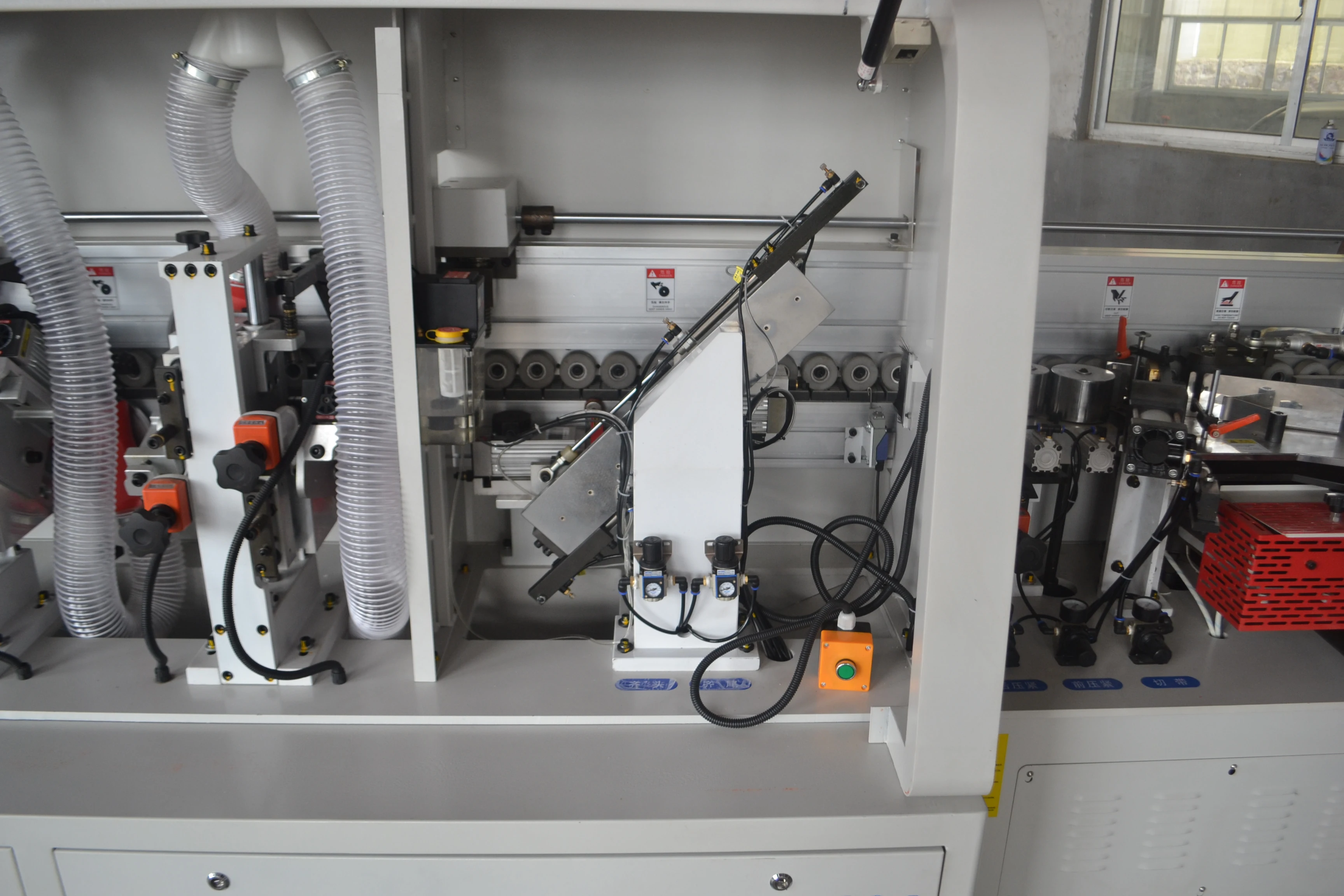

Full Auto Modular Cabinet Edge Cutting Banding Machine
K6

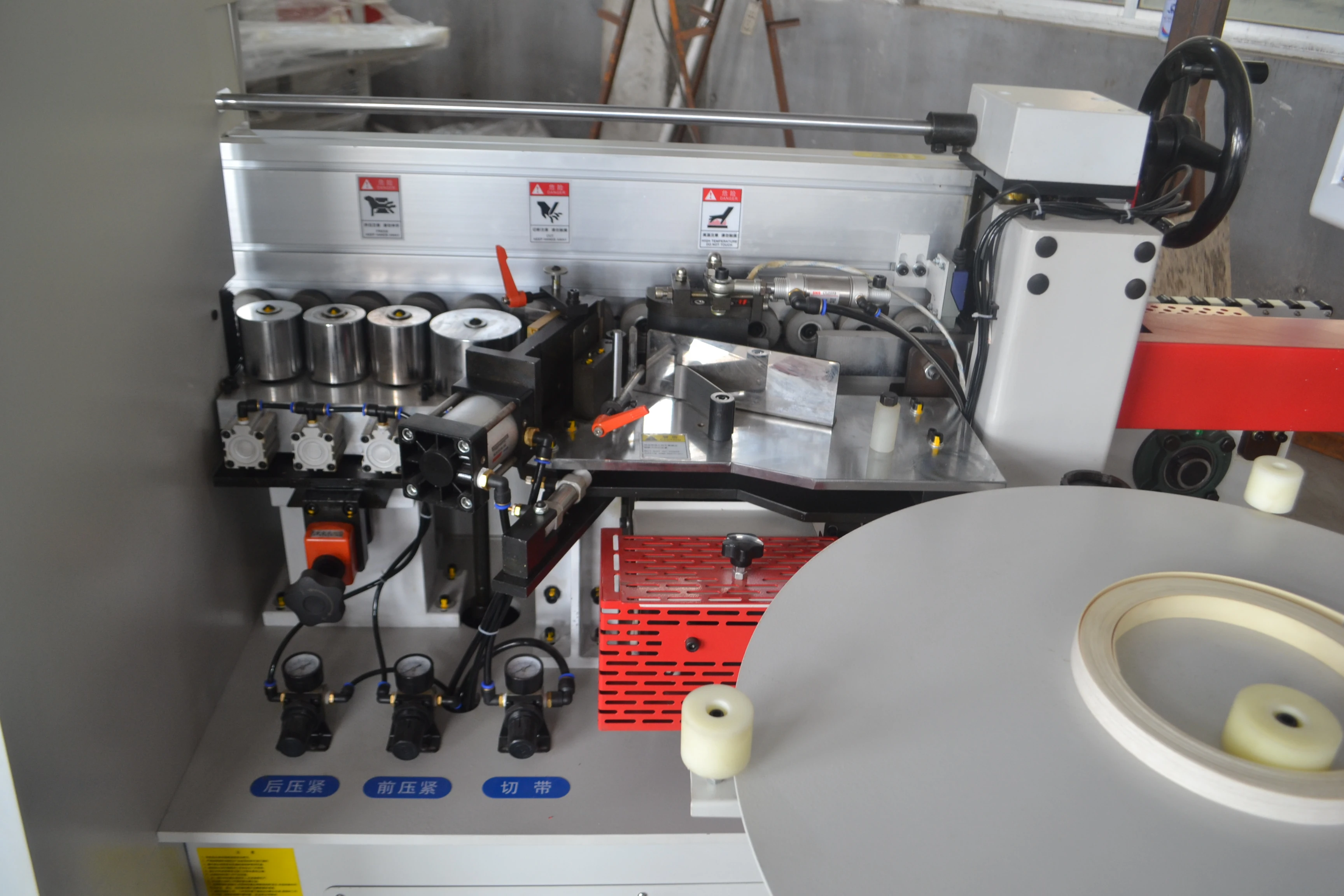

Gluing Edge
Hot melt adhesive is added through the glue pot,so that the sheet material and the sealing material can coated evenly.
End Cutting
Through precise linear guide movement, adopt fast cutting structure of high frequency and high speed motor, ensure smooth cutting surface.

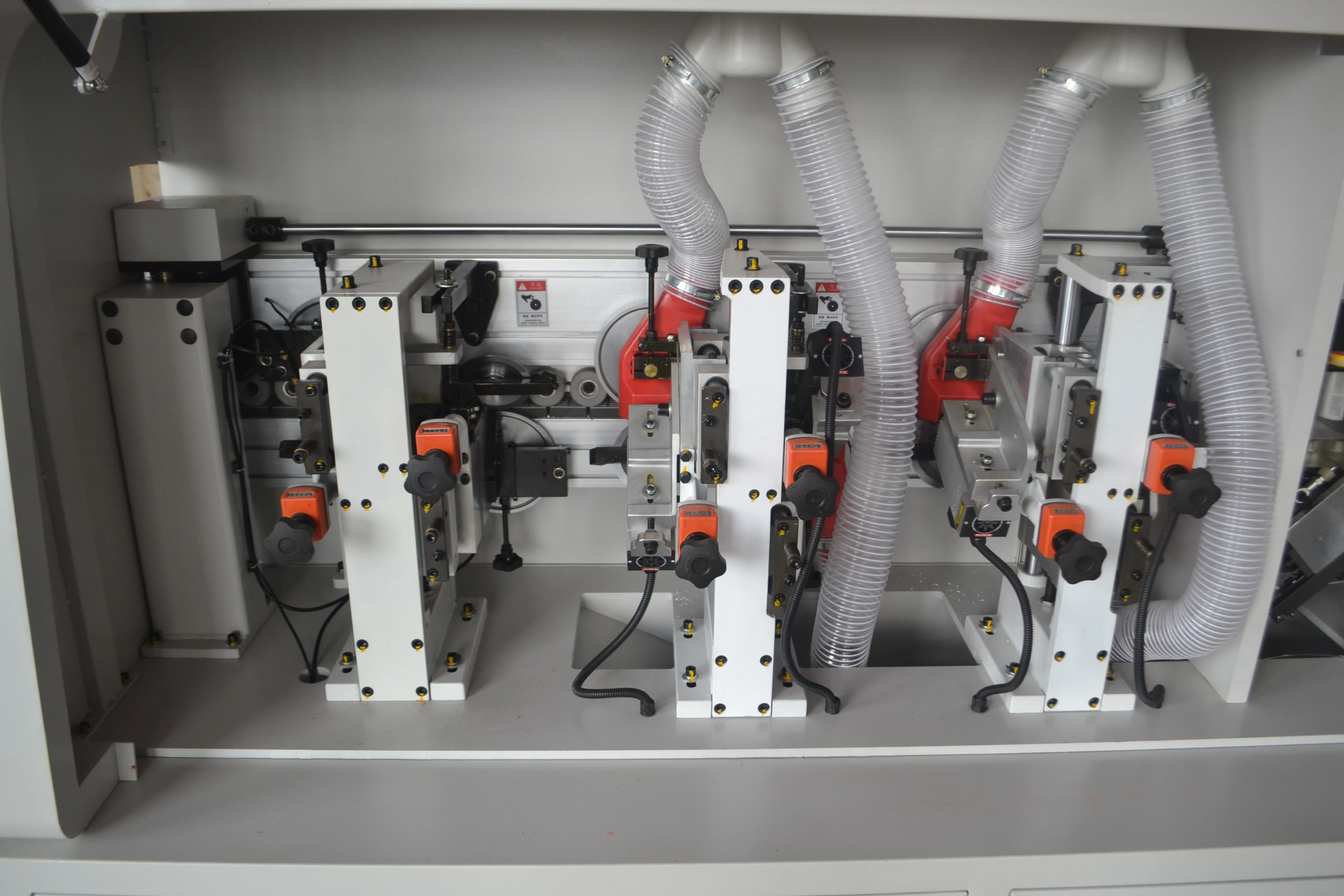

Rough Trimming
Eliminate the redundant tape in the top and bottom sides of board good.
Fine Trimming
Eliminate the redundant tape in the top and bottom sides of board more better.
Scraping
It is used to eliminate the wavy marks caused by the cutting process of trimming non-linear motion, so that the upper and lower parts of the plate are more smooth and neat.
Buffing
The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.
Functions | Gluing edge, End cutting, Rough trimming, Fine trimming, Scraping, Buffing |
Band tape thickness | 0.4-3mm |
Band tape width | 12-62mm |
Workpiece thickness | 10-60mm |
Heating power | 2kW |
Pre-heating power | 0.35kw |
Conveyor motor power | 2.2kW |
Gluing motor power | 0.75kW |
Automatic end cutting motor power | 0.37kW×2 12000r/min |
Rough trimming motor power | 0.75kW×2 12000r/min |
Electric lifting motor power | 0.25KW |
Fine trimming motor power | 0.75kW×2 12000r/min |
Buffing motor power | 0.37kW×2 1350r/min |
Conveyor motor speed | 12-20m/min |
Air pressure | 0.7Mpa |
Total power | 10.5kW |
Machine size | 4600*850*1600mm |
Net weight | 1700kg |
Packing size | 4700*950*1800mm |
G.W. | 1950kg |
RELATED PRODUCTS
APPLICATION
PRODUCTION PROGESS

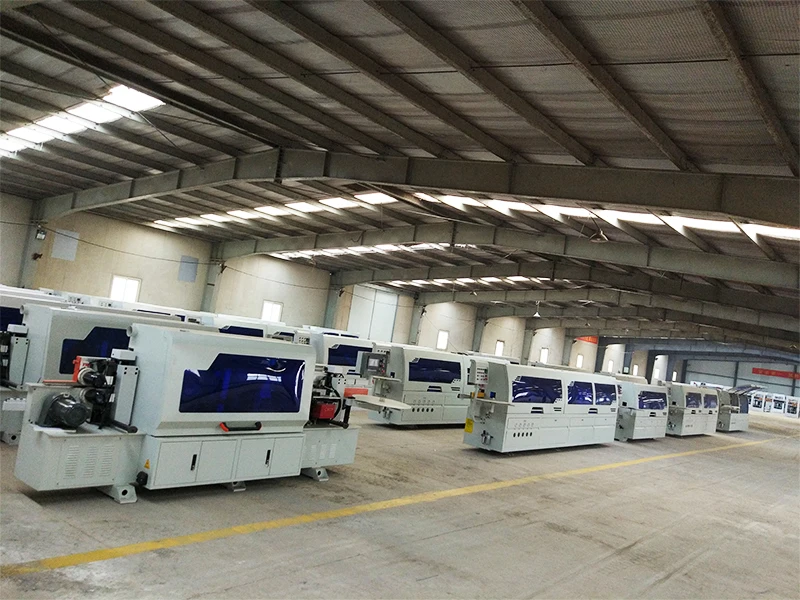

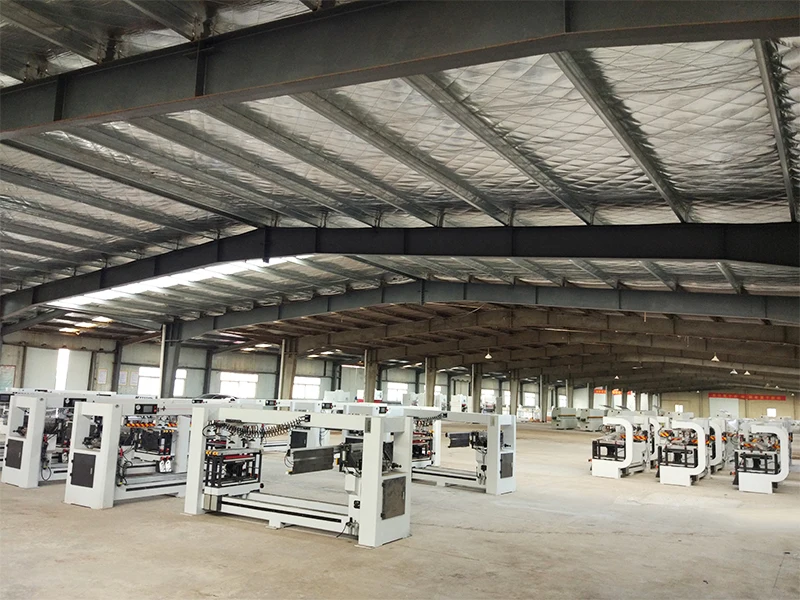

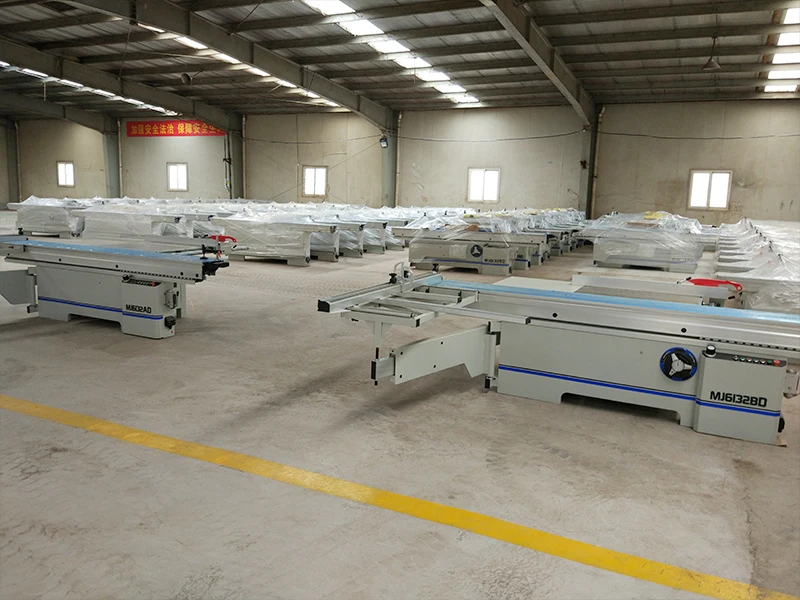

COMPANY PROFILE
PACKAGE& DELIVERY
FAQ
1.How to get the most suitable machine and best price?
Please tell us the material you want to working on? How to working on it engraving cutting or other? What's the max size of these material? length? width thickness?
2.If we do not know how to use the machine, can you teach us?
Yes, we will, if you come to china, we will offer you free training until you can use machine freely. And if you are busy we will
have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.
3.Can you promise to deliver the machine in time?
Yes,we can.
4.How about your guarantee period?
Once you have any questions during this time, we will solve it for free.
5.Can you customized the machine?
Our machines can be customized made according to buyers’ request.
6.Are you a factory or a trading company?
We are a factory with rich experience. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers watch.
