IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor
IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor

IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor

Share on (1600430335475):


Price:$19.00 - $28.00

Quantity:


Product Overview

Description



IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor

Function Feature:
1. 1024x600 IPS 10.1 inch tft lcd with LVDS interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.
4. Application: Automotive display, Digital phone frame, Netbook PC, Tablet & Pad, MID UMPC





Product Paramenters


Product Name:
Feature
Spec





Characteristics
LCD Size
10.1 inch
Display Format
1024 X 600
Interface
LVDS
Display color
16.7M
Display Mode
Normally white, transmissive
Touch screen
NC
Viewing Direction
IPS
Brightness
300cd/m2

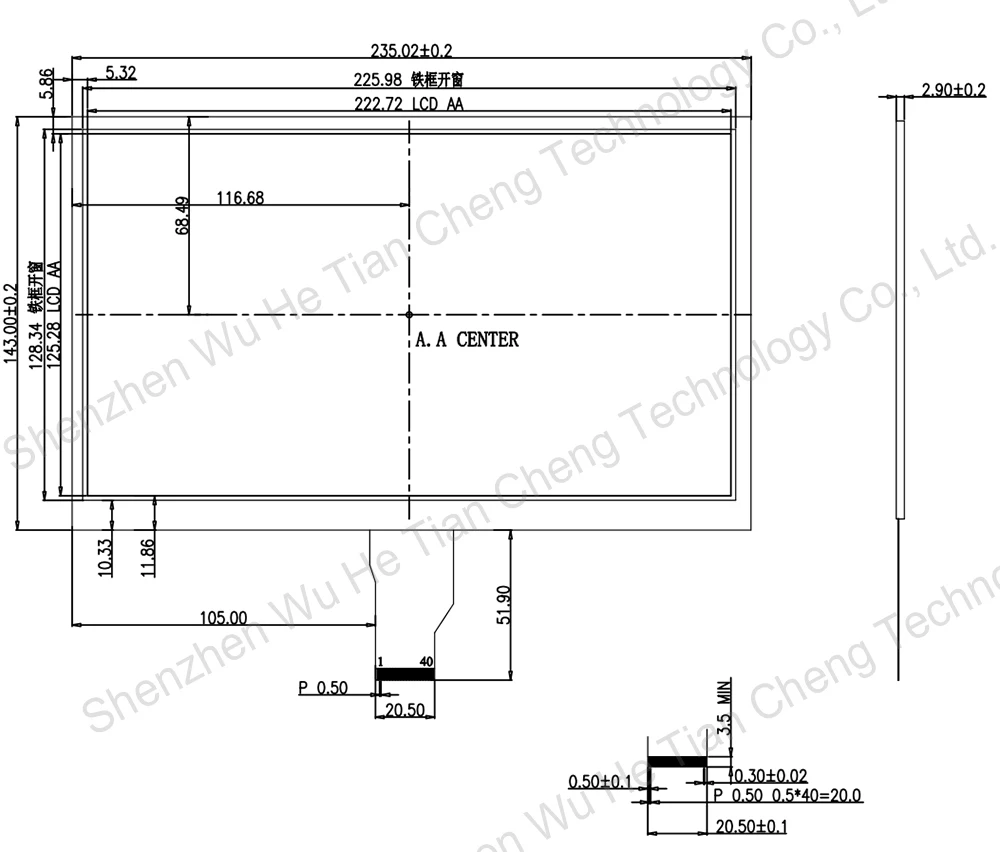

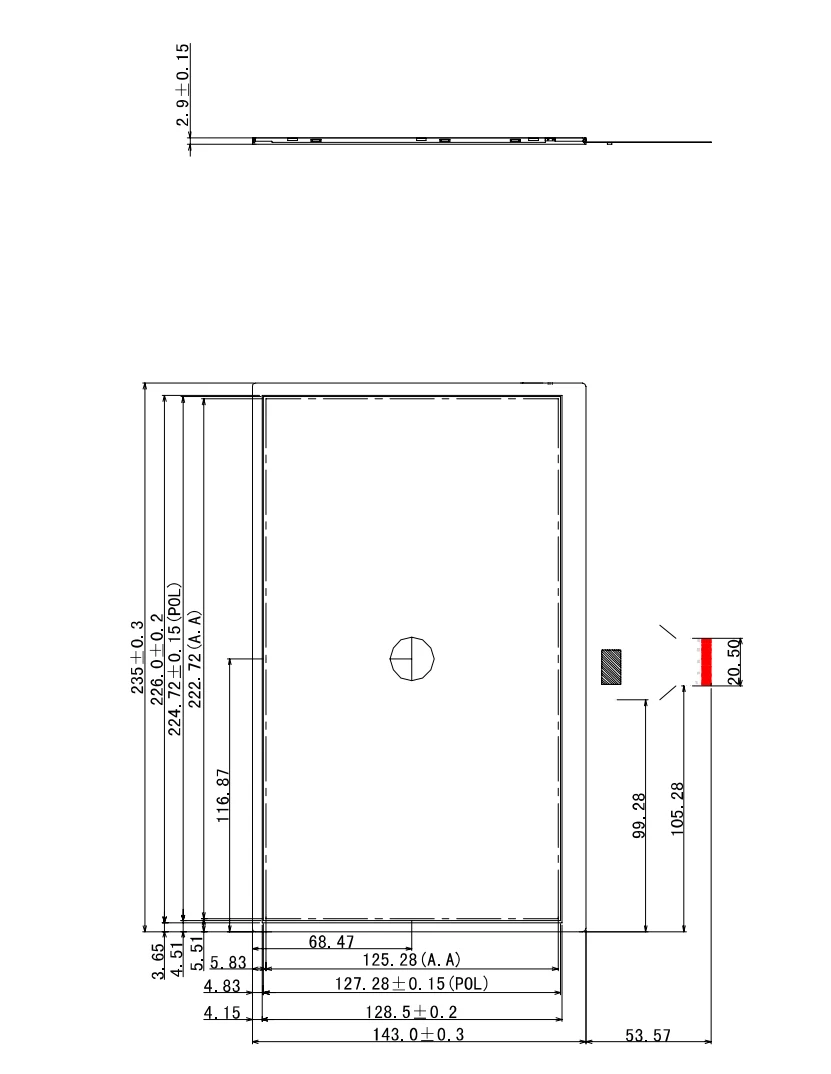

Mechanical
LCM (WxHxD) (mm)
235 x 143 x 5
Active Area (mm)
222.72 x 125.28
With/Without TSP
Without TSP
Weight (g)
TBD
Backlight Type
WLED


Details Images


IPS High Resolution 1024*600 Lvds Interface 10.1 Inch Tft Lcd Display for 10 inch monitor




IPS 1024x600 10.1 Inch Tft Lcd LVDS Interface Display Screen 40 pin






Size and Feature
Model No
Resolution
Interface
Brightness
Viewing angle
Touch Screen
0.96 inch OLED  LCD Screen
MC096VX
128x64
IIC
350
All
nc
1.54 inch LCD Screen
W015P18S1SI
128128
SPI
200
6 O'clock
NC
2.0 inch Sunlight readable IPS
W020P18S1SI
240*320
4SPI+16-bit RGB interface
1000
All
Optional
2.4 inch LCD Screen
W024P40S1RN
240*320
8,9,16,18-bits MPU / 6,16,18-bits RGB /
180
6 O'clock
Optional
2.4 inch Sunlight Readable IPS
W024P37S1CI
240*320
16-bits MPU
200
All
Optional
2.8 inch IPS LCD Screen
W028P37S1CI
240*320
i80-system 8/16/18-bit MCU /SPI interface
400
All
Optional
2.8 inch IPS LCD Screen
W028P37S1SI
240*320
4-lines_8bit / 3-lines_9bit SPI
200
12 O'clock
Optional
3.2 inch LCD Screen
W032P37CR
240*320
MPU 8 / 16 bit
160
6 O'clock
Optional
3.34 inch' Round LCD Screen
W034P17MI
320*320
MIPI
600
12 O'Clock
Optional
3.4 inch Round With Driver Board
W034P17MIB
800*800
MIPI 3 lane
350
All
Optional
3.5 inch LCD Screen
W035P54RN
320*240
24BIT RGB+SPI
290
12 O'Clock
Optional
3.5 inch IPS LCD Screen
W035P54RI
320*480
RTB MPU 16-bit
230
All
Optional
3.5 inch Sunlight Readable IPS
W035P54RI
320*480
16-Bit MCU
1000
All
Optional
3.5 inch Sunlight Readable IPS
480*640
SPI + RGB interface
120
All
Optional
4.3"
480*272
24 BITS RGB
280
12 O'Clock
Optional
4.3" IPS
480*800
3-wire/4-wire SPI + RGB interface
300
All
Optional
4.3" Sunlight readable
480*272
24-Bit RGB 8-Bit RGB
800
12 O'clock
Optional
4.82'' Bar type
480*1120
MIPI DSI
280
All
Optional
5.0" OLED
1080*1920
MIPI-4 Lanes
380
All
Optional
5.0" Sunlight Readable With Driver Board
800*480
24-bit Parallel RGB
500
12 O'Clock
Optional
7.0" IPS
800*1280
MIPI-4 Lanes
500
All
Optional
7.0" IPS With Driver Board
1024*600
TTL(RGB interface)
450
All
Optional
7.0" Sunlight readable With Driver Board
800*480
24-bit Parallel RGB Interface
400
12 O'Clock
Optional
7.0" Sunlight readable With Driver Board
800*480
24-bit Parallel RGB Interface
300
12 O'clock
Optional
7.0" Sunlight Readable With Driver Board
1024*600
LVDS
500
12 O'Clock
Optional
8.0" IPS
800*1280
MIPI 4 LANE
380
All
Optional
8.0" IPS
1200*1920
MIPI
500
All
Optional
10.1" IPS With Driver Board
1280*800
LVDS Interface
350
All
Optional
10.1" IPS
800*1280
MIPI VIDEO MODE
330
All
Optional
10.1" IPS
1200*1920
MIPI
500
All
Optional
10.1" IPS With Driver Board
1280*800
LVDS Interface
500
All
Optional
10.1" Sunlight Readable IPS
1280*800
LVDS Interface
1000
All
Optional
10.4'' Sunlight readable Bar Type With Driver Board
1024*100
TTL(RGB interface)
950
All
Optional


Factory show




Applications






Complete Solution

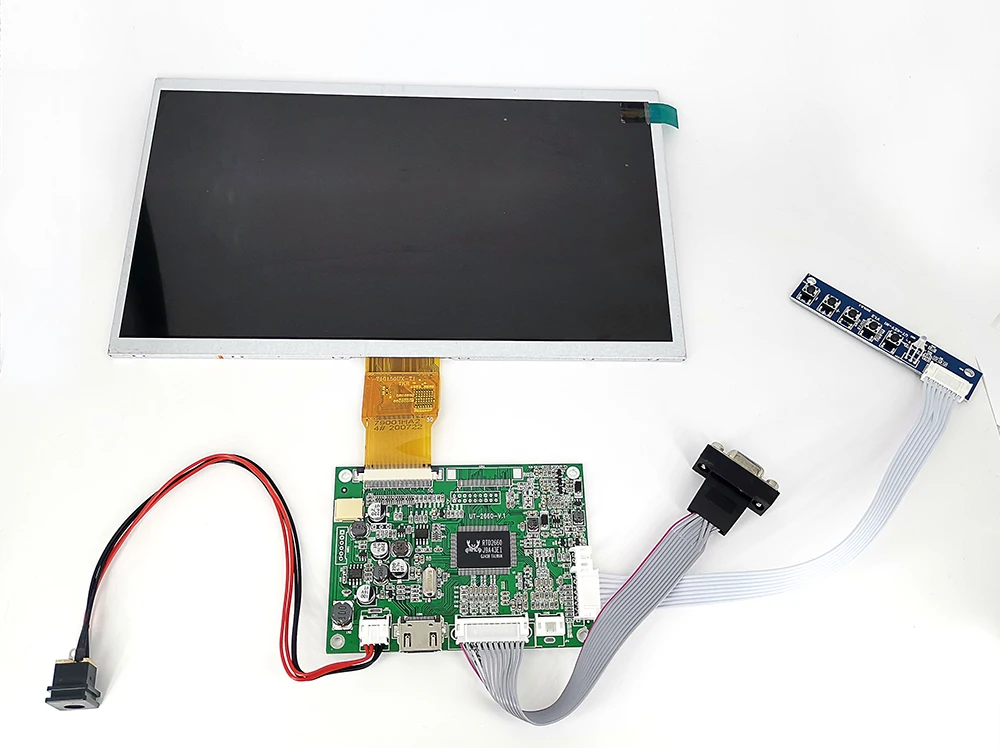

Drive control board Kit
Support resolution：
800*480, 800*600, 1024*600, 1024*768
Signal input：
1. HD MI input x1
2. VGA input x1
3. AV input x1
4. keyboard
Power ：
1. DC 12V input.



Recommend Products




Our Advantages


Provide professional OEM / ODM




Product packaging


Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape




FAQ


Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.

Q: 4.How long is the warranty?
A:12 Months.

Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.

For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Tel: + 86-755-25695467
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
