Moregosolar supplying Grade A Tier 1 Canadian Solar Panel 182mm solar cell solar panel 545W 550W 555W good price
- Category: >>>
- Supplier: Nanjing Moge New Energy Co. Ltd.
Share on (1600430376367):
Product Overview
Description
Parameter

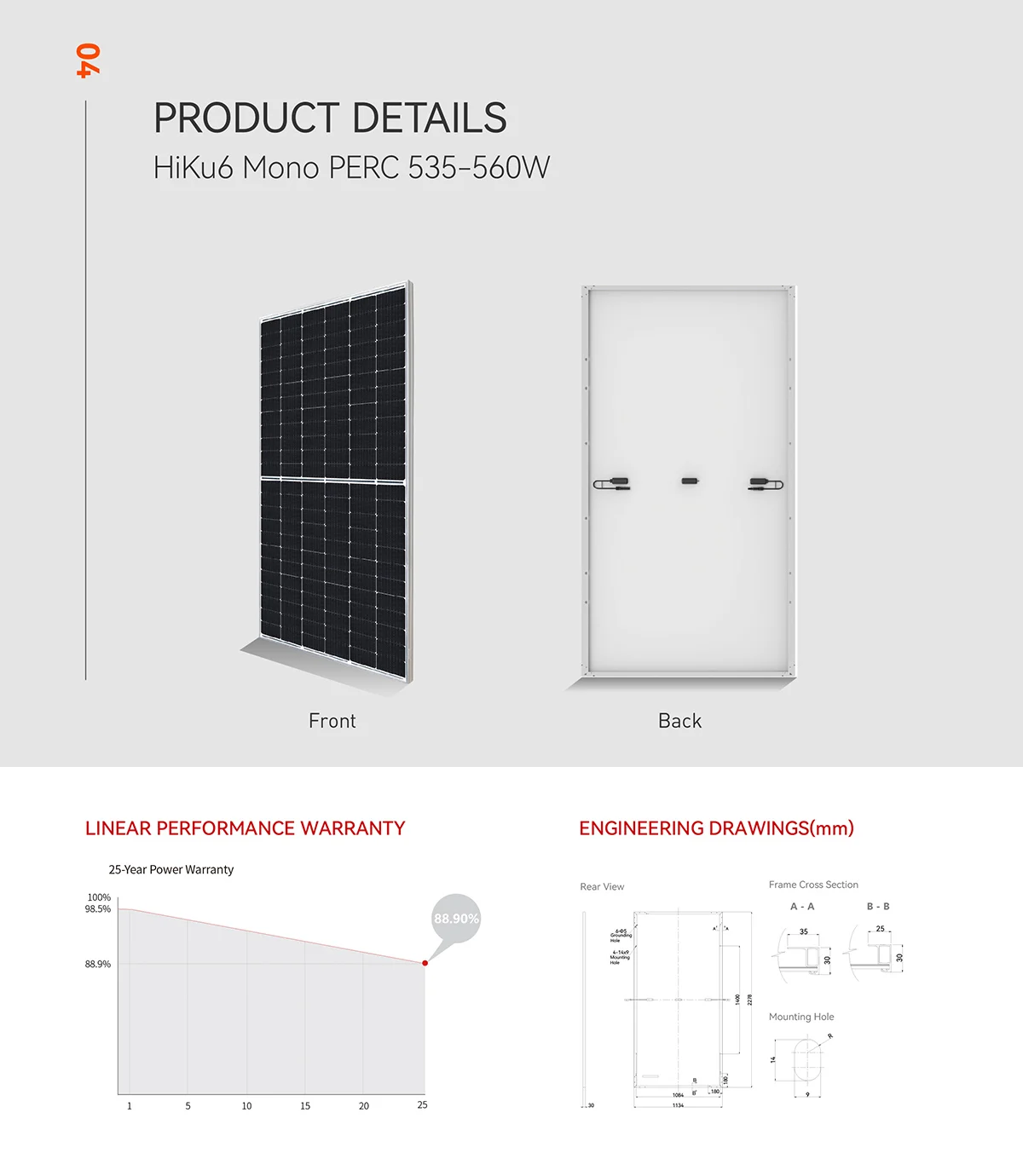

MECHANICAL SPECIFICATION | ||||||
Format | 2261 X1134 X30 mm | |||||
Weight | 27.6kg±5% | |||||
Cell | 144 monocrystalline half cell | |||||
Junction Box | IP68, 3 bypass diodes | |||||
Cable | 4 mm2 (IEC), 12 AWG (UL) | |||||
Connector | T4 series or H4 UTX or MC4-EVO2 | |||||
ELECTRICAL DATA | STC* | ||||||||

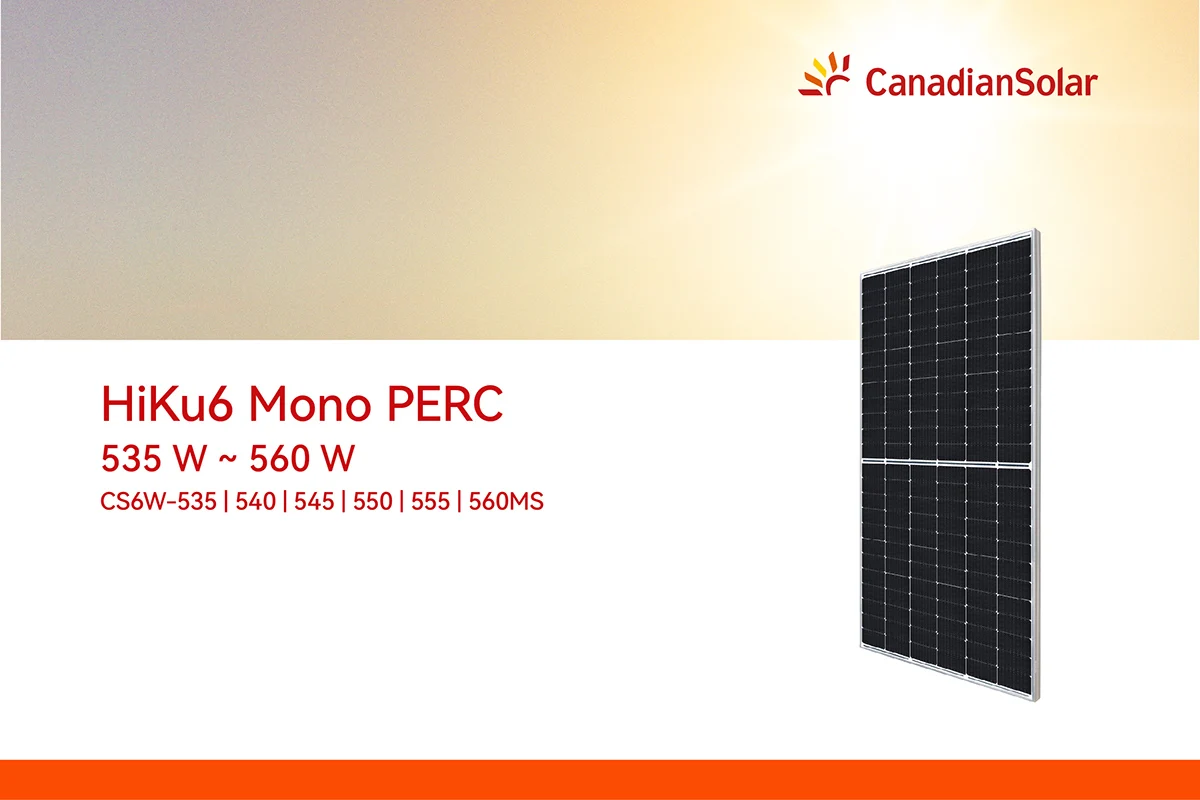

CS6W | 540MS | 545MS | 550MS | 555MS | ||||
Nominal Max. Power (Pmax) | 540W | 545W | 550W | 555W | ||||
Opt. Operating Voltage (Vmp) | 41.3V | 41.5V | 41.7V | 41.9V | ||||
Opt. Operating Current (Imp) | 13.08A | 13.14A | 13.20A | 13.25A | ||||
Open Circuit Voltage (Voc) | 49.2V | 49.4V | 49.6V | 49.8V | ||||
Short Circuit Current (Isc) | 13.90A | 13.95A | 14.00A | 14.05A | ||||
Module Efficiency | 21.1% | 21.3% | 21.5% | 21.6% | ||||
Operating Temperature | -40°C ~ +85°C | |||||||
Max. System Voltage | 1500V or 1000V | |||||||
Max. Series Fuse Rating | 25 A | |||||||
Application Classification | Class A | |||||||
Power Tolerance | 0 ~ + 5 W | |||||||
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||||||

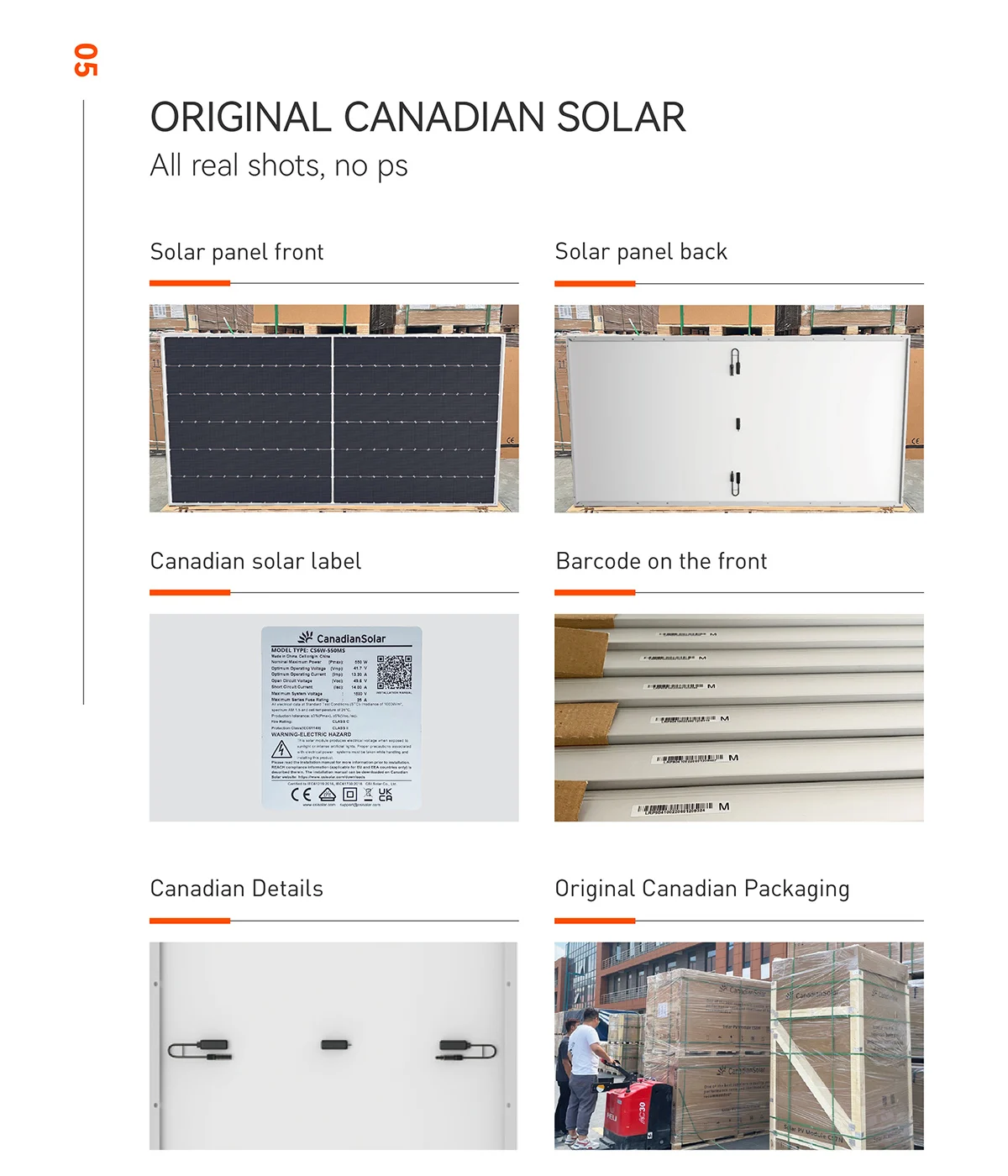

Canadian Genuine
