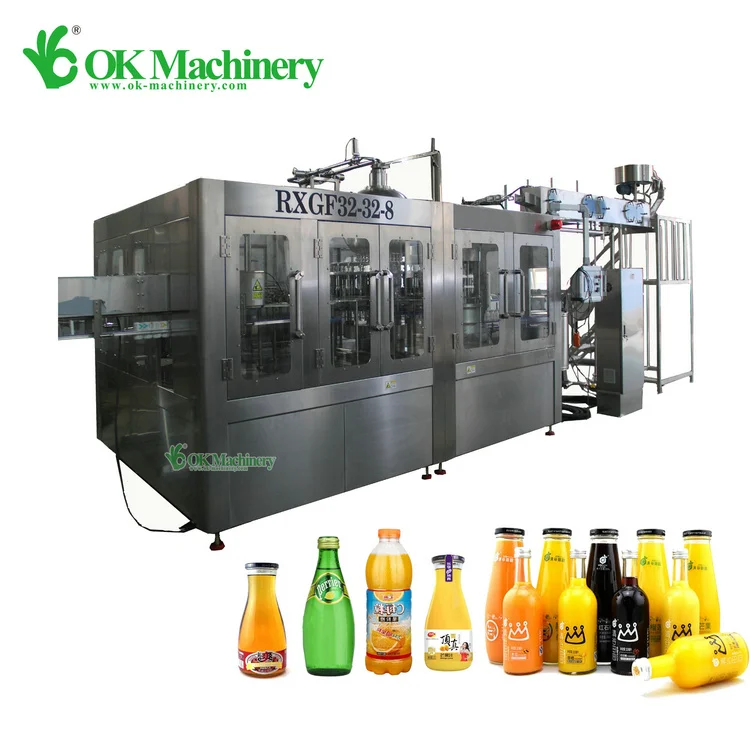

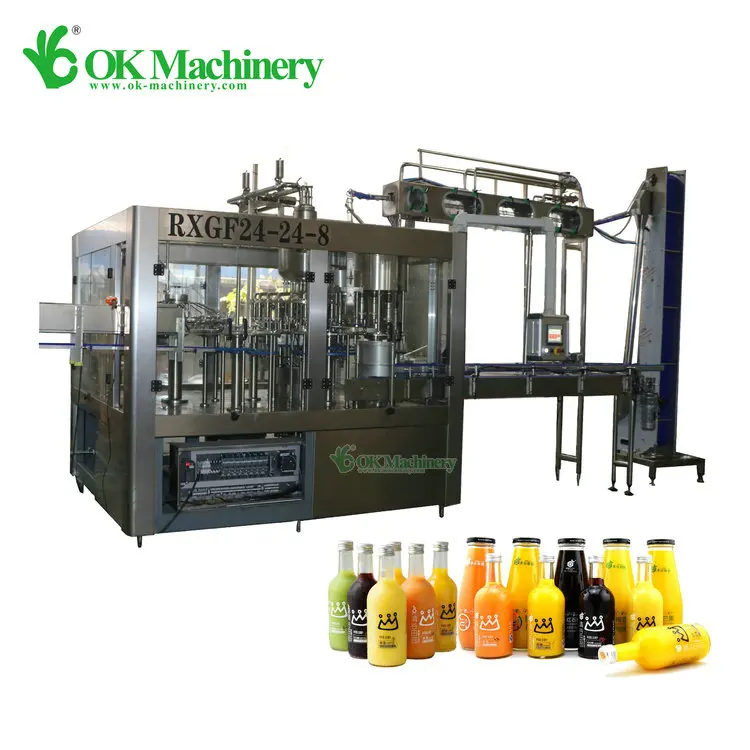

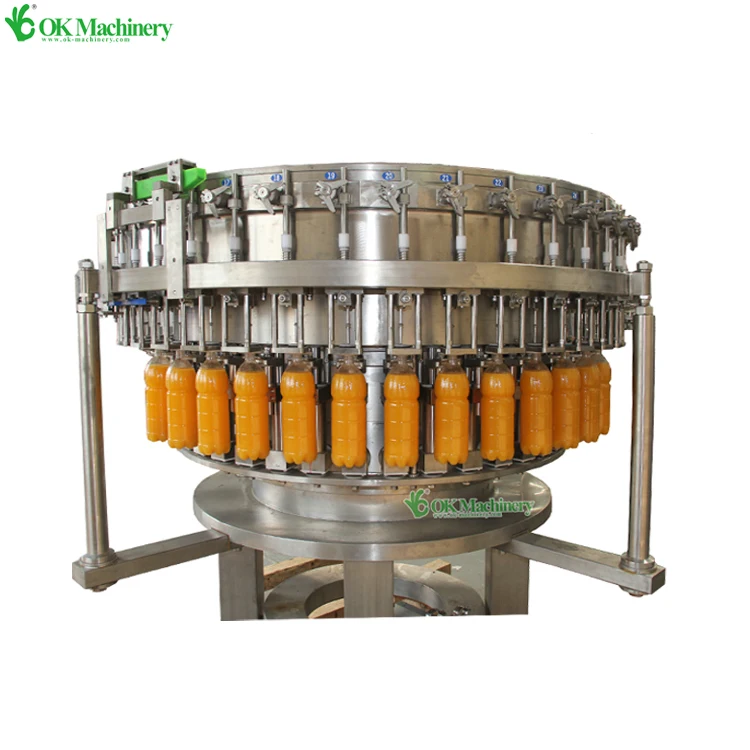

BKDZ01 small juicer filling machine production line juce/juice filling machine
- Category: >>>
- Supplier: Shanghai Ok Machinery Co. Ltd.
Share on (1600430490112):
Product Overview
Description
Product Description
BKDZ01 Small juicer filling machine production line juce/juice filling machine
1. Model XGF32-32-8 2.Capacity : 15000BPH (500ml)
3. Suitable : Plastic bottle 250ml-2000ml
4. Machine size : 3550x2650x2250mm
5.Machine electric brand : SIEMENS , MITSUBISHI
6.Machine power : 7.5KW
7. Machine weight : 4500kg
8. Machine include function :washing filling capping
9. Application: Beverage, Mineral water, pure water, flavor water;
automatic water filling machine video
3. Suitable : Plastic bottle 250ml-2000ml
4. Machine size : 3550x2650x2250mm
5.Machine electric brand : SIEMENS , MITSUBISHI
6.Machine power : 7.5KW
7. Machine weight : 4500kg
8. Machine include function :washing filling capping
9. Application: Beverage, Mineral water, pure water, flavor water;
automatic water filling machine video
BKDZ01 small juicer filling machine production line juce/juice filling machine
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-8 | XGF32-32-8 |
Capacity | 5000BPH | 8000BPH | 12000BPH | 15000BPH |
Bottle Volume | 200ml-2500ml | 200ml-2500ml | 200ml-2500ml | 200ml-2500ml |
Bottle diameater | 50-110mm | 50-110mm | 50-110mm | 50-110mm |
Bottle high | 150-320mm | 150-320mm | 150-320mm | 150-320mm |
Machine power | 1.5KW | 2.2KW | 3.7KW | 5.5KW |
Machine size | 235x177x225CM | 270x200x225CM | 280x210x225CM | 355x265x225CM |
3 in 1 bottle water production line video . this video will show you washing bottle inside and outside , filling water into bottle put cap on bottle and capping it . after all will inlet with Flat conveyor belt .Bottle line automatic water filling machine/water filling machine for sale
Function Declaration

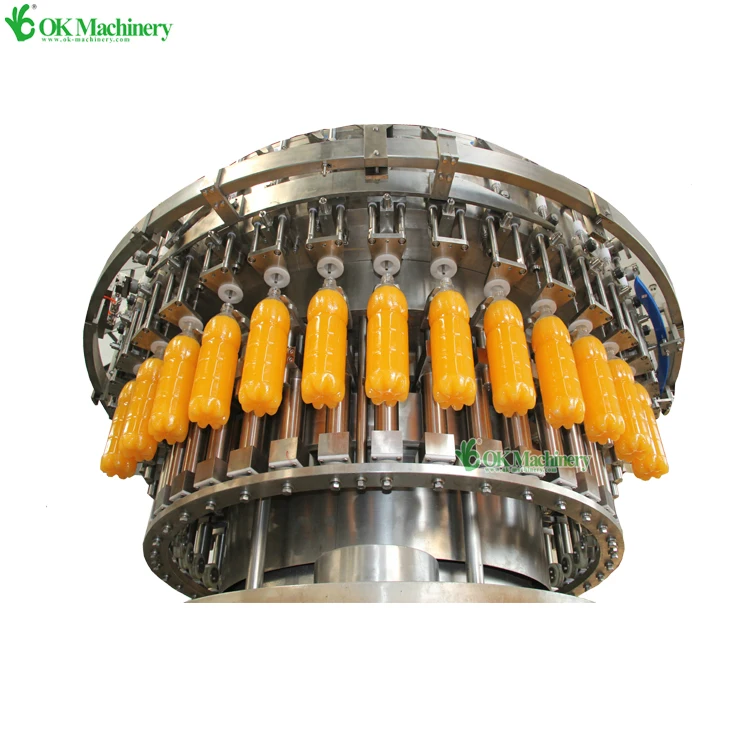

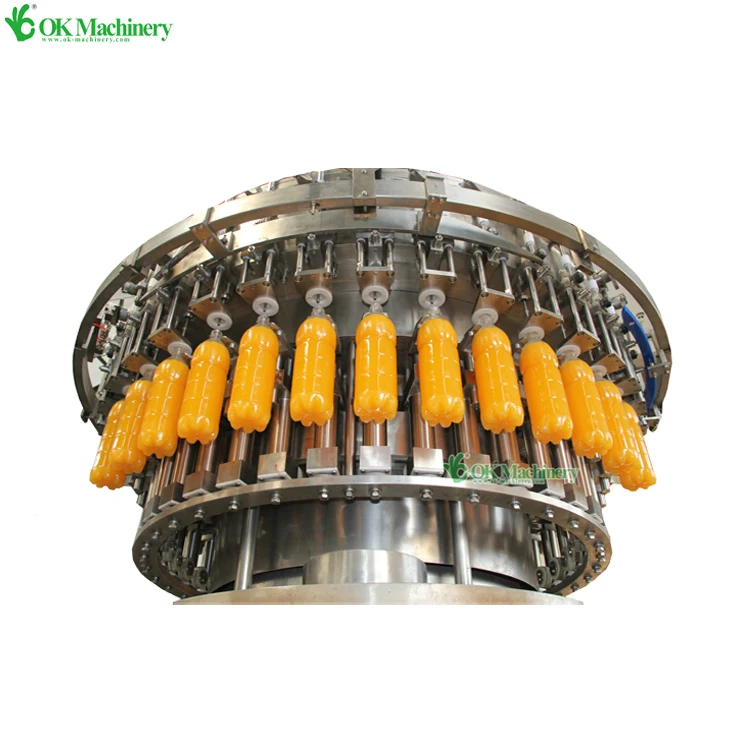

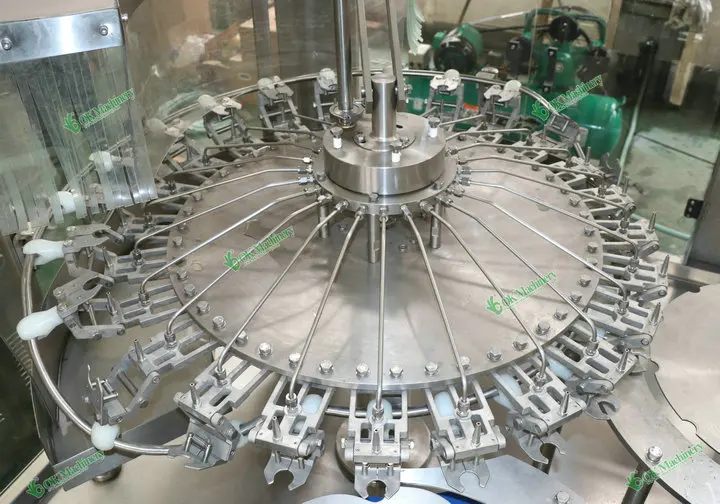

Washing Part
Function : washing bottle inside and outside dust .
Function : washing bottle inside and outside dust .
1.All 304/316 stainless steel rinse heads, water spray style inject design,more save water consumption and more clean.,
2.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing
3. 304/316 stainless steel washing pump

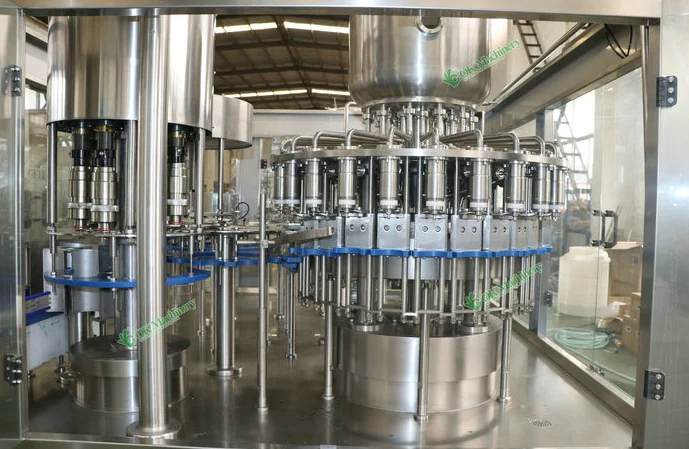

Filling Part
Function : filling water into bottle .
Function : filling water into bottle .
1. 304/316 Stainless steel high precision filling nozzle .
2. Filling volume adjustable in
fine rank, same liquid level after filling .
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean .
4.304/316 stainless steel filling pump

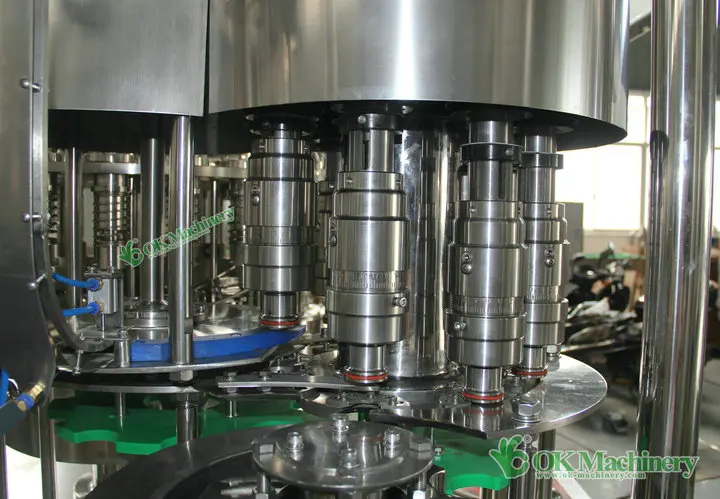

Capping part
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2.All 304/316 stainless steel construction
3. No bottle no capping
4.Automatic stop when lack of bottle
Air Conveyor & Flat Conveyor
Flat conveyor
- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
- Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine
Air Conveyor
- Air conveyor is fixed on the floor, with fan installed on the top. - Air filter is positioned at every entrance of air fan, to
prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. - All are made of stainless steel SUS 304 /316. - Rack made by high quality carbon steel welded.
prevent dust blown into bottles. - Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. - All are made of stainless steel SUS 304 /316. - Rack made by high quality carbon steel welded.
Automatic Cap online sterilizer
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Automatic cap loader
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
All Stainless Steel
1. Filling machine air conveyor SUS304
2. Washing part SUS304
3. Filling tank and nozzle SUS316
4. Capping heads SUS304
5. Machine frame SUS304
6. Filling machine flat conveyor SUS304
Festo (Germany)
OK machine control SystemTouch screen SIEMENS
PLC SIEMENS
Inverter SIEMENS
Air action control Festo Germany
AC contactor SIEMENS

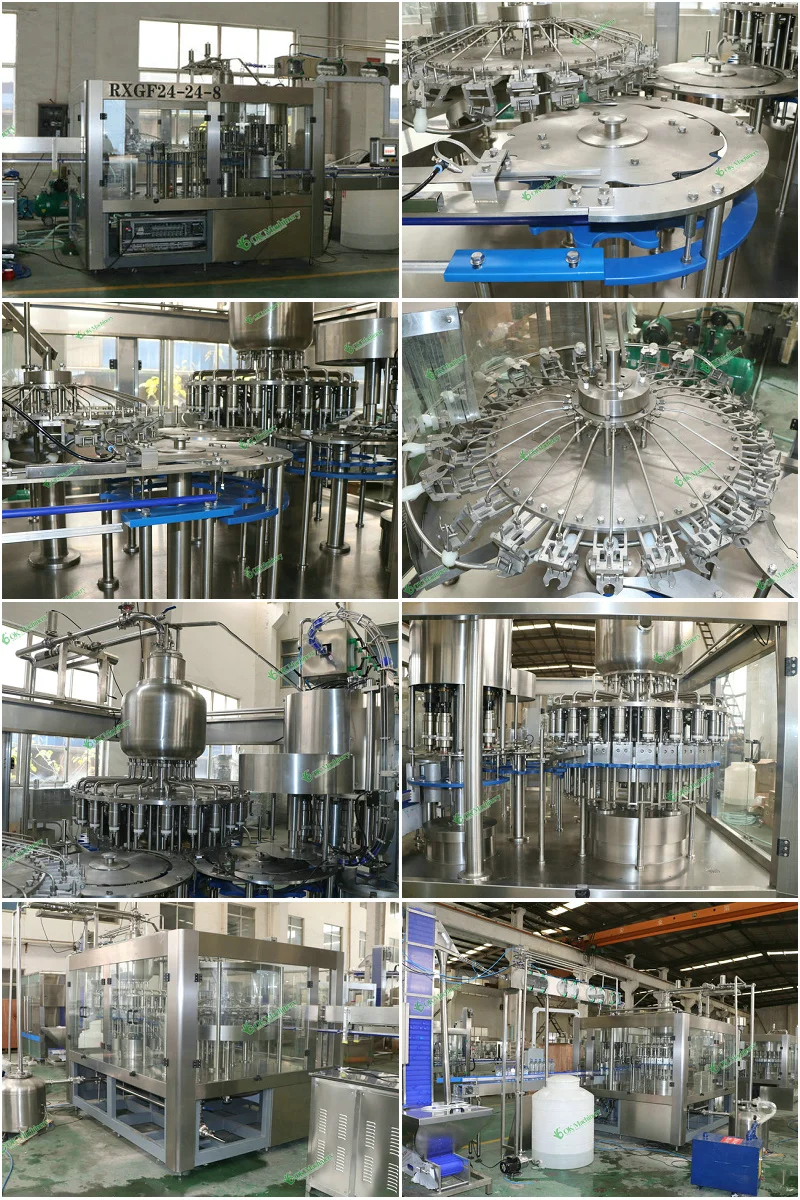

Detail of machine
Related Machinery
3. Shrinking label machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.
4. Film wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
