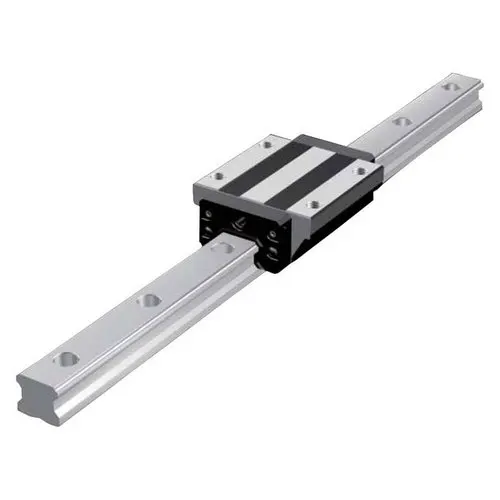

DIY CNC Routers Lathes Mills linear slide block linear guide hgh20ca HGH 20 CA Z0 H replace hiwin hgh20
- Category: >>>
- Supplier: Shenzhen Win3d Machinery Co. Ltd.
Share on (1600430497529):
Product Overview
Description
Details Images

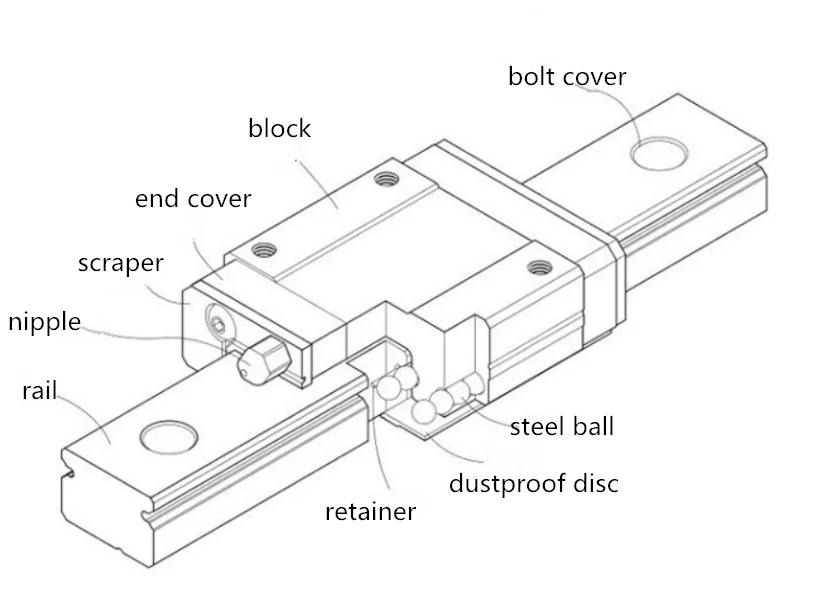

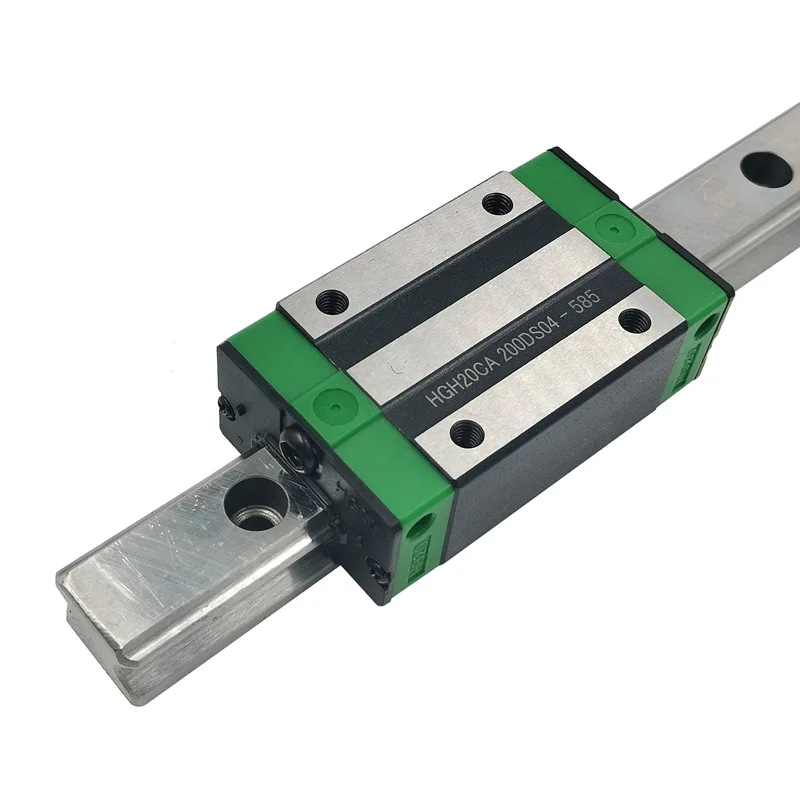

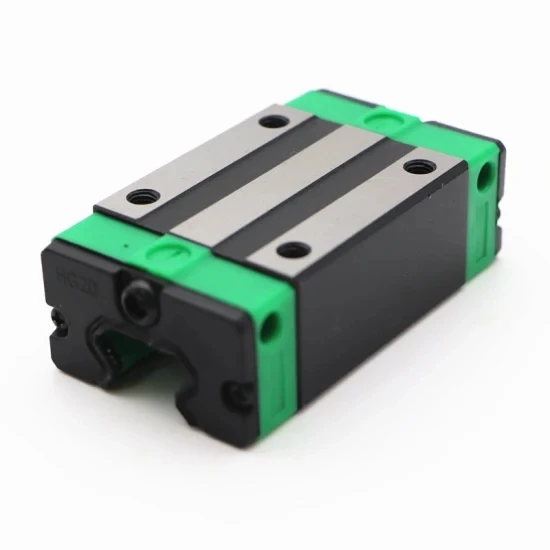

Please check the assambel of linear guideway carriage.
1 SET=1pc Linear bearing block and 1pc Linear guide rail
HG Series- Heavy Load Ball Type Linear Guide
It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
Brand | Win3d |
Rail type | HGH and HGW |
Block type | HGH20CA and HGH20HA and HGW20CC |
HGH types | HGH15CA HGH20CA HGH20HA HGH25CA HGH25HA HGH30CA HGH30HA HGH35CA HGH35HA HGH45CA HGH45HA HGH55CA HGH55HA HGH65CA HGH65HA |
HGW types | HGW15CA HGW20CA HGW20HA HGW25CA HGW25HA HGW30CA HGW30HA HGW35CA HGW35HA HGW45CA HGW45HA HGW55CA HGW55HA HGW65CA HGW65HAHGW15CC HGW20CC HGW20HC HGW25CC HGW25HC HGW30CC HGW30HC HGW35CC HGW35HC HGW45CC HGW45HC HGW55CC HGW55HC HGW65CC HGW65HC |

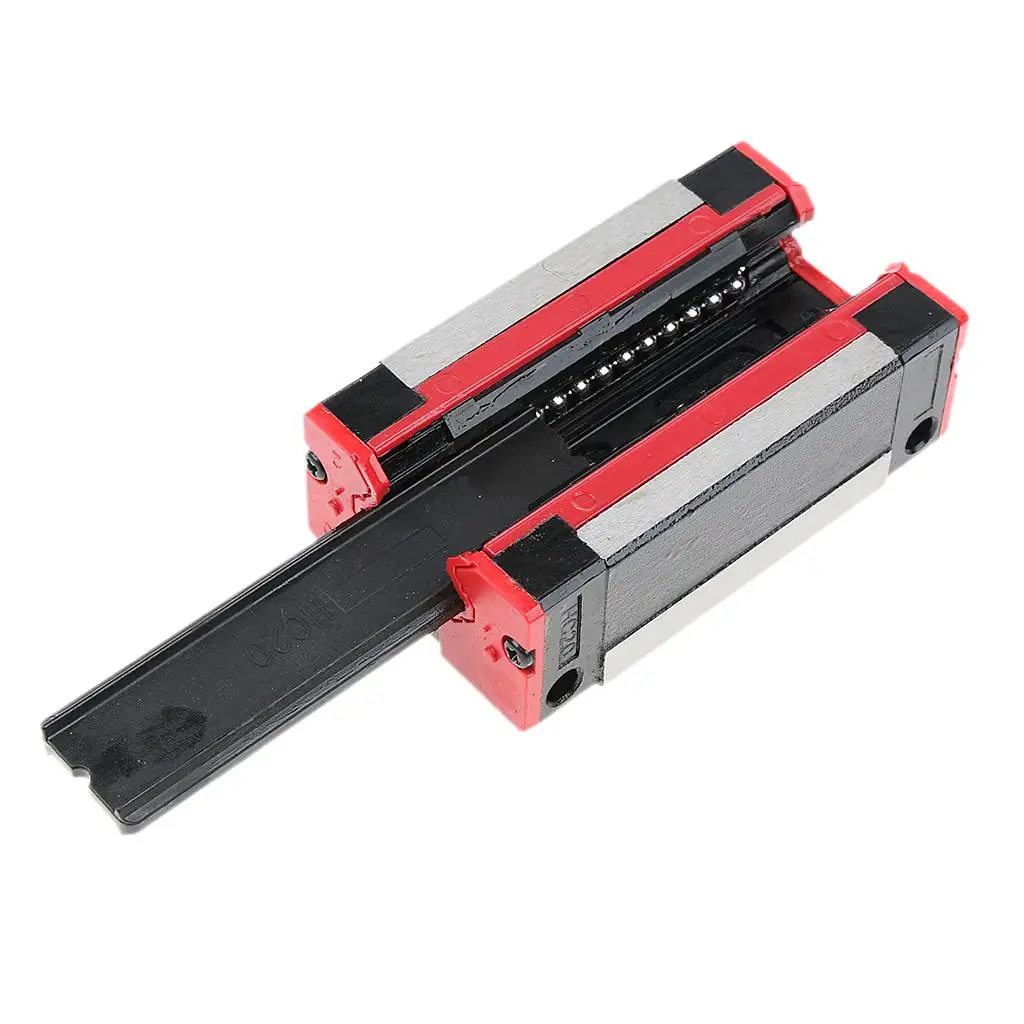

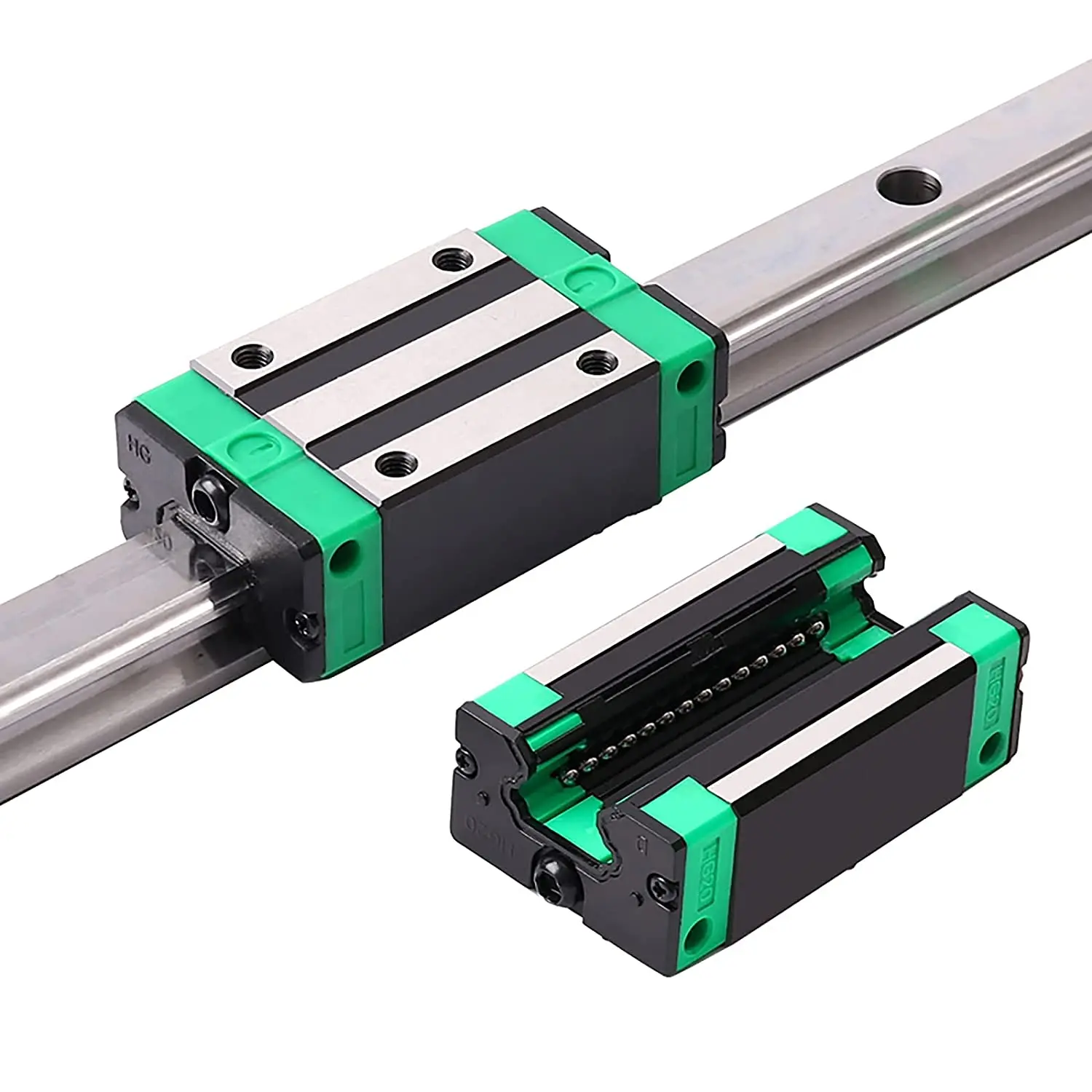

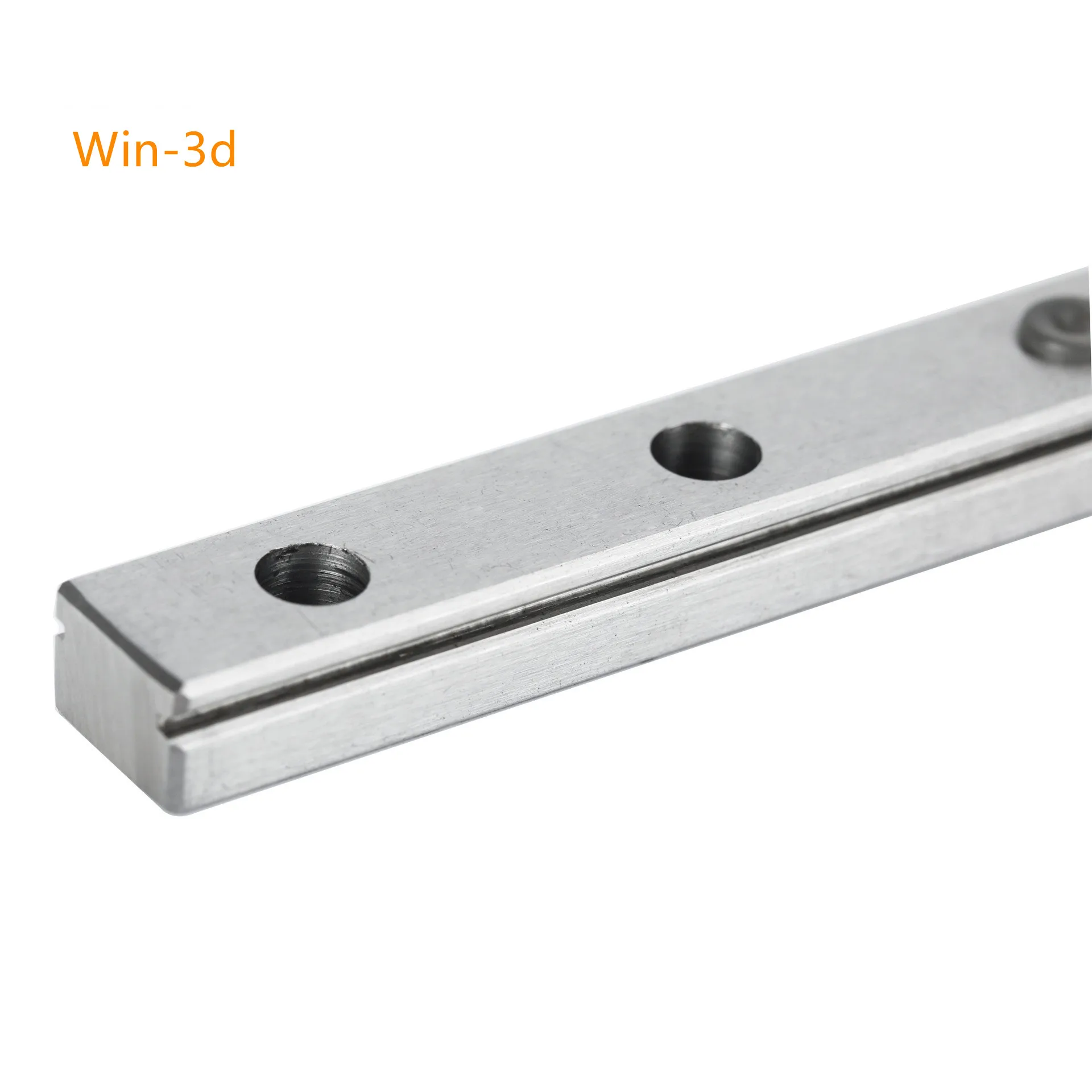

100% real picture, please check the rail and block.
Product Description

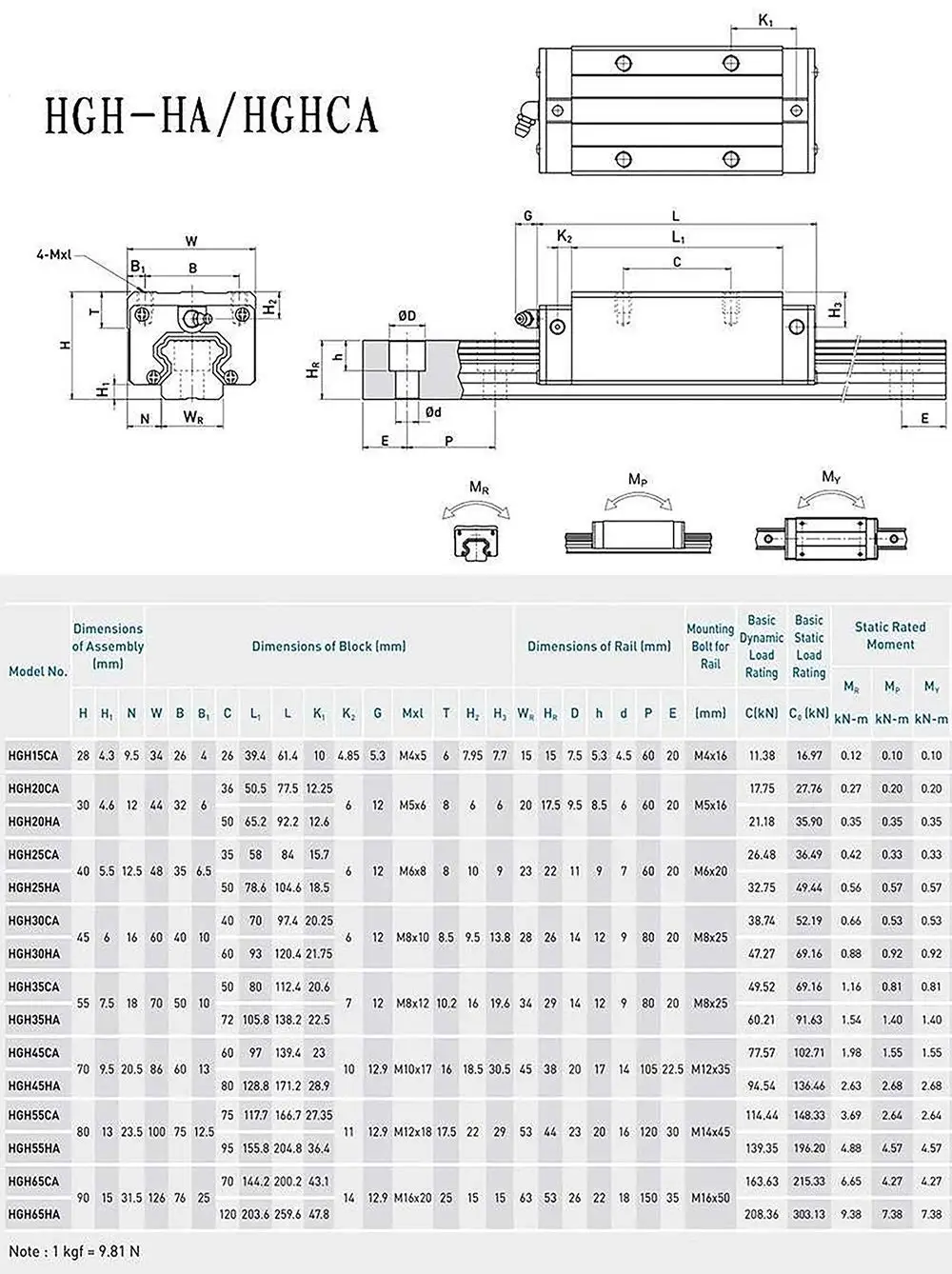

Drawings and data sheets

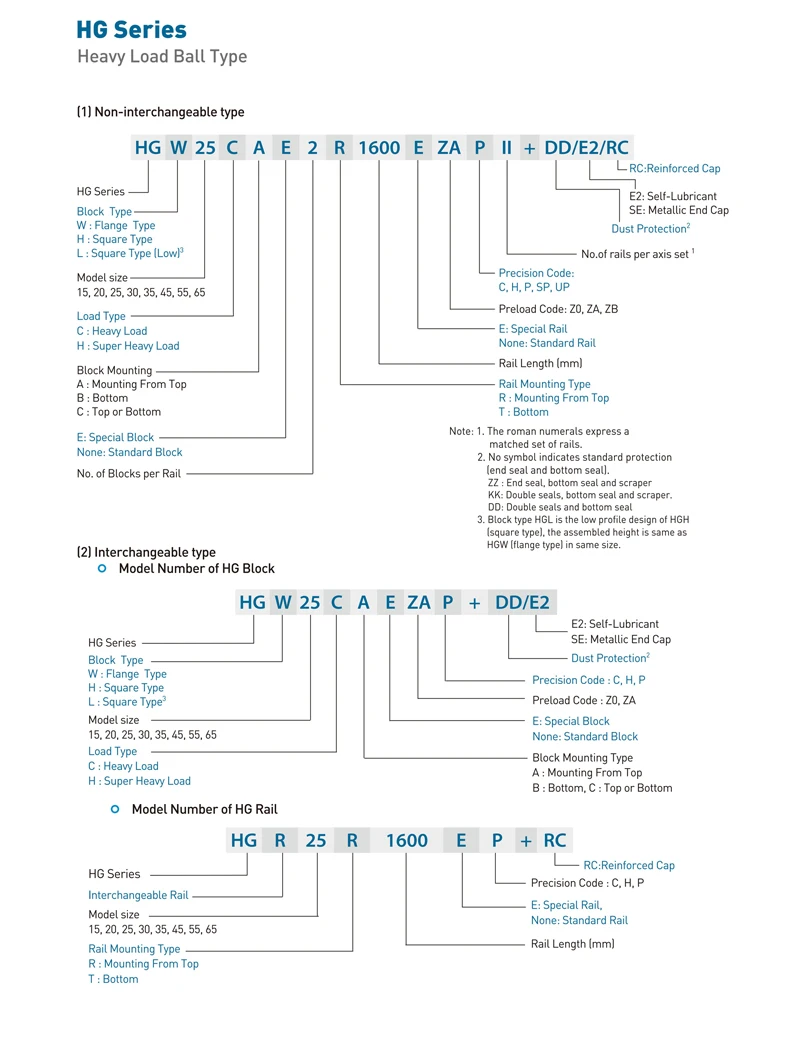

1.Please choose the right model according to your needs.
2.The length of rail base on your needs. Its range is 0 to 4000mm.

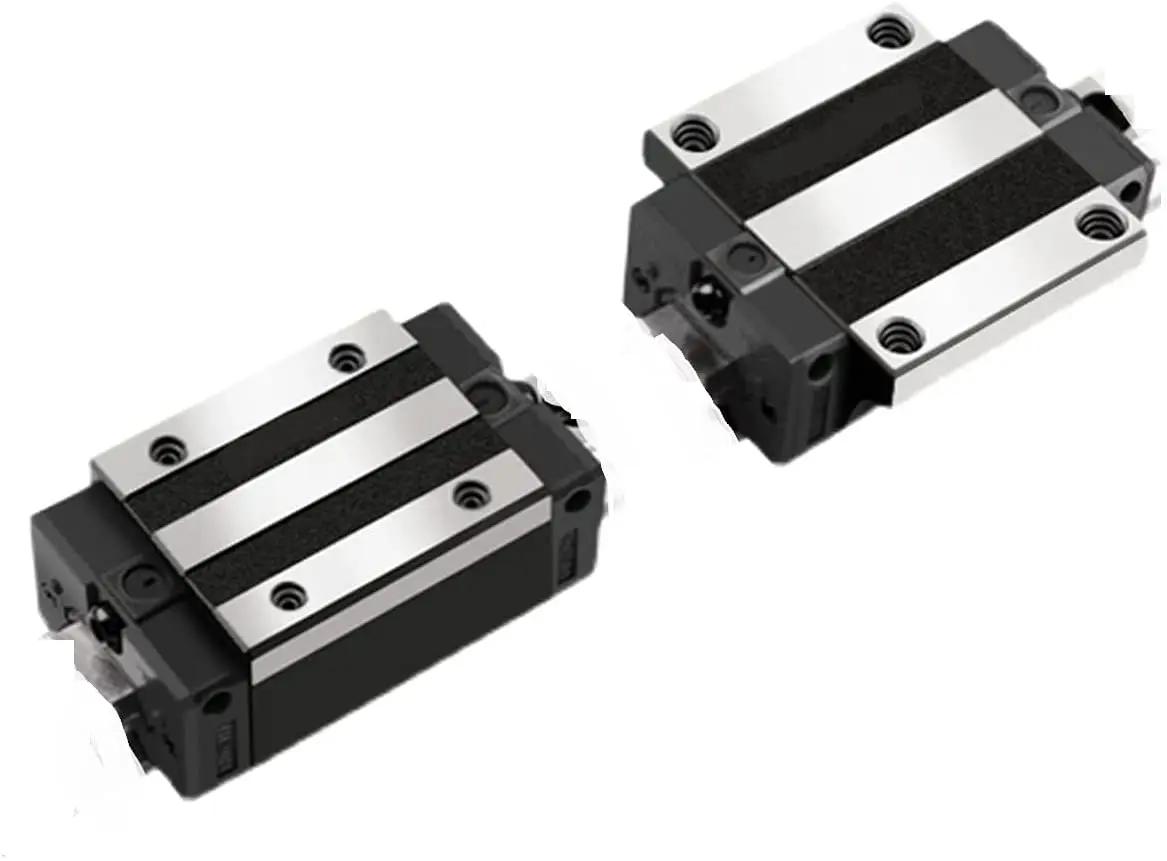

3.The block ( carriage/ slide ) has 2 types: regular C and extended H types.
Recommend Products

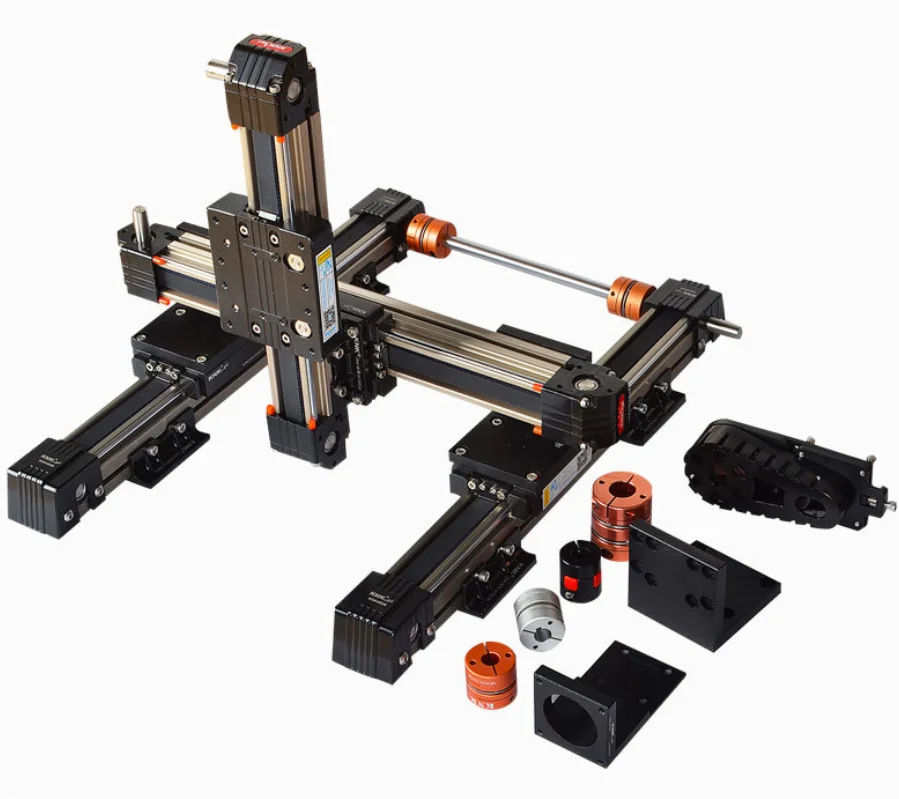

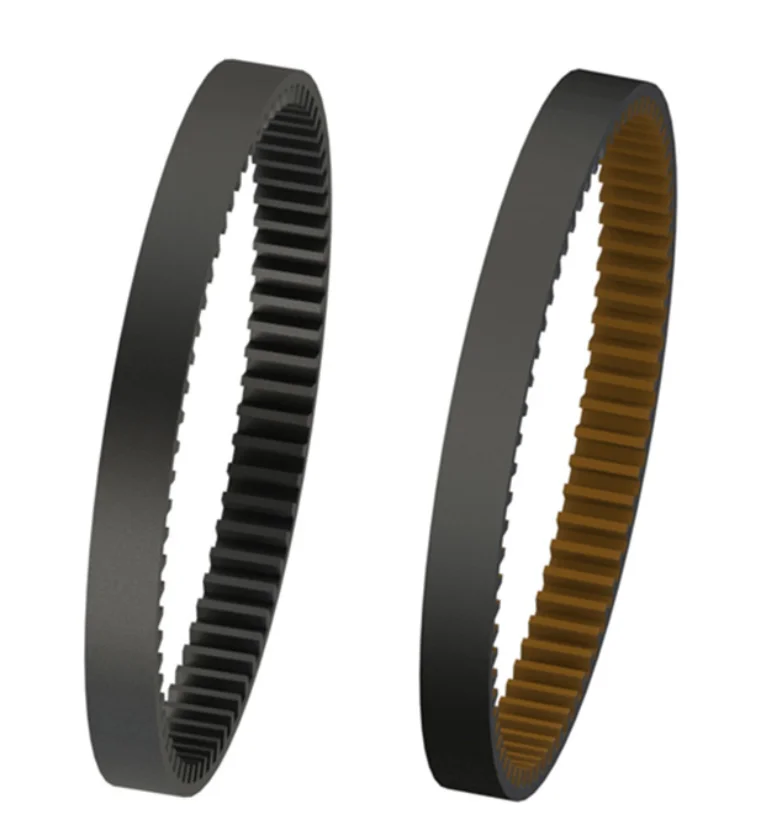

Belt Linear motion module

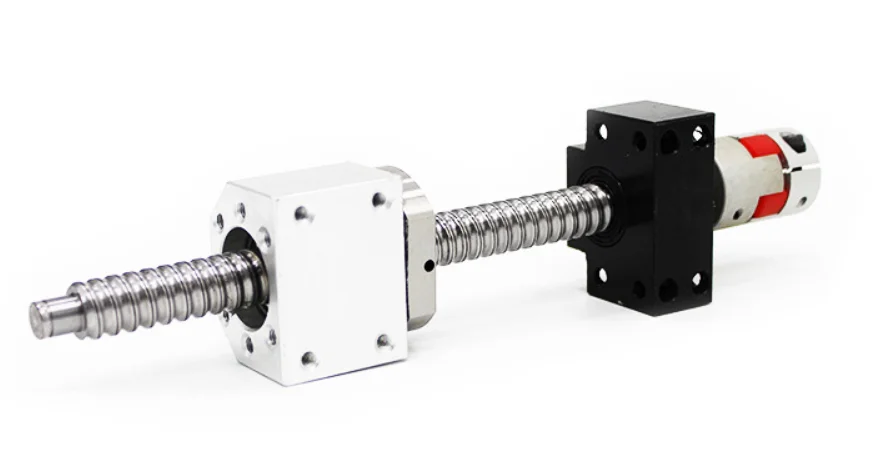

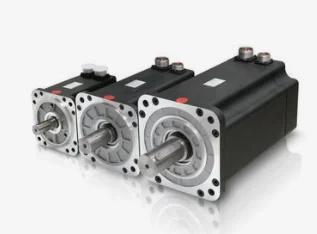

Ball screw Stepper motor, servo motor
Product packaging
Cartons
If length is short, to save freight, we will use cartons.
Wooden box
If length is long, to protect the rail, we will use wooden box.
Company Profile
shenzhen win3d machinery co.ltd
profession on linear shaft, linear bearing, linear guide, linear shaft support, linear slide blocks .ball screw ,cnc kits and 3d
printer parts , which are widely used in CNC machines, 3D printers, medical machines, textile machines, food machines and other
automatic machines. we can provide OEM service and some other customization service.Based on products, our goal is to meet
customers' need by flexible approach and solving problems in positive thinking.
printer parts , which are widely used in CNC machines, 3D printers, medical machines, textile machines, food machines and other
automatic machines. we can provide OEM service and some other customization service.Based on products, our goal is to meet
customers' need by flexible approach and solving problems in positive thinking.
