Workersbee 11KW 5m 16A 3P 250V type 2 plug IEC 62196 type 2 charging connector plug female car side

Share on (1600430499294):


Price:$43.50 - $52.00

Quantity:


Product Overview

Description



Product Description

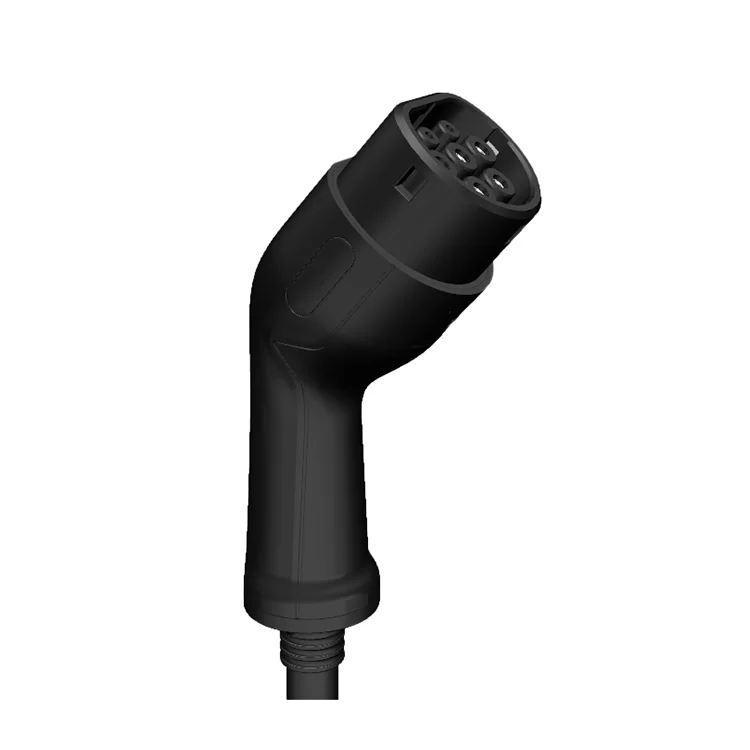

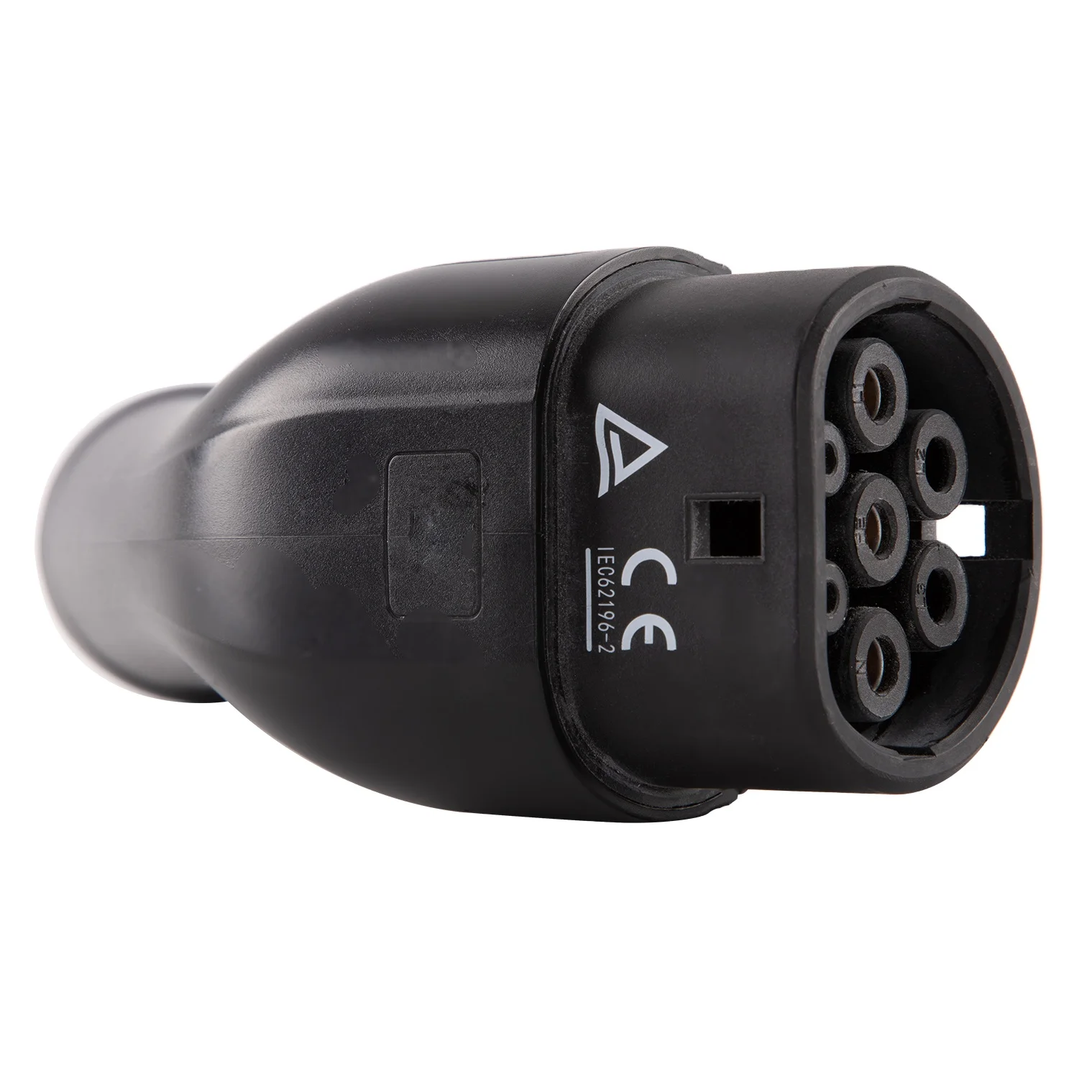

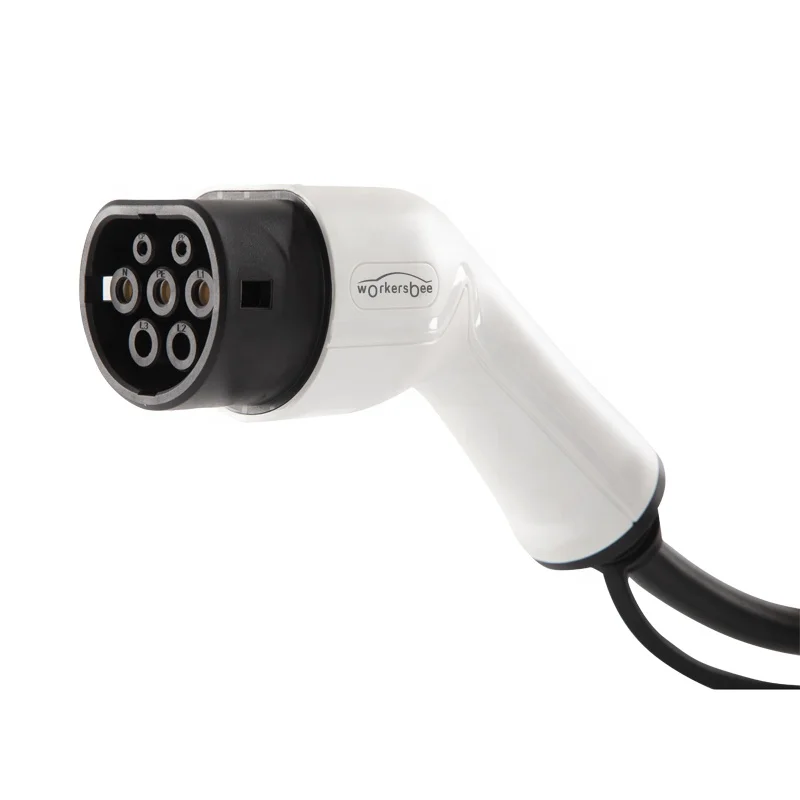

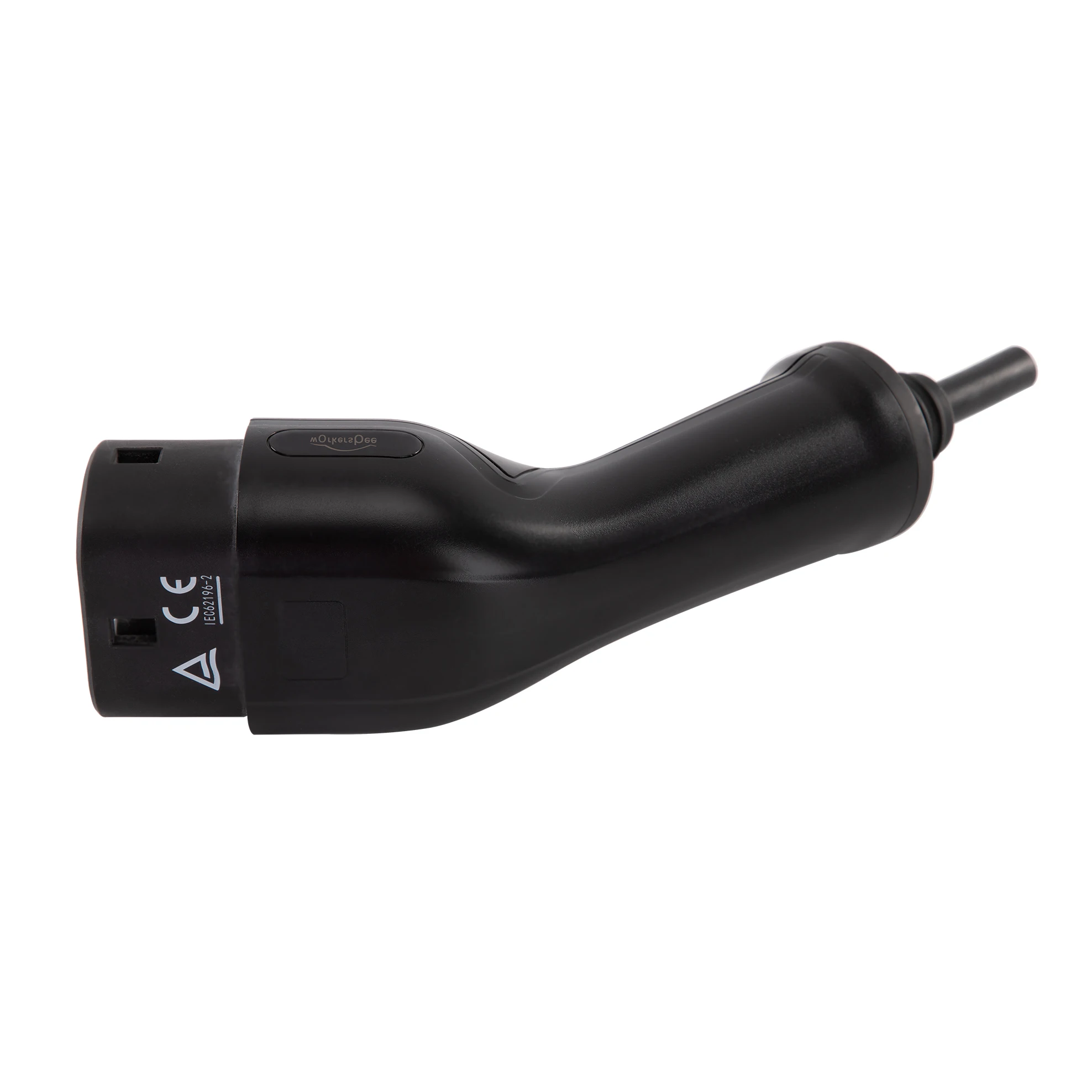

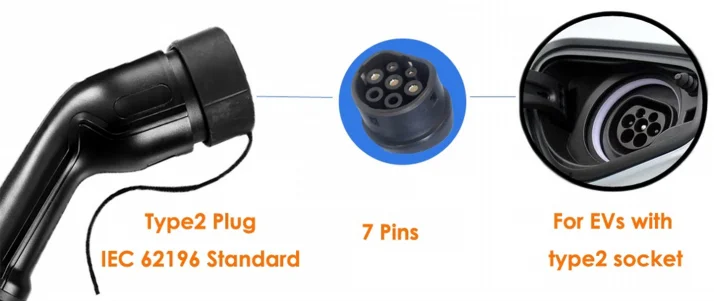

Workersbee IEC 62196, IP55 Coupled Electric car charging equipment type 2 plug female

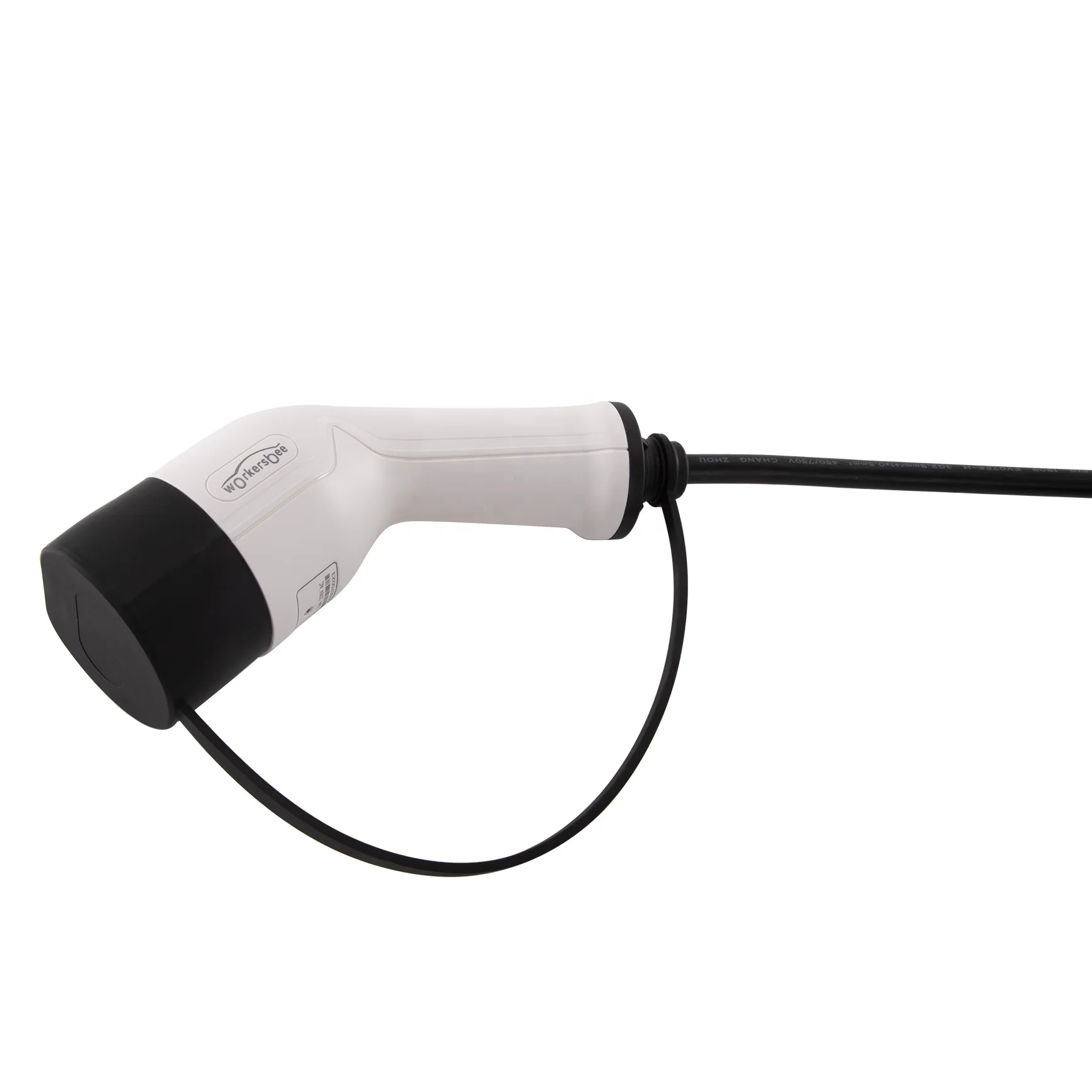

With an ergonomic design, the product fits human hand and is comfortable to hold. The product has a protection grade of IP55. There is a matching cover which effectively protects the plug head. The plug has a high-quality thermoplastic shell and copper alloy pins to survive 10,000 plugs and unplugs.

Product benefits :
* Type 2 plug female (car side) IEC 62196
* Maximal charging power: 11 kW
* Maximal charging current: 16 A 3 phase
* Connection: 480V - 5 x 2.5 mm² + 1 x 0.5 mm
* suitable for soldering and crimping
* Color: black - white
* Contact Resistance: 0.5mΩ Max
* Withstand Voltage: 2000V
* For all Type2 electric cars

We provide 24-month warranty for our products. We now have TUV, CE and UL certificates for the 1.0 Type 1 AC charging plug. The plug with UL mark will be slightly more expensive.






Specification


Warranty
24 months
Certification
CE/TUV
Customized support
LOGO, Color, Cable Length
Place of Origin
China
Brand Name
Workersbee
Model Number
WB-IC-AC1.0-16AT
Type
Electrical Plug
Grounding
Standard Grounding
Rated Voltage
480V
Rated Current
16A
Plug Type
Type 2 plug female (car side)
Max charging power
11KW
Plug Fireproofness
UL94 V-0
Mechanical Life
>10000 times of unloaded plug in/off
Protection Level
IP55 (coupled)
Plug Shell Material
Thermoplastics
Working Temperature
30℃- +50℃
Conductor
Copper alloy with silver plating

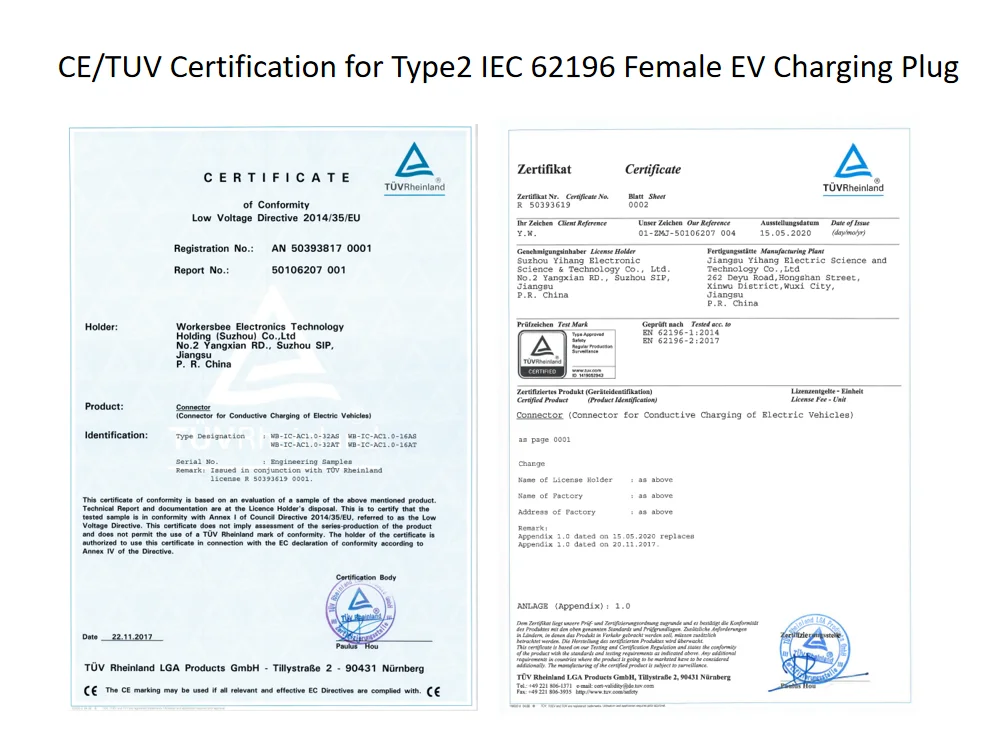

Certifications

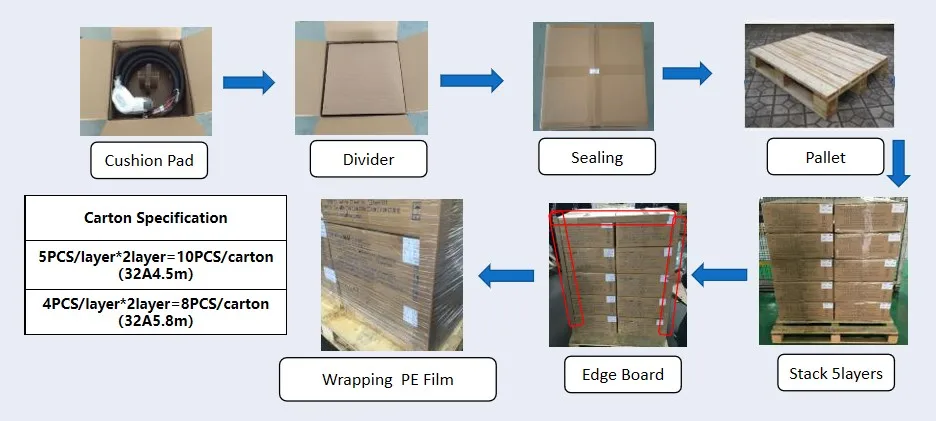

Packing & Delivery






Company Profile




Jiangsu Yihang Electric Science & Technology Co., Ltd., a China based company located in Wuxi, is a leader in the China electric vehicle charging market. The Workersbee product line consists of both AC and DC charging connectors and sockets. Yihang has an extensive line of DC Fast Charging Connectors (CCS Combo 1, CCS Combo 2) to service the chargers for metro, commercial, workplace and highway locations for re-charging passenger electric vehicles and heavy duty electric vehicles, such as school, shuttle and transit buses. In addition, Workersbee has a large array of AC charging connector products for the chargers of residential, workplace, multi-dwelling and commercial segments.
Yihang Electric Science & Technology Co., Ltd. was first founded in 2007 in Suzhou Industrial Park with a registered capital of 29.5 million CNY. The company has advanced R&D centers and testing centers. A number of patents for new inventions and appearance applications have been obtained. The company concentrates on R&D and production of "workersbee" brand electric vehicle charging connector with independent intellectual property rights, inlet, PDU, BDU. A complete precision manufacturing service system including product design, structural research and development, precision manufacturing and timely distribution has been formed. Relying on strong product development ability, efficient flexible manufacturing ability and good customer collaboration ability. In 2017, FAW Fusheng Group, a subsidiary of FAW Changchun, jointly invested in Suzhou Fusheng Yihang Automobile Parts Co., Ltd. in an effort to compete in Electric Vehicle parts market.
It is our mission to enable the growth of the electric vehicle market by offering rapid product innovation coupled with reliable and cost-effective charging solutions supported by a responsive nationwide service network.
