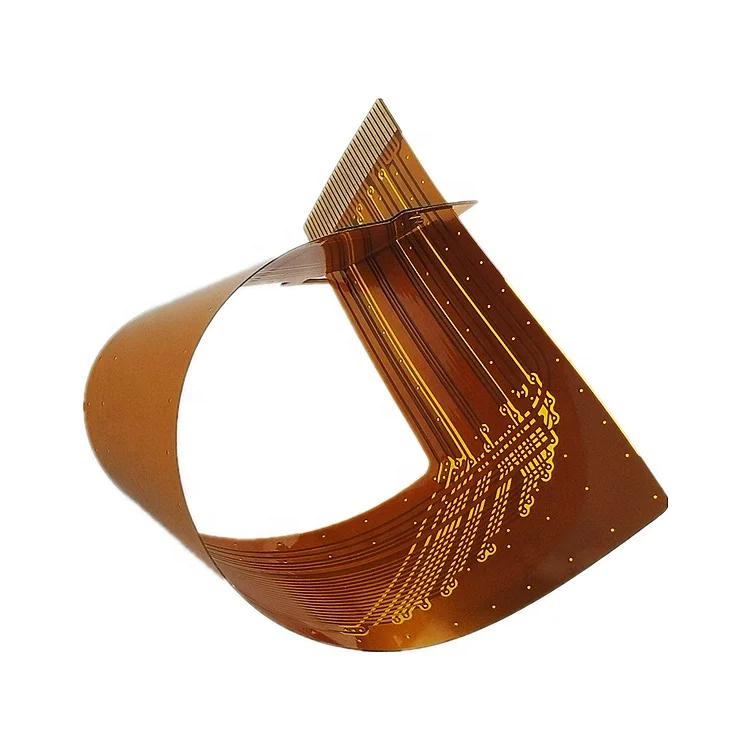

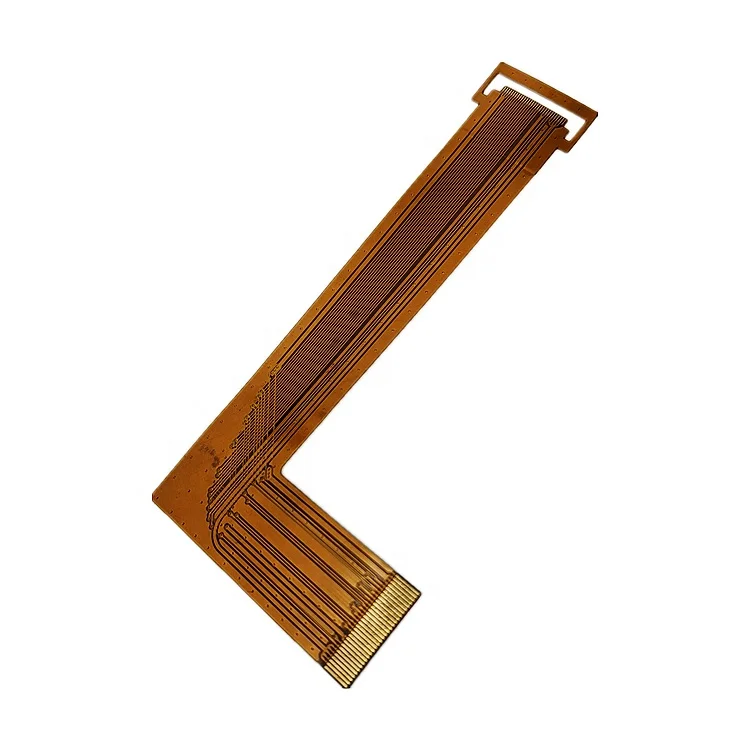

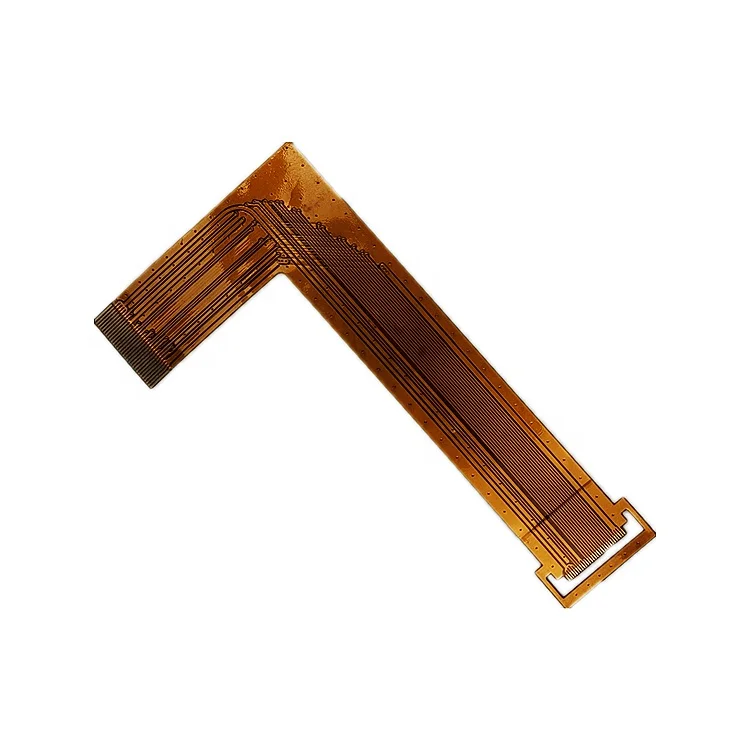

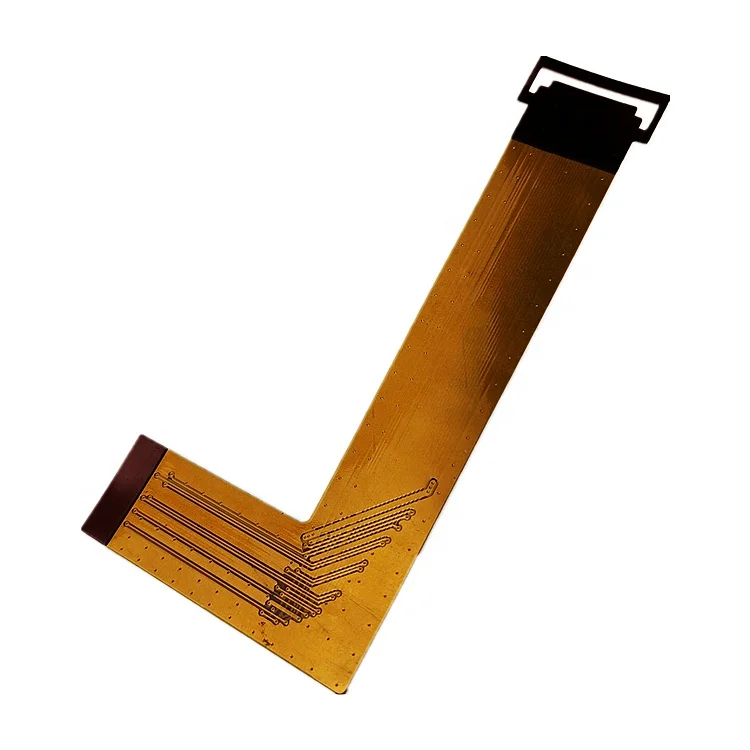

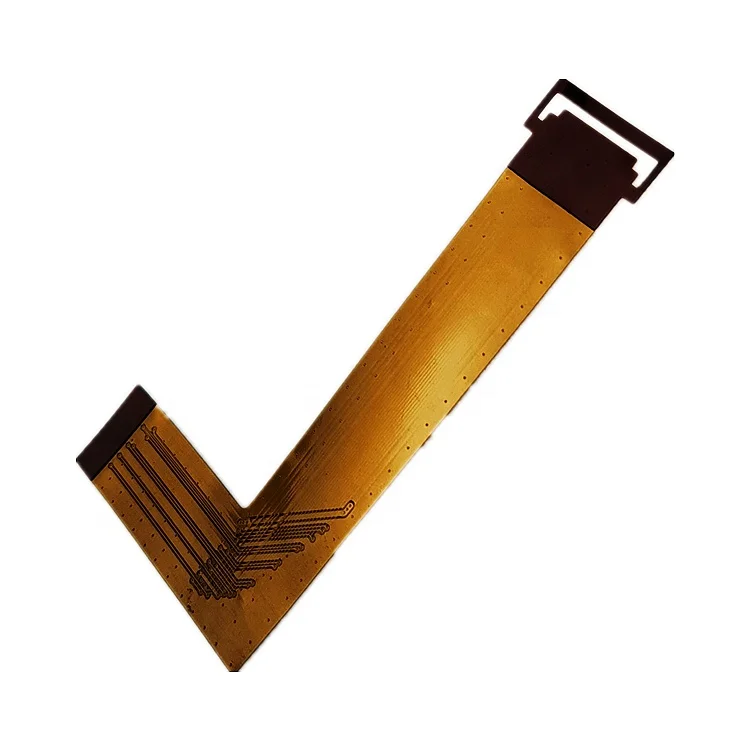

Professional FPC manufacturer, flex pcb, RoHS flex circuit board FPC Flexible PCB
- Category: >>>
- Supplier: Shenzhen Yas Honda Electronic Technology Co. Ltd.
Share on (1600430548391):
Product Overview
Description
Product Name | Professional FPC manufacturer, flex pcb, RoHS flex circuit board FPC Flexible PCB |
Type | HF(High-Frequency)&(Radio Frenquency)board,impendance controlled board, HDI board,BGA&Fine pitch board |
Material | FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon,Nalco,Isola and so on |
Layer | 1-40 layers |
Shape | Retangular, Round, Slots, Cutouts, Complex, Irregular |
Cutting | Shear, V-score, Tab-routed |
Copper Thickness | 0.5-6 OZ |
Solder Mask | green, yellow,white, blue,black,red, etc. |
Silk Screen | White, Black, etc. |
Silk Screen Min Line Width | 0.006" or 0.15mm |
Surface Finish | HASL, HASL Leadfree, Immersion Tin, Gold Finger, OSP |
Minimum Annlar Ring | 4mil |
Min Solder Mask Bridge | 0.08mm |
Plugging Vias capability | 0.2-0.8mm |
Min Hole Diameter | 8mil |
Tolerance Dimension | ±0.05mm |
Other Tech | Peelable Solder Mask, Stiffener |
Applications
Company Profile
Certifications
Packing & Shipping
FAQ
Q.What file is needed for quotation？
Please prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
Q. Do you have any MOQ Limited ?
NO MOQ,Sample,small volume and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will priority to deal it and do our best to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?
We will use Flying Probe Test, E-test etc.
Q.Shipping cost?
The shipping cost is determined by the destination,weight,packing size of the goods.Pls let us know if you need us to quote you the shipping cost.
Please prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
Q. Do you have any MOQ Limited ?
NO MOQ,Sample,small volume and mass production all can support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will priority to deal it and do our best to give you satisfied delivery time.
Q.How can we guarantee you receive an good quality product?
We will use Flying Probe Test, E-test etc.
Q.Shipping cost?
The shipping cost is determined by the destination,weight,packing size of the goods.Pls let us know if you need us to quote you the shipping cost.
