SAFTTY ST06 series bimetallic thermal switch for ac motor/dc motor
- Category: >>>
- Supplier: Guangzhou Saftty Electronic Technology Co. Limited
Share on (1600430605649):
Product Overview
Description
ST06 series
Agency | Standard No. | File No. | Application | BST(℃) |
VDE | EN 60730-2-2 | 40047121 | Motor protector,Thermal | 60-200℃ |
UL | UL 6073-2-2 | E 336150 | Thermal motor protector | 60-180℃ |
Key Benefits:
• Good sealed.
• Small size, suitable to be embedded inside coil.
• Metal case, up to 50KG coil shaping pressure, has high thermal conductivity and temperature sensitive.
• Pure temperature action type products, bimetal-disc without current and heat effect, accurate temperature control.
• Small size, suitable to be embedded inside coil.
• Metal case, up to 50KG coil shaping pressure, has high thermal conductivity and temperature sensitive.
• Pure temperature action type products, bimetal-disc without current and heat effect, accurate temperature control.
Description
Applications:
• Motors.
• Transformers.
• Coils.
• Electronics, sensor.
Integration of Resources:
• Integration of global supply chain resources, we purchase bimetal-disc from the world’s largest bimetal-disc material
manufacturer EMS in the Unitd States and the case is made of precision CNC cutting.
• Metal dome which material comes from NGK Japan and manufactured by Japanese stamping supplier.
• The key component bimetal-disc produced by fully automated molding equipment and sorted by tunnel oven separation equipment is
good consistency and stable performance.
• Motors.
• Transformers.
• Coils.
• Electronics, sensor.
Integration of Resources:
• Integration of global supply chain resources, we purchase bimetal-disc from the world’s largest bimetal-disc material
manufacturer EMS in the Unitd States and the case is made of precision CNC cutting.
• Metal dome which material comes from NGK Japan and manufactured by Japanese stamping supplier.
• The key component bimetal-disc produced by fully automated molding equipment and sorted by tunnel oven separation equipment is
good consistency and stable performance.
TECHNICAL DATA | ||
Normally closed | ||
Norminal Switching Temp., in 5K-step | 60℃-200℃ | |
Tolerance-Standard | ±5K/±8K/±10K | |
Reset temperature range | ≥35℃（≤95℃ NST） | |
–50K±15K（100℃≤NST≤180℃） | ||
Operating voltage | 250VAC | |
Cycles at cosΦ1.0 | 10A/10000 cycles | |
Cycles at cosΦ0.6 | 6.3A/10000 cycles | |
Contact resistance （lead length 55mm） | ≤50mΩ | |
Insulation voltage | 1.5KV | |
Insulation sleeve length | 16mm | |
Diameter | 10mm | |
Height | 6.7mm | |
Lead wire(standard) | 0.75mm2/AWG18 | |
Outgoing line length-standard | 55mm | |
Details Images
ST06-U1
With shrink cap insulation
NST:60-200℃
Insulation Voltage:1.5KV
ST06-U2
Without cap insulation
NST:60-200℃

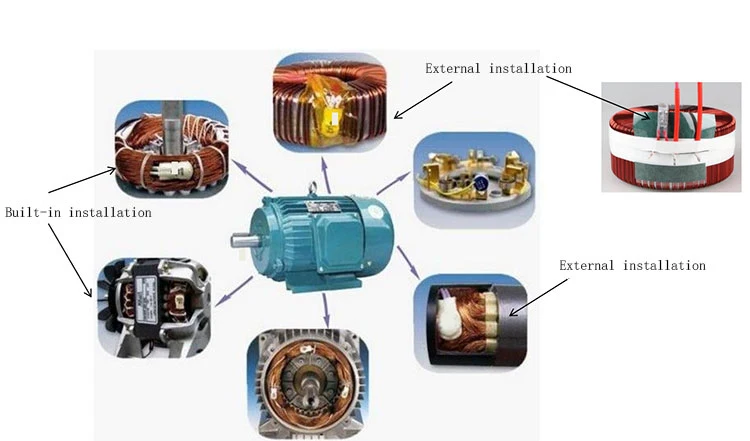

Application Scenarios
Company Profile
Ours Company
Saftty Electronic Technology Co., Ltd. established in Guangzhou in 2008. It is a member of the China National Automatic Controller Standard Technical Committee and has more than ten national patents.
We are devoted to research and develop various types of miniature thermal protectors.
We are devoted to research and develop various types of miniature thermal protectors.
They are widely used in motors, pumps, cooling fans, power supplies, battery packs, transformers, ballasts, lighting equipment, electric heating products. It can protect your products when the working temperature is higher than normal. The brand SAFTTY (short for safety technology) means providing customers with safe and reliable products, providing employees with a safe working environment and providing shareholders with a stable return
on investment.
on investment.
Exhibition
Ours Team
Packaging & Shipping
FAQ
1.Are you manufacturer ?
-Yes, we own manufacturing base in Baoying,Jiangsu and head office in Guangzhou, Guangdong.
-Yes, we own manufacturing base in Baoying,Jiangsu and head office in Guangzhou, Guangdong.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
3. Do you offer the sample ?
-Yes ,we would offer below 20pcs free sample for check and test.
4.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
5.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
6.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
7.where is your market ?
-Italy, Germany ,Turkey ,France,USA, Brazil, India, South Korea ...
8.What applications are thermal protectors used for?
-Electric motor, Power supply ,battery ,transformance ,fan,heating machine ,ect .
-Electric motor, Power supply ,battery ,transformance ,fan,heating machine ,ect .
