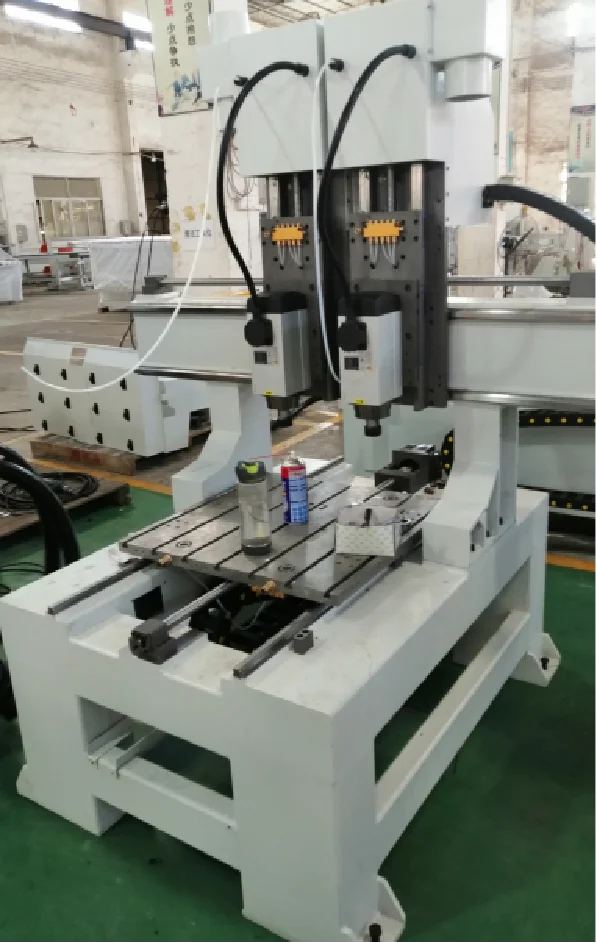

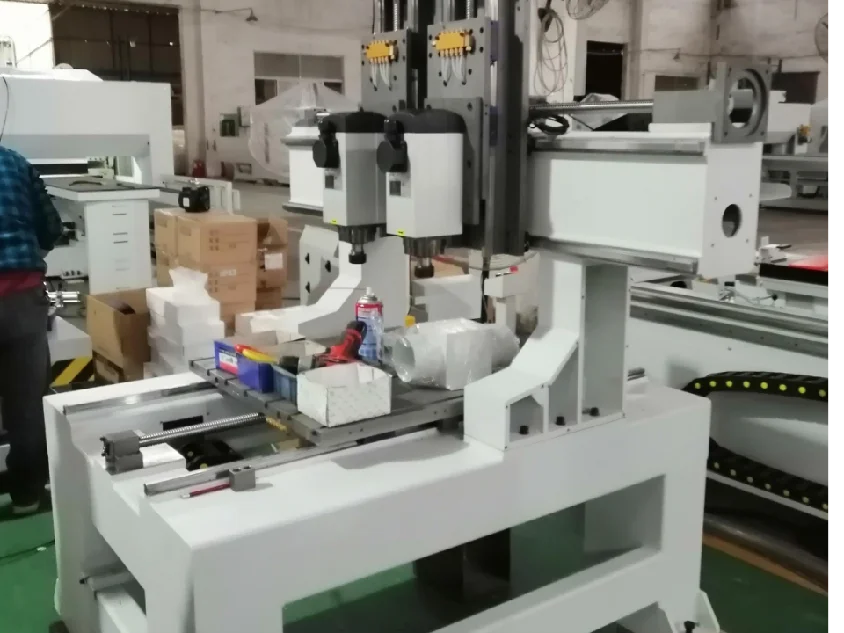

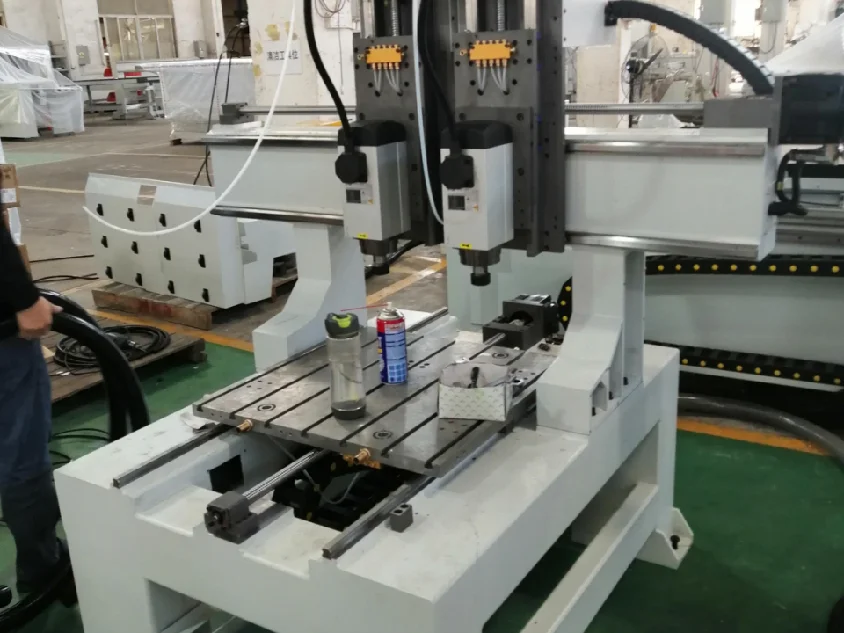

R 6060 The gadget is a small desktop mini CNC router machine. Making hobbies like small toys
- Category: >>>
- Supplier: Foshan Shunde Ruinuo CNC Equipment Co. Ltd.
Share on (1600430622857):
Product Overview
Description
Product Description
Full Automatic CNC router panel furniture production line is widely used in customized panel furniture, cabinet making, home
decoration, shop and office furniture with automatic feeding, automatic CNC processing, automatic discharge.
FEATURES OF CNC NESTING MACHINE
1. Equipped with computer optimization layout software, saving plate, improve utilization.
2. The whole process of numerical control, reducing the professional and technical personnel requirements.
3. Easy to operate, 1 day training can be on the job.
4. Fully automatic loading and unloading system, no need to push or move materials manually, promise accurately positioned,
greatly improve production efficiency, multifunctional integrated machine.
5. Main parts adopt international famous brand, like FAM vertical driller, taiwan syntec control, taiwan PMI
linear guide rail etc, longer time used, good after sales service.
6. All electronic component adopted European standard (CE certified) components, such as French Schneider, Japan OMRON limit
switch.
decoration, shop and office furniture with automatic feeding, automatic CNC processing, automatic discharge.
FEATURES OF CNC NESTING MACHINE
1. Equipped with computer optimization layout software, saving plate, improve utilization.
2. The whole process of numerical control, reducing the professional and technical personnel requirements.
3. Easy to operate, 1 day training can be on the job.
4. Fully automatic loading and unloading system, no need to push or move materials manually, promise accurately positioned,
greatly improve production efficiency, multifunctional integrated machine.
5. Main parts adopt international famous brand, like FAM vertical driller, taiwan syntec control, taiwan PMI
linear guide rail etc, longer time used, good after sales service.
6. All electronic component adopted European standard (CE certified) components, such as French Schneider, Japan OMRON limit
switch.
Mechanical index | Mechanical index | ||
Working range | X-axis: | 600mm | |
Y-axis: | 600mm | ||
Z-axis: | 300mm | ||
Processing Precision | ±0.05mm | ||
Repeat positioning | ±0.03mm | ||
Max. Traverse Speed | 75m/min | ||
Max. working Speed | 35m/min | ||
work table | vacuum worktable | ||
X/Y/Z axis | Reducer box transmission | ||
Quantity | 2 | ||
Power | HQD 4.5kw air cooling | ||
Rotating speed | 24000 rpm | ||
Drive system | Leadshine servo motor and driver | ||
Option | Put roller device | ||
Working principle | water pump(Dry type pump can be optional) | ||
Quantity | 1 | ||
Power | 5.5kw | ||
Suction flow rate | 160 m³/h | ||
control system | Weihong computer control system | ||
position device | Available position pin | ||
Power supply | Voltage: 380V, 3-phase, Frequency: 50 Hz | ||
Software | Jdpaint, powermill, Artcam, Alphacam, Type 3, etc.CAD/CAM software compatible, identify G code, *.NC. | ||
Packing size | L*W*H 2100*3400*1900mm | ||
Net weight | 1700KG | ||
The above function can be optional！

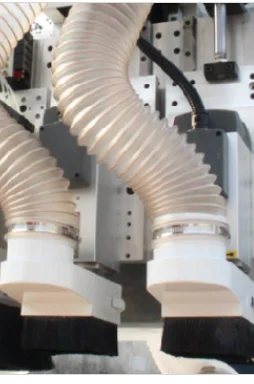

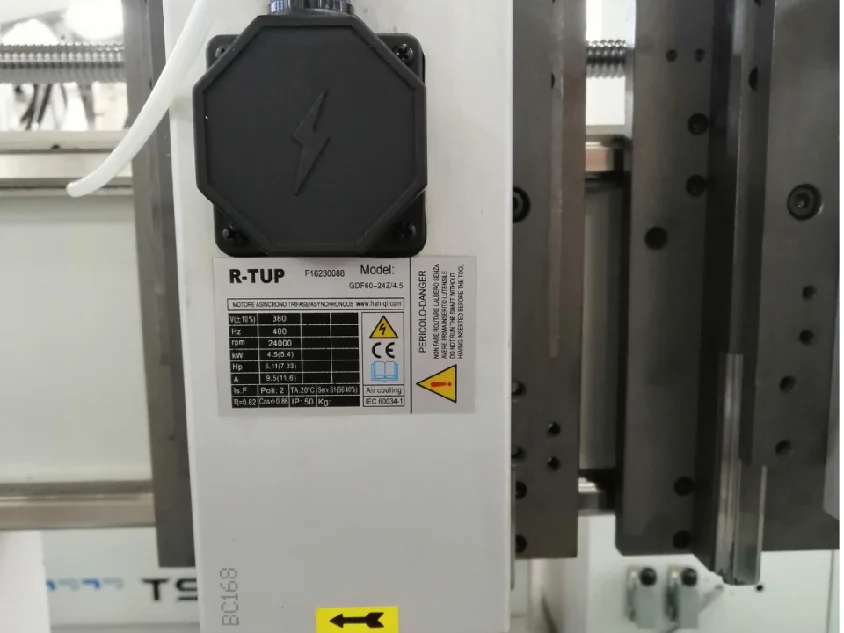

6KW AIR-cooling spindle
Strong torque, high efficient processing speed, suitable for technological cutting,milling and other strong processing technology
6KW HQD Air-cooling spindle
Strong torque, high efficient processing speed, suitable for technological cutting, milling and other strong processing
technology, ensure edge neatly without ripple.
technology, ensure edge neatly without ripple.
Leadshine servo motor and drive 850w
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy
running accurately in safe with very good
resolution and accuracy

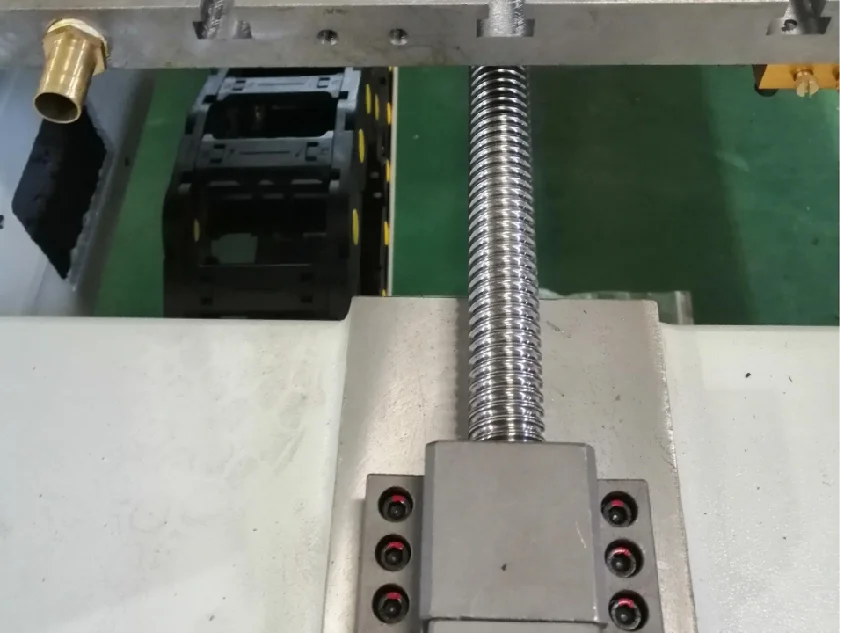

Screw Driver for x y z axis Transmission
FuLing frequency inverter
With very good anti interference function
& stable output signal,ensure the spindle
working smoothly.
& stable output signal,ensure the spindle
working smoothly.

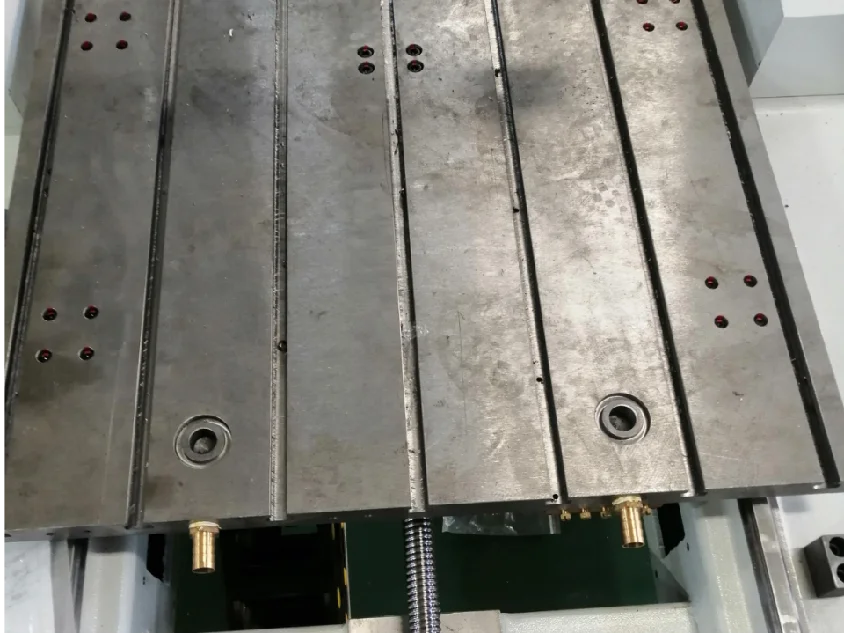

Alumimnum worktable
Worktable is divided into 6 parts, 2 holes
in each part to ensure the adsorption is equal.
in each part to ensure the adsorption is equal.
Alumimnum worktable

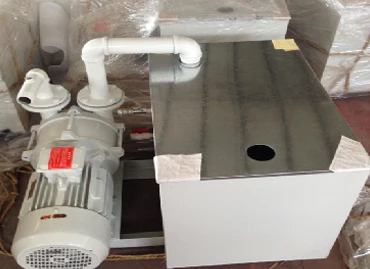

vacuum pumps ensure the powerful suction. Type: water-cooling Power: 5.5kw Suction flow rate:160m3/h per set
Standardized Wiring
Refer to CE standards, producing & wiring are based on definite signs, very clear line connections with a circuit diagram, once any breakdown, will be very easy.
Automatical oil system
Butter，very convenient, can prolong the machine’s
service life and keep good accuracy.
service life and keep good accuracy.
Germen 25mm linear guide Precision ground 25mm imported linear guide rails attached to the gantry, with centralized lubrication
system to the PMI bearing blocks to guarantee smooth travel of the spindle motor assembly
system to the PMI bearing blocks to guarantee smooth travel of the spindle motor assembly
Drag chain
German HELUKABEL high flexibility drag chain, more than million times bending, it can be bend in 150 degrees, good protection for the cable.
German HELUKABEL high flexibility drag chain, more than million times bending, it can be bend in 150 degrees, good protection for the cable.

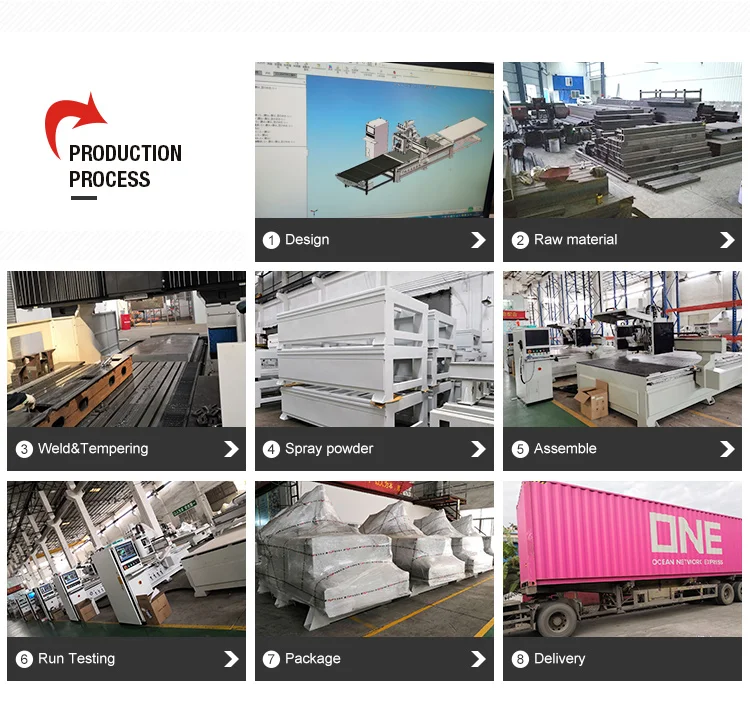

Production Process
Related products
About RUINUO
FAQ
1. What kinds of processing can the CNC router do?
A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape's cutting.
2.What kinds of materials can the CNC router work on?
A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.
3.Guarantee & After-sale Service
A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller's factory.
D..We can send engineer go to overseas training
4.Delivery Time
Usually, for normal model, within 15 -20 days after get the deposit
5. Payment Terms
A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!
Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,
1 hour drive from Guangzhou airport
30 minutes drive from Lecong international furniture town
20 minutes drive from Leliu furniture hardware town
40 minutes drive from Foshan building material town
