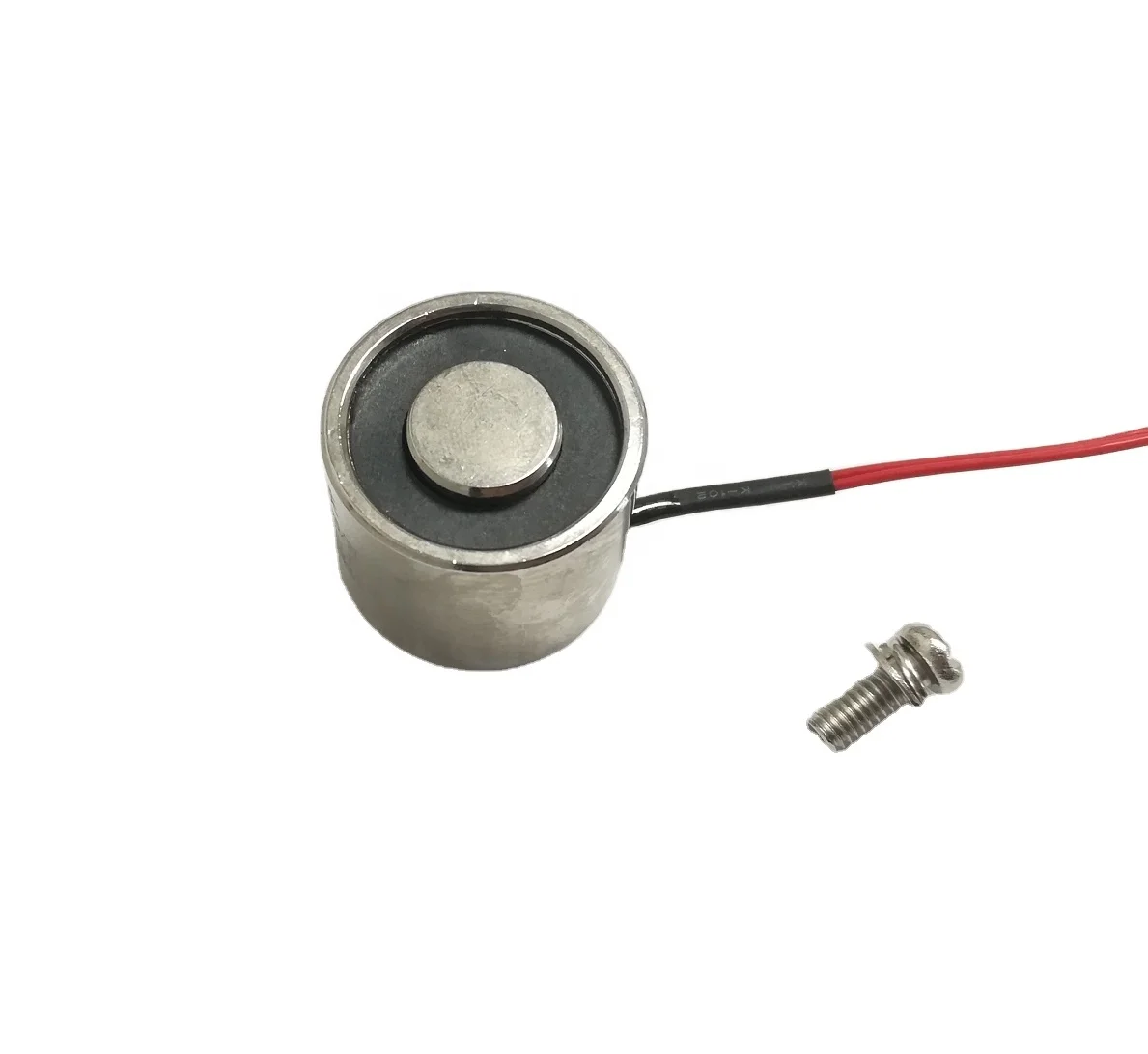

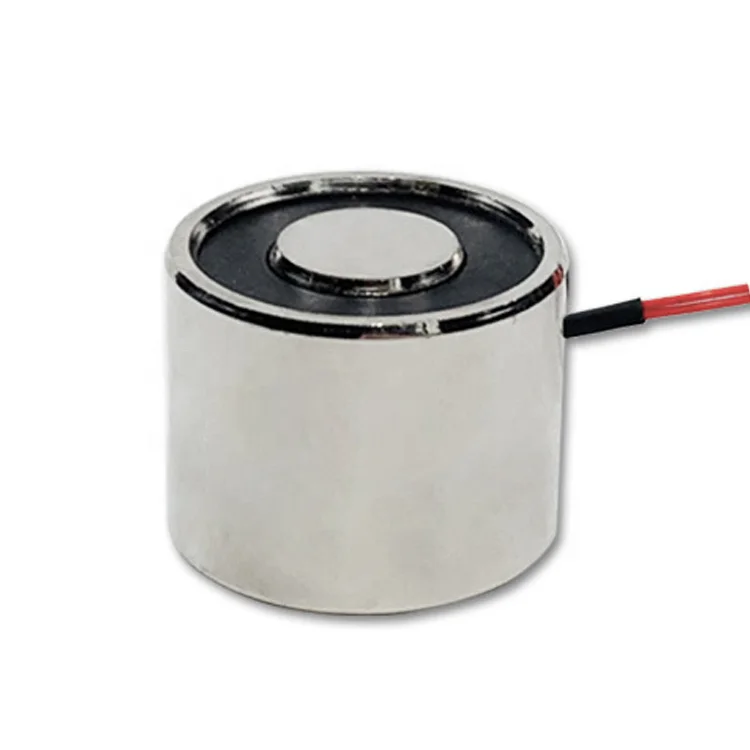

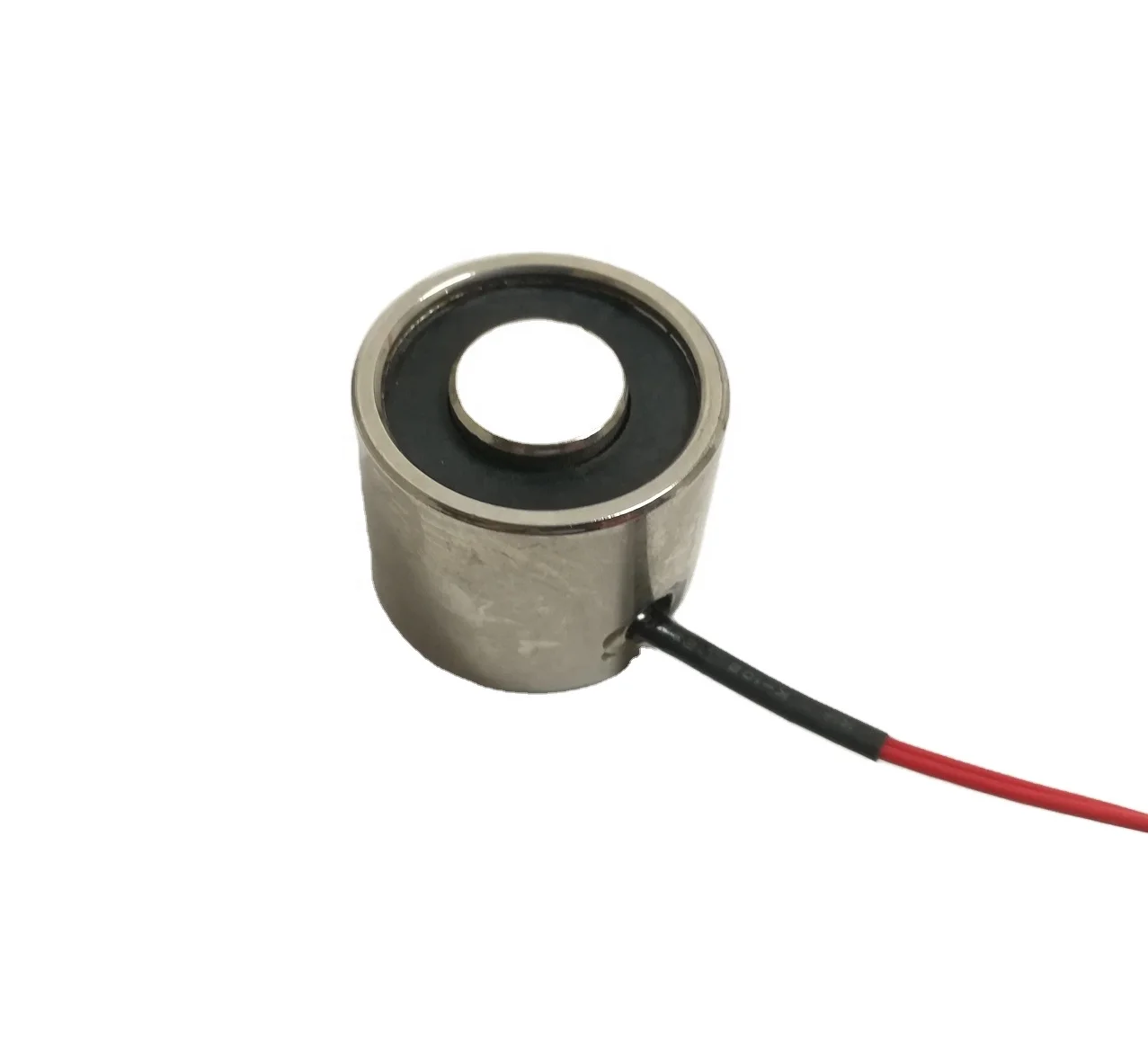

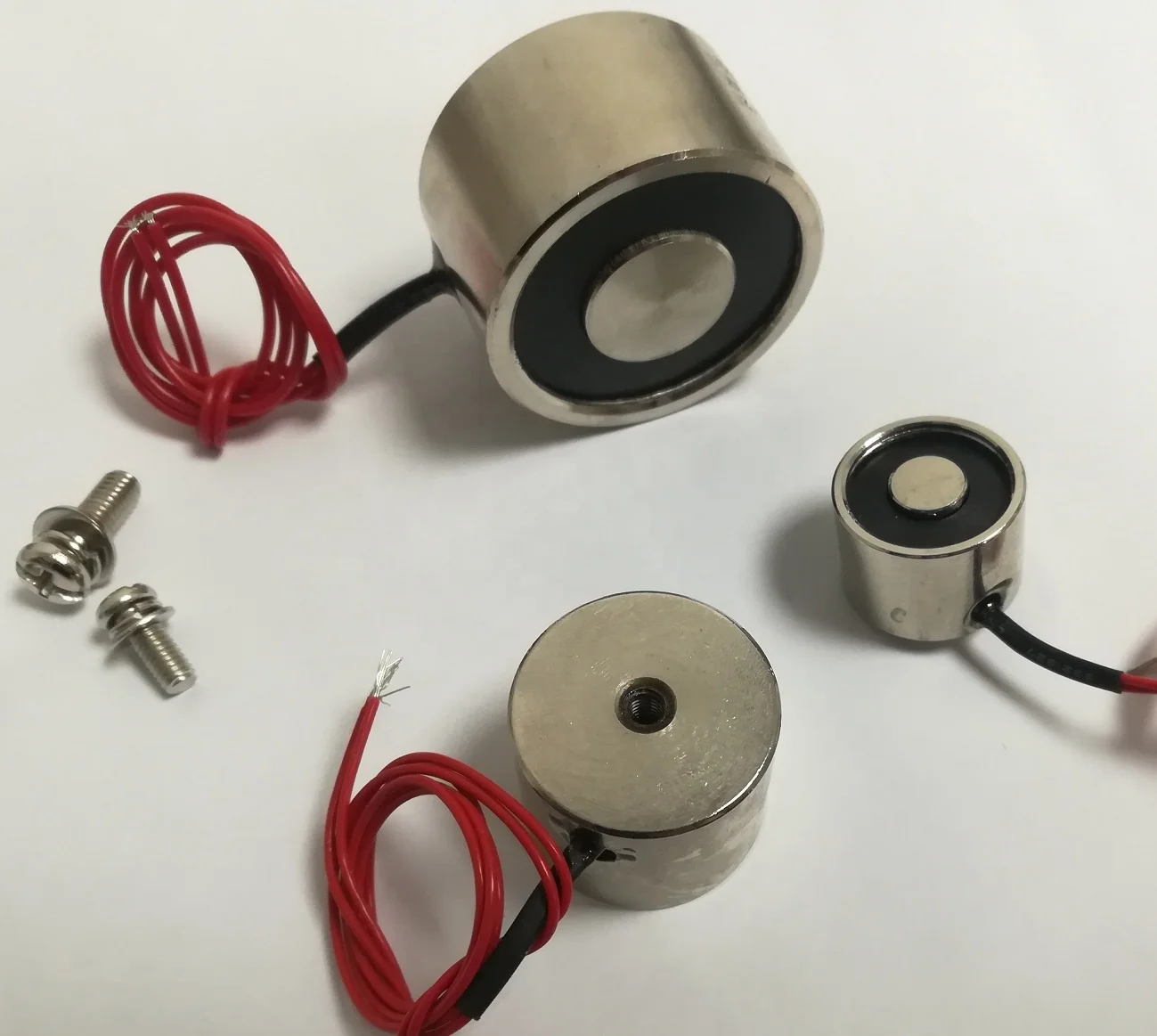

JSP 2511L 12V DC 5kgs force sucked holding solenoid electromagnet small lifting electromagnet
- Category: >>>
- Supplier: Ningbo Jinsun Magnetoelectric Technology Co. Ltd.
Share on (1600430638830):
Product Overview
Description
Specification

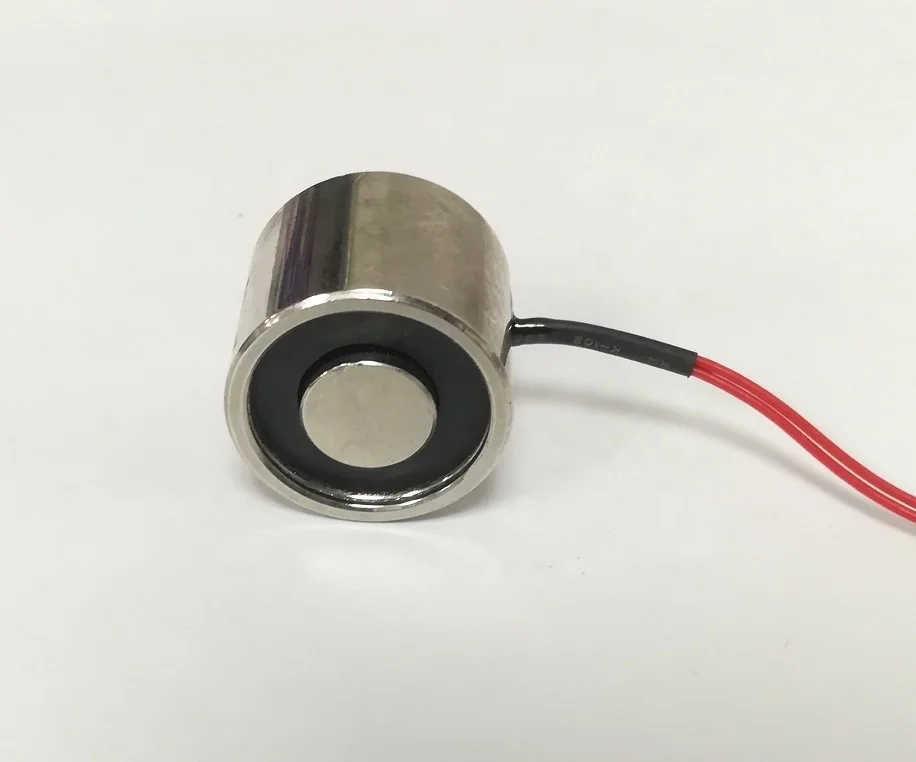

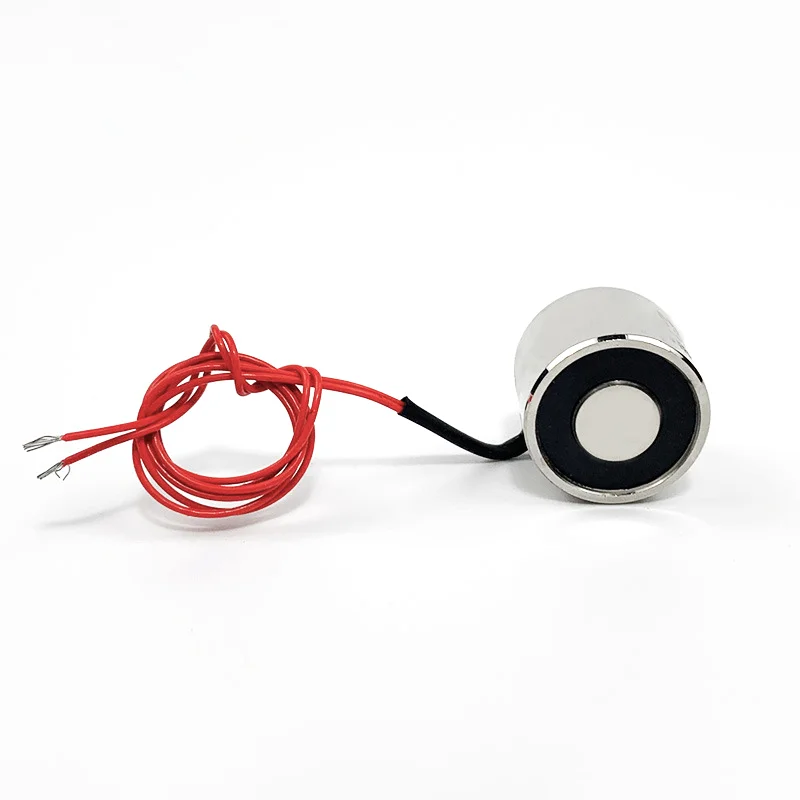

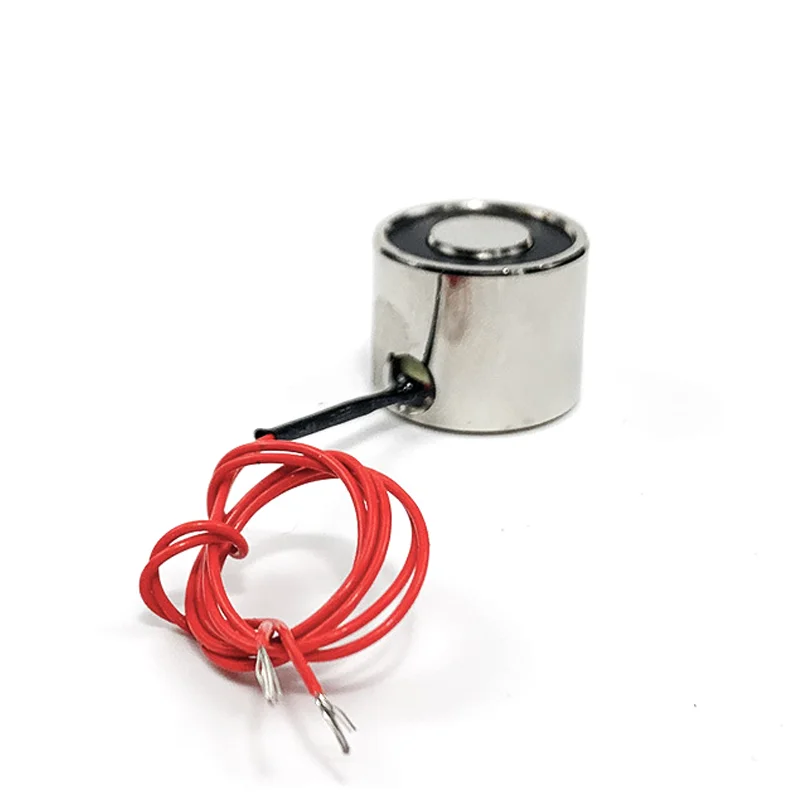

JSP-2511L 12V DC 5kgs force sucked holding solenoid electromagnet small lifting electromagnet
Product: Holding Electromagnet, Economy series

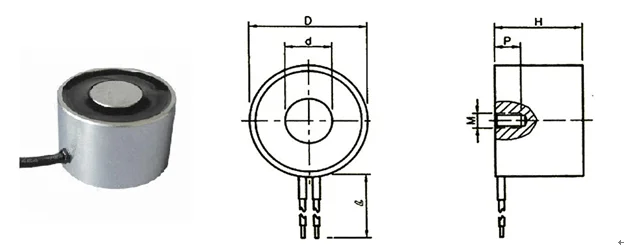

Size: Dia25 x 11mm
Voltage: 12V DC, or other voltage available 5V, 6V, 24VDC.
Force: 5kgs/50N
Duty cycle: 100%, continuous.
Product Name | Solenoid | Model | JSP-2511L |
Rated Voltage (V) | 12V dc | Product Size(mm) | Ø25 x H11 mm |
Work Model | Holding Type | Rated Power(W) | 2W |
Service Life | >500,000 Times | Holding Force (KG) | > 5KG |

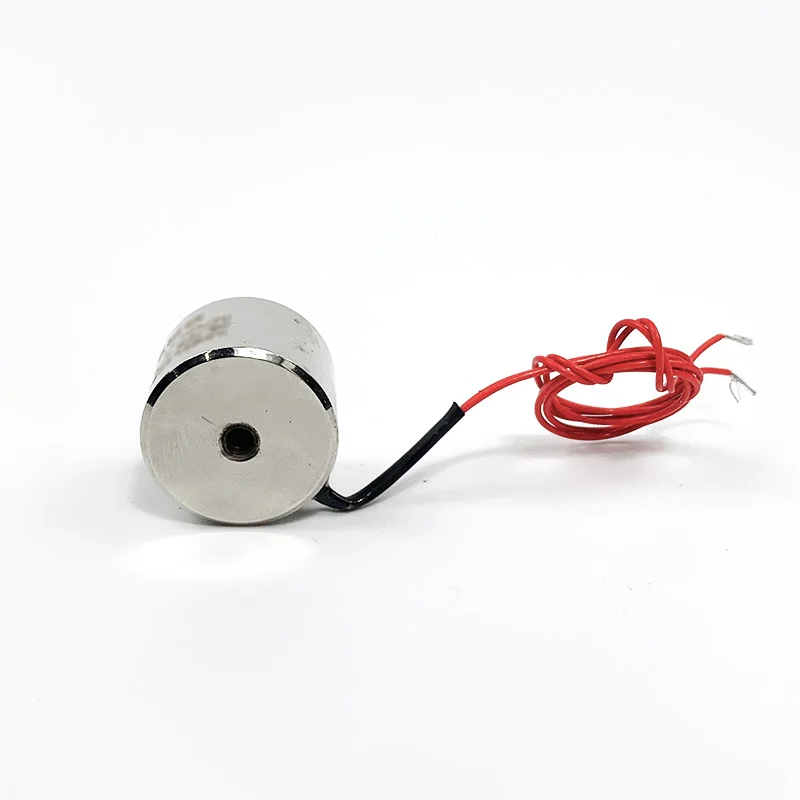

Material | Iron | Thread Size(mm) | M4 x H6 mm |
Install Style | By Screw | Thickness of contact plate | 2.5 mm |
N.W. (g) | 30g | Lead Wire Length(mm) | 200-650mm or Customized |
Certification | CE,ROHS,ISO9001 | Duty Cycle | 100% |
Sample Order | Yes | Max. Power on time(S) | No Limited |
MOQ | 1 pcs | Delivery Time | 7-10days |
Port of Loading | Ningbo | Warranty | 3 Year |
Family Product:
Please see below product series which may close to your application:
